1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f2d36dc6-85ee-4b90-a879-5f8640901ab7.png?width=208&height=426)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b8de8bfe-605f-4268-a984-b8e30031af21.png?width=208&height=426)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3129c1b7-66da-4778-977e-2b6e112be0fe.png?width=208&height=426)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-228087a1-56b8-4bb3-b8e2-612465c44a46.png?width=208&height=426)

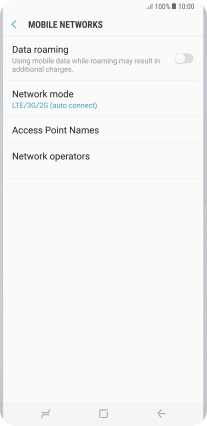

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f232a6ef-5845-4f9c-802f-1be06e723e87.png?width=208&height=426)
2. Create new data connection

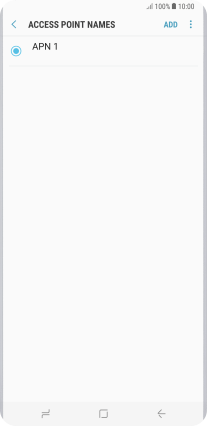

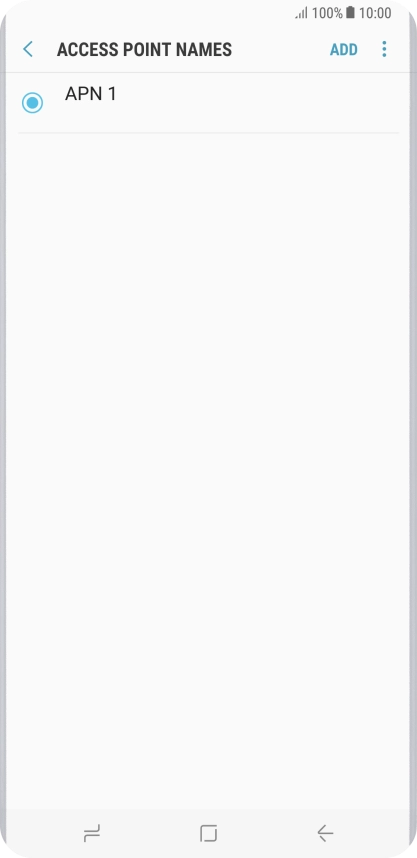

Press ADD.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-28f9eb3d-b7b0-4008-b7dd-d4d98b824ee3.png?width=208&height=426)

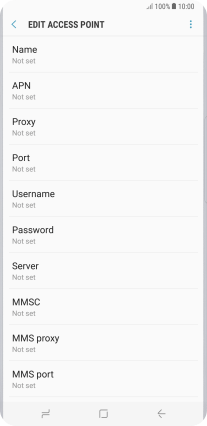

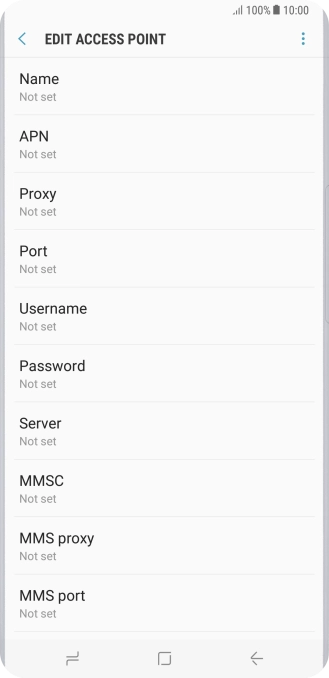

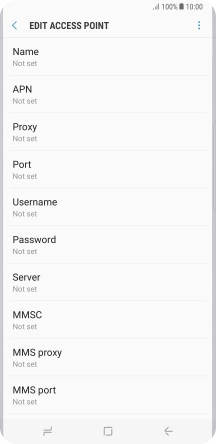

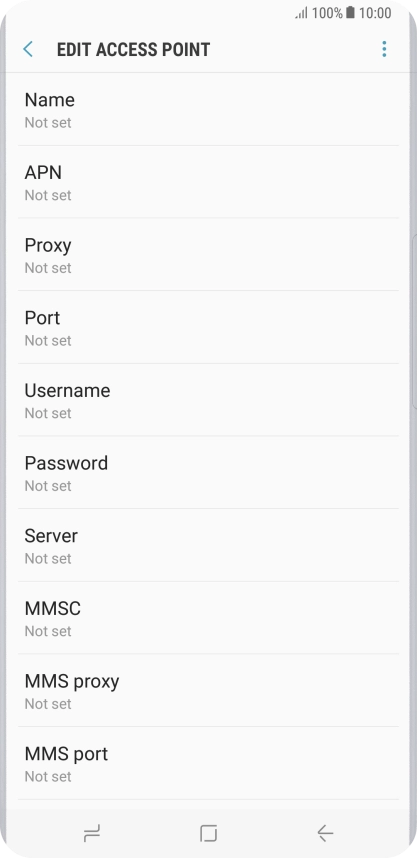

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f39156d7-f52a-47ba-8737-5c95e72f125c.png?width=208&height=426)

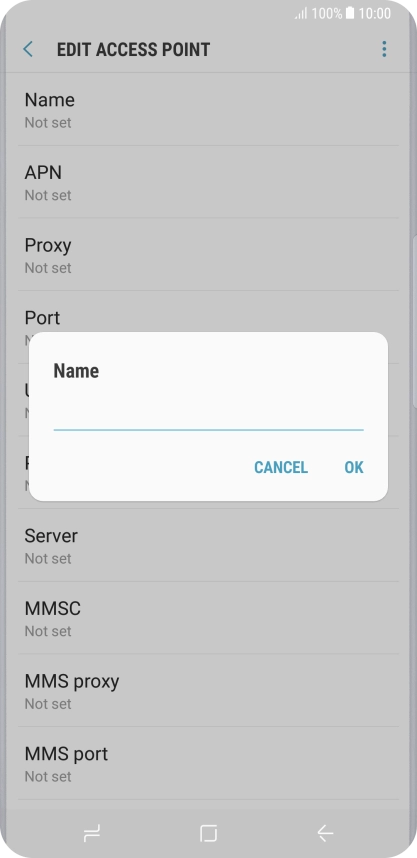

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3ac2ed00-2035-4d78-b199-826f82ec5fc4.png?width=208&height=426)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f39156d7-f52a-47ba-8737-5c95e72f125c.png?width=208&height=426)

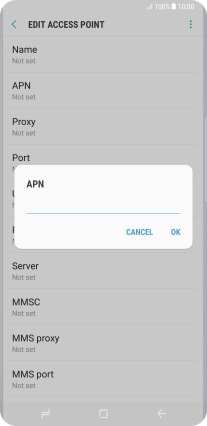

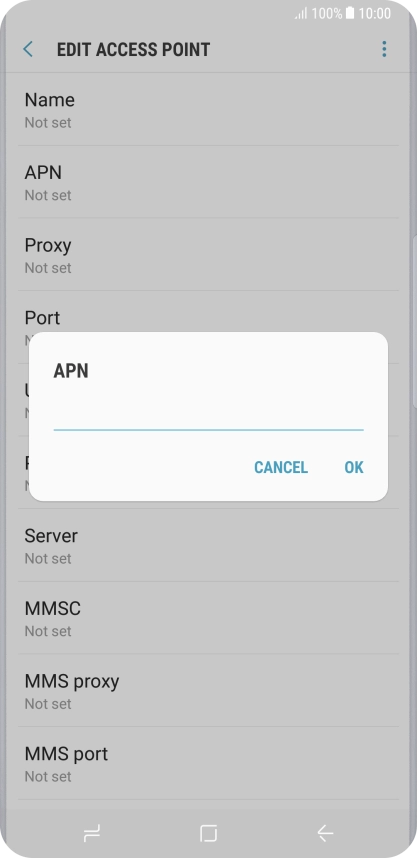

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6de36909-be0b-4d90-996f-3126dc872879.png?width=208&height=426)
live.vodafone.com
4. Enter country code

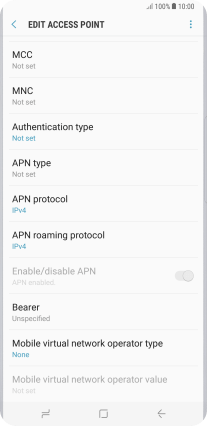

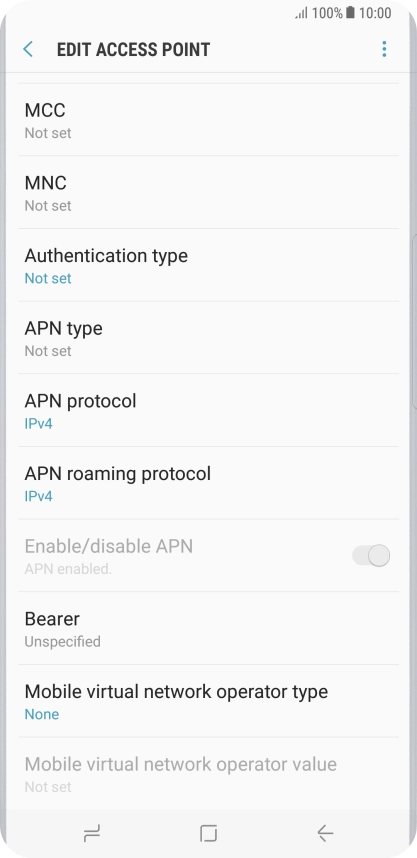

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-503253f9-c18b-4d7c-95f4-384fa88c5414.png?width=208&height=426)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5040359b-9ef2-4744-a634-d2d3abfba834.png?width=208&height=426)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-503253f9-c18b-4d7c-95f4-384fa88c5414.png?width=208&height=426)

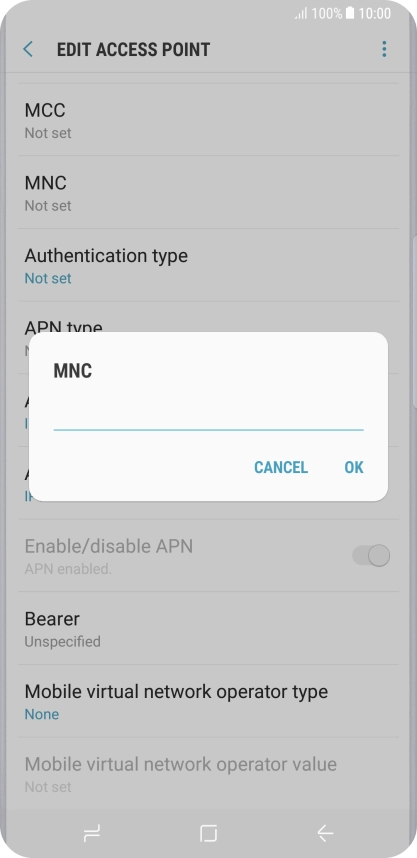

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-48475574-b072-4bea-a191-a1ce792dffa4.png?width=208&height=426)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-503253f9-c18b-4d7c-95f4-384fa88c5414.png?width=208&height=426)

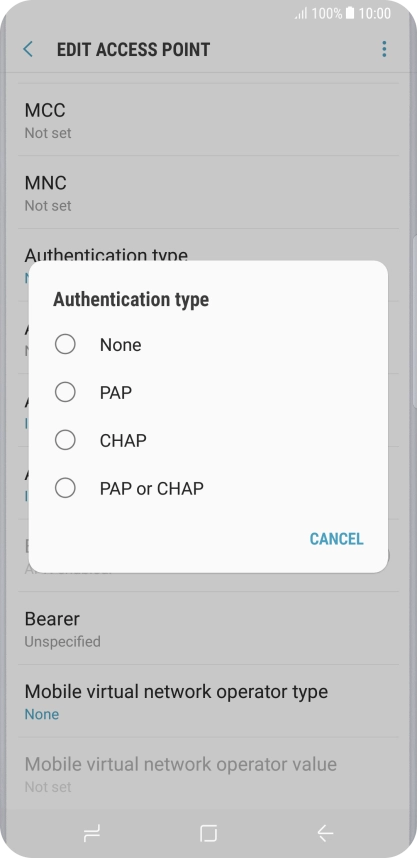

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1b1ebaca-4caf-42e0-8be1-b4ccaa8df16c.png?width=208&height=426)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-503253f9-c18b-4d7c-95f4-384fa88c5414.png?width=208&height=426)

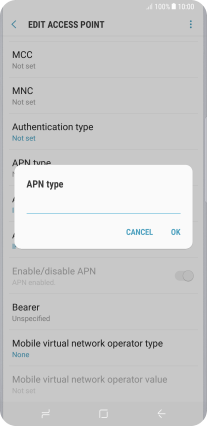

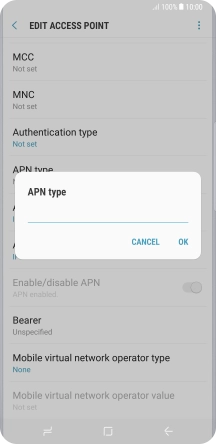

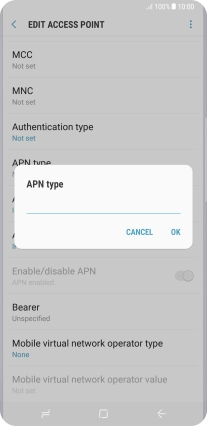

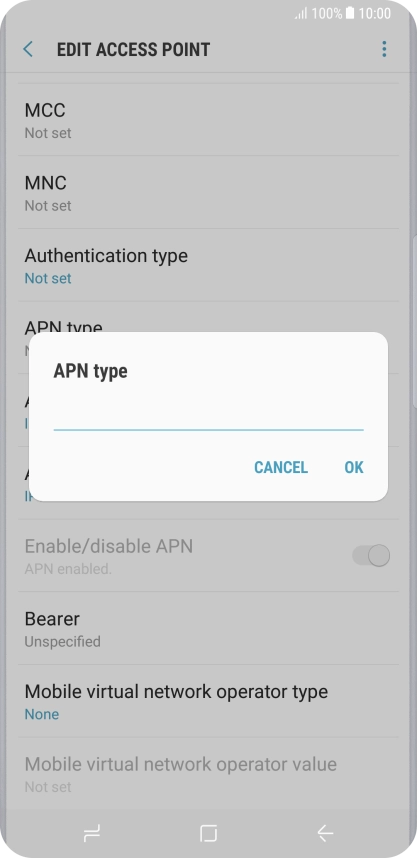

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-31a07cae-8375-434b-92a8-61cae24d11ee.png?width=208&height=426)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-503253f9-c18b-4d7c-95f4-384fa88c5414.png?width=208&height=426)

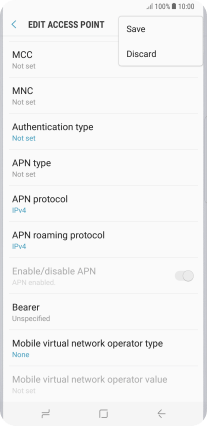

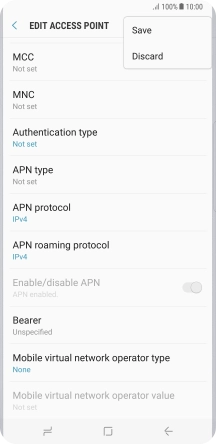

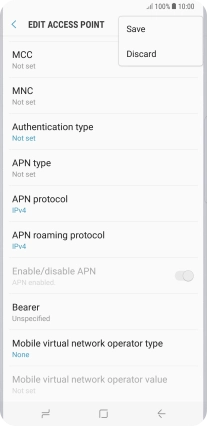

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7789731d-d103-48b0-b8bb-b843cd2f20a4.png?width=208&height=426)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c866fe54-4792-4cd8-9a18-b127704597c3.png?width=208&height=426)
9. Return to the home screen

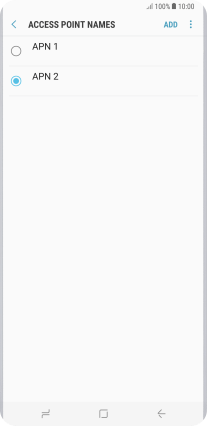

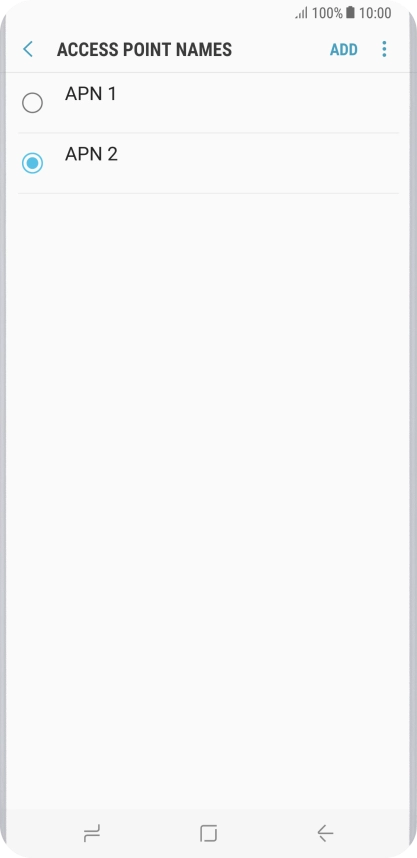

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7d3bfe10-a643-463d-a497-ef850e8fa1b9.png?width=208&height=426)
