Set up your device for POP3 email - Samsung Galaxy Tab 10.1 (P4)

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your device. Follow these instructions to set up your device for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your device for web-based email.

Step 1 of 56

Find "Access Point Names"

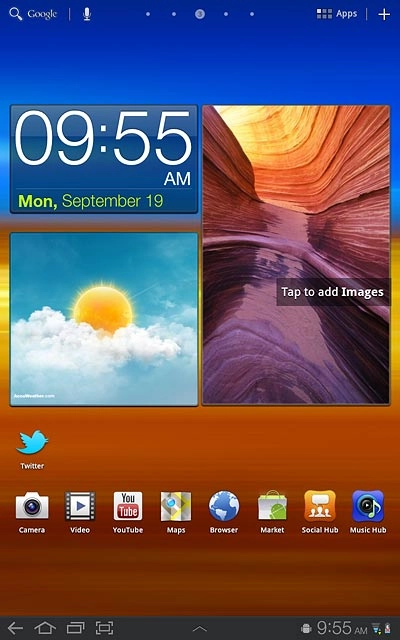

Press Apps.

Step 2 of 56

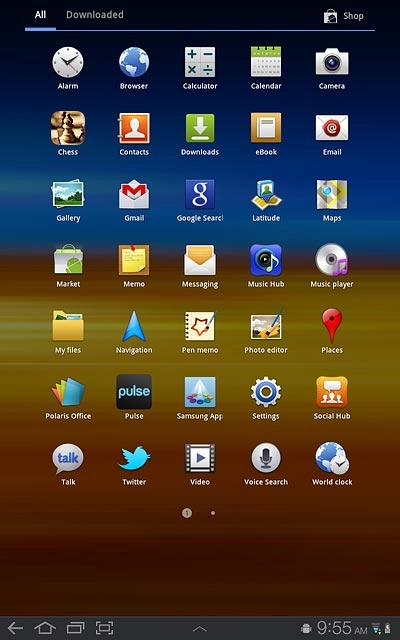

Find "Access Point Names"

Press Settings.

Step 3 of 56

Find "Access Point Names"

Press Wireless and networks.

Step 4 of 56

Find "Access Point Names"

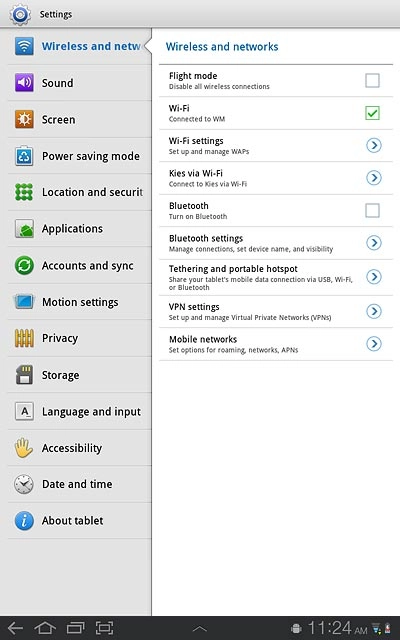

Press Mobile networks.

Step 5 of 56

Find "Access Point Names"

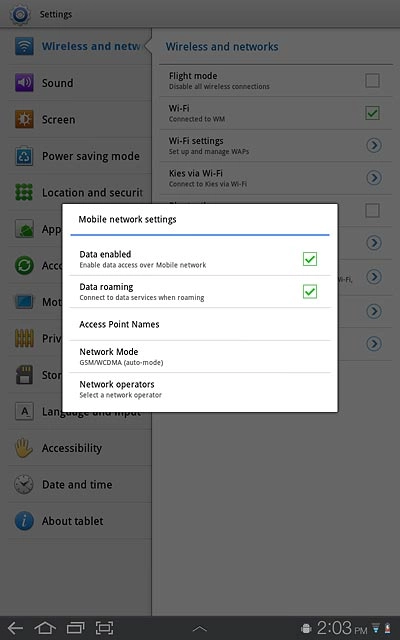

Press Access Point Names.

Step 6 of 56

Create new data connection

Press the menu icon.

Step 7 of 56

Create new data connection

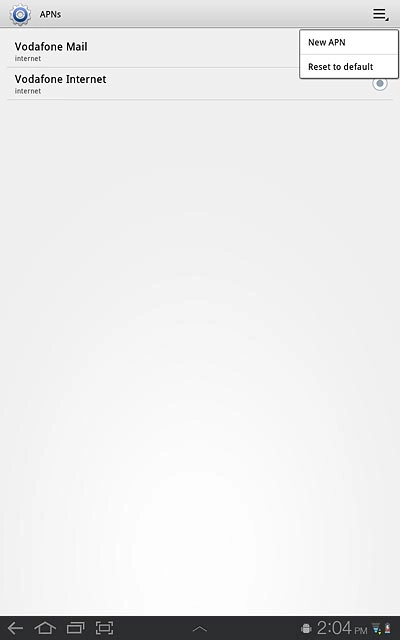

Press New APN.

Step 8 of 56

Enter data connection name

Press Name.

Step 9 of 56

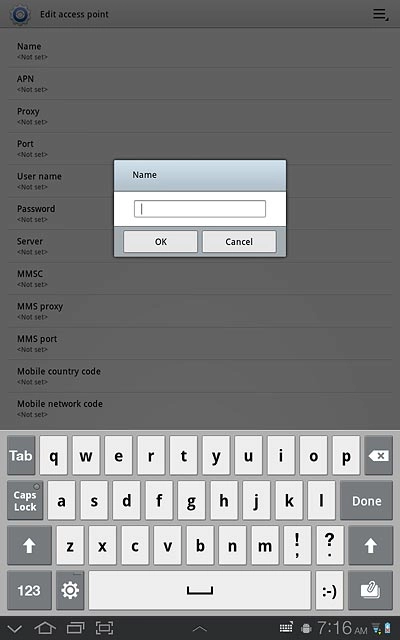

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 56

Enter APN

Press APN.
Key in live.vodafone.com

Step 11 of 56

Enter APN

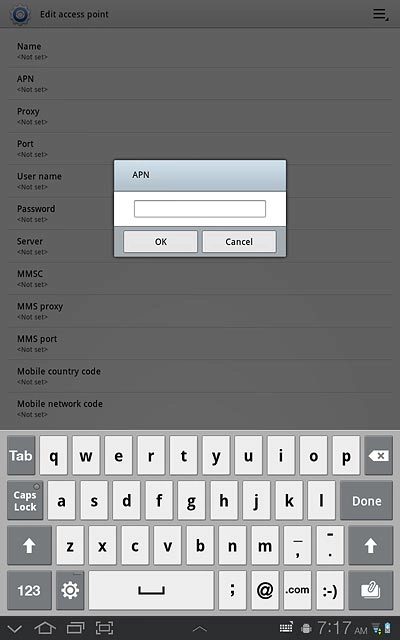

Press OK.

Step 12 of 56

Enter country code

Press Mobile country code.

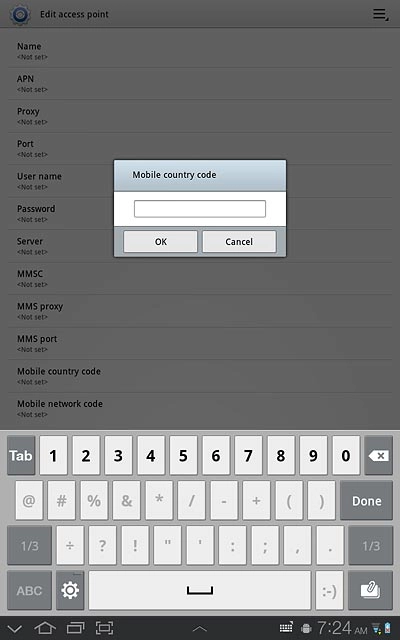

Step 13 of 56

Enter country code

Key in 505 and press OK.

Step 14 of 56

Enter network code

Press Mobile network code.

Step 15 of 56

Enter network code

Key in 03 and press OK.

Step 16 of 56

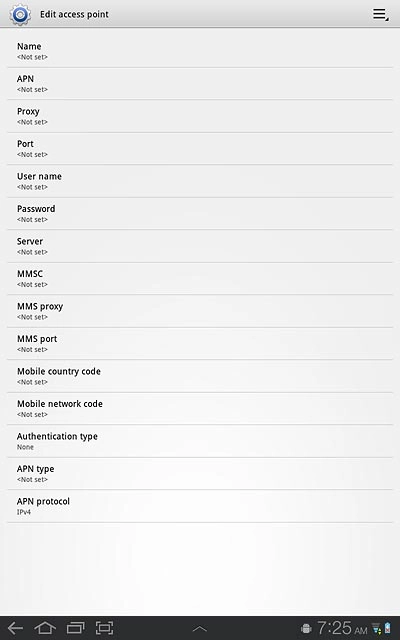

Select authentication type

Press Authentication type.

Step 17 of 56

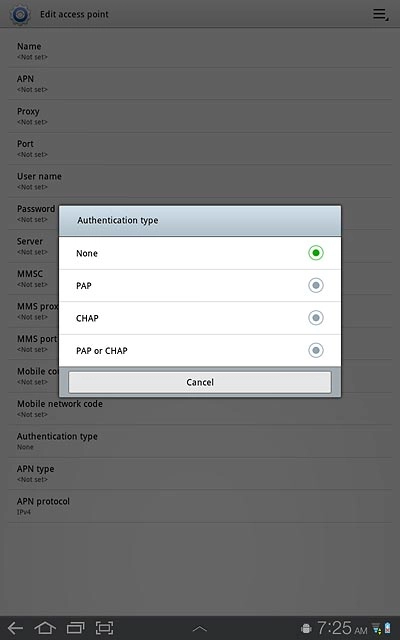

Select authentication type

Press PAP.

Step 18 of 56

Select APN type

Press APN type.

Step 19 of 56

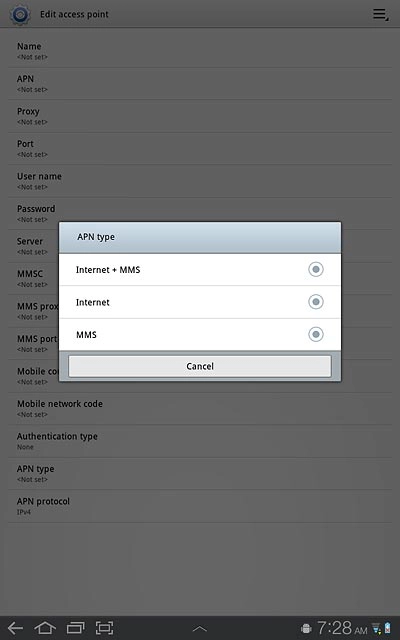

Select APN type

Press Internet.

Step 20 of 56

Save and activate data connection

Press the menu icon.

Step 21 of 56

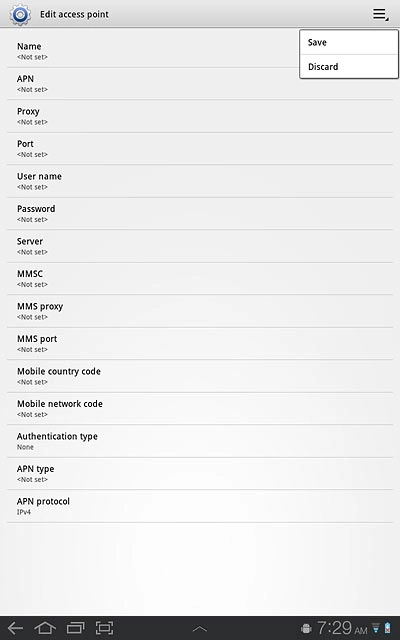

Save and activate data connection

Press Save.

Step 22 of 56

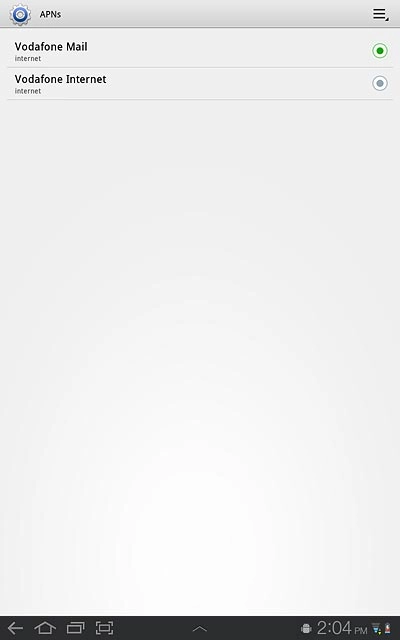

Save and activate data connection

Press the field next to Vodafone Mail to fill in the field.

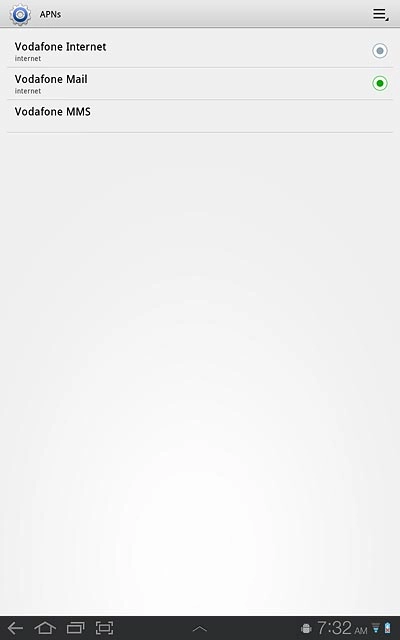

Step 23 of 56

Save and activate data connection

Press the home icon to return to standby mode.

Step 24 of 56

Find "Email"

Press Apps.

Step 25 of 56

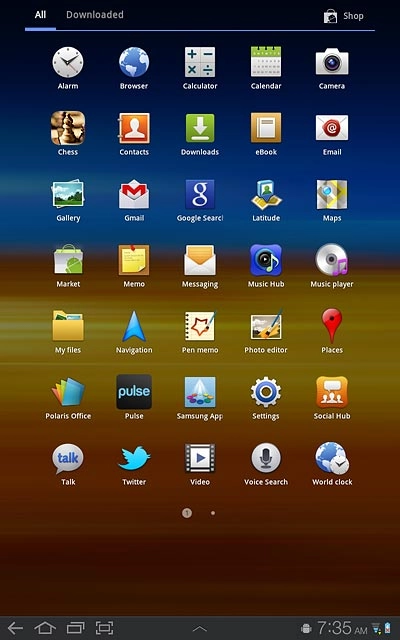

Find "Email"

Press Email.

Step 26 of 56

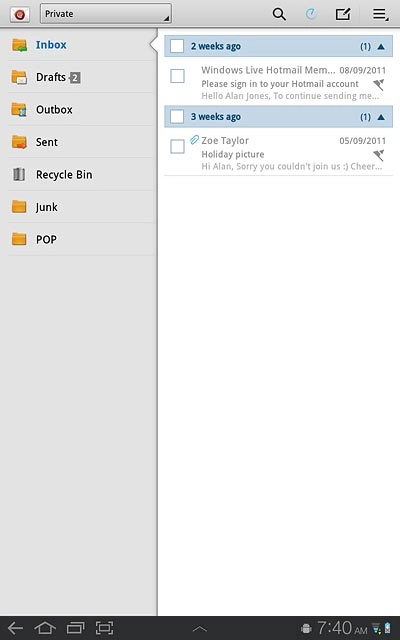

Create new email account

If email accounts have been created already:
Press the menu icon.

Step 27 of 56

Create new email account

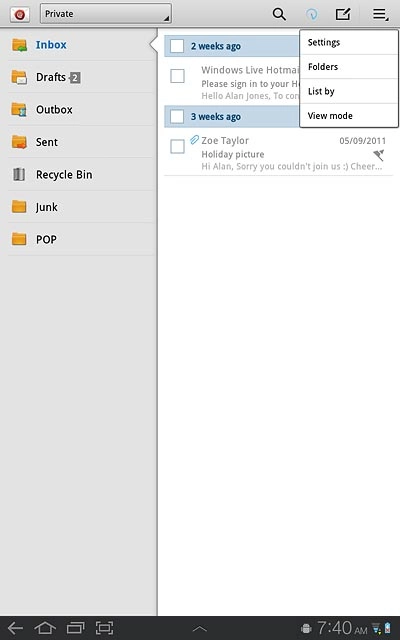

Press Settings.

Step 28 of 56

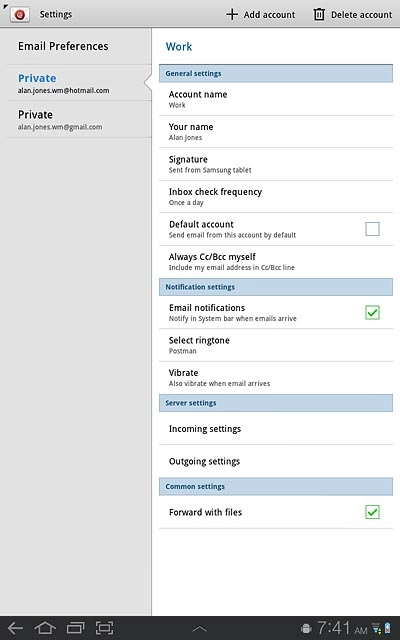

Create new email account

Press Add account.

Step 29 of 56

Enter email address

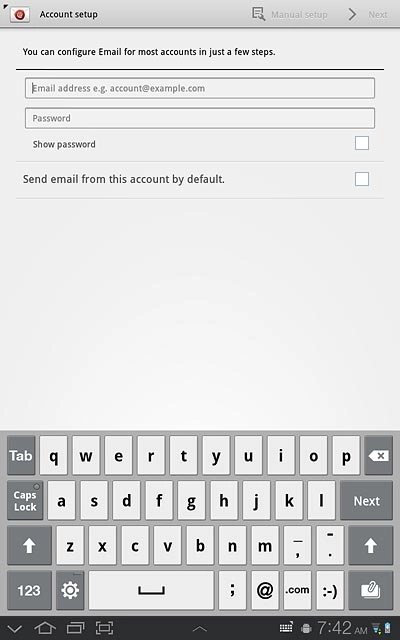

Press Email address e.g. account@example.com and key in your email address.

Step 30 of 56

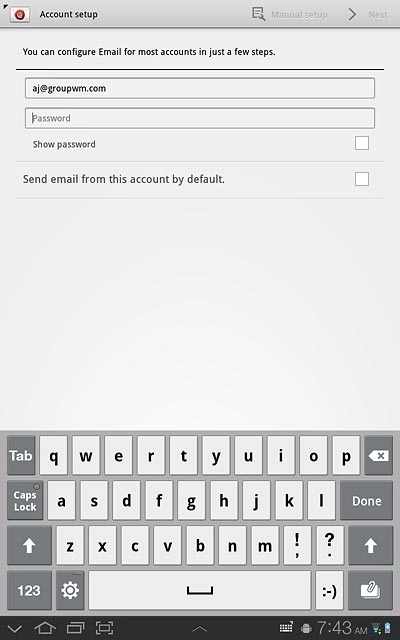

Enter password

Press Password and key in the password for your email account.

Step 31 of 56

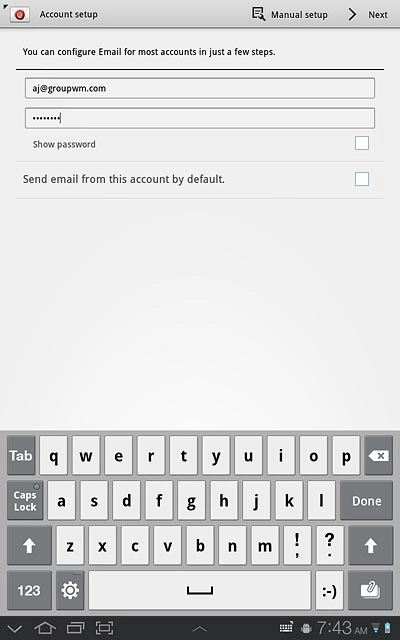

Enter password

Press Next.

Step 32 of 56

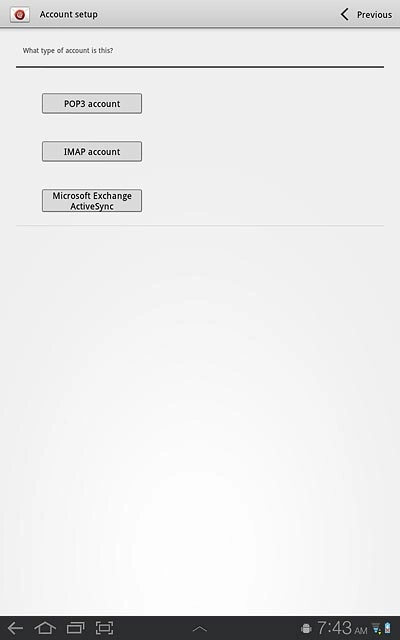

Select server type

Press POP3 account.

Step 33 of 56

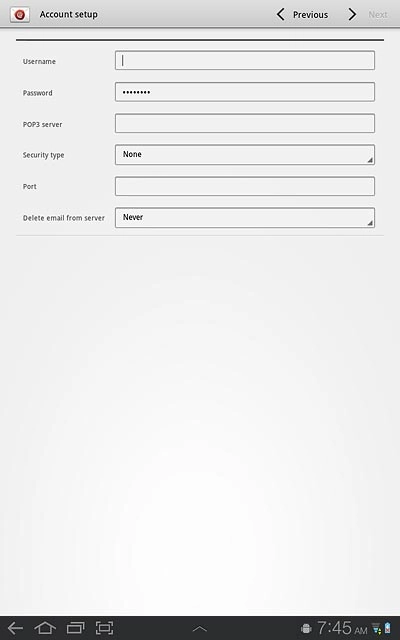

Enter username

Press the field next to Username and key in the username for your email account.

Step 34 of 56

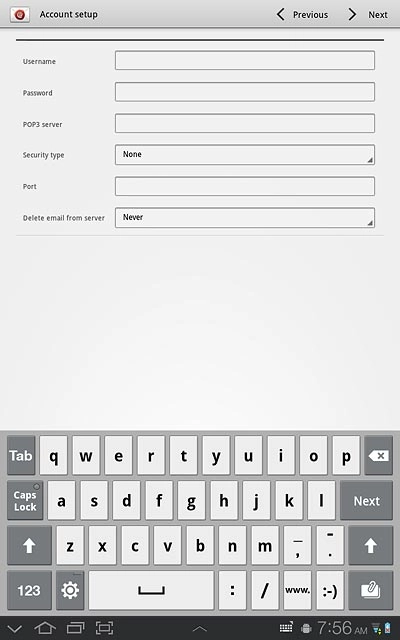

Enter incoming server

Press the field next to POP3 server and key in the name or IP address of your email provider's incoming server.

Step 35 of 56

Turn encryption of incoming email messages on or off

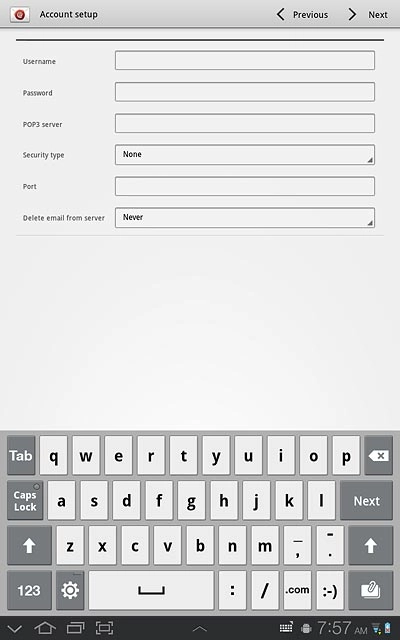

Press the drop down list next to Security type.

Step 36 of 56

Turn encryption of incoming email messages on or off

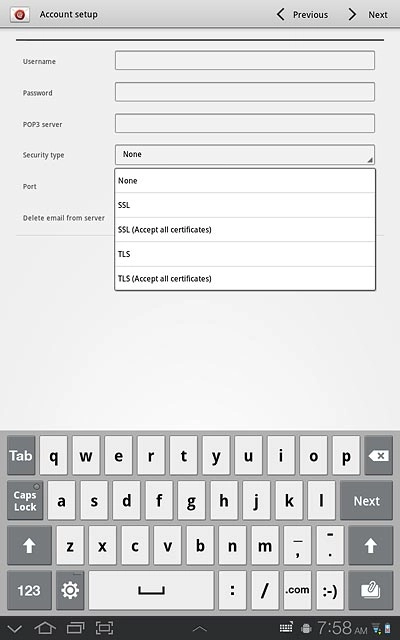

Press None.

Step 37 of 56

Enter incoming port

Press the field next to Port and key in 110

Step 38 of 56

Select setting for deletion of email messages

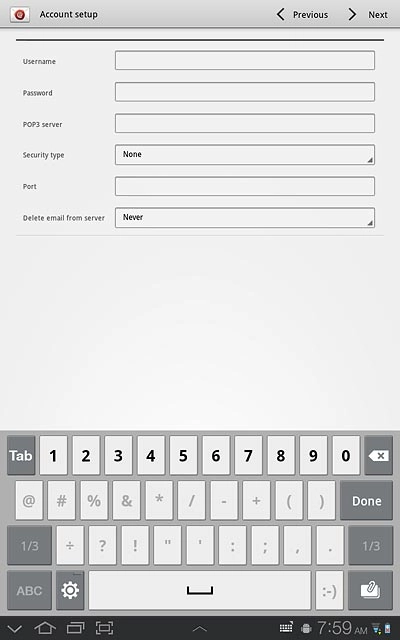

Press the drop down list next to Delete email from server and press the required setting

Step 39 of 56

Select setting for deletion of email messages

Press Next.

Step 40 of 56

Enter outgoing server

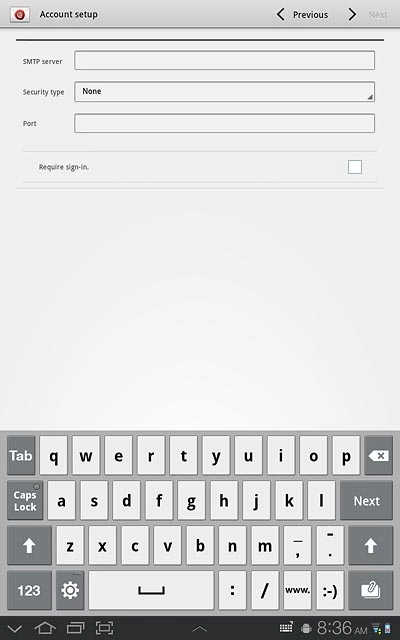

Press the field next to SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 41 of 56

Turn encryption of outgoing email messages off

Press the drop down list next to Security type.

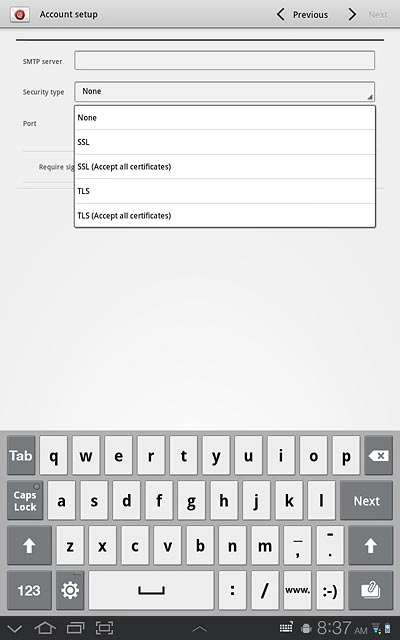

Step 42 of 56

Turn encryption of outgoing email messages off

Press None.

Step 43 of 56

Enter outgoing port

Press the field next to Port and key in 25

Step 44 of 56

Turn SMTP authentication on or off

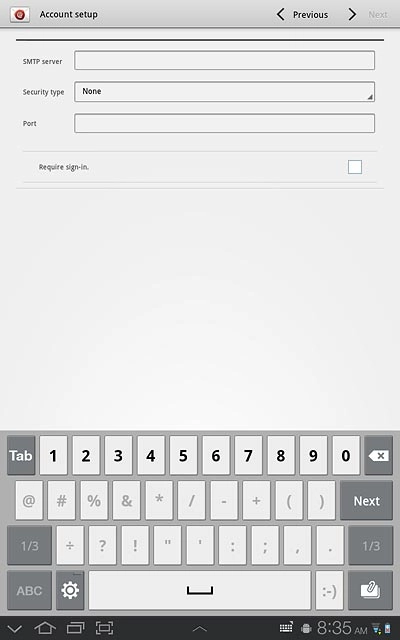

Press the box next to Require sign-in to turn SMTP authentication on or off.

Step 45 of 56

Turn SMTP authentication on or off

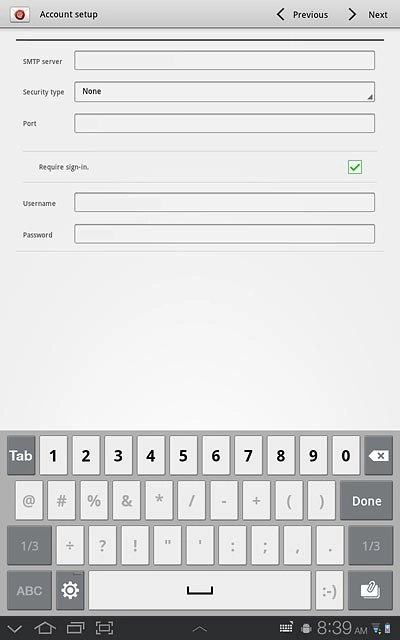

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 46 of 56

Select setting for retrieving new email messages

Press the drop down list next to Inbox checking frequency.

Step 47 of 56

Select setting for retrieving new email messages

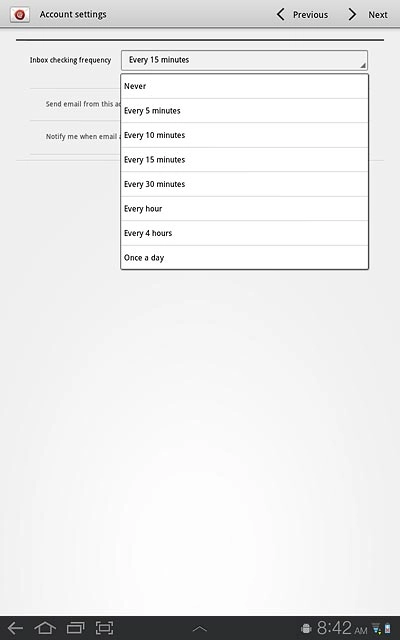

Press Never or the required period.

Step 48 of 56

Select default email account

Press the box next to Send email from this account by default. to turn the function on or off.

Step 49 of 56

Select default email account

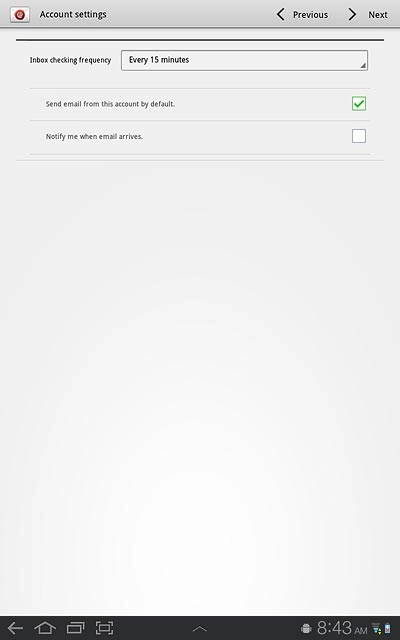

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 56

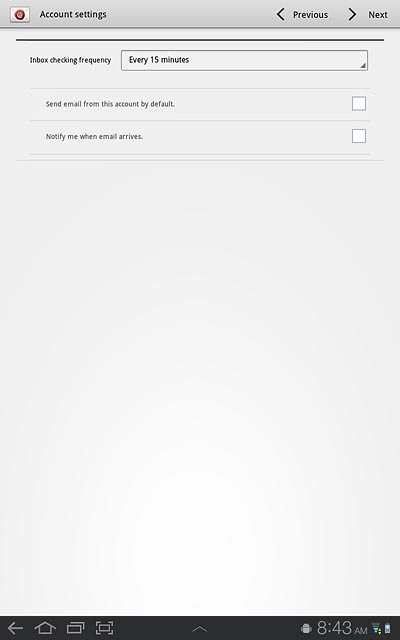

Turn email message notification on or off

Press the box next to Notify me when email arrives. to turn the function on or off.

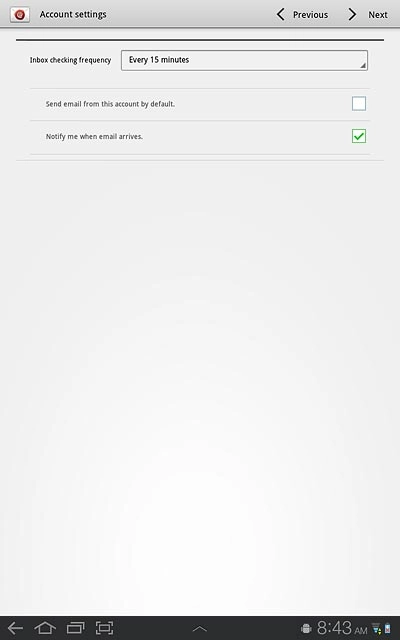

Step 51 of 56

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 56

Turn email message notification on or off

Press Next.

Step 53 of 56

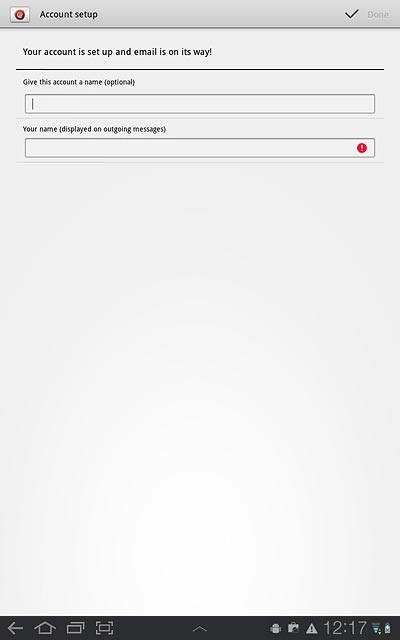

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 54 of 56

Enter sender name

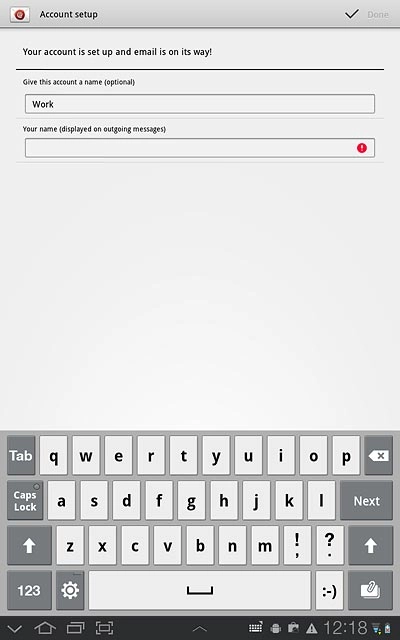

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 55 of 56

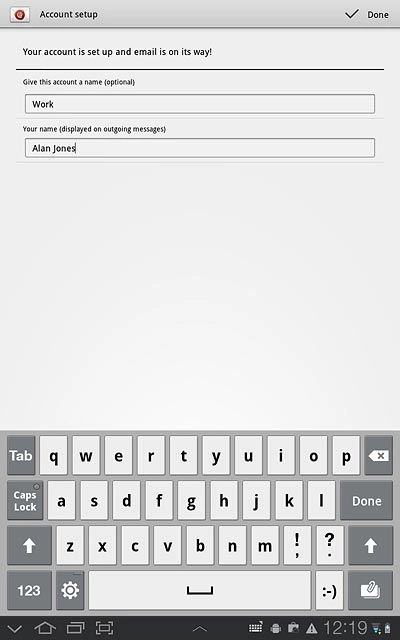

Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

Step 56 of 56

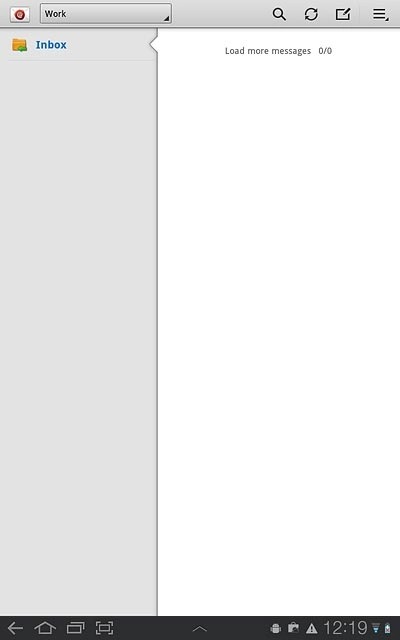

Exit

Press the home icon to return to standby mode.

Find "Access Point Names"

Press Apps.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter country code

Press Mobile country code.
Key in 505 and press OK.

Enter network code

Press Mobile network code.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press Internet.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the home icon to return to standby mode.

Find "Email"

Press Apps.
Press Email.

Create new email account

If email accounts have been created already:
Press the menu icon.
Press Settings.
Press Add account.

Enter email address

Press Email address e.g. account@example.com and key in your email address.

Enter password

Press Password and key in the password for your email account.
Press Next.

Select server type

Press POP3 account.

Enter username

Press the field next to Username and key in the username for your email account.

Enter incoming server

Press the field next to POP3 server and key in the name or IP address of your email provider's incoming server.

Turn encryption of incoming email messages on or off

Press the drop down list next to Security type.
Press None.

Enter incoming port

Press the field next to Port and key in 110

Select setting for deletion of email messages

Press the drop down list next to Delete email from server and press the required setting
Press Next.

Enter outgoing server

Press the field next to SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Turn encryption of outgoing email messages off

Press the drop down list next to Security type.
Press None.

Enter outgoing port

Press the field next to Port and key in 25

Turn SMTP authentication on or off

Press the box next to Require sign-in to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Select setting for retrieving new email messages

Press the drop down list next to Inbox checking frequency.
Press Never or the required period.

Select default email account

Press the box next to Send email from this account by default. to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn email message notification on or off

Press the box next to Notify me when email arrives. to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

Exit

Press the home icon to return to standby mode.
