Set up your device for web-based email - Samsung Galaxy Tab 10.1 (P4)

Read help info

You can send and retrieve email messages from a web-based email account, such as Hotmail, Yahoo! Mail and Gmail. Follow these instructions to set up your device for web-based email.
Before you can set up your device for web-based email, you need an account with the required email provider. If you don't have an account, you can set one up on the web page of the email provider.

Please note that the steps below are based on a web-based email account. If you have a POP3 email account, you need to use the settings for POP3 email. Click here for information on how to set up your device for POP3 email.

Step 1 of 42

Find "Access Point Names"

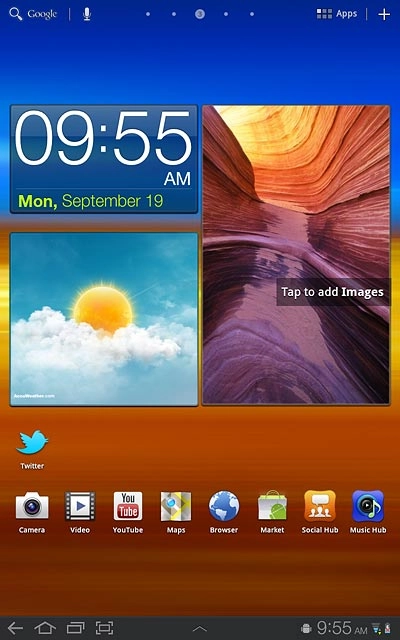

Press Apps.

Step 2 of 42

Find "Access Point Names"

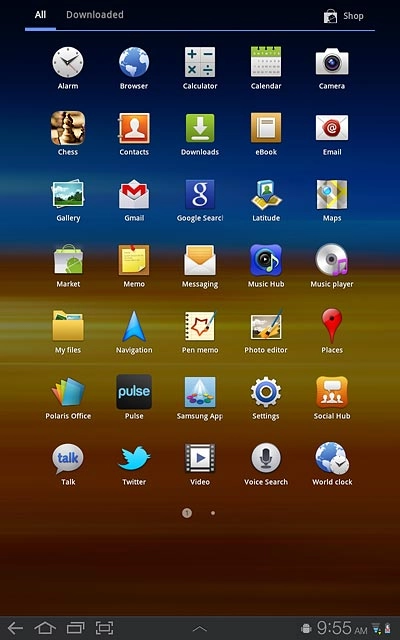

Press Settings.

Step 3 of 42

Find "Access Point Names"

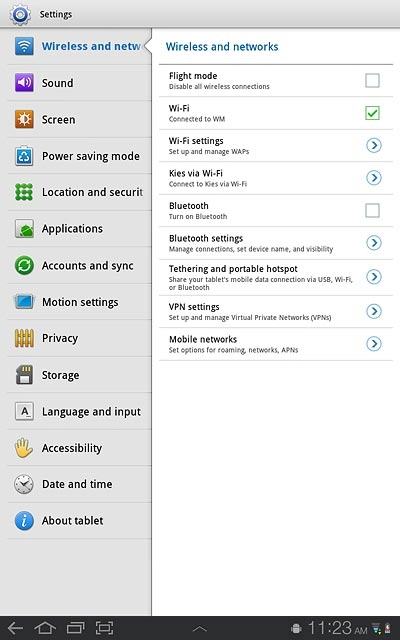

Press Wireless and networks.

Step 4 of 42

Find "Access Point Names"

Press Mobile networks.

Step 5 of 42

Find "Access Point Names"

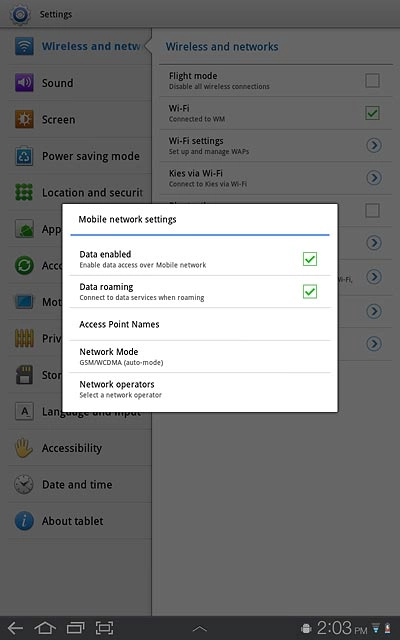

Press Access Point Names.

Step 6 of 42

Create new data connection

Press the menu icon.

Step 7 of 42

Create new data connection

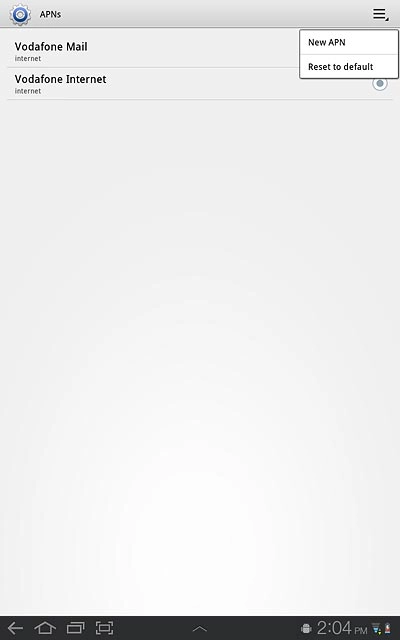

Press New APN.

Step 8 of 42

Enter data connection name

Press Name.

Step 9 of 42

Enter data connection name

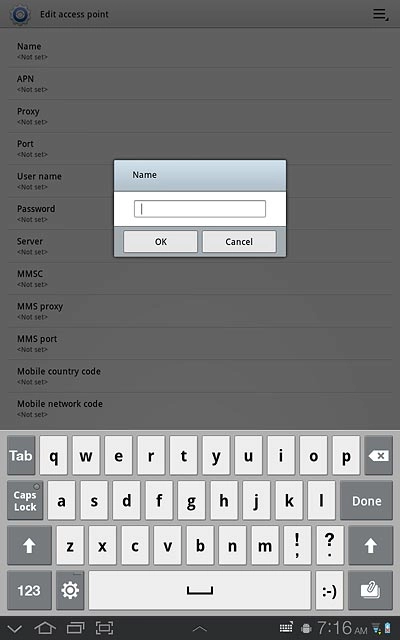

Key in Vodafone Mail and press OK.

Step 10 of 42

Enter APN

Press APN.
Key in live.vodafone.com

Step 11 of 42

Enter APN

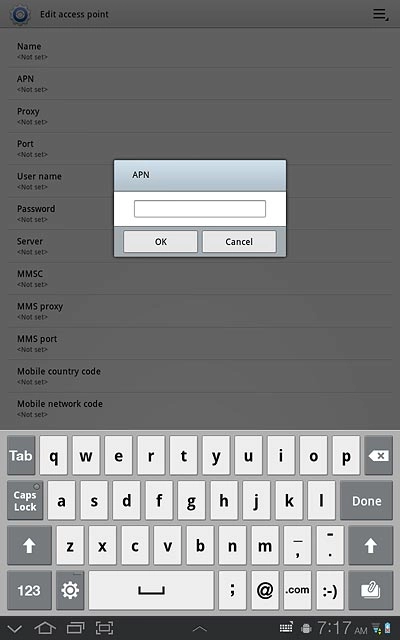

Press OK.

Step 12 of 42

Enter country code

Press Mobile country code.

Step 13 of 42

Enter country code

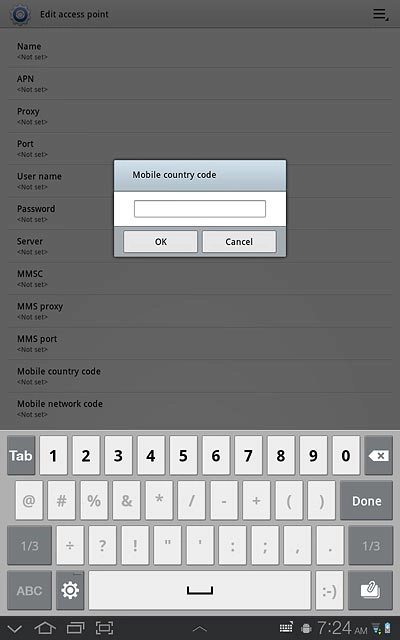

Key in 505 and press OK.

Step 14 of 42

Enter network code

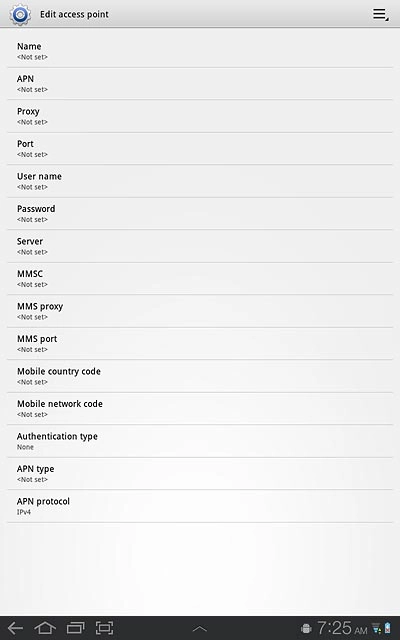

Press Mobile network code.

Step 15 of 42

Enter network code

Key in 03 and press OK.

Step 16 of 42

Select authentication type

Press Authentication type.

Step 17 of 42

Select authentication type

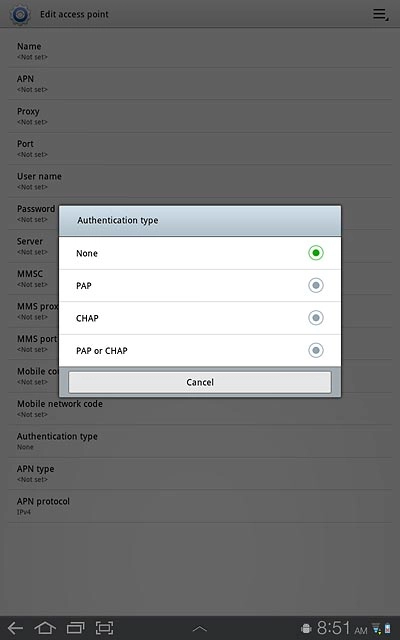

Press PAP.

Step 18 of 42

Select APN type

Press APN type.

Step 19 of 42

Select APN type

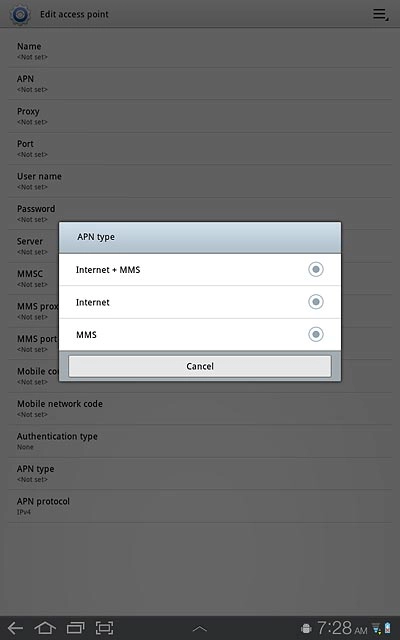

Press Internet.

Step 20 of 42

Save and activate data connection

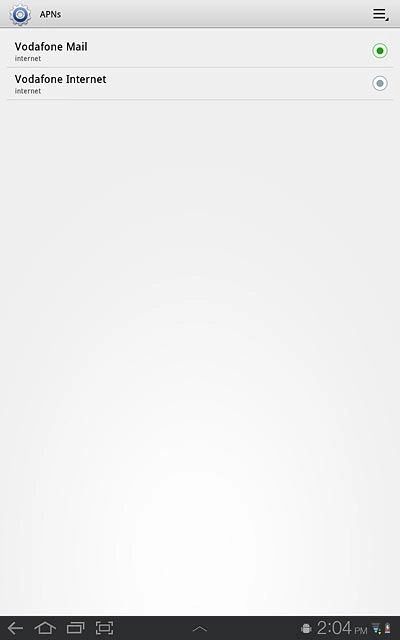

Press the menu icon.

Step 21 of 42

Save and activate data connection

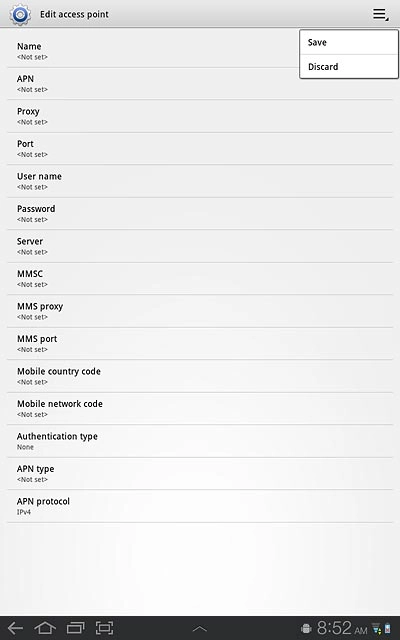

Press Save.

Step 22 of 42

Save and activate data connection

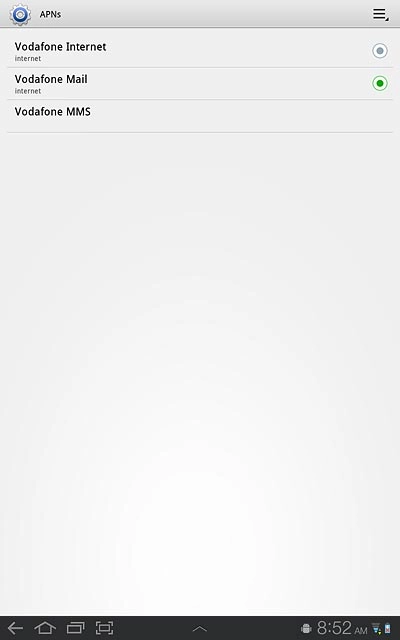

Press the field next to Vodafone Mail to fill in the field.

Step 23 of 42

Save and activate data connection

Press the home icon to return to standby mode.

Step 24 of 42

Find "Email"

Press Apps.

Step 25 of 42

Find "Email"

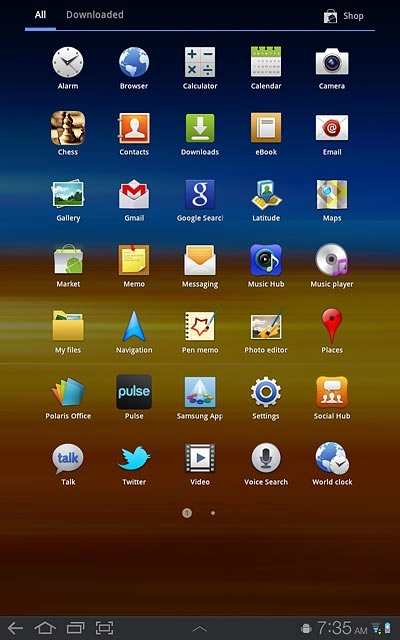

Press Email.

Step 26 of 42

Create new email account

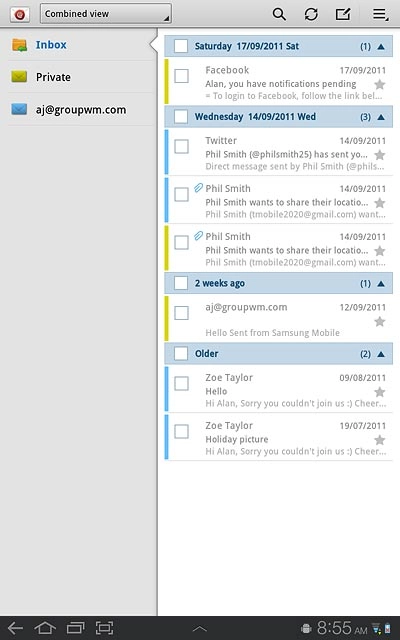

If email accounts have been created already:
Press the menu icon.

Step 27 of 42

Create new email account

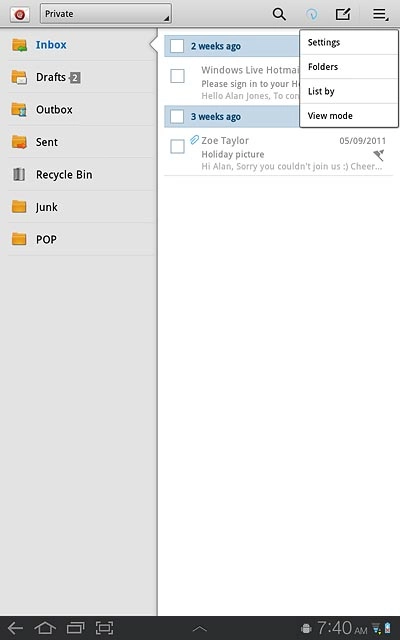

Press Settings.

Step 28 of 42

Create new email account

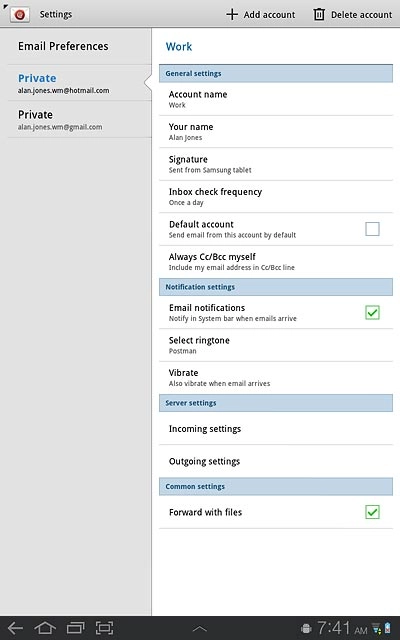

Press Add account.

Step 29 of 42

Enter email address

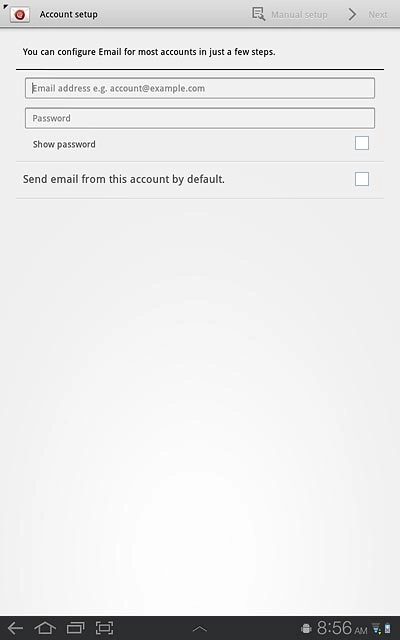

Press Email address e.g. account@example.com and key in your email address (such as name@provider.com).

Step 30 of 42

Enter password

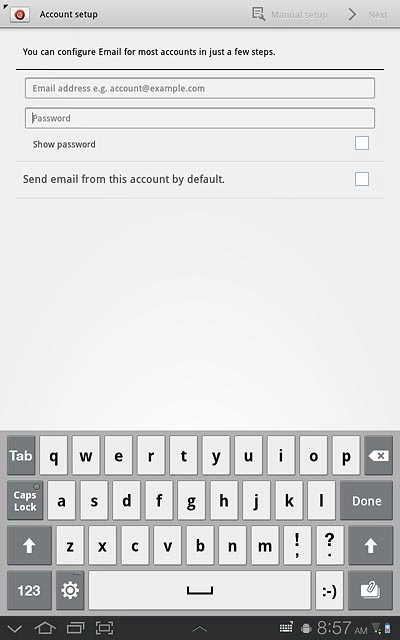

Press Password and key in the password for your email account at your email provider.

Step 31 of 42

Enter password

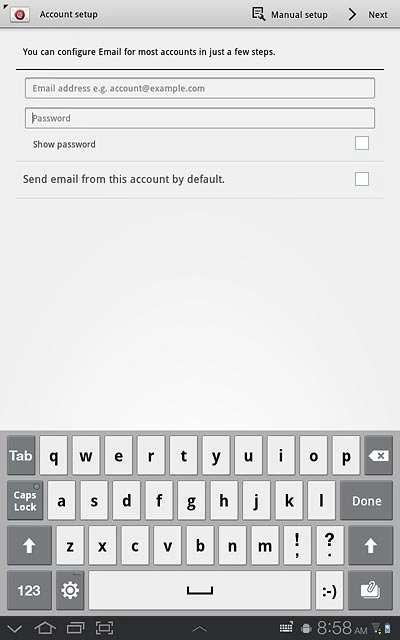

Press Next.

Step 32 of 42

Select setting for retrieving new email messages

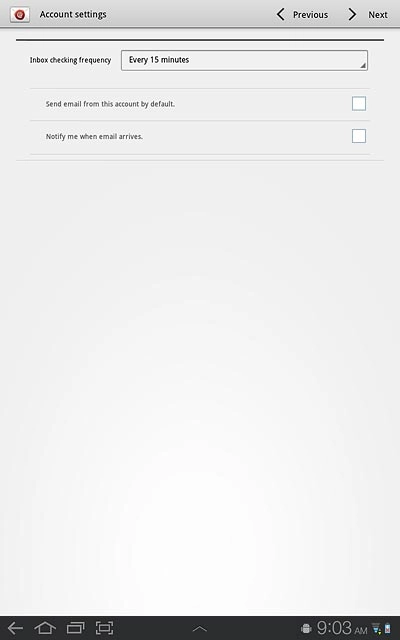

Press the drop down list next to Inbox checking frequency.

Step 33 of 42

Select setting for retrieving new email messages

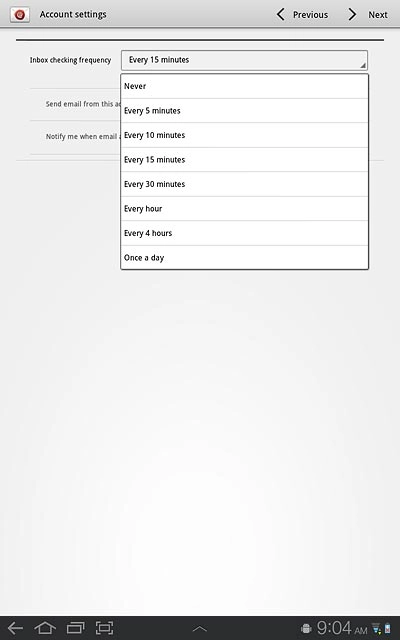

Press Never or the required period.

Step 34 of 42

Select default email account

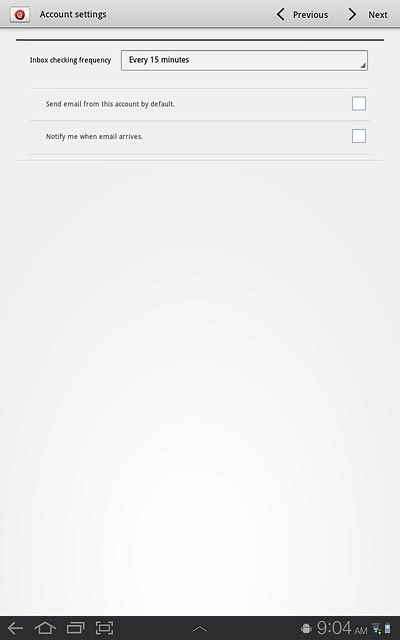

Press the box next to Send email from this account by default. to turn the function on or off.

Step 35 of 42

Select default email account

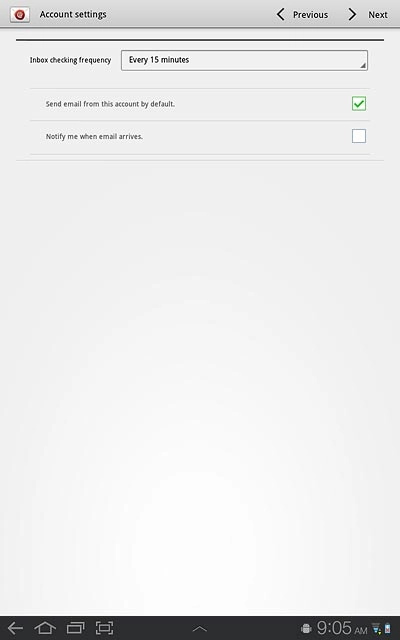

When the box next to the menu item is ticked (V), the function is turned on.

Step 36 of 42

Turn email message notification on or off

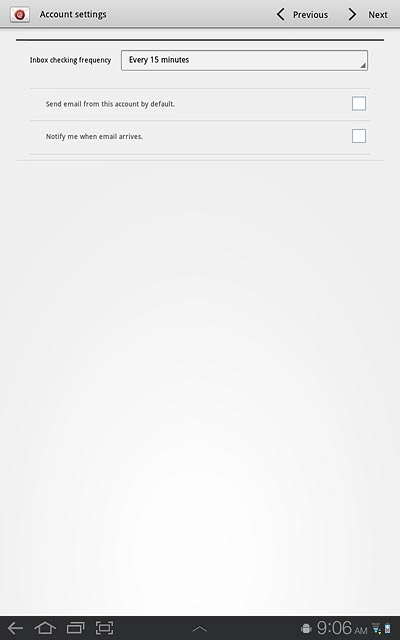

Press the box next to Notify me when email arrives. to turn the function on or off.

Step 37 of 42

Turn email message notification on or off

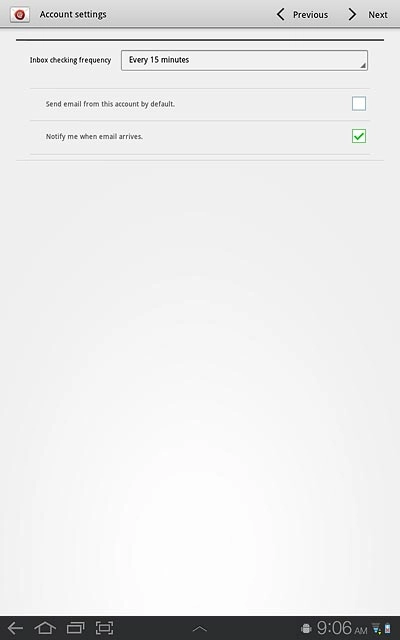

When the box next to the menu item is ticked (V), the function is turned on.

Step 38 of 42

Turn email message notification on or off

Press Next.

Step 39 of 42

Enter email account name

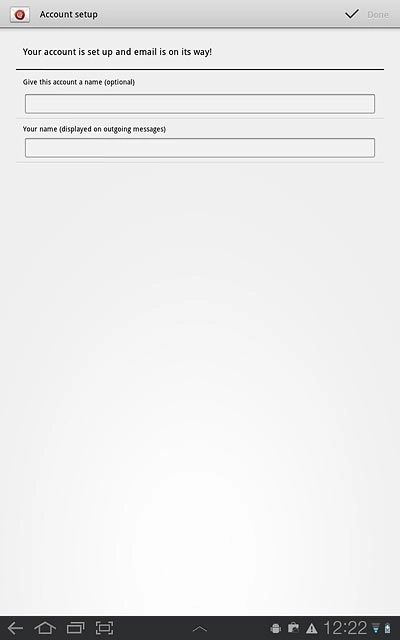

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 40 of 42

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 41 of 42

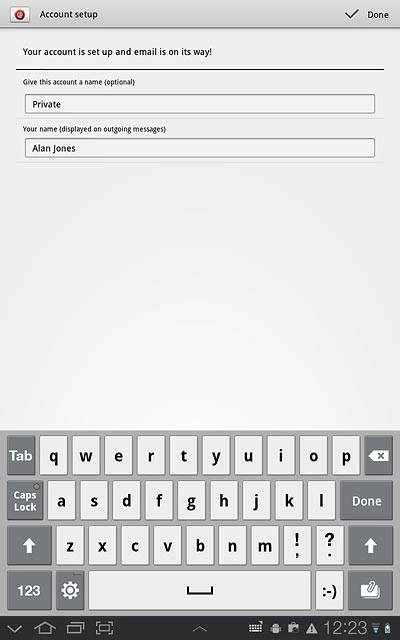

Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

Step 42 of 42

Exit

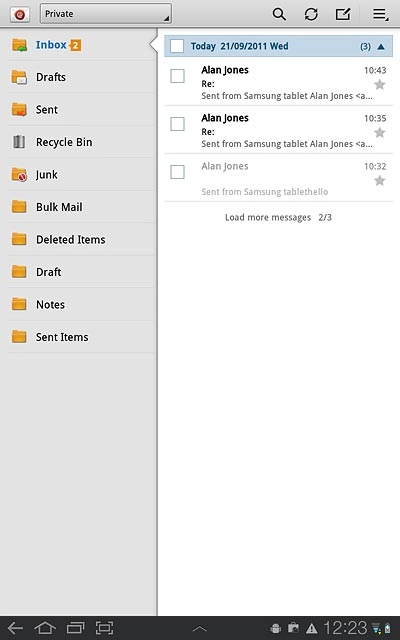

Press the home icon to return to standby mode.

Find "Access Point Names"

Press Apps.
Press Settings.
Press Wireless and networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter country code

Press Mobile country code.
Key in 505 and press OK.

Enter network code

Press Mobile network code.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Press Internet.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to Vodafone Mail to fill in the field.
Press the home icon to return to standby mode.

Find "Email"

Press Apps.
Press Email.

Create new email account

If email accounts have been created already:
Press the menu icon.
Press Settings.
Press Add account.

Enter email address

Press Email address e.g. account@example.com and key in your email address (such as name@provider.com).

Enter password

Press Password and key in the password for your email account at your email provider.
Press Next.

Select setting for retrieving new email messages

Press the drop down list next to Inbox checking frequency.
Press Never or the required period.

Select default email account

Press the box next to Send email from this account by default. to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

Turn email message notification on or off

Press the box next to Notify me when email arrives. to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Retrieve email messages

Press Done.
Wait while your device retrieves new email messages.

Exit

Press the home icon to return to standby mode.
