1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-a8e2c5bc-4789-4ed7-9dbe-f3f733d22e98.png?width=276&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-b0e01936-e0a6-453f-ac79-020857e8a5e1.png?width=276&height=444)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-58d352d6-b021-450c-974b-3329494e22e1.png?width=276&height=444)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-82535a7a-7553-4ac5-beca-74a1ce41c631.png?width=276&height=444)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-26b3f095-e277-426d-a370-eb4d09b69753.png?width=276&height=444)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-8b576bd4-af15-40fe-ba0e-a43caaea194d.png?width=276&height=444)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-25206636-9963-4b36-a84c-7478f9ab8ee9.png?width=276&height=444)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-18da7f6d-7c68-4f29-91b1-4dd7bec81fbd.png?width=276&height=444)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-a411adf6-9855-4f25-ba7a-691626005b9a.png?width=276&height=444)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)

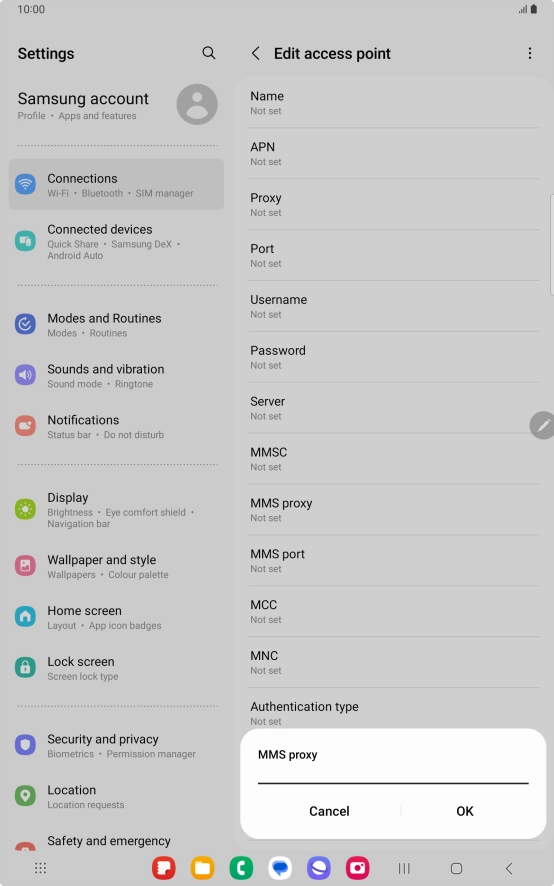

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-aab38a32-41b6-4a9e-81b6-0a1a2369c9d3.png?width=276&height=444)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)

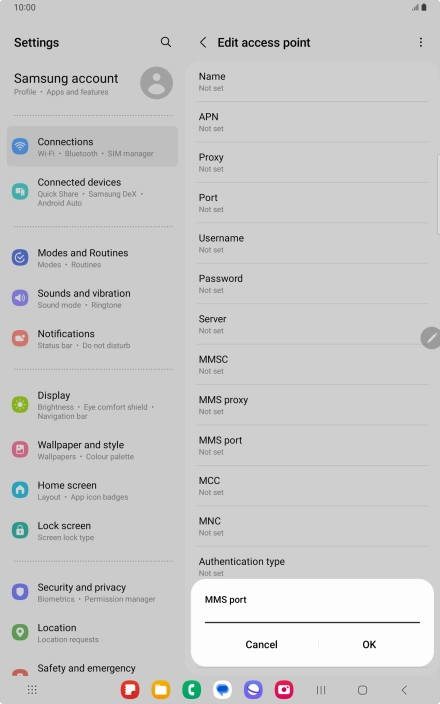

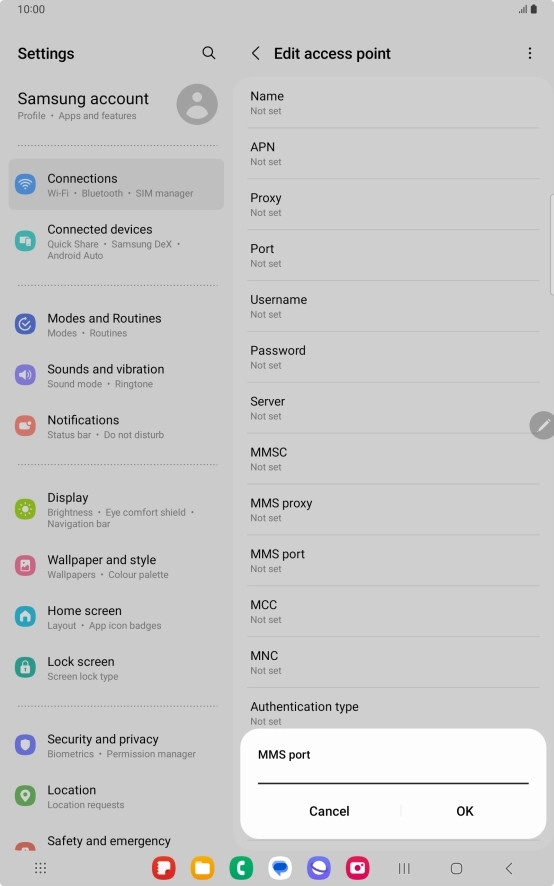

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-8eaa4979-70cb-4cf6-8d46-fadb0277ab86.png?width=276&height=444)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-f4294f13-01bc-4eb5-916a-3876d1c87437.png?width=276&height=444)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-80d24dce-0950-4af2-9a7b-0d41ca37fe0d.png?width=276&height=444)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-2be019de-8177-4287-89fe-c32d5d2007b7.png?width=276&height=444)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-5c7b8866-f7a1-4d9f-b7b9-c80559bff490.png?width=276&height=444)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fb93fcec-42c2-4e8d-822c-7735b499bac9.png?width=276&height=444)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-d44f9ef2-7b99-44d4-9159-ddfe95c695e1.png?width=276&height=444)
12. Return to the home screen

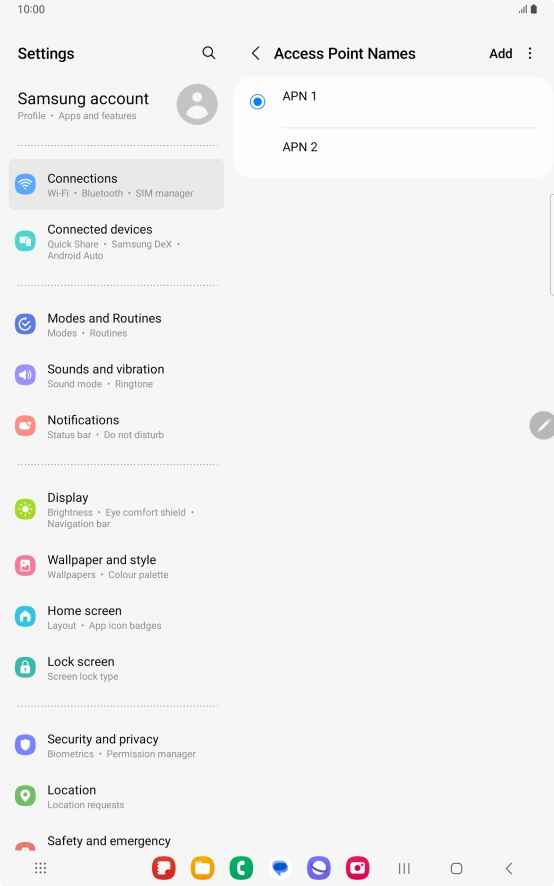

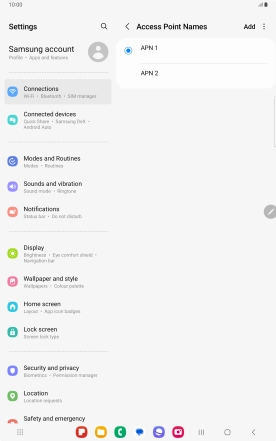

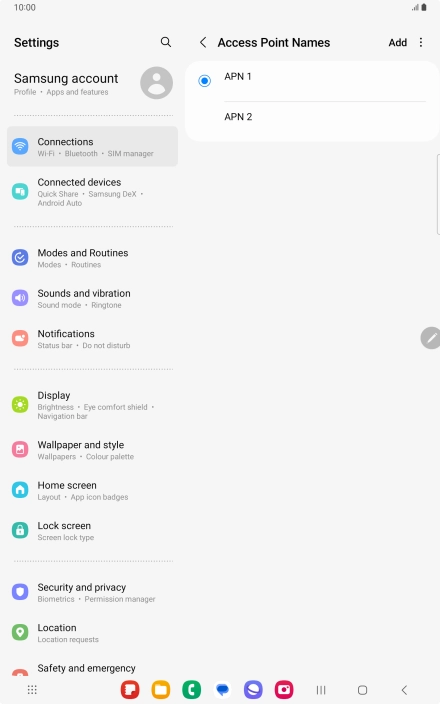

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-2314cc6a-65bf-4d5e-b4f3-c059389d208d.png?width=276&height=444)
