1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-94d1d583-ea77-4787-a829-a64cbddaef83.png?width=286&height=460)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-10fc1b0d-a2bd-44db-8093-0ce74dbba97f.png?width=286&height=460)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-22de9bec-b900-4f1a-8f73-ef0fea934fd3.png?width=286&height=460)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-122abedf-35cc-4eb4-9814-9838b6d03db1.png?width=286&height=460)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-249279ed-a584-4edb-a0df-d62795154f4d.png?width=286&height=460)
2. Create new data connection

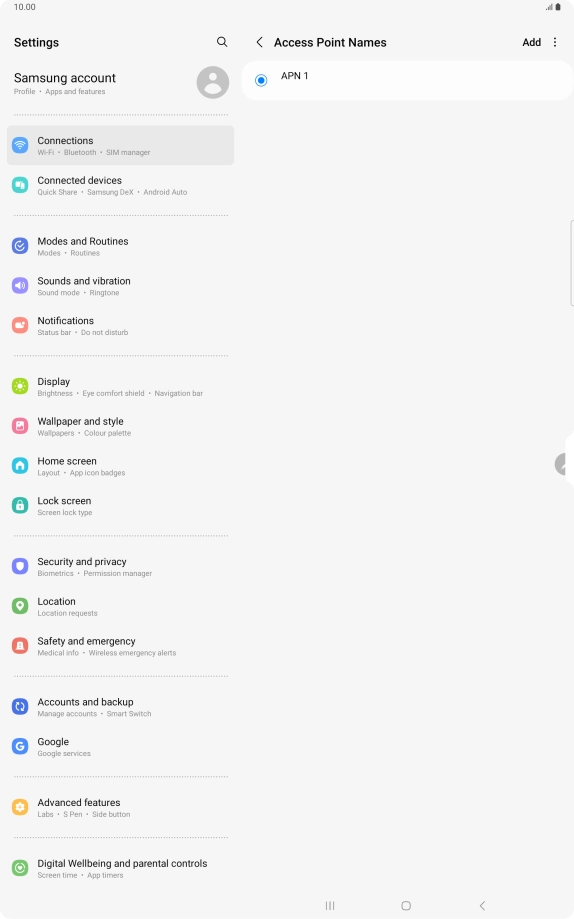

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-44bba0cd-ef36-4b1e-8f1b-d07fa7999319.png?width=286&height=460)

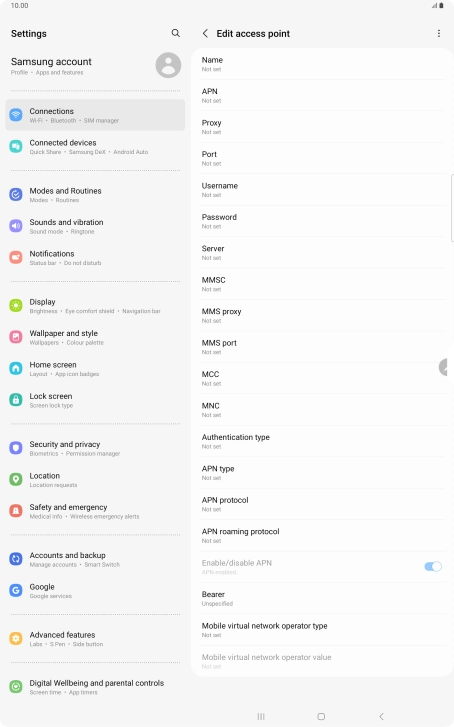

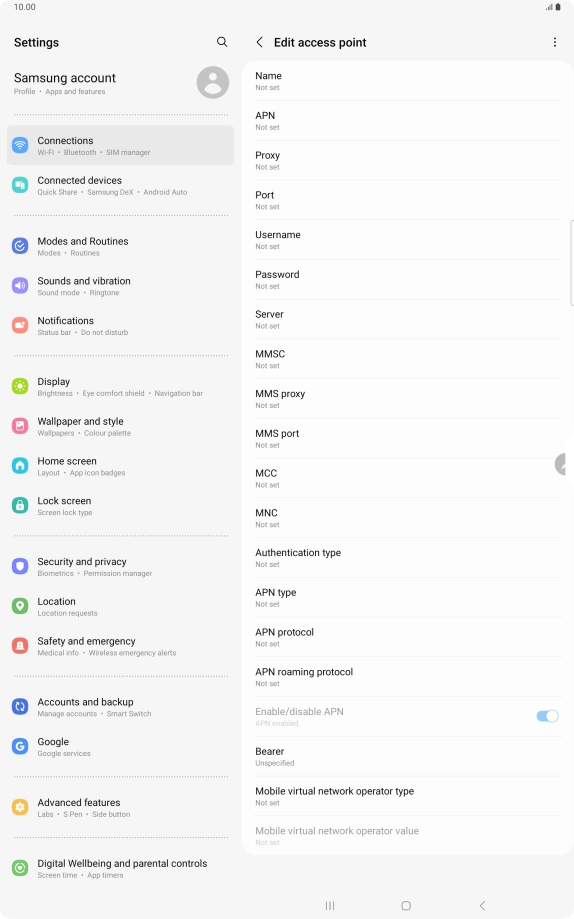

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)
Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-598a6b0a-907f-4aec-ae37-b2932a4e8494.png?width=286&height=460)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-a28ee01e-91e0-400c-9e57-beddd7b8f525.png?width=286&height=460)
live.vodafone.com
4. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-e2c968d0-601a-4e4c-913c-1c700c4e93a2.png?width=286&height=460)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-e7801d75-93f5-4559-9bb2-e9e24295c7c1.png?width=286&height=460)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)

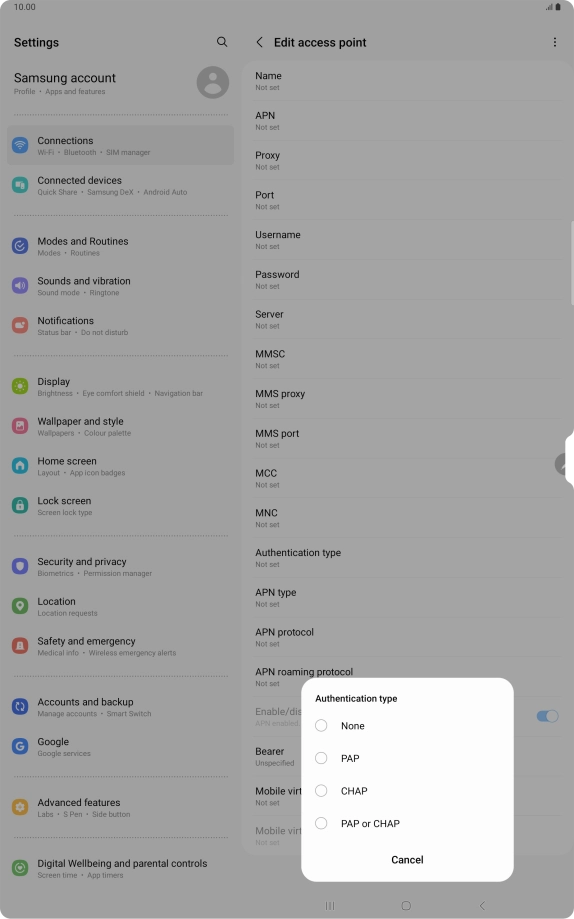

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-83ad785d-53b3-4d99-aef8-2aa39fe58a48.png?width=286&height=460)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)

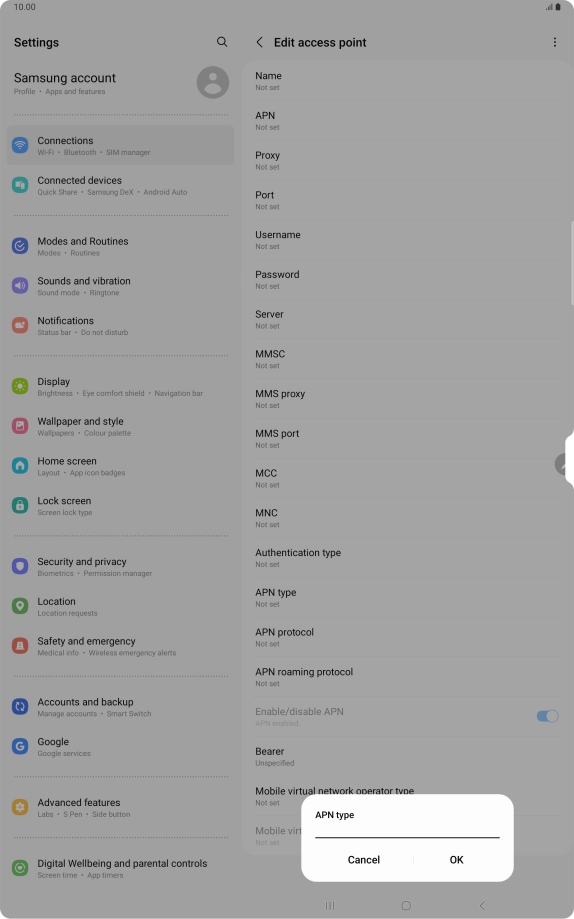

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-9cbb50fb-04f3-43a8-a9bf-e03aae71fa80.png?width=286&height=460)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-0d53160f-1ac3-4a70-a6f7-d7463e9b12fb.png?width=286&height=460)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-cbf42b6d-0b61-4c19-8ddf-05fcdecabcf9.png?width=286&height=460)
Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-66e8bdcc-7631-4c43-8e90-53d4d707145d.png?width=286&height=460)
9. Return to the home screen

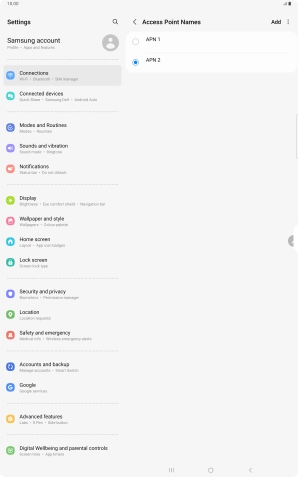

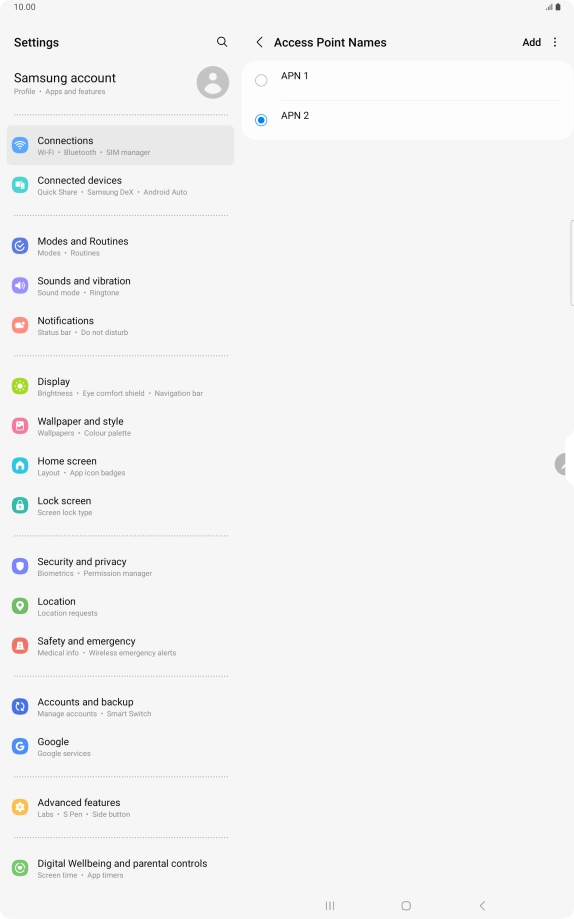

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7080324-f-fbd201d2-3517-4b0c-884a-50dbce677f6f.png?width=286&height=460)
