1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e233754-0ce2-412a-8d31-16145fd13566.png?width=186&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f9327226-280e-4d18-9321-3c9d2cfa2928.png?width=186&height=452)

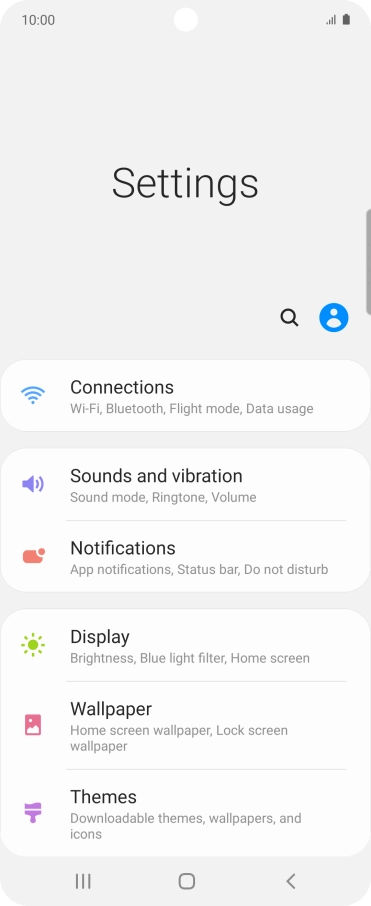

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-731b7096-e35e-4c74-aac4-f5e3cf7551a2.png?width=186&height=452)

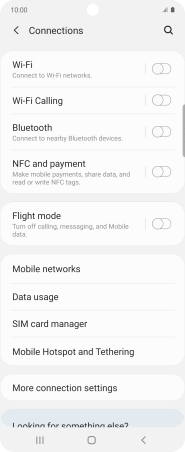

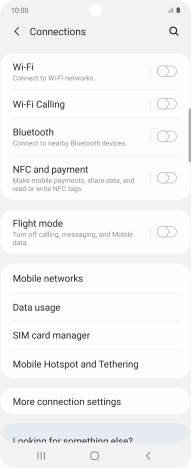

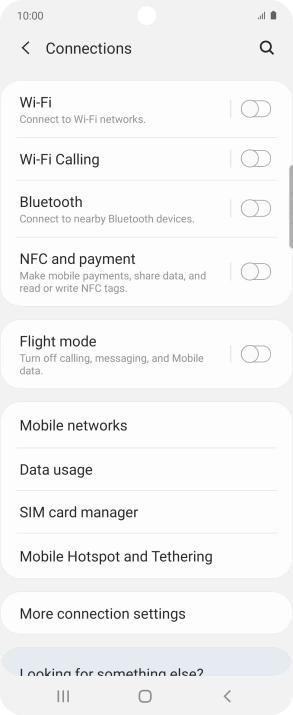

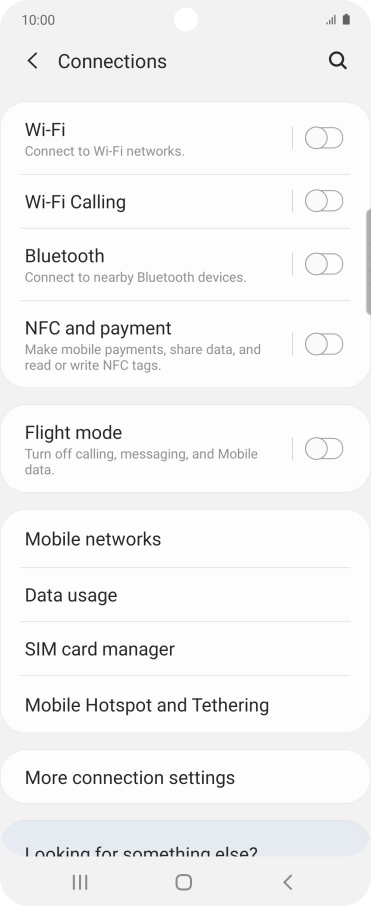

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-71c9bb6a-0adb-42a1-8222-3ad78cbe884f.png?width=186&height=452)

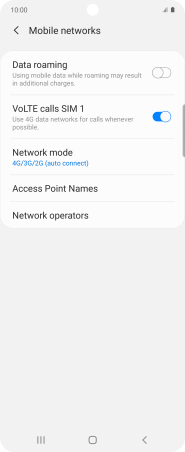

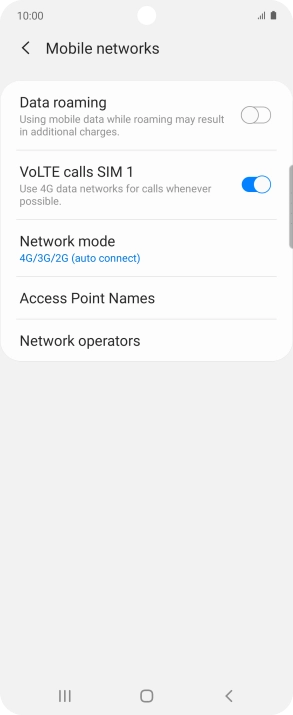

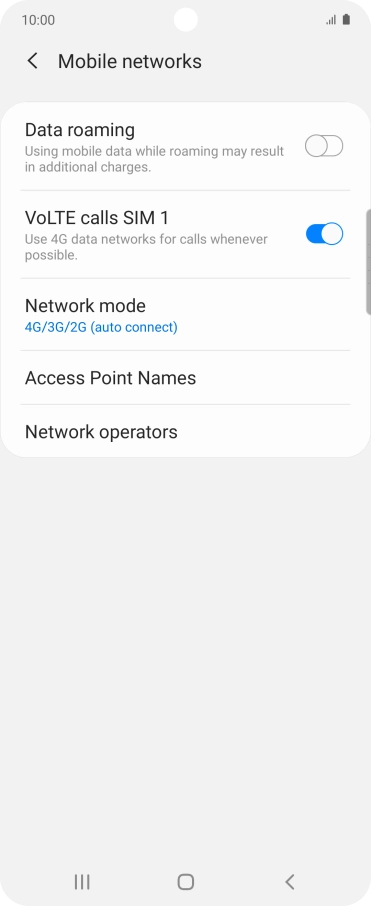

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0c65c451-1b5e-4ad6-a07a-9ad4b10a169d.png?width=186&height=452)
2. Create new data connection

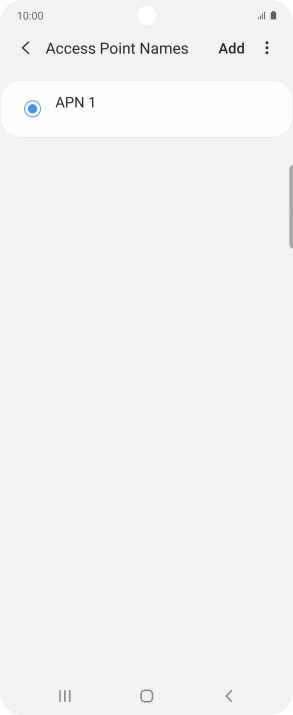

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e55c0b73-0498-46e2-b2c1-6a24cc989f7d.png?width=186&height=452)

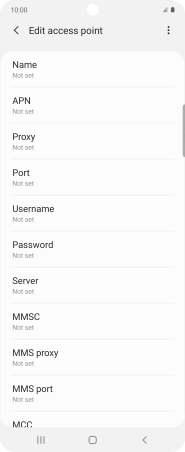

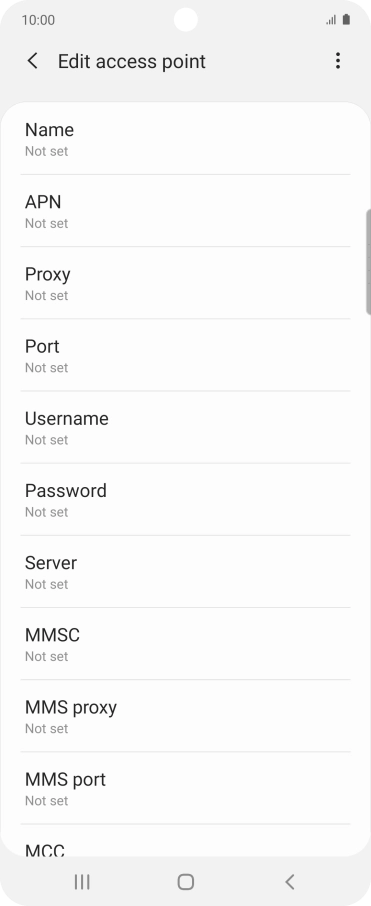

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4f0172c7-0e94-4dbc-852c-7a37d108f988.png?width=186&height=452)

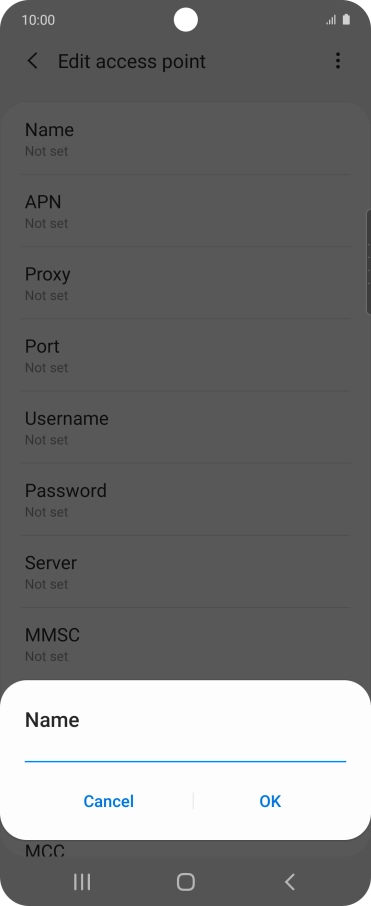

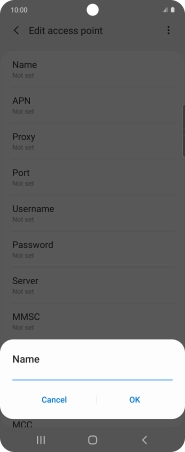

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-644b8e1c-2074-4a48-9cfc-26b326daf6ed.png?width=186&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4f0172c7-0e94-4dbc-852c-7a37d108f988.png?width=186&height=452)

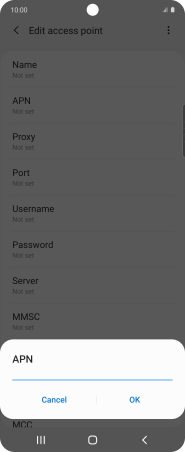

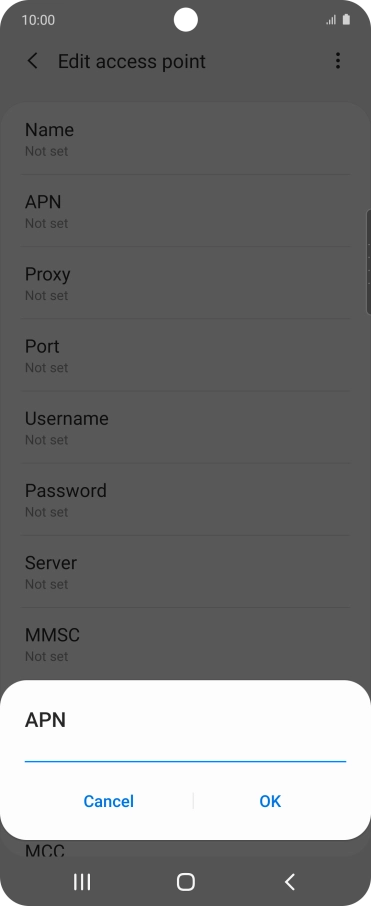

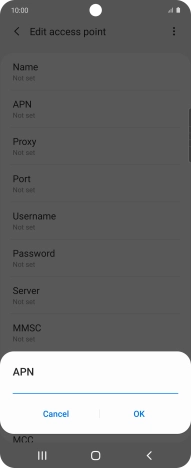

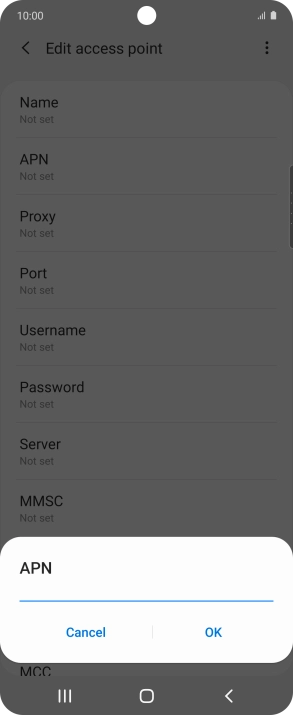

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-90afd9f1-d1c6-4e46-869e-b17d050e229d.png?width=186&height=452)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4f0172c7-0e94-4dbc-852c-7a37d108f988.png?width=186&height=452)

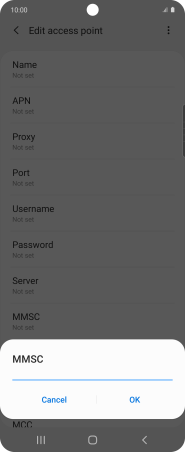

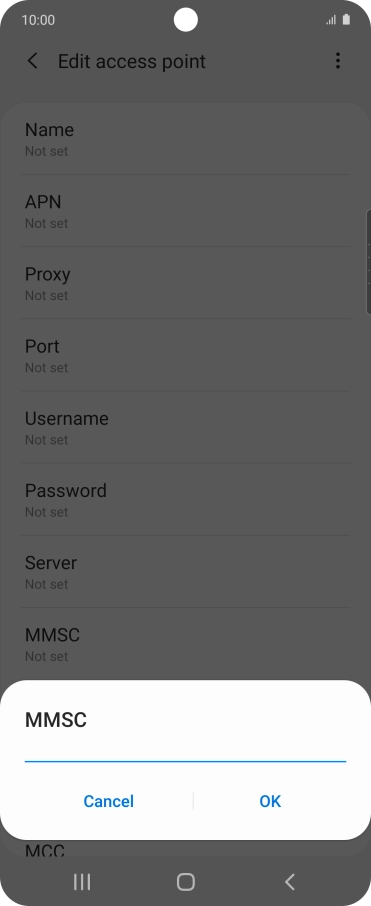

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cf817d29-8292-4b26-ab13-9a520ba52433.png?width=186&height=452)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4f0172c7-0e94-4dbc-852c-7a37d108f988.png?width=186&height=452)

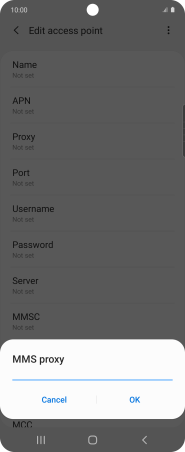

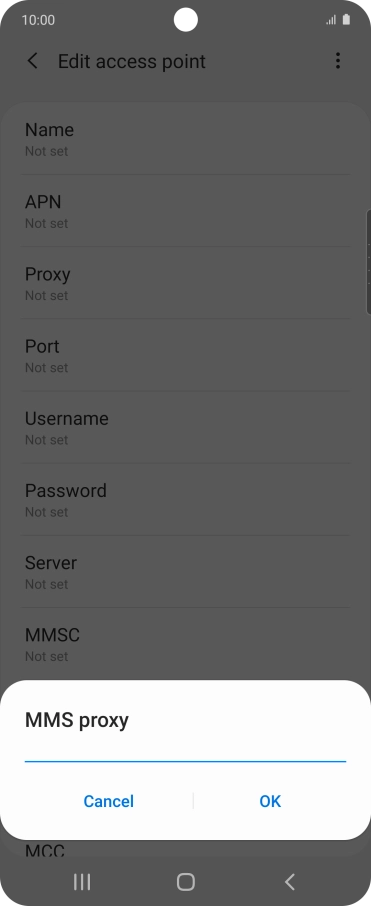

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c8c6504a-ac09-4ea6-915b-e9043717551a.png?width=186&height=452)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4f0172c7-0e94-4dbc-852c-7a37d108f988.png?width=186&height=452)

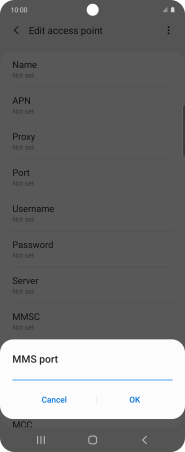

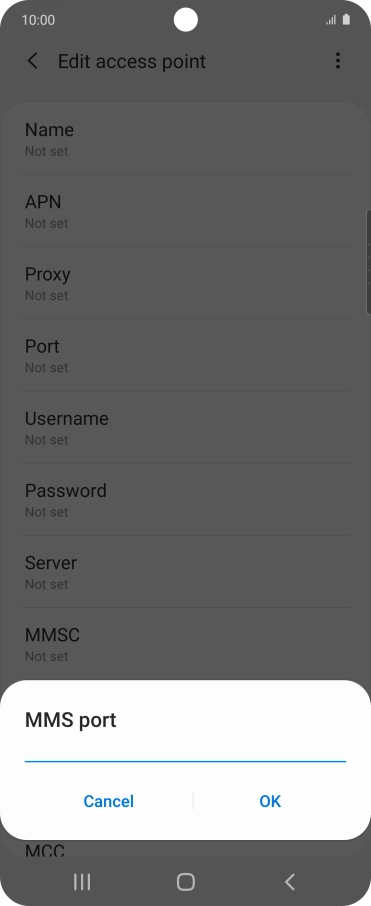

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-52f65aa2-25c1-4ed2-bdbd-8c2a47126270.png?width=186&height=452)
8080
7. Enter country code

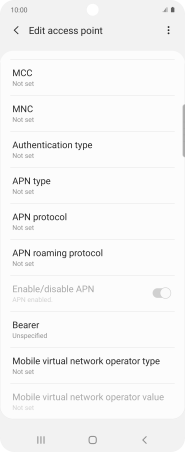

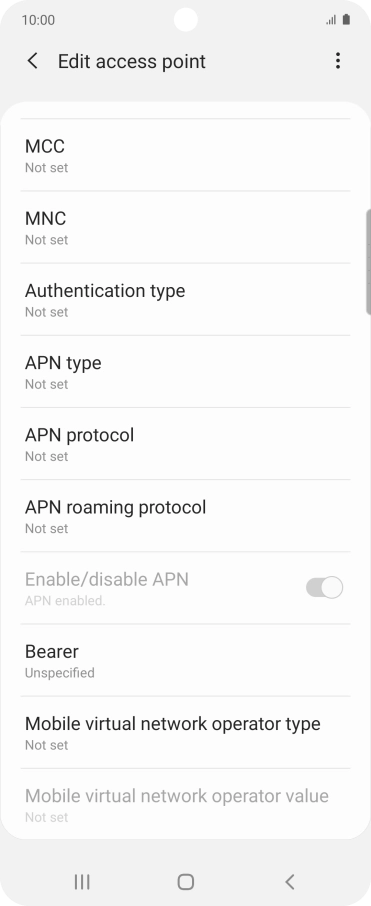

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-19debe1f-beb8-4e3e-94cf-12165df553ae.png?width=186&height=452)

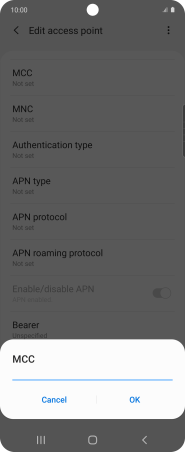

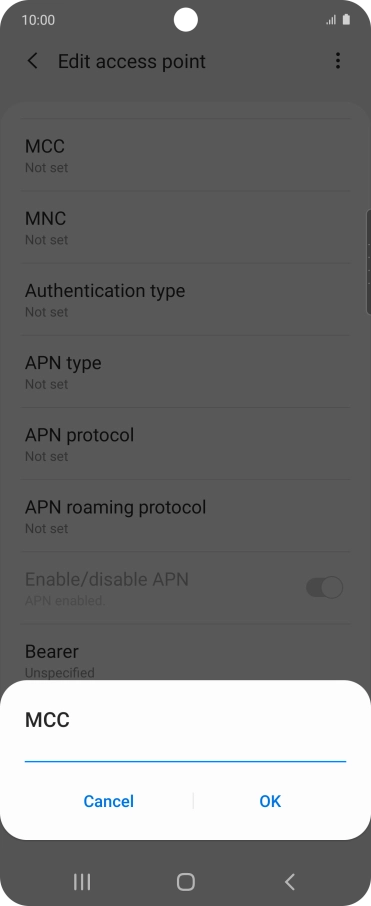

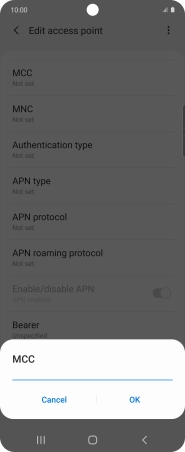

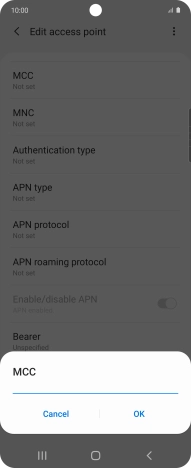

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5ec9aff2-8f61-4371-be2a-0c113b4cad1d.png?width=186&height=452)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-19debe1f-beb8-4e3e-94cf-12165df553ae.png?width=186&height=452)

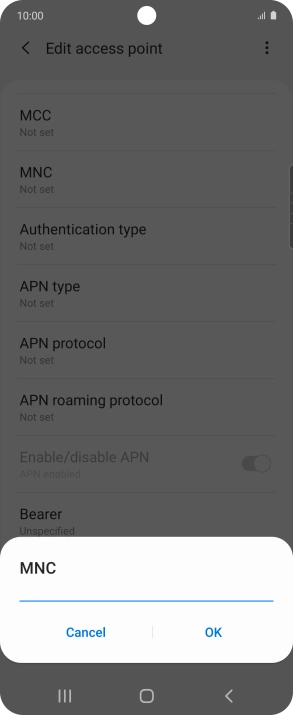

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-79b82603-2a1f-46a3-83cd-1e03ee35bb8e.png?width=186&height=452)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-19debe1f-beb8-4e3e-94cf-12165df553ae.png?width=186&height=452)

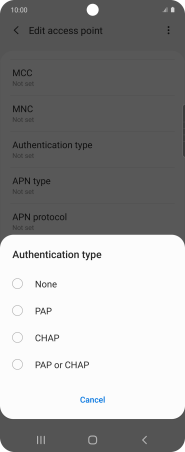

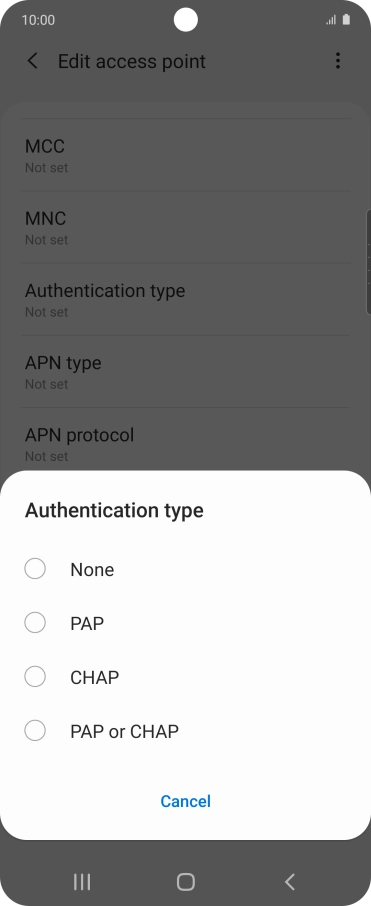

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-02257441-b554-47d0-9ca9-8ab82da9effb.png?width=186&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-19debe1f-beb8-4e3e-94cf-12165df553ae.png?width=186&height=452)

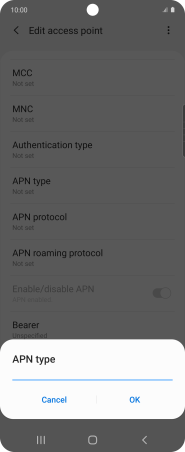

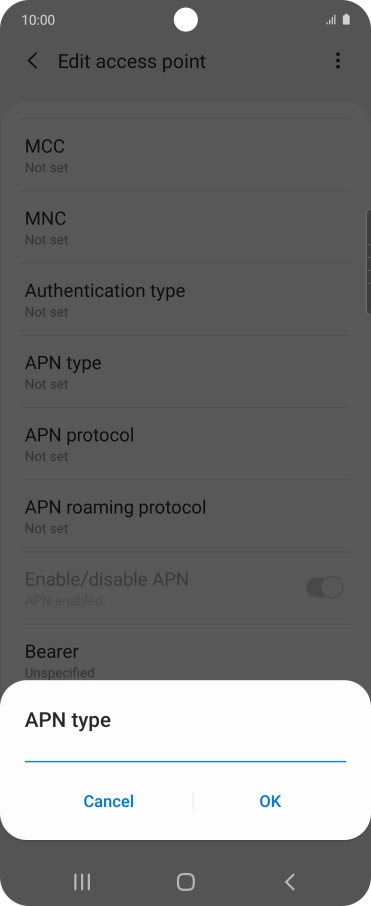

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-14fba394-5378-4503-a253-60de51ff3b12.png?width=186&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-19debe1f-beb8-4e3e-94cf-12165df553ae.png?width=186&height=452)

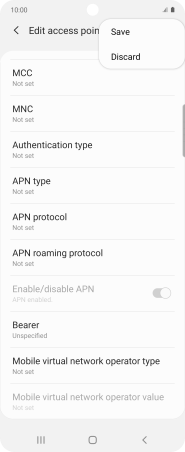

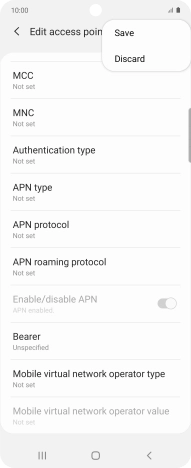

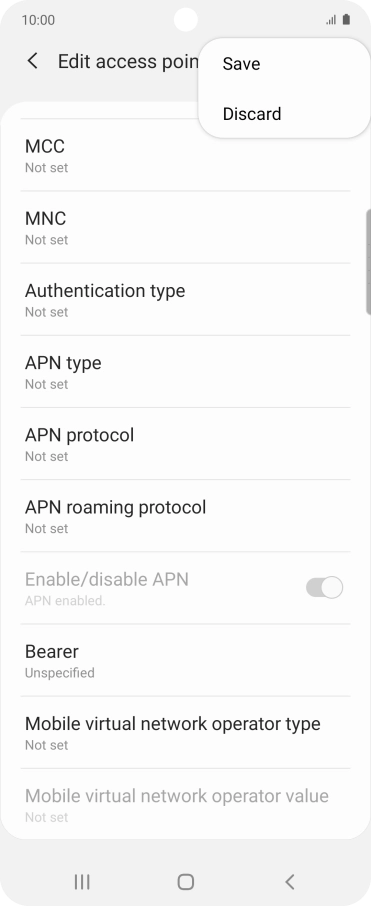

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2739c0e0-7152-467a-a785-e52d5a9d3058.png?width=186&height=452)
12. Return to the home screen

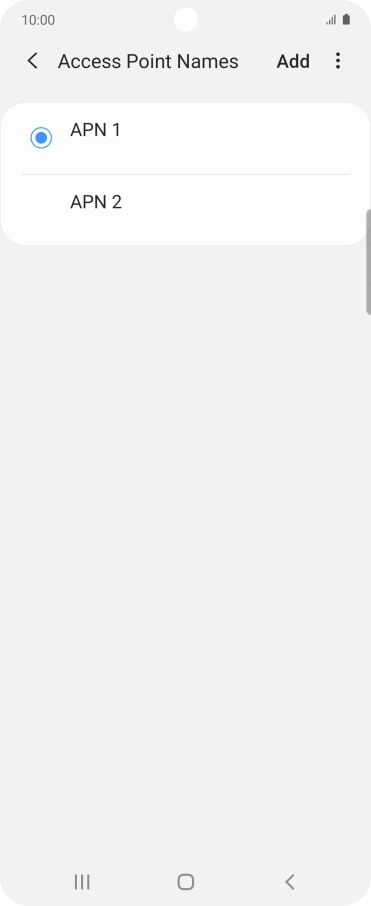

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f27e8742-00ca-433e-b552-e96ebcae3ad2.png?width=186&height=452)
