1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-7eac72e1-cff2-4118-8bba-281a3c81134c.png?width=186&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-4d28544d-4b64-4e57-95b7-3d6e76168023.png?width=186&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-940f7a11-45a2-4e86-8c77-de78b6ac6b66.png?width=186&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-09408914-a2d6-4293-8871-bfe647a7ca88.png?width=186&height=458)

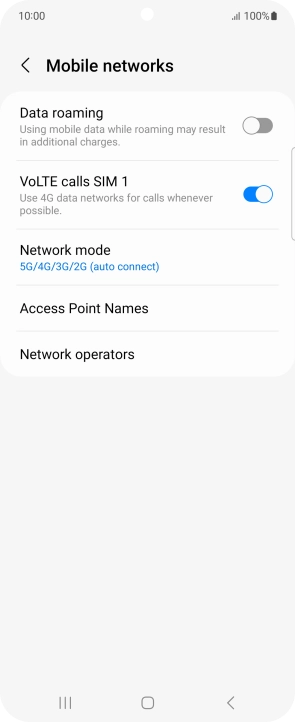

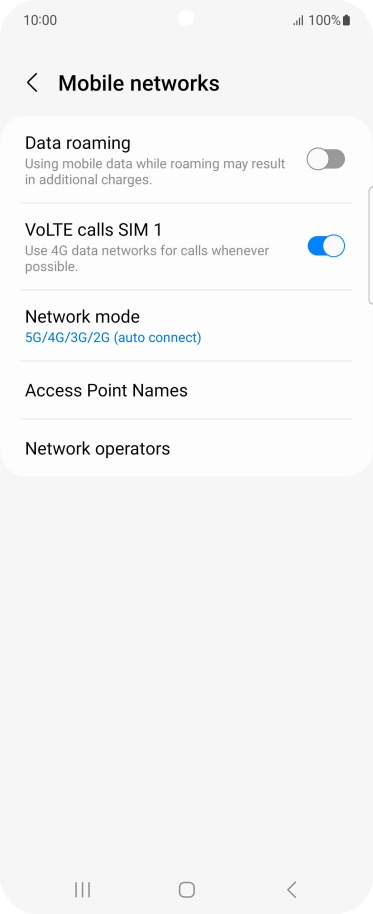

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-f6cc9d02-e1fe-4ba5-8261-70f91b6ce9f0.png?width=186&height=458)
2. Create new data connection

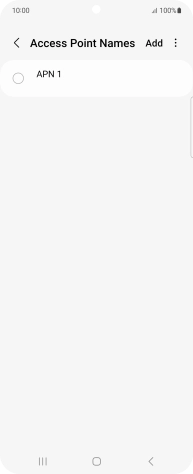

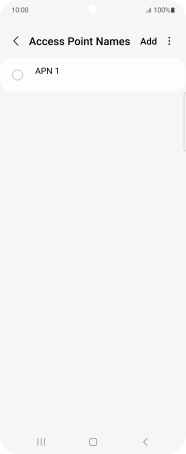

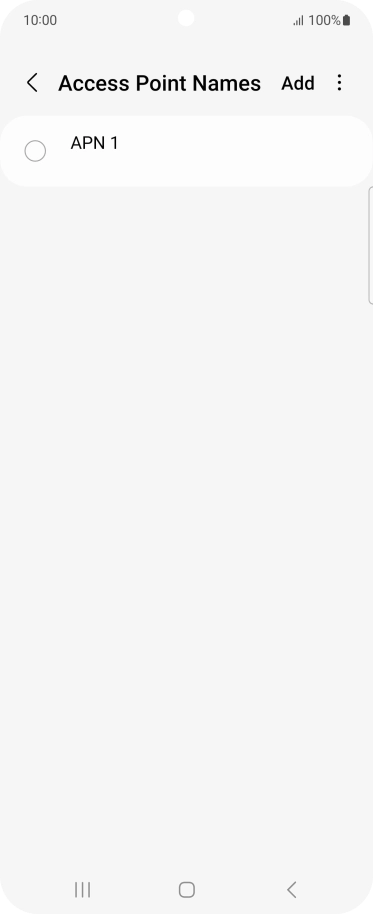

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-51a7ce1a-dc8d-458d-871b-bd6afd7e85bc.png?width=186&height=458)

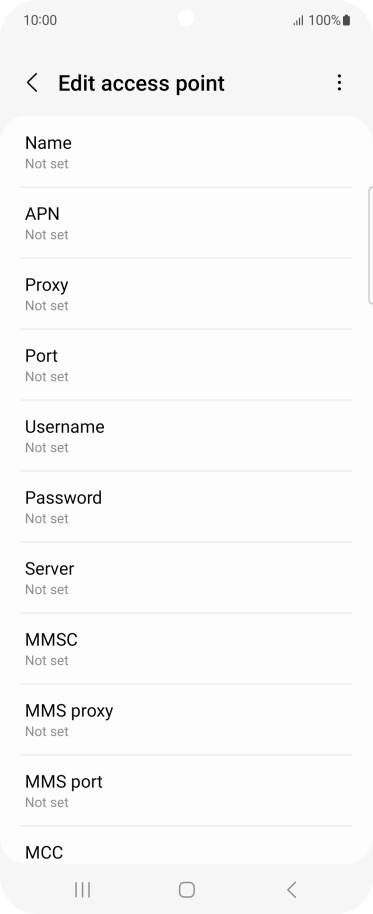

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-b343882b-8633-4938-b572-ae5abca496c1.png?width=186&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-21da2587-9eef-475f-a571-6f142daa49f2.png?width=186&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-b343882b-8633-4938-b572-ae5abca496c1.png?width=186&height=458)

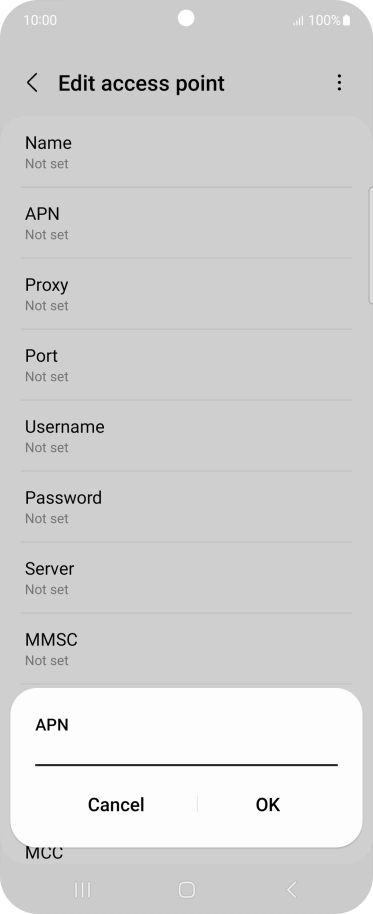

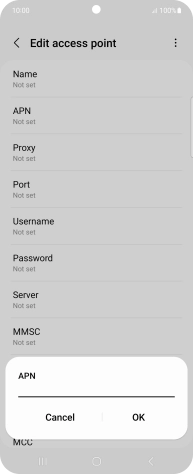

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-e433e555-eab3-4d3f-8a58-d852ca973780.png?width=186&height=458)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-b343882b-8633-4938-b572-ae5abca496c1.png?width=186&height=458)

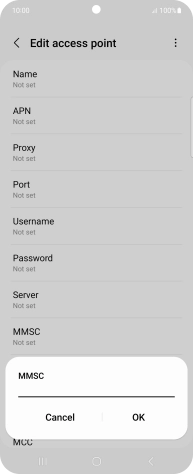

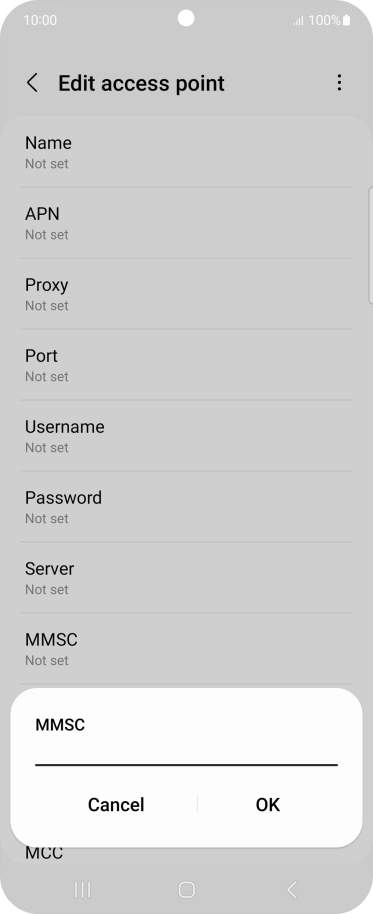

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-295b0580-1bbb-4f0d-b4ab-6ec9719d1c79.png?width=186&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-b343882b-8633-4938-b572-ae5abca496c1.png?width=186&height=458)

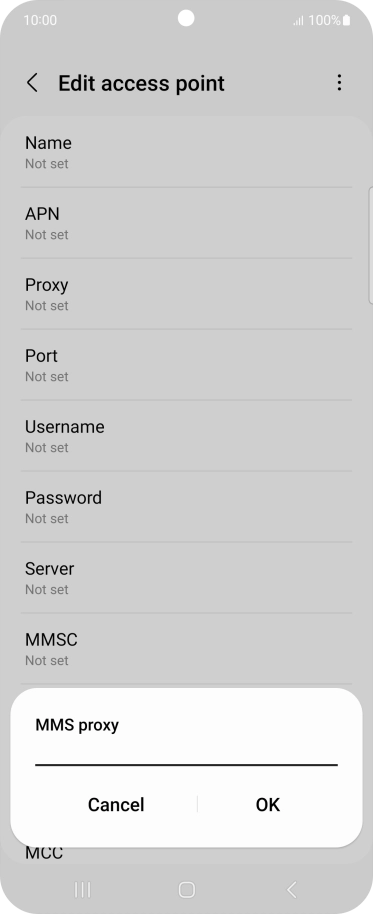

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-6ef64fcd-11b8-42c8-ab60-8a42ac37f71d.png?width=186&height=458)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-b343882b-8633-4938-b572-ae5abca496c1.png?width=186&height=458)

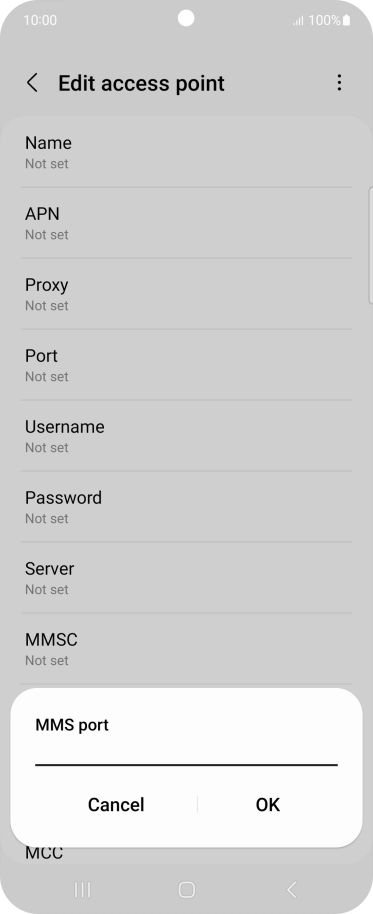

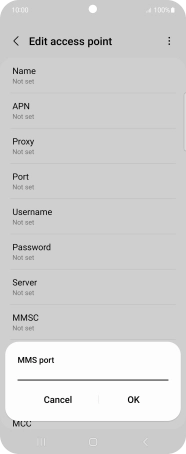

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-6300c17b-66aa-42fc-9ef1-364a1c469fb0.png?width=186&height=458)
8080
7. Enter country code

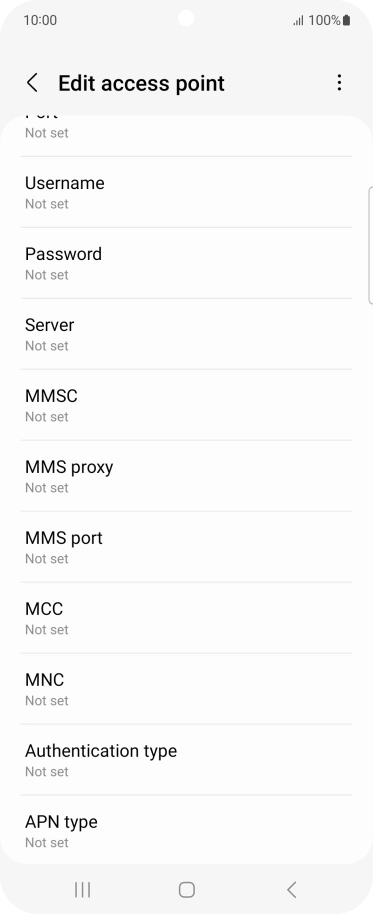

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-0224b33b-ca7c-4306-8be8-211a70d79760.png?width=186&height=458)

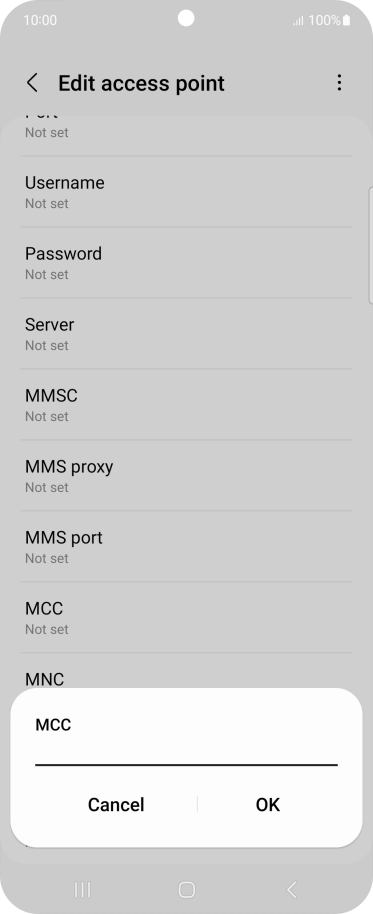

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-c7f9c62d-03de-43f8-970c-cc9214f263c7.png?width=186&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-0224b33b-ca7c-4306-8be8-211a70d79760.png?width=186&height=458)

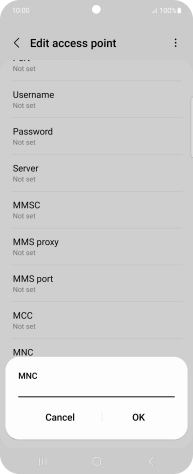

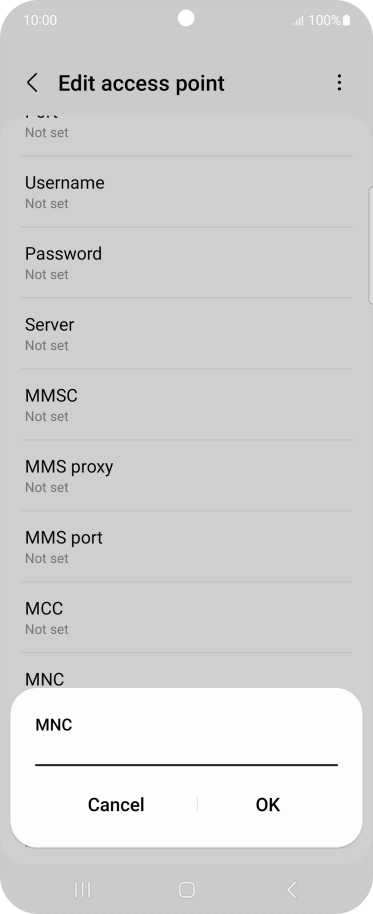

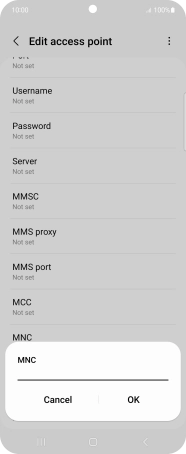

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-f683c399-173e-4e8c-bd74-0ae111f87aab.png?width=186&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-0224b33b-ca7c-4306-8be8-211a70d79760.png?width=186&height=458)

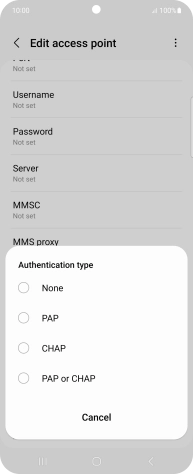

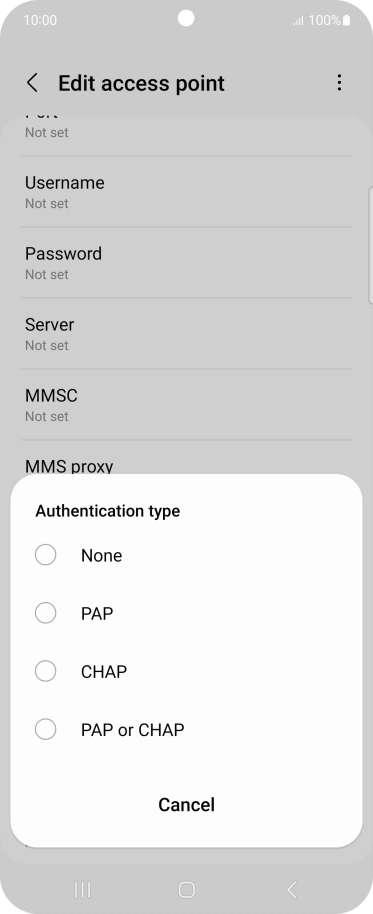

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-c93487f8-44ca-43a4-b2b0-608e1398fbb4.png?width=186&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-0224b33b-ca7c-4306-8be8-211a70d79760.png?width=186&height=458)

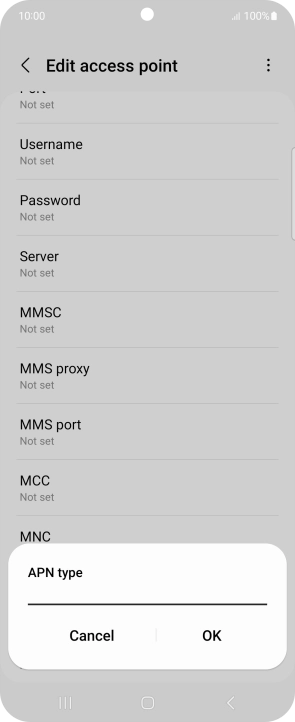

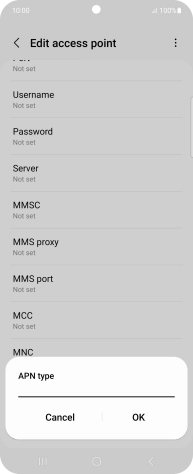

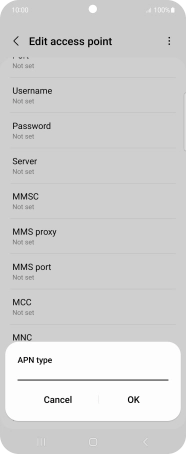

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-11e8dcbf-4d70-4ea0-9fbf-fe5b3dc8719f.png?width=186&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-0224b33b-ca7c-4306-8be8-211a70d79760.png?width=186&height=458)

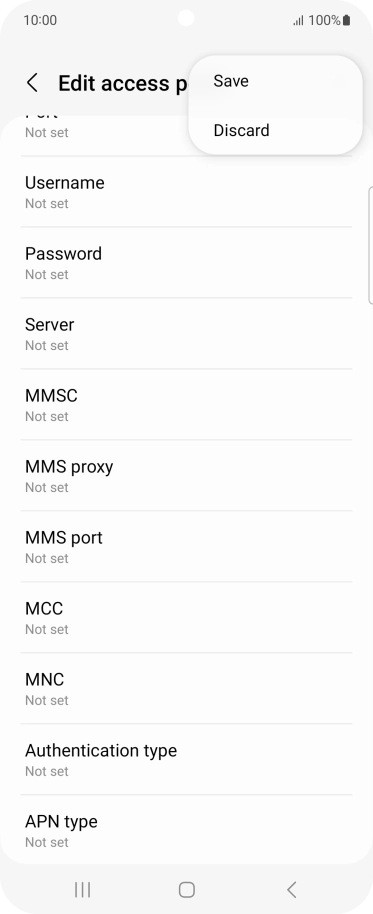

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-a65e240d-ee3f-4c38-8179-50be1d10fbcd.png?width=186&height=458)
12. Return to the home screen

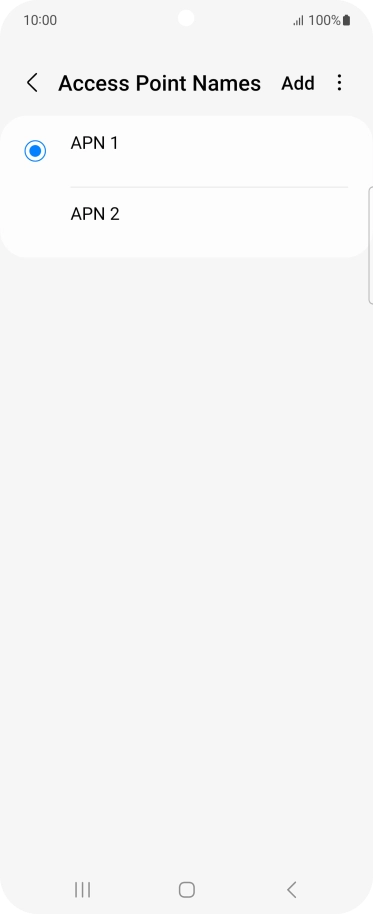

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7300822-f-9e54dc8d-e12d-446b-bb8d-5cf9d2d3a106.png?width=186&height=458)
