1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-3464ea41-6a46-40fb-b5b9-0a17cf9092e0.png?width=186&height=458)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-60f6b2a7-292f-4aed-b467-f0ec4744cd9d.png?width=186&height=458)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-af8d8d3f-bbb1-4c2e-9943-bccc301e5cc4.png?width=186&height=458)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-bae82afa-ee32-4bc5-b450-745c8c33e6d7.png?width=186&height=458)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-95b8d2b8-07bf-4470-93cd-13325dee6723.png?width=186&height=458)
2. Create new data connection
Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-89949ecd-3667-436e-a249-6a3fdb23e26a.png?width=186&height=458)
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=186&height=458)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-d057dab0-5e36-4b1c-b274-e3a9c1a48e81.png?width=186&height=458)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=186&height=458)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-3be02245-3494-4f9c-be5d-c9e96798f0df.png?width=186&height=458)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=186&height=458)

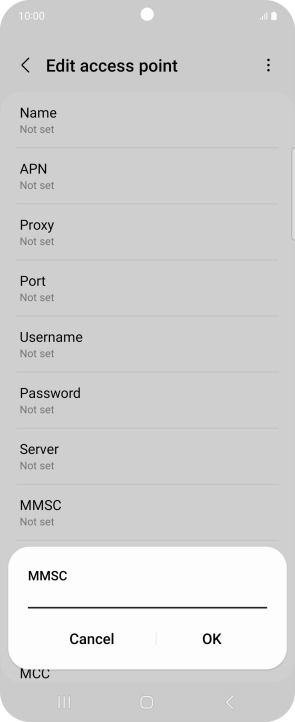

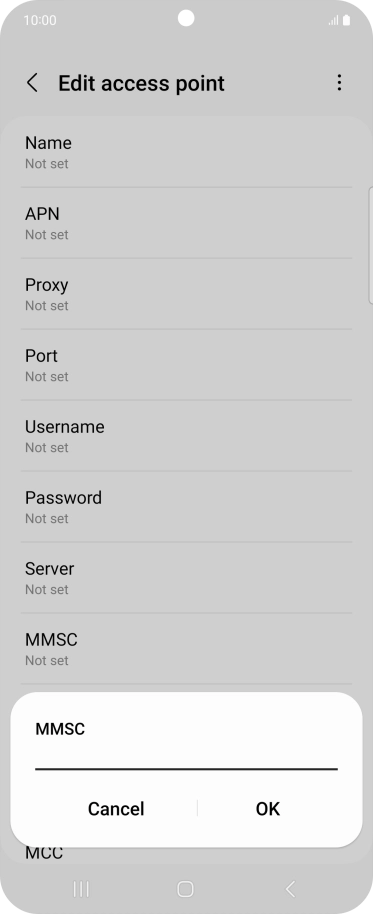

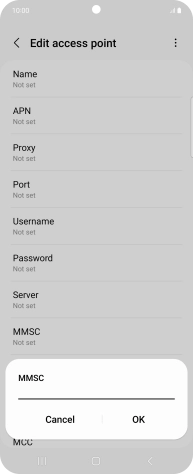

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-1e6a628e-b6f3-497c-a635-95e53bbb503b.png?width=186&height=458)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=186&height=458)

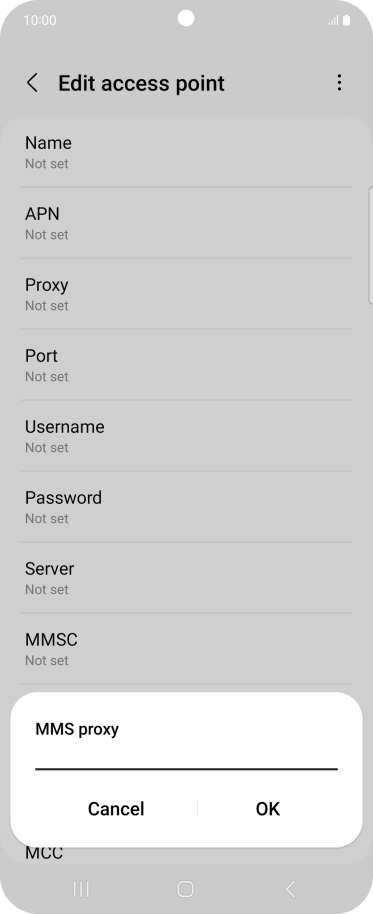

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-6199d5e2-d2dd-4753-bdb4-9833c121dd3a.png?width=186&height=458)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-7d0ea8d9-c851-4a90-8526-e7c97ceb825a.png?width=186&height=458)

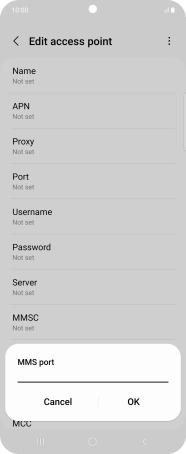

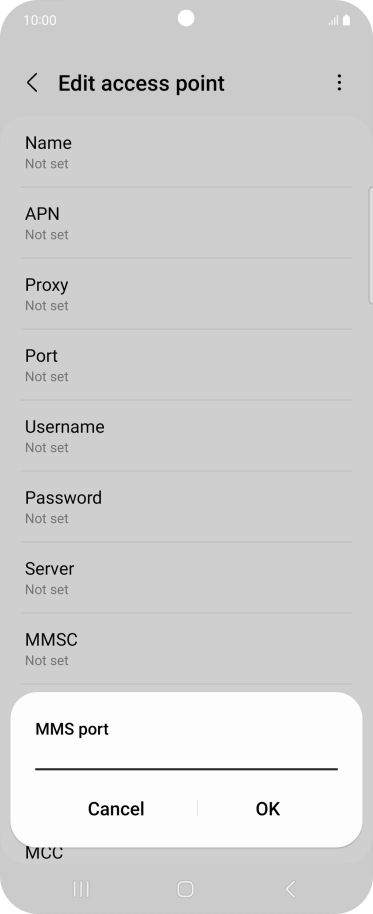

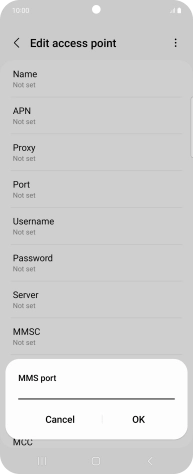

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-a2272f73-89f6-49a3-ac9b-80f2cef05823.png?width=186&height=458)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=186&height=458)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-3387e264-6a66-47aa-8b17-ab7e8ee96df4.png?width=186&height=458)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=186&height=458)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-23e50d33-2a18-4852-9fd9-48894e844e26.png?width=186&height=458)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=186&height=458)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-666a482d-9d08-4ba1-9149-92bf9a681fb5.png?width=186&height=458)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=186&height=458)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-a6a634ee-e5d9-4bf6-81bf-804b0f314b70.png?width=186&height=458)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-0ee6094a-d132-4c03-951d-6babfd1172d0.png?width=186&height=458)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-72d67f92-e145-439e-bd5b-c0d254b47264.png?width=186&height=458)
12. Return to the home screen

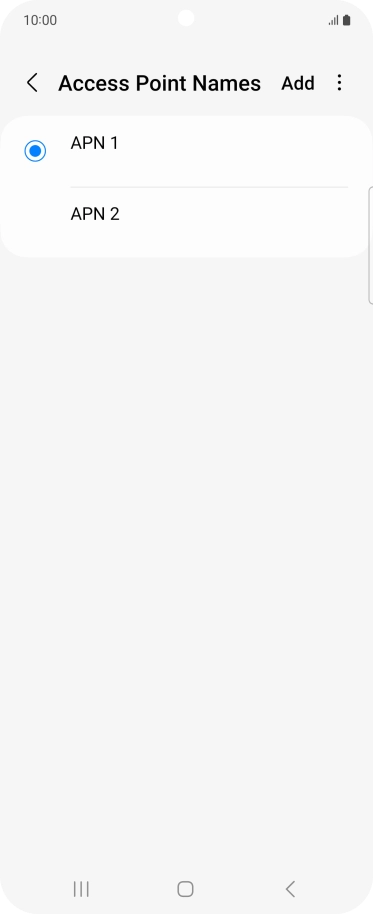

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7281123-f-5b4b9898-e759-4e4c-ab8a-c3b39449eb8d.png?width=186&height=458)
