Find "Access Point Names"

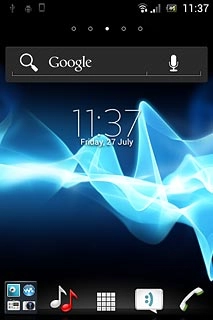

Press the menu icon.

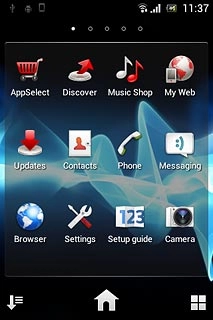

Press Settings.

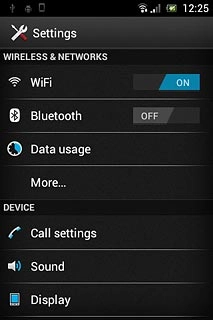

Press More....

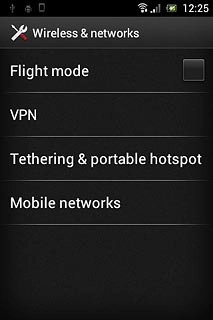

Press Mobile networks.

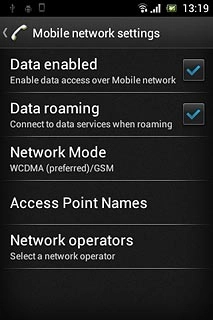

Press Access Point Names.
Create new data connection
Press the Menu key.

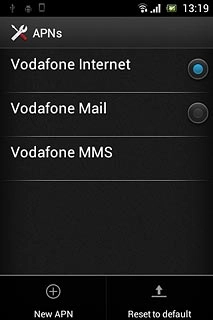

Press New APN.
Enter data connection name

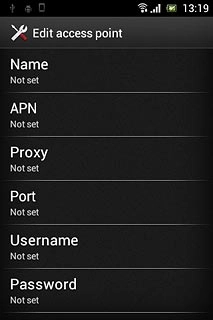

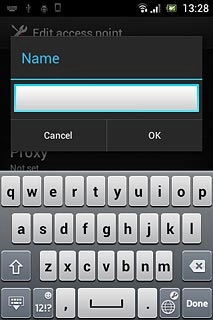

Press Name.
Key in Vodafone Mail and press OK.
Enter APN

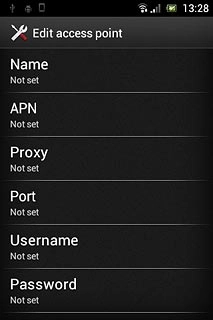

Press APN.
An APN is used to establish a data connection.

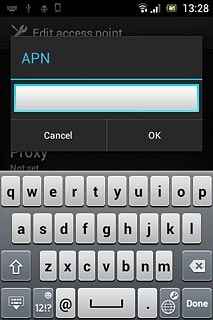

Key in live.vodafone.com and press OK.
An APN is used to establish a data connection.
Enter country code

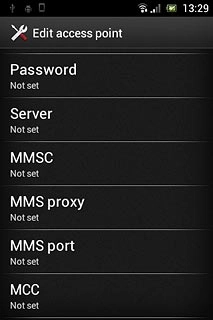

Press MCC.

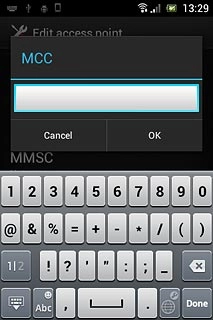

Key in 505 and press OK.
Enter network code

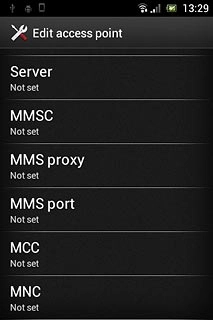

Press MNC.

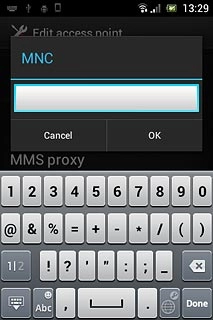

Key in 03 and press OK.
Select authentication type

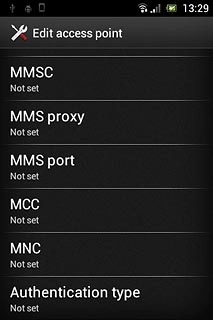

Press Authentication type.

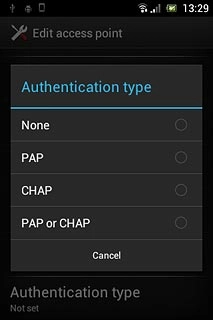

Press PAP.
Select APN type

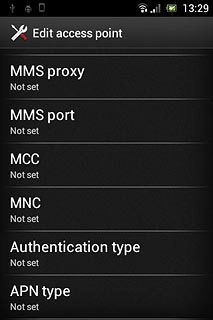

Press APN type.

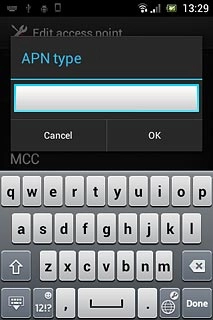

Key in default and press OK.
Save and activate data connection
Press the Menu key.

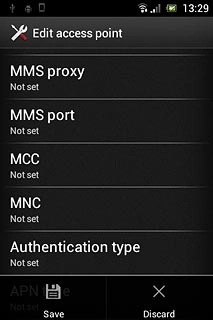

Press Save.

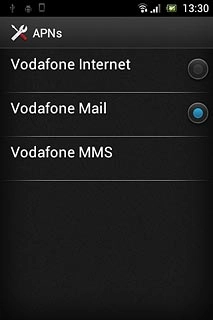

Press the field next to Vodafone Mail to activate the data connection.
When the field is marked, the data connection is activated.
Press the Home key to return to standby mode.
Find "Email"
Press the menu icon.
If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.

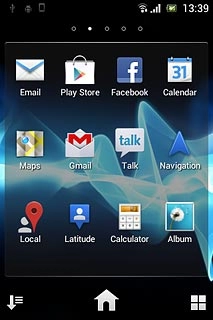

Press Email.
If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.
Create new email account

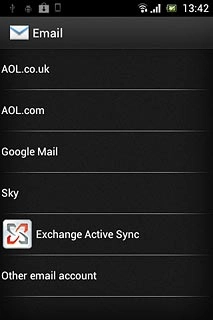

Press Other email account.
Enter email address
Key in your email address.
Enter password

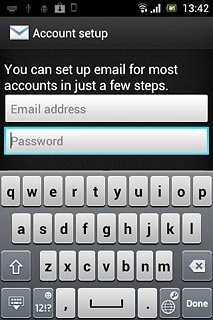

Press Password and key in the password for your email account at your email provider.

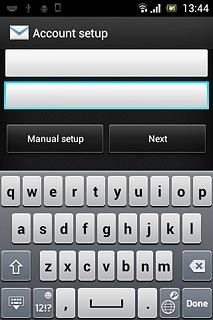

Press Next.
Select server type

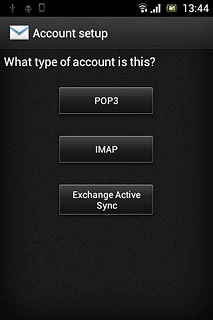

Press POP3.
Enter username
Key in the username for your email account.
Enter incoming server

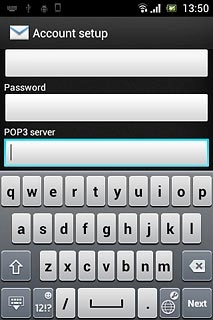

Press the field below POP3 server and key in the name of your email provider's incoming email server.
Enter incoming port

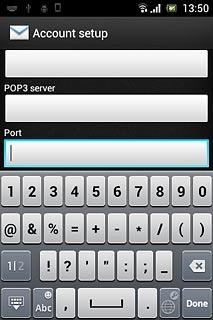

Press the field below Port and key in 110
Turn off SSL encryption of incoming email messages

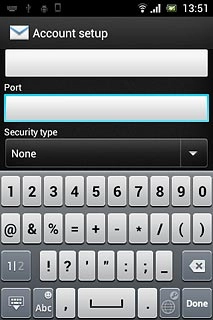

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

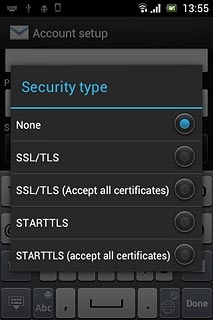

Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Select setting for deleting email messages from server

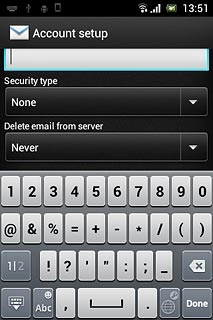

Press the drop down list below Delete email from server.

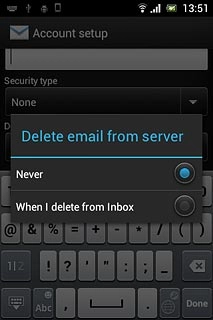

Press the required setting.

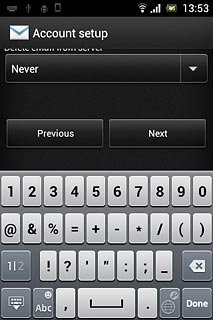

Press Next.
Enter outgoing server

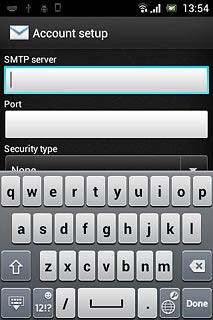

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
Enter outgoing port

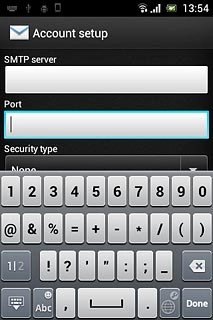

Press the field below Port and key in 25
Turn off encryption of outgoing email messages

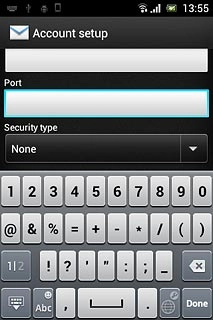

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

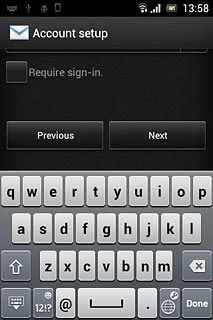

Turn SMTP authentication on or off

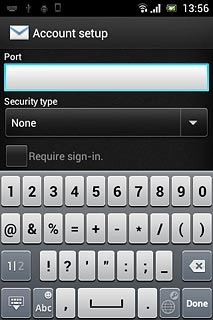

Press Require sign-in to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.
Select setting for retrieving new email messages

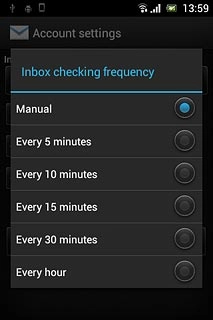

Press the drop down list below Inbox checking frequency.
Press Manual or the required period.
Select default email account
Press Send email from this account by default to select a default email account.
When the box next to the menu item is ticked (V), the function is turned on.
Turn email message notification on or off
Press Notify me when email arrives to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.

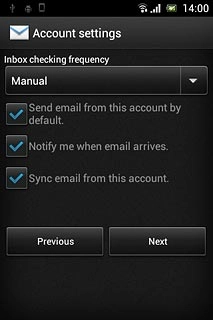

Press Next.
Enter email account name
Key in a name for the email account.

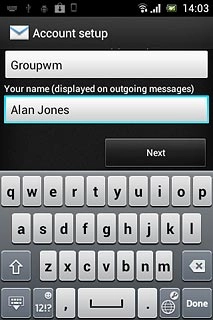

Enter sender name

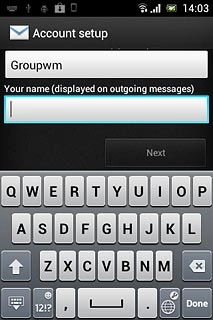

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.
Retrieve email messages
Press Next.
Wait while your phone retrieves new email messages.
Wait while your phone retrieves new email messages.
Exit
Press the Home key to return to standby mode.
