Set up your phone for POP3 email - Sony Xperia miro

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 56

Find "Access Point Names"

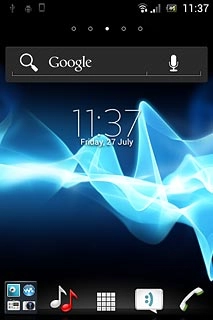

Press the menu icon.

Step 2 of 56

Find "Access Point Names"

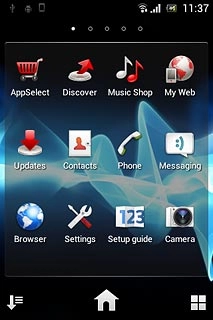

Press Settings.

Step 3 of 56

Find "Access Point Names"

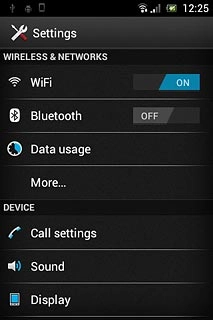

Press More....

Step 4 of 56

Find "Access Point Names"

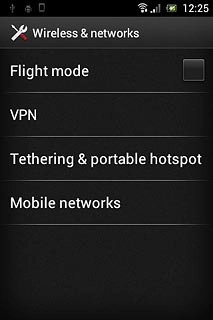

Press Mobile networks.

Step 5 of 56

Find "Access Point Names"

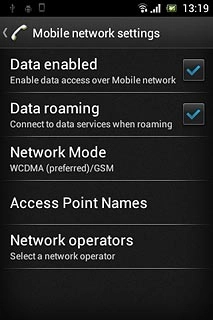

Press Access Point Names.

Step 6 of 56

Create new data connection

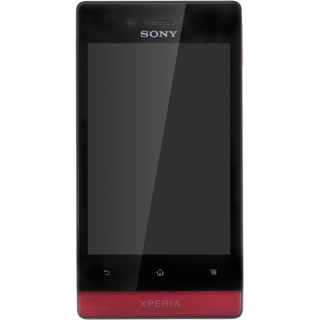

Press the Menu key.

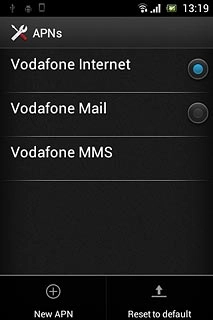

Step 7 of 56

Create new data connection

Press New APN.

Step 8 of 56

Enter data connection name

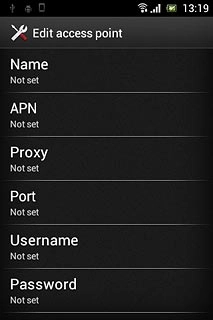

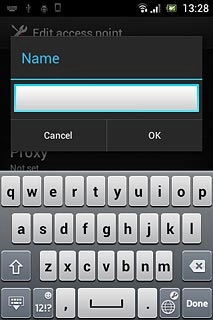

Press Name.

Step 9 of 56

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 56

Enter APN

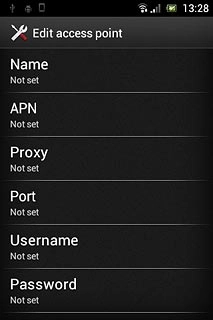

Press APN.

An APN is used to establish a data connection.
Step 11 of 56

Enter APN

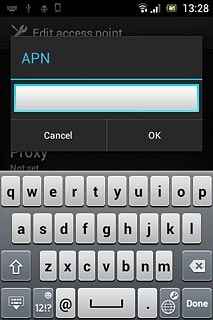

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection.
Step 12 of 56

Enter country code

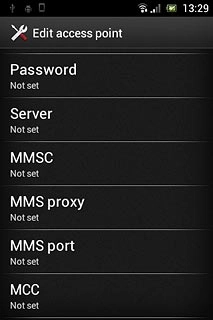

Press MCC.

Step 13 of 56

Enter country code

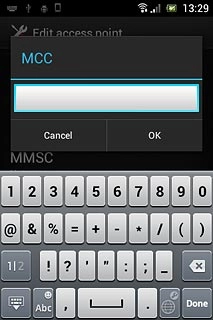

Key in 505 and press OK.

Step 14 of 56

Enter network code

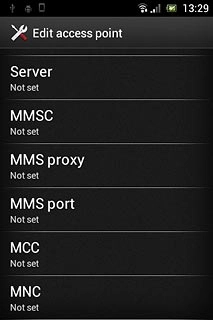

Press MNC.

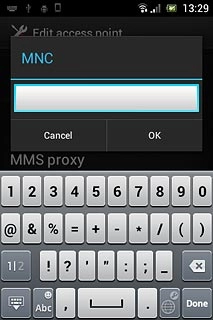

Step 15 of 56

Enter network code

Key in 03 and press OK.

Step 16 of 56

Select authentication type

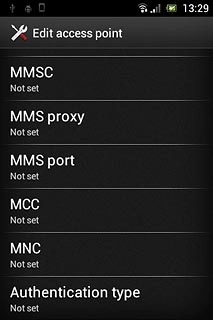

Press Authentication type.

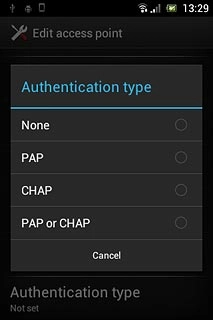

Step 17 of 56

Select authentication type

Press PAP.

Step 18 of 56

Select APN type

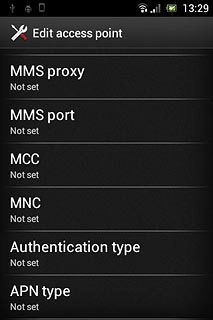

Press APN type.

Step 19 of 56

Select APN type

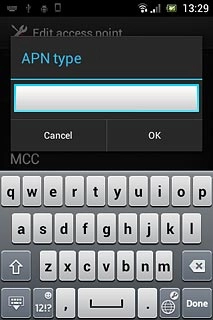

Key in default and press OK.

Step 20 of 56

Save and activate data connection

Press the Menu key.

Step 21 of 56

Save and activate data connection

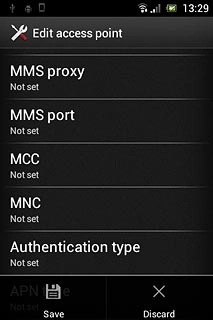

Press Save.

Step 22 of 56

Save and activate data connection

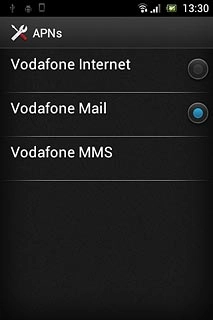

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 56

Save and activate data connection

When the field is marked, the data connection is activated.

Step 24 of 56

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 56

Find "Email"

Press the menu icon.

If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.

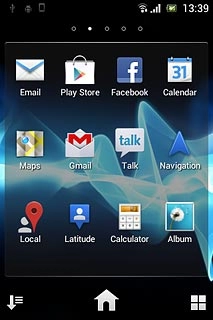

Step 26 of 56

Find "Email"

Press Email.

If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.
Step 27 of 56

Create new email account

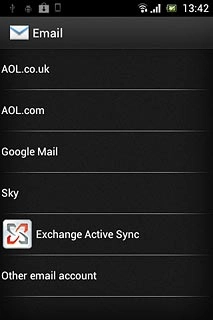

Press Other email account.

Sony Xperia miro
Step 28 of 56

Enter email address

Key in your email address.

Step 29 of 56

Enter password

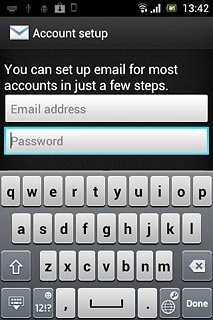

Press Password and key in the password for your email account at your email provider.

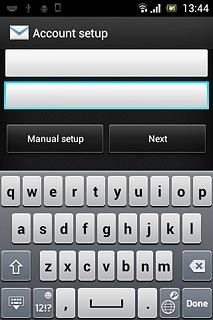

Step 30 of 56

Enter password

Press Next.

Step 31 of 56

Select server type

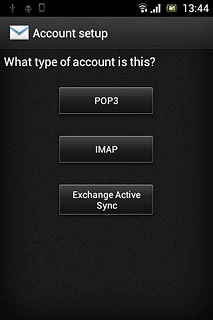

Press POP3.

Sony Xperia miro
Step 32 of 56

Enter username

Key in the username for your email account.

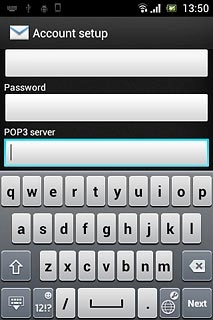

Step 33 of 56

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

Step 34 of 56

Enter incoming port

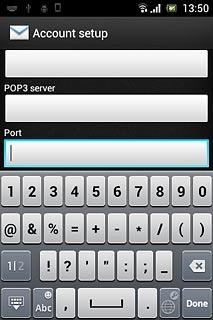

Press the field below Port and key in 110

Step 35 of 56

Turn off SSL encryption of incoming email messages

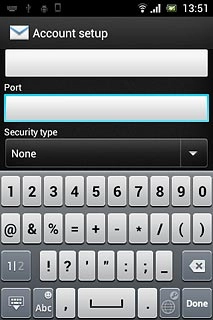

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

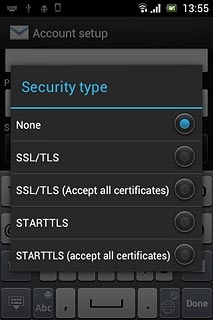

Step 36 of 56

Turn off SSL encryption of incoming email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 37 of 56

Select setting for deleting email messages from server

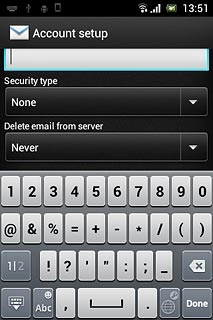

Press the drop down list below Delete email from server.

Step 38 of 56

Select setting for deleting email messages from server

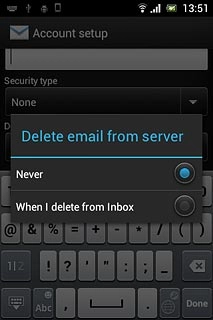

Press the required setting.

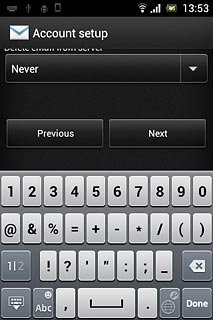

Step 39 of 56

Select setting for deleting email messages from server

Press Next.

Step 40 of 56

Enter outgoing server

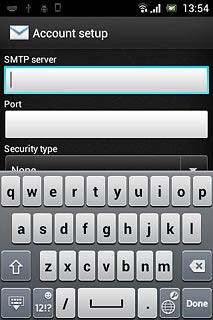

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 41 of 56

Enter outgoing port

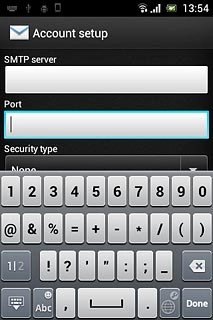

Press the field below Port and key in 25

Step 42 of 56

Turn off encryption of outgoing email messages

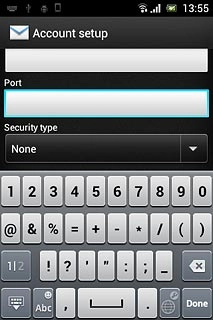

Press the drop down list below Security type.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 43 of 56

Turn off encryption of outgoing email messages

Press None.

SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Step 44 of 56

Turn SMTP authentication on or off

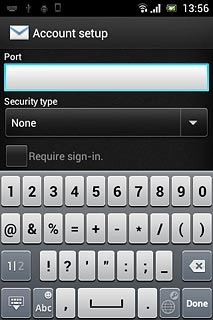

Press Require sign-in to turn SMTP authentication on or off.

Step 45 of 56

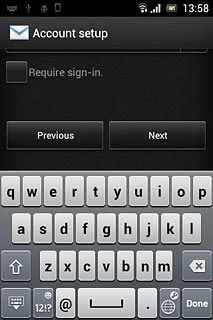

Turn SMTP authentication on or off

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 46 of 56

Select setting for retrieving new email messages

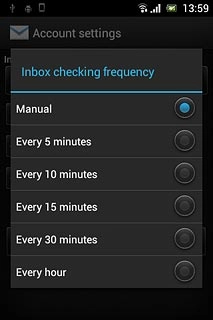

Press the drop down list below Inbox checking frequency.

Step 47 of 56

Select setting for retrieving new email messages

Press Manual or the required period.

Step 48 of 56

Select default email account

Press Send email from this account by default to select a default email account.

Step 49 of 56

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Step 50 of 56

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.

Step 51 of 56

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 52 of 56

Turn email message notification on or off

Press Next.

Sony Xperia miro
Step 53 of 56

Enter email account name

Key in a name for the email account.

Step 54 of 56

Enter sender name

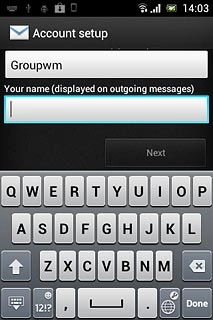

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Step 55 of 56

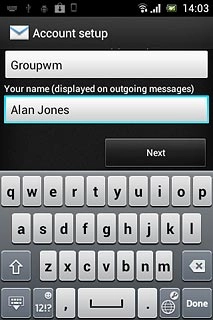

Retrieve email messages

Press Next.
Wait while your phone retrieves new email messages.

Step 56 of 56

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press More....
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Mail and press OK.

Enter APN

Press APN.
An APN is used to establish a data connection.
Key in live.vodafone.com and press OK.
An APN is used to establish a data connection.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select APN type

Press APN type.
Key in default and press OK.

Save and activate data connection

Press the Menu key.
Press Save.
Press the field next to Vodafone Mail to activate the data connection.
When the field is marked, the data connection is activated.
Press the Home key to return to standby mode.

Find "Email"

Press the menu icon.
If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.
Press Email.
If email accounts have been created already, press the Menu key. Press Settings. Press ADD ACCOUNT.

Create new email account

Press Other email account.

Enter email address

Key in your email address.
Sony Xperia miro

Enter password

Press Password and key in the password for your email account at your email provider.
Press Next.

Select server type

Press POP3.

Enter username

Key in the username for your email account.
Sony Xperia miro

Enter incoming server

Press the field below POP3 server and key in the name of your email provider's incoming email server.

Enter incoming port

Press the field below Port and key in 110

Turn off SSL encryption of incoming email messages

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

Select setting for deleting email messages from server

Press the drop down list below Delete email from server.
Press the required setting.
Press Next.

Enter outgoing server

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Enter outgoing port

Press the field below Port and key in 25

Turn off encryption of outgoing email messages

Press the drop down list below Security type.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.
Press None.
SSL encryption protects your email messages when sending and receiving email messages. If you turn on SSL encryption, your email provider and internet service provider need to support this function, and you might need to select further settings before you can send and receive email messages.

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.
If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Select setting for retrieving new email messages

Press the drop down list below Inbox checking frequency.
Press Manual or the required period.

Select default email account

Press Send email from this account by default to select a default email account.
When the box next to the menu item is ticked (V), the function is turned on.

Turn email message notification on or off

Press Notify me when email arrives to turn the function on or off.
When the box next to the menu item is ticked (V), the function is turned on.
Press Next.

Enter email account name

Key in a name for the email account.
Sony Xperia miro

Enter sender name

Press the field below Your name (displayed on outgoing messages) and key in the required sender name.

Retrieve email messages

Press Next.
Wait while your phone retrieves new email messages.

Exit

Press the Home key to return to standby mode.
