Set up your phone for picture messaging - Sony Xperia Play

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 35

Find "Access Point Names"

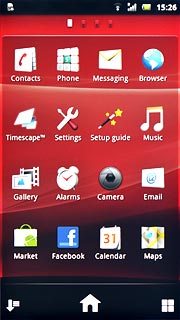

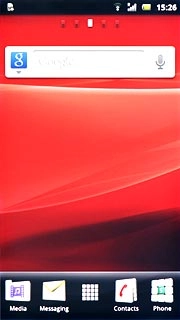

Press the menu icon.

Step 2 of 35

Find "Access Point Names"

Press Settings.

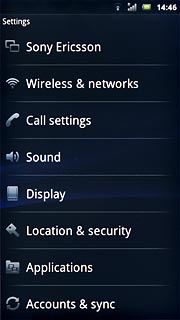

Step 3 of 35

Find "Access Point Names"

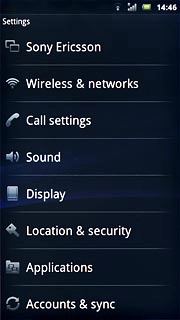

Press Wireless & networks.

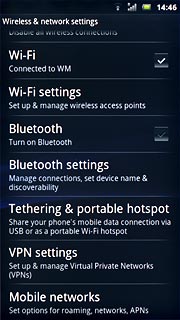

Step 4 of 35

Find "Access Point Names"

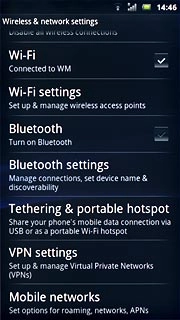

Press Mobile networks.

Step 5 of 35

Find "Access Point Names"

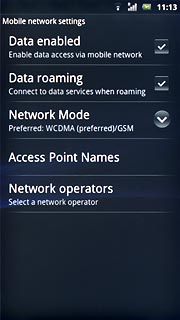

Press Access Point Names.

Step 6 of 35

Create new data connection

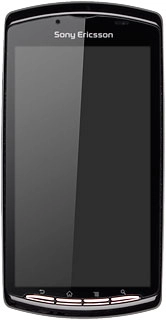

Press the Menu key.

Step 7 of 35

Create new data connection

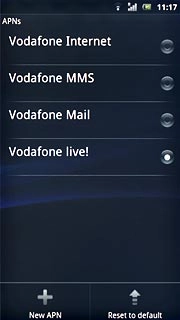

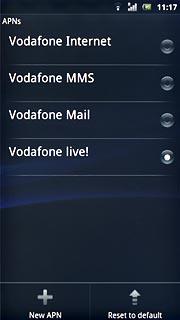

Press New APN.

Step 8 of 35

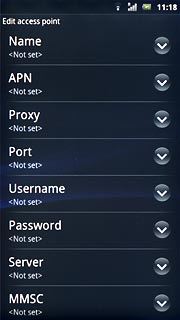

Enter data connection name

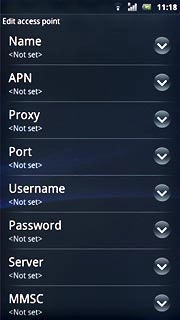

Press Name.

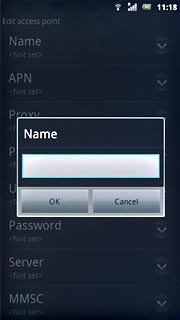

Step 9 of 35

Enter data connection name

Key in Vodafone MMS and press OK.

Step 10 of 35

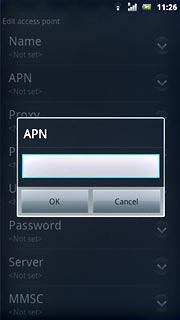

Enter APN

Press APN.
Key in live.vodafone.com

Step 11 of 35

Enter APN

Press OK.

Step 12 of 35

Enter picture messaging server

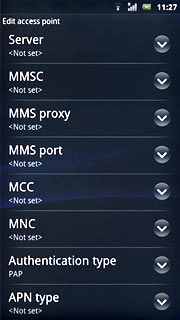

Press MMSC.

Step 13 of 35

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 35

Enter IP address

Press MMS proxy.

Step 15 of 35

Enter IP address

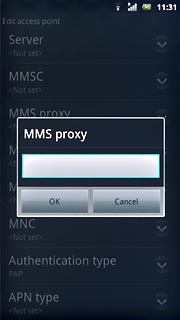

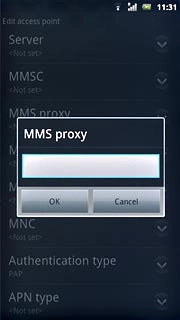

Key in 10.202.002.060 and press OK.

Step 16 of 35

Enter port number

Press MMS port.

Step 17 of 35

Enter port number

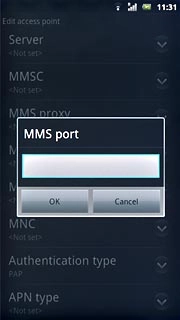

Key in 8080 and press OK.

Step 18 of 35

Enter country code

Press MCC.

Step 19 of 35

Enter country code

Key in 505 and press OK.

Step 20 of 35

Enter network code

Press MNC.

Step 21 of 35

Enter network code

Key in 03 and press OK.

Step 22 of 35

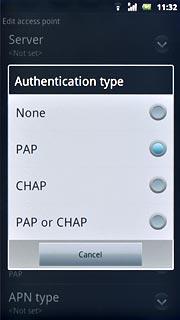

Select authentication type

Press Authentication type.

Step 23 of 35

Select authentication type

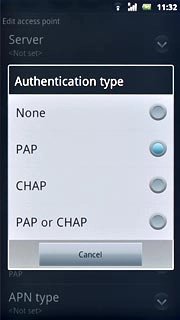

Press PAP.

Step 24 of 35

Enter APN type

Press APN type.

Step 25 of 35

Enter APN type

Key in mms and press OK.

Step 26 of 35

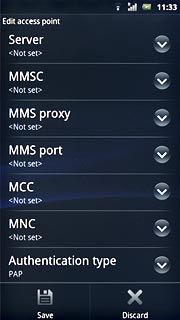

Save data connection

Press the Menu key.

Step 27 of 35

Save data connection

Press Save.

Step 28 of 35

Save data connection

Press the Home key to return to standby mode.

Step 29 of 35

Find "Settings"

Press the menu icon.

Step 30 of 35

Find "Settings"

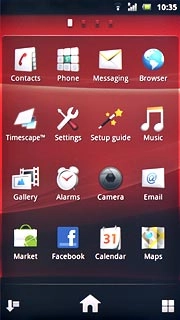

Press Messaging.

Step 31 of 35

Find "Settings"

Press the Menu key.

Step 32 of 35

Find "Settings"

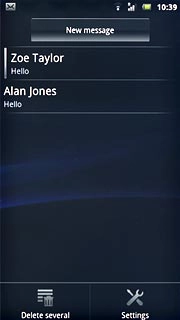

Press Settings.

Step 33 of 35

Turn request for delivery reports on or off

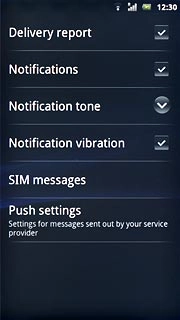

Press Delivery report to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 34 of 35

Turn request for delivery reports on or off

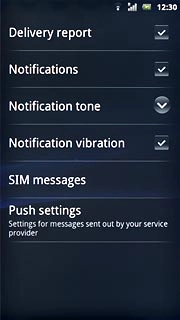

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
Step 35 of 35

Exit

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.
Press Settings.
Press Wireless & networks.
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the Menu key.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone MMS and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Enter picture messaging server

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.

Enter port number

Press MMS port.
Key in 8080 and press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Enter APN type

Press APN type.
Key in mms and press OK.

Save data connection

Press the Menu key.
Press Save.
Press the Home key to return to standby mode.

Find "Settings"

Press the menu icon.
Press Messaging.
Press the Menu key.
Press Settings.

Turn request for delivery reports on or off

Press Delivery report to turn the function on or off.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.
When the box next to the menu item is ticked (V), the function is turned on.
If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to both text messages and picture messages.

Exit

Press the Home key to return to standby mode.
