Guide for the Sony Xperia ray - Set up your phone for Exchange email

Step 1 of 54

Find "Access Point Names"

Press the menu icon.

Step 2 of 54

Find "Access Point Names"

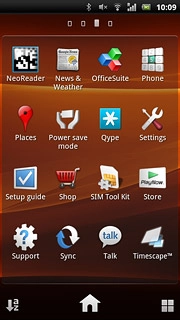

Press Settings.

Step 3 of 54

Find "Access Point Names"

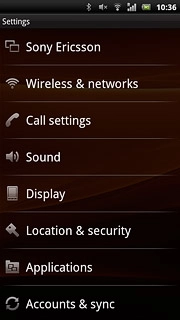

Press Wireless & networks.

Step 4 of 54

Find "Access Point Names"

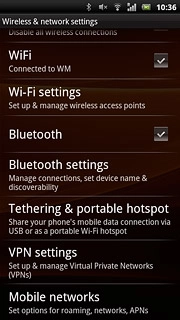

Press Mobile networks.

Step 5 of 54

Find "Access Point Names"

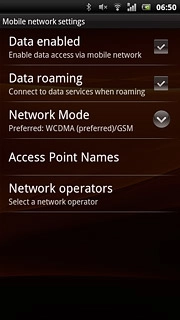

Press Access Point Names.

Step 6 of 54

Create new data connection

Press the Menu key.

Step 7 of 54

Create new data connection

Press New APN.

Step 8 of 54

Enter data connection name

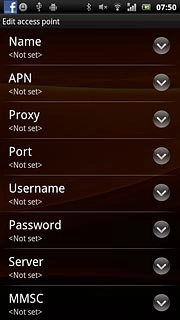

Press Name.

Step 9 of 54

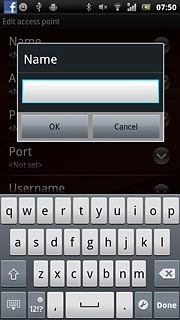

Enter data connection name

Key in Vodafone Mail and press OK.

Step 10 of 54

Enter APN

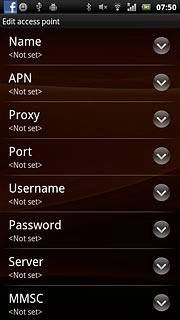

Press APN.
Key in live.vodafone.com

Step 11 of 54

Enter APN

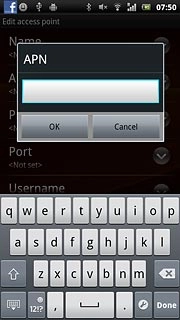

Press OK.

Step 12 of 54

Enter country code

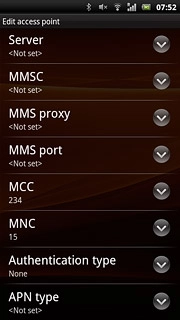

Press MCC.

Step 13 of 54

Enter country code

Key in 505 and press OK.

Step 14 of 54

Enter network code

Press MNC.

Step 15 of 54

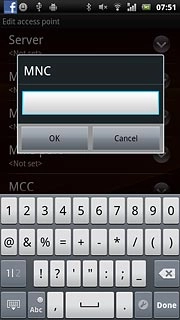

Enter network code

Key in 03 and press OK.

Step 16 of 54

Select authentication type

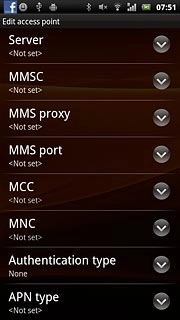

Press Authentication type.

Step 17 of 54

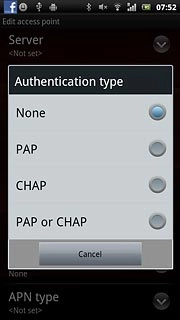

Select authentication type

Press None.

Step 18 of 54

Select APN type

Press APN type.

Step 19 of 54

Select APN type

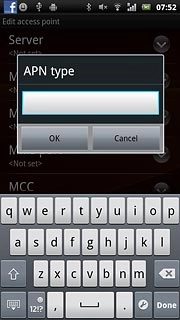

Key in default and press OK.

Step 20 of 54

Save and activate data connection

Press the Menu key.

Step 21 of 54

Save and activate data connection

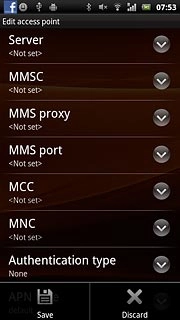

Press Save.

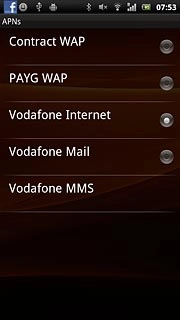

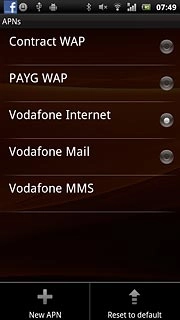

Press the field next to Vodafone Mail to activate the data connection.

Step 22 of 54

Save and activate data connection

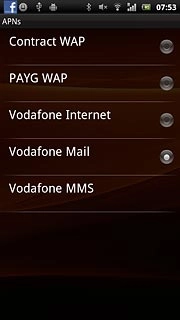

Press the field next to Vodafone Mail to activate the data connection.

When the field is marked, the data connection is activated.

Step 23 of 54

Save and activate data connection

When the field is marked, the data connection is activated.

Press the Home key to return to standby mode.

Step 24 of 54

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 54

Find "Exchange Active Sync"

Press the menu icon.

Step 26 of 54

Find "Exchange Active Sync"

Press Settings.

Step 27 of 54

Find "Exchange Active Sync"

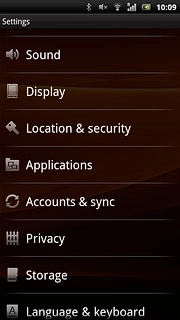

Press Accounts & sync.

Step 28 of 54

Find "Exchange Active Sync"

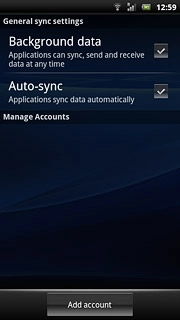

Press Add account.

Step 29 of 54

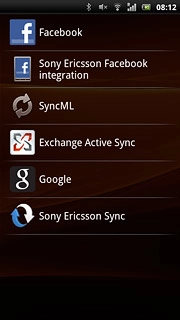

Find "Exchange Active Sync"

Press Exchange Active Sync.

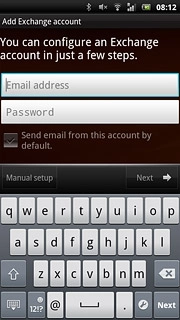

Press Email address and key in your email address.

Step 30 of 54

Enter email address

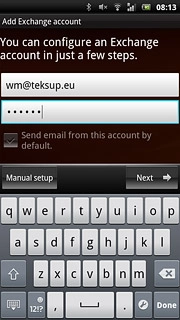

Press Email address and key in your email address.

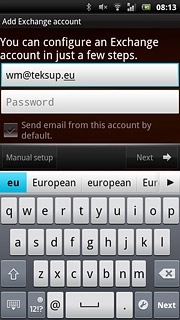

Press Password and key in your password.

Step 31 of 54

Enter password

Press Password and key in your password.

Step 32 of 54

Enter password

Press Next.

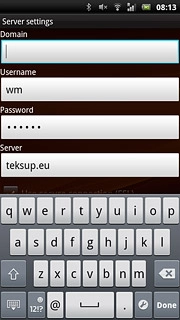

Press the field below Domain and key in the domain.

Step 33 of 54

Enter domain

Press the field below Domain and key in the domain.

Press the field below Username and key in the username.

Step 34 of 54

Enter username

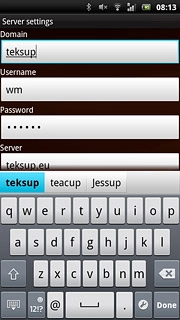

Press the field below Username and key in the username.

Press the field below Server and key in the server address.

Step 35 of 54

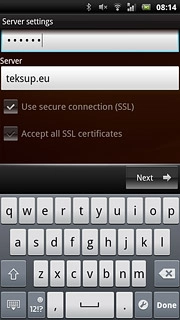

Enter server address

Press the field below Server and key in the server address.

Press Use secure connection (SSL) to turn SSL encryption on or off.

Step 36 of 54

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Step 37 of 54

Turn SSL encryption on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 38 of 54

Turn SSL encryption on or off

Press Next.

Press the drop down list below Inbox check frequency.

Step 39 of 54

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

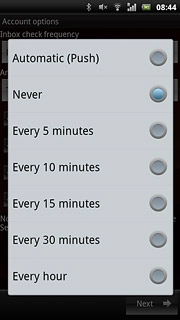

Press Automatic (Push), Never or the required interval.Please note:Every time your phone connects to the server to synchronise, data charges will apply.

Step 40 of 54

Select setting for retrieving new email messages

Press Automatic (Push), Never or the required interval.
Please note:
Every time your phone connects to the server to synchronise, data charges will apply.

Press the drop down list below Amount to synchronize.

Step 41 of 54

Choose synchronisation period

Press the drop down list below Amount to synchronize.

Step 42 of 54

Choose synchronisation period

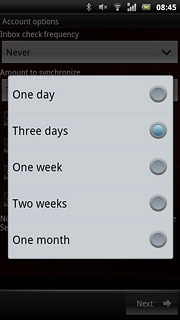

Press the required setting.

Press Send email from this account by default. to turn the function on or off.

Step 43 of 54

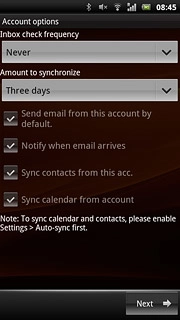

Select default email account

Press Send email from this account by default. to turn the function on or off.

Step 44 of 54

Select default email account

When the box next to the menu item is ticked (V), the function is turned on.

Press Notify when email arrives to turn the function on or off.

Step 45 of 54

Turn email message notification on or off

Press Notify when email arrives to turn the function on or off.

Step 46 of 54

Turn email message notification on or off

When the box next to the menu item is ticked (V), the function is turned on.

Press Sync contacts from this acc. to turn the function on or off.

Step 47 of 54

Turn synchronisation of contacts on or off

Press Sync contacts from this acc. to turn the function on or off.

Step 48 of 54

Turn synchronisation of contacts on or off

When the box next to the menu item is ticked (V), the function is turned on.

Press Sync calendar from account to turn the function on or off.

Step 49 of 54

Turn synchronisation of calendar on or off

Press Sync calendar from account to turn the function on or off.

Step 50 of 54

Turn synchronisation of calendar on or off

When the box next to the menu item is ticked (V), the function is turned on.

Step 51 of 54

Turn synchronisation of calendar on or off

Press Next.

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 52 of 54

Enter email account name

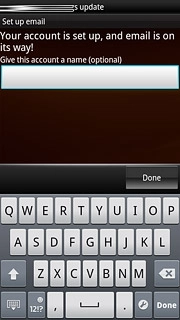

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 53 of 54

Enter email account name

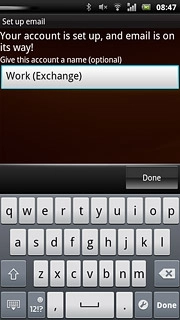

Press Done.

Step 54 of 54

Exit

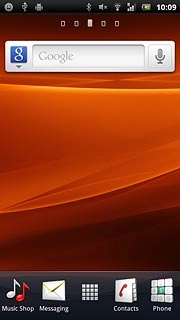

Press the Home key to return to standby mode.

Find "Access Point Names"

Press the menu icon.

Press Settings.

Press Wireless & networks.

Press Mobile networks.

Press Access Point Names.

Create new data connection

Press the Menu key.

Press New APN.

Enter data connection name

Press Name.

Key in Vodafone Mail and press OK.

Enter APN

Press APN.
Key in live.vodafone.com

Press OK.

Enter country code

Press MCC.

Key in 505 and press OK.

Enter network code

Press MNC.

Key in 03 and press OK.

Select authentication type

Press Authentication type.

Press None.

Select APN type

Press APN type.

Key in default and press OK.

Save and activate data connection

Press the Menu key.

Press Save.

Press the field next to Vodafone Mail to activate the data connection.

When the field is marked, the data connection is activated.

Press the Home key to return to standby mode.

Find "Exchange Active Sync"

Press the menu icon.

Press Settings.

Press Accounts & sync.

Press Add account.

Press Exchange Active Sync.

Enter email address

Press Email address and key in your email address.

Enter password

Press Password and key in your password.

Press Next.

Enter domain

Press the field below Domain and key in the domain.

Enter username

Press the field below Username and key in the username.

Enter server address

Press the field below Server and key in the server address.

Turn SSL encryption on or off

Press Use secure connection (SSL) to turn SSL encryption on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Press Next.

Select setting for retrieving new email messages

Press the drop down list below Inbox check frequency.

Press Automatic (Push), Never or the required interval.
Please note:
Every time your phone connects to the server to synchronise, data charges will apply.

Choose synchronisation period

Press the drop down list below Amount to synchronize.

Press the required setting.

Select default email account

Press Send email from this account by default. to turn the function on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Turn email message notification on or off

Press Notify when email arrives to turn the function on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Turn synchronisation of contacts on or off

Press Sync contacts from this acc. to turn the function on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Turn synchronisation of calendar on or off

Press Sync calendar from account to turn the function on or off.

When the box next to the menu item is ticked (V), the function is turned on.

Press Next.

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Press Done.

Exit

Press the Home key to return to standby mode.

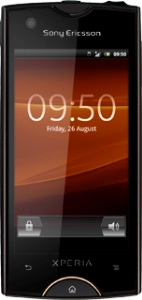

Sony Xperia ray
