Set up your phone for POP3 email - Sony Xperia ray

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 56

Find "Access Point Names"

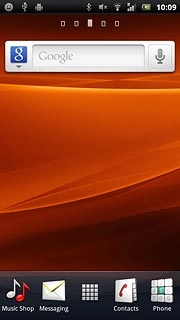

Press the menu icon.

Step 2 of 56

Find "Access Point Names"

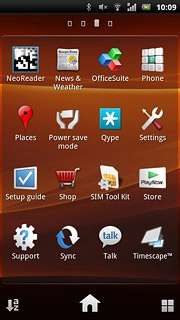

Press Settings.

Step 3 of 56

Find "Access Point Names"

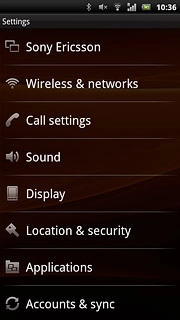

Press Wireless & networks.

Step 4 of 56

Find "Access Point Names"

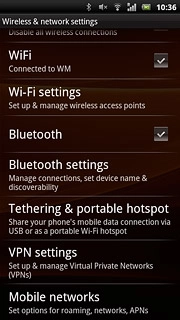

Press Mobile networks.

Step 5 of 56

Find "Access Point Names"

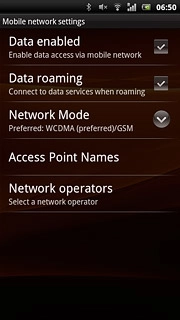

Press Access Point Names.

Step 6 of 56

Create new data connection

Press the Menu key.

Step 7 of 56

Create new data connection

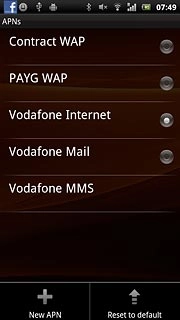

Press New APN.

Step 8 of 56

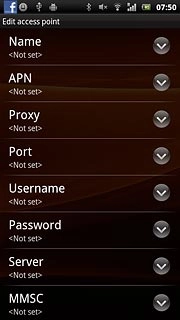

Enter data connection name

Press Name.

Step 9 of 56

Enter data connection name

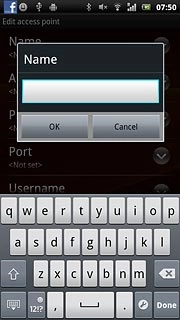

Key in Vodafone Mail and press OK.

Step 10 of 56

Enter APN

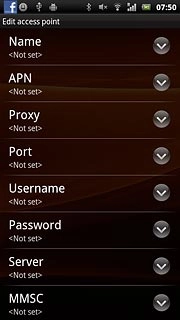

Press APN.
Key in live.vodafone.com

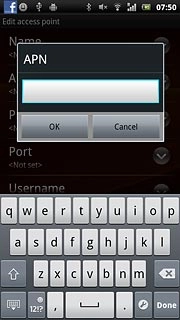

Step 11 of 56

Enter APN

Press OK.

Step 12 of 56

Enter country code

Press MCC.

Step 13 of 56

Enter country code

Key in 505 and press OK.

Step 14 of 56

Enter network code

Press MNC.

Step 15 of 56

Enter network code

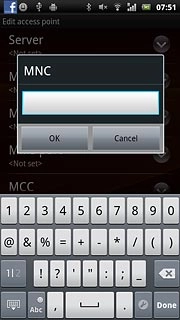

Key in 03 and press OK.

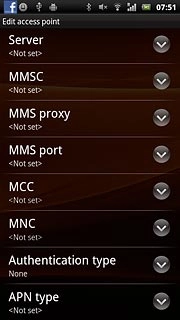

Step 16 of 56

Select authentication type

Press Authentication type.

Step 17 of 56

Select authentication type

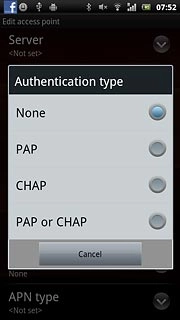

Press PAP.

Step 18 of 56

Select APN type

Press APN type.

Step 19 of 56

Select APN type

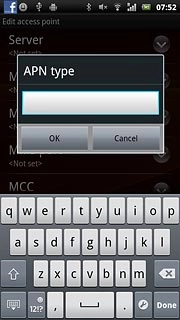

Key in default and press OK.

Step 20 of 56

Save and activate data connection

Press the Menu key.

Step 21 of 56

Save and activate data connection

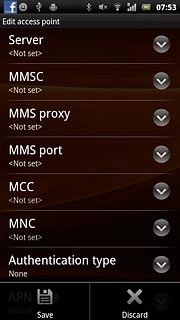

Press Save.

Step 22 of 56

Save and activate data connection

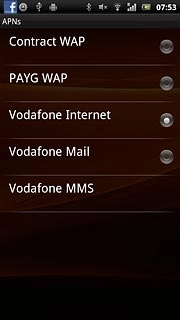

Press the field next to Vodafone Mail to activate the data connection.

Step 23 of 56

Save and activate data connection

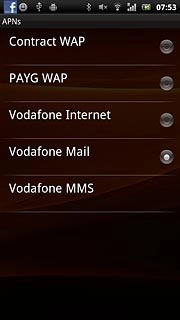

When the field is marked, the data connection is activated.

Step 24 of 56

Save and activate data connection

Press the Home key to return to standby mode.

Step 25 of 56

Find "Email"

Press the menu icon.

Step 26 of 56

Find "Email"

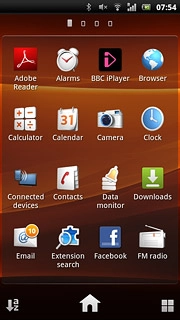

Press Email.

Step 27 of 56

Create new email account

If email accounts have been created already:
Press the Menu key.

Step 28 of 56

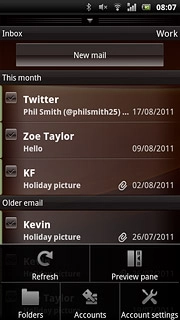

Create new email account

Press Accounts.

Step 29 of 56

Create new email account

Press the Menu key.

Step 30 of 56

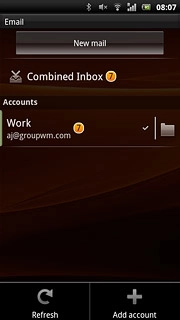

Create new email account

Press Add account.

Step 31 of 56

Create new email account

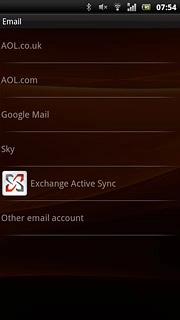

Press Other email account.

Step 32 of 56

Enter email address

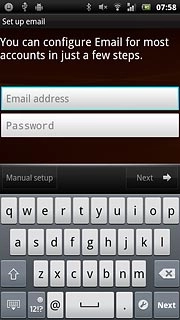

Press Email address and key in your email address.

Step 33 of 56

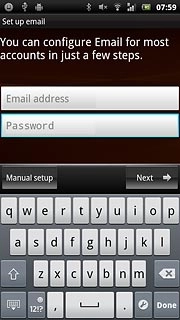

Enter password

Press Password and key in the password for your email account at your email provider.

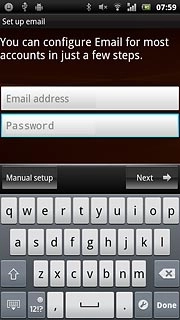

Step 34 of 56

Enter password

Press Next.

Step 35 of 56

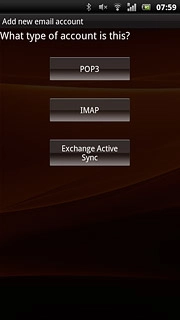

Select server type

Press POP3.

Step 36 of 56

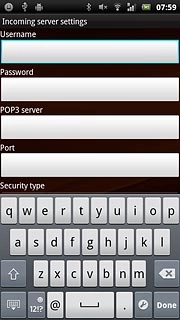

Enter username

Press the field below Username and key in the username for your email account at your email provider.

Step 37 of 56

Enter incoming server

Press the field below POP3 server and key in the name or IP address of your email provider's incoming server.

Step 38 of 56

Enter incoming port

Press the field below Port and key in 110

Step 39 of 56

Select security settings

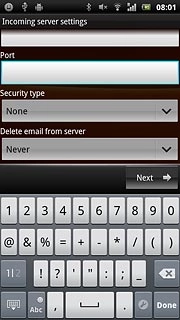

Press the drop down list below Security type.

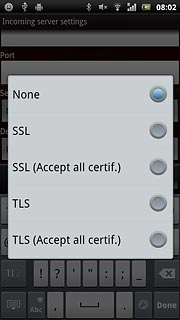

Step 40 of 56

Select security settings

Press None.

Step 41 of 56

Select setting for deleting email messages from server

Press the drop down list below Delete email from server.

Step 42 of 56

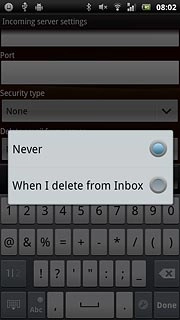

Select setting for deleting email messages from server

Press the required setting.

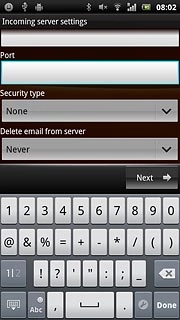

Step 43 of 56

Select setting for deleting email messages from server

Press Next.

Step 44 of 56

Enter outgoing server

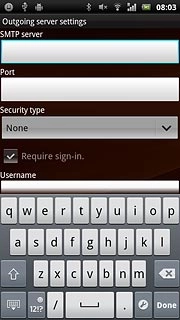

Press the field below SMTP server and key in the name or IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 45 of 56

Enter outgoing port

Press the field below Port and key in 25

Step 46 of 56

Turn off encryption of outgoing email messages

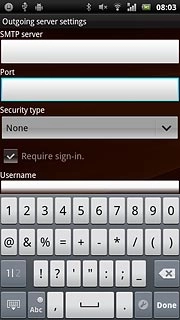

Press the drop down list below Security type.

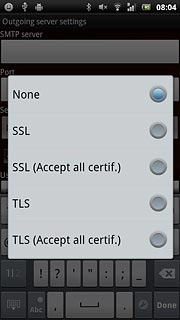

Step 47 of 56

Turn off encryption of outgoing email messages

Press None.

Step 48 of 56

Turn SMTP authentication on or off

Press Require sign-in to turn SMTP authentication on or off.

Step 49 of 56

Turn SMTP authentication on or off

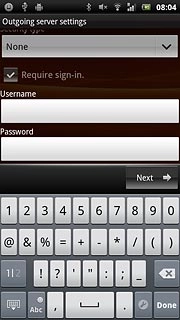

If you turn on SMTP authentication:
Follow the instructions on the display to key in the username and password for your email account.
Please note that if you're using Vodafone's outgoing server, turn off SMTP authentication and leave the username and password fields empty.
Press Next.

Step 50 of 56

Select setting for retrieving new email messages

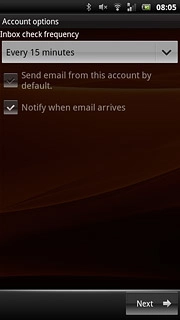

Press the drop down list below Inbox check frequency.

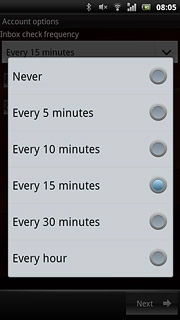

Step 51 of 56

Select setting for retrieving new email messages

Press Never or the required period.

Step 52 of 56

Select setting for retrieving new email messages

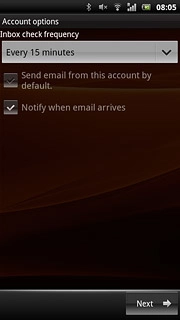

Press Next.

Step 53 of 56

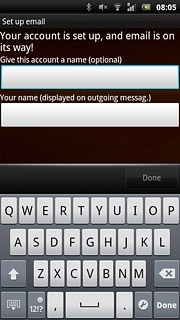

Enter email account name

Press the field below Give this account a name (optional) and key in a name for your email account (such as Private or Work).

Step 54 of 56

Enter sender name

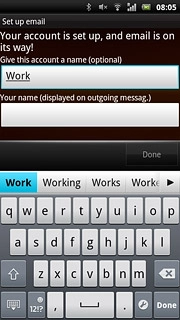

Press the field below Your name (displayed on outgoing messag.) and key in the required sender name.

Step 55 of 56

Retrieve email messages

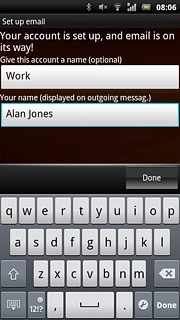

Press Done.
Wait while your phone retrieves new email messages.

Step 56 of 56

Exit

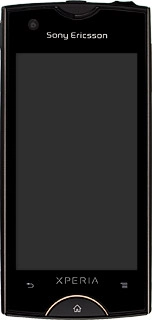

Press the Home key to return to standby mode.
