1. Find "Access Point Names"
Slide two fingers downwards starting from the top the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-88d20c03-b386-4471-bab9-2c03b0421dc7.png?width=206&height=368)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-41909e14-7af2-4791-a72f-605cd1534fc1.png?width=206&height=368)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ed3074b0-973b-4498-abfb-9d7bd6b72c2d.png?width=206&height=368)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0d05baf6-cedb-401d-8189-4bed19560766.png?width=206&height=368)

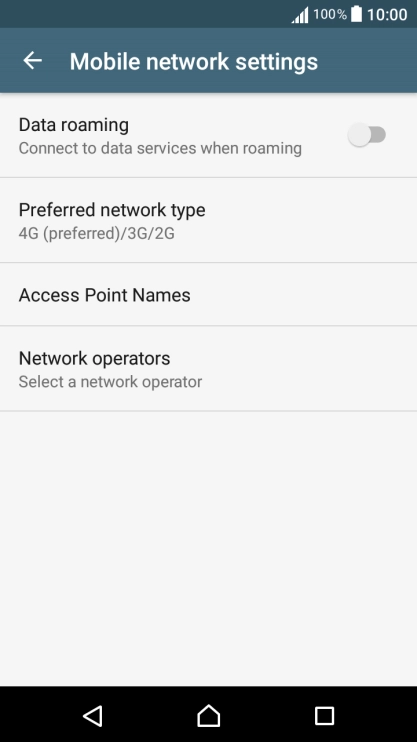

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c6020c9-b922-4e85-bae5-d0df15de5c4c.png?width=206&height=368)
2. Create new data connection

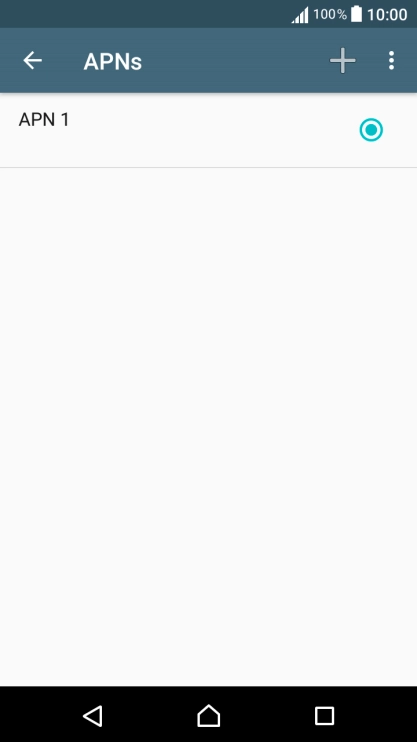

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8265ffd4-5fe0-47a6-a6ea-479d744be103.png?width=206&height=368)

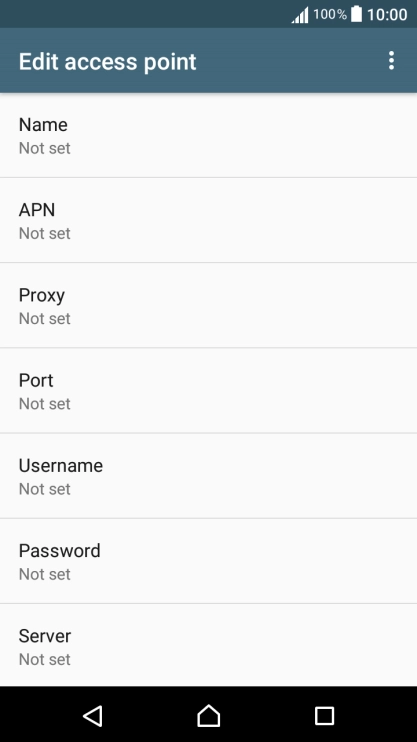

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2271478c-47a0-4a8f-b275-be63fd7c8d79.png?width=206&height=368)

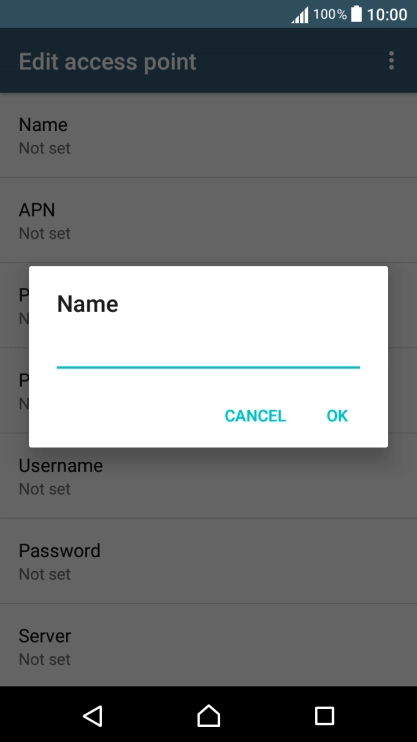

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6857e961-b674-4fd1-b128-ea82a0da65ff.png?width=206&height=368)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2271478c-47a0-4a8f-b275-be63fd7c8d79.png?width=206&height=368)

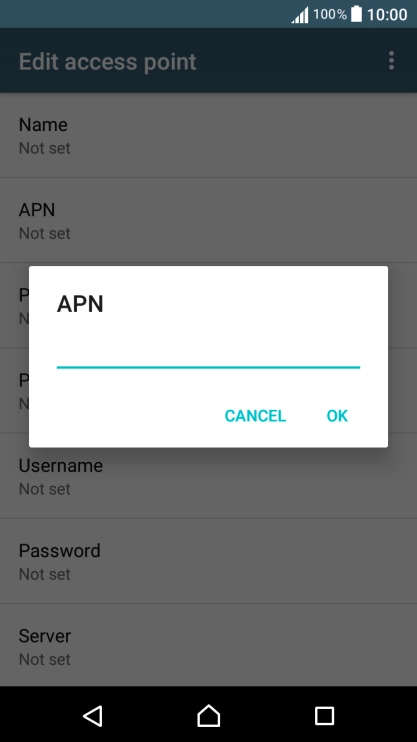

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3585a210-4d5c-4ce4-8205-a070f96134ea.png?width=206&height=368)
live.vodafone.com
4. Enter country code

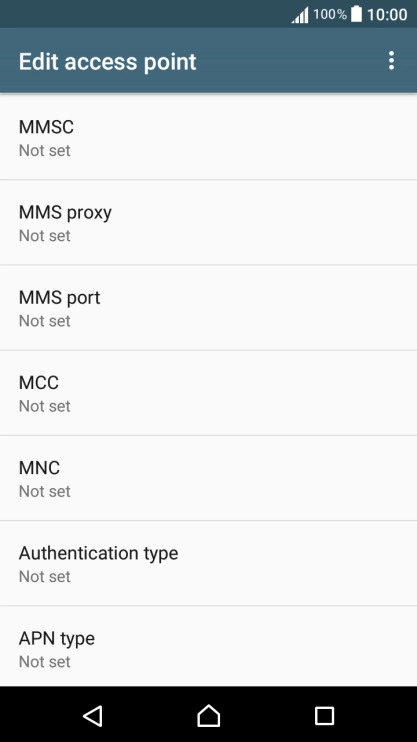

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7abea922-5c8b-40d6-a55b-af519f129f95.png?width=206&height=368)

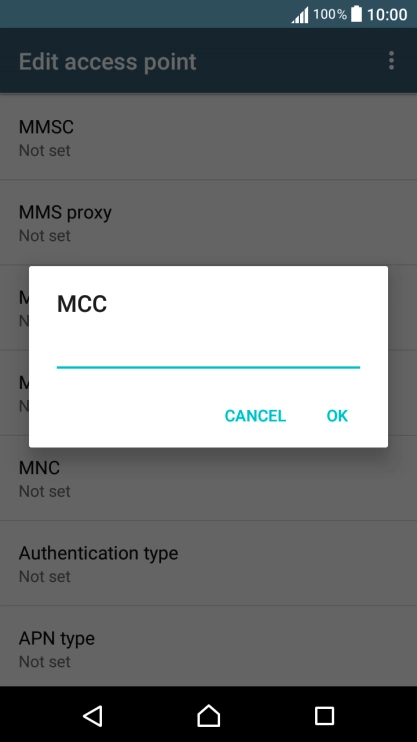

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f363f19-4312-4b39-9e9a-c01aaa0ebf42.png?width=206&height=368)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7abea922-5c8b-40d6-a55b-af519f129f95.png?width=206&height=368)

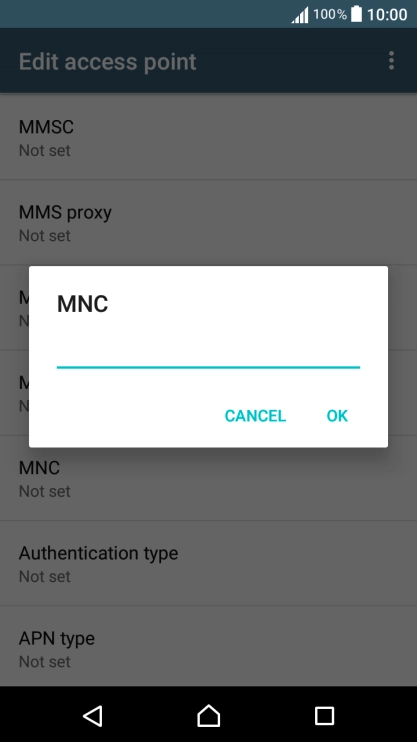

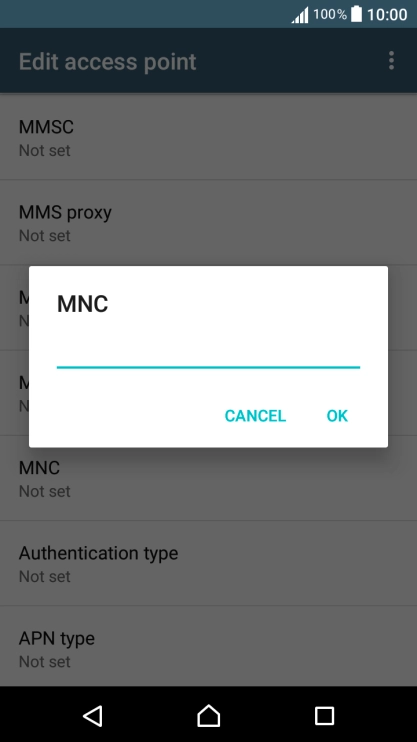

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-50c2154f-a8d1-4185-a152-a7857cb9c7c2.png?width=206&height=368)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7abea922-5c8b-40d6-a55b-af519f129f95.png?width=206&height=368)

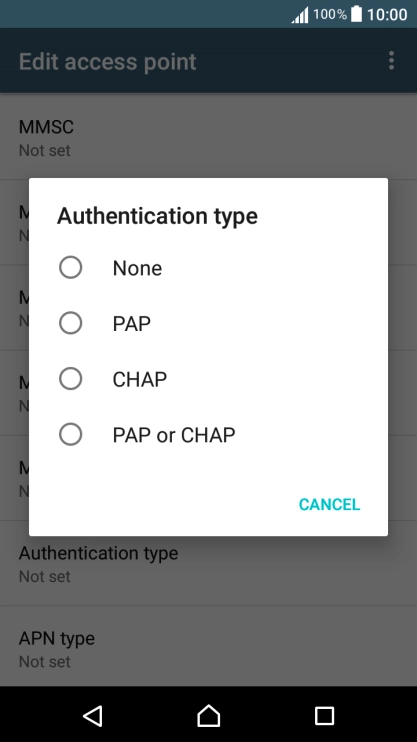

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b4d3edcb-d22b-47df-af4b-010e24936525.png?width=206&height=368)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7abea922-5c8b-40d6-a55b-af519f129f95.png?width=206&height=368)

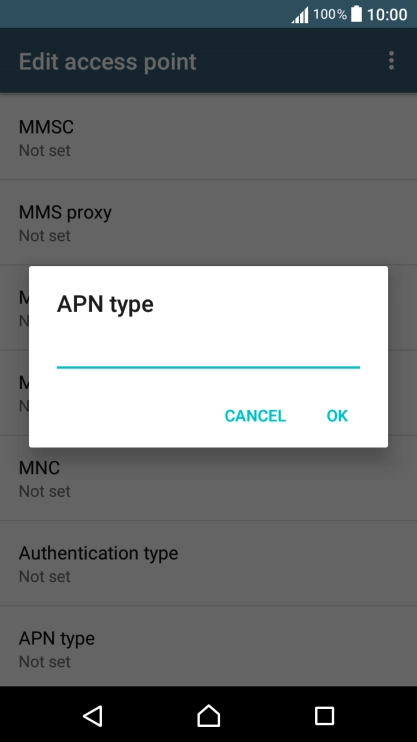

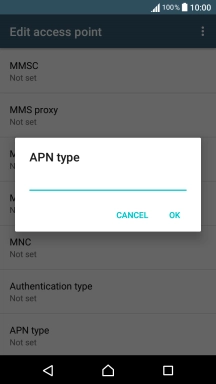

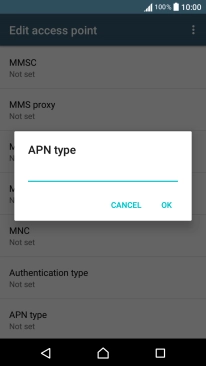

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-41d08d38-0618-4b85-b704-faf345d25be4.png?width=206&height=368)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7abea922-5c8b-40d6-a55b-af519f129f95.png?width=206&height=368)

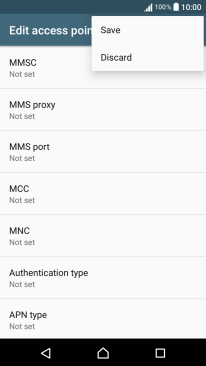

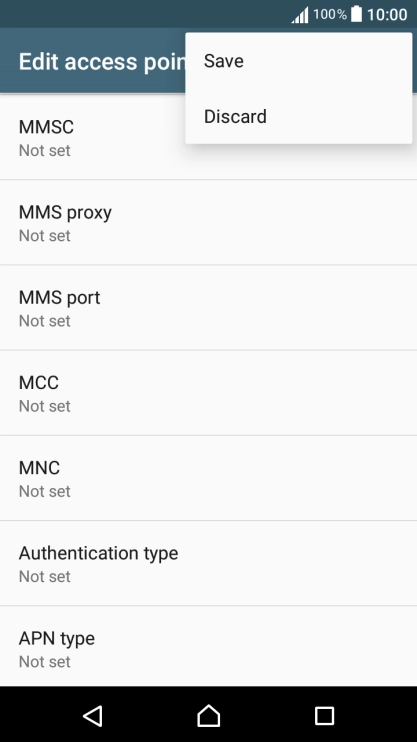

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-75e0d817-89d8-4994-895f-7a8c4c25327d.png?width=206&height=368)

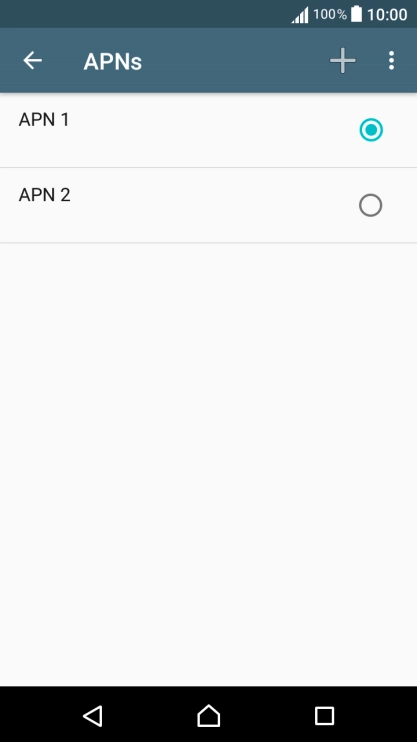

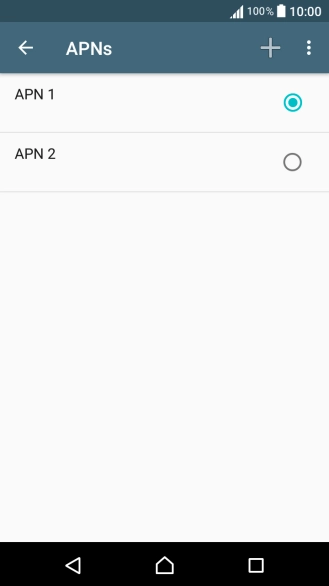

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-762fc609-9718-4d8c-9ac4-d5e242af3f2d.png?width=206&height=368)
9. Return to the home screen

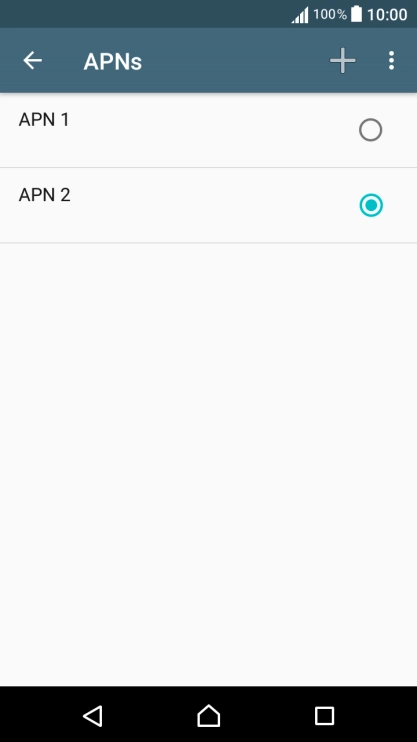

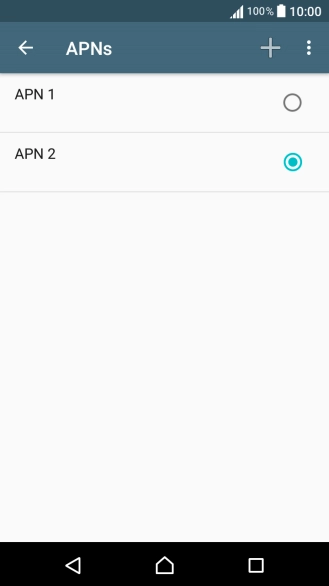

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cfc7654c-b8dd-477b-906d-20b5ea52e84c.png?width=206&height=368)
