Set up your phone for picture messaging - Sony Xperia Z

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 39

Find "Access Point Names"

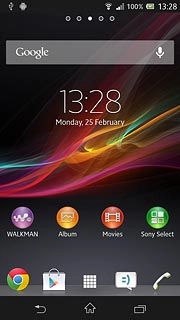

Press the menu icon.

Step 2 of 39

Find "Access Point Names"

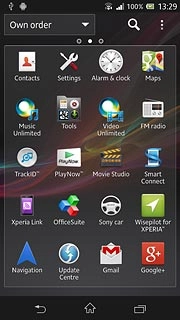

Press Settings.

Step 3 of 39

Find "Access Point Names"

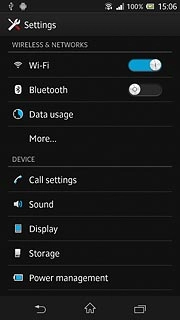

Press More....

Step 4 of 39

Find "Access Point Names"

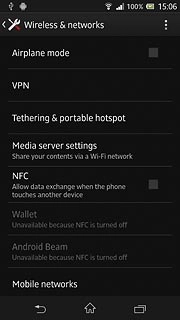

Press Mobile networks.

Step 5 of 39

Find "Access Point Names"

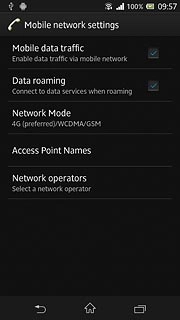

Press Access Point Names.

Step 6 of 39

Create new data connection

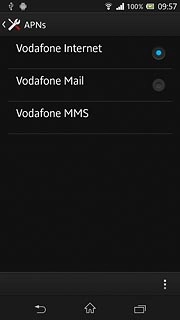

Press the menu icon.

Step 7 of 39

Create new data connection

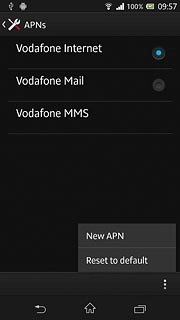

Press New APN.

Step 8 of 39

Enter data connection name

Press Name.

Step 9 of 39

Enter data connection name

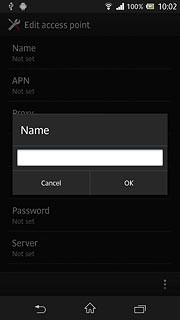

Key in Vodafone MMS and press OK.

Step 10 of 39

Enter APN

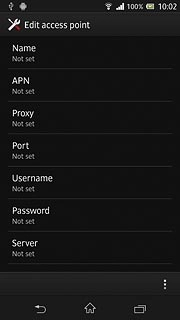

Press APN.

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 11 of 39

Enter APN

Key in live.vodafone.com and press OK.

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 12 of 39

Enter picture messaging server

Press MMSC.

Step 13 of 39

Enter picture messaging server

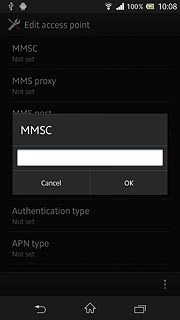

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 14 of 39

Enter IP address

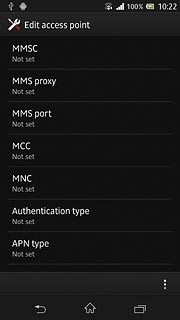

Press MMS proxy.

Step 15 of 39

Enter IP address

Key in 10.202.002.060 and press OK.

Step 16 of 39

Enter port number

Press MMS port.

Step 17 of 39

Enter port number

Key in 8080 and press OK.

Step 18 of 39

Enter country code

Press MCC.

Step 19 of 39

Enter country code

Key in 505 and press OK.

Step 20 of 39

Enter network code

Press MNC.

Step 21 of 39

Enter network code

Key in 03 and press OK.

Step 22 of 39

Select authentication type

Press Authentication type.

Step 23 of 39

Select authentication type

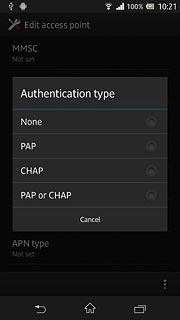

Press PAP.

Step 24 of 39

Select APN type

Press APN type.

Step 25 of 39

Select APN type

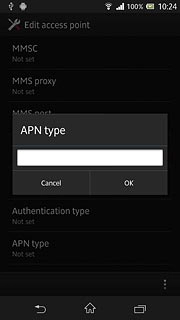

Key in mms and press OK.

Step 26 of 39

Save and activate data connection

Press the menu icon.

Step 27 of 39

Save and activate data connection

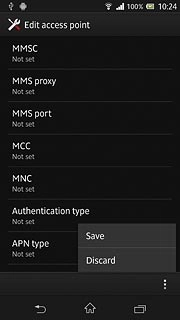

Press Save.

Step 28 of 39

Save and activate data connection

Press the home icon to return to standby mode.

Step 29 of 39

Find "Settings"

Press the menu icon.

Step 30 of 39

Find "Settings"

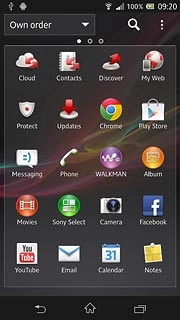

Press Messaging.

Step 31 of 39

Find "Settings"

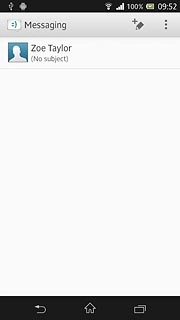

Press the menu icon.

Step 32 of 39

Find "Settings"

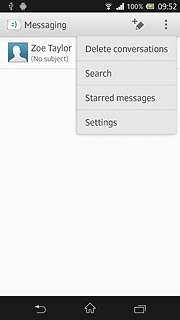

Press Settings.

Step 33 of 39

Turn request for delivery reports on or off

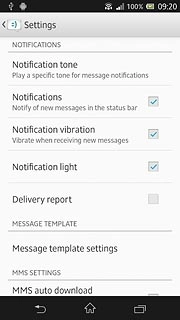

Press Delivery report to turn the function on or off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
Step 34 of 39

Turn request for delivery reports on or off

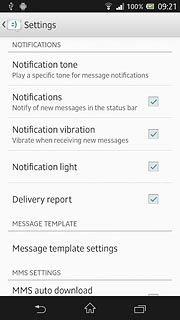

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
This setting applies to text messages and picture messages.
Step 35 of 39

Select setting for picture message download in home network

Press MMS auto download to turn on the function.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 36 of 39

Select setting for picture message download in home network

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're within range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're within range of your home network.
Step 37 of 39

Select setting for picture message download when roaming

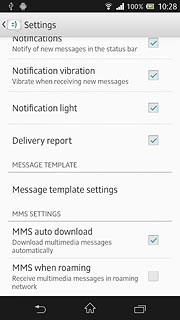

Press MMS when roaming to turn on the function.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 38 of 39

Select setting for picture message download when roaming

When the box next to the menu item is ticked (V), the function is turned on.

If you turn on the function, you'll receive all picture messages when you're out of range of your home network.
If you turn off the function, you'll be notified before you receive picture messages when you're out of range of your home network.
Step 39 of 39

Exit

Press the home icon to return to standby mode.
