1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dc140b80-f62b-4f62-97dc-b3592593658a.png?width=210&height=376)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e3c959e2-71c2-4126-8435-b394f4d28154.png?width=210&height=376)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e796c690-7993-482a-b50f-968f531d4fb0.png?width=210&height=376)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2bed40dc-8b3d-4856-8afb-8f98d32672a8.png?width=210&height=376)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c0c3ba87-466d-400b-ae2b-27a68e6d613b.png?width=210&height=376)
2. Create new data connection

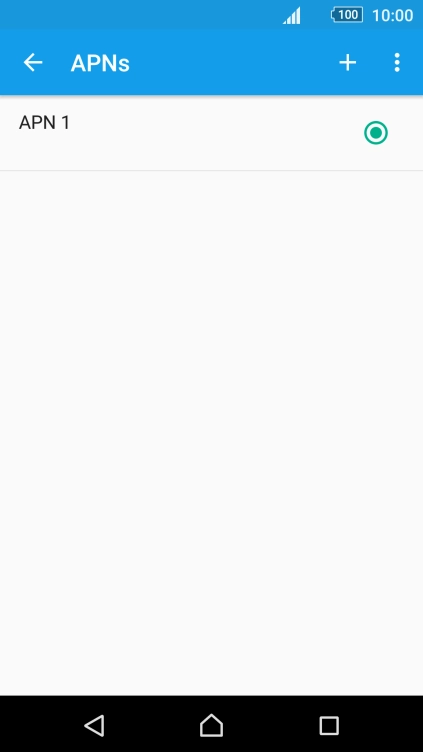

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ae2b9394-31d3-4692-b170-5d454cb9d40e.png?width=210&height=376)

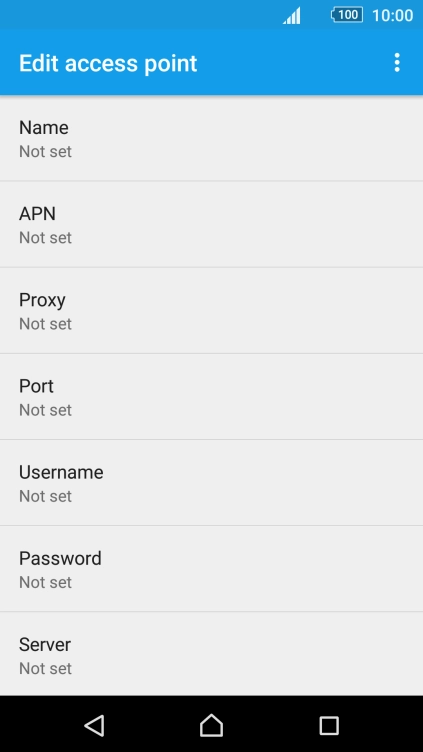

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1f66db78-cd6d-4a5c-8505-4c0f484acb42.png?width=210&height=376)

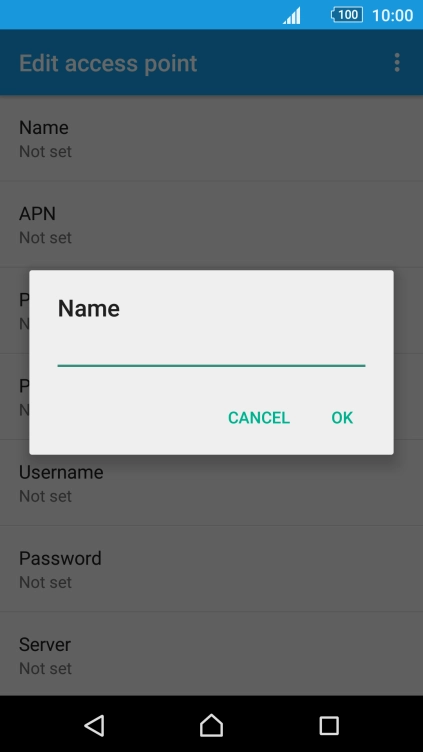

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0f66263f-21bc-46b5-b6c7-b91983d48e30.png?width=210&height=376)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1f66db78-cd6d-4a5c-8505-4c0f484acb42.png?width=210&height=376)

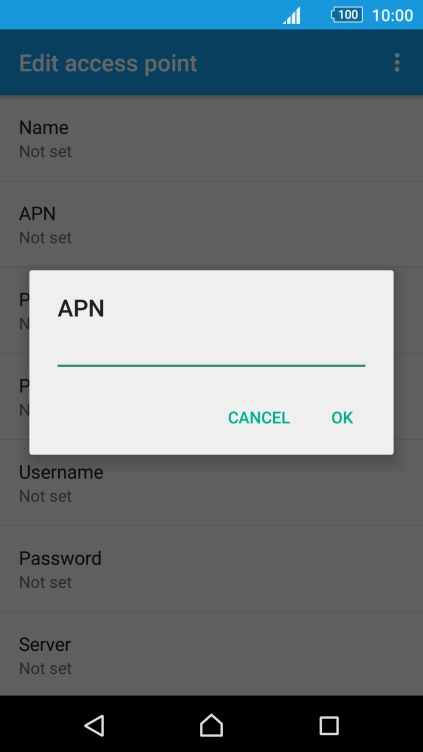

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0e211aa0-5a31-4ec7-ac69-5e2d3c1d0033.png?width=210&height=376)
live.vodafone.com
4. Enter MMSC

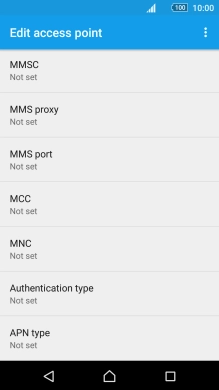

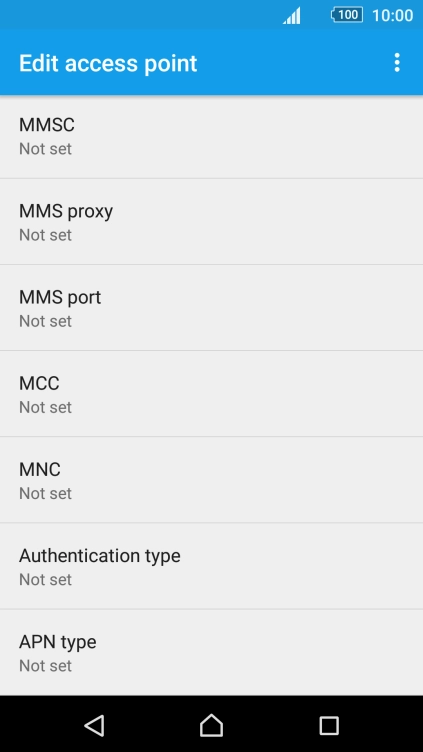

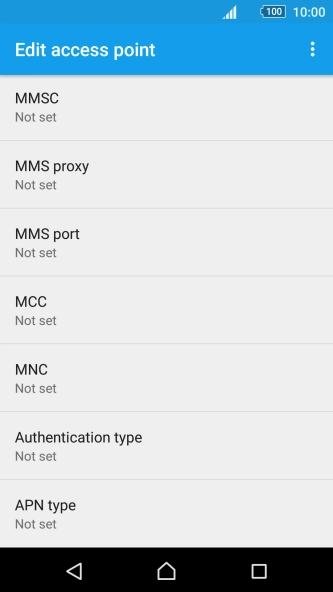

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

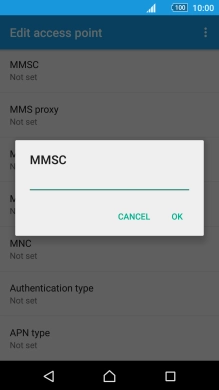

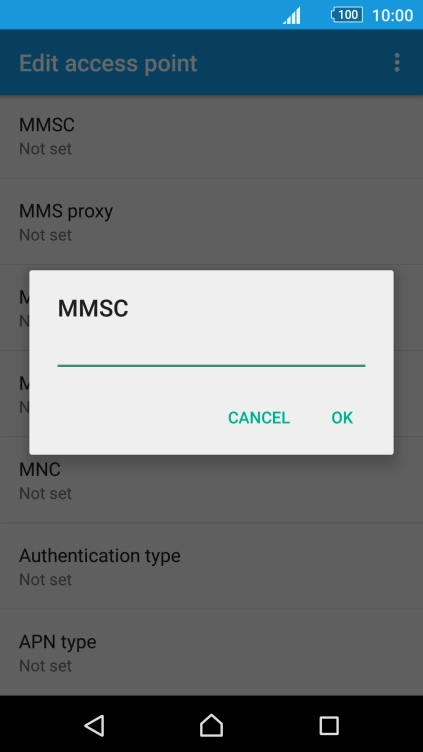

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4093382-90af-419d-8525-7280f577c19f.png?width=210&height=376)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

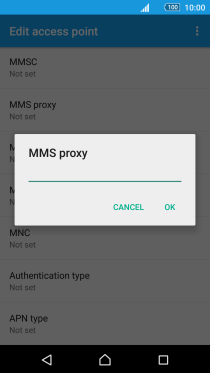

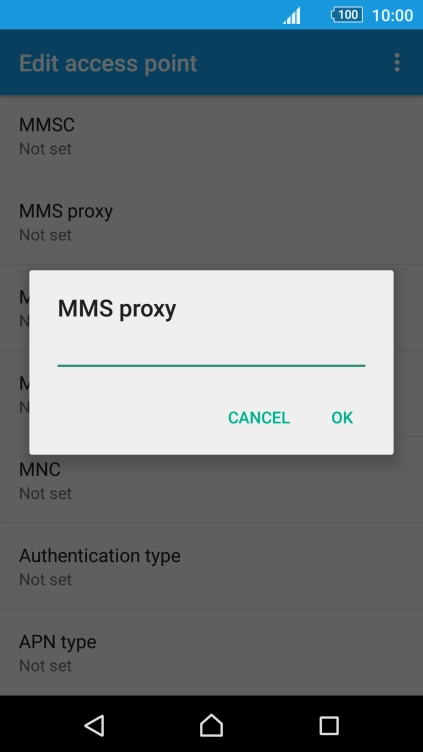

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dcbc8850-3ea7-45bf-a8bd-791ffbc5b2d1.png?width=210&height=376)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

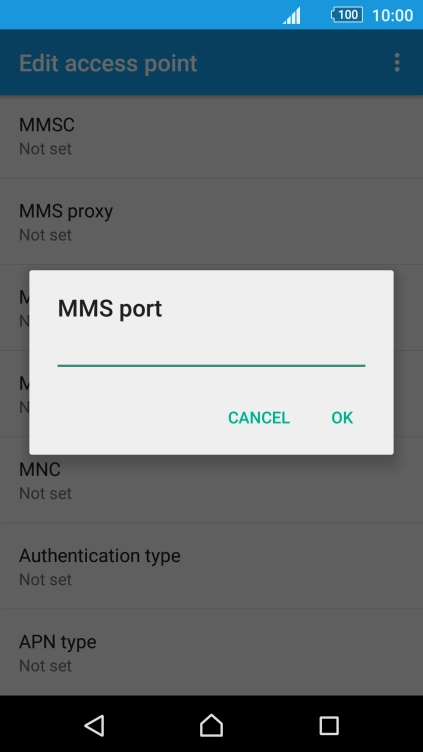

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6d3dae79-6516-4b89-8e14-49c6ddaa3e09.png?width=210&height=376)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

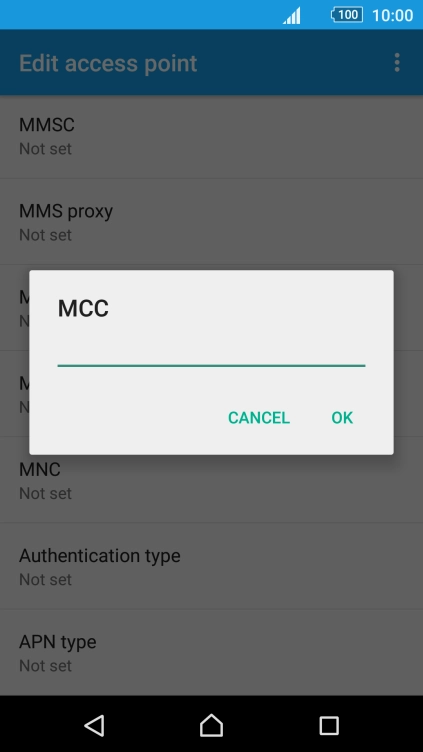

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-429f0d9e-ac10-46c2-a9b5-97aad6acb5b4.png?width=210&height=376)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e2d28dac-09e6-45ce-83ee-42b0c546ae08.png?width=210&height=376)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

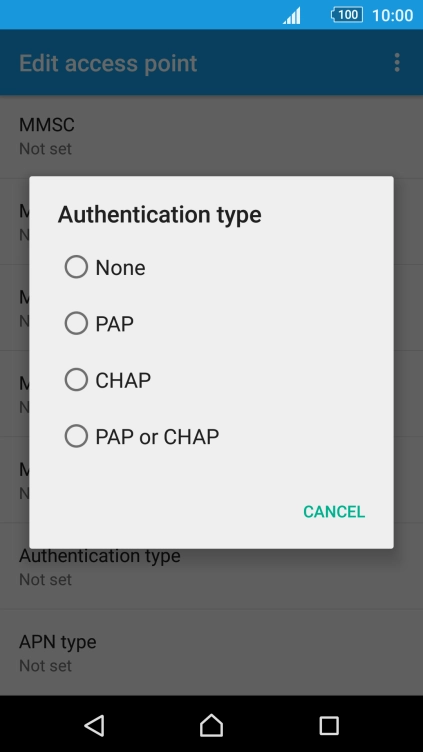

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce4079e4-d3f2-4200-8cf2-b95804d63f8e.png?width=210&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

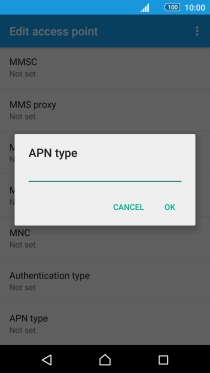

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b15461db-920a-4e5d-b40f-eeaac8b4eae9.png?width=210&height=376)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-42507ea5-020d-4a3b-a62a-4edbfabb3073.png?width=210&height=376)

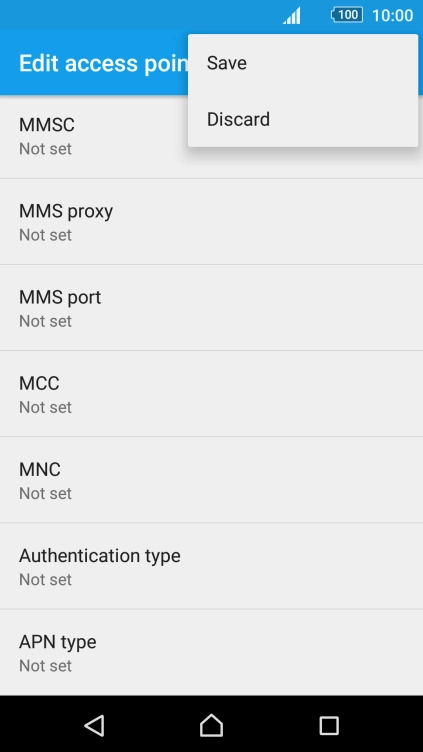

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5e34a4d5-3b38-4269-8c29-e0cb0714da6d.png?width=210&height=376)
12. Return to the home screen

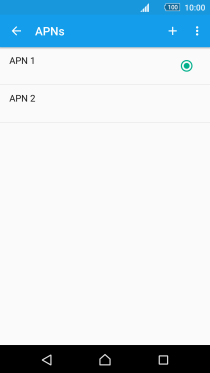

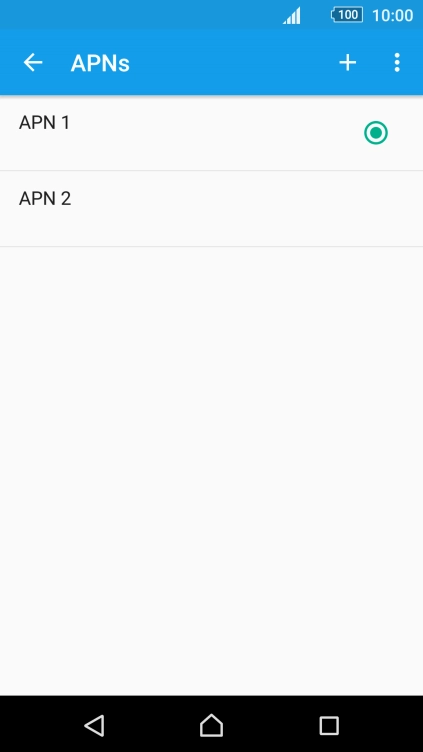

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0ec92162-3dc6-44d4-8f28-0385e589ad63.png?width=210&height=376)
