1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d95ca03b-d920-4892-874e-7bed3b9e9118.png?width=198&height=444)

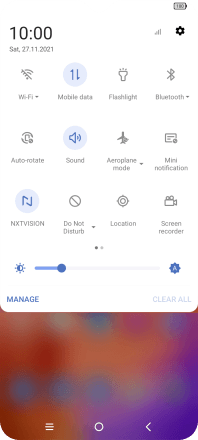

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-959db516-1c79-4ce5-91d4-fce3a084b717.png?width=198&height=444)

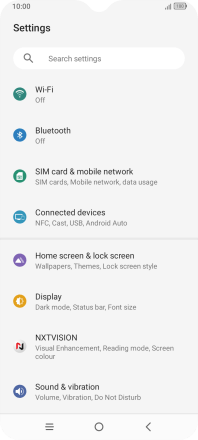

Press SIM card & mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c42d5fc3-63ad-414a-b533-b6fafe5a656c.png?width=198&height=444)

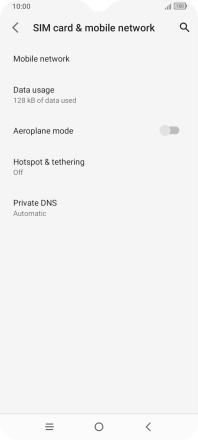

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cf212618-93de-490b-9e6a-6514c7c093e9.png?width=198&height=444)

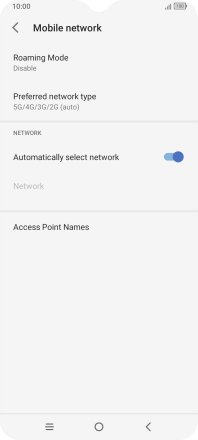

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5d5ff18b-3519-4ff7-ab67-4410f9e81a30.png?width=198&height=444)
2. Create new data connection

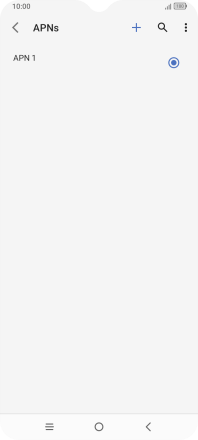

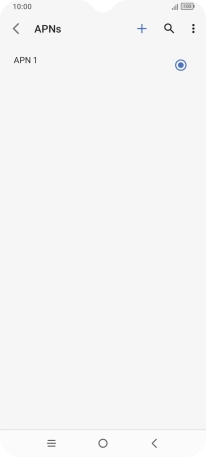

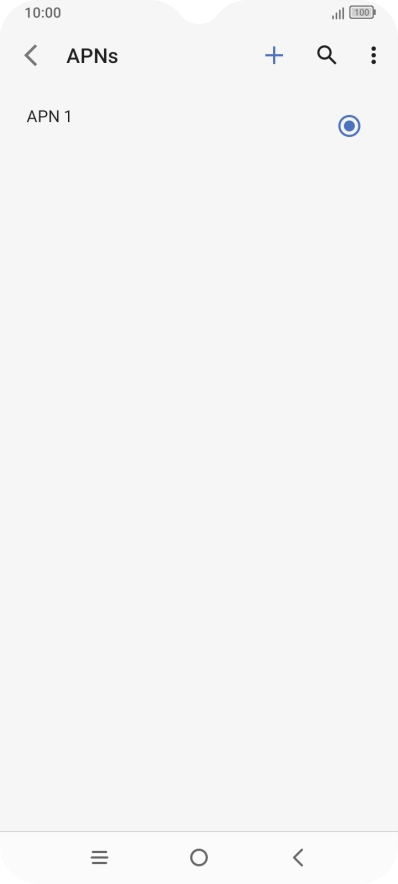

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95cb04a5-03d0-48d5-a489-788e91510870.png?width=198&height=444)

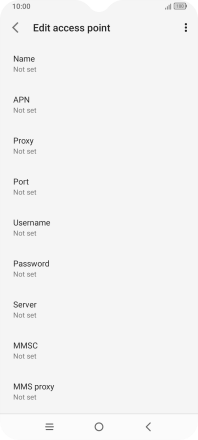

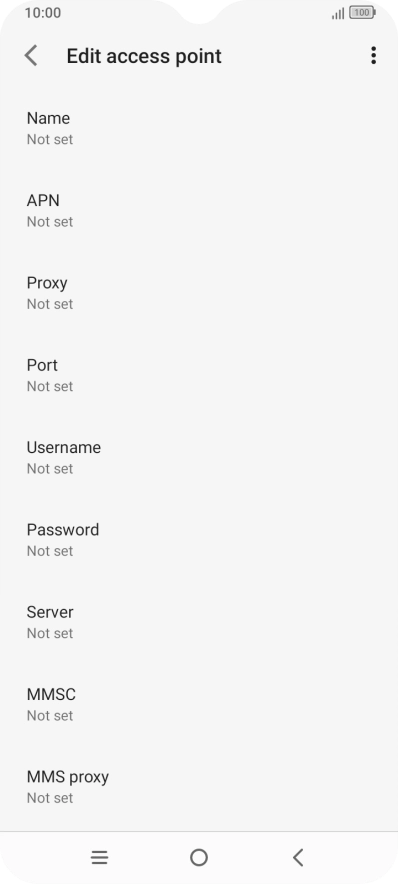

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

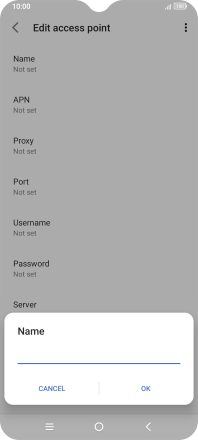

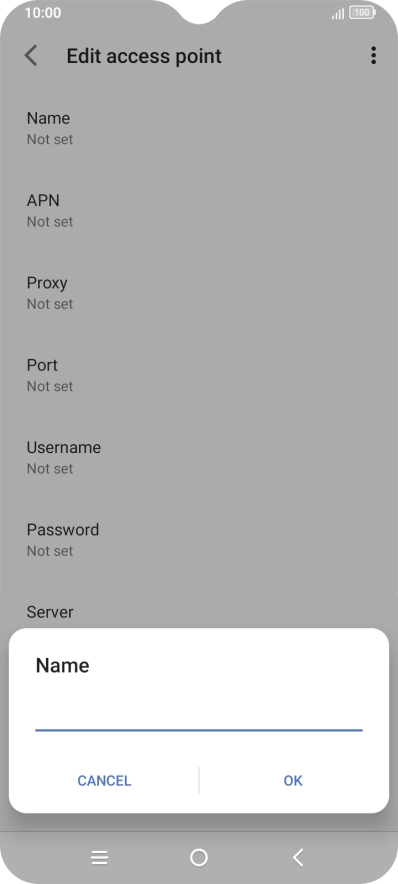

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b6e5fd53-f9d1-457e-b77b-9cd75ee5ccbe.png?width=198&height=444)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

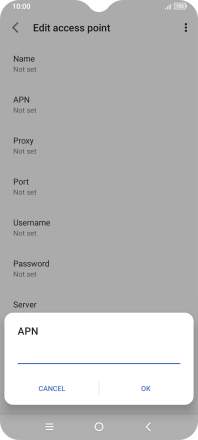

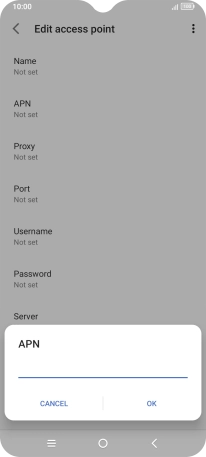

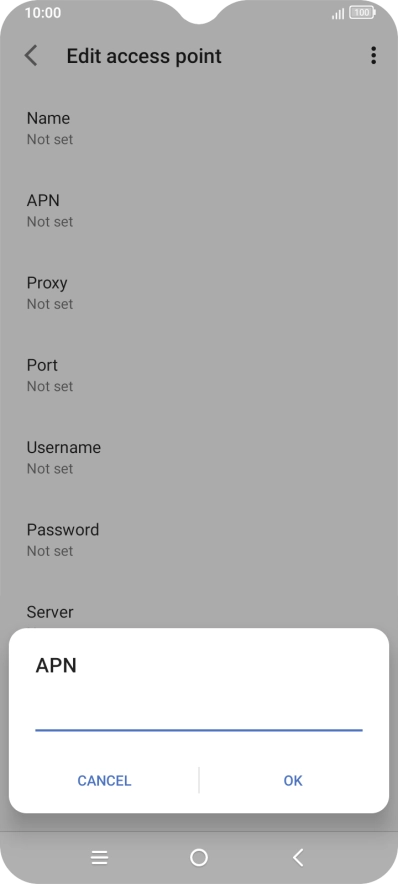

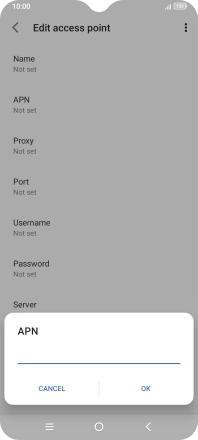

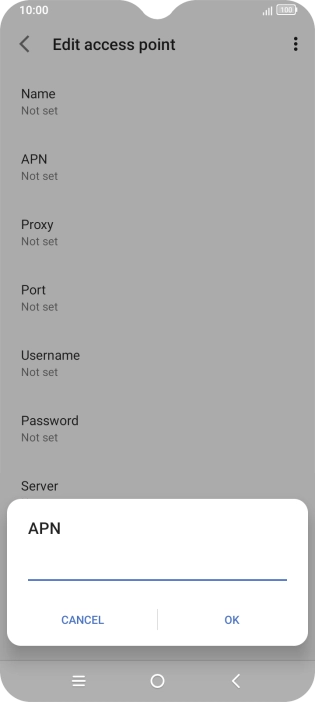

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e3207877-1579-4c1e-9ea2-0dba1821e55d.png?width=198&height=444)
live.vodafone.com
4. Enter country code

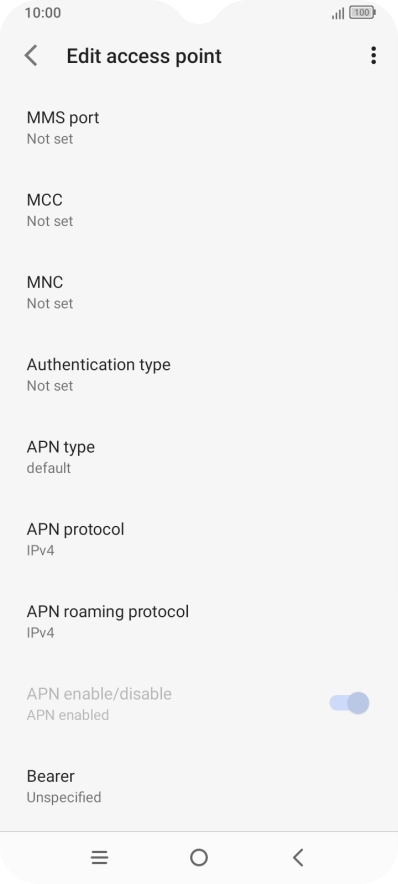

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

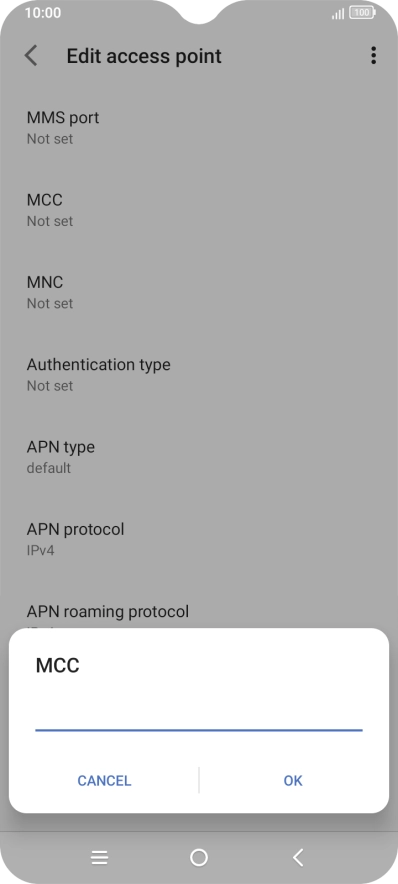

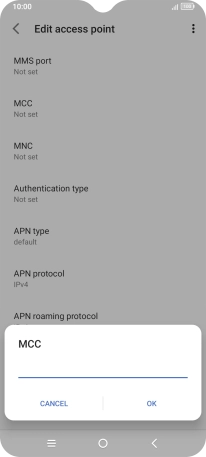

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f7784ae4-e820-4e27-bc51-a51e14d308c9.png?width=198&height=444)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

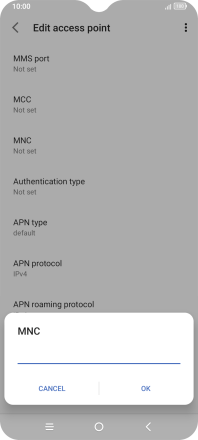

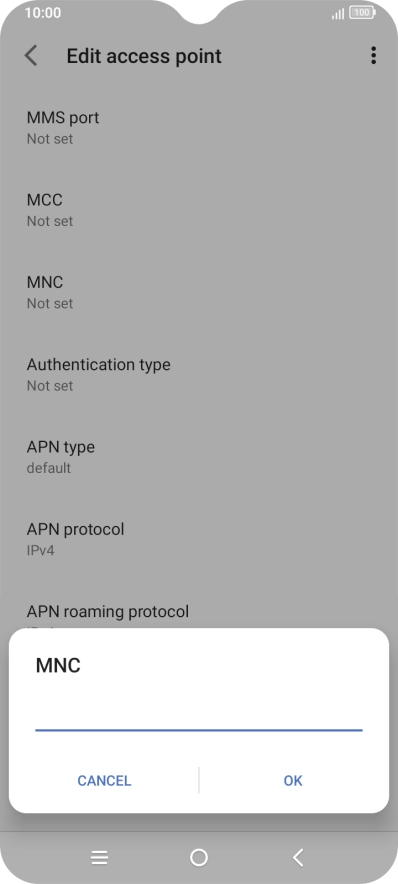

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d1e99418-ad8f-4d3b-acfc-964ed8a3444e.png?width=198&height=444)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

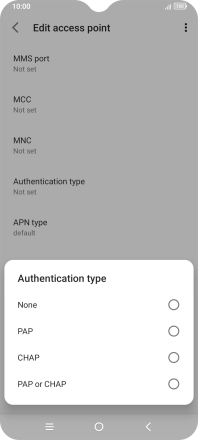

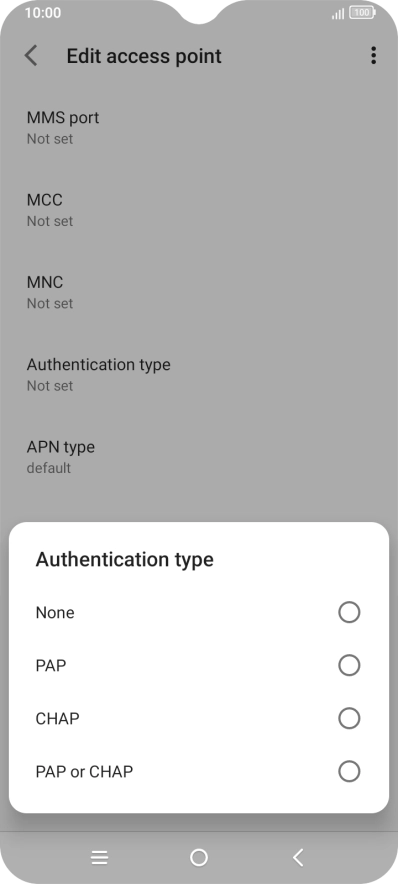

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dc9bd2e3-67c3-4e15-b1f7-f513849cb16b.png?width=198&height=444)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

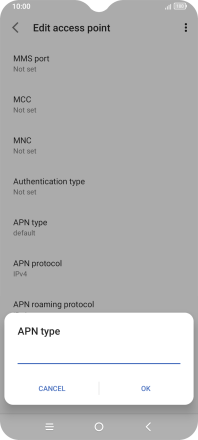

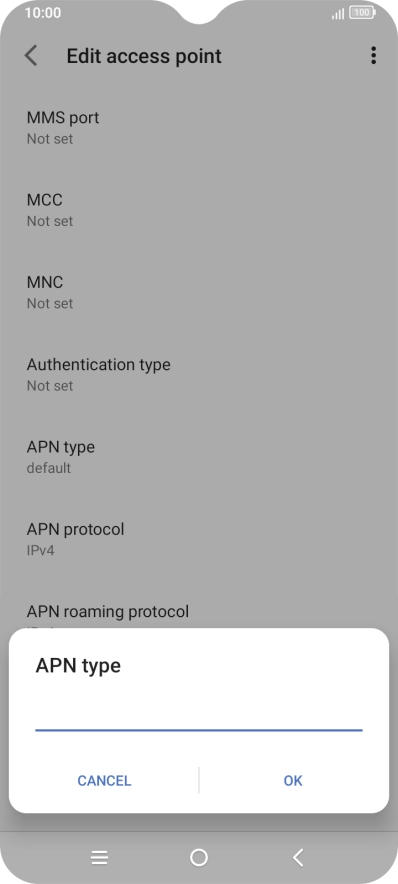

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6970716c-0c08-485a-a933-d3ff6146f031.png?width=198&height=444)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

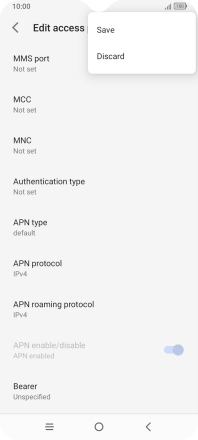

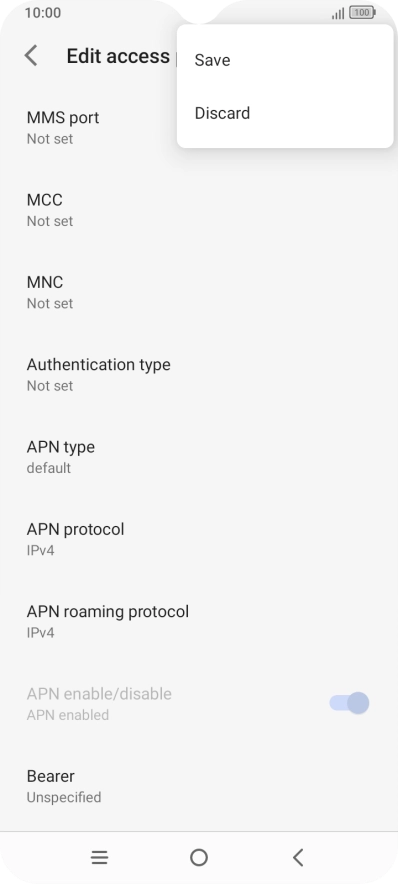

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a7fae531-49ae-41c3-866e-b06461e6f1ed.png?width=198&height=444)

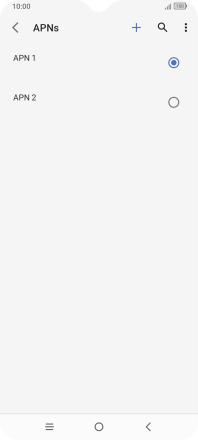

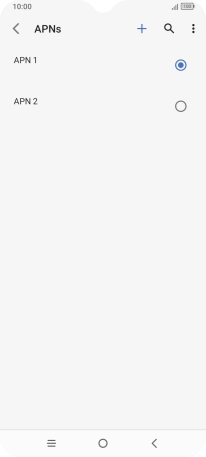

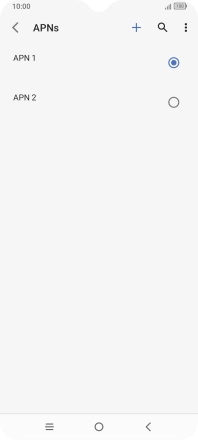

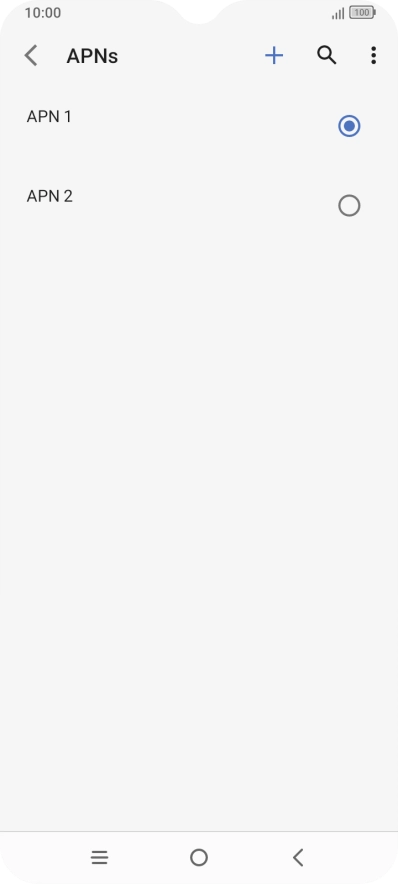

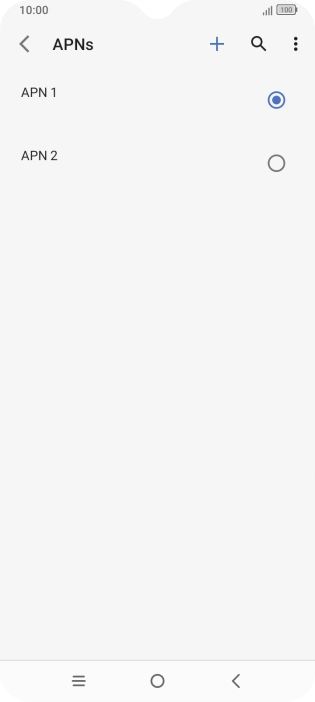

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a0e0f2d2-d330-4f10-b164-bc3ae13c5380.png?width=198&height=444)
9. Return to the home screen

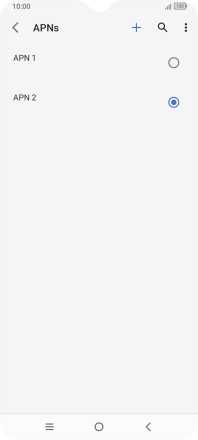

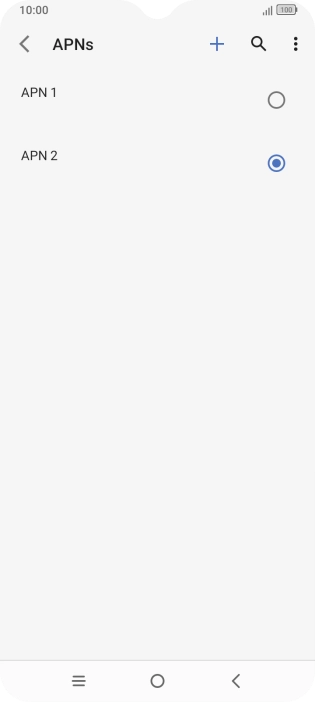

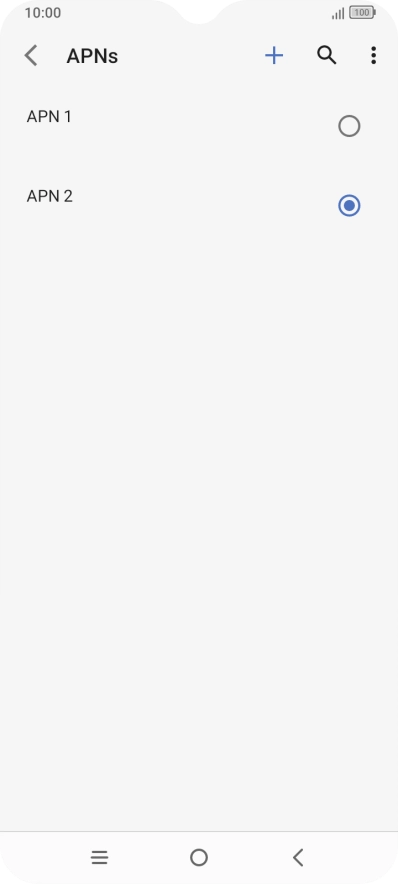

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e802dcf5-7cb9-4615-8ce9-2c3edca3fb4c.png?width=198&height=444)
