1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d95ca03b-d920-4892-874e-7bed3b9e9118.png?width=198&height=444)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-959db516-1c79-4ce5-91d4-fce3a084b717.png?width=198&height=444)
Press SIM card & mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c42d5fc3-63ad-414a-b533-b6fafe5a656c.png?width=198&height=444)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cf212618-93de-490b-9e6a-6514c7c093e9.png?width=198&height=444)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5d5ff18b-3519-4ff7-ab67-4410f9e81a30.png?width=198&height=444)
2. Create new data connection

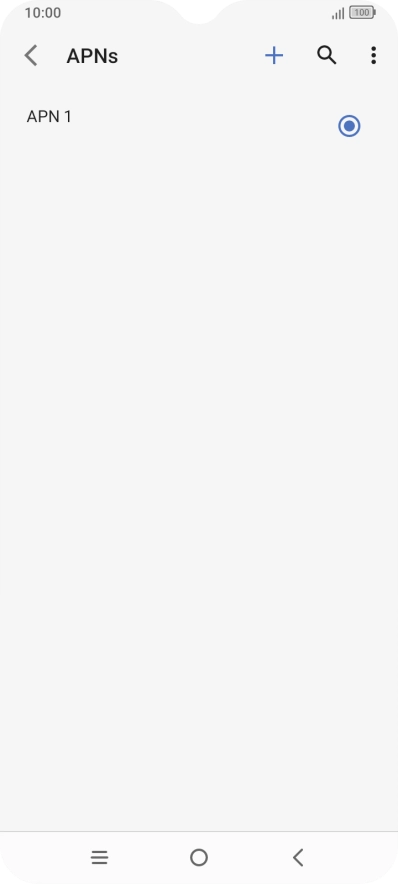

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95cb04a5-03d0-48d5-a489-788e91510870.png?width=198&height=444)

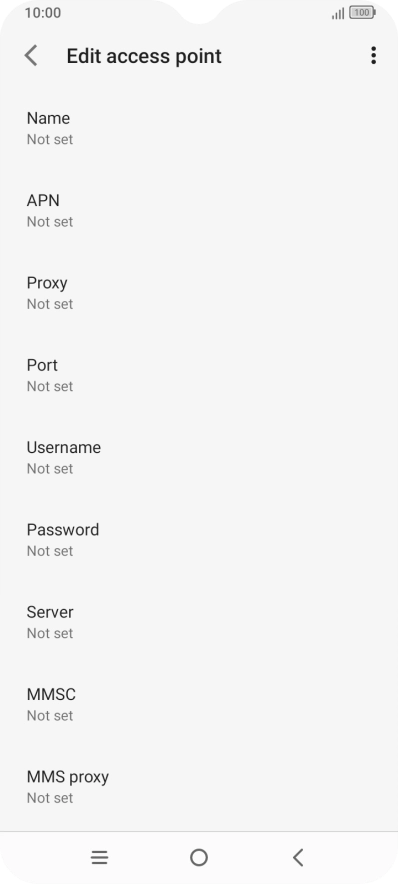

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

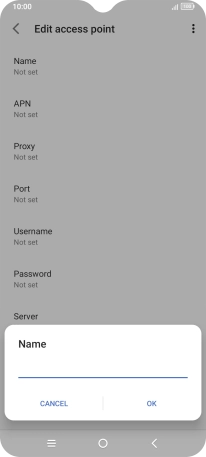

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b6e5fd53-f9d1-457e-b77b-9cd75ee5ccbe.png?width=198&height=444)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

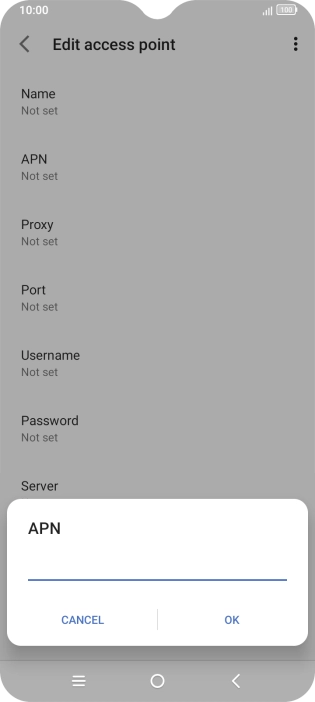

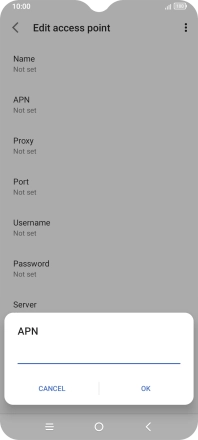

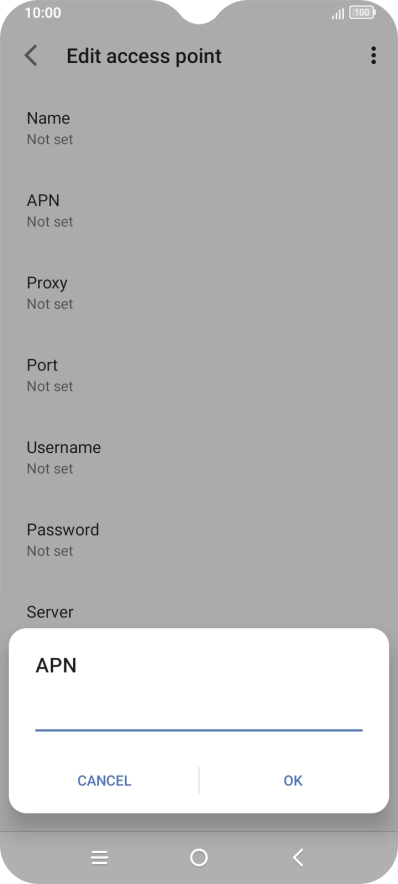

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e3207877-1579-4c1e-9ea2-0dba1821e55d.png?width=198&height=444)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

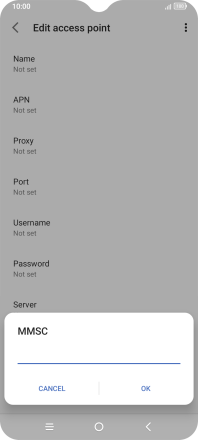

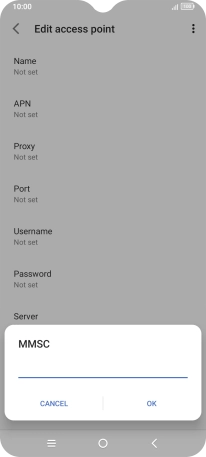

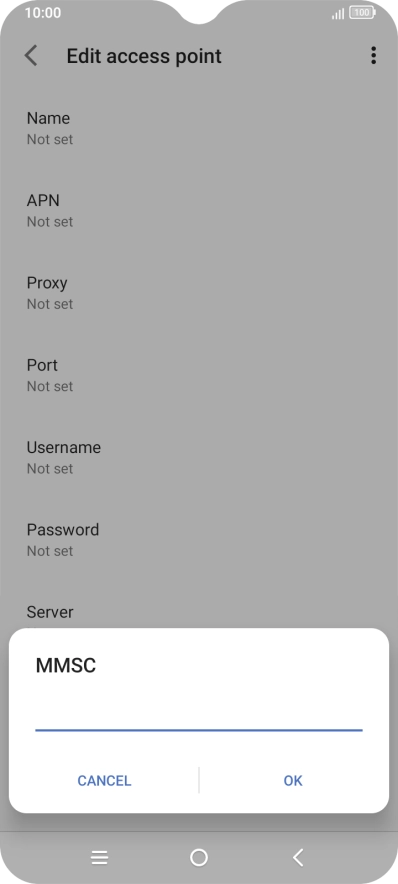

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f2ef45b4-3189-4e44-b004-9a37113e73e1.png?width=198&height=444)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f9511ea-a7e8-46c4-ae2b-073b1e207e3f.png?width=198&height=444)

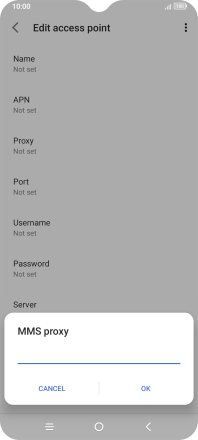

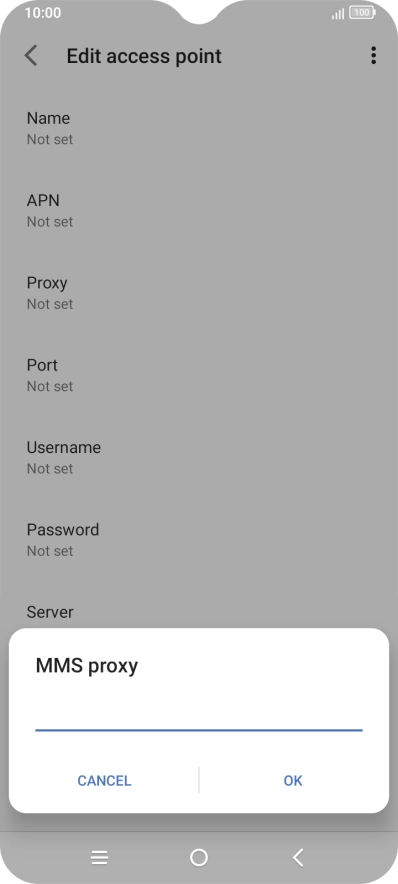

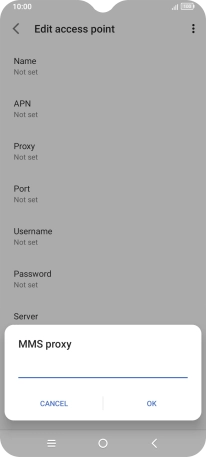

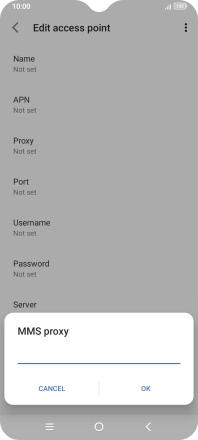

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c0195eb7-32e3-495a-8542-cadcc95dd6e4.png?width=198&height=444)
10.202.002.060
6. Enter port number

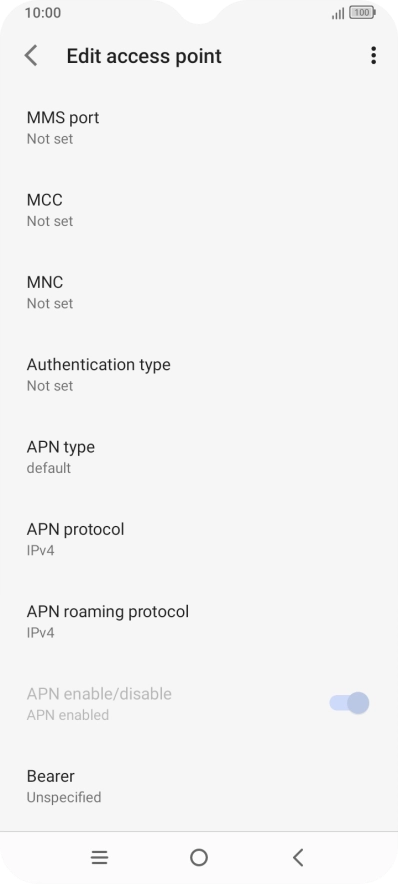

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

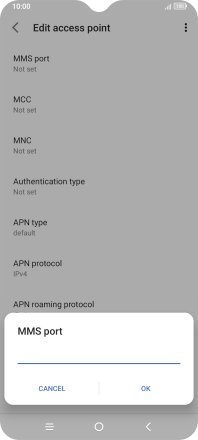

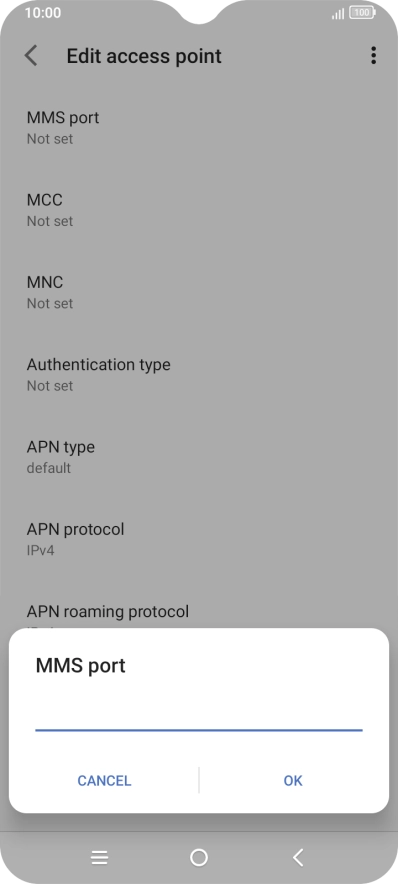

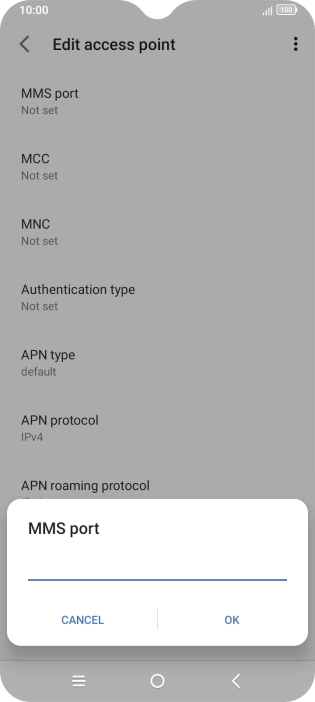

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ca69148f-51dc-4f05-b8cc-a34bd808b5f9.png?width=198&height=444)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

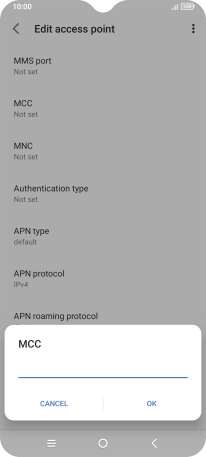

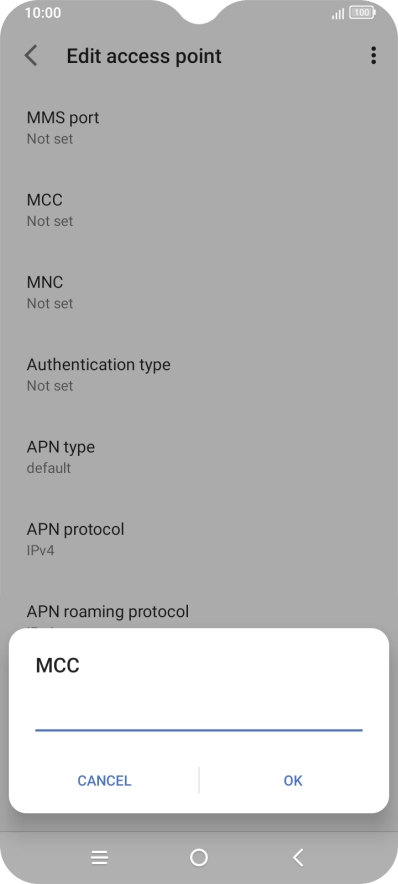

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f7784ae4-e820-4e27-bc51-a51e14d308c9.png?width=198&height=444)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

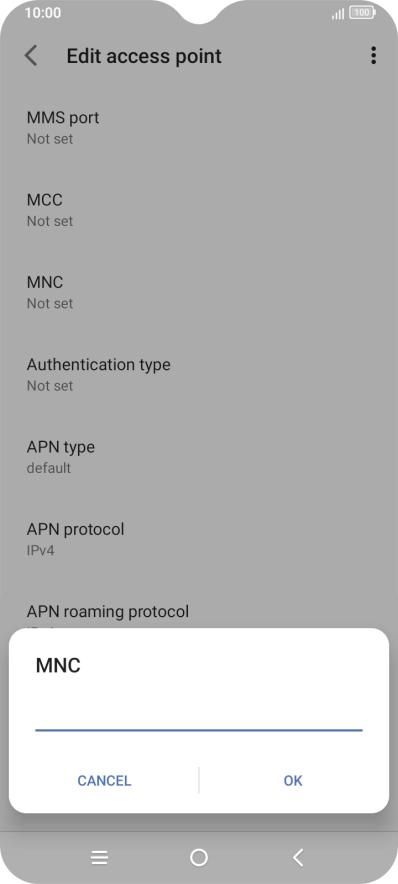

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d1e99418-ad8f-4d3b-acfc-964ed8a3444e.png?width=198&height=444)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

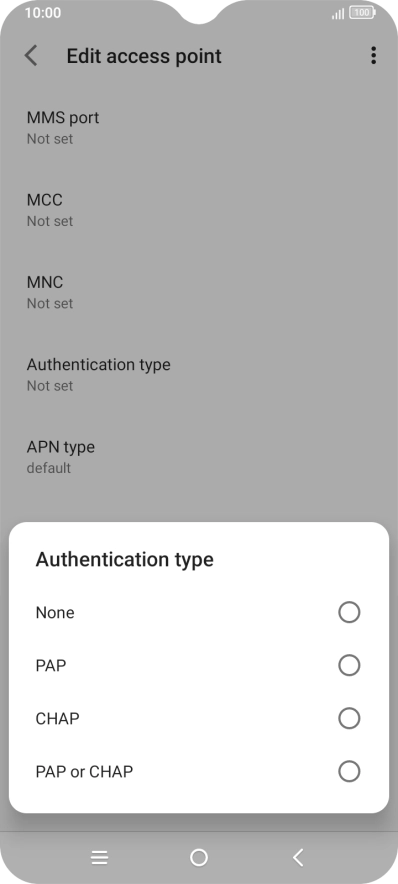

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dc9bd2e3-67c3-4e15-b1f7-f513849cb16b.png?width=198&height=444)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6970716c-0c08-485a-a933-d3ff6146f031.png?width=198&height=444)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-95d318cd-d333-4e43-aad0-804e6f64f663.png?width=198&height=444)

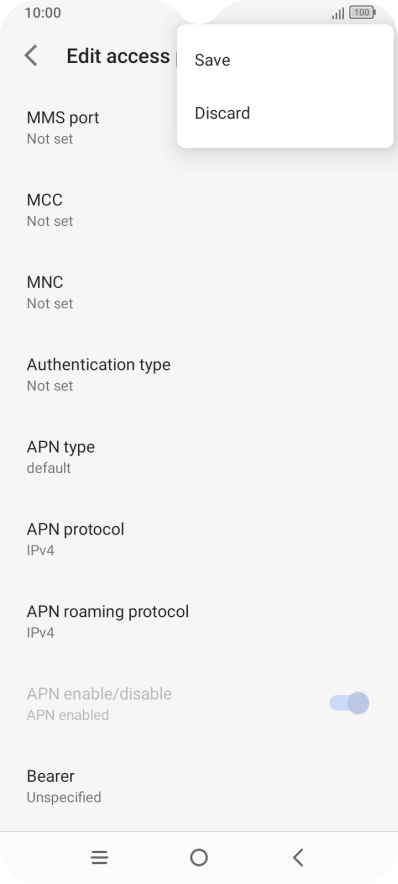

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a7fae531-49ae-41c3-866e-b06461e6f1ed.png?width=198&height=444)
12. Return to the home screen

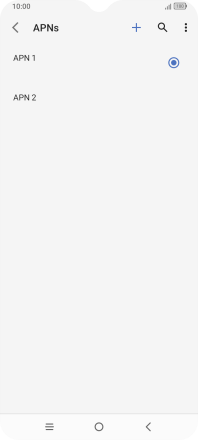

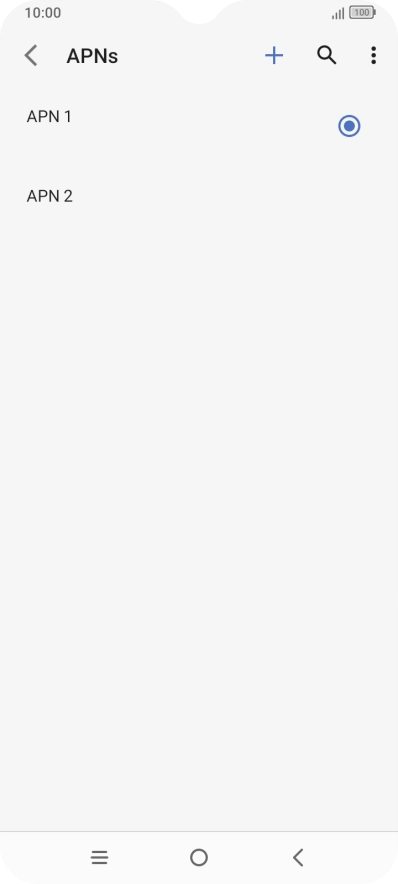

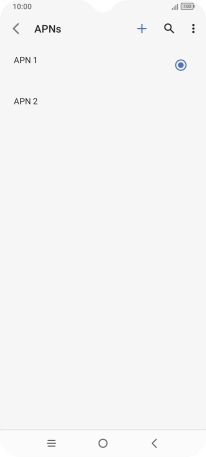

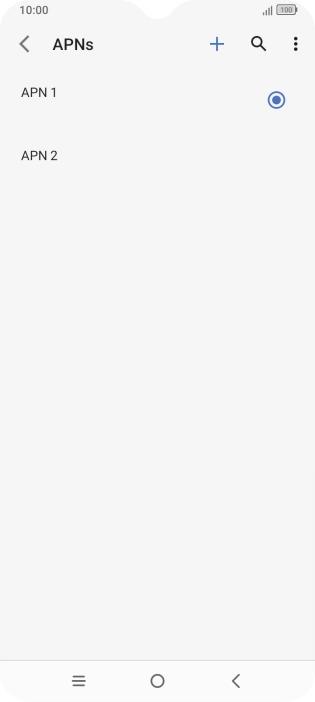

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5170b064-48a1-4a77-9d2b-59a61d1eb10c.png?width=198&height=444)
