Set up your phone for picture messaging - Vodafone 353

Read help info

Follow these instructions to set up your phone for picture messaging.

Step 1 of 36

Find "Data account"

Press the Navigation key.

Step 2 of 36

Find "Data account"

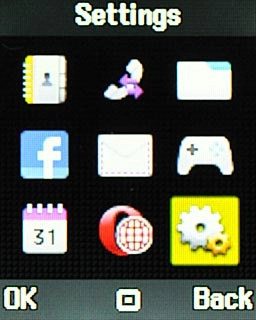

Scroll to Settings and press the Navigation key.

Step 3 of 36

Find "Data account"

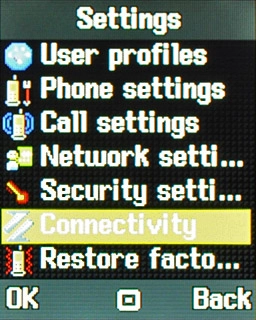

Scroll to Connectivity and press the Navigation key.

Step 4 of 36

Find "Data account"

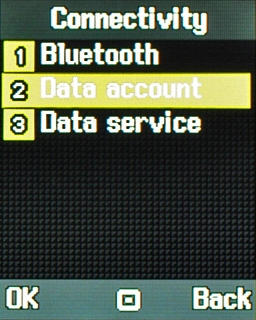

Scroll to Data account and press the Navigation key.

Step 5 of 36

Create new data connection

Press Options.

Step 6 of 36

Create new data connection

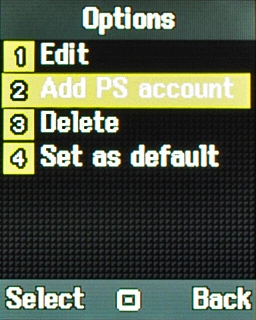

Scroll to Add PS account and press the Navigation key.

Step 7 of 36

Enter name

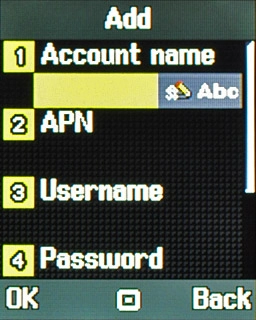

Highlight the field below Account name and key in Vodafone MMS

Step 8 of 36

Enter APN

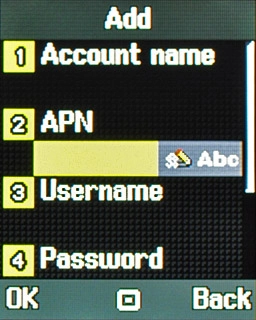

Highlight the field below APN.
Key in live.vodafone.com

An APN is used to establish a data connection. In order to send and receive picture messages, your phone needs a data connection.
Step 9 of 36

Select authentication type

Highlight the field below Auth. type.

Step 10 of 36

Select authentication type

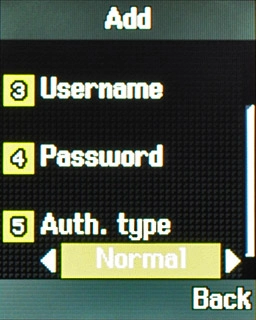

Press Navigation key right to select Normal.

Step 11 of 36

Enter picture messaging server

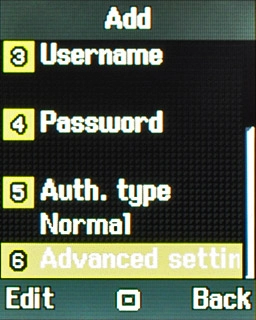

Scroll to Advanced settings and press the Navigation key.

Step 12 of 36

Enter picture messaging server

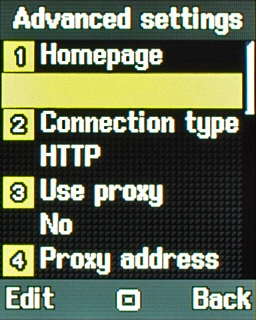

Highlight the field below Homepage.

Step 13 of 36

Enter picture messaging server

Key in http://pxt.vodafone.net.au/pxtsend and press the Navigation key.

Step 14 of 36

Select connection type

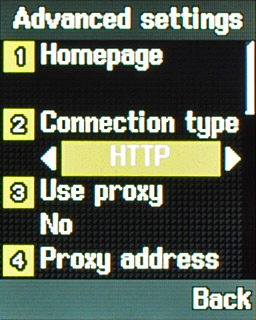

Highlight the field below Connection type and press Navigation key right to select HTTP.

Step 15 of 36

Enter IP address

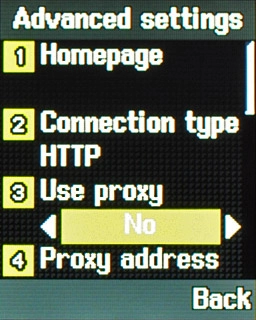

Highlight the field below Use proxy.

Step 16 of 36

Enter IP address

Press Navigation key right to select Yes.

Step 17 of 36

Enter IP address

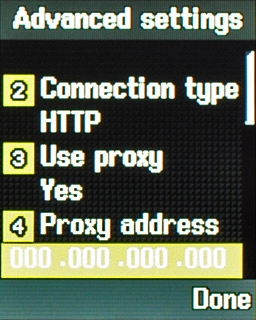

Highlight the field below Proxy address and key in 10.202.002.060

Step 18 of 36

Enter port number

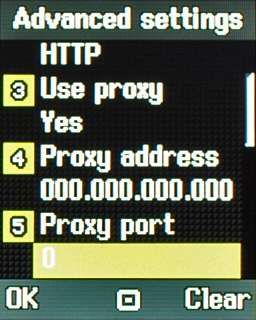

Highlight the field below Proxy port and key in 8080

Step 19 of 36

Enter port number

Press OK.

Step 20 of 36

Save the profile

Press Done.

Step 21 of 36

Save the profile

Press Disconnect to return to standby mode.

Step 22 of 36

Find "Common settings"

Press the Navigation key.

Step 23 of 36

Find "Common settings"

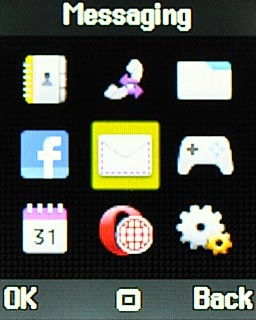

Scroll to Messaging and press the Navigation key.

Step 24 of 36

Find "Common settings"

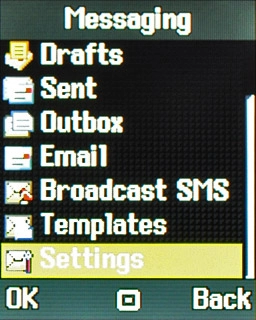

Scroll to Settings and press the Navigation key.

Step 25 of 36

Find "Common settings"

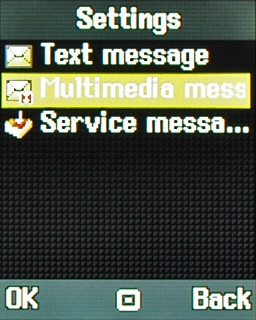

Scroll to Multimedia message and press the Navigation key.

Step 26 of 36

Find "Common settings"

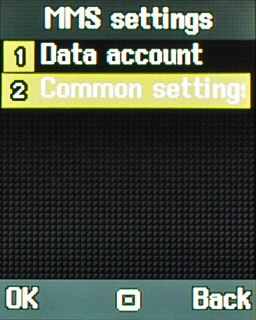

Scroll to Common settings and press the Navigation key.

Step 27 of 36

Select setting for picture message download in home network

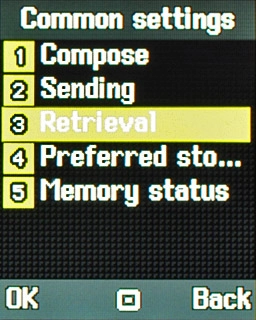

Scroll to Retrieval and press the Navigation key.

If you select Immediate, you'll receive all picture messages.
If you select Deferred, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Rejective, you'll not receive any picture messages.
Step 28 of 36

Select setting for picture message download in home network

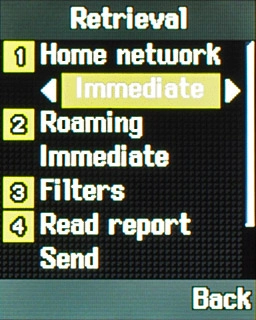

Highlight the field below Home network.

If you select Immediate, you'll receive all picture messages.
If you select Deferred, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Rejective, you'll not receive any picture messages.
Step 29 of 36

Select setting for picture message download in home network

Press Navigation key right to select Immediate.

If you select Immediate, you'll receive all picture messages.
If you select Deferred, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Rejective, you'll not receive any picture messages.
Step 30 of 36

Select setting for picture message download when roaming

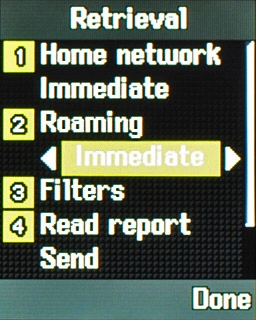

Highlight the field below Roaming.

If you select Immediate, you'll receive all picture messages.
If you select Deferred, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Rejective, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 31 of 36

Select setting for picture message download when roaming

Press Navigation key right to select Immediate.

If you select Immediate, you'll receive all picture messages.
If you select Deferred, only headers are retrieved. You then have to retrieve the picture message manually.
If you select Rejective, you'll not receive any picture messages.
If you select As home, the same setting is used when you're in your home network.
Step 32 of 36

Turn request for delivery reports on or off

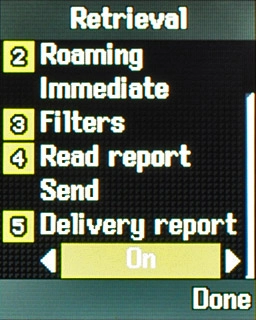

Highlight the field below Delivery report.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 33 of 36

Turn request for delivery reports on or off

Press Navigation key right to select On or Off.

If you turn on request for delivery reports, you'll be notified when your message has been delivered. This requires that sending of delivery reports has been turned on by the recipient.
Step 34 of 36

Save and exit

Press Done.

Step 35 of 36

Save and exit

Press Yes to confirm.

Step 36 of 36

Save and exit

Press Disconnect to return to standby mode.
