Insert SIM and battery - Vodafone R216/Windows 10

Read help info

Before you can use your router, you need to insert your SIM and the battery.

Step 1 of 5

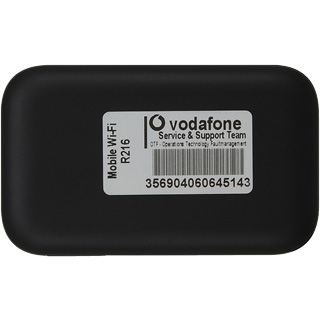

Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom right side of the back cover and remove it.

Step 2 of 5

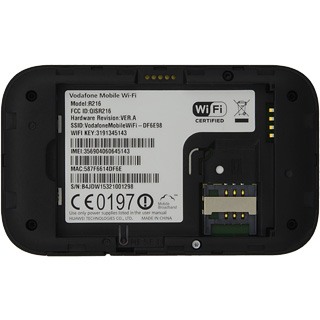

Insert your SIM

Place your SIM as illustrated next to the SIM holder.

Step 3 of 5

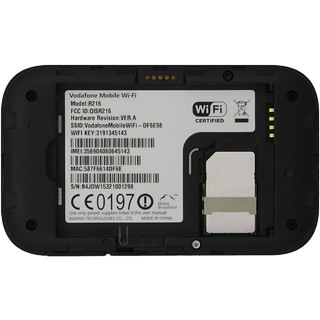

Insert your SIM

Slide your SIM into the holder.

Step 4 of 5

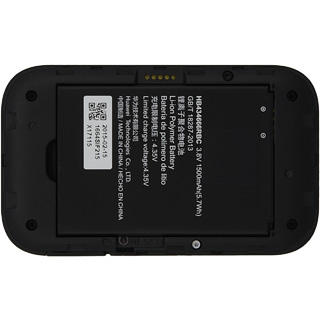

Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

Step 5 of 5

Replace the back cover

Place the back cover on your router and press it into place.

Remove the back cover

Turn the back of your router towards you.
Take hold of the bottom right side of the back cover and remove it.

Insert your SIM

Place your SIM as illustrated next to the SIM holder.
Slide your SIM into the holder.

Insert the battery

Place the battery in your router (right side first), matching the battery contacts with the router contacts and press the battery into place.

Replace the back cover

Place the back cover on your router and press it into place.
