1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-54998358-868e-4bae-ba4f-0d97b7486f6b.png?width=206&height=342)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-068a184f-7745-47cf-89d2-54c6a9f7846a.png?width=206&height=342)

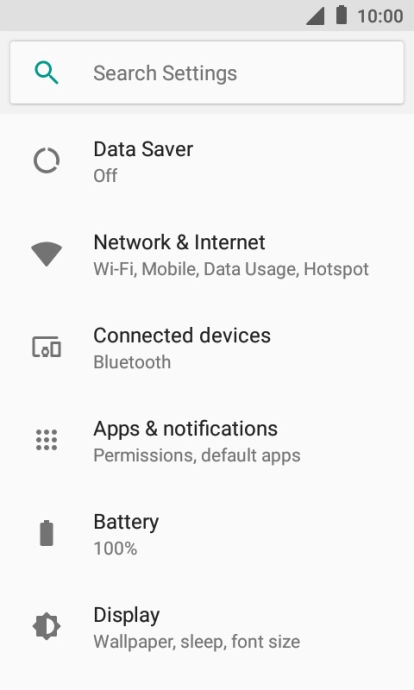

Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a4033c6e-fd51-41ae-97b5-5d8cbbf4e7fd.png?width=206&height=342)

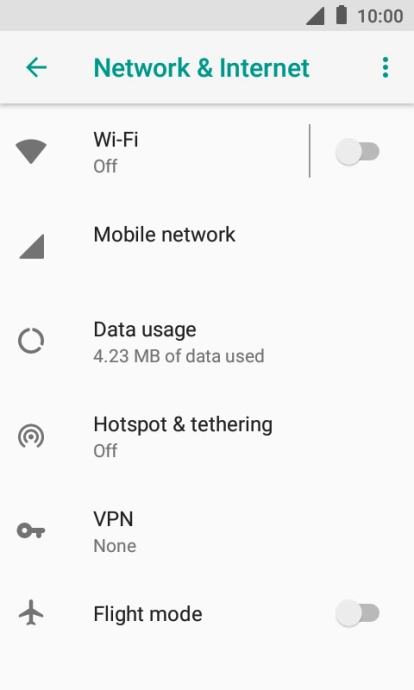

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-26b6892c-6805-4f1d-bc1f-37673acebd31.png?width=206&height=342)

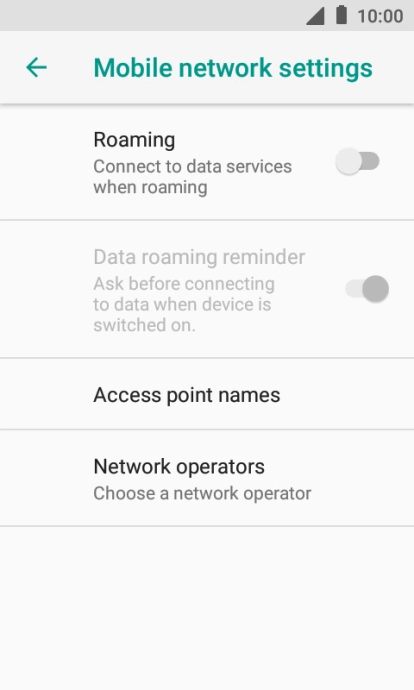

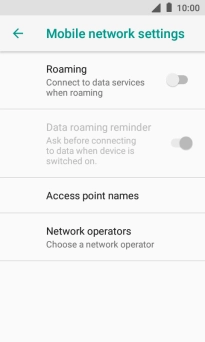

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e33be922-0d1a-4af8-af61-a4f12d80c3bd.png?width=206&height=342)
2. Create new data connection

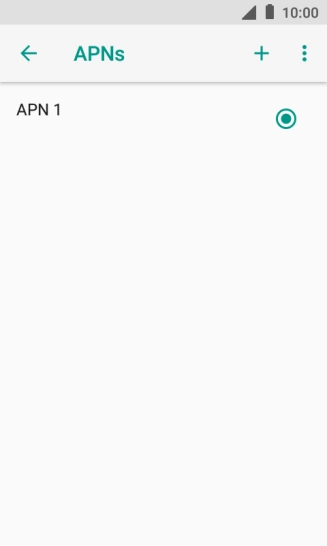

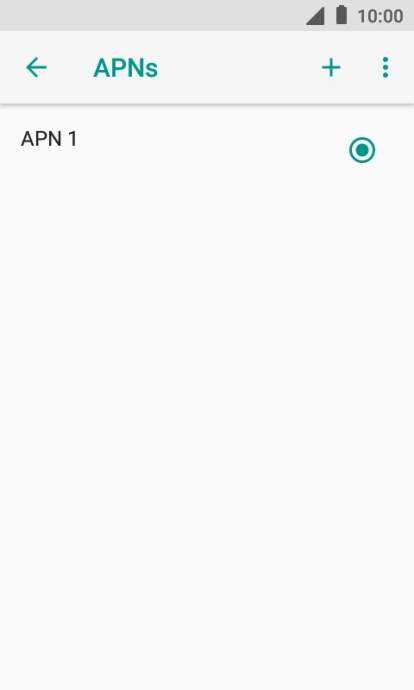

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-89705a43-31f9-4c32-96cf-fde4da6bac67.png?width=206&height=342)

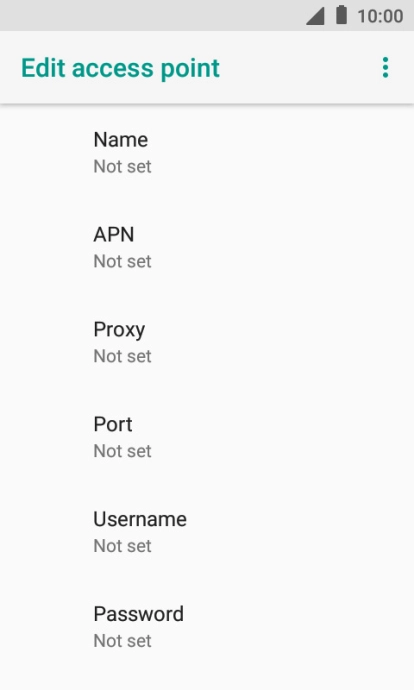

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fa95041b-f70c-4a94-bb8b-6ac540e1a82d.png?width=206&height=342)

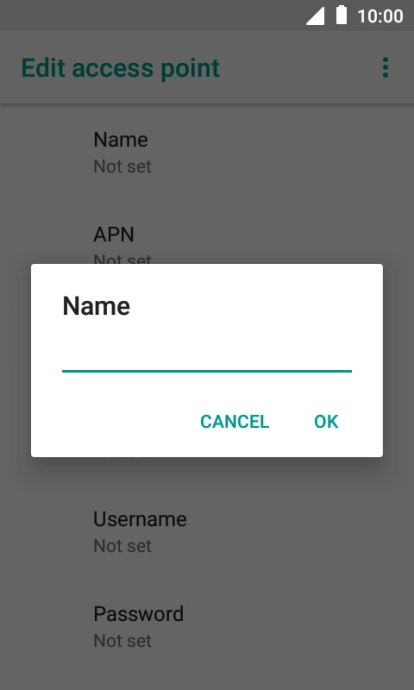

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0542591-ff15-45f7-b786-b8b22352e83a.png?width=206&height=342)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fa95041b-f70c-4a94-bb8b-6ac540e1a82d.png?width=206&height=342)

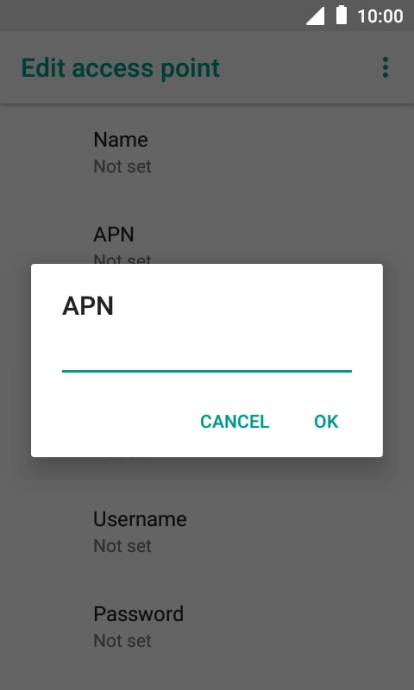

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-deace3b8-7b3c-45de-b800-e41ca5dc729b.png?width=206&height=342)
live.vodafone.com
4. Enter country code

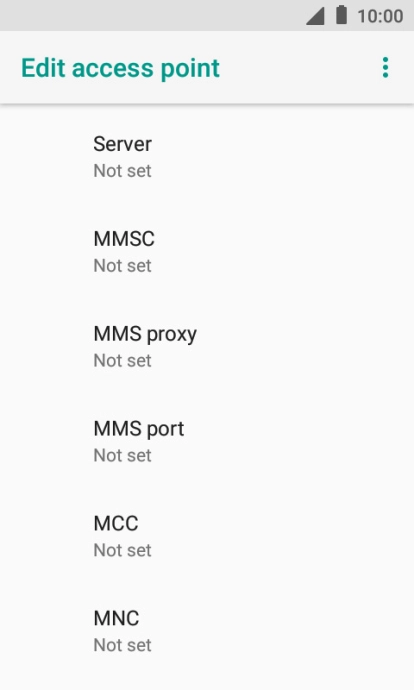

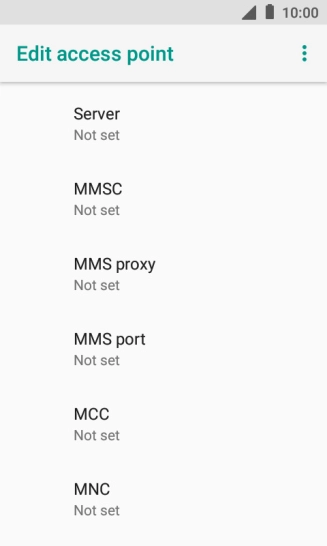

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4622107c-affb-4bcf-92fc-d49ca83ffe4e.png?width=206&height=342)

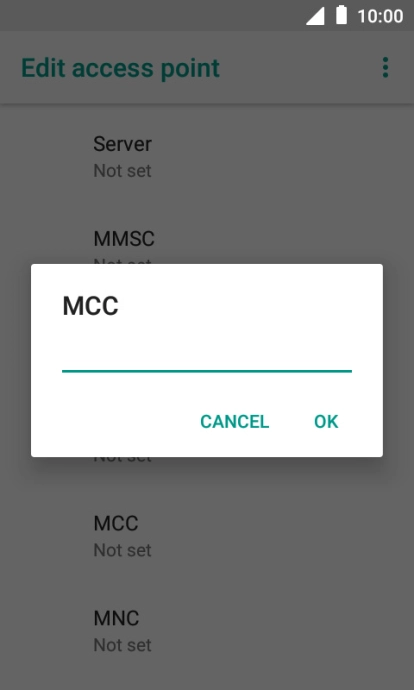

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e4859124-6826-4947-83f8-c3d146c76890.png?width=206&height=342)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4622107c-affb-4bcf-92fc-d49ca83ffe4e.png?width=206&height=342)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f8751ae5-a580-4c9b-b404-4be959c80d55.png?width=206&height=342)
03
6. Select authentication type

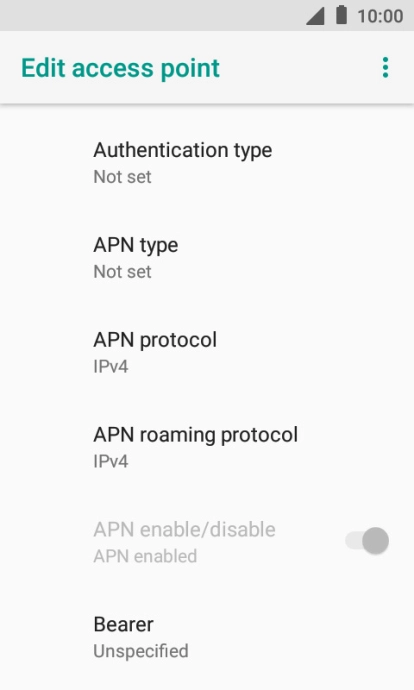

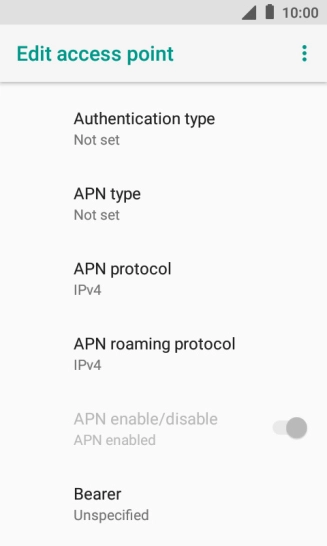

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-05168459-f945-425c-9878-1cb8d45a65d9.png?width=206&height=342)

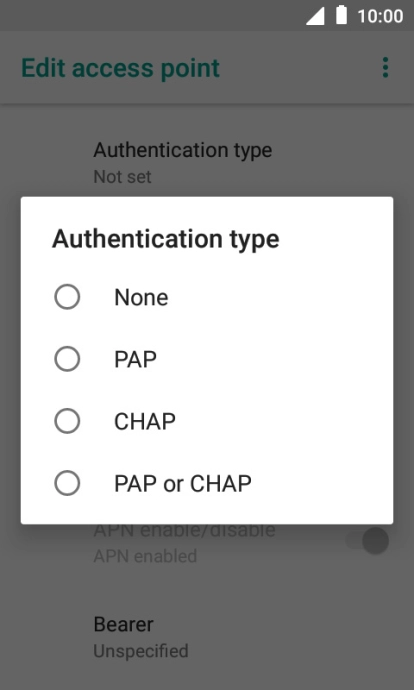

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2d0cdeb-9593-4740-8c04-44478921072b.png?width=206&height=342)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-05168459-f945-425c-9878-1cb8d45a65d9.png?width=206&height=342)

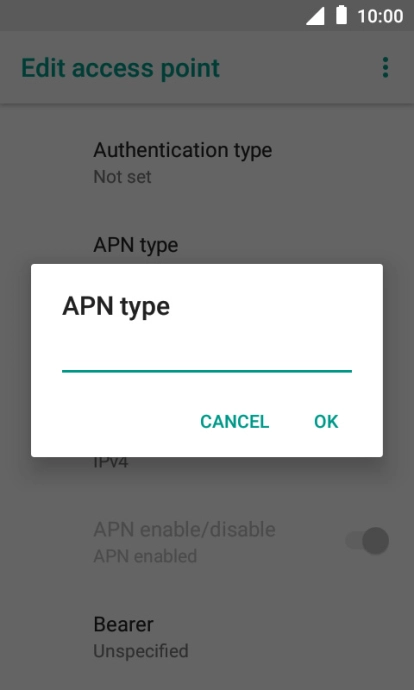

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ffd40fef-50ba-4c40-94cb-d1b36ae73b4f.png?width=206&height=342)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4622107c-affb-4bcf-92fc-d49ca83ffe4e.png?width=206&height=342)

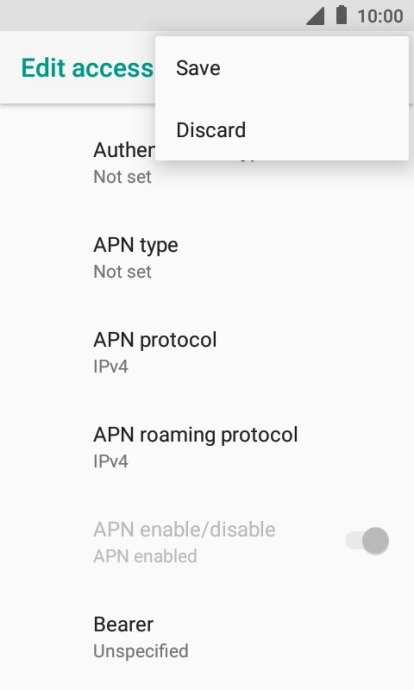

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-96152cad-f9ab-4faf-9b23-9a9c1e737dd5.png?width=206&height=342)

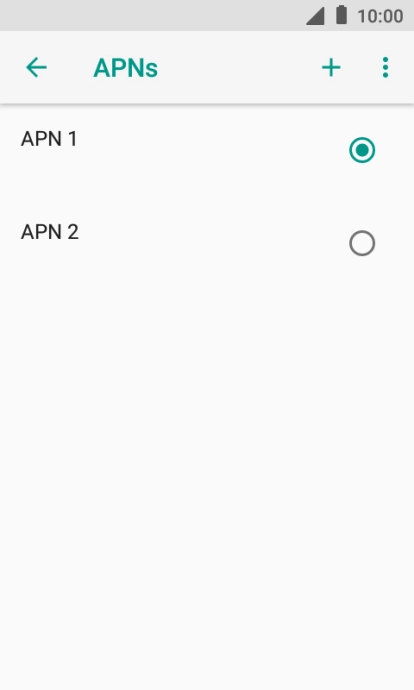

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8e9878a8-06c2-40f2-aed4-cdca447fa41e.png?width=206&height=342)
9. Return to the home screen

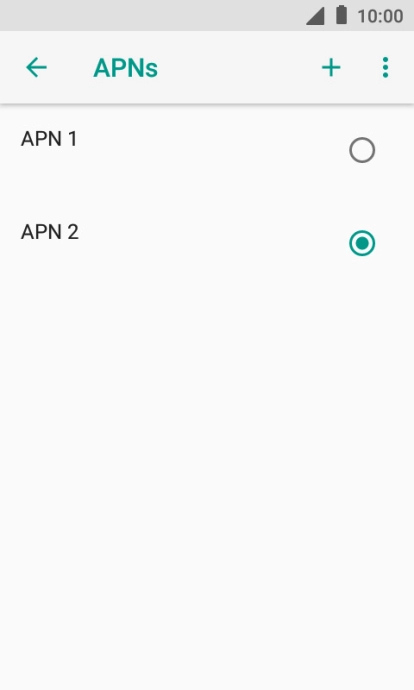

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6727d804-67fa-424b-8832-5e71d7f2072f.png?width=206&height=342)
