Vodafone Smart E8

Vodafone Smart E8

Android 7.1

Set up your Vodafone Smart E8 Android 7.1 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 34

1. Find "Access point names"

Slide two fingers downwards starting from the top the screen.

Step 2 of 34

1. Find "Access point names"

Press the settings icon.

Step 3 of 34

1. Find "Access point names"

Press More.

Step 4 of 34

1. Find "Access point names"

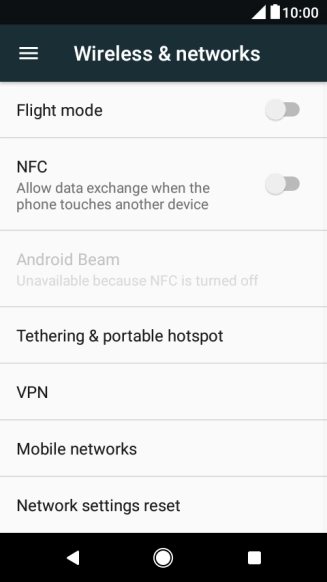

Press Mobile networks.

Step 5 of 34

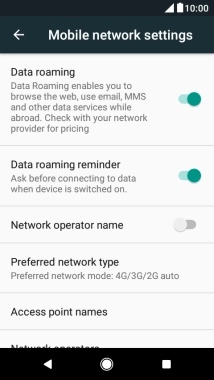

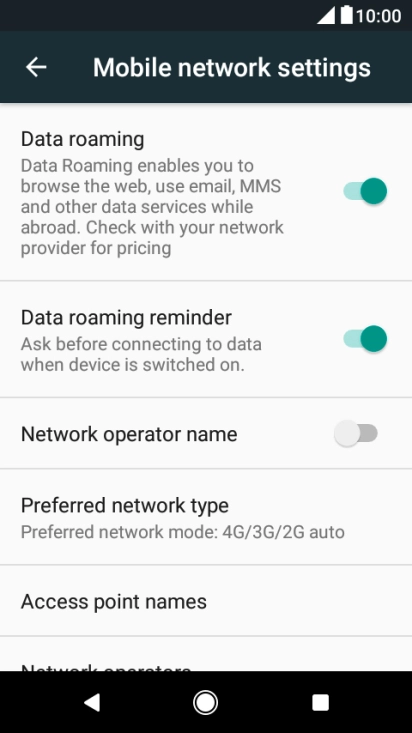

1. Find "Access point names"

Press Access point names.

Step 6 of 34

2. Create new data connection

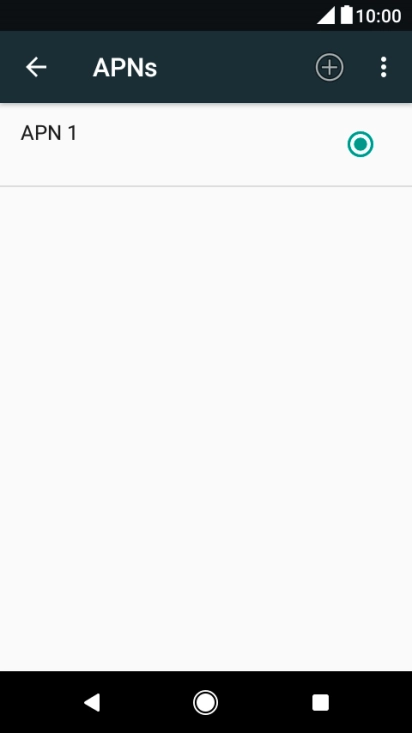

Press the new data connection icon.

Step 7 of 34

2. Create new data connection

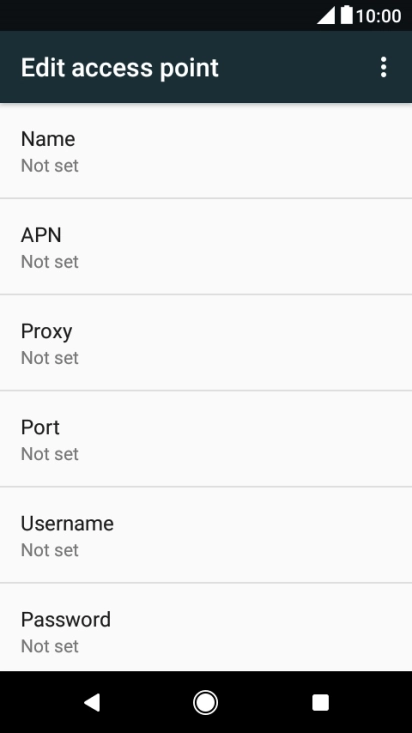

Press Name.

Vodafone MMS
Step 8 of 34

2. Create new data connection

Key in Vodafone MMS and press OK.

Step 9 of 34

3. Enter APN

Press APN.

live.vodafone.com
Step 10 of 34

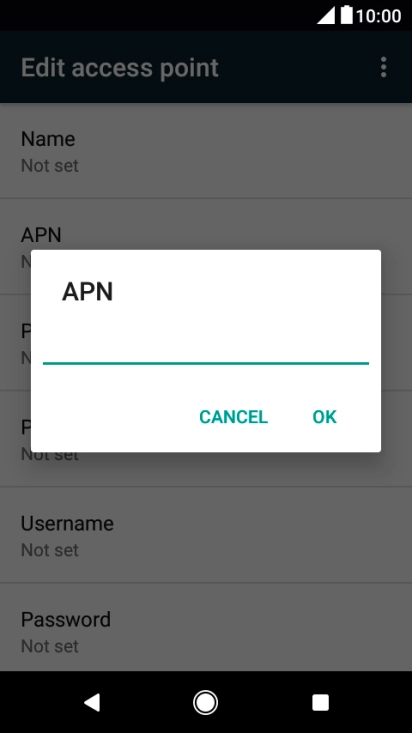

3. Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 34

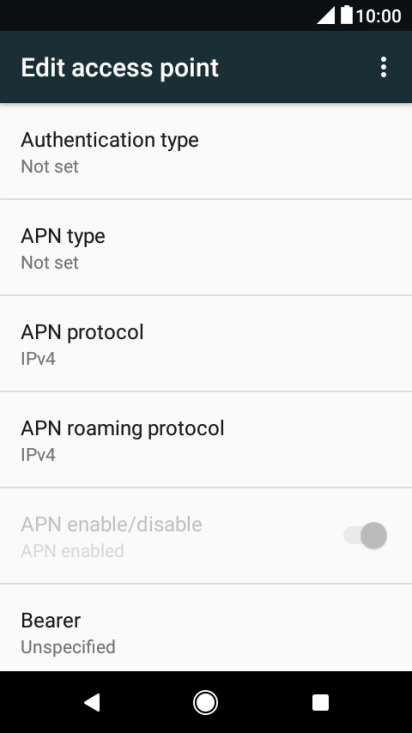

4. Select APN type

Press APN type.

mms
Step 12 of 34

4. Select APN type

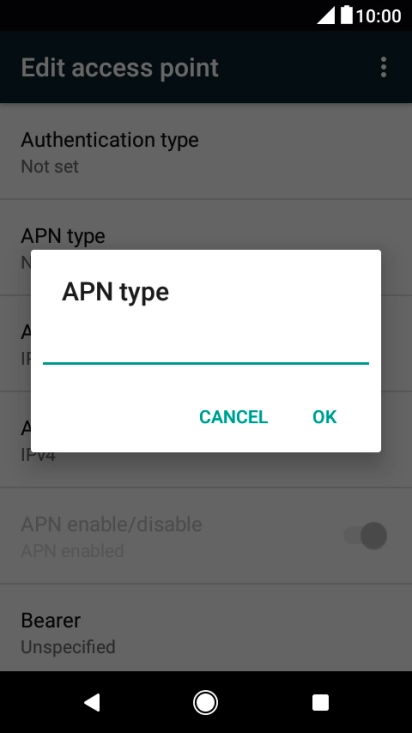

Key in mms and press OK.

Step 13 of 34

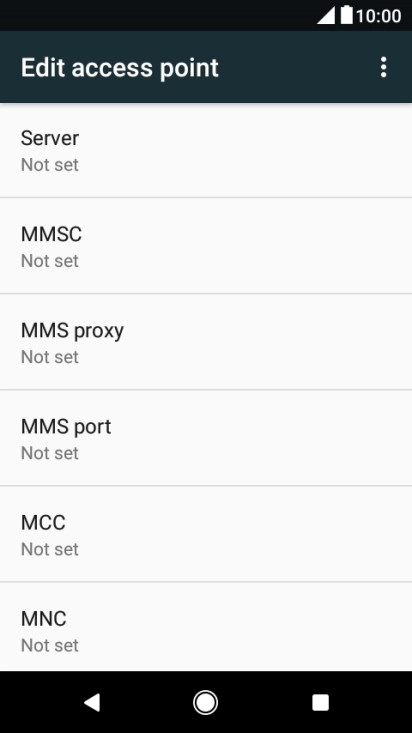

5. Enter MMSC

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 14 of 34

5. Enter MMSC

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 15 of 34

6. Enter IP address

Press MMS proxy.

10.202.002.060
Step 16 of 34

6. Enter IP address

Key in 10.202.002.060 and press OK.

Step 17 of 34

7. Enter port number

Press MMS port.

8080
Step 18 of 34

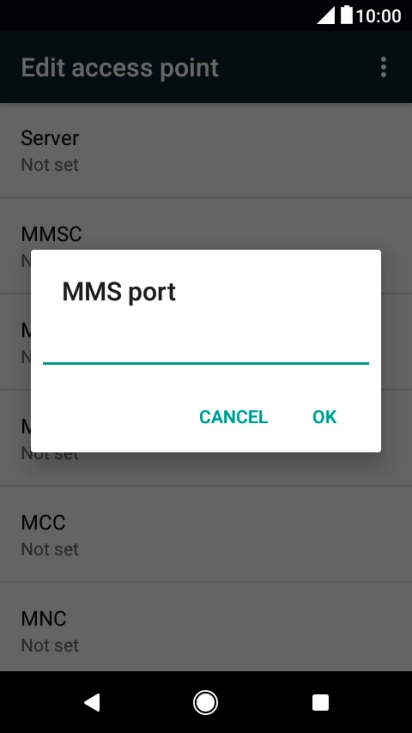

7. Enter port number

Key in 8080 and press OK.

Step 19 of 34

8. Enter country code

Press MCC.

505
Step 20 of 34

8. Enter country code

Key in 505 and press OK.

Step 21 of 34

9. Enter network code

Press MNC.

03
Step 22 of 34

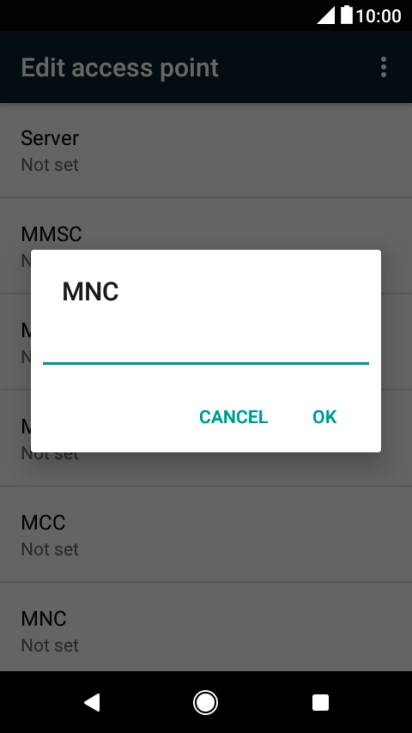

9. Enter network code

Key in 03 and press OK.

Step 23 of 34

10. Select authentication type

Press Authentication type.

Step 24 of 34

10. Select authentication type

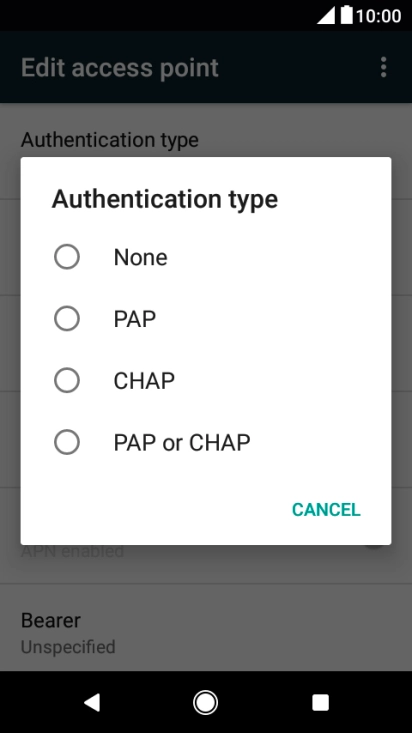

Press PAP.

Step 25 of 34

11. Save data connection

Press the menu icon.

Step 26 of 34

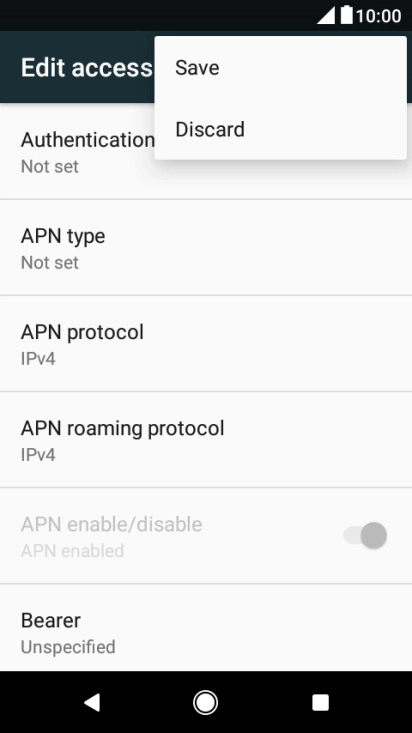

11. Save data connection

Press Save.

Step 27 of 34

12. Return to the home screen

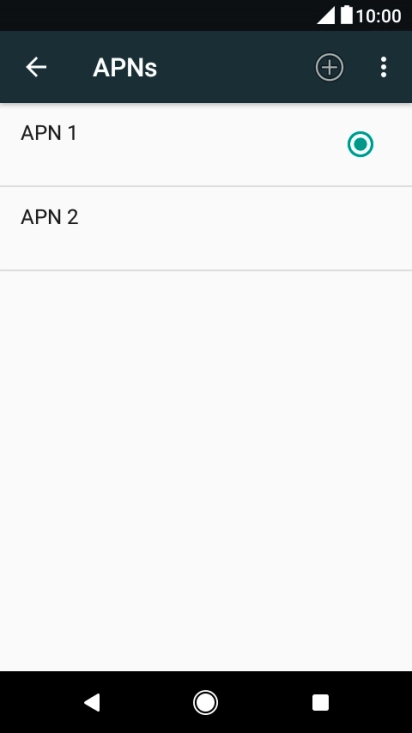

Press the Home key to return to the home screen.

Step 28 of 34

13. Find "Settings"

Press the main menu icon.

Step 29 of 34

13. Find "Settings"

Press Messaging.

Step 30 of 34

13. Find "Settings"

Slide your finger right starting from the left side of the screen.

Step 31 of 34

13. Find "Settings"

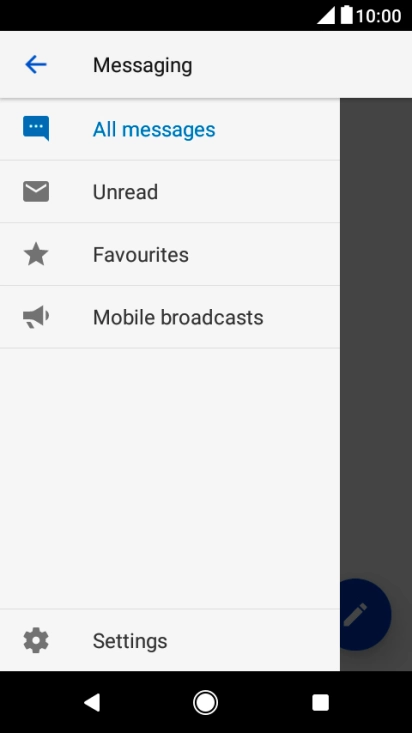

Press Settings.

Step 32 of 34

14. Turn on the message function

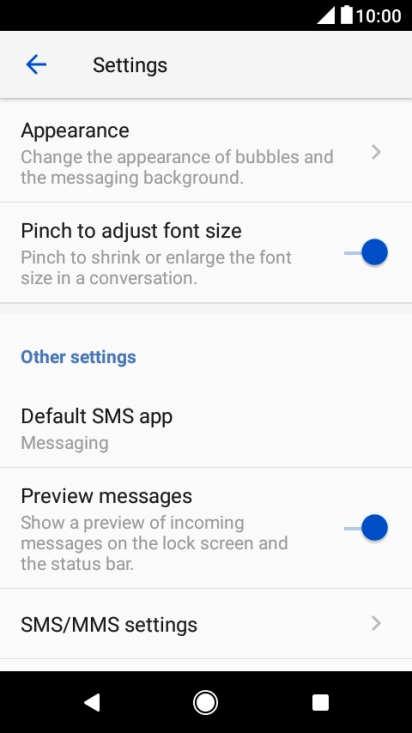

Press Default SMS app.

Step 33 of 34

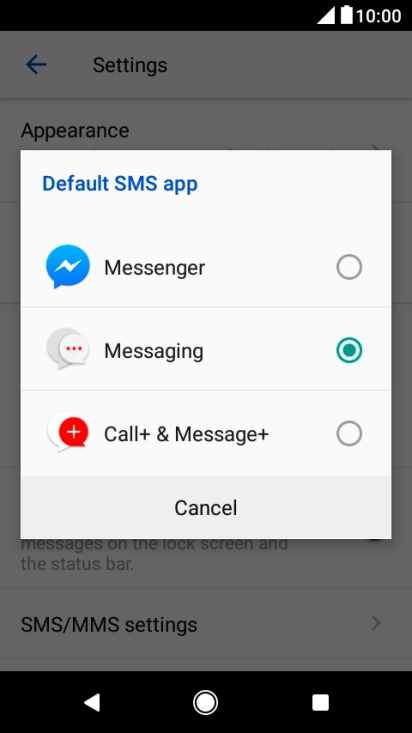

14. Turn on the message function

Press Messaging.

Step 34 of 34

15. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top the screen.
Press the settings icon.
Press More.
Press Mobile networks.
Press Access point names.

2. Create new data connection

Press the new data connection icon.
Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

3. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

4. Select APN type

Press APN type.
Key in mms and press OK.
mms

5. Enter MMSC

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

6. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

7. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

8. Enter country code

Press MCC.
Key in 505 and press OK.
505

9. Enter network code

Press MNC.
Key in 03 and press OK.
03

10. Select authentication type

Press Authentication type.
Press PAP.

11. Save data connection

Press the menu icon.
Press Save.

12. Return to the home screen

Press the Home key to return to the home screen.

13. Find "Settings"

Press the main menu icon.
Press Messaging.
Slide your finger right starting from the left side of the screen.
Press Settings.

14. Turn on the message function

Press Default SMS app.
Press Messaging.

15. Return to the home screen

Press the Home key to return to the home screen.
