Set up your tablet for internet - Vodafone Smart Tab 4 8.0

Read help info

The internet connection is shared by many functions on your tablet such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your tablet for internet manually.

Step 1 of 25

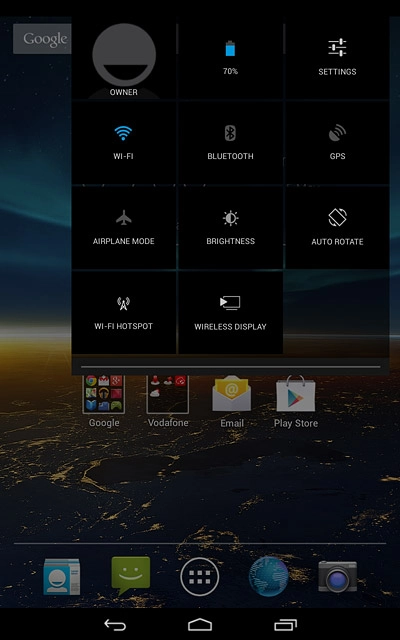

Find "Access Point Names"

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.

Step 2 of 25

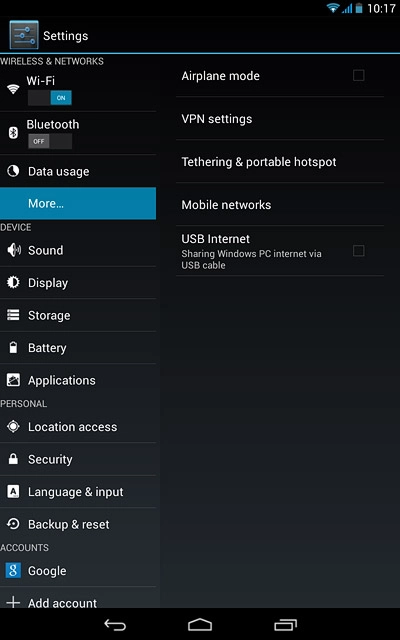

Find "Access Point Names"

Press More....

Step 3 of 25

Find "Access Point Names"

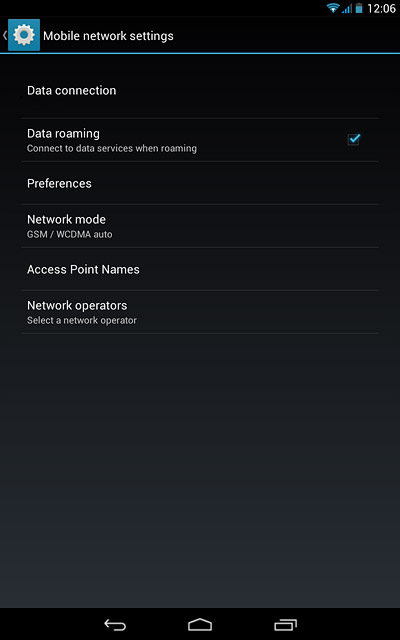

Press Mobile networks.

Step 4 of 25

Find "Access Point Names"

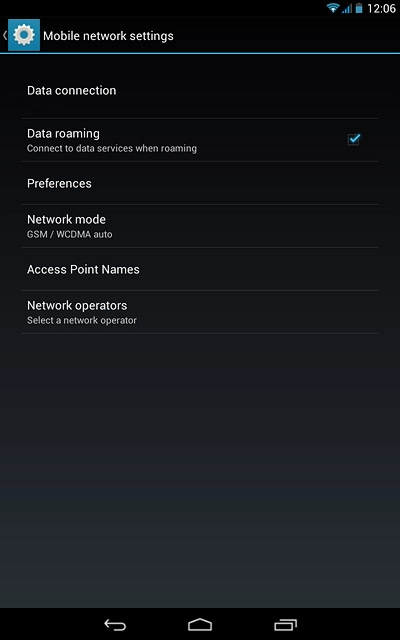

Press Access Point Names.

Step 5 of 25

Create new data connection

Press the menu icon.

Step 6 of 25

Create new data connection

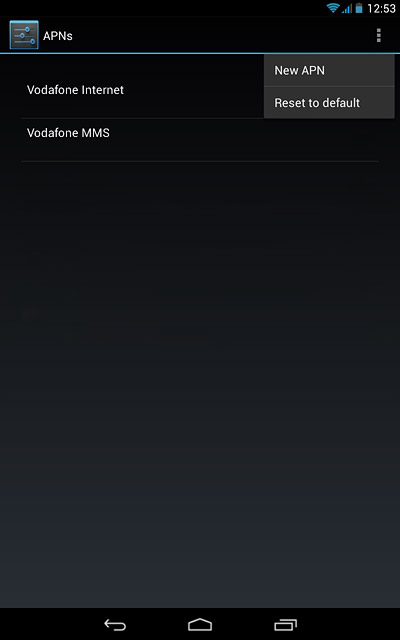

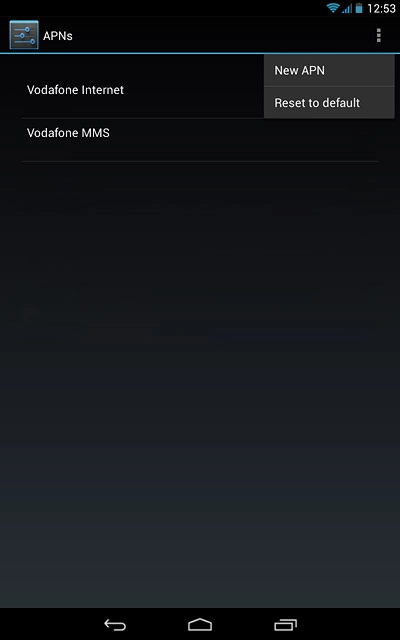

Press New APN.

Step 7 of 25

Enter data connection name

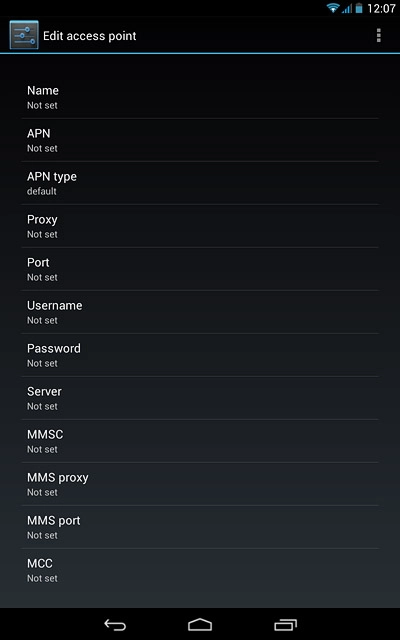

Press Name.

Step 8 of 25

Enter data connection name

Key in Vodafone Internet and press OK.

Step 9 of 25

Enter APN

Press APN.
Key in live.vodafone.com

Step 10 of 25

Enter APN

Press OK.

Step 11 of 25

Select APN type

Press APN type.

Step 12 of 25

Select APN type

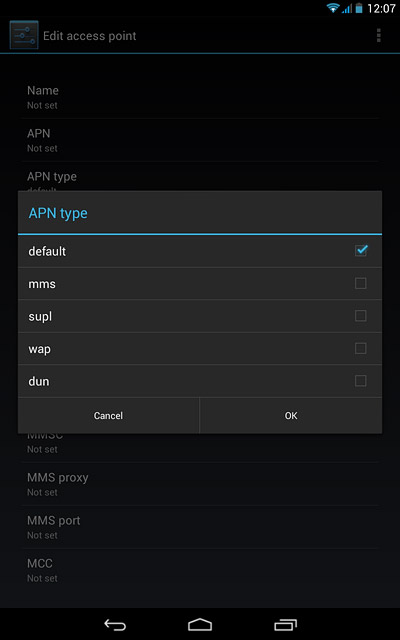

Press default until the APN type has been selected.

Step 13 of 25

Select APN type

Press OK.

Step 14 of 25

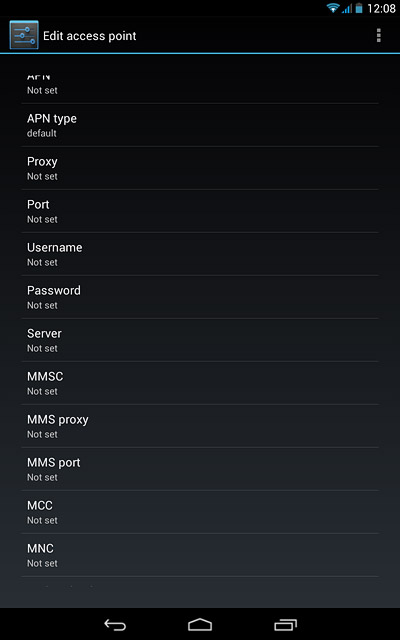

Enter country code

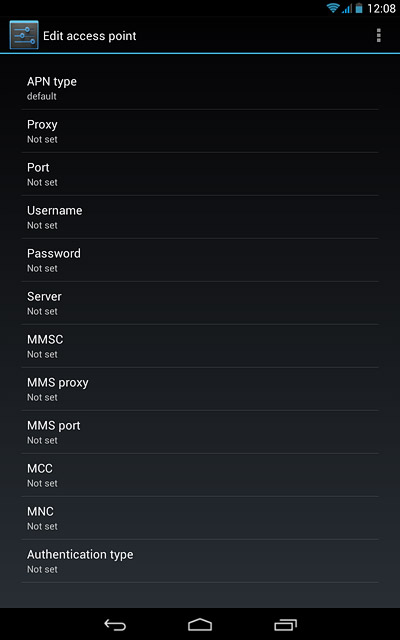

Press MCC.

Step 15 of 25

Enter country code

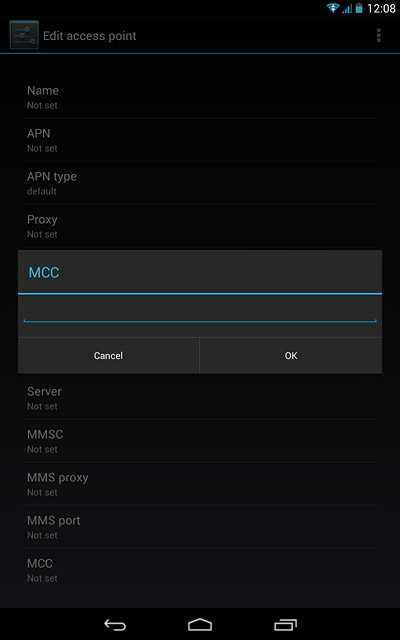

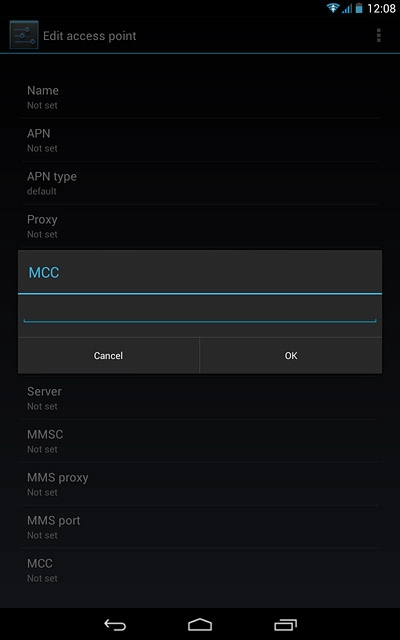

Key in 505 and press OK.

Step 16 of 25

Enter network code

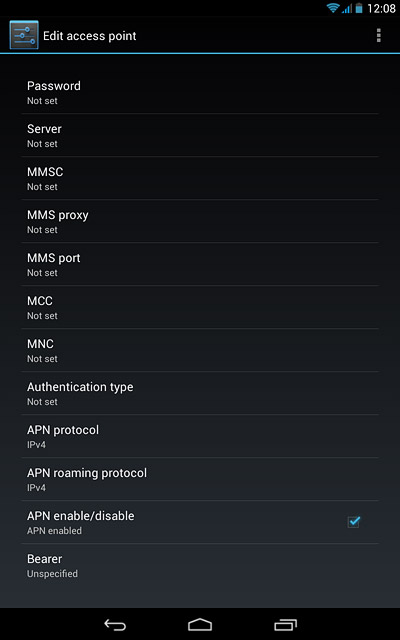

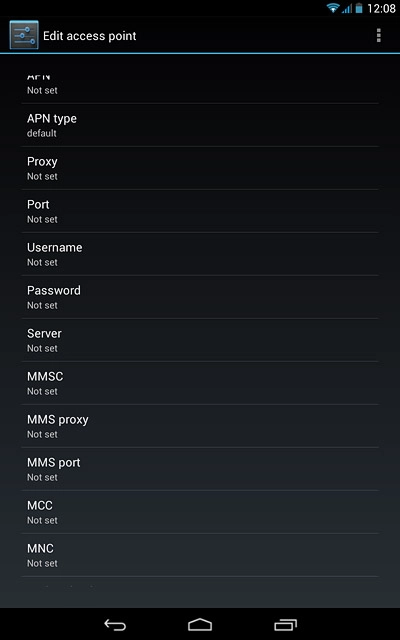

Press MNC.

Step 17 of 25

Enter network code

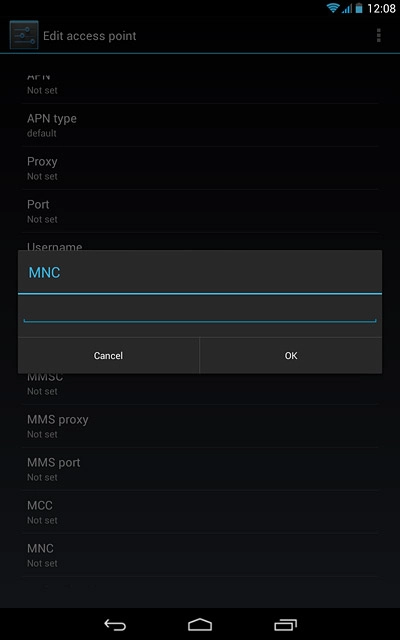

Key in 03 and press OK.

Step 18 of 25

Select authentication type

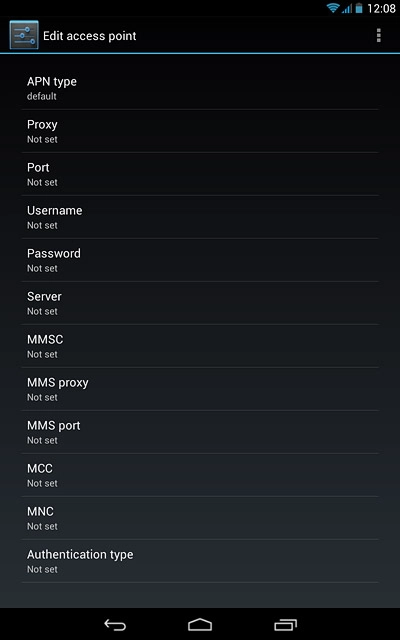

Press Authentication type.

Step 19 of 25

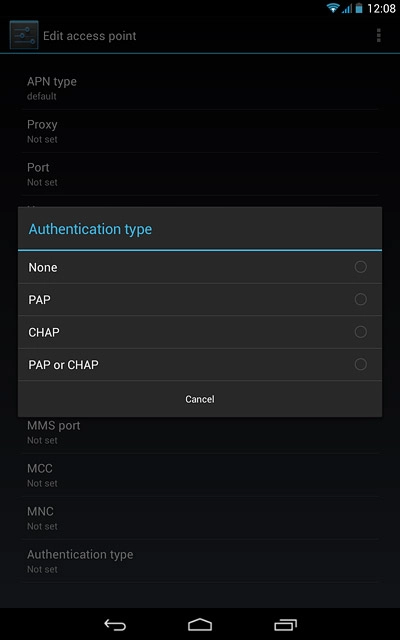

Select authentication type

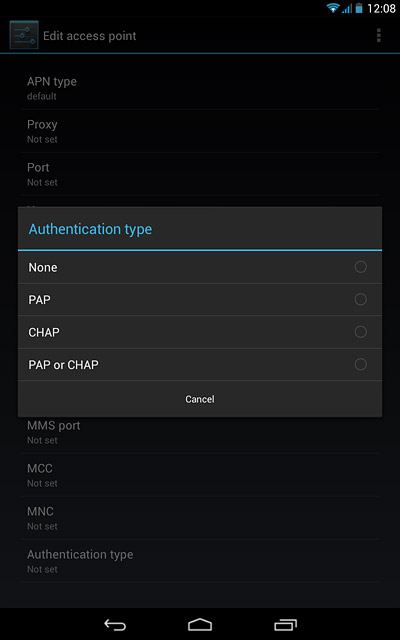

Press PAP.

Step 20 of 25

Select data bearer

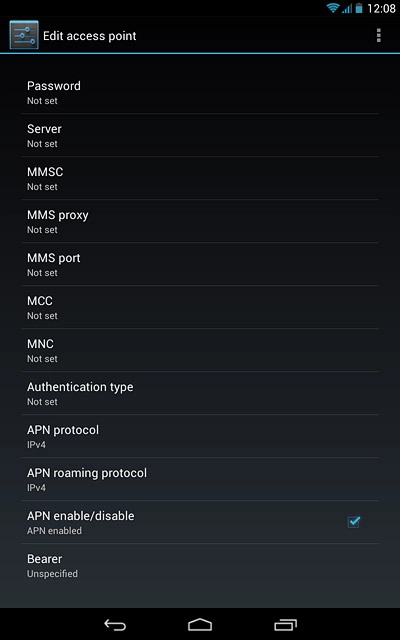

Press Bearer.

Step 21 of 25

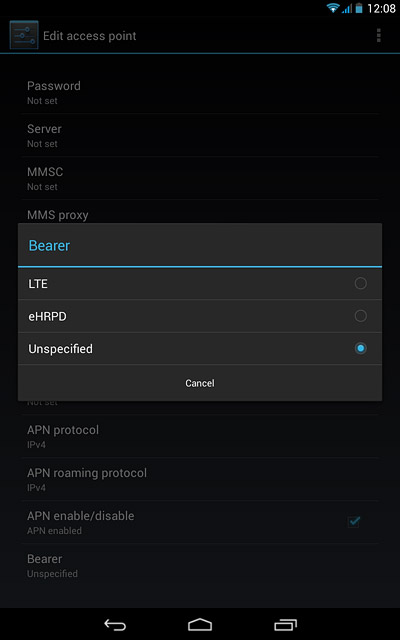

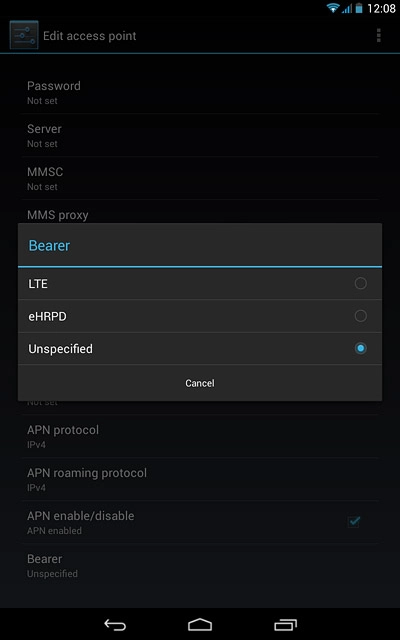

Select data bearer

Press Unspecified.

Step 22 of 25

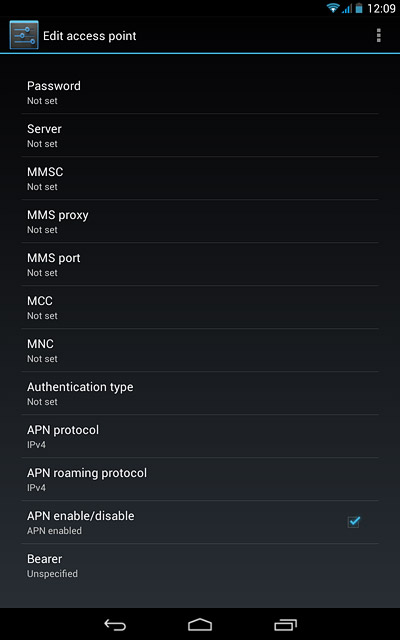

Save and activate data connection

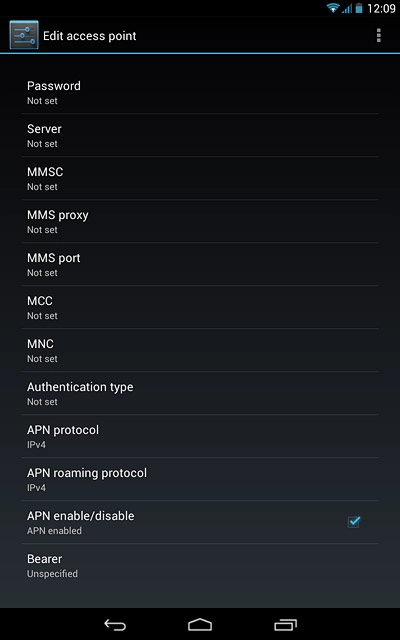

Press the menu icon.

Step 23 of 25

Save and activate data connection

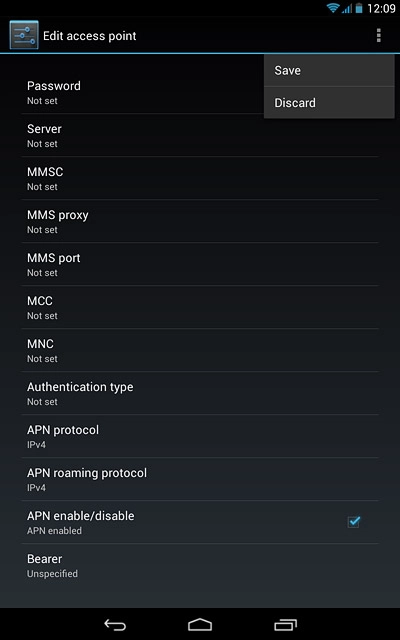

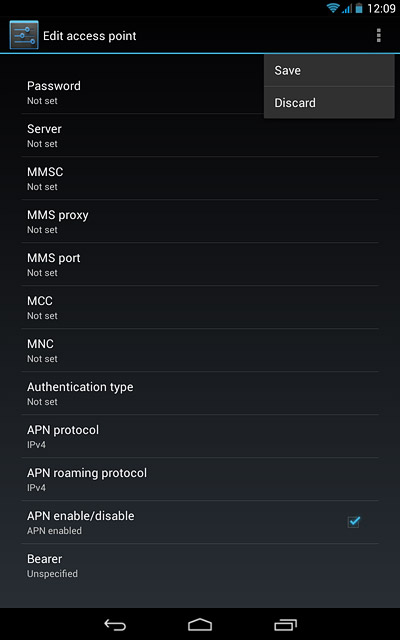

Press Save.

Step 24 of 25

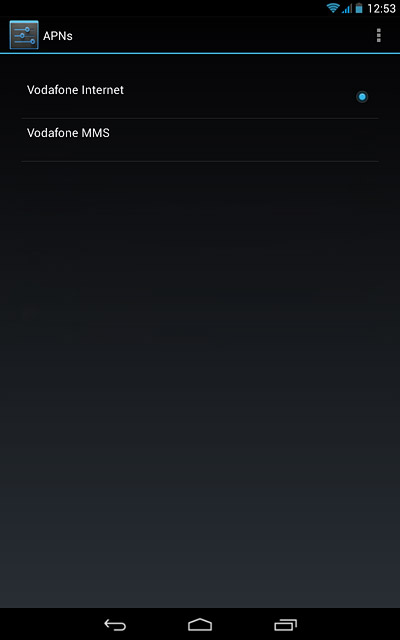

Save and activate data connection

Press the field next to the data connection to fill in the field.

Step 25 of 25

Return to the home screen

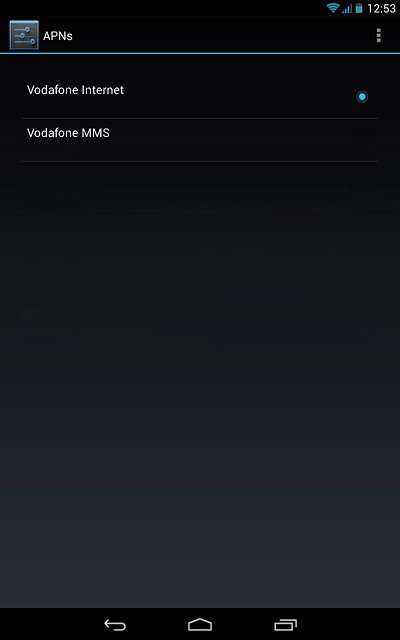

Press the home icon to return to the home screen.

Find "Access Point Names"

Slide your finger downwards starting from the top right side of the display.
Press SETTINGS.
Press More....
Press Mobile networks.
Press Access Point Names.

Create new data connection

Press the menu icon.
Press New APN.

Enter data connection name

Press Name.
Key in Vodafone Internet and press OK.

Enter APN

Press APN.
Key in live.vodafone.com
Press OK.

Select APN type

Press APN type.
Press default until the APN type has been selected.
Press OK.

Enter country code

Press MCC.
Key in 505 and press OK.

Enter network code

Press MNC.
Key in 03 and press OK.

Select authentication type

Press Authentication type.
Press PAP.

Select data bearer

Press Bearer.
Press Unspecified.

Save and activate data connection

Press the menu icon.
Press Save.
Press the field next to the data connection to fill in the field.

Return to the home screen

Press the home icon to return to the home screen.
