1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-aa354389-b5f8-4941-8e19-23be00aada0b.png?width=190&height=414)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-8fb9506c-c77b-4d70-88cf-3390748478f9.png?width=190&height=414)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-12552dae-2763-4f46-bb6c-e67c5c230eb6.png?width=190&height=414)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-d3060d7b-1666-462d-aa30-60bf2226fe8d.png?width=190&height=414)
Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-0dfcb675-7c4a-487c-81b9-71e012136832.png?width=190&height=414)

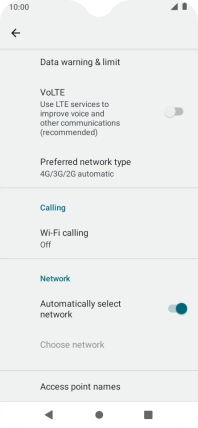

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-e88291a3-011a-4d1e-8531-b8bd7e3387bf.png?width=190&height=414)
2. Create new data connection

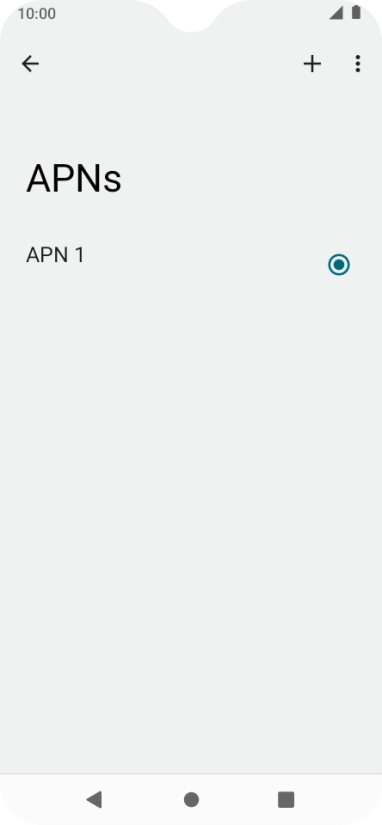

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-91ef92e1-804b-4213-b042-934914a714a7.png?width=190&height=414)

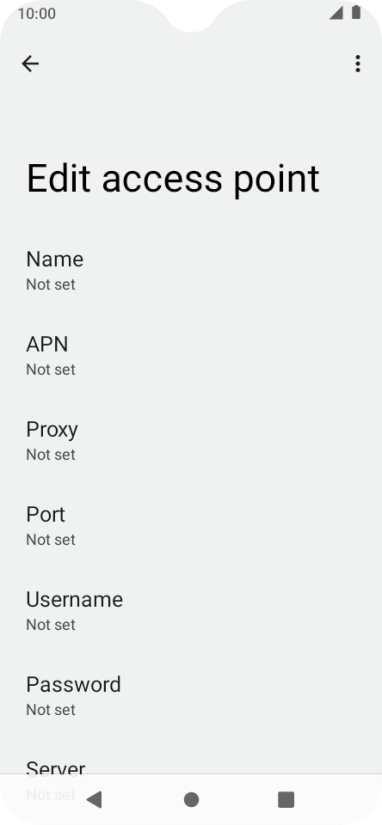

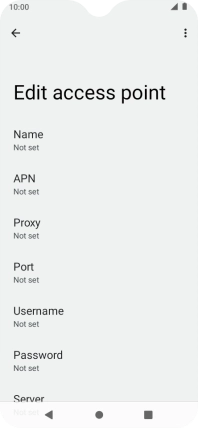

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ebe1efb7-2357-45ac-b7f6-446c1425d71e.png?width=190&height=414)

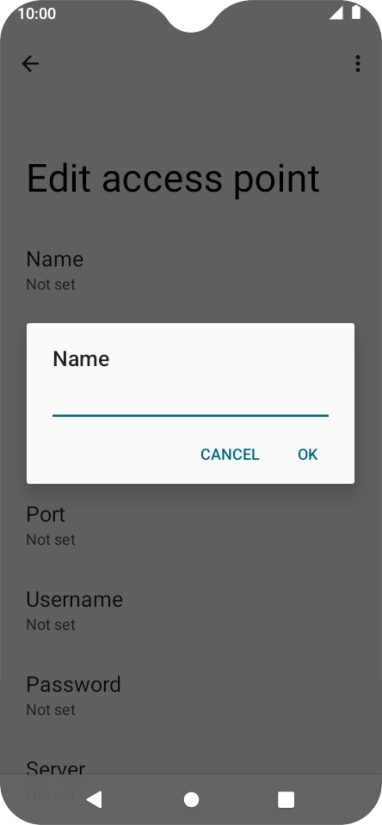

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-a315f575-d947-40d3-bff4-2c80309e4625.png?width=190&height=414)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ebe1efb7-2357-45ac-b7f6-446c1425d71e.png?width=190&height=414)

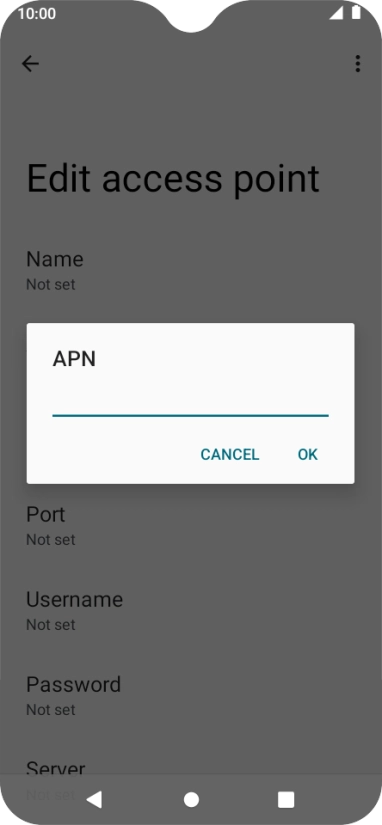

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-4657323a-cb4c-40f0-8cf2-cc84ae5c3684.png?width=190&height=414)
live.vodafone.com
4. Enter country code

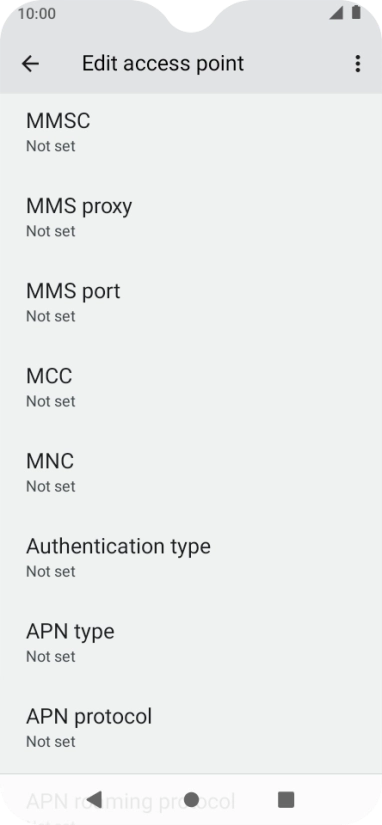

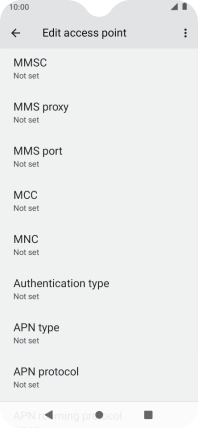

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ddf1991e-e7ac-43fb-a324-a553d104d201.png?width=190&height=414)

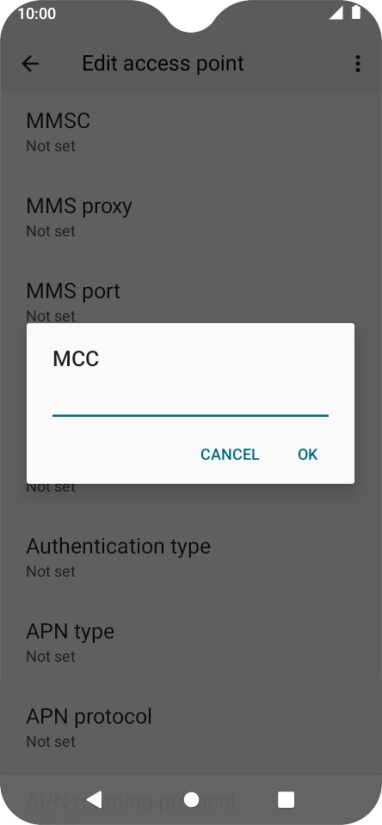

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-3537c22a-3f09-4f6e-8afc-68a5aaf38405.png?width=190&height=414)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ddf1991e-e7ac-43fb-a324-a553d104d201.png?width=190&height=414)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-a407f669-b1e4-4f24-b881-7f5f79636686.png?width=190&height=414)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ddf1991e-e7ac-43fb-a324-a553d104d201.png?width=190&height=414)

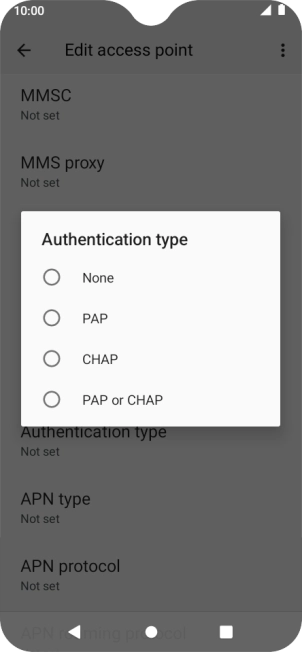

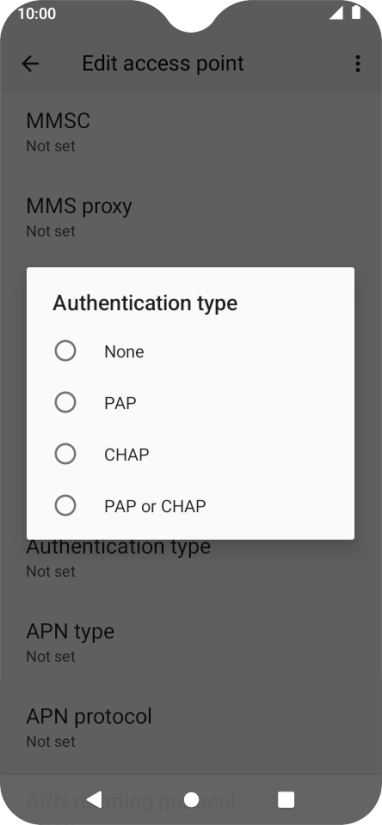

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-2cb3f86d-2cb0-45fc-adc1-39d21b63db7e.png?width=190&height=414)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ddf1991e-e7ac-43fb-a324-a553d104d201.png?width=190&height=414)

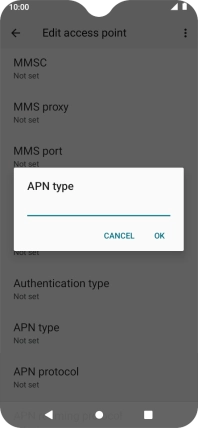

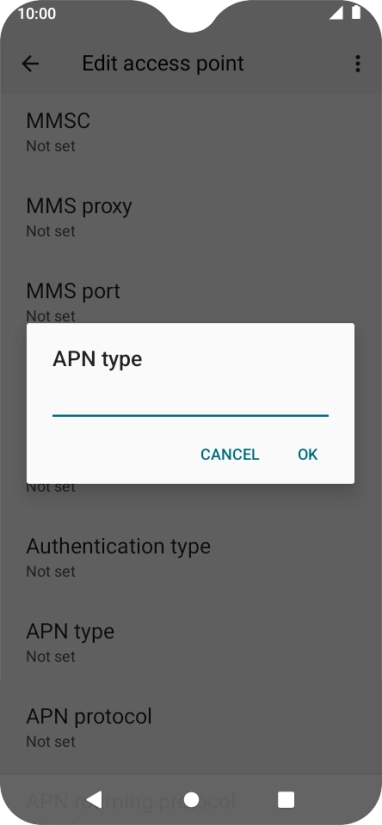

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-e2423b3a-60c1-472a-8cb9-6b3874577936.png?width=190&height=414)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-ddf1991e-e7ac-43fb-a324-a553d104d201.png?width=190&height=414)

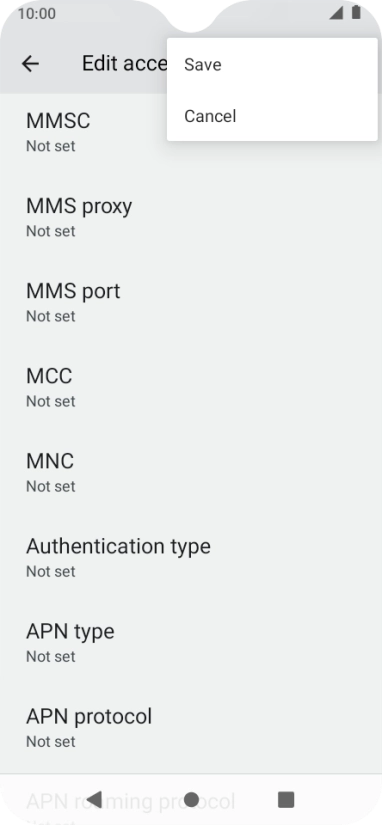

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-96ec54ef-4f8f-41fc-b412-54aaf5fd93e7.png?width=190&height=414)

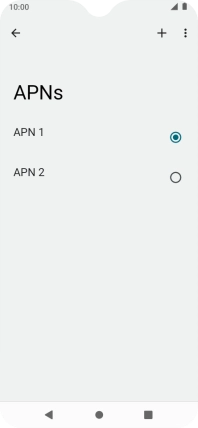

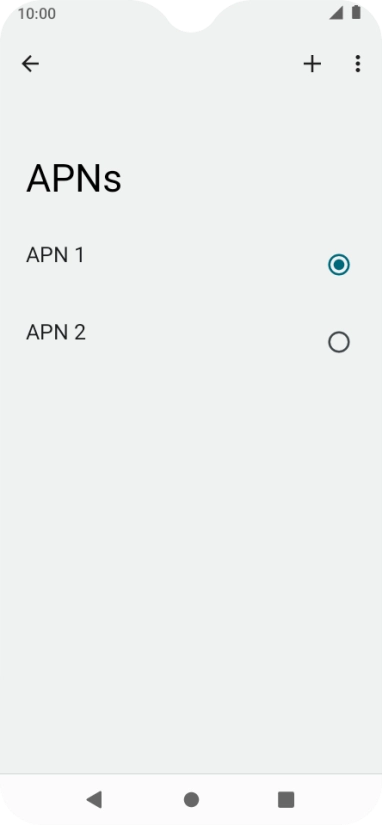

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-00f87168-a32a-4593-bb94-b3f3ab2bc2ee.png?width=190&height=414)
9. Return to the home screen

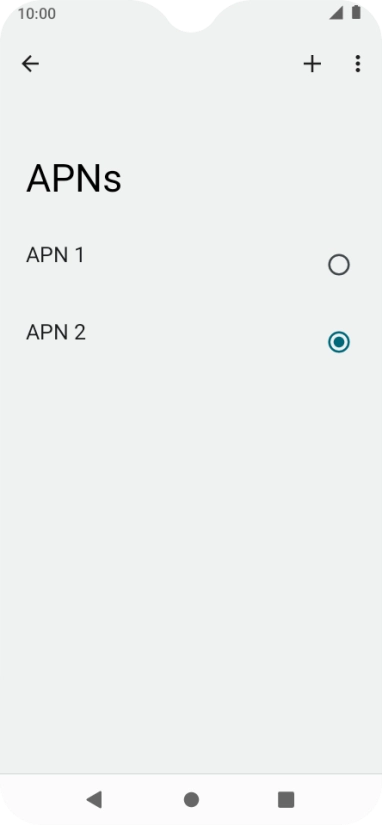

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7110924-f-cd8cd9fc-6877-43a3-b526-32e537bb5913.png?width=190&height=414)
