1. Find "Access Point Names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-efed1f55-4489-4f5d-9516-8655da24d6b0.png?width=198&height=396)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-62daae99-c5eb-46b5-a647-7c08ff1fa085.png?width=198&height=396)
Press Network & connection.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ae9d152b-a0f6-4faa-a464-79d5035e5c42.png?width=198&height=396)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-75eba4fe-9c73-4276-a8d1-7d8289c75234.png?width=198&height=396)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6d1895aa-89a8-4d2e-a138-3b9d5b3cb270.png?width=198&height=396)
2. Create new data connection

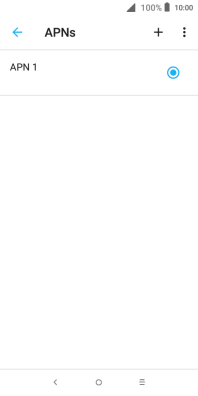

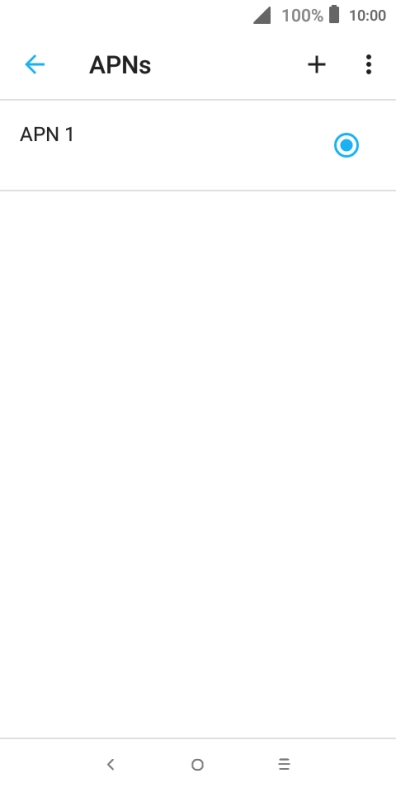

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8a218566-18d4-4bec-ab43-18866112cda2.png?width=198&height=396)

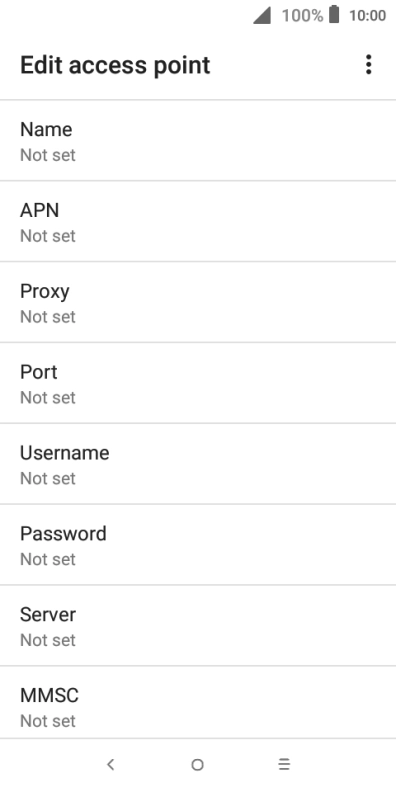

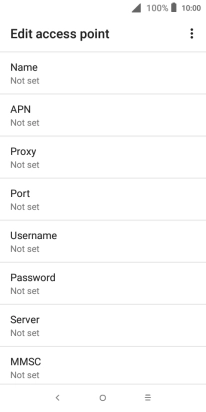

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ac091d60-33d1-4b72-97f0-b26b0a3e8deb.png?width=198&height=396)

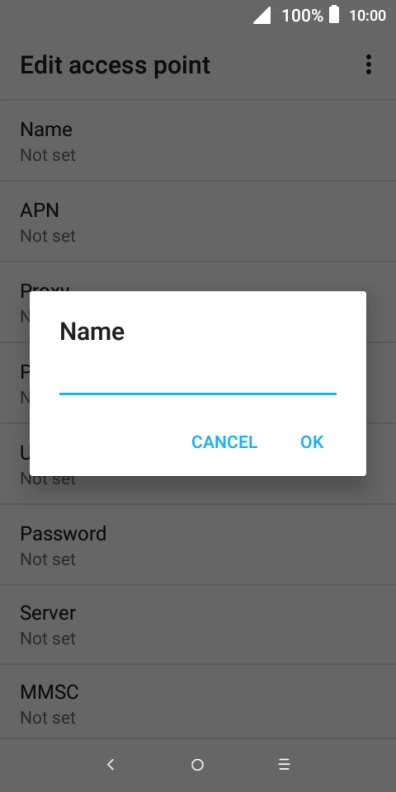

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-22a6fb49-2f7b-4005-9ed1-2a4e8900da3c.png?width=198&height=396)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ac091d60-33d1-4b72-97f0-b26b0a3e8deb.png?width=198&height=396)

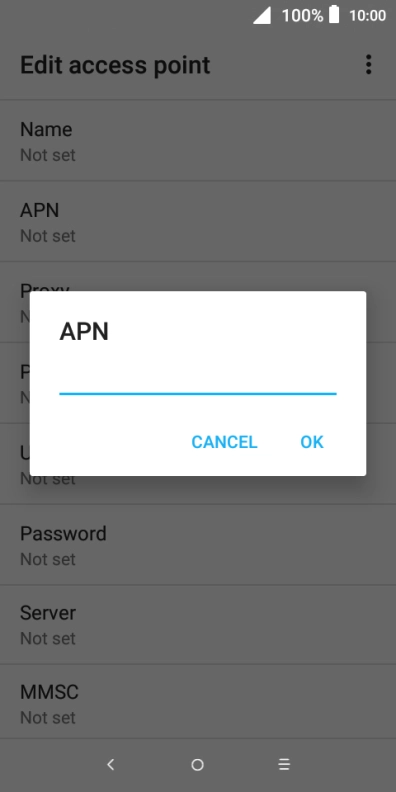

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-304d5dfc-ec77-4f78-9147-57fe7007741b.png?width=198&height=396)
live.vodafone.com
4. Enter country code

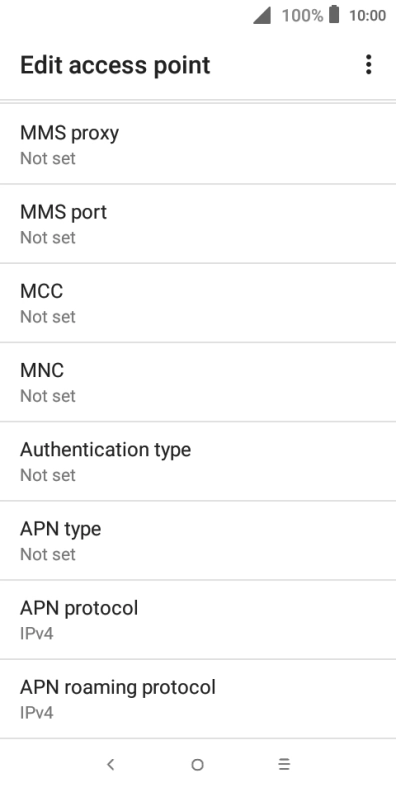

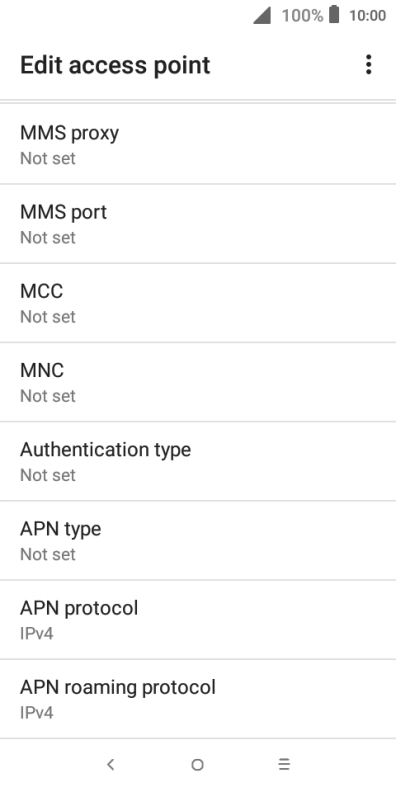

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-baf5b49c-6dc0-4860-ba4f-964e667fea41.png?width=198&height=396)

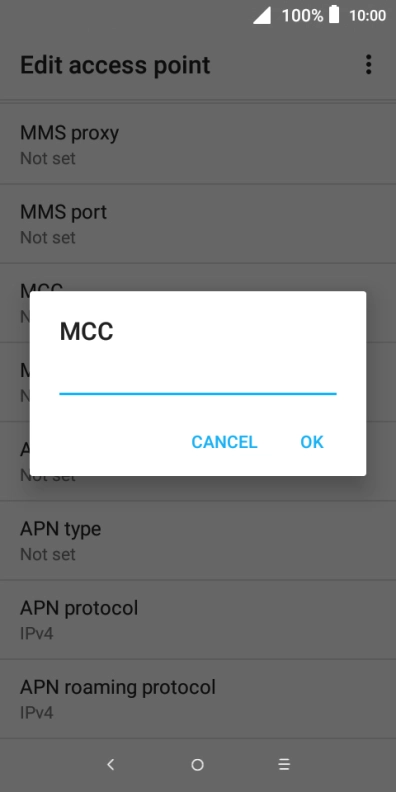

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-347be18e-637b-4335-a84b-5ac0c93383e0.png?width=198&height=396)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-baf5b49c-6dc0-4860-ba4f-964e667fea41.png?width=198&height=396)

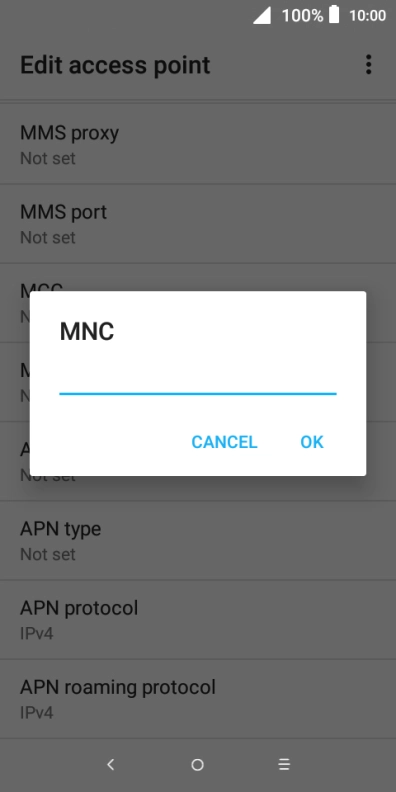

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d42b8089-3671-4a3a-a9c9-49aee4e6a8c0.png?width=198&height=396)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-baf5b49c-6dc0-4860-ba4f-964e667fea41.png?width=198&height=396)

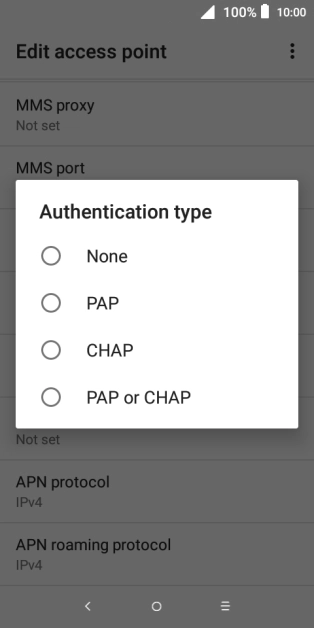

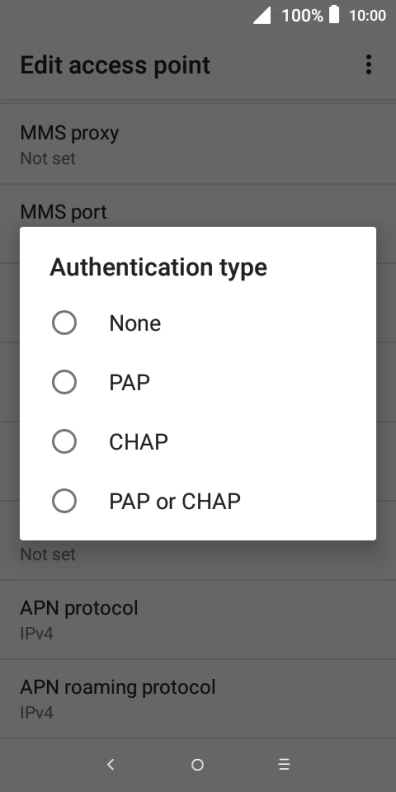

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-186109d5-7b02-4403-b446-17deb0048fd9.png?width=198&height=396)
7. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-baf5b49c-6dc0-4860-ba4f-964e667fea41.png?width=198&height=396)

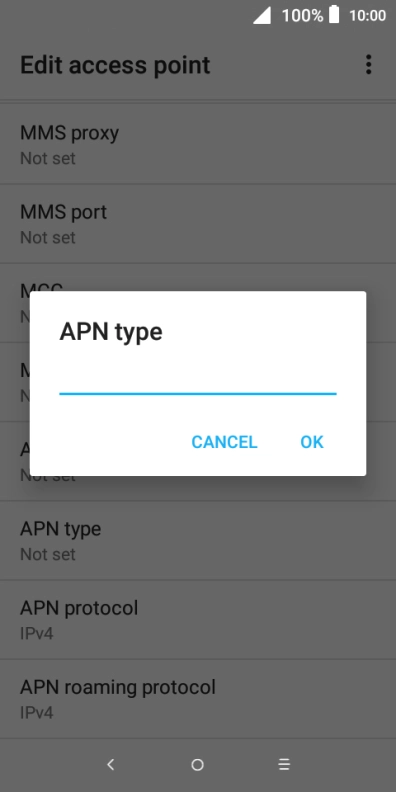

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aac92ff8-ae17-4874-b099-be4d22735ce6.png?width=198&height=396)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-baf5b49c-6dc0-4860-ba4f-964e667fea41.png?width=198&height=396)

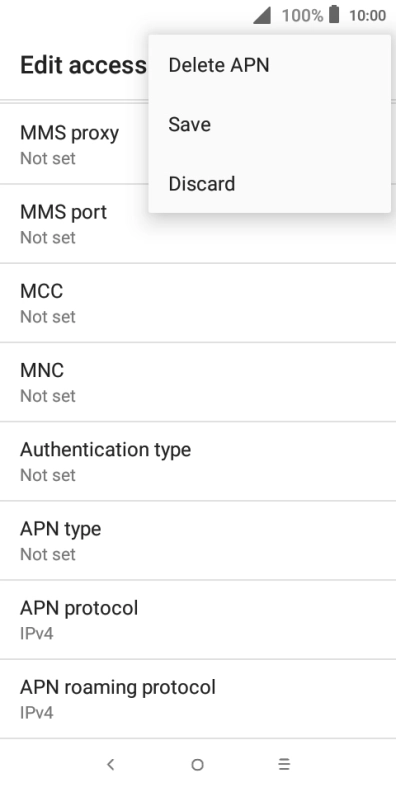

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8c636e6f-5aac-4e69-a331-0eaa37e98f60.png?width=198&height=396)

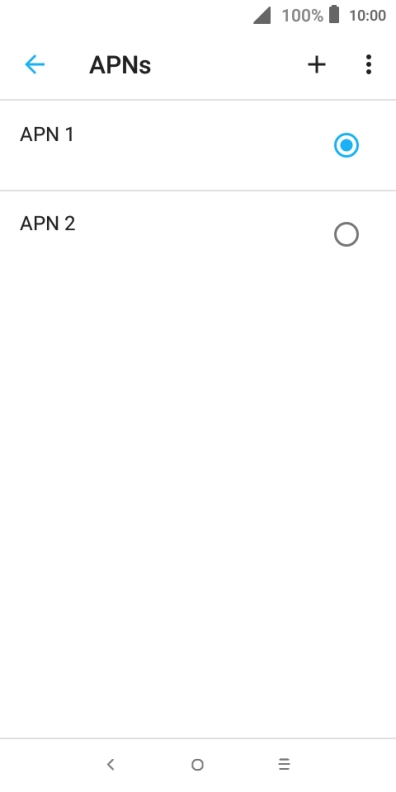

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-632e0317-9cbe-40da-b1fe-9e74ad8e479c.png?width=198&height=396)
9. Return to the home screen

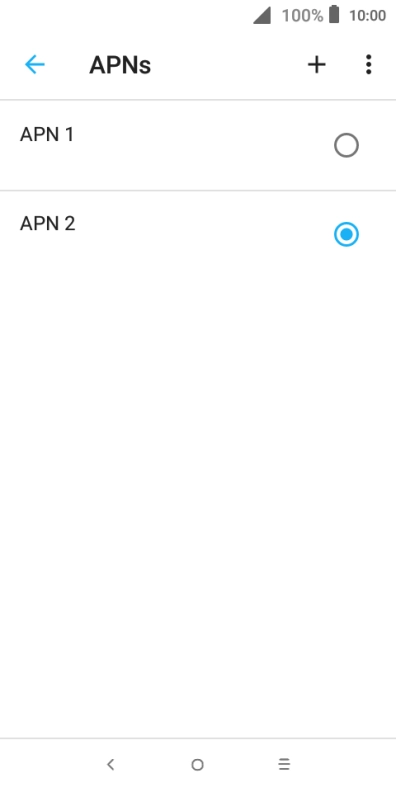

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-dd7b4b68-8f37-4f86-a047-b040d896cf43.png?width=198&height=396)
