Alcatel 1S (2021)

Alcatel 1S (2021)

Android 11.0

Set up your Alcatel 1S (2021) Android 11.0 for picture messaging

Read help info

A picture message is a message which can contain pictures and other media files and can be sent to other mobile phones. You can send and receive picture messages as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for picture messaging manually.

Step 1 of 27

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.

Step 2 of 27

1. Find "Access Point Names"

Press the settings icon.

Step 3 of 27

1. Find "Access Point Names"

Press SIM card & mobile network.

Step 4 of 27

1. Find "Access Point Names"

Press Mobile network.

Step 5 of 27

1. Find "Access Point Names"

Press Access Point Names.

Step 6 of 27

2. Create new data connection

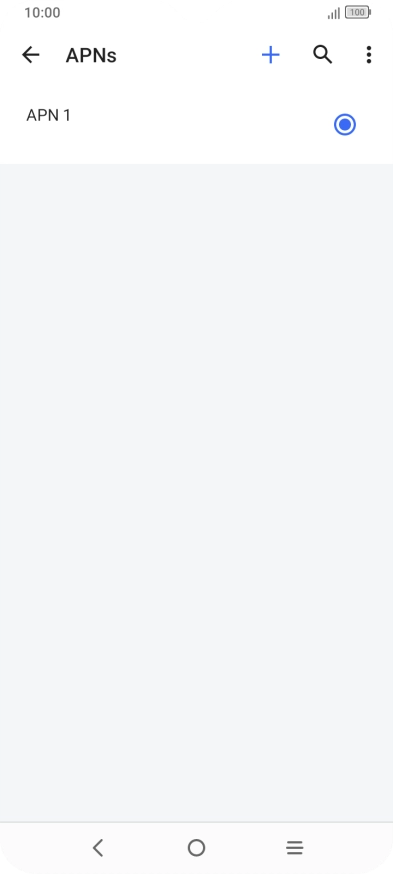

Press the new data connection icon.

Step 7 of 27

3. Enter a name for the connection

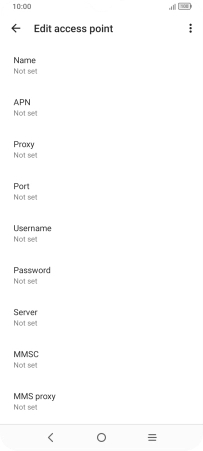

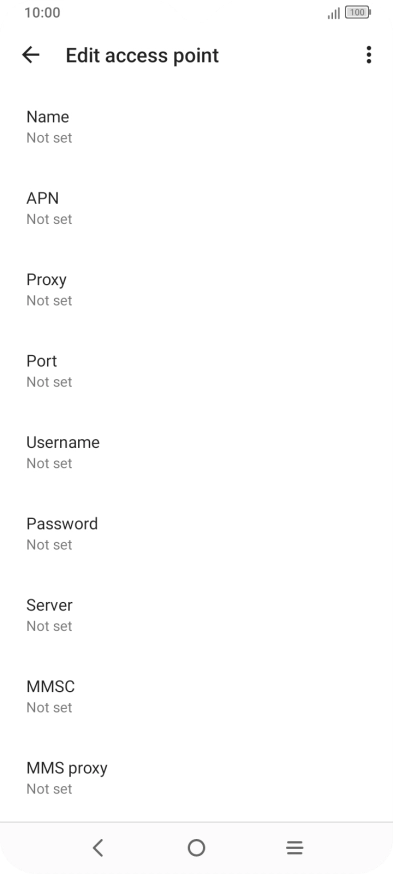

Press Name.

Vodafone MMS
Step 8 of 27

3. Enter a name for the connection

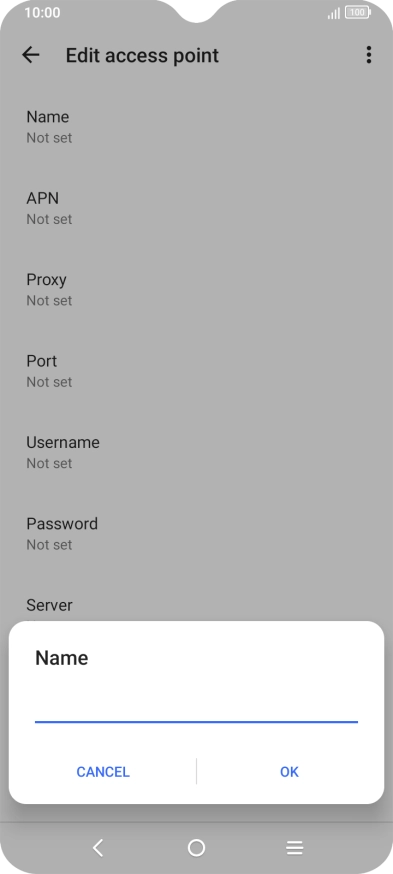

Key in Vodafone MMS and press OK.

Step 9 of 27

4. Enter APN

Press APN.

live.vodafone.com
Step 10 of 27

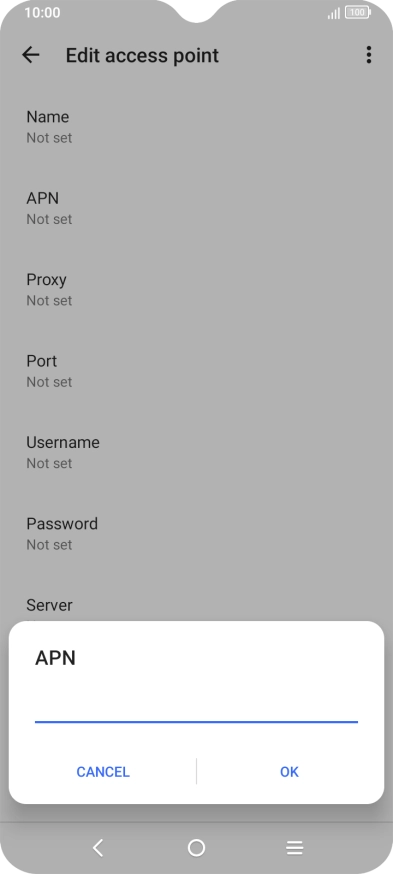

4. Enter APN

Key in live.vodafone.com and press OK.

Step 11 of 27

5. Enter MMSC

Press MMSC.

http://pxt.vodafone.net.au/pxtsend
Step 12 of 27

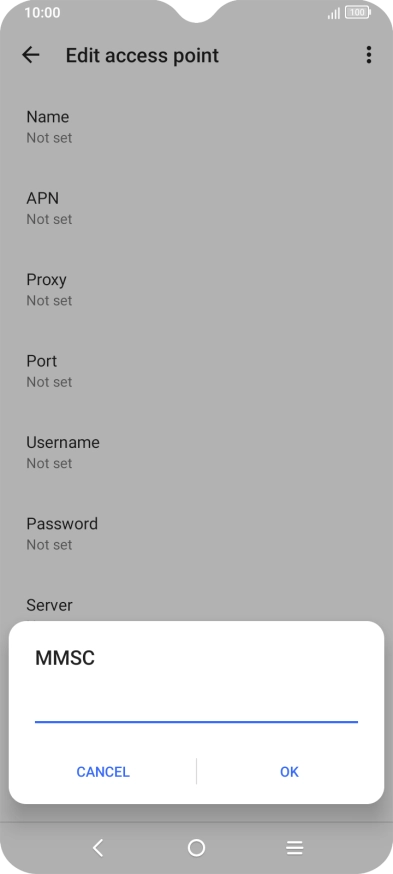

5. Enter MMSC

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

Step 13 of 27

6. Enter IP address

Press MMS proxy.

10.202.002.060
Step 14 of 27

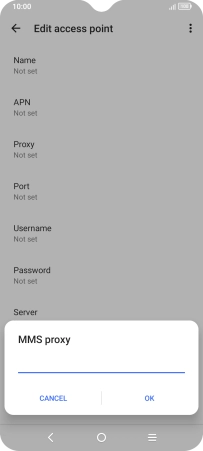

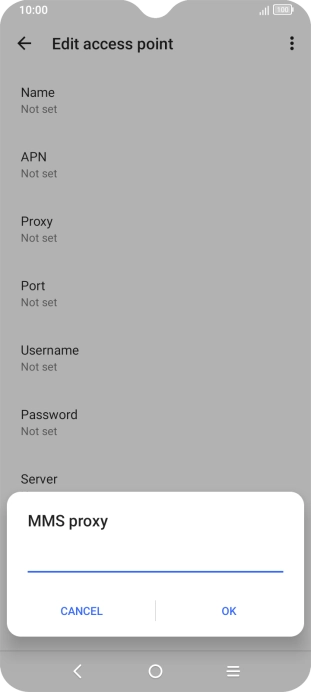

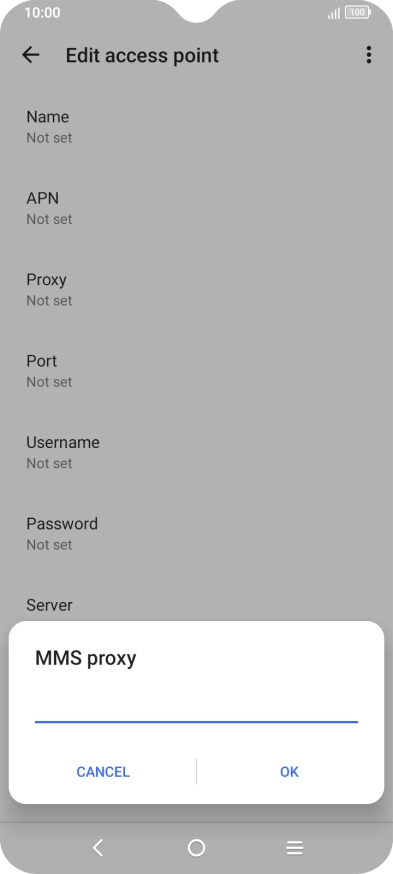

6. Enter IP address

Key in 10.202.002.060 and press OK.

Step 15 of 27

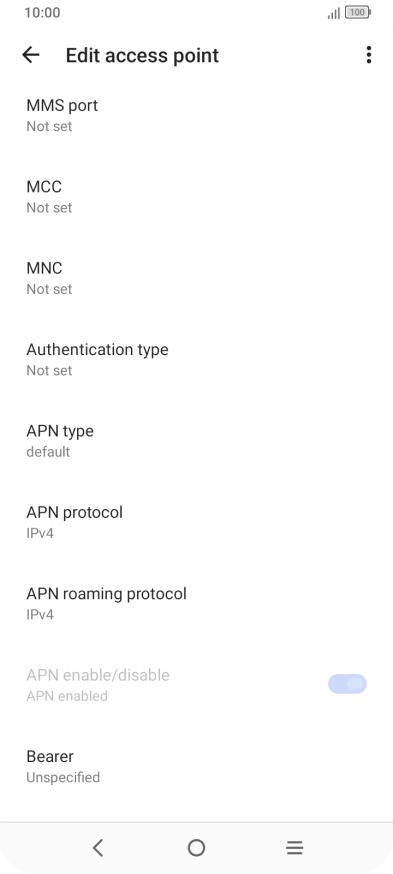

7. Enter port number

Press MMS port.

8080
Step 16 of 27

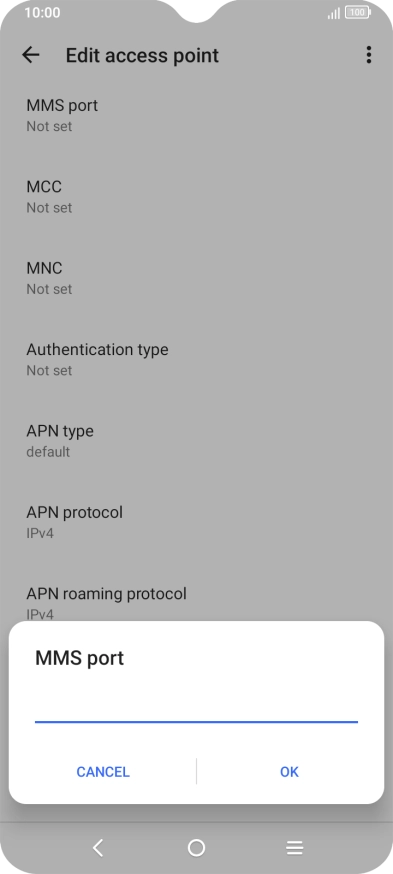

7. Enter port number

Key in 8080 and press OK.

Step 17 of 27

8. Enter country code

Press MCC.

505
Step 18 of 27

8. Enter country code

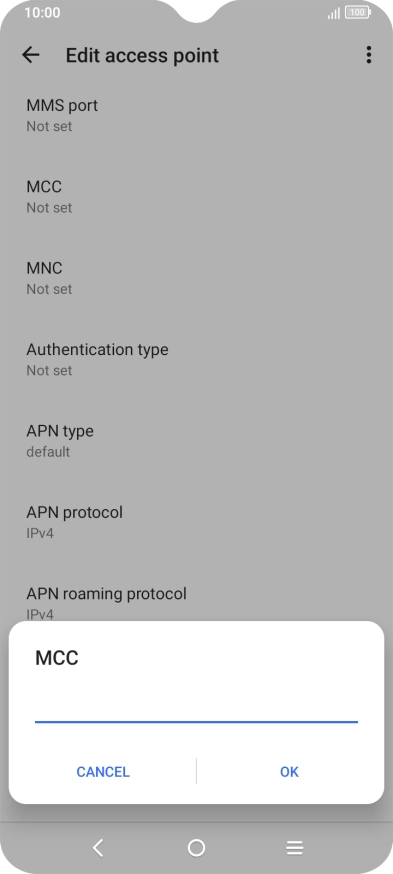

Key in 505 and press OK.

Step 19 of 27

9. Enter network code

Press MNC.

03
Step 20 of 27

9. Enter network code

Key in 03 and press OK.

Step 21 of 27

10. Select authentication type

Press Authentication type.

Step 22 of 27

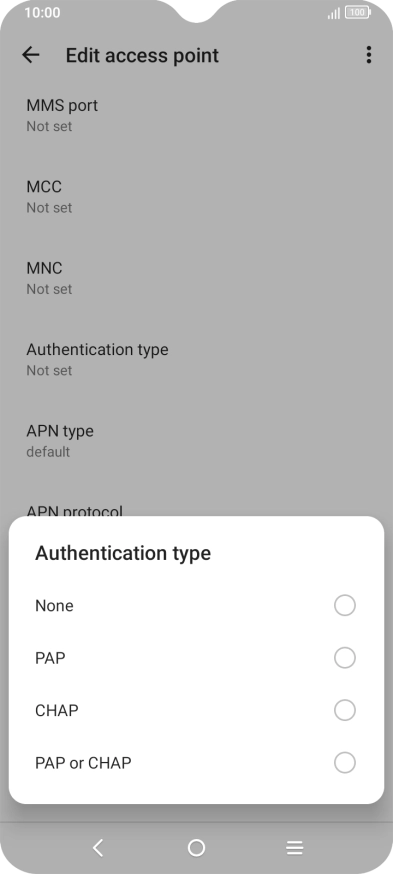

10. Select authentication type

Press PAP.

Step 23 of 27

11. Enter APN type

Press APN type.

mms
Step 24 of 27

11. Enter APN type

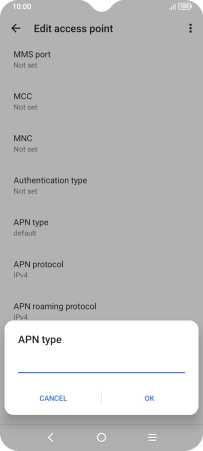

Key in mms and press OK.

Step 25 of 27

12. Save data connection

Press the menu icon.

Step 26 of 27

12. Save data connection

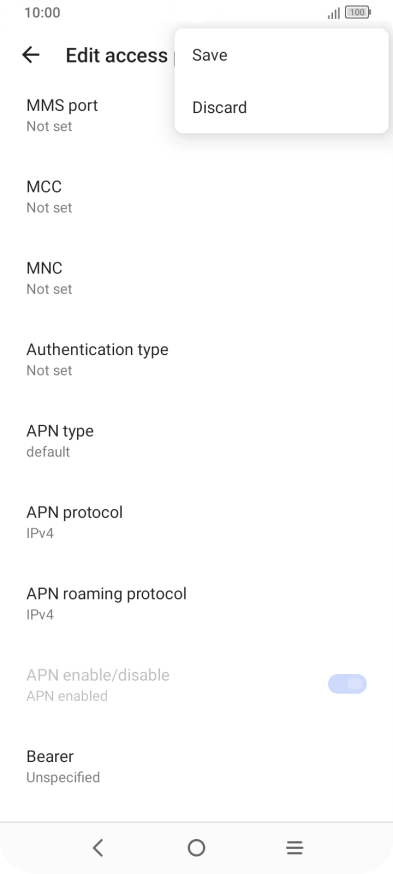

Press Save.

Step 27 of 27

13. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Access Point Names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press SIM card & mobile network.
Press Mobile network.
Press Access Point Names.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone MMS and press OK.
Vodafone MMS

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter MMSC

Press MMSC.
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
http://pxt.vodafone.net.au/pxtsend

6. Enter IP address

Press MMS proxy.
Key in 10.202.002.060 and press OK.
10.202.002.060

7. Enter port number

Press MMS port.
Key in 8080 and press OK.
8080

8. Enter country code

Press MCC.
Key in 505 and press OK.
505

9. Enter network code

Press MNC.
Key in 03 and press OK.
03

10. Select authentication type

Press Authentication type.
Press PAP.

11. Enter APN type

Press APN type.
Key in mms and press OK.
mms

12. Save data connection

Press the menu icon.
Press Save.

13. Return to the home screen

Press the Home key to return to the home screen.
