1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-44b98d05-6cbb-4099-8141-dc7a63934f30.png?width=204&height=430)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-dd4b1b7c-d4ed-4725-a37a-cf56e28eb1ff.png?width=204&height=430)
Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-62aef6de-3448-4ad8-8cc7-798e8ca5cc96.png?width=204&height=430)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-8aa4f118-ae52-4c0c-9c70-416e7e37f5dc.png?width=204&height=430)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-9fe78b64-ad06-4858-8d47-d88c95d0ff42.png?width=204&height=430)
2. Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-050bdf1c-82bc-48fc-a353-4c93ad279b43.png?width=204&height=430)
3. Enter a name for the connection
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e6a2e5ef-8cd4-44af-a673-631a8c6b075b.png?width=204&height=430)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-61f6f1f0-b2f5-43ab-b63f-46953d1e80a1.png?width=204&height=430)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e6a2e5ef-8cd4-44af-a673-631a8c6b075b.png?width=204&height=430)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-cc84ca30-b746-49b0-a541-98e8348e4366.png?width=204&height=430)
live.vodafone.com
5. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e6a2e5ef-8cd4-44af-a673-631a8c6b075b.png?width=204&height=430)

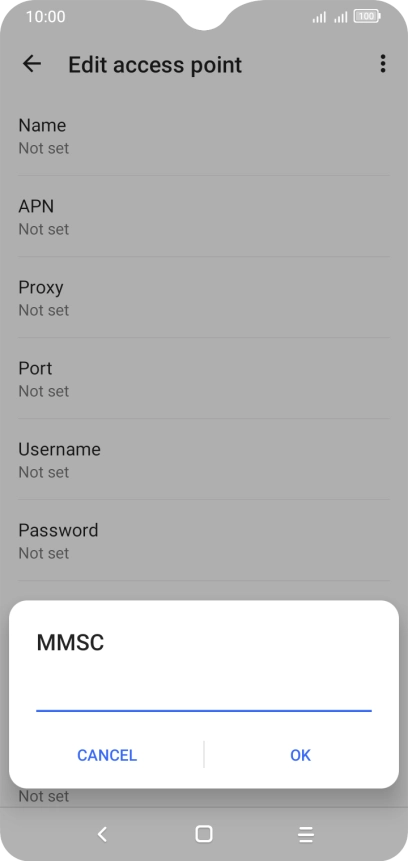

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-a5743f5b-018d-4b1f-890e-0242ff15ce1b.png?width=204&height=430)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e6a2e5ef-8cd4-44af-a673-631a8c6b075b.png?width=204&height=430)

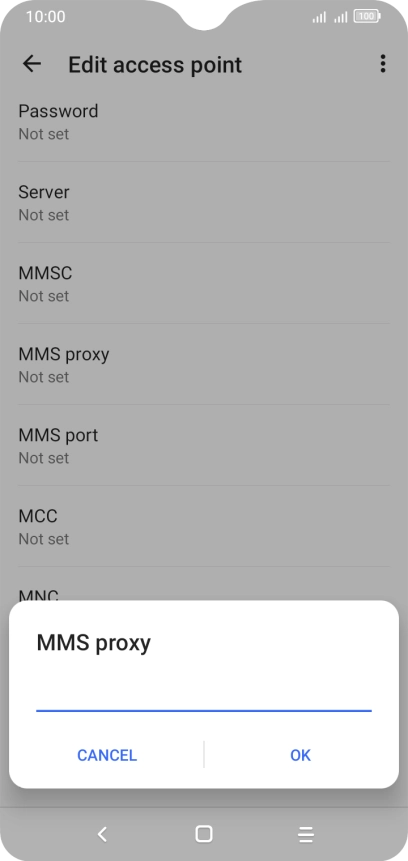

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-e8742efe-2260-494d-9a2b-441b3f970463.png?width=204&height=430)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)

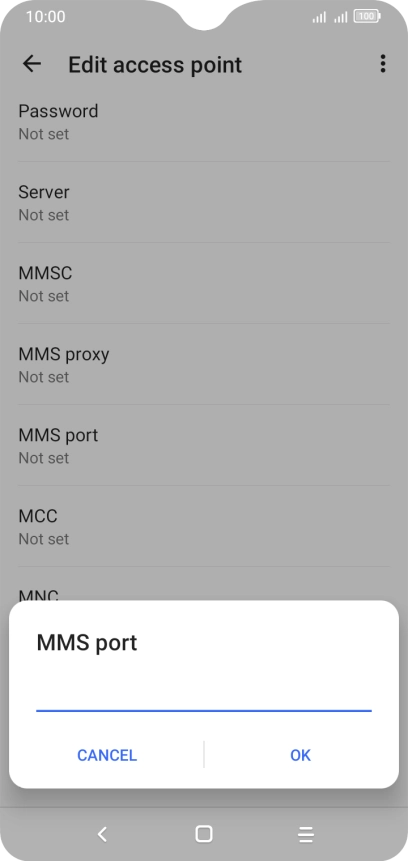

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-12a4b40b-b8c1-4054-ac45-a8fd8577e32e.png?width=204&height=430)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-d52f6ee8-1ab8-441c-9494-89cdc5b490fc.png?width=204&height=430)
505
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-7135ef91-3b3d-4909-af44-77d78720adcc.png?width=204&height=430)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-db28e3af-96b1-4b71-bfbb-53ba21ab0218.png?width=204&height=430)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-1b4da8be-fd2a-472d-85d0-4eac9589c872.png?width=204&height=430)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-b1989529-d99d-4cff-87d3-5400b725ee1b.png?width=204&height=430)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-adfafbd4-4a78-47d1-bfe0-b71ac176a061.png?width=204&height=430)
13. Return to the home screen

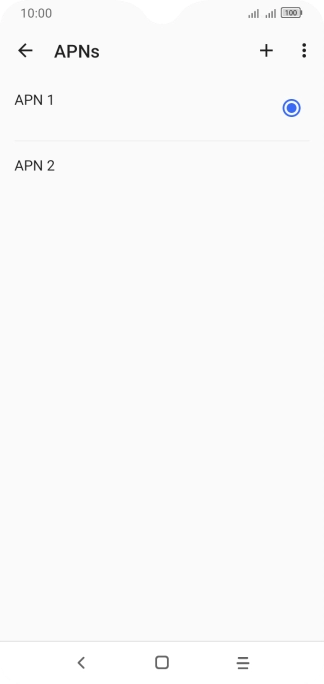

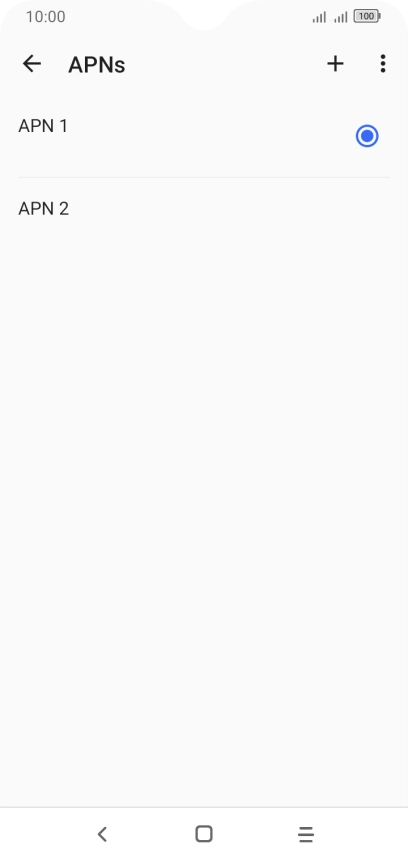

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7010524-f-85f7d9e9-e19a-4d06-95bc-678e634222c2.png?width=204&height=430)
