Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
Find "Access Point Names"
Press the settings icon.
Find "Access Point Names"
Press Network & internet.
Find "Access Point Names"
Press Mobile network.
Find "Access Point Names"

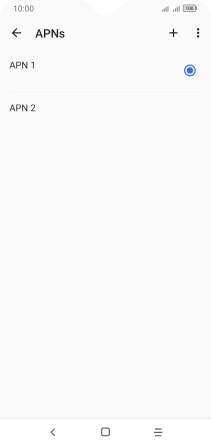

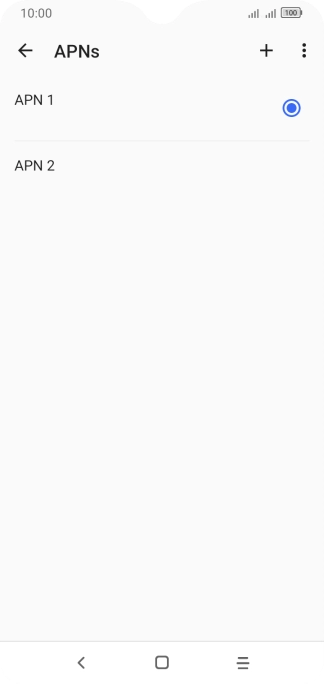

Press Access Point Names.
Create new data connection
Press the new data connection icon.
Enter a name for the connection
Press Name.
Enter a name for the connection
Key in Vodafone MMS and press OK.
Enter APN
Press APN.
Enter APN
Key in live.vodafone.com and press OK.
Enter MMSC

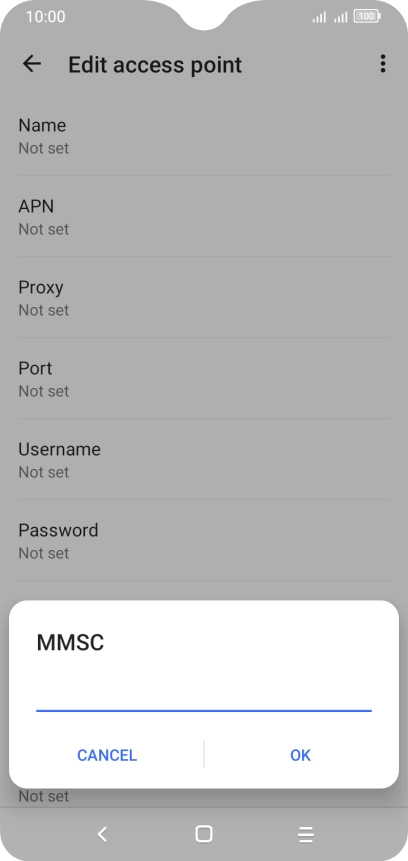

Press MMSC.
Enter MMSC
Key in http://pxt.vodafone.net.au/pxtsend and press OK.
Enter IP address

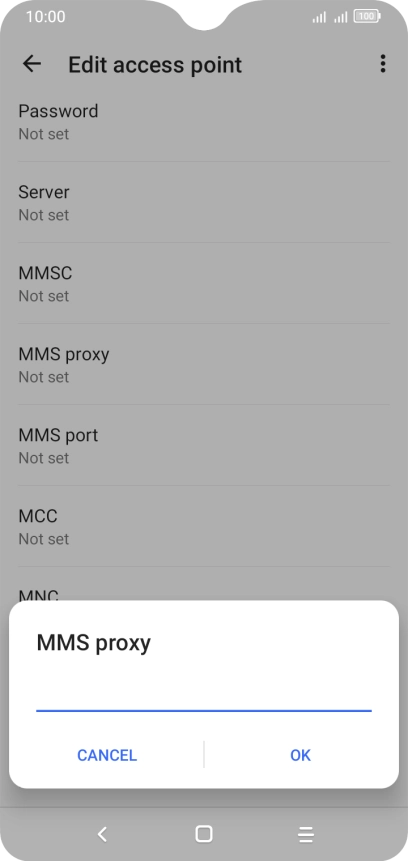

Press MMS proxy.
Enter IP address
Key in 10.202.002.060 and press OK.
Enter port number

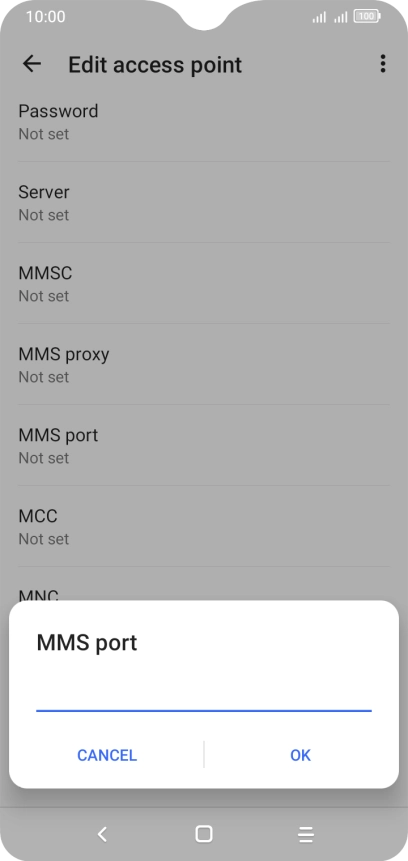

Press MMS port.
Enter port number
Key in 8080 and press OK.
Enter country code
Press MCC.
Enter country code
Key in 505 and press OK.
Enter network code
Press MNC.
Enter network code
Key in 03 and press OK.
Select authentication type
Press Authentication type.
Select authentication type
Press PAP.
Enter APN type
Press APN type.
Enter APN type
Key in mms and press OK.
Save data connection
Press the menu icon.
Save data connection
Press Save.
Return to the home screen
Press the Home key to return to the home screen.
1 Find "Access Point Names"
2 Create new data connection
3 Enter a name for the connection
4 Enter APN
5 Enter MMSC
6 Enter IP address
7 Enter port number
8 Enter country code
9 Enter network code
10 Select authentication type
11 Enter APN type
12 Save data connection
13 Return to the home screen
