Set up your Apple iPhone 6s Plus iOS 14.0 for IMAP email

Read help info

You can set up your phone to send and receive email messages from your email accounts. Using IMAP, your email messages are kept on the server and are synchronised between all of your devices. You're then able to access your email messages from other devices. To set up your phone for IMAP email, you need to set up your phone for internet.

Step 1 of 45

1. Find "Accounts"

Press Settings.

Step 2 of 45

1. Find "Accounts"

Press Mail.

Step 3 of 45

1. Find "Accounts"

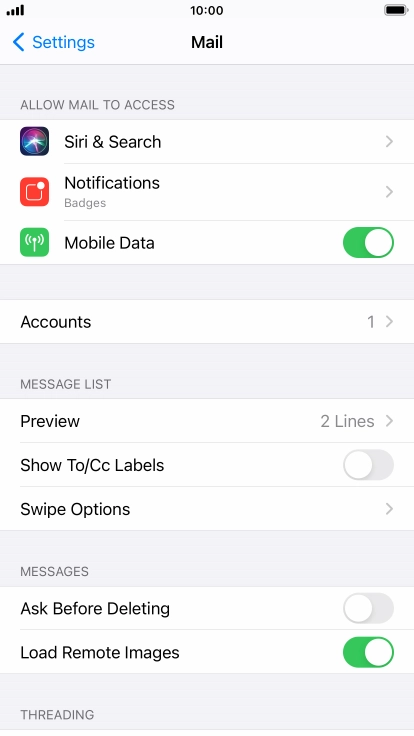

Press Accounts.

Step 4 of 45

2. Create new email account

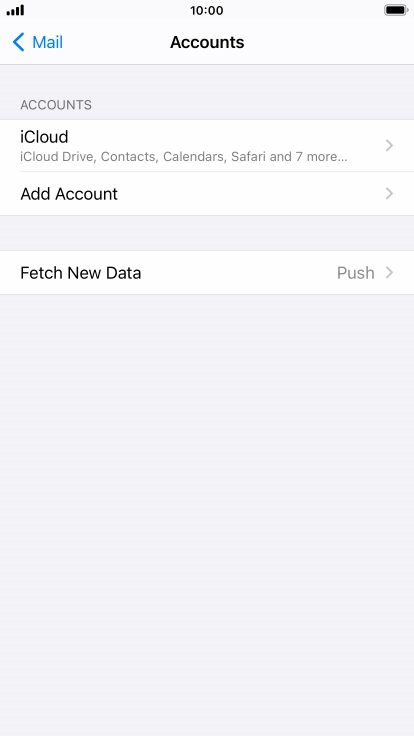

Press Add Account.

Step 5 of 45

2. Create new email account

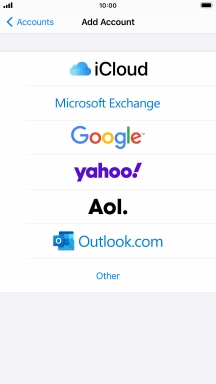

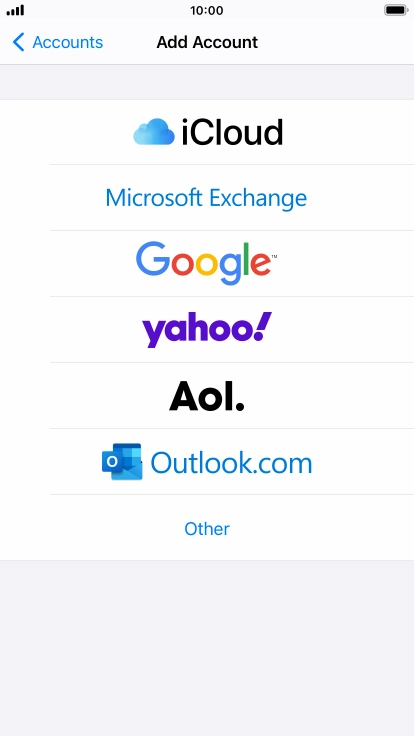

Press Other.

If the name of your email provider is on the list, press this instead.
Step 6 of 45

2. Create new email account

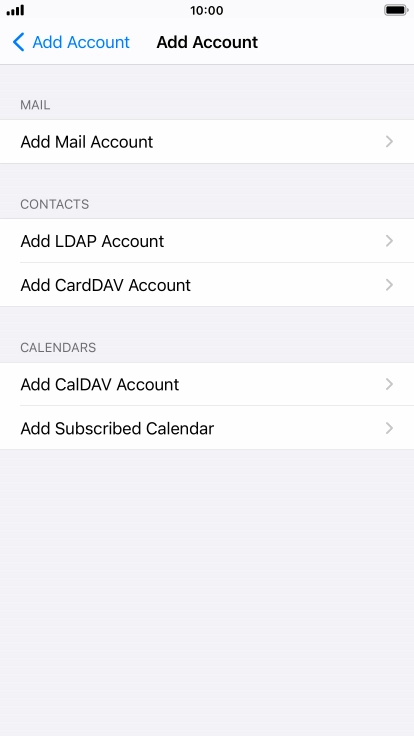

Press Add Mail Account.

Step 7 of 45

3. Enter sender name

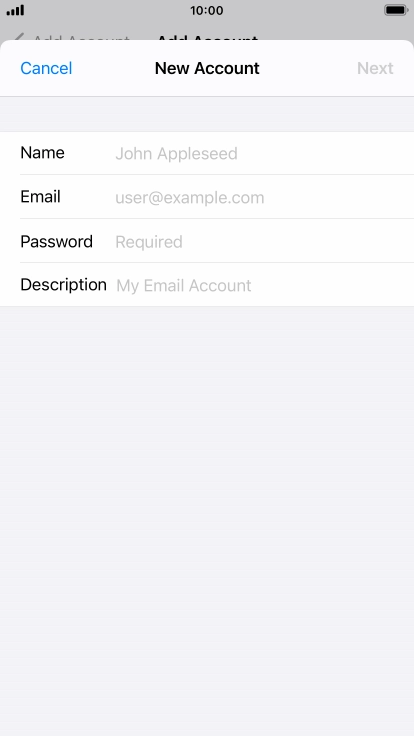

Press Name and key in the required sender name.

Step 8 of 45

4. Enter email address

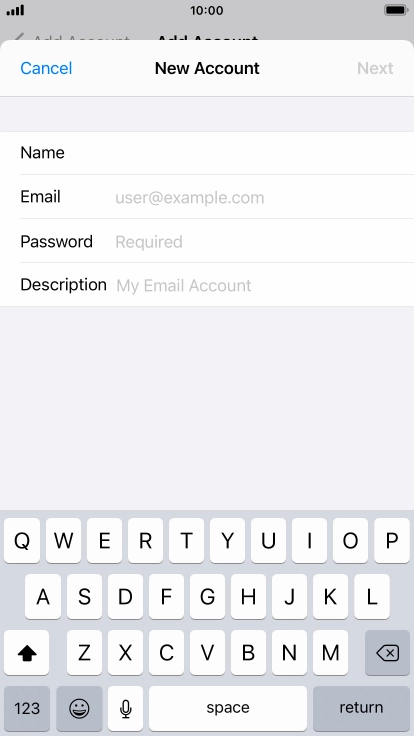

Press Email and key in your email address.

Step 9 of 45

5. Enter password

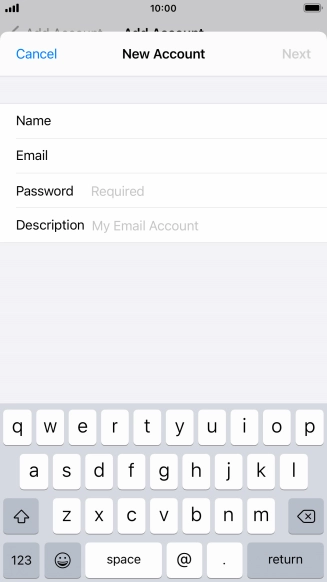

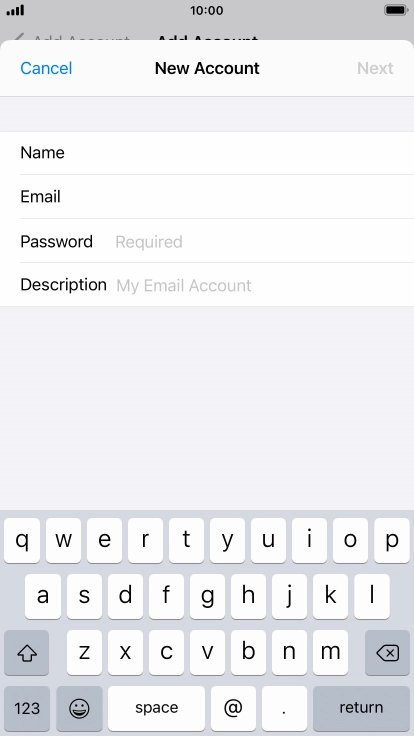

Press Password and key in the password for your email account.

Step 10 of 45

6. Enter email account name

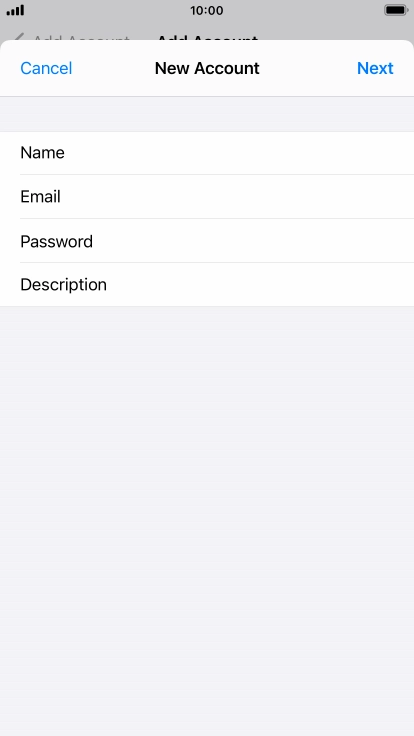

Press Description and key in the required name.

Step 11 of 45

6. Enter email account name

Press Next.

Step 12 of 45

6. Enter email account name

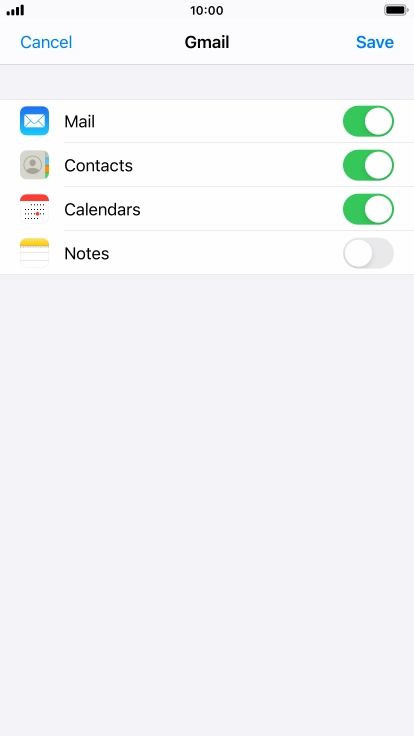

If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

Step 13 of 45

7. Select server type

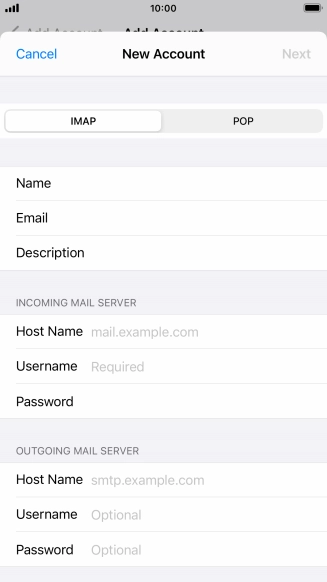

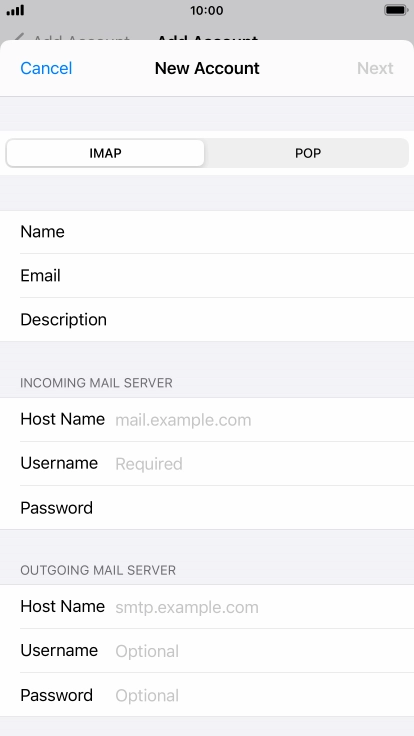

Press IMAP.

Step 14 of 45

8. Enter incoming server

Press Host Name and key in the name of your email provider's incoming server.

Step 15 of 45

9. Enter username

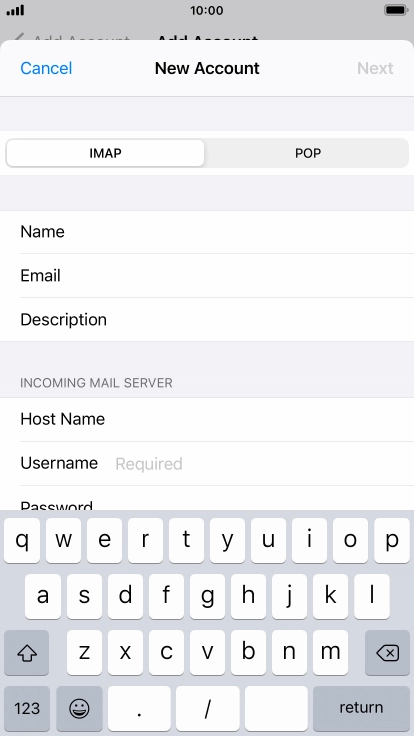

Press Username and key in the username for your email account.

smtp.vodafone.net.au
Step 16 of 45

10. Enter outgoing server

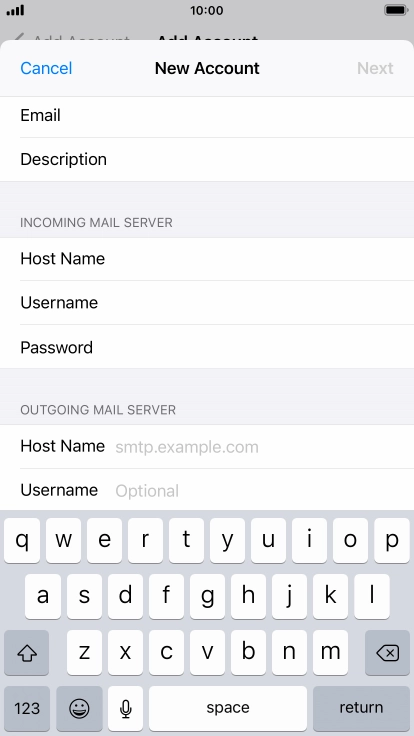

Press Host Name and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 17 of 45

11. Enter username

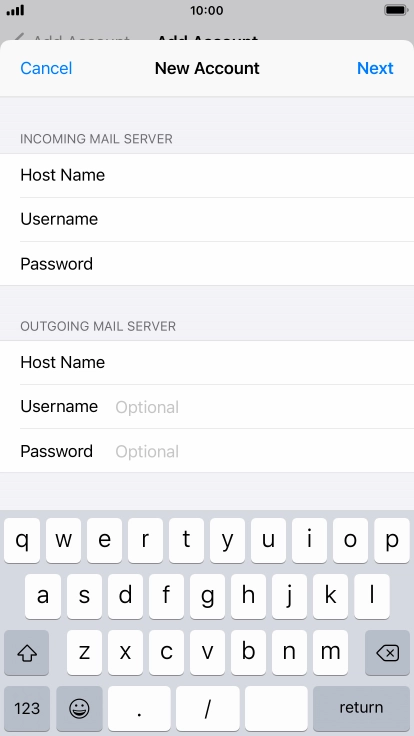

Press Username and key in the username for your email account. Please note that if you're using Vodafone's outgoing server, leave the username field empty.

Step 18 of 45

12. Enter password

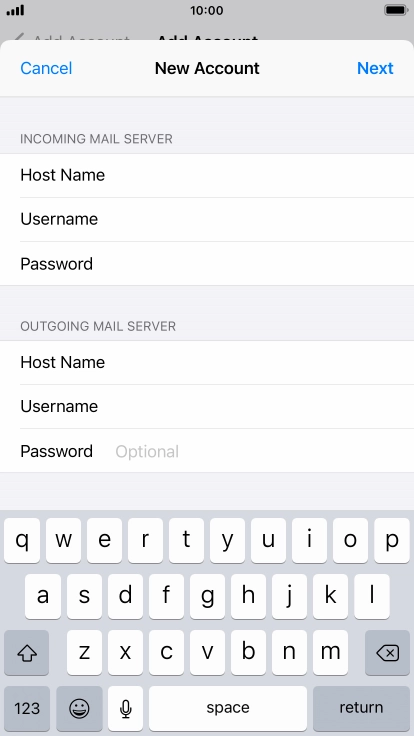

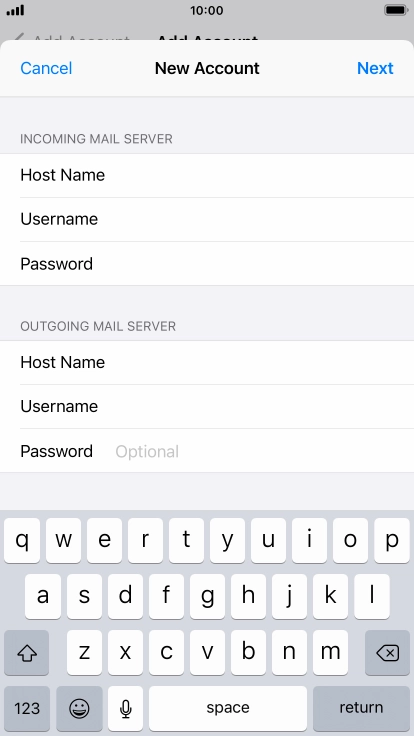

Press Password and key in the password for your email account. Please note that if you're using Vodafone's outgoing server, leave the password field empty.

Step 19 of 45

12. Enter password

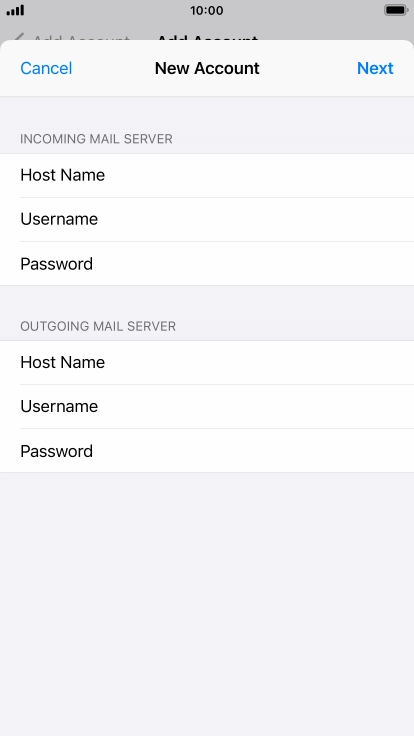

Press Next.

Step 20 of 45

12. Enter password

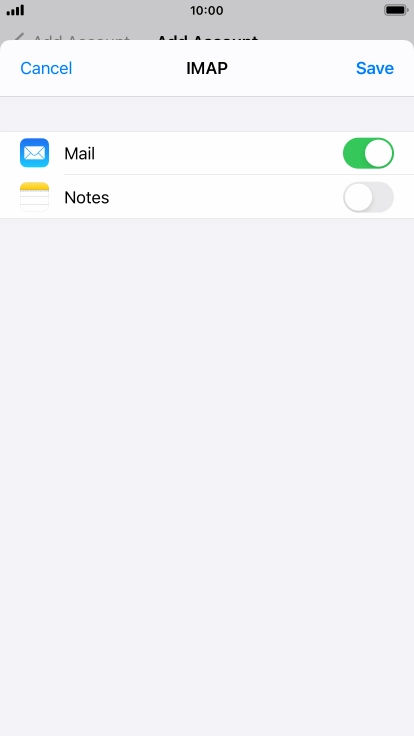

Press Save. Your email account has now been set up. To select more settings for incoming and outgoing server, proceed with the following steps.

Step 21 of 45

13. Select email account

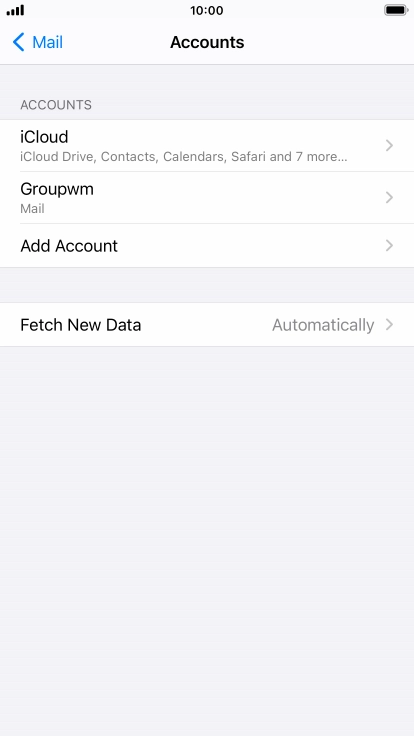

Press the name of the email account you've just set up.

Step 22 of 45

13. Select email account

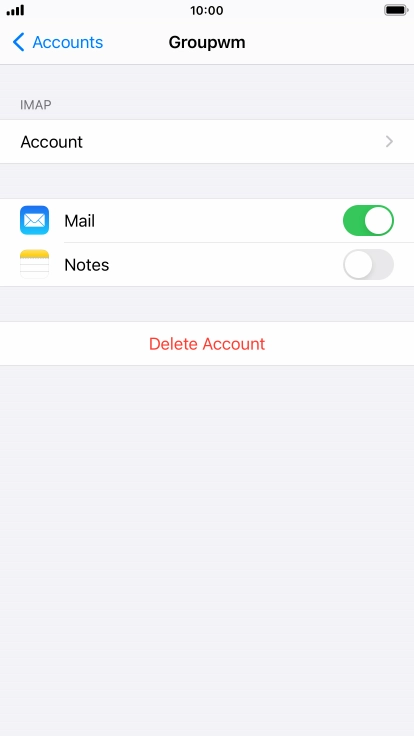

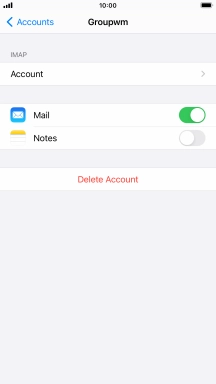

Press Account.

Step 23 of 45

14. Turn off encryption of outgoing email messages

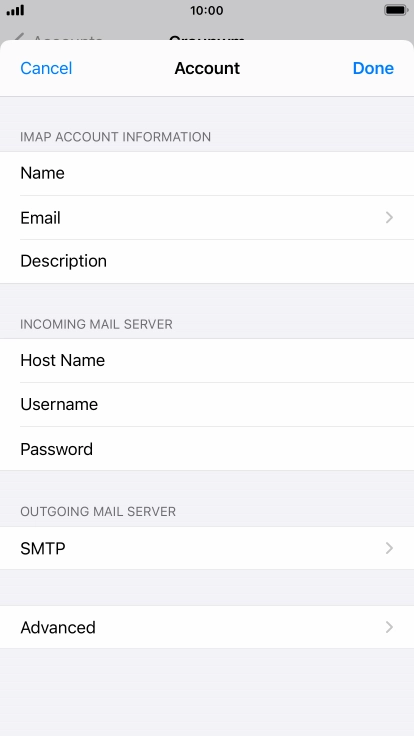

Press SMTP.

Step 24 of 45

14. Turn off encryption of outgoing email messages

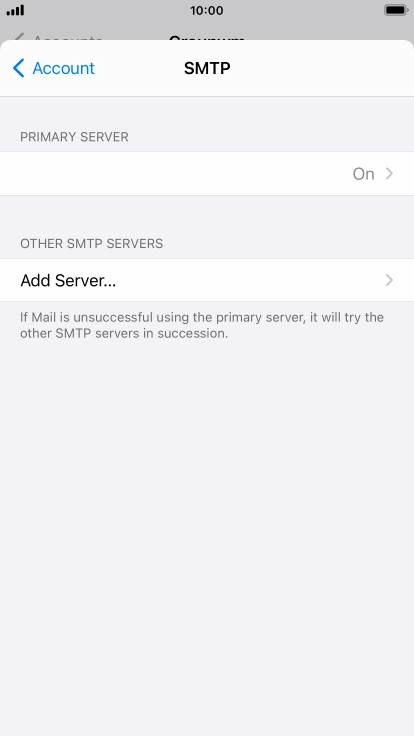

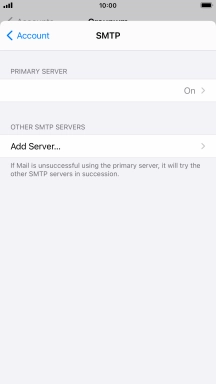

Press the field below "PRIMARY SERVER".

Step 25 of 45

14. Turn off encryption of outgoing email messages

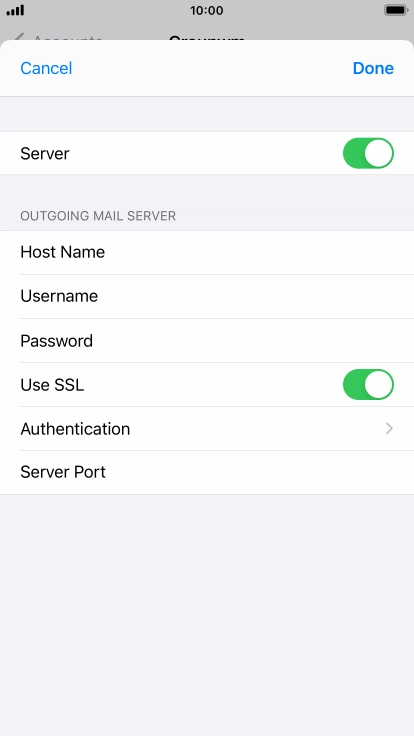

Press the indicator next to "Use SSL" to turn off the function.

Step 26 of 45

15. Turn off password encryption

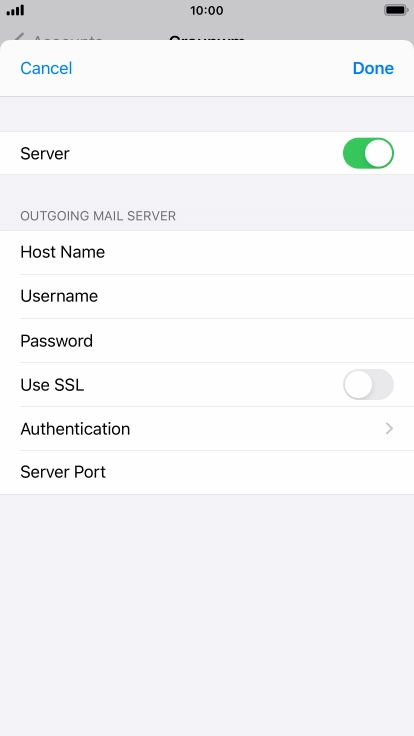

Press Authentication.

Step 27 of 45

15. Turn off password encryption

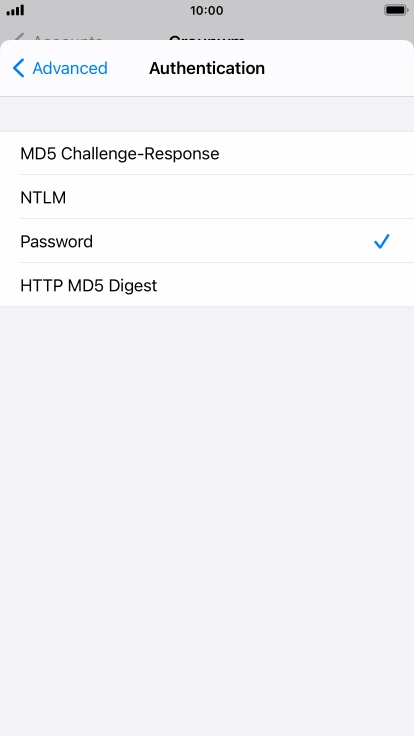

Press Password.

Step 28 of 45

15. Turn off password encryption

Press arrow left.

25
Step 29 of 45

16. Enter outgoing port

Press Server Port and key in 25.

Step 30 of 45

16. Enter outgoing port

Press Done.

Step 31 of 45

16. Enter outgoing port

Press arrow left.

Step 32 of 45

17. Turn off encryption of incoming email messages

Press Advanced.

Step 33 of 45

17. Turn off encryption of incoming email messages

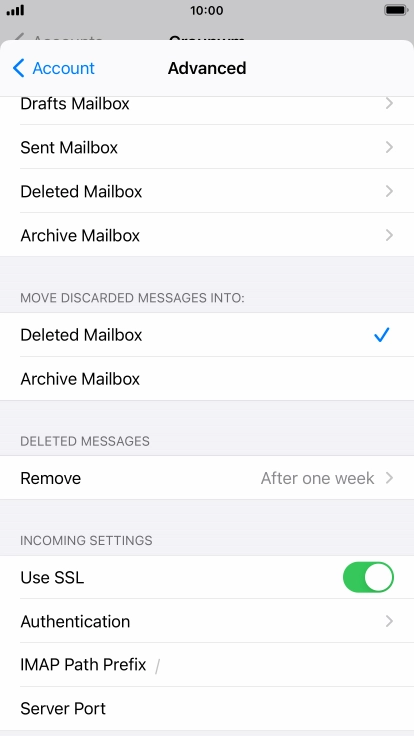

Press the indicator next to "Use SSL" to turn off the function.

Step 34 of 45

18. Turn off password encryption

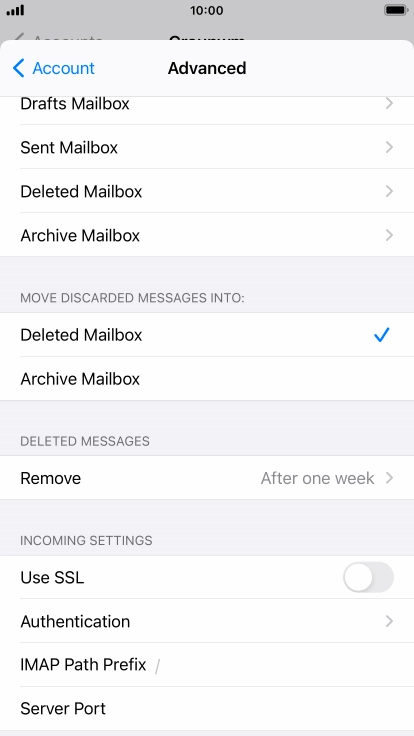

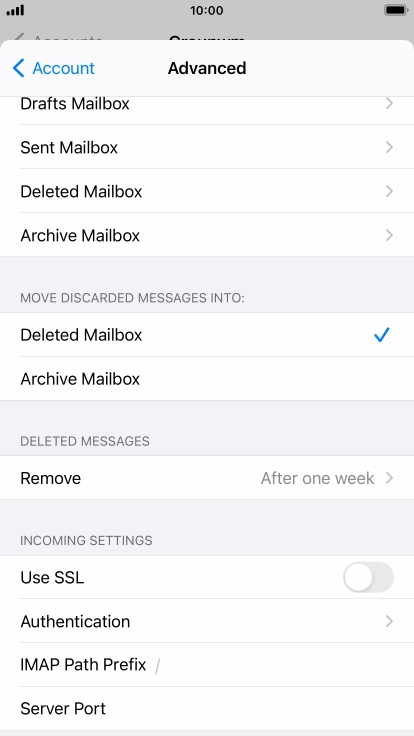

Press Authentication.

Step 35 of 45

18. Turn off password encryption

Press Password.

Step 36 of 45

18. Turn off password encryption

Press arrow left.

143
Step 37 of 45

19. Enter incoming port

Press Server Port and key in 143.

Step 38 of 45

19. Enter incoming port

Press arrow left.

Step 39 of 45

19. Enter incoming port

Press Done.

Step 40 of 45

19. Enter incoming port

Press arrow left.

Step 41 of 45

20. Select setting for retrieval of new email messages

Press Fetch New Data.

Step 42 of 45

20. Select setting for retrieval of new email messages

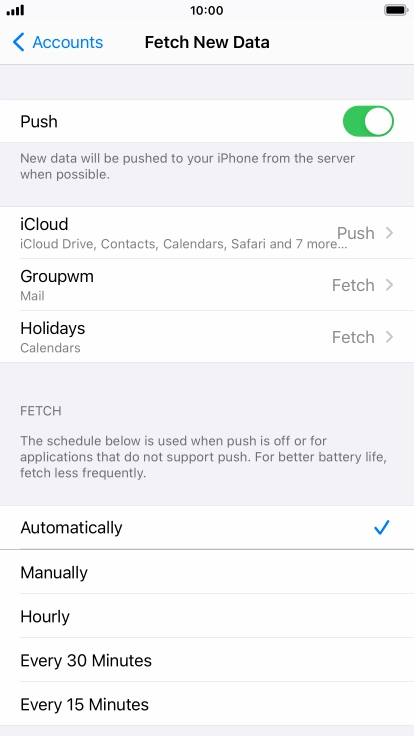

Press the indicator next to "Push" to turn the function on or off.

Step 43 of 45

20. Select setting for retrieval of new email messages

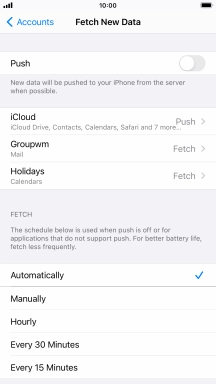

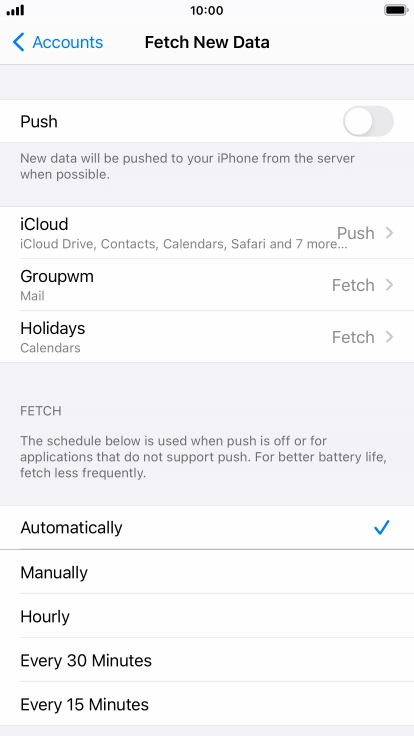

If you turn off the function, press the required setting.

Step 44 of 45

20. Select setting for retrieval of new email messages

Press the required email account and follow the instructions on the screen to select settings for the specific account.

Step 45 of 45

21. Return to the home screen

Press the Home key to return to the home screen.

1. Find "Accounts"

Press Settings.
Press Mail.
Press Accounts.

2. Create new email account

Press Add Account.
Press Other.
If the name of your email provider is on the list, press this instead.
Press Add Mail Account.

3. Enter sender name

Press Name and key in the required sender name.

4. Enter email address

Press Email and key in your email address.

5. Enter password

Press Password and key in the password for your email account.

6. Enter email account name

Press Description and key in the required name.
Press Next.
If this screen is displayed, you email account has been recognised and set up automatically. Follow the instructions on the screen to key in more information and finish setting up your phone.

7. Select server type

Press IMAP.

8. Enter incoming server

Press Host Name and key in the name of your email provider's incoming server.

9. Enter username

Press Username and key in the username for your email account.

10. Enter outgoing server

Press Host Name and key in the name or IP address of your email provider's outgoing server. Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).
smtp.vodafone.net.au

11. Enter username

Press Username and key in the username for your email account. Please note that if you're using Vodafone's outgoing server, leave the username field empty.

12. Enter password

Press Password and key in the password for your email account. Please note that if you're using Vodafone's outgoing server, leave the password field empty.
Press Next.
Press Save. Your email account has now been set up. To select more settings for incoming and outgoing server, proceed with the following steps.

13. Select email account

Press the name of the email account you've just set up.
Press Account.

14. Turn off encryption of outgoing email messages

Press SMTP.
Press the field below "PRIMARY SERVER".
Press the indicator next to "Use SSL" to turn off the function.

15. Turn off password encryption

Press Authentication.
Press Password.
Press arrow left.

16. Enter outgoing port

Press Server Port and key in 25.
25
Press Done.
Press arrow left.

17. Turn off encryption of incoming email messages

Press Advanced.
Press the indicator next to "Use SSL" to turn off the function.

18. Turn off password encryption

Press Authentication.
Press Password.
Press arrow left.

19. Enter incoming port

Press Server Port and key in 143.
143
Press arrow left.
Press Done.
Press arrow left.

20. Select setting for retrieval of new email messages

Press Fetch New Data.
Press the indicator next to "Push" to turn the function on or off.
If you turn off the function, press the required setting.
Press the required email account and follow the instructions on the screen to select settings for the specific account.

21. Return to the home screen

Press the Home key to return to the home screen.
