1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0a4625d8-81e1-4292-99be-3abc34a050da.png?width=202&height=426)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ac53551d-8d93-48d2-8a1b-2eb383b335ac.png?width=202&height=426)
Press Network & Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-177235f4-3de7-4189-b94a-7e59c51297c6.png?width=202&height=426)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8dc55a74-0ce9-4b8d-b667-b2fb2ac30562.png?width=202&height=426)

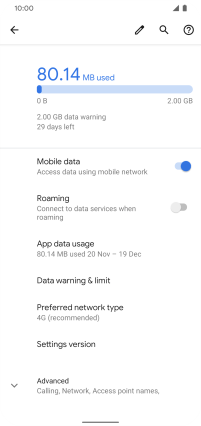

Press Advanced.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-622577ae-8650-4e38-8c42-1b1c67b0a1b3.png?width=202&height=426)

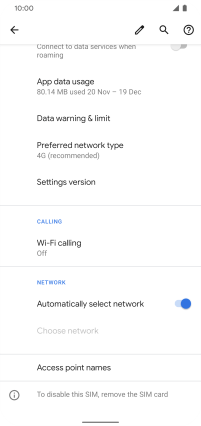

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e6523386-abf4-45d3-a766-5bcfa91fe0fe.png?width=202&height=426)
2. Create new data connection

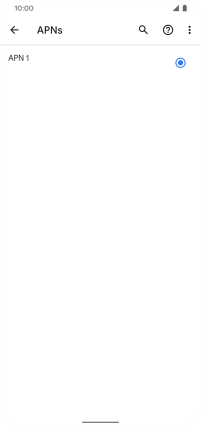

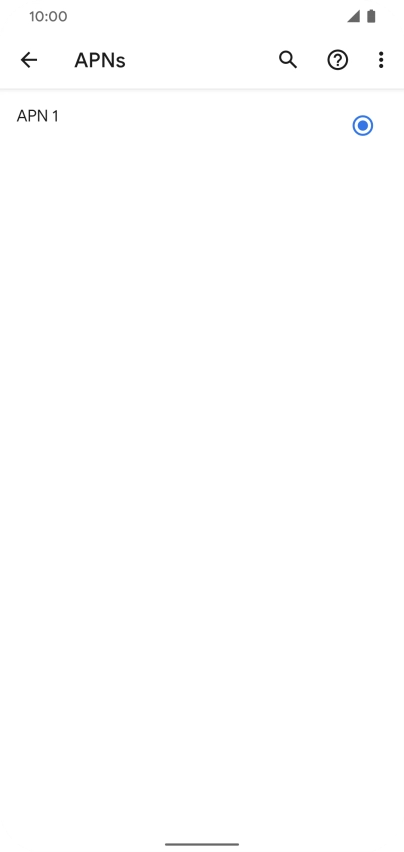

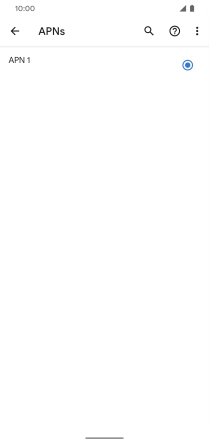

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4020bb87-d6d8-48a3-9d32-c6abe593aace.png?width=202&height=426)

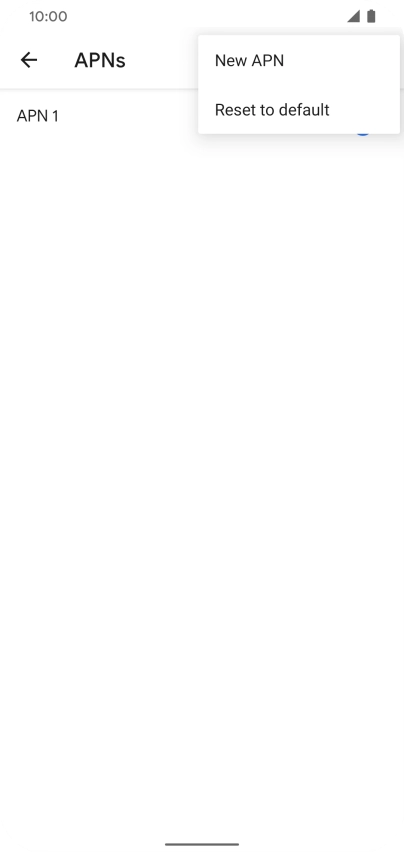

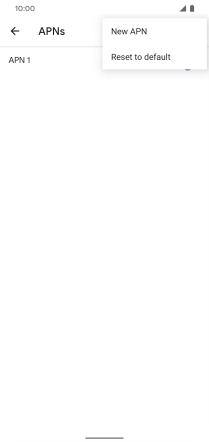

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-94b0c50e-9f7a-411c-b864-08c7161f362e.png?width=202&height=426)
3. Enter a name for the connection

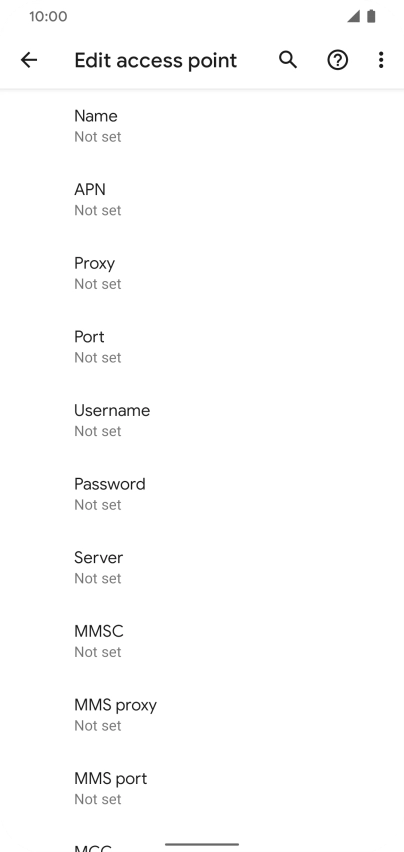

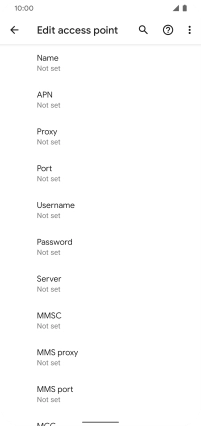

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7066128f-b09e-45a3-bb6a-65f6b63b2b9a.png?width=202&height=426)

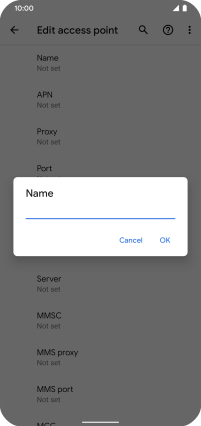

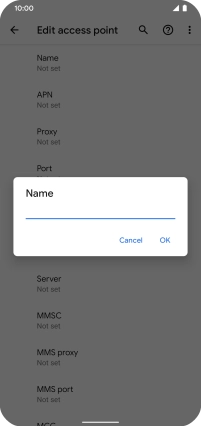

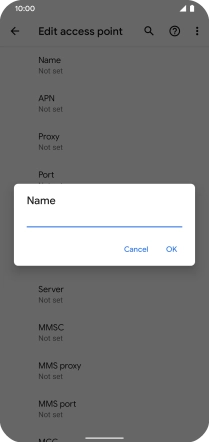

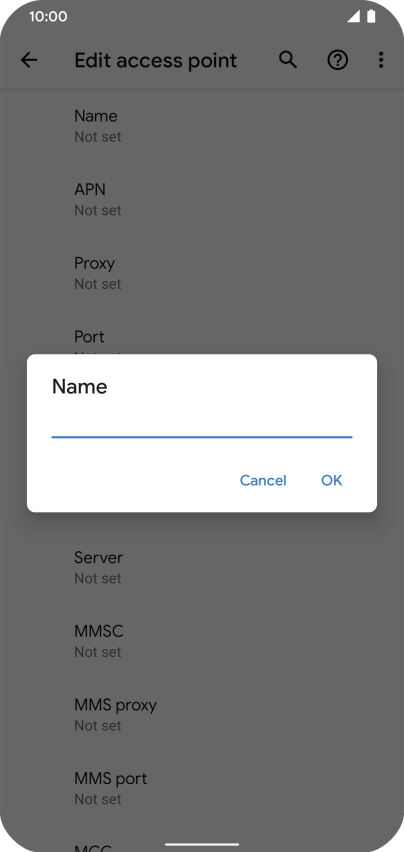

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-58c70b46-7260-4b66-b7fb-8f7d96e5a771.png?width=202&height=426)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7066128f-b09e-45a3-bb6a-65f6b63b2b9a.png?width=202&height=426)

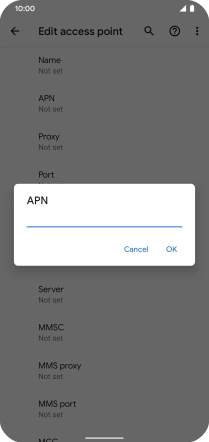

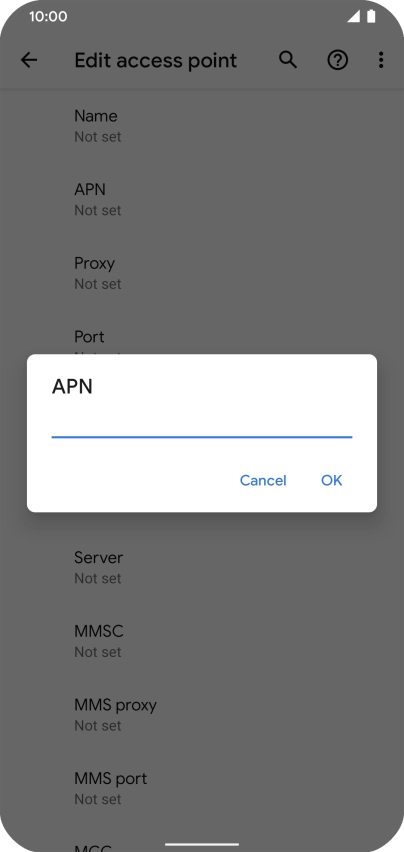

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d00ea95-10b9-41c3-9c95-664e54c09687.png?width=202&height=426)
live.vodafone.com
5. Enter country code

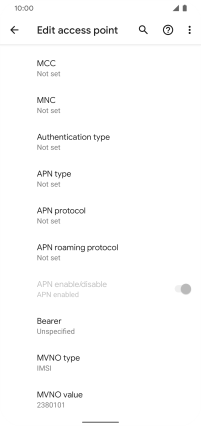

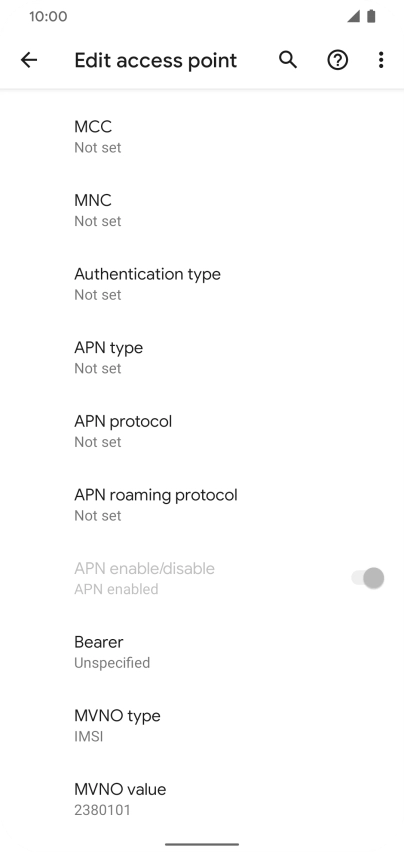

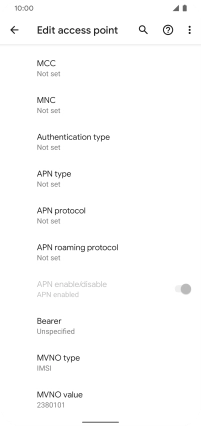

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0995f2a6-d953-4436-a43e-1873a7428286.png?width=202&height=426)

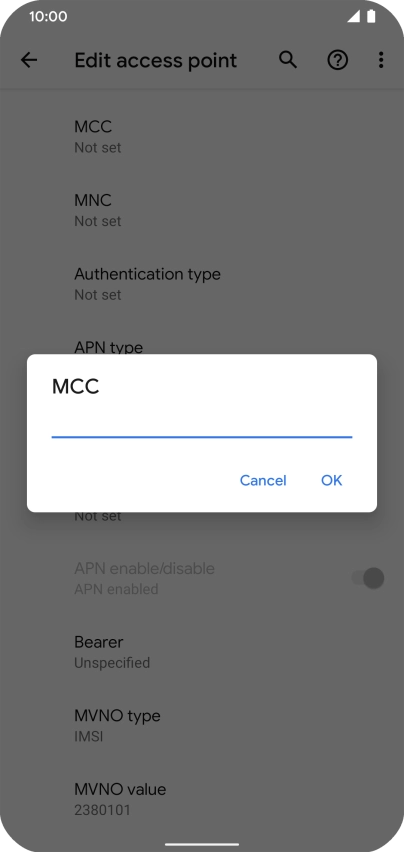

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-753cbb22-704a-4199-b60b-c28b08d94129.png?width=202&height=426)
505
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0995f2a6-d953-4436-a43e-1873a7428286.png?width=202&height=426)

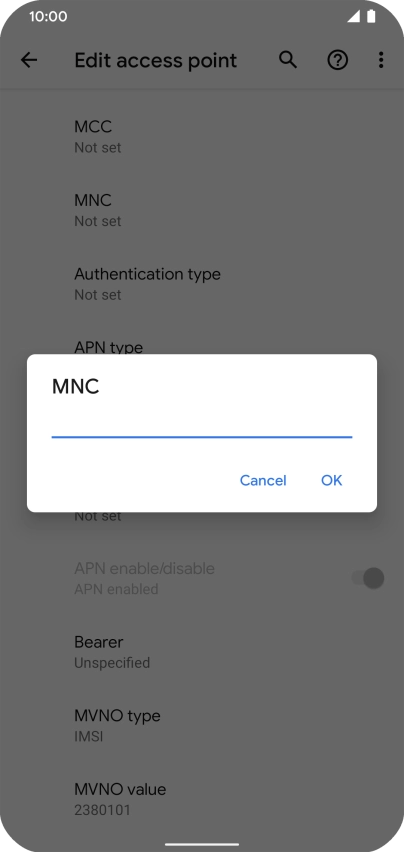

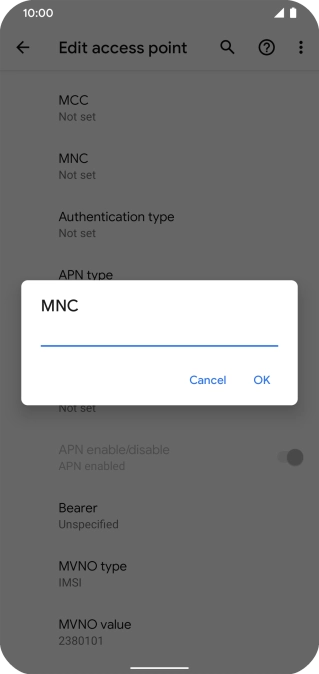

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ef2e1d9d-6f44-4010-9cfe-e07b870a8794.png?width=202&height=426)
03
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0995f2a6-d953-4436-a43e-1873a7428286.png?width=202&height=426)

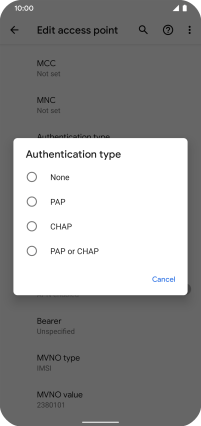

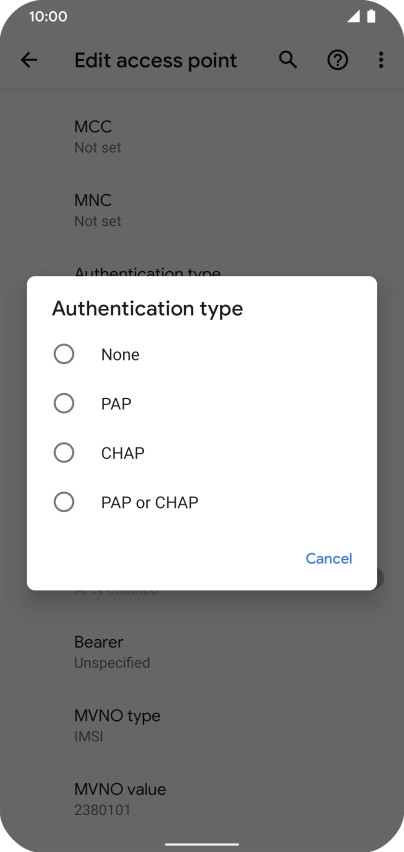

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fc05c761-0b96-4a1d-aefd-5100eec55121.png?width=202&height=426)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0995f2a6-d953-4436-a43e-1873a7428286.png?width=202&height=426)

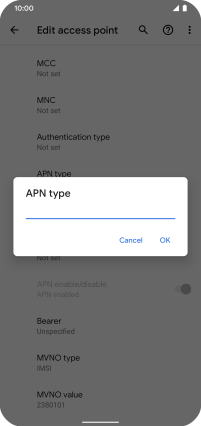

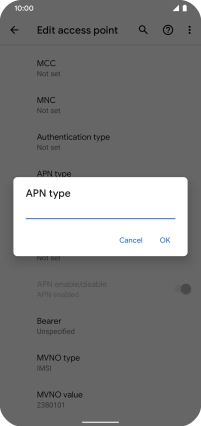

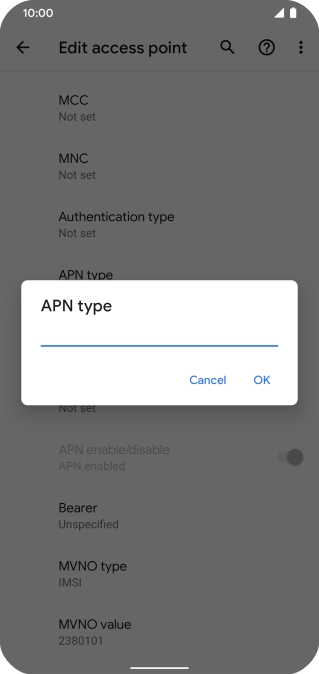

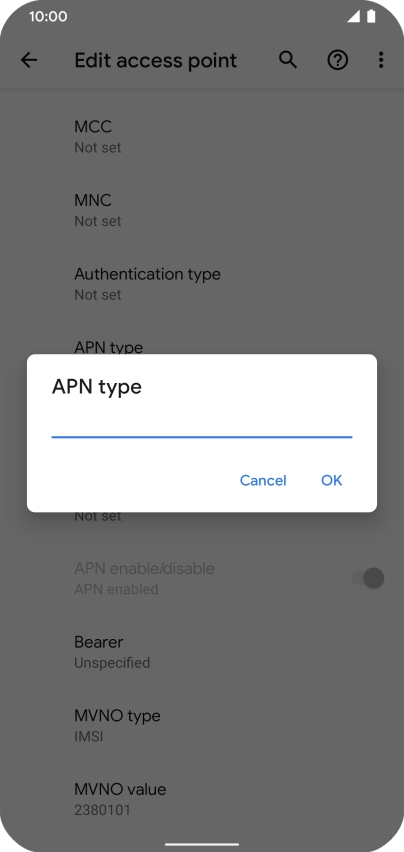

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-22986cc1-e091-43fd-8bc1-eacfd7a9007c.png?width=202&height=426)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7066128f-b09e-45a3-bb6a-65f6b63b2b9a.png?width=202&height=426)

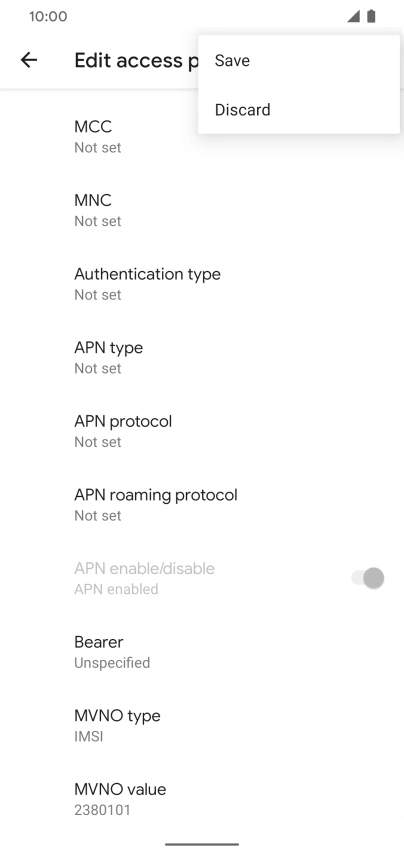

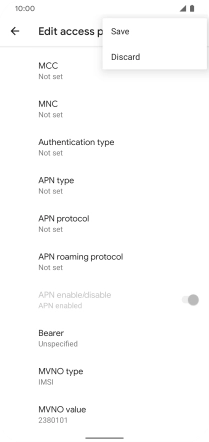

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e756ffb2-b8cb-46ca-a90d-c4936d1c0fc2.png?width=202&height=426)

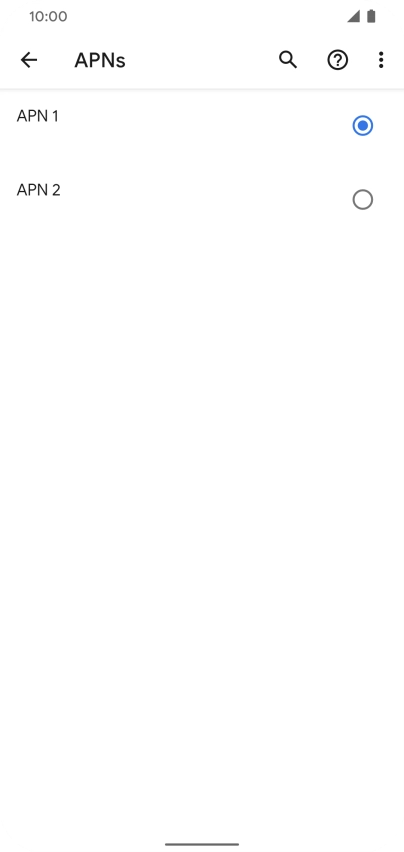

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9f3083ed-3377-4b7b-a5bc-4d27d8d703ae.png?width=202&height=426)
10. Return to the home screen

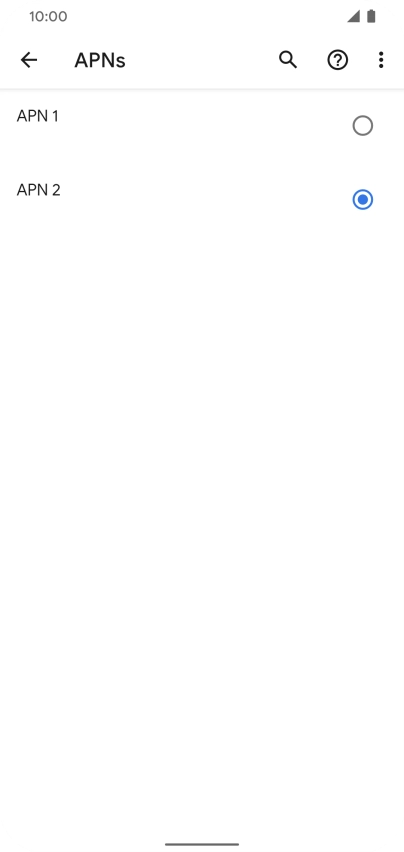

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-13859a71-af11-4a03-abd9-c263feb8cf37.png?width=202&height=426)
