1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-2403b8b5-696f-4f37-baae-22cdb6112801.png?width=202&height=448)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-34653378-5e74-4f58-bd27-6b13a135a365.png?width=202&height=448)

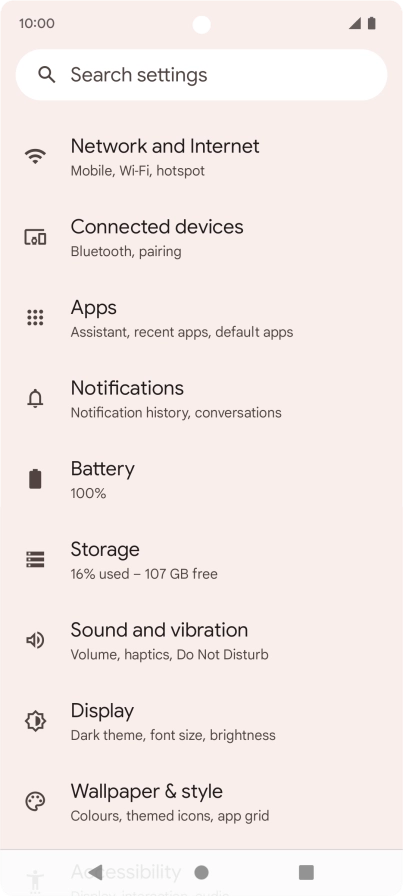

Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-3b6cbab9-ef5e-45b3-a236-45cf328d3ddd.png?width=202&height=448)

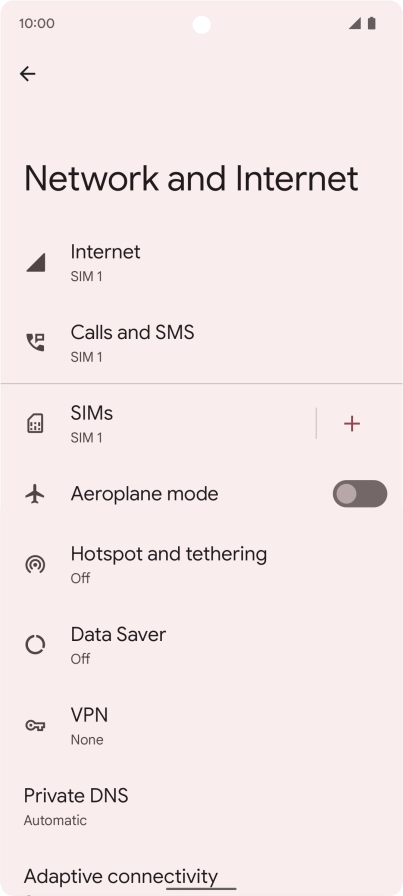

Press SIMs.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-09bb6745-c279-4a2f-9e66-209c268b9834.png?width=202&height=448)

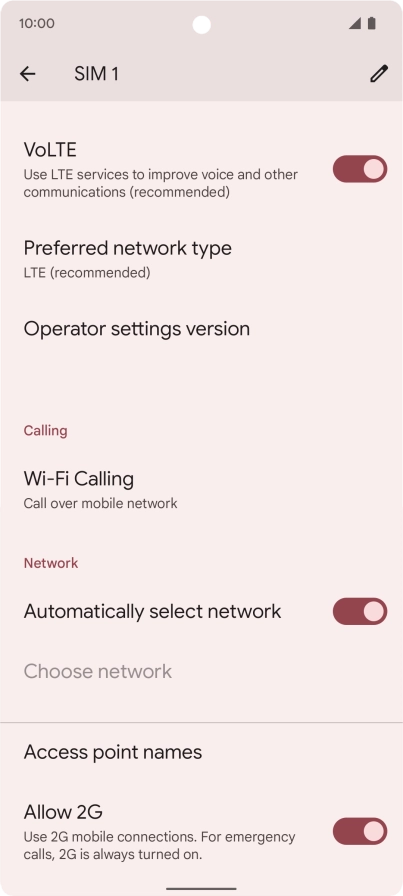

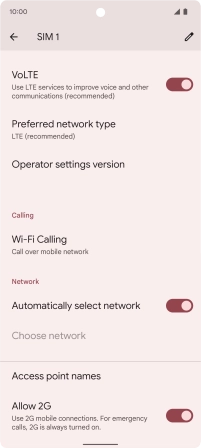

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-cee61b3e-4a74-4450-bcd4-2f1d784a22b3.png?width=202&height=448)
2. Create new data connection

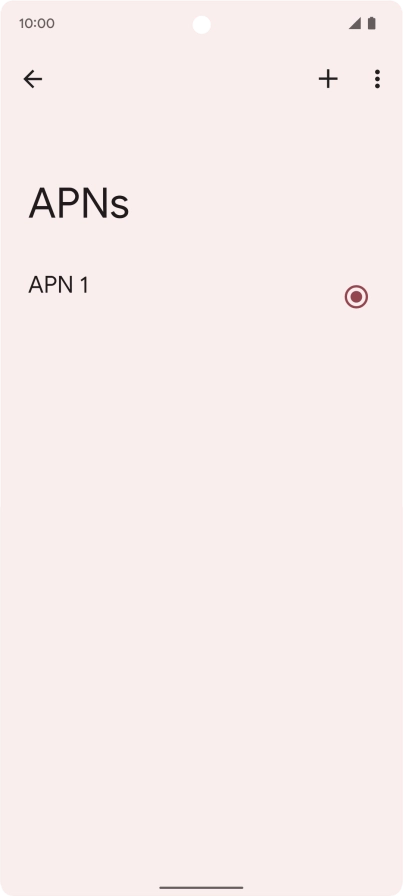

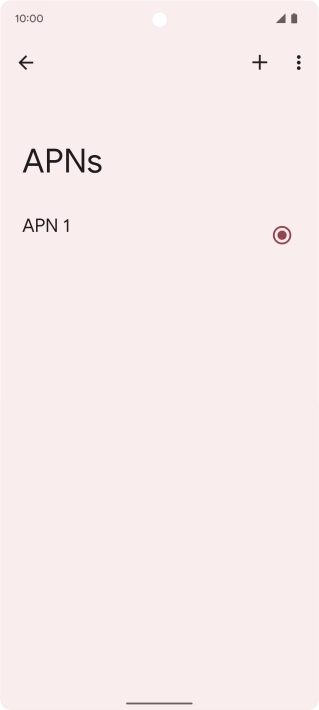

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-51e7cd23-bc54-4254-a540-d97fd7db190b.png?width=202&height=448)
3. Enter a name for the connection

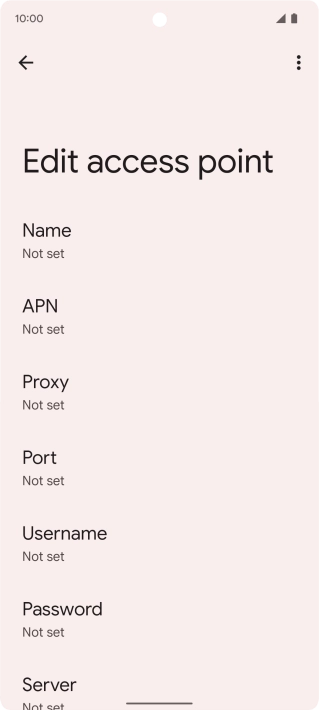

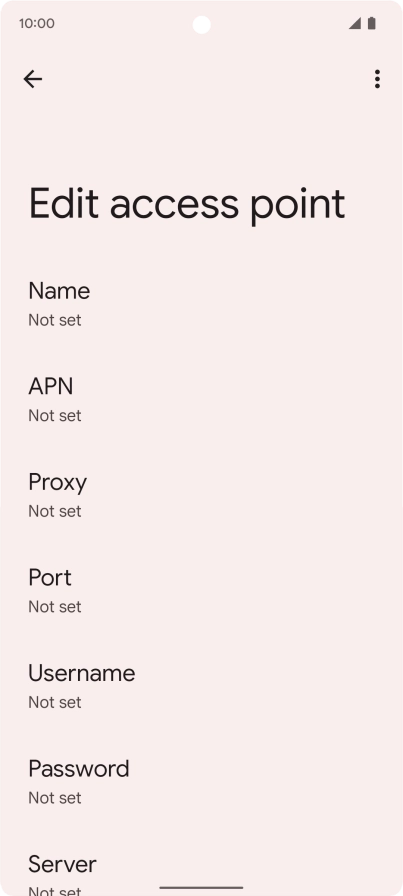

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-278c64ef-e884-4eb8-a97e-bbf79da73973.png?width=202&height=448)

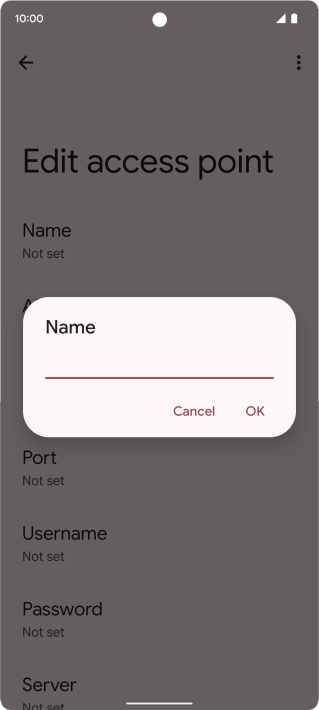

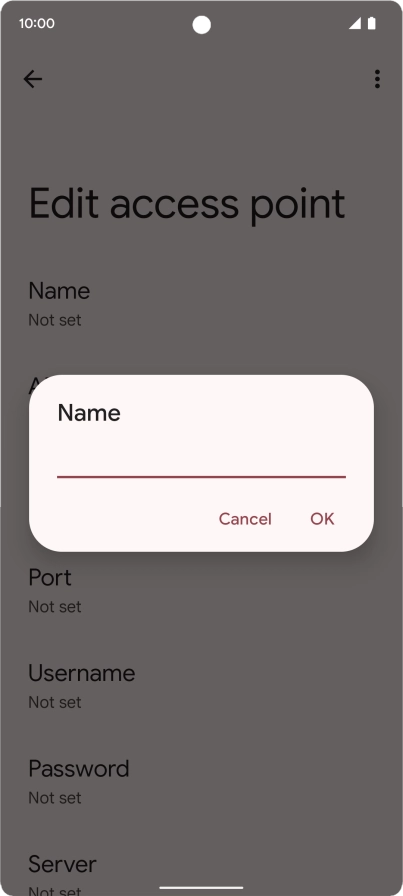

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-d7d7a6cc-3d88-4d01-977e-6e27ffaeb813.png?width=202&height=448)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-278c64ef-e884-4eb8-a97e-bbf79da73973.png?width=202&height=448)

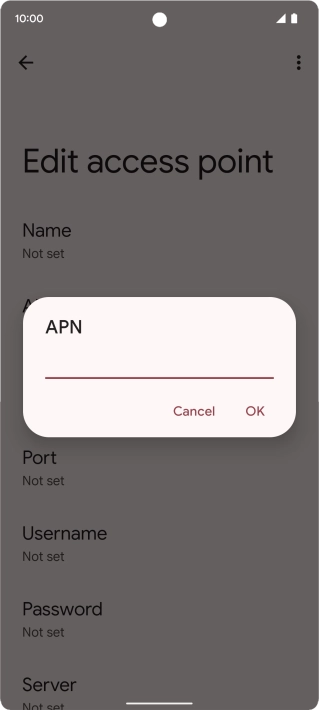

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-2c347245-5283-4689-aa6e-32917b3dd261.png?width=202&height=448)
live.vodafone.com
5. Enter picture messaging server

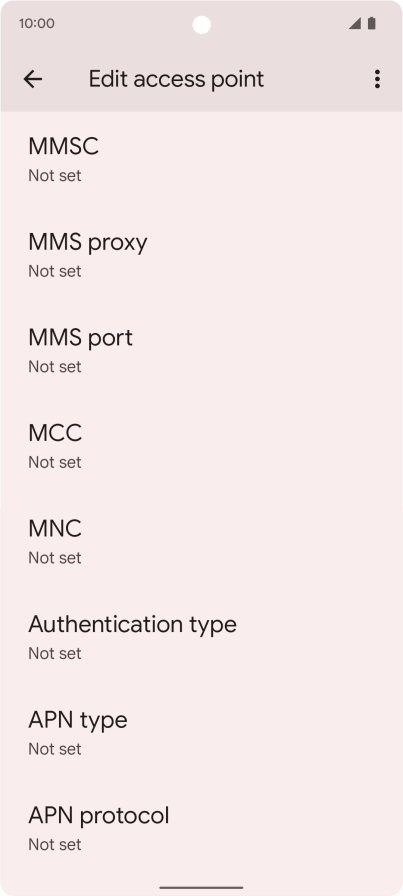

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

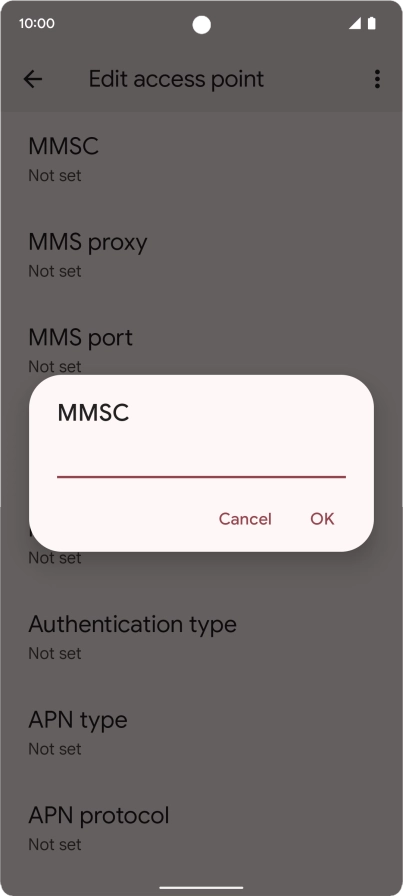

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-1663f30e-3336-4fb3-9a96-c589c82baf17.png?width=202&height=448)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

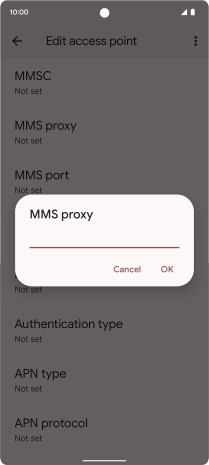

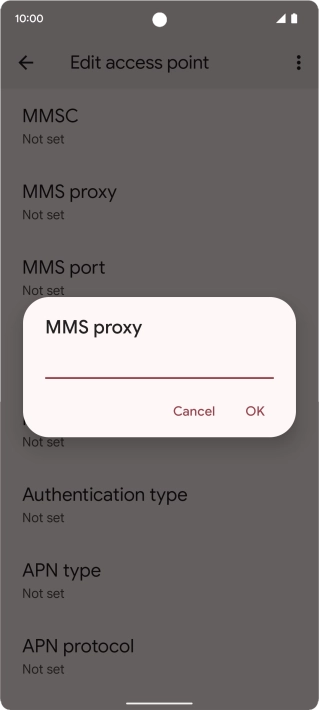

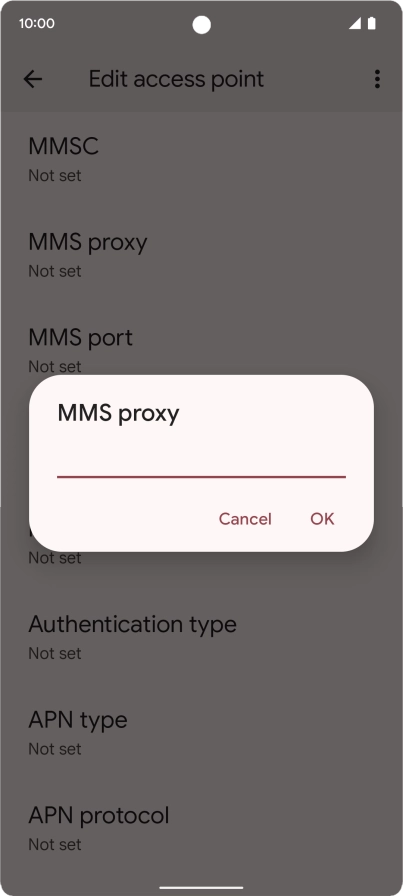

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-e2a47cff-9a29-499a-8e99-d98c9bb99880.png?width=202&height=448)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

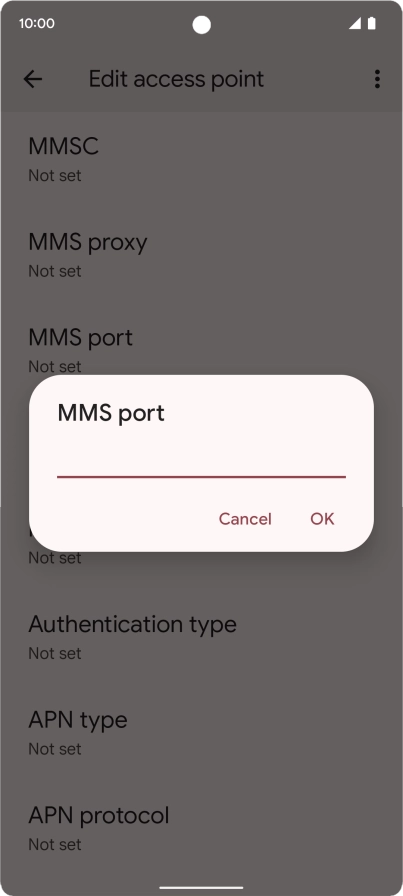

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-dee90ca9-4445-4a34-9d28-4bc8787e25d8.png?width=202&height=448)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

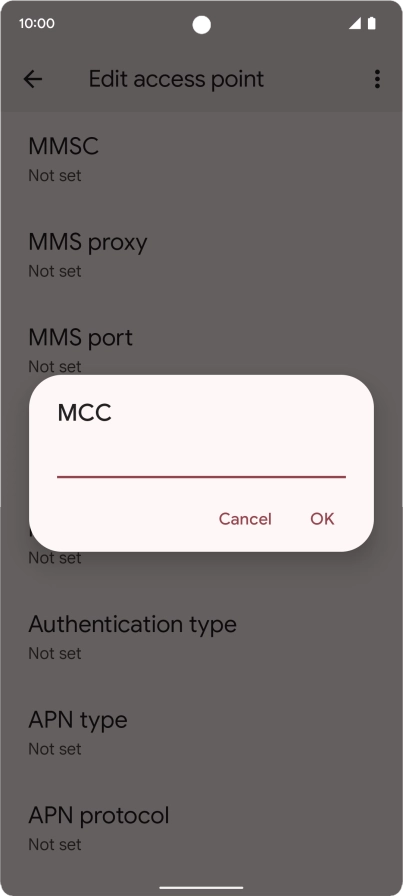

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-20192067-24de-452e-a874-0092045bfb0f.png?width=202&height=448)
505
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

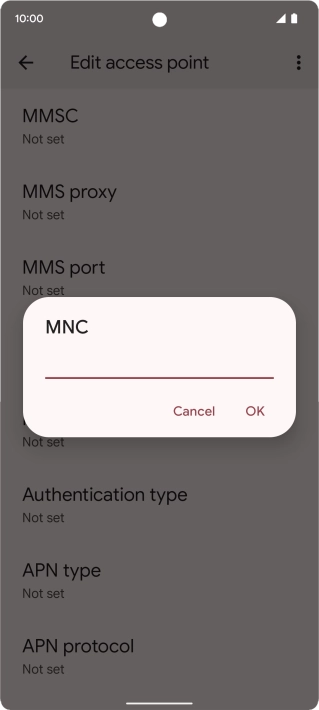

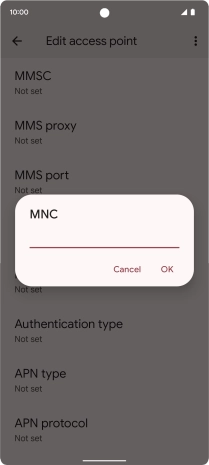

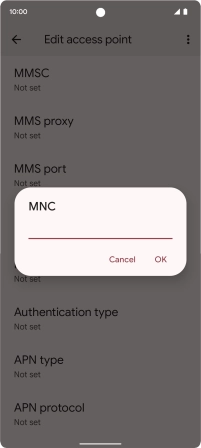

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-45c63a3f-1757-41ab-b8a8-191eeb07a369.png?width=202&height=448)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

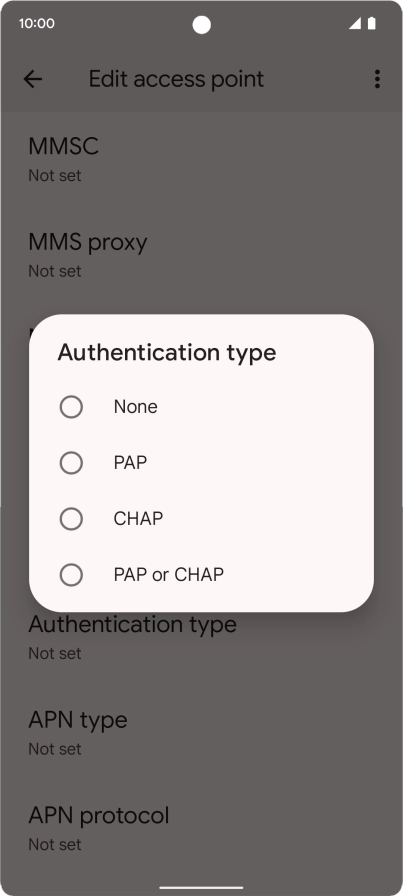

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-cf24a118-2a43-456f-981c-38ea9868a819.png?width=202&height=448)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-daedb529-2cbf-4a10-a276-746ffef5d360.png?width=202&height=448)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4f0abecf-e135-48ed-a1ba-ea50c5cdbd9c.png?width=202&height=448)

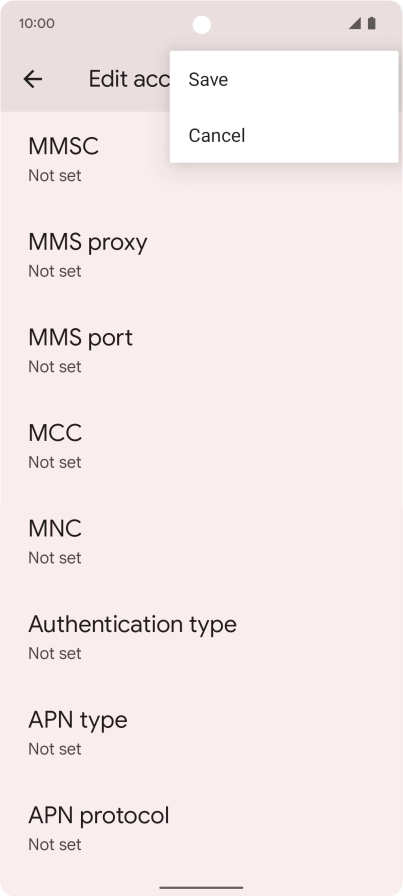

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4d7b2f0c-b6af-4a7e-aeca-3124c99859c5.png?width=202&height=448)
13. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-69c7f6d7-d3fa-4c65-81b0-d3a09b229e51.png?width=202&height=448)
