1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-b529fc7a-8977-490b-88bd-db36b15a1d88.png?width=210&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-0f4e9561-0afc-466c-9e7a-ff33922cf025.png?width=210&height=454)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-79543576-bdf2-4c96-8ad0-07e90359ed78.png?width=210&height=454)
Press Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-37b2f9bd-255b-424f-bb95-9e366739a181.png?width=210&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-d0dc293e-c6c1-4452-bb0d-ea61d2a56806.png?width=210&height=454)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-4aade685-23ca-4df1-b223-ff7ac2b25103.png?width=210&height=454)
2. Create new data connection

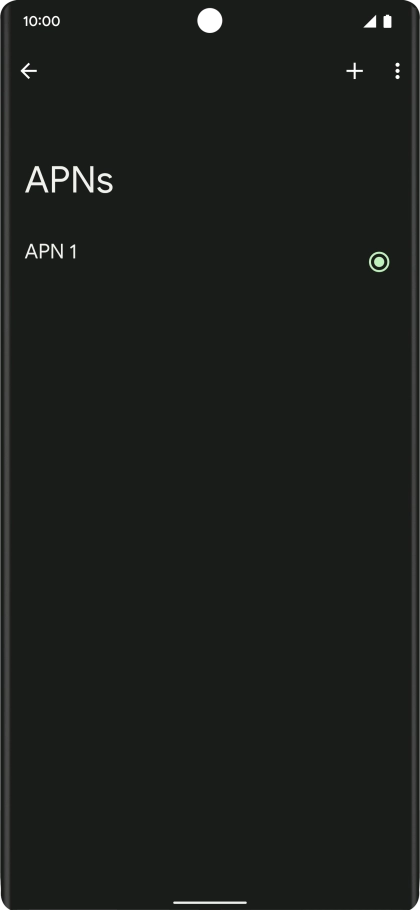

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-adf8d828-0f69-4523-b323-4d9f802503fc.png?width=210&height=454)
3. Enter a name for the connection

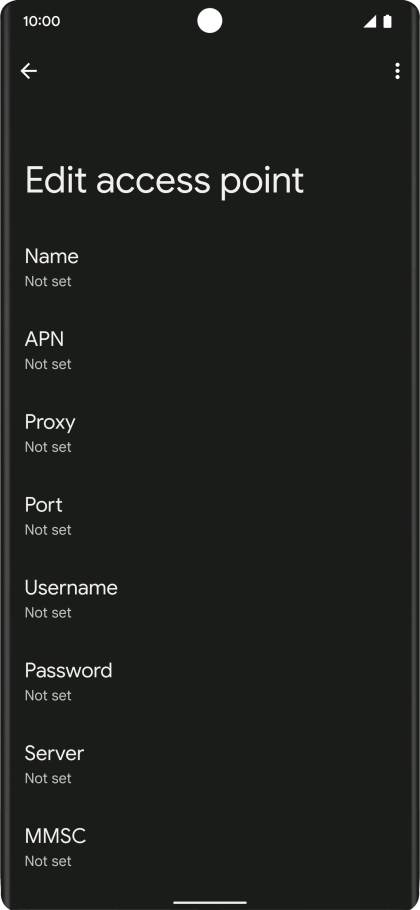

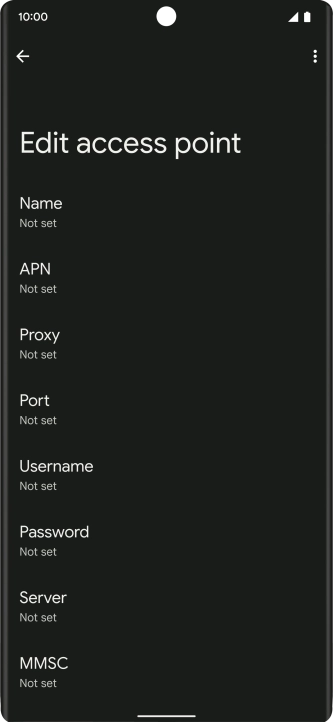

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-183385d5-b123-4c2d-a5e2-7ed0c43e4926.png?width=210&height=454)

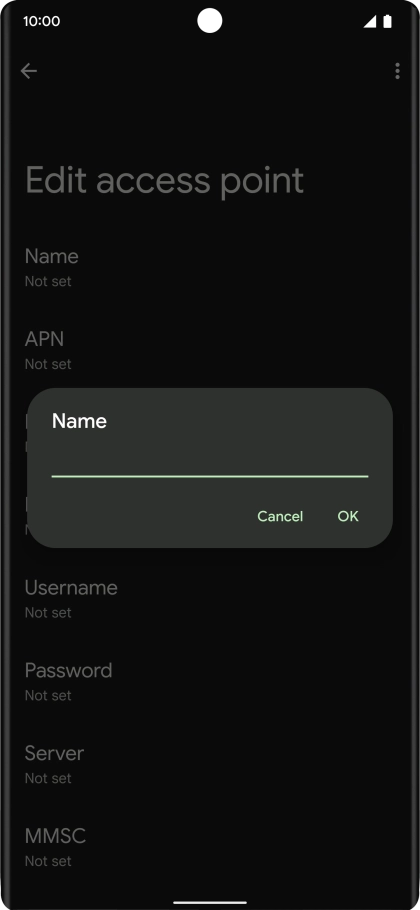

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-97415d86-e603-4406-9812-e04f727d9d71.png?width=210&height=454)
Vodafone Internet
4. Enter APN

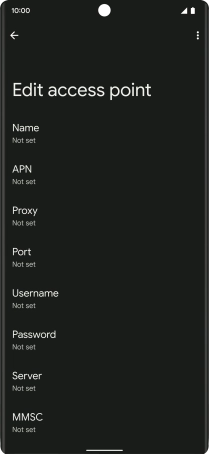

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-183385d5-b123-4c2d-a5e2-7ed0c43e4926.png?width=210&height=454)

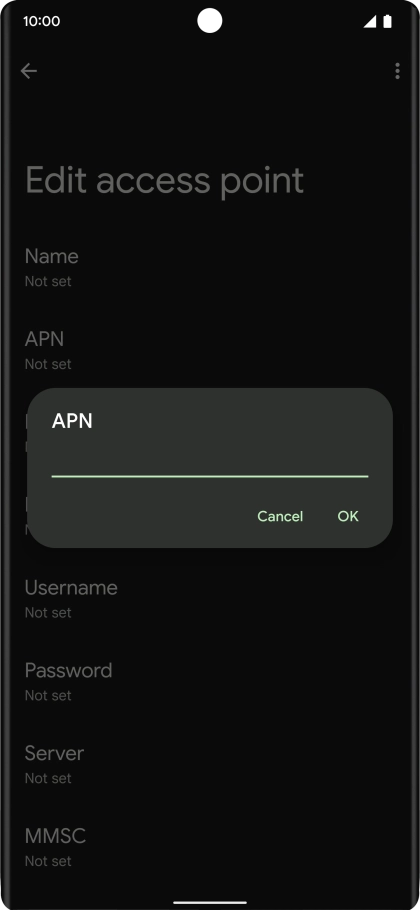

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-031b3e40-3e63-417d-96d4-fb8fd3b3b5cc.png?width=210&height=454)
live.vodafone.com
5. Enter country code

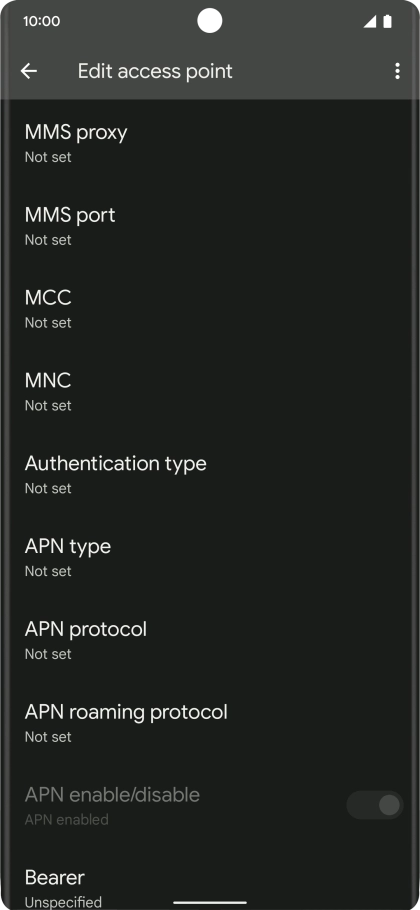

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-249c4a54-1fa7-4099-8144-f25ab8296b9d.png?width=210&height=454)

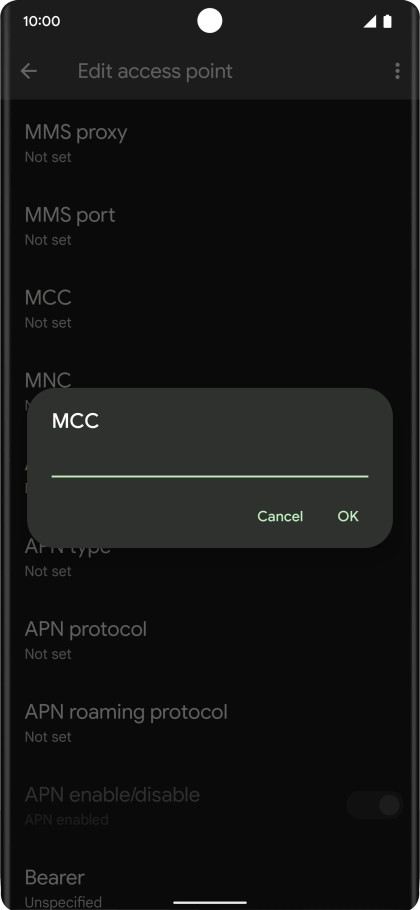

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-1660e689-0e94-49cf-869e-8b5507becbf8.png?width=210&height=454)
505
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-249c4a54-1fa7-4099-8144-f25ab8296b9d.png?width=210&height=454)

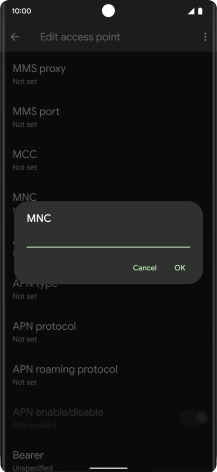

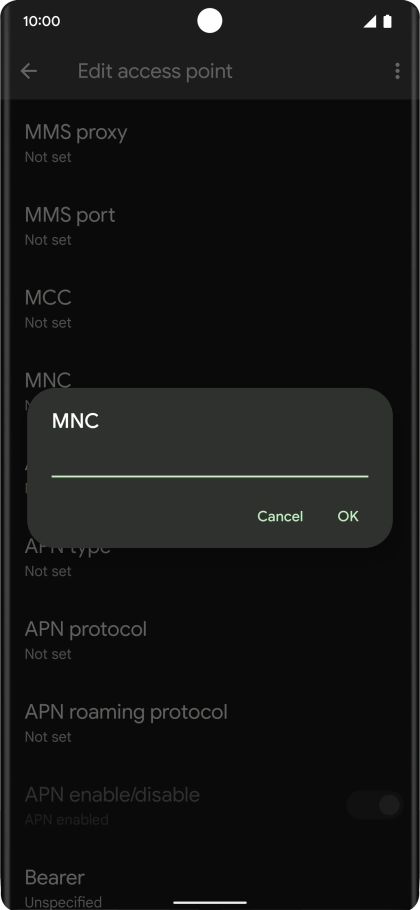

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-84c664e5-a3c5-45e3-abd2-d611faa4fa6b.png?width=210&height=454)
03
7. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-249c4a54-1fa7-4099-8144-f25ab8296b9d.png?width=210&height=454)

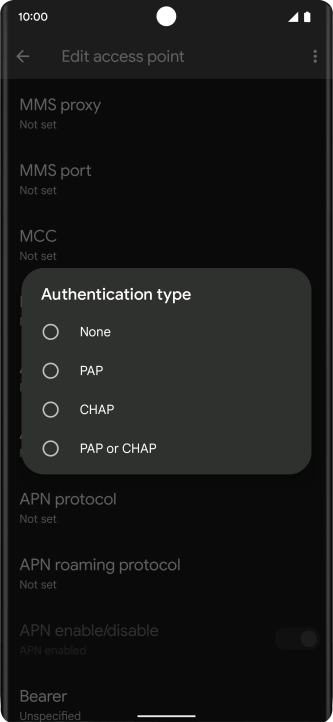

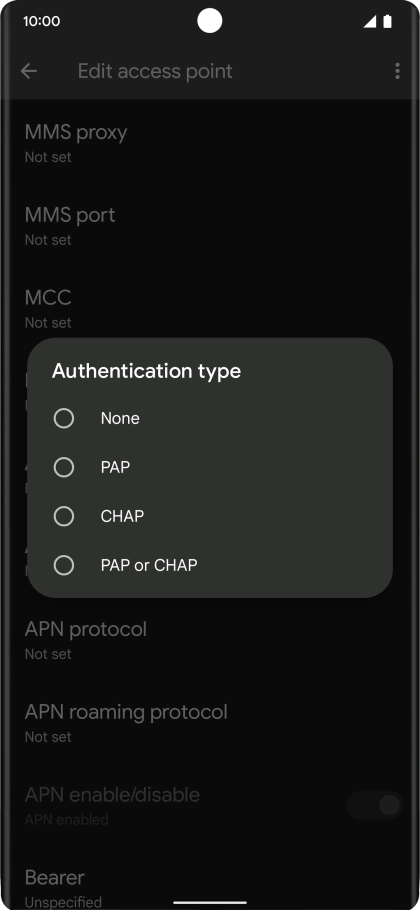

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-77c5bd19-c159-4a1e-a9bc-4df1e75b1456.png?width=210&height=454)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-249c4a54-1fa7-4099-8144-f25ab8296b9d.png?width=210&height=454)

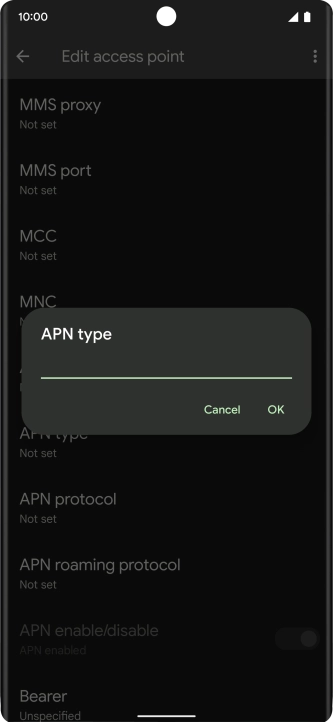

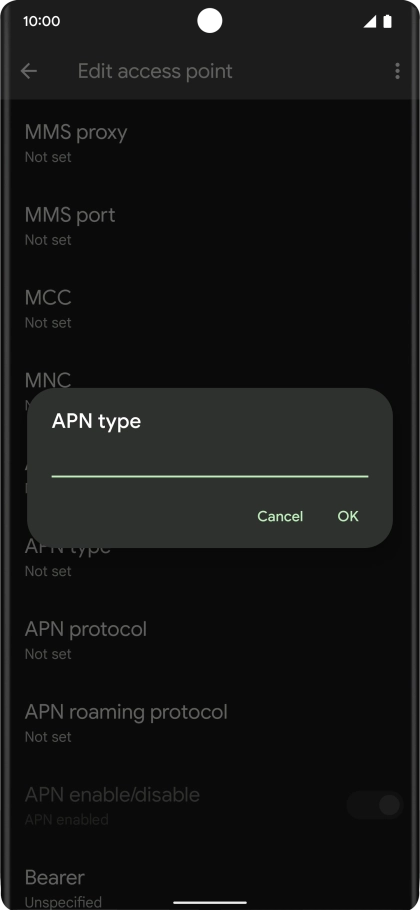

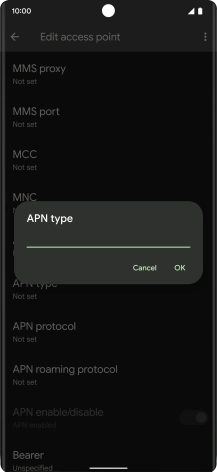

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-ee62f09f-99a5-430c-94d5-0db679369838.png?width=210&height=454)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-249c4a54-1fa7-4099-8144-f25ab8296b9d.png?width=210&height=454)

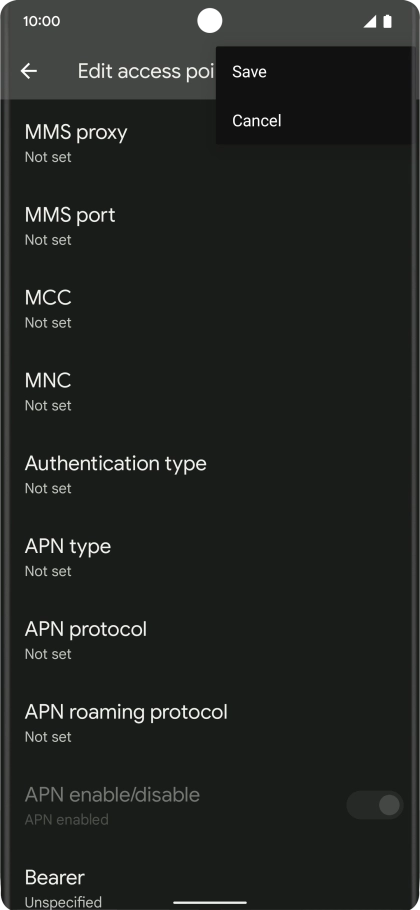

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-b93340a7-357b-4169-a1b3-74da212c706b.png?width=210&height=454)

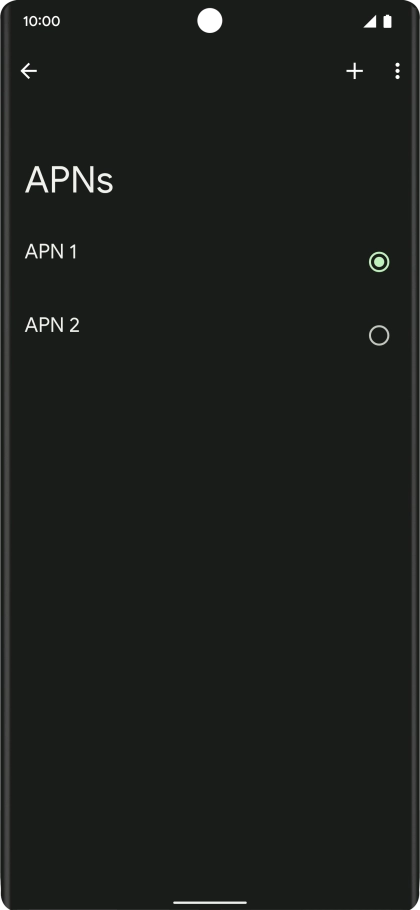

Press the field next to the required data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-15958c7a-7a77-4f98-b393-674056302cf8.png?width=210&height=454)
10. Return to the home screen

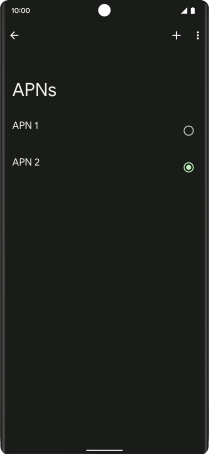

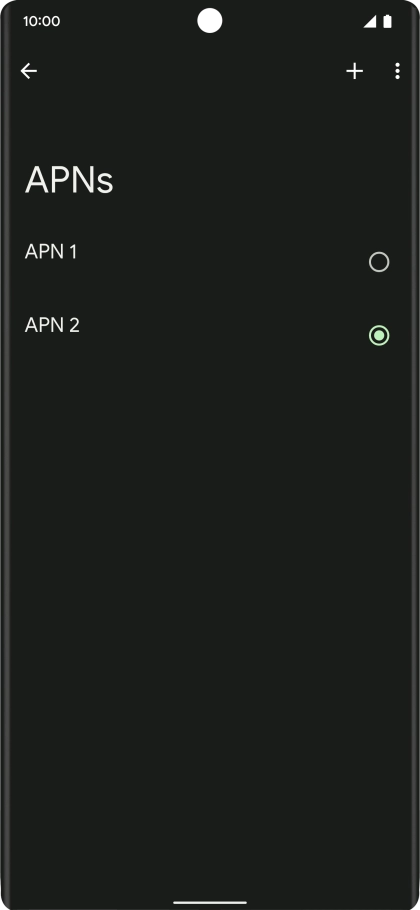

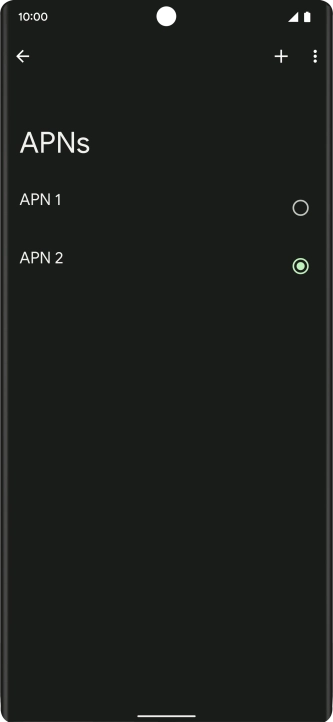

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7170822-f-9f1ab7c3-6d99-4a8f-ab99-0b1a8016f1c6.png?width=210&height=454)
