1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-1bdb57da-e29d-4c46-bf0e-417e988ddc62.png?width=204&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-3639761d-2707-48e5-90af-0e5c745ba1af.png?width=204&height=452)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-de5abd2d-a37b-4344-8f92-2cca538f1e08.png?width=204&height=452)
Press Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-eea3a1d1-b168-43c8-913f-b5fa32e57640.png?width=204&height=452)

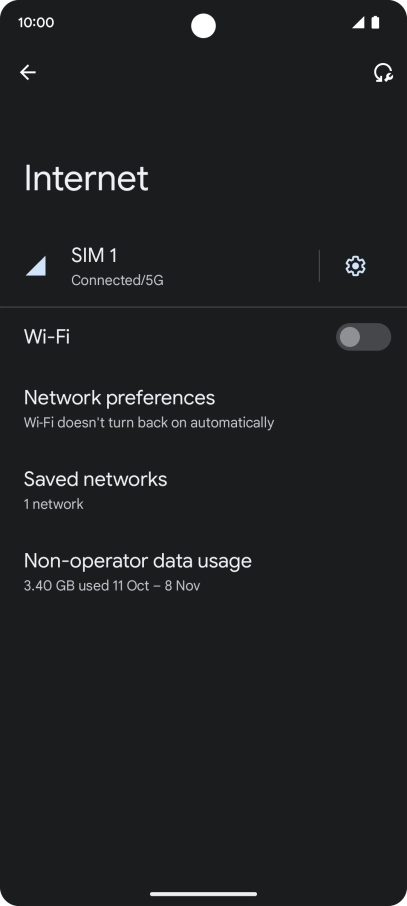

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-09fed308-4d4d-4a60-b20f-7700cc54660d.png?width=204&height=452)

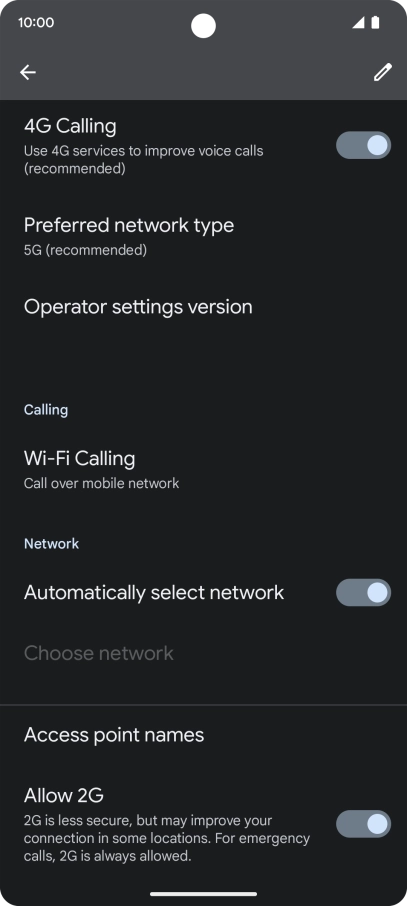

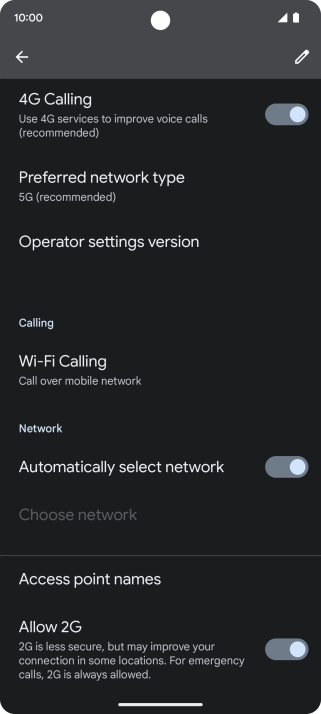

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-e3525e39-bd44-44c7-8c3a-ea981c33b0d0.png?width=204&height=452)
2. Create new data connection

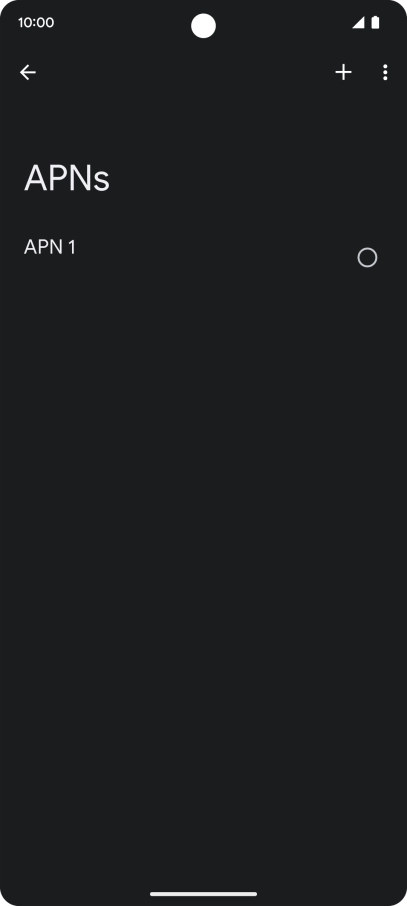

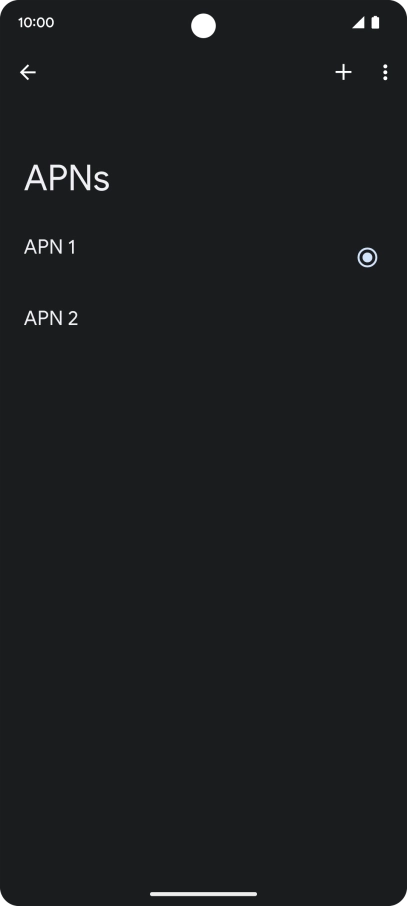

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-cd893ae7-c103-4f2e-b92d-71e616e52cde.png?width=204&height=452)
3. Enter a name for the connection

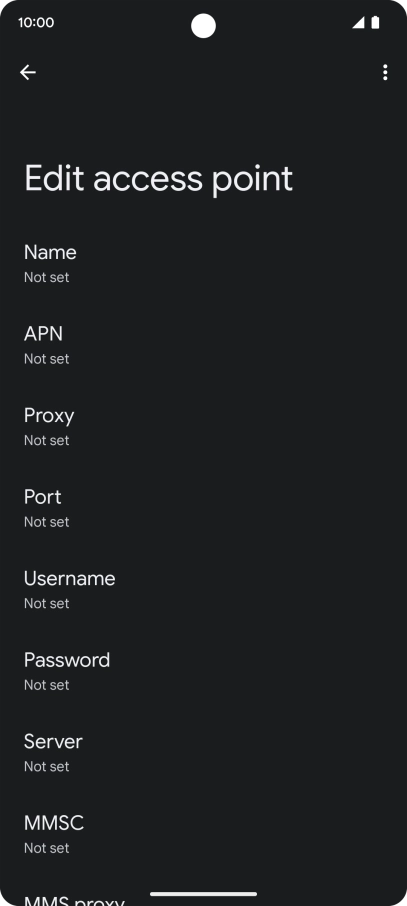

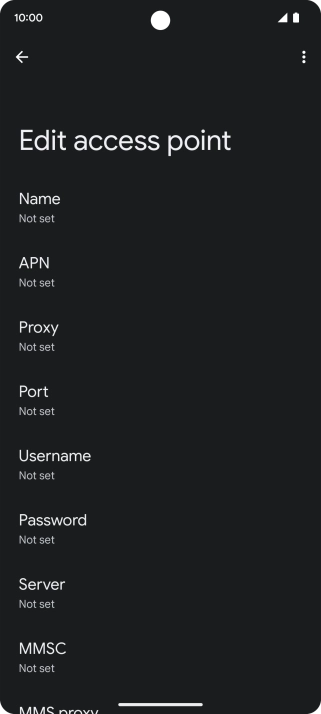

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-2f212329-4f7d-4091-aa87-9fce5a41a3d4.png?width=204&height=452)

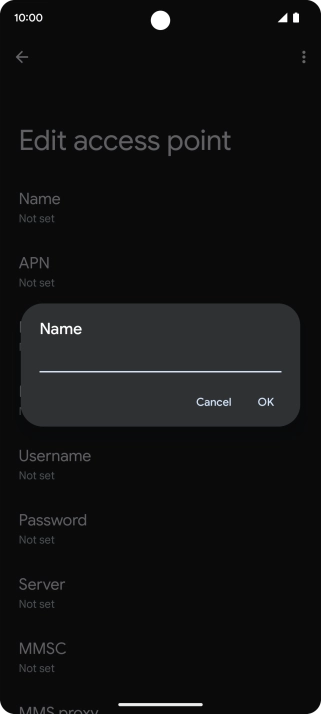

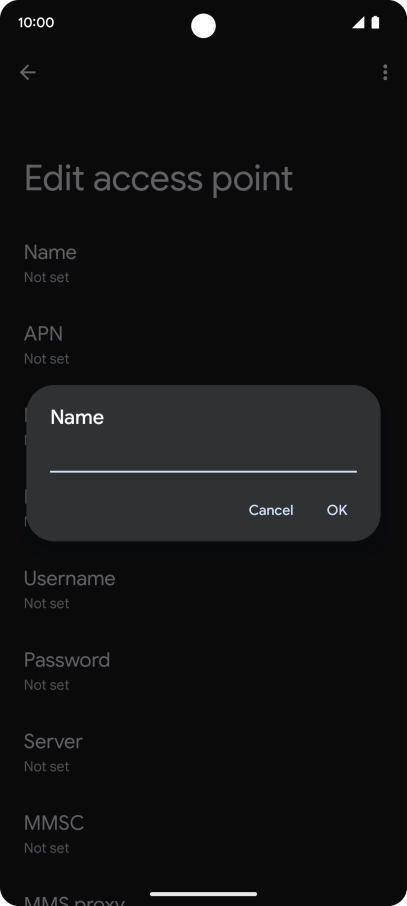

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-00a26f2d-76ff-4874-8bb6-82fc92bbf3c5.png?width=204&height=452)
Vodafone MMS
4. Enter APN

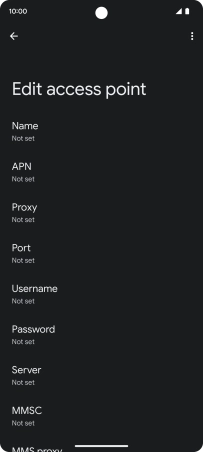

Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-2f212329-4f7d-4091-aa87-9fce5a41a3d4.png?width=204&height=452)

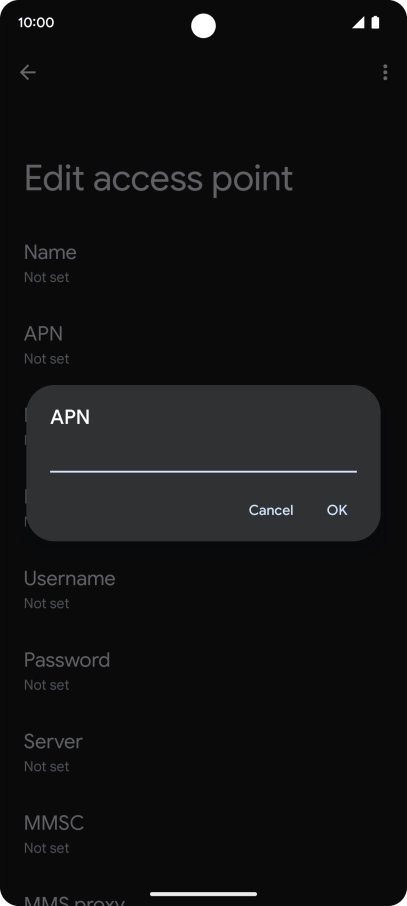

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-9d9ef691-cdbe-48f7-8d13-5dcb54d455b5.png?width=204&height=452)
live.vodafone.com
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-2f212329-4f7d-4091-aa87-9fce5a41a3d4.png?width=204&height=452)

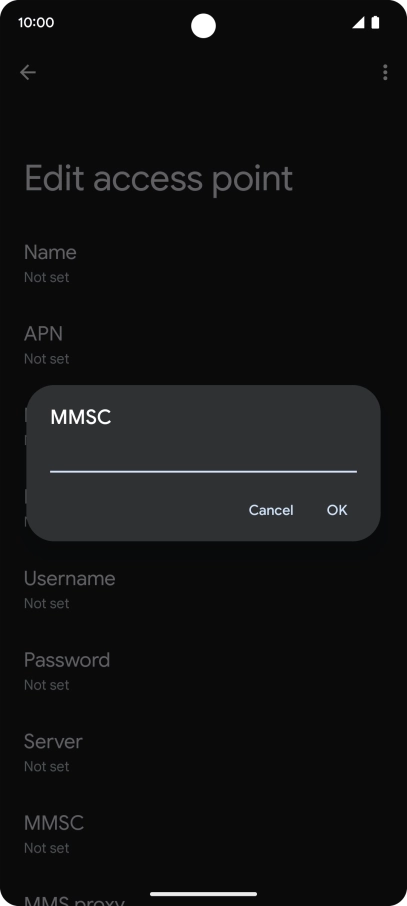

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-92981ad9-7d74-443d-83ce-7d7384cf3dab.png?width=204&height=452)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address

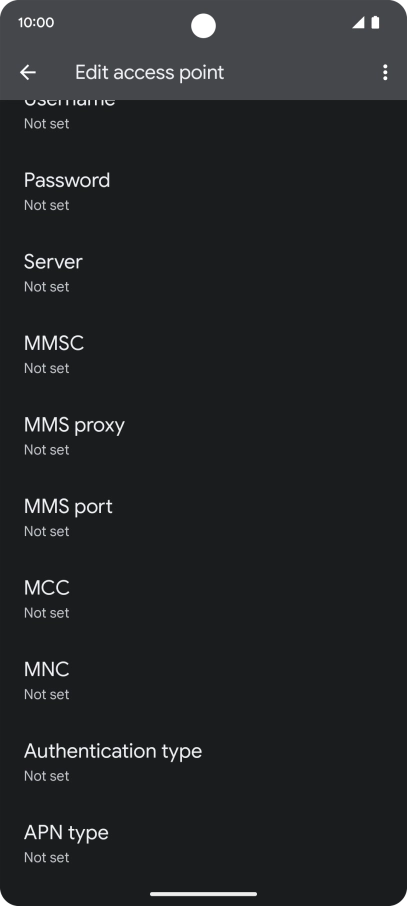

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

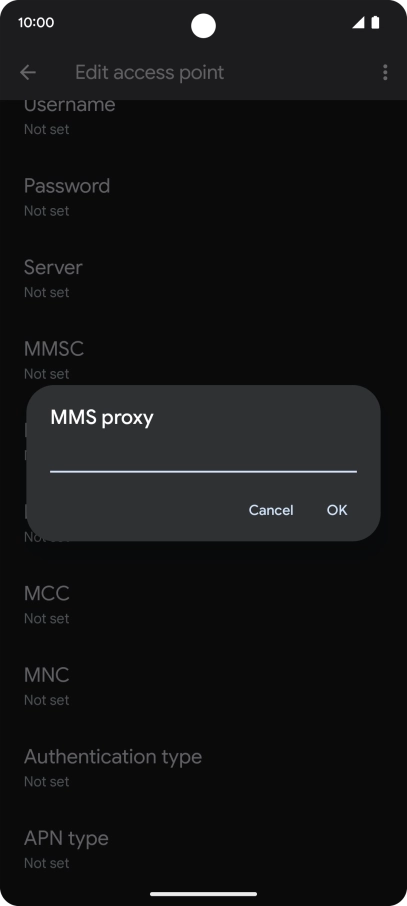

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-063428ca-93f2-46c4-a432-6acde5addb11.png?width=204&height=452)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-7e23777a-b33b-49ba-a028-cf70ef05cc64.png?width=204&height=452)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

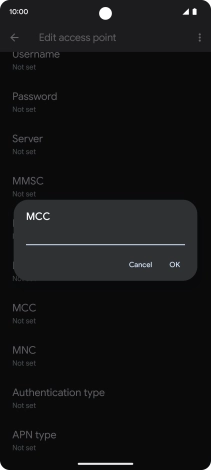

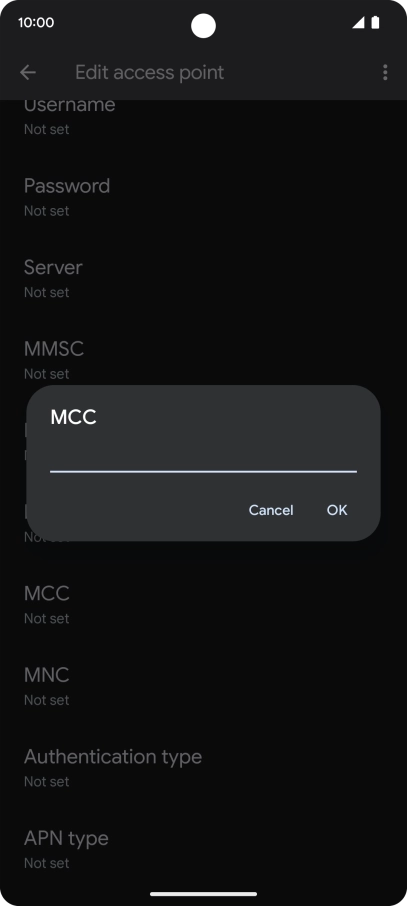

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-9466c767-2602-42dd-916f-6798f06888fb.png?width=204&height=452)
505
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

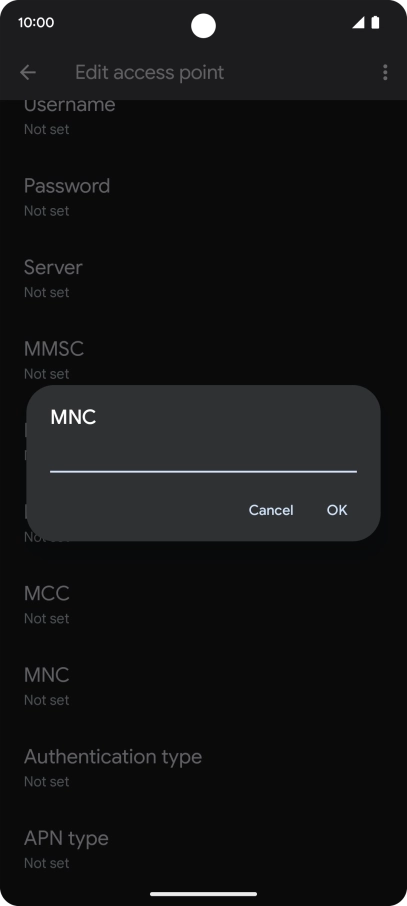

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-d323b22c-0095-4122-9a42-220a4c1f1183.png?width=204&height=452)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

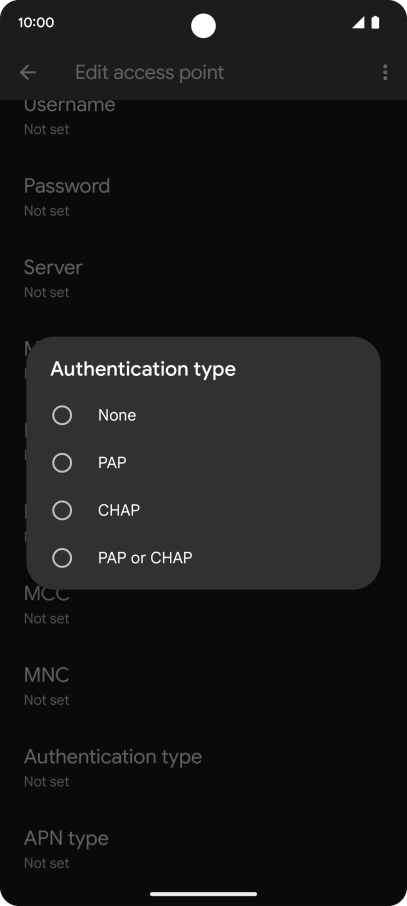

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-ffdb288c-4f62-49ed-9f23-83a9aaa0a3d7.png?width=204&height=452)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

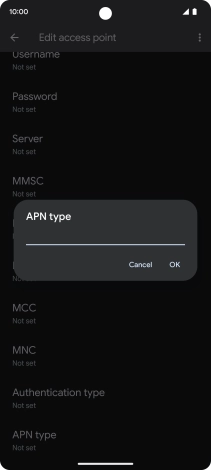

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-69c1005c-aae8-4e3c-8135-728bc9d6a53a.png?width=204&height=452)
mms
12. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-309d8fcb-972b-4c2a-9231-9ad9b1341d53.png?width=204&height=452)

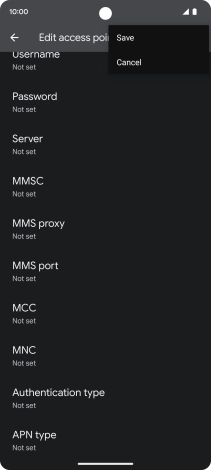

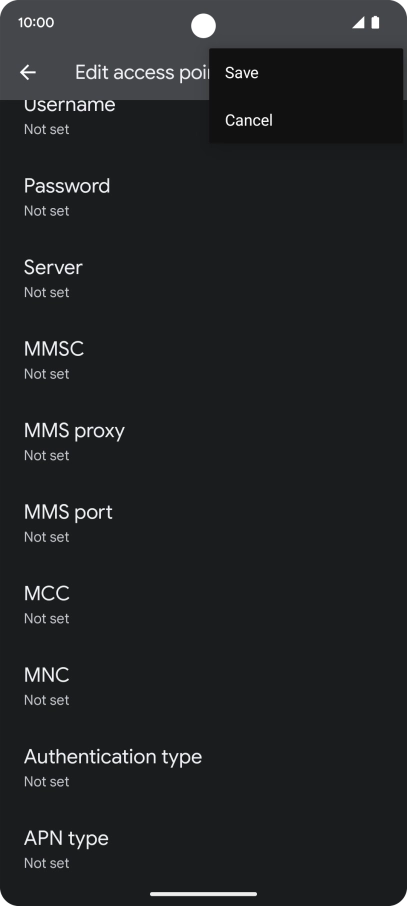

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-650cd063-11f1-49b3-9a07-ef1753c40592.png?width=204&height=452)
13. Return to the home screen

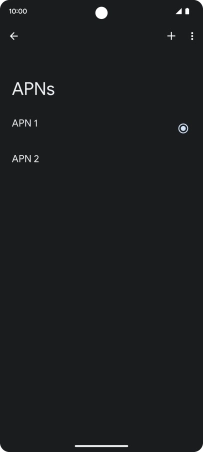

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-3598ef40-ec70-40f4-a311-45e4781ca931.png?width=204&height=452)
