Set up your Google Pixel 7 Pro Android 13 for internet

Read help info

The internet connection is shared by many functions on your phone such as internet browsing, receiving email messages and installing apps. You can access the internet as soon as you've inserted your SIM. If this isn't the case, you can set up your phone for internet manually.

Step 1 of 23

1. Find "Access point names"

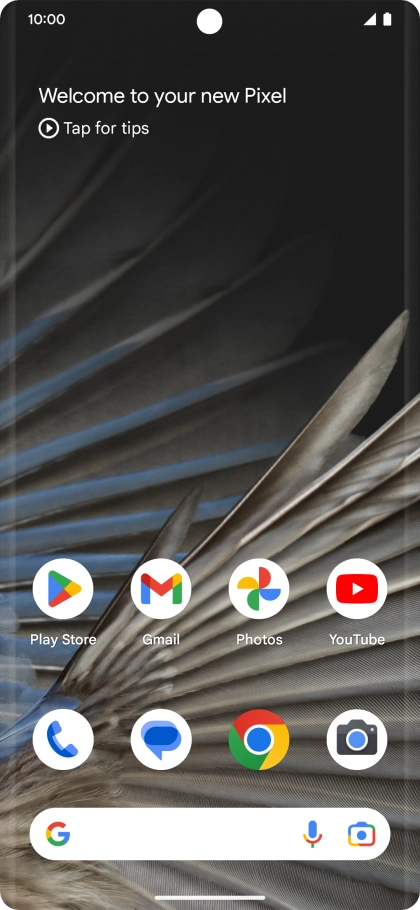

Slide two fingers downwards starting from the top of the screen.

Step 2 of 23

1. Find "Access point names"

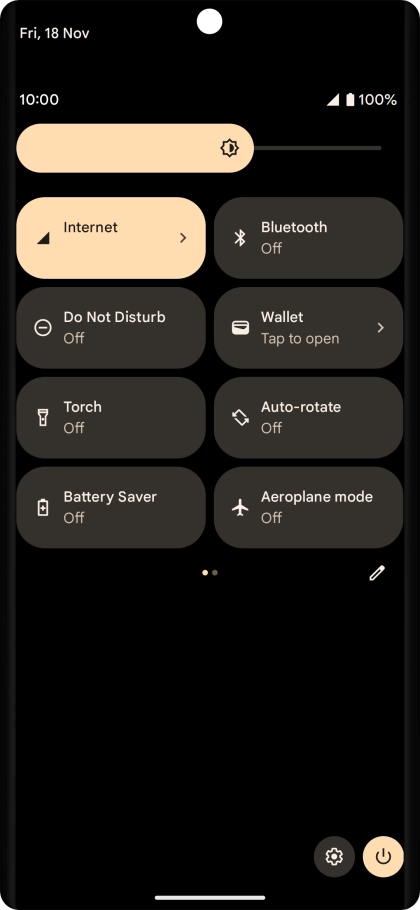

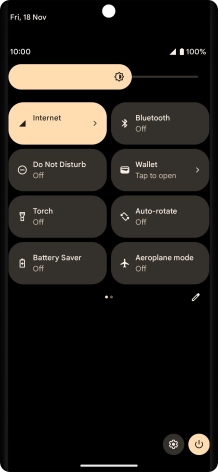

Press the settings icon.

Step 3 of 23

1. Find "Access point names"

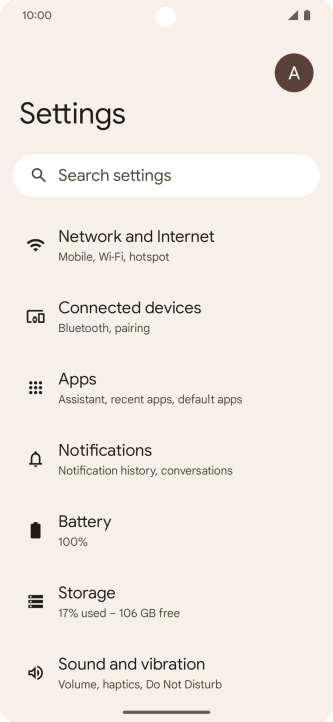

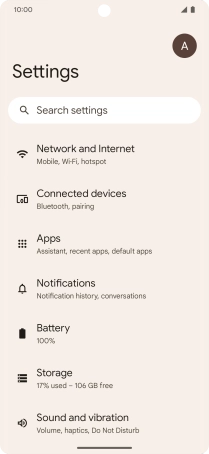

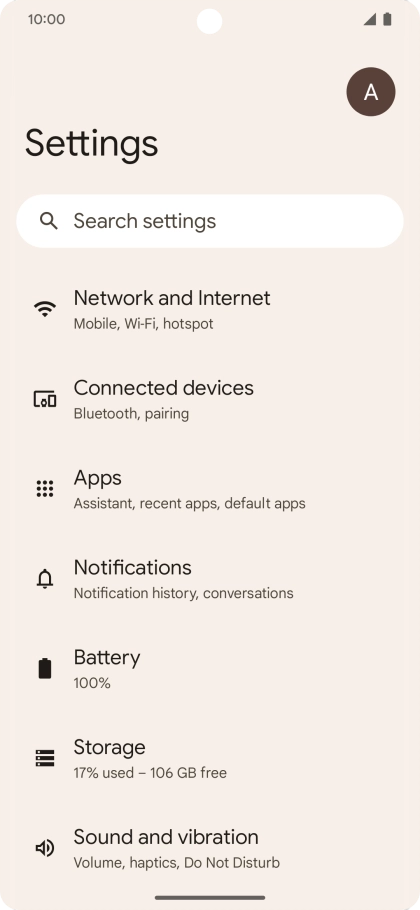

Press Network and Internet.

Step 4 of 23

1. Find "Access point names"

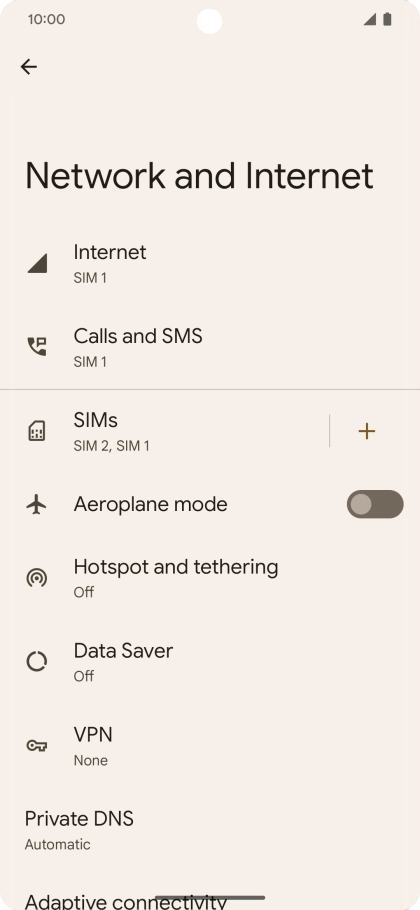

Press Internet.

Step 5 of 23

1. Find "Access point names"

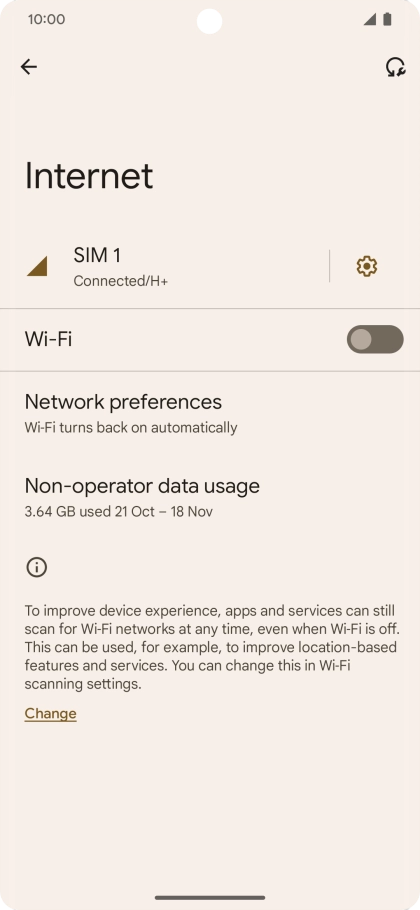

Press the settings icon.

Step 6 of 23

1. Find "Access point names"

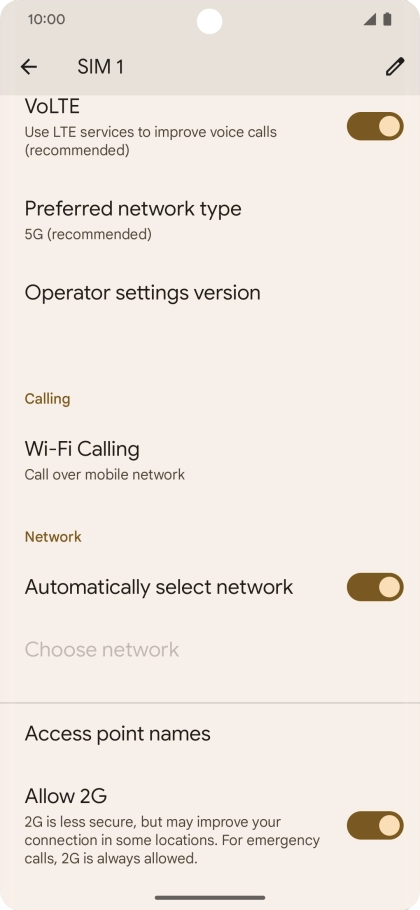

Press Access point names.

Step 7 of 23

2. Create new data connection

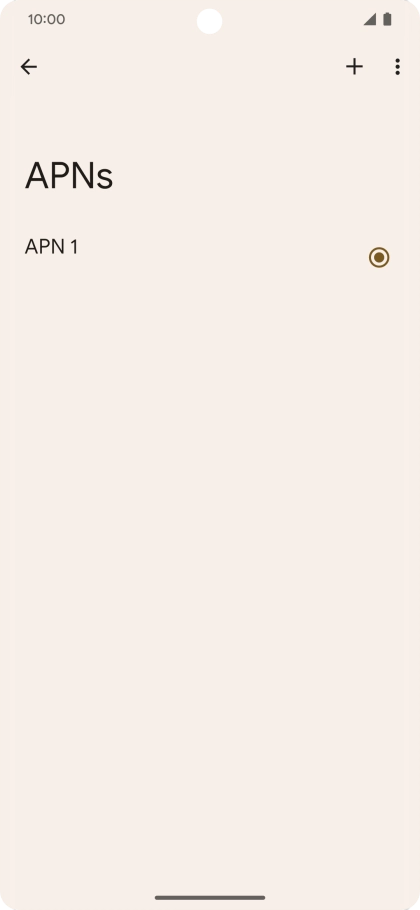

Press the new data connection icon.

Step 8 of 23

3. Enter a name for the connection

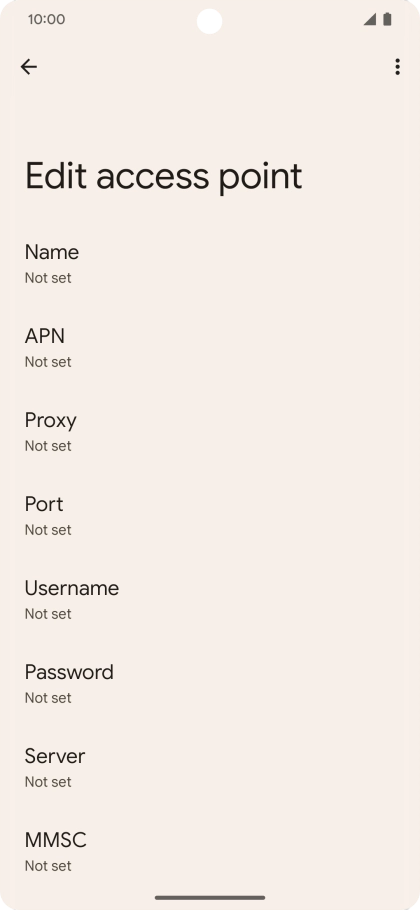

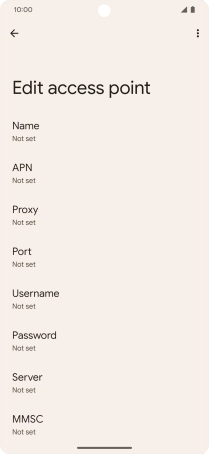

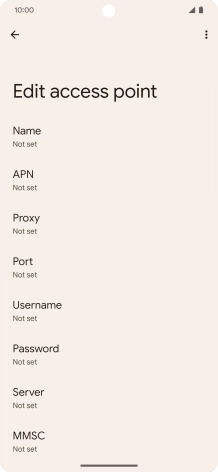

Press Name.

Vodafone Internet
Step 9 of 23

3. Enter a name for the connection

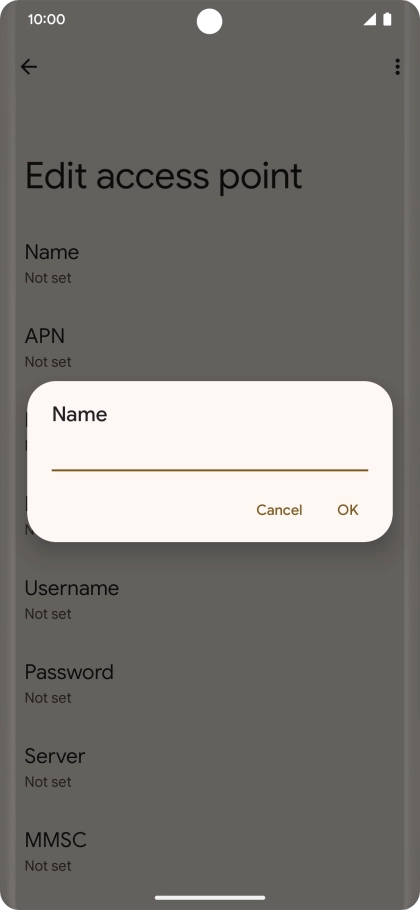

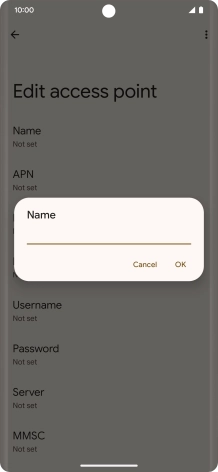

Key in Vodafone Internet and press OK.

Step 10 of 23

4. Enter APN

Press APN.

live.vodafone.com
Step 11 of 23

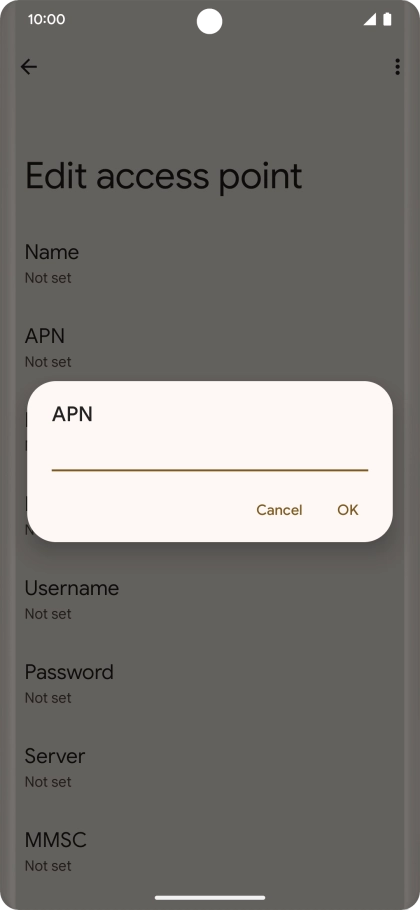

4. Enter APN

Key in live.vodafone.com and press OK.

Step 12 of 23

5. Enter country code

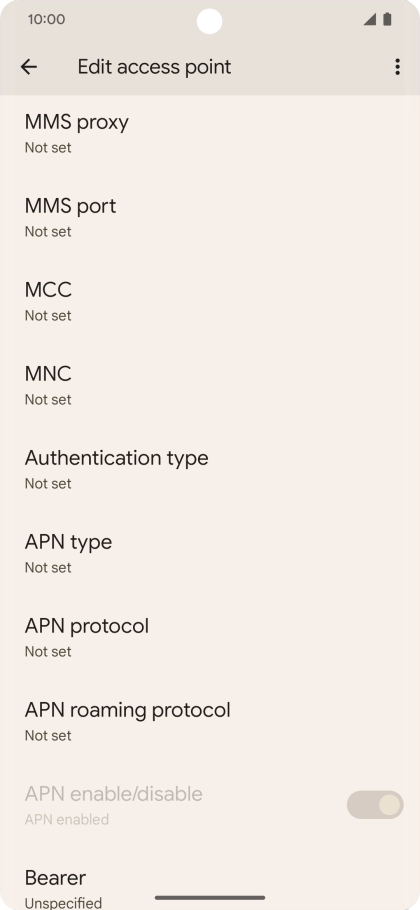

Press MCC.

505
Step 13 of 23

5. Enter country code

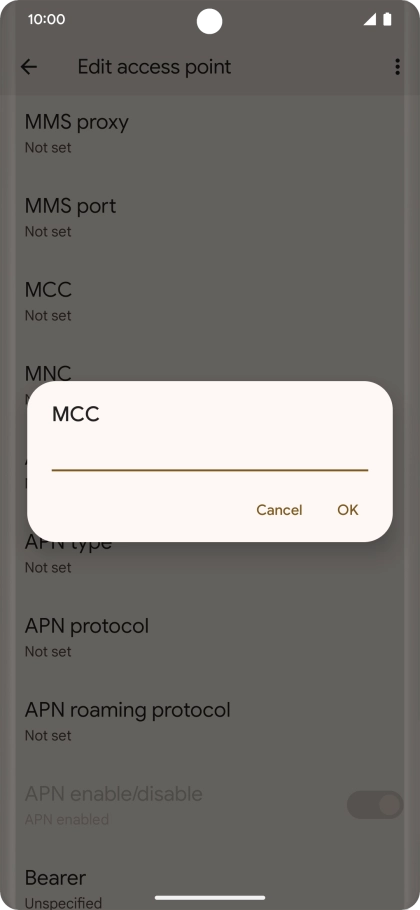

Key in 505 and press OK.

Step 14 of 23

6. Enter network code

Press MNC.

03
Step 15 of 23

6. Enter network code

Key in 03 and press OK.

Step 16 of 23

7. Select authentication type

Press Authentication type.

Step 17 of 23

7. Select authentication type

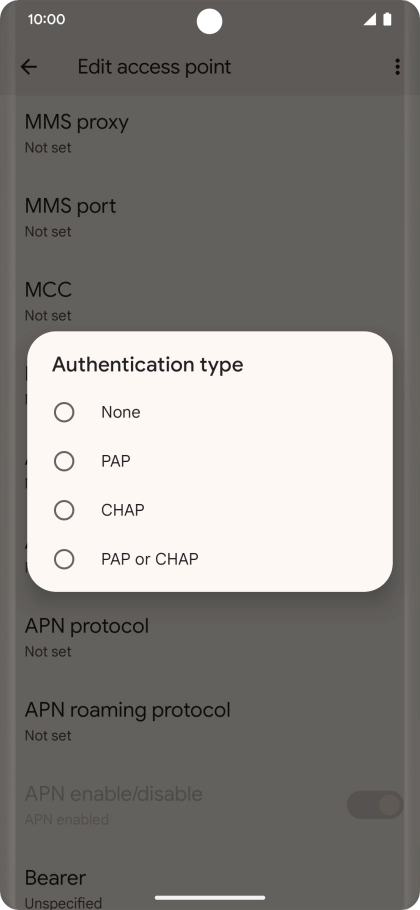

Press PAP.

Step 18 of 23

8. Enter APN type

Press APN type.

default
Step 19 of 23

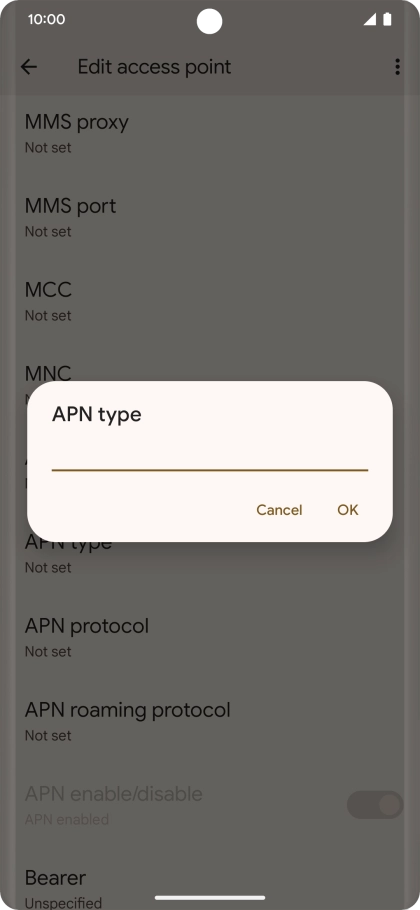

8. Enter APN type

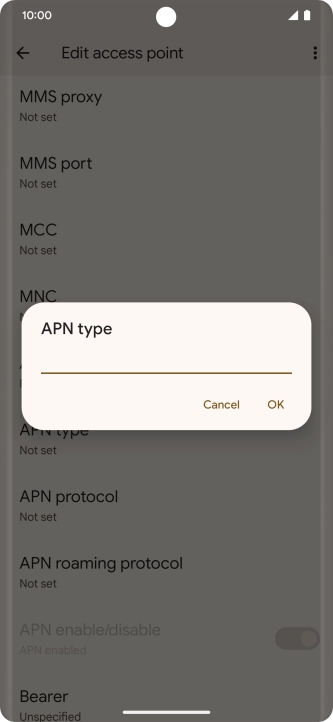

Key in default and press OK.

Step 20 of 23

9. Save data connection

Press the menu icon.

Step 21 of 23

9. Save data connection

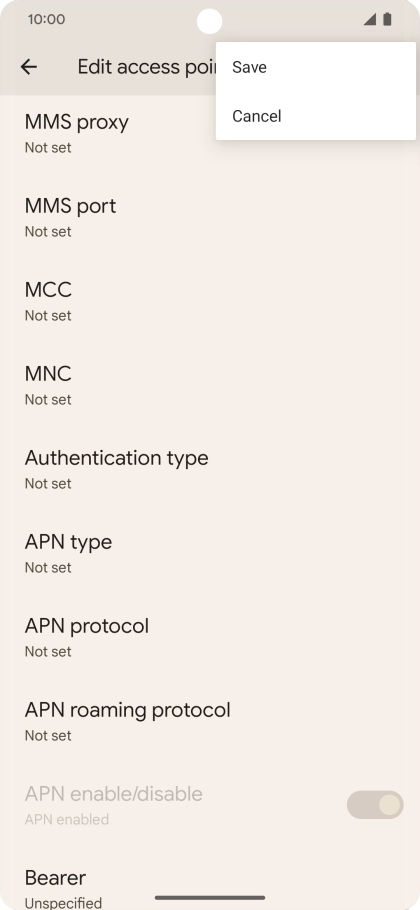

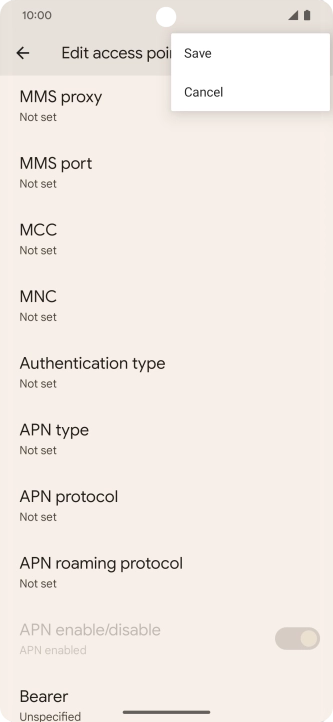

Press Save.

Step 22 of 23

9. Save data connection

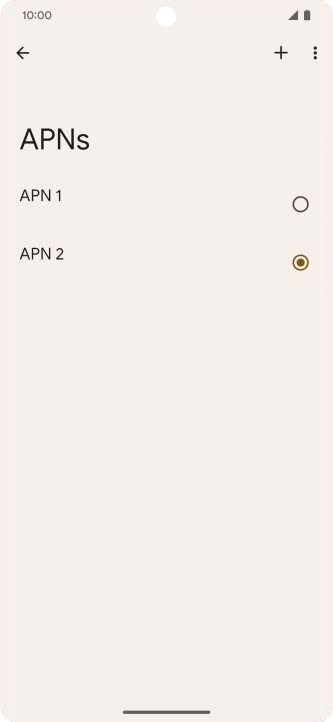

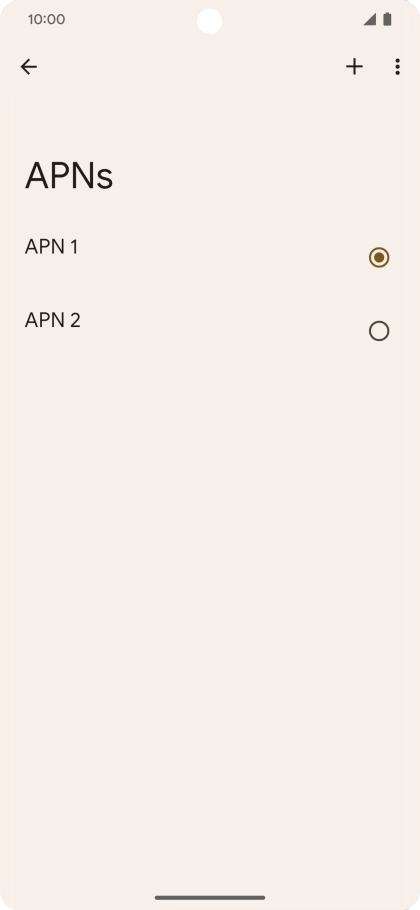

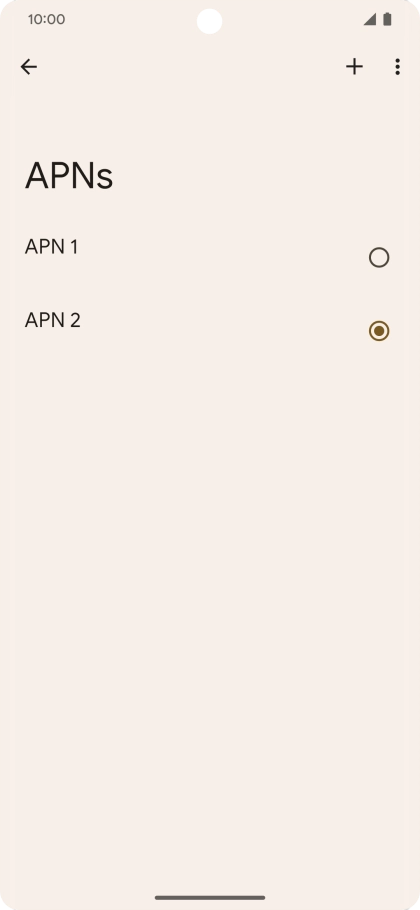

Press the field next to the required data connection to activate it.

Step 23 of 23

10. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.

1. Find "Access point names"

Slide two fingers downwards starting from the top of the screen.
Press the settings icon.
Press Network and Internet.
Press Internet.
Press the settings icon.
Press Access point names.

2. Create new data connection

Press the new data connection icon.

3. Enter a name for the connection

Press Name.
Key in Vodafone Internet and press OK.
Vodafone Internet

4. Enter APN

Press APN.
Key in live.vodafone.com and press OK.
live.vodafone.com

5. Enter country code

Press MCC.
Key in 505 and press OK.
505

6. Enter network code

Press MNC.
Key in 03 and press OK.
03

7. Select authentication type

Press Authentication type.
Press PAP.

8. Enter APN type

Press APN type.
Key in default and press OK.
default

9. Save data connection

Press the menu icon.
Press Save.
Press the field next to the required data connection to activate it.

10. Return to the home screen

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
