1 Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-77cb4bcd-1cc2-4faf-8966-0e88cefc90c9.png?width=210&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-27124368-2cf7-4c11-bad2-7317256c468a.png?width=210&height=454)
Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-1230cb44-c54b-4439-bdb8-341a2e9b9bdf.png?width=210&height=454)
Press Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-7d00a76c-70a9-40e7-8f4e-5ab7bc8d1991.png?width=210&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-76947c84-ff07-4390-8019-cf253943f99f.png?width=210&height=454)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-f4dc1f92-97c4-43de-b719-0c016cd7075b.png?width=210&height=454)
2 Create new data connection
Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-4c0cff1d-dd86-4fb0-b777-b07c822d12e0.png?width=210&height=454)
3 Enter a name for the connection
Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-e8ce9151-9a12-498e-9b43-64e75b8c3aac.png?width=210&height=454)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-210963e4-3e78-4ffd-af5d-03138418722d.png?width=210&height=454)
Vodafone MMS
4 Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-e8ce9151-9a12-498e-9b43-64e75b8c3aac.png?width=210&height=454)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-f801b33e-a4da-4f06-a8ac-3e9214d51062.png?width=210&height=454)
live.vodafone.com
5 Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-e8ce9151-9a12-498e-9b43-64e75b8c3aac.png?width=210&height=454)

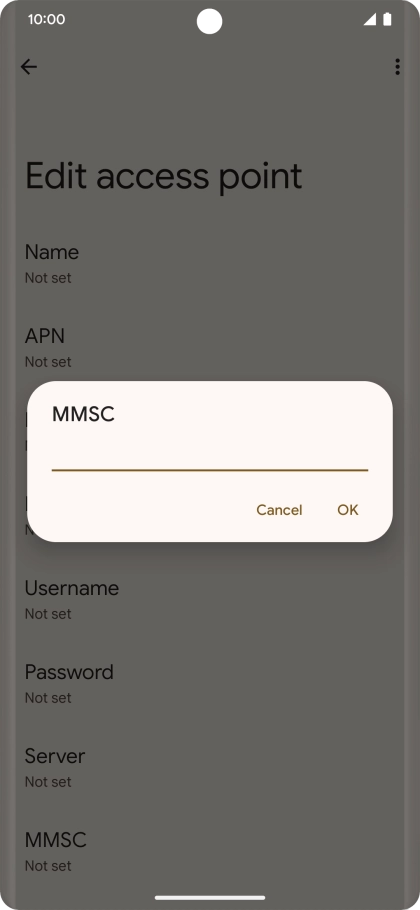

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-b2df52b5-eb4f-4dfd-b18f-311ff9f63e39.png?width=210&height=454)
http://pxt.vodafone.net.au/pxtsend
6 Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-d9c99cd1-6390-40a0-a00a-daf0cf35de1c.png?width=210&height=454)
10.202.002.060
7 Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)

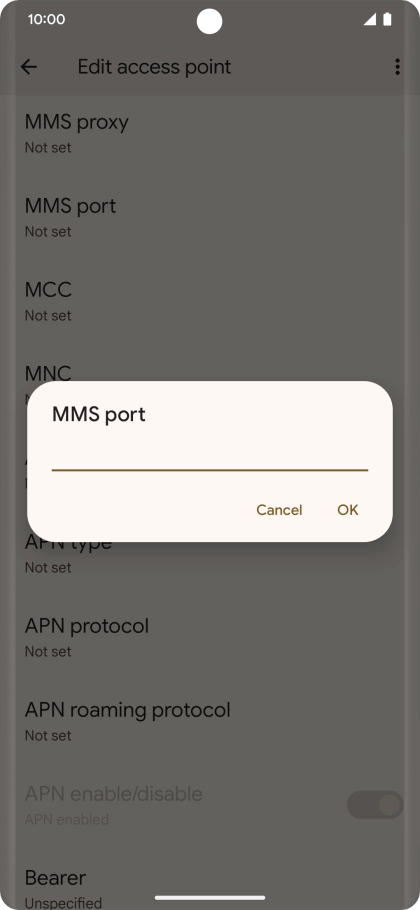

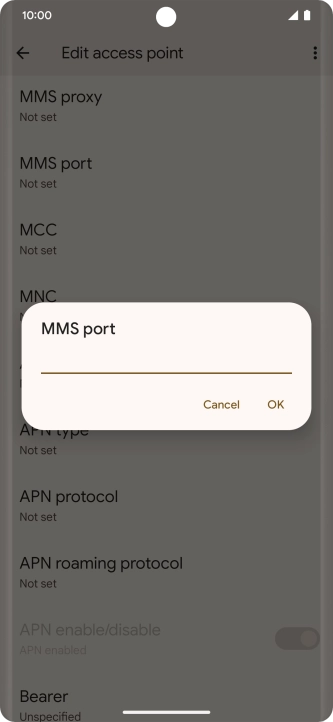

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-35cb0787-eb58-4e60-a53f-66ec1fcf7183.png?width=210&height=454)
8080
8 Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-cde7ef38-861d-4ccc-8e02-bd4c22314745.png?width=210&height=454)
505
9 Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-9f499f45-0f9d-4ecf-b48c-f155a60ca128.png?width=210&height=454)
03
10 Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-66f2bd9d-4da2-48c8-8e29-0a4da3e67017.png?width=210&height=454)
11 Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-8aa0396c-f6e5-45c4-a289-32712981645a.png?width=210&height=454)
mms
12 Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-95aacbb9-54d1-4318-b226-92075e7af345.png?width=210&height=454)
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-281b25eb-e1c9-46cb-94e3-91d072bf3286.png?width=210&height=454)

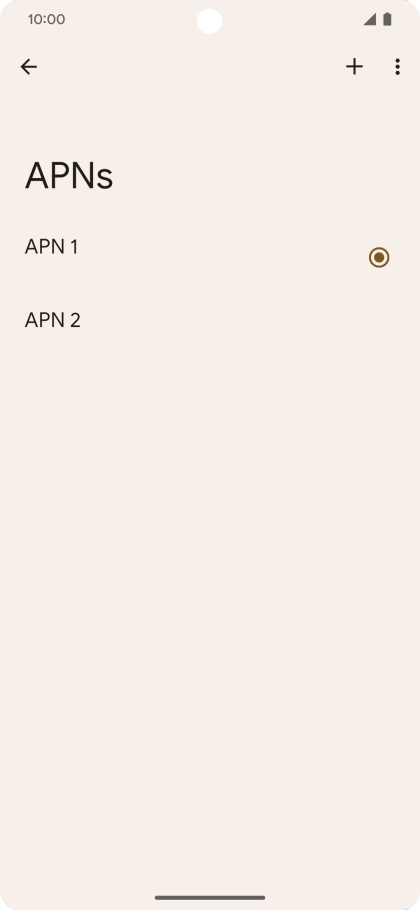

13 Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260623-f-3738a2a2-d792-4065-990f-b73ac37647d1.png?width=210&height=454)
