1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-3eb96269-7f0a-4752-9ba7-8cc099424aac.png?width=206&height=456)

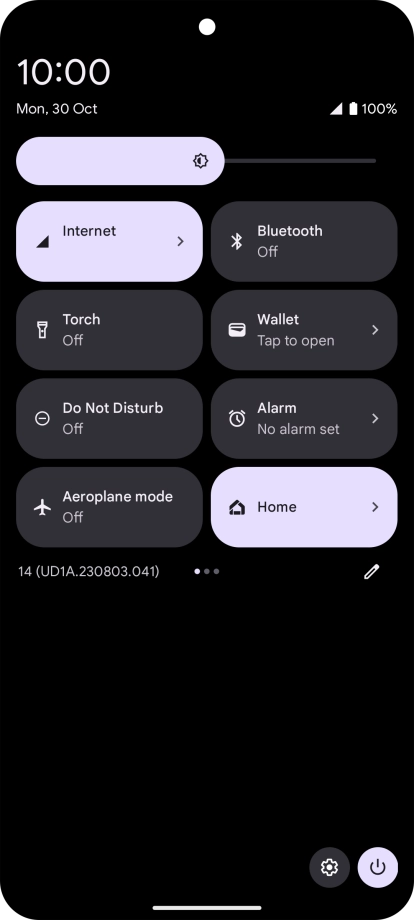

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-829249da-e02c-4414-8e77-cb32a648d718.png?width=206&height=456)

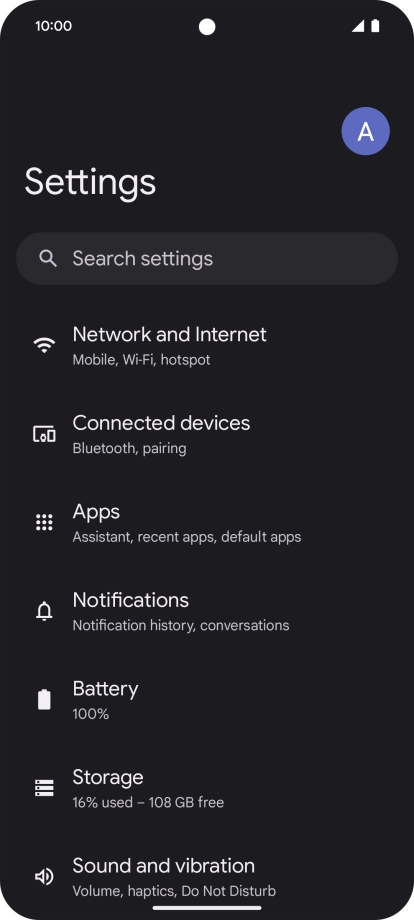

Press Network and Internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-5e21da44-7dd7-4617-a55a-d10221e87912.png?width=206&height=456)

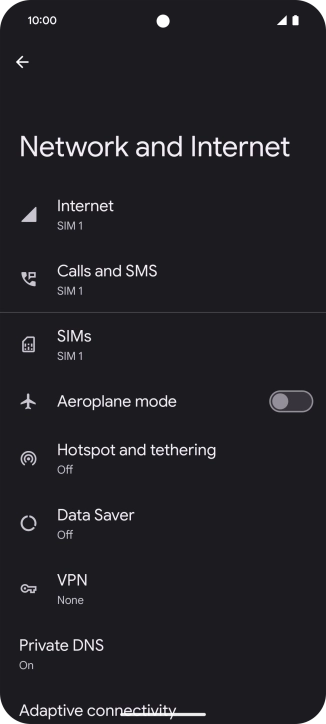

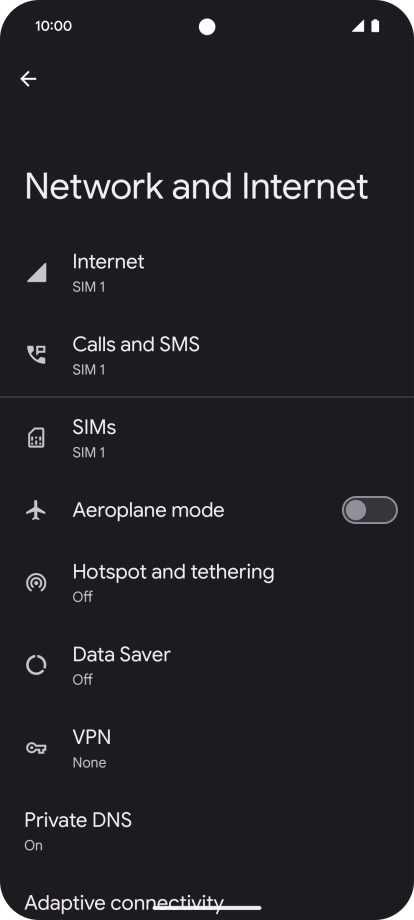

Press SIMs.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-07be3765-e564-417b-b963-2ae568e38b71.png?width=206&height=456)

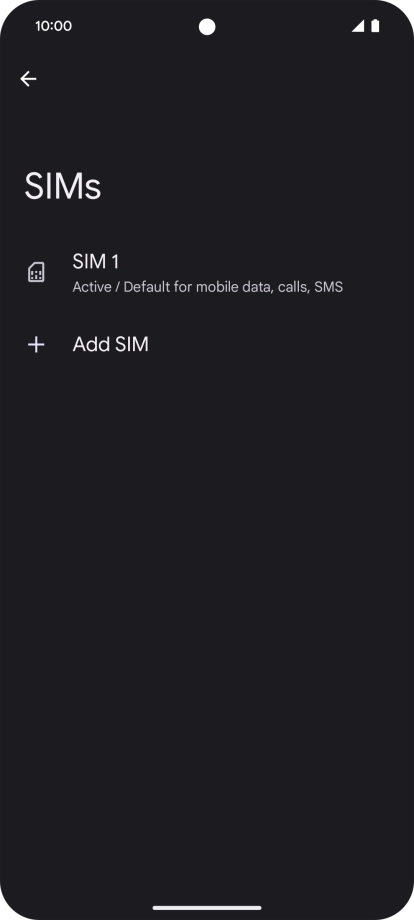

Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-f170281d-57e7-4d29-83a6-603793381fcd.png?width=206&height=456)

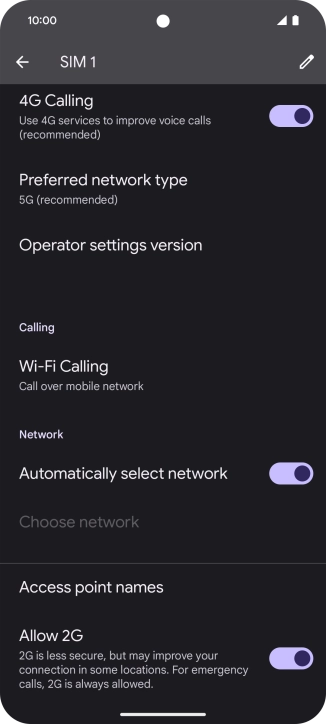

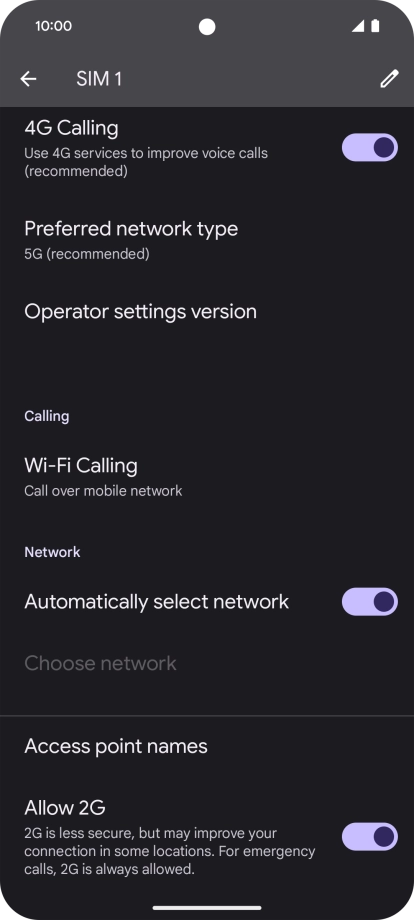

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-94f5f900-55f1-4f23-bf65-86f767851942.png?width=206&height=456)
2. Create new data connection

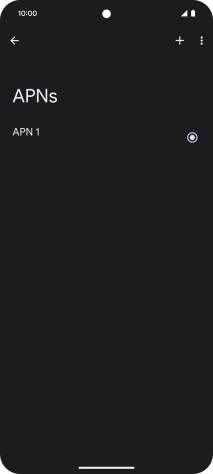

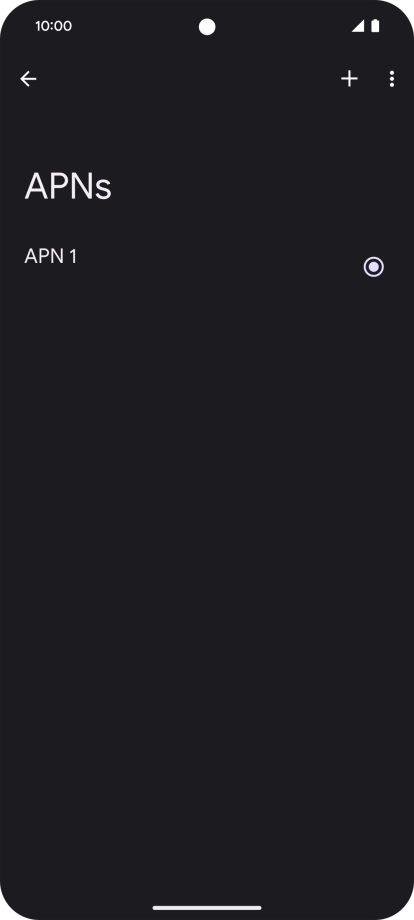

Press the add icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-97c20ff8-852f-4198-8e19-e8cbf2ac17ff.png?width=206&height=456)

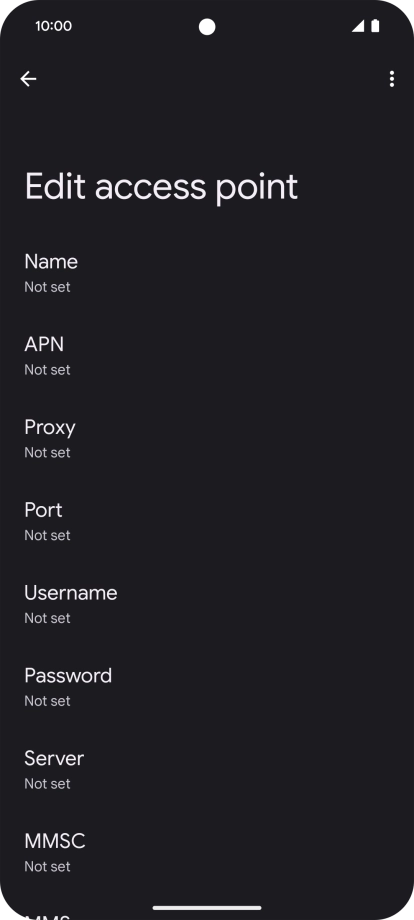

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-3b6881fe-bdd9-4ca1-8985-e53d945af85a.png?width=206&height=456)

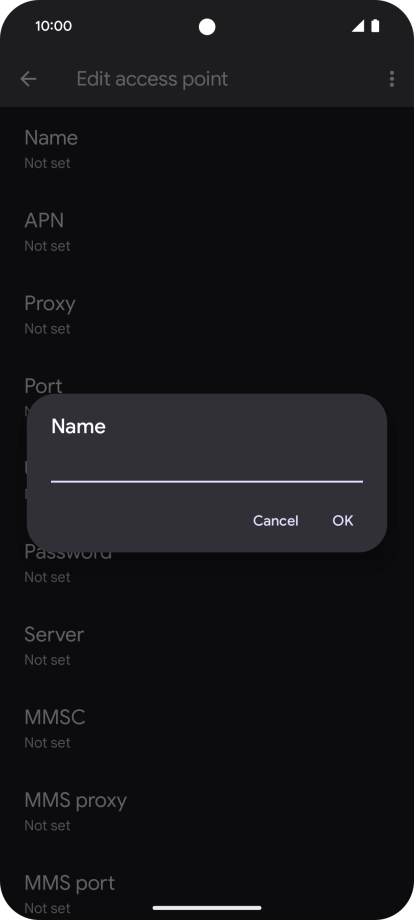

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-e0d7bf4e-7ab2-45f2-9ca2-fa6ef46a6052.png?width=206&height=456)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-3b6881fe-bdd9-4ca1-8985-e53d945af85a.png?width=206&height=456)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-2a594ed7-19cd-4021-bb74-c81ffb1ddd26.png?width=206&height=456)
live.vodafone.com
4. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-3b6881fe-bdd9-4ca1-8985-e53d945af85a.png?width=206&height=456)

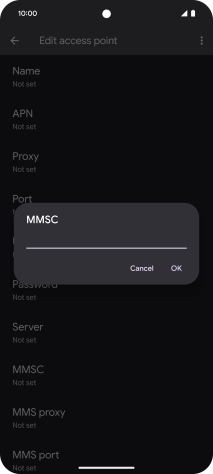

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-dfd14522-b2f4-4b1b-ab9d-f4ec32335002.png?width=206&height=456)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address

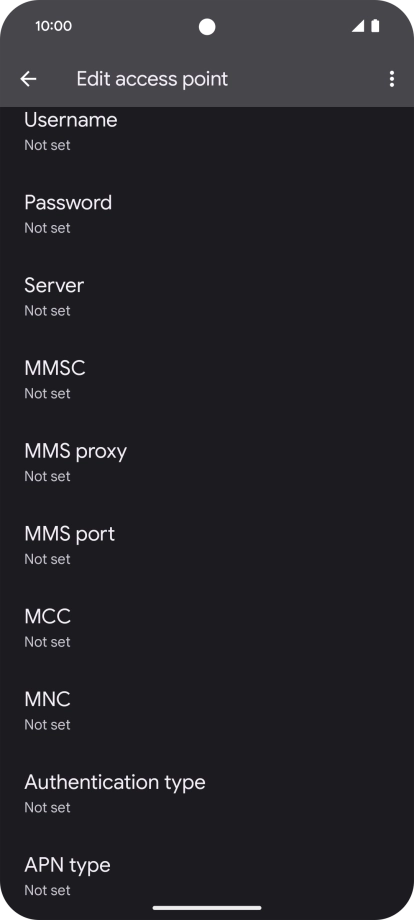

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

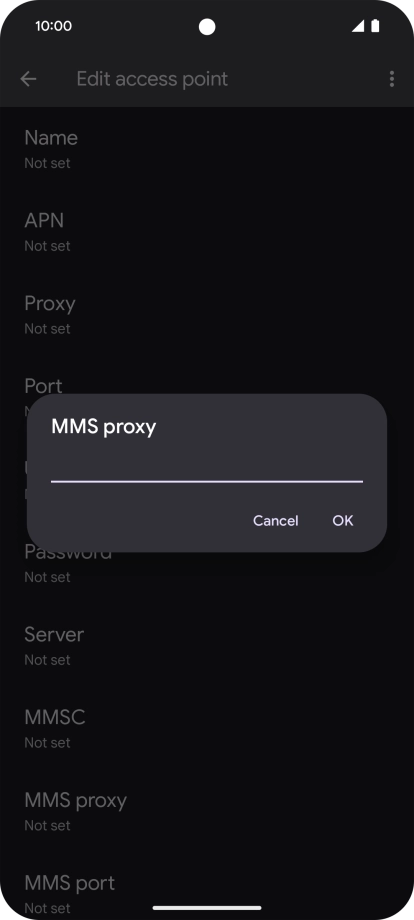

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-4a987a16-1230-4d76-82b5-73d202813bd5.png?width=206&height=456)
10.202.002.060
6. Enter port number

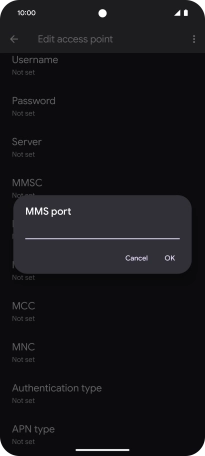

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

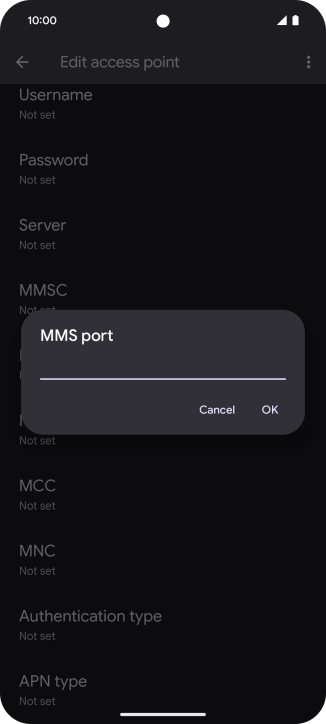

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-f72809eb-a04b-40a7-9ecc-b248978ab2df.png?width=206&height=456)
8080
7. Enter country code

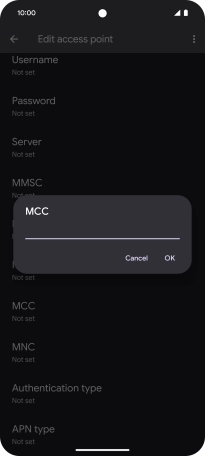

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

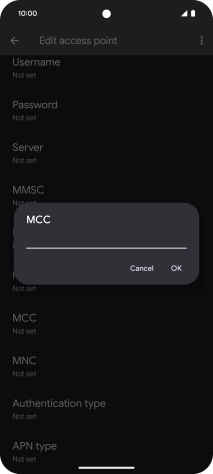

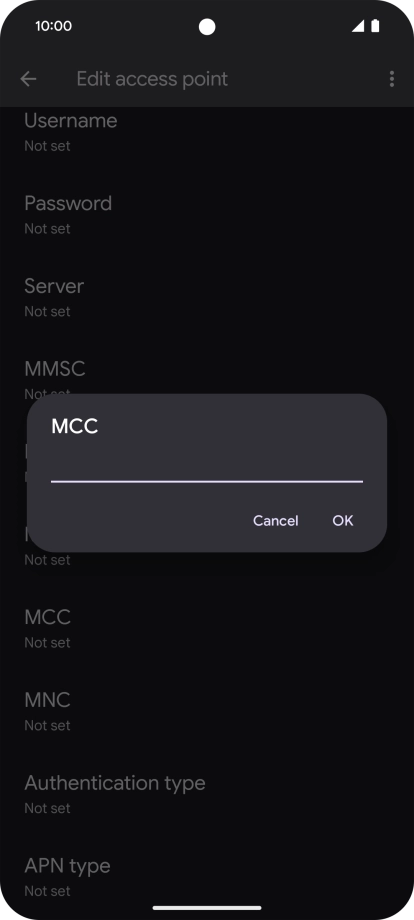

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-f82fe92e-82c7-416d-bfa0-3a3d90d62473.png?width=206&height=456)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

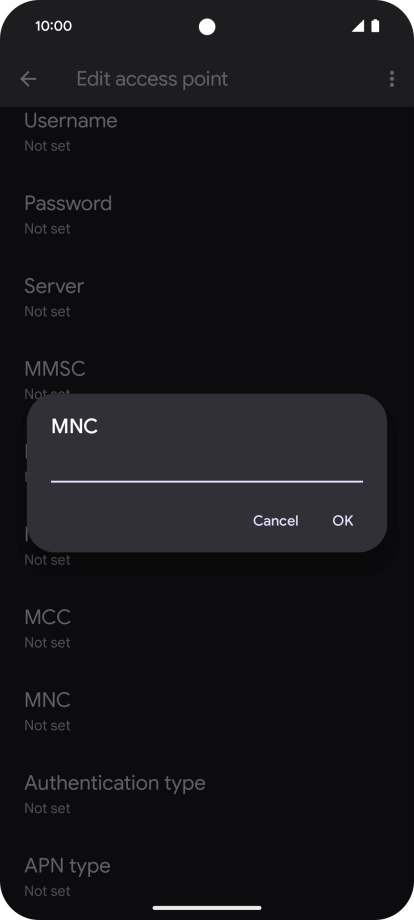

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-52c6e6ba-f93e-4cd8-9721-9907c986fc85.png?width=206&height=456)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

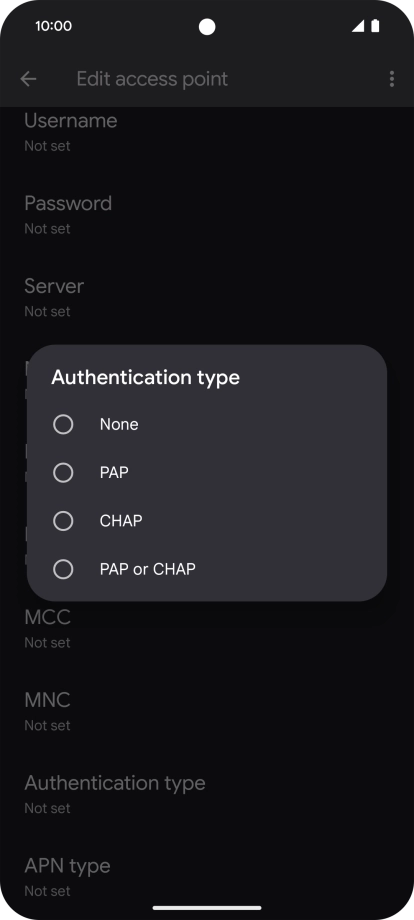

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-afba61b7-9b95-4bf7-92c7-4f730b7d8eb2.png?width=206&height=456)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

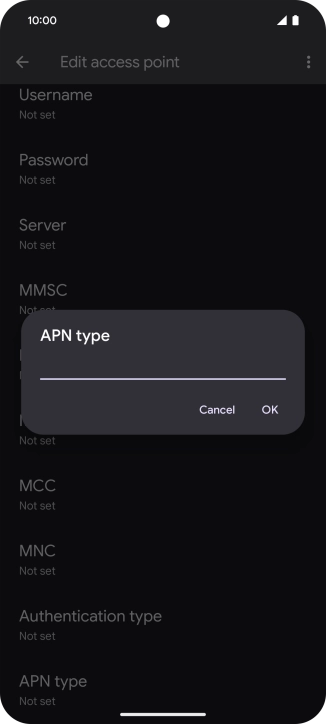

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-54622b1c-6c59-48d7-9e0e-5d4737c6e0f4.png?width=206&height=456)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-bef70ccb-220f-498a-a073-1e645f213e9b.png?width=206&height=456)

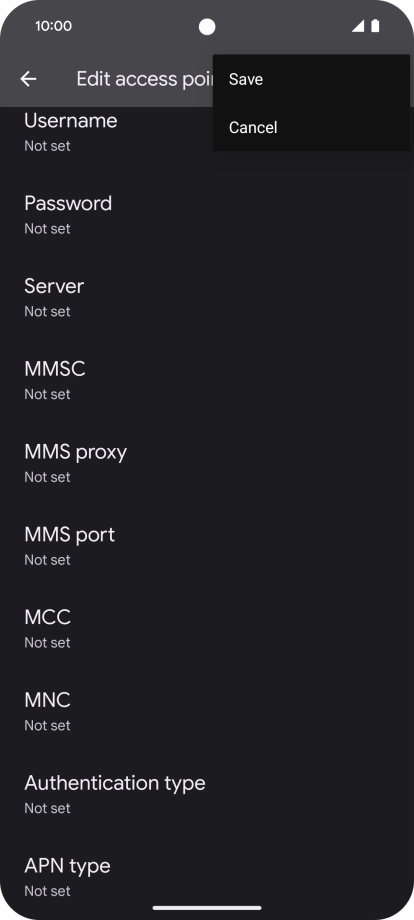

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-d1f9fa0e-6c5d-4d51-8bb2-7034ad29fcfc.png?width=206&height=456)
12. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090224-f-6c48924c-c128-4ed9-bbdb-e6f5f293b850.png?width=206&height=456)
