1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
1. Find "Access point names"
Press the settings icon.
1. Find "Access point names"
Press Network and Internet.
1. Find "Access point names"
Press SIMs.
1. Find "Access point names"
Press the name of the SIM.
1. Find "Access point names"
Press Access point names.

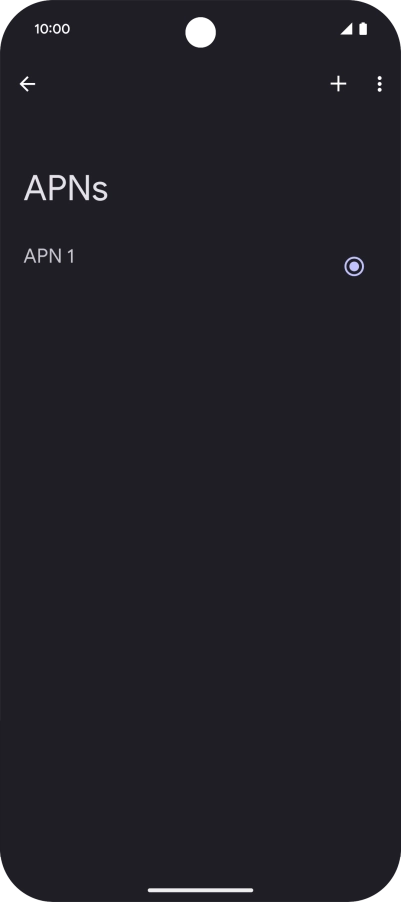

2. Create new data connection
Press the add icon.

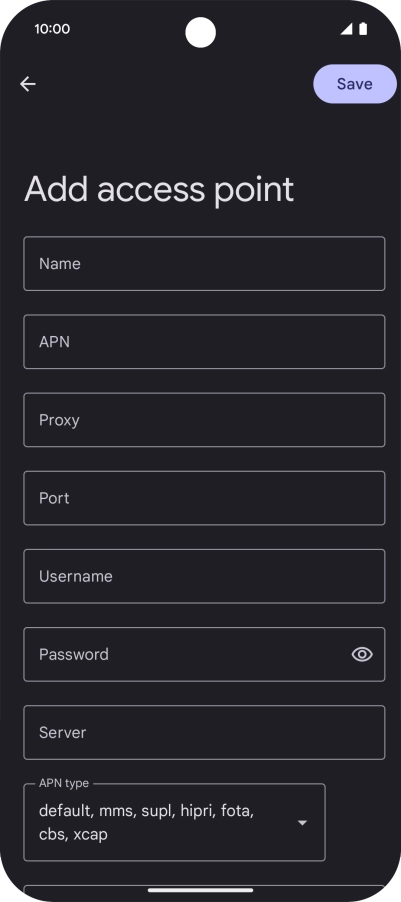

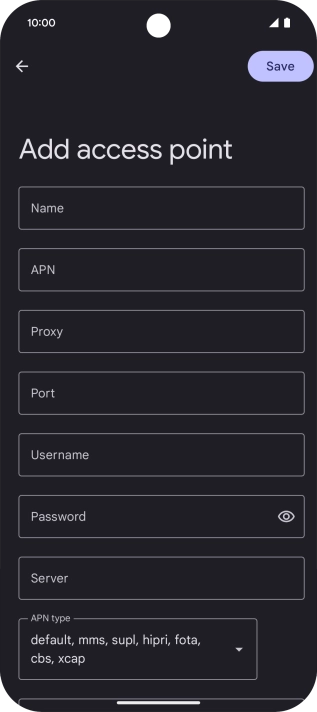

2. Create new data connection
Press Name and key in Vodafone MMS.
3. Enter APN
Press APN and key in live.vodafone.com.
4. Select APN type
Press the drop down list next to "APN type".

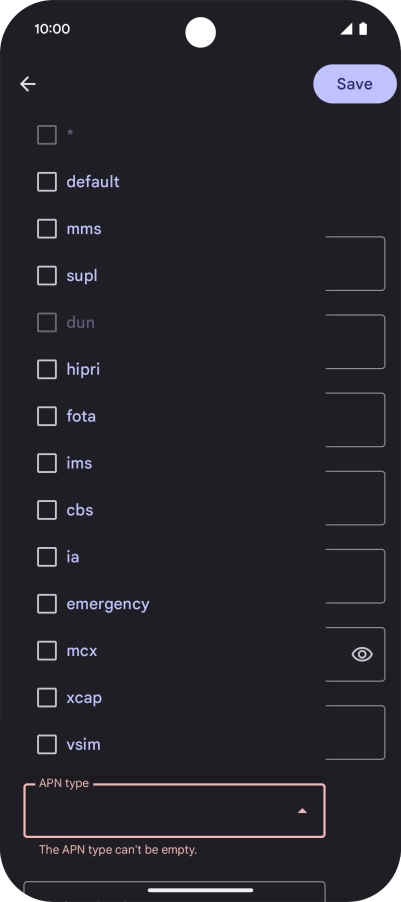

4. Select APN type
Press mms.

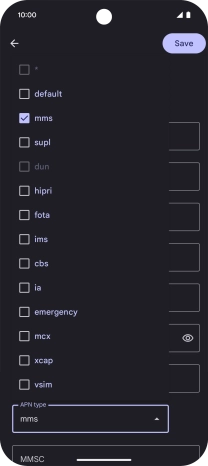

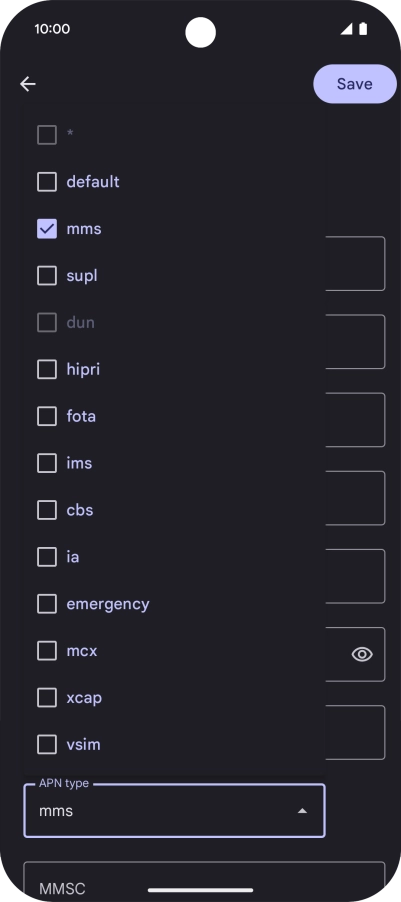

4. Select APN type
Press arrow up.

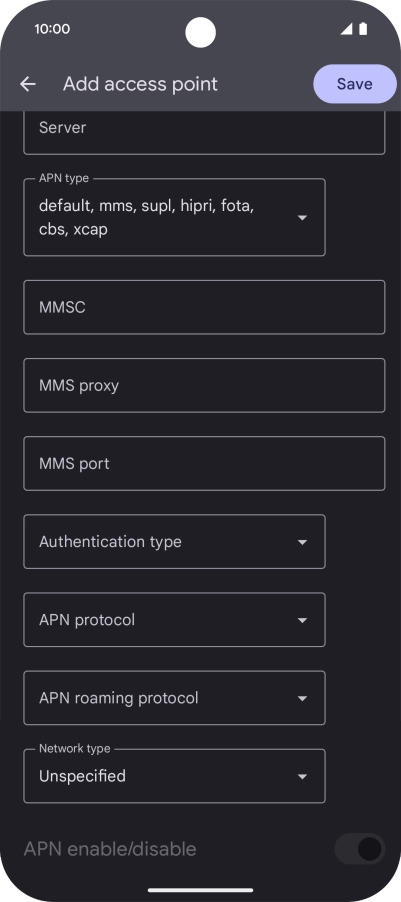

5. Enter picture messaging server
Press MMSC and key in http://pxt.vodafone.net.au/pxtsend.
6. Enter IP address
Press MMS proxy and key in 10.202.002.060.
7. Enter port number
Press MMS port and key in 8080.
8. Select authentication type
Press the drop down list next to "Authentication type".

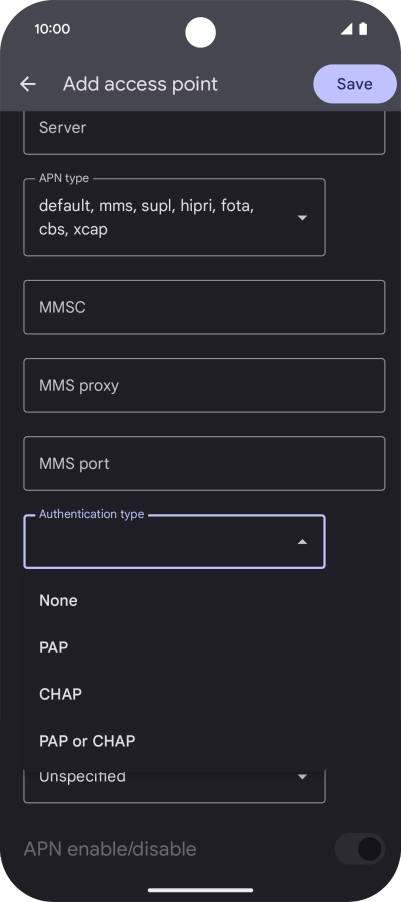

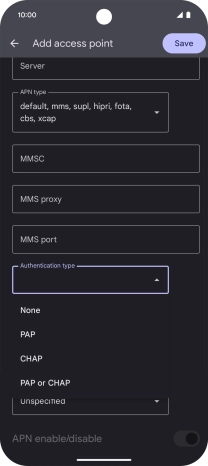

8. Select authentication type
Press PAP.
9. Save data connection
Press Save.

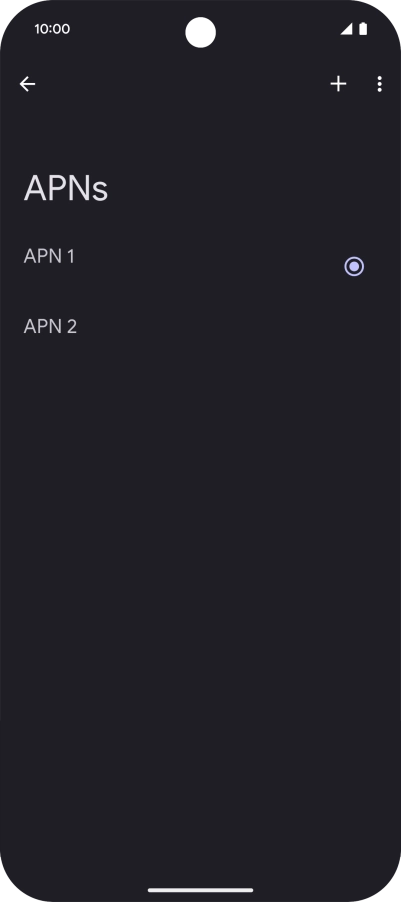

10. Return to the home screen
Slide your finger upwards starting from the bottom of the screen to return to the home screen.
1. Find "Access point names"
2. Create new data connection
3. Enter APN
4. Select APN type
5. Enter picture messaging server
6. Enter IP address
7. Enter port number
8. Select authentication type
9. Save data connection
10. Return to the home screen
