1. Find "Access point names"
Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-18f42fbe-0c46-4cce-b623-6ab47cacc024.png?width=212&height=376)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8bca4edb-3f59-4553-b0f0-8a2af71feb8c.png?width=212&height=376)
Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e91586af-e97c-4053-bd6c-fd69316b591c.png?width=212&height=376)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aae7d91d-76d9-4f40-a1a7-e18bddbc46a1.png?width=212&height=376)
2. Create new data connection

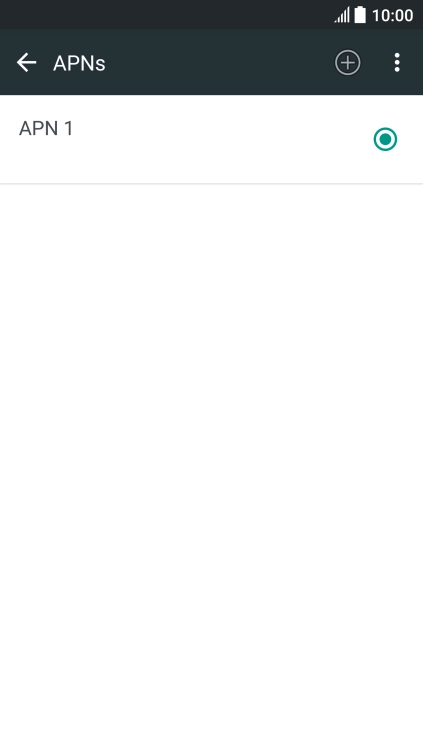

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ab44dc36-50e1-41e3-83c8-e1ec8174dfe5.png?width=212&height=376)

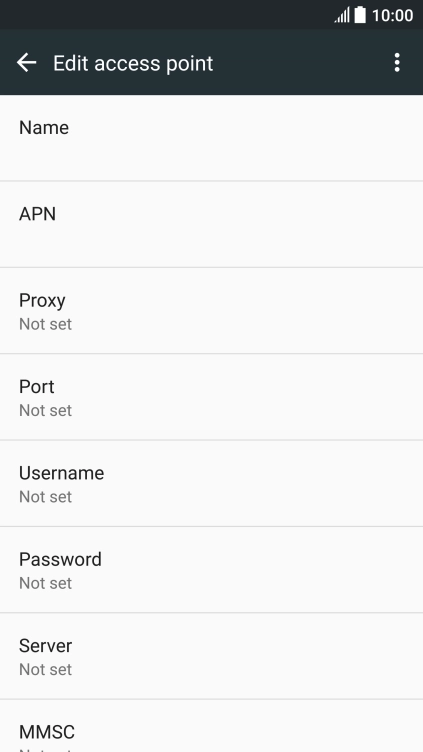

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b0a27500-2357-4c50-9082-5164d892b45a.png?width=212&height=376)

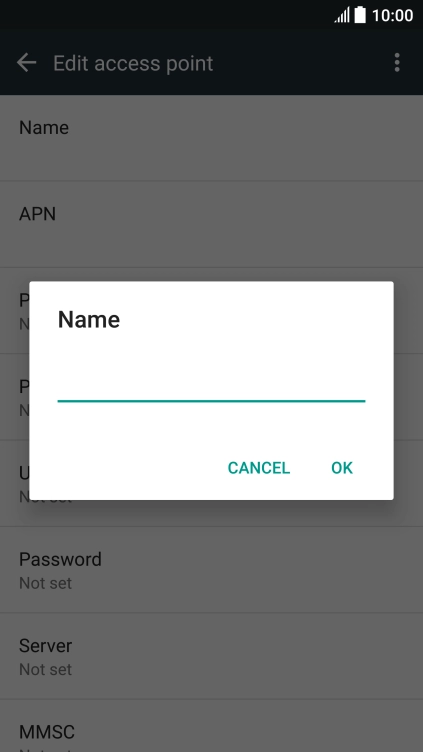

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7c132e04-f6ed-40f0-88de-76d1ad41bc90.png?width=212&height=376)
Vodafone Internet
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b0a27500-2357-4c50-9082-5164d892b45a.png?width=212&height=376)
If you're on a pay monthly price plan, key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9eb7de9b-e99e-4cdc-8ea3-254b26e7a8ba.png?width=212&height=376)
live.vodafone.com
If you're on a pay as you go price plan, key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9eb7de9b-e99e-4cdc-8ea3-254b26e7a8ba.png?width=212&height=376)
live.vodafone.com
4. Enter country code

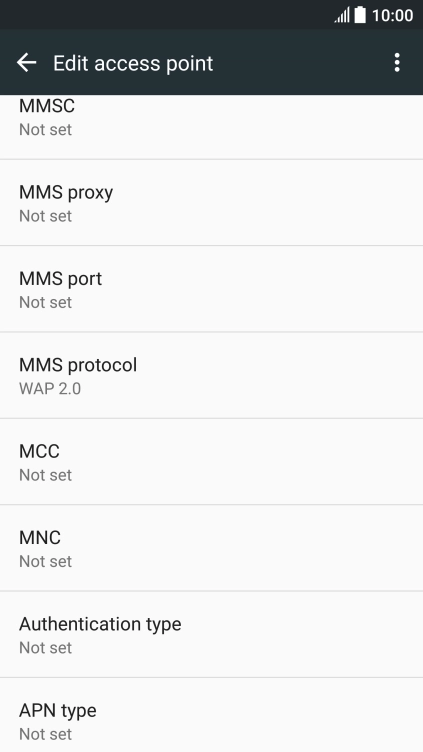

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

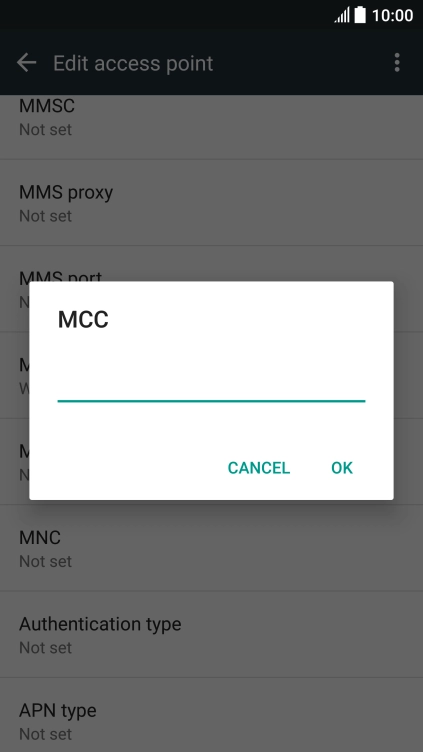

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-57b2d0dc-d016-4107-aec6-e568ddaf974f.png?width=212&height=376)
505
5. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

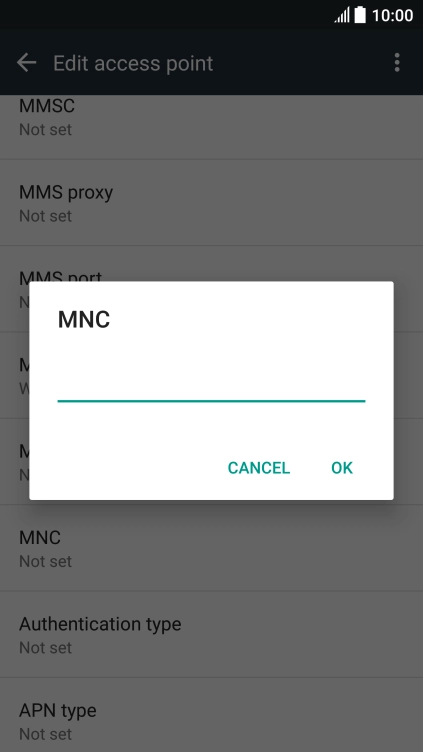

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4593514e-3076-43bf-b603-2cfa5122e8d3.png?width=212&height=376)
03
6. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

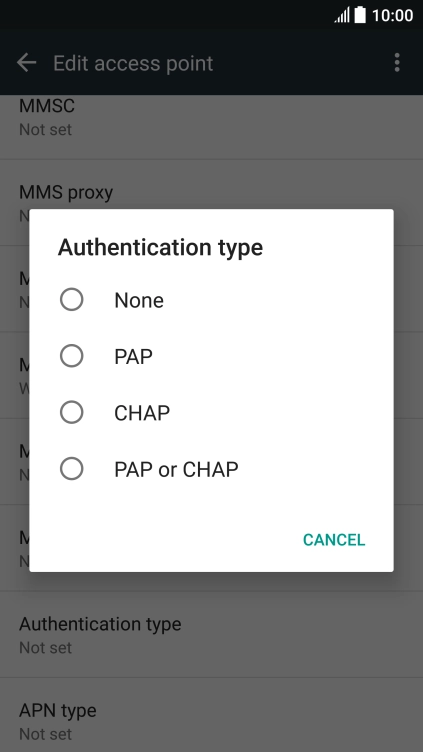

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d828fd7b-2887-4fac-b28c-7d2f5f9fcd39.png?width=212&height=376)
7. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

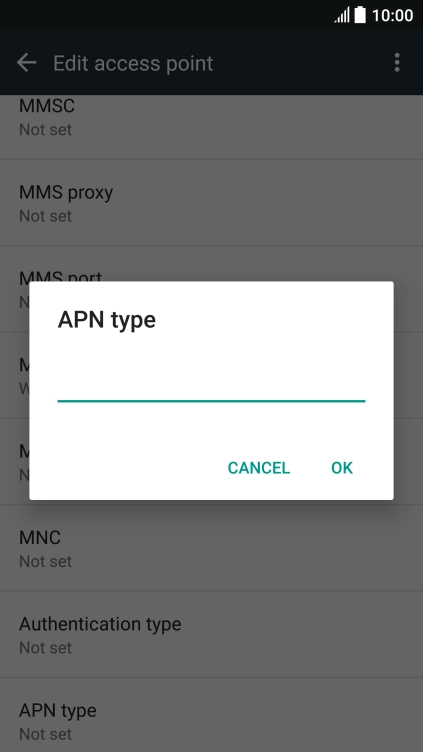

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7b005624-5ea0-4358-afc9-6d6a024258d0.png?width=212&height=376)
default
8. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

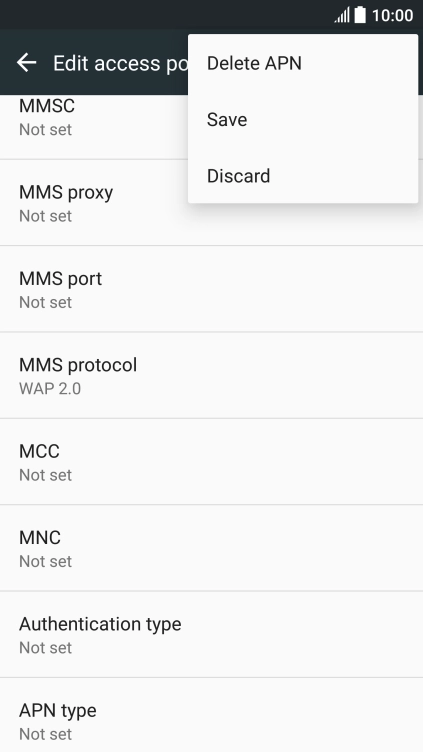

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-27718465-88df-462d-9a9a-974c3b304061.png?width=212&height=376)

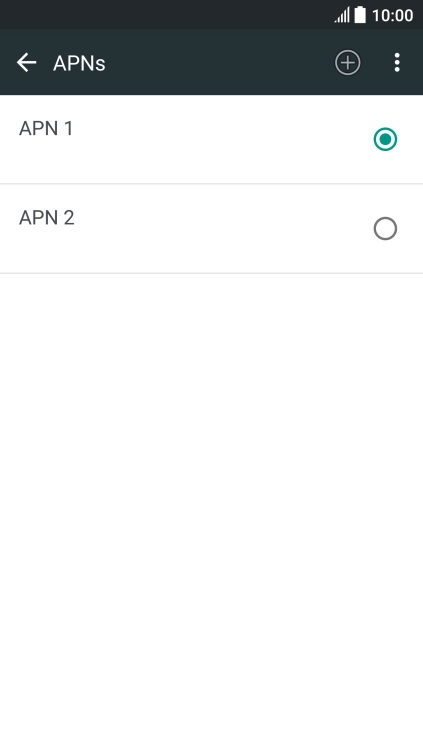

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-853f77c7-fc99-4023-8f50-917037952b0f.png?width=212&height=376)
9. Return to the home screen
Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-853f77c7-fc99-4023-8f50-917037952b0f.png?width=212&height=376)
