1. Find "Access point names"

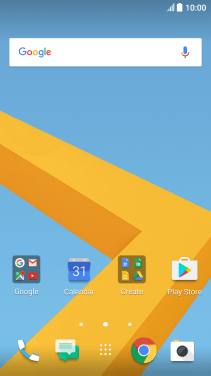

Slide your finger downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-18f42fbe-0c46-4cce-b623-6ab47cacc024.png?width=212&height=376)

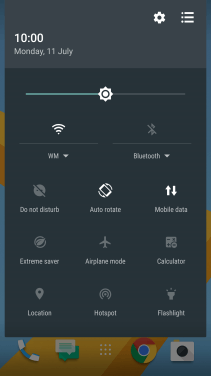

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8bca4edb-3f59-4553-b0f0-8a2af71feb8c.png?width=212&height=376)

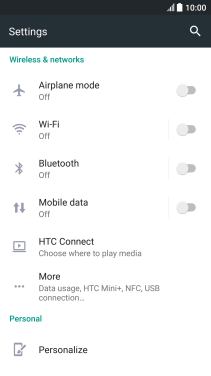

Press Mobile data.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e91586af-e97c-4053-bd6c-fd69316b591c.png?width=212&height=376)

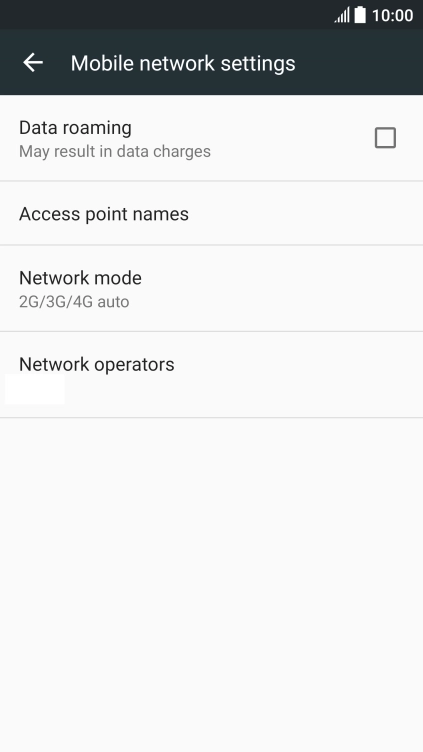

Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aae7d91d-76d9-4f40-a1a7-e18bddbc46a1.png?width=212&height=376)
2. Create new data connection

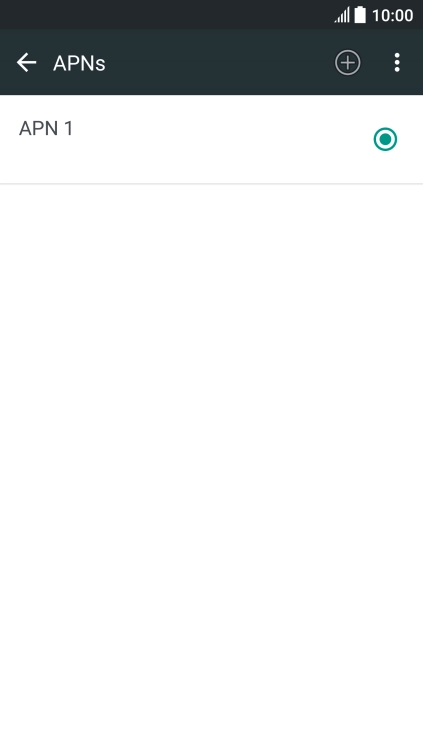

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ab44dc36-50e1-41e3-83c8-e1ec8174dfe5.png?width=212&height=376)

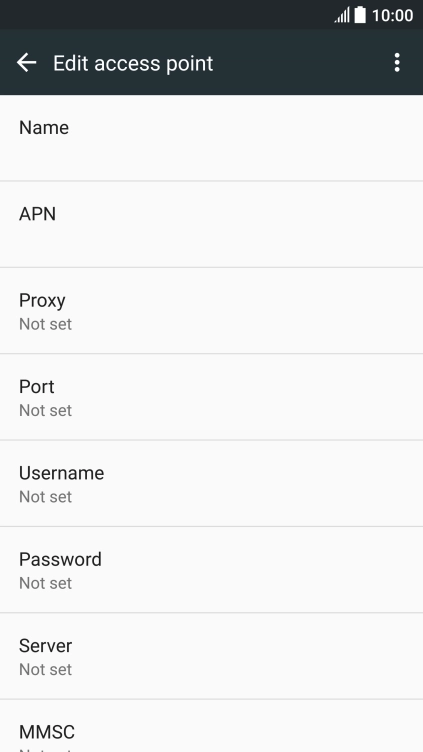

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b0a27500-2357-4c50-9082-5164d892b45a.png?width=212&height=376)

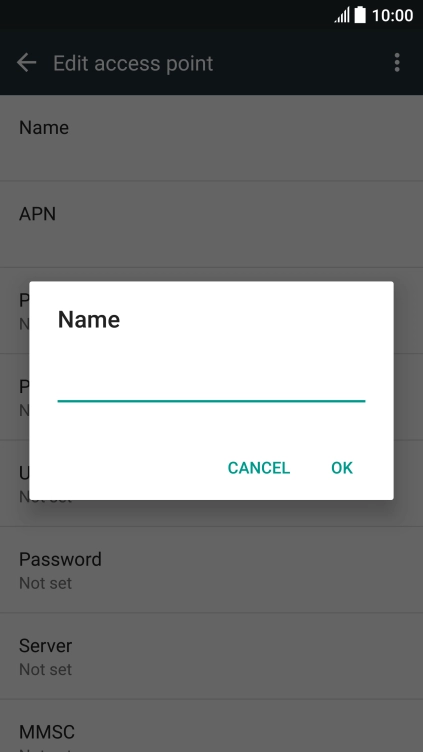

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7c132e04-f6ed-40f0-88de-76d1ad41bc90.png?width=212&height=376)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b0a27500-2357-4c50-9082-5164d892b45a.png?width=212&height=376)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9eb7de9b-e99e-4cdc-8ea3-254b26e7a8ba.png?width=212&height=376)
live.vodafone.com
4. Enter MMSC

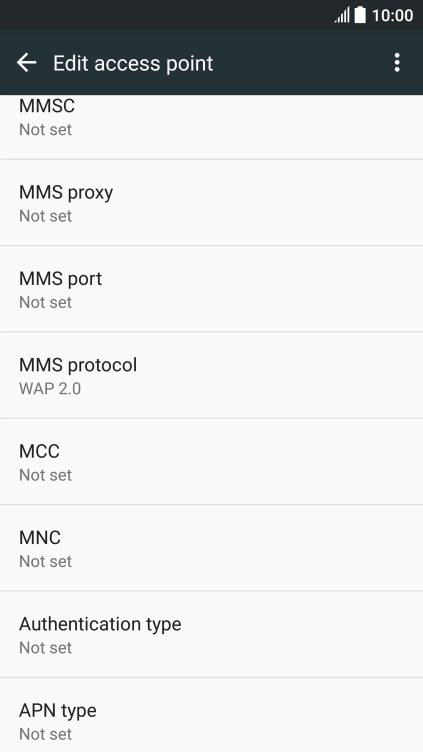

Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

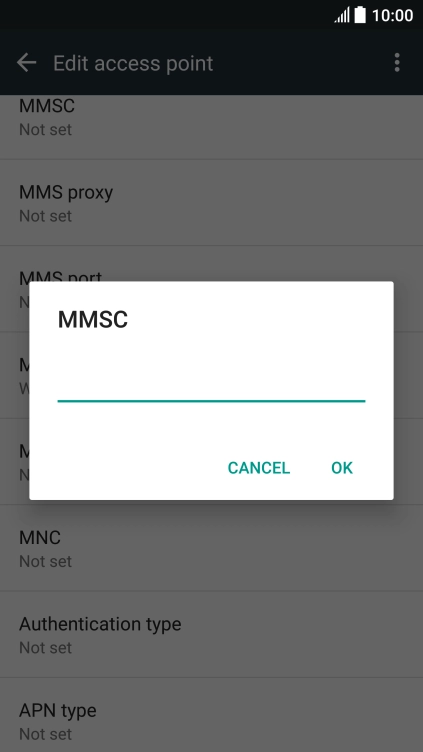

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c2d285da-67c9-4c3c-b720-596e37fd82eb.png?width=212&height=376)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

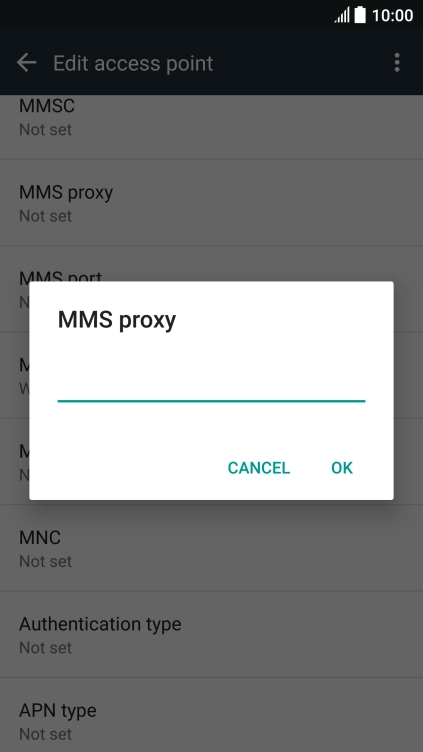

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4198cd94-05ad-488f-b0e6-e00803a6af2d.png?width=212&height=376)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)
Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5ac1a69a-0961-49ac-9918-3687f24aae90.png?width=212&height=376)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

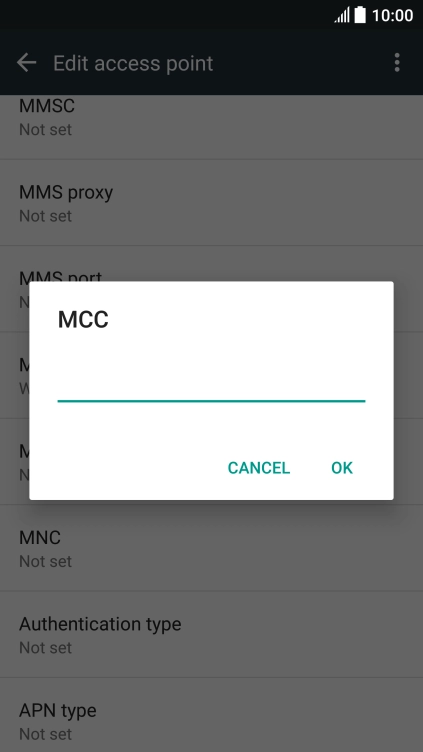

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-57b2d0dc-d016-4107-aec6-e568ddaf974f.png?width=212&height=376)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

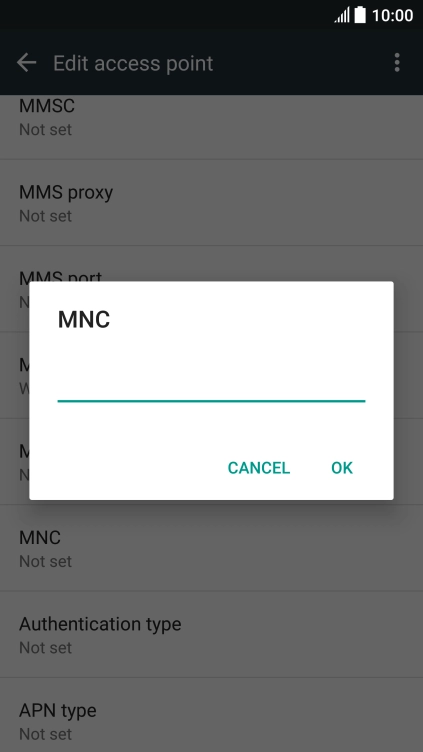

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4593514e-3076-43bf-b603-2cfa5122e8d3.png?width=212&height=376)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

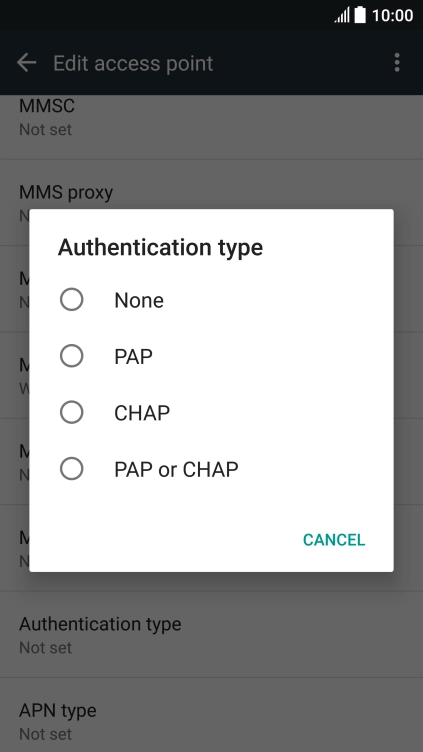

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d828fd7b-2887-4fac-b28c-7d2f5f9fcd39.png?width=212&height=376)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7b005624-5ea0-4358-afc9-6d6a024258d0.png?width=212&height=376)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-43883d5a-90f7-4fa3-9c67-94ee87c33a33.png?width=212&height=376)

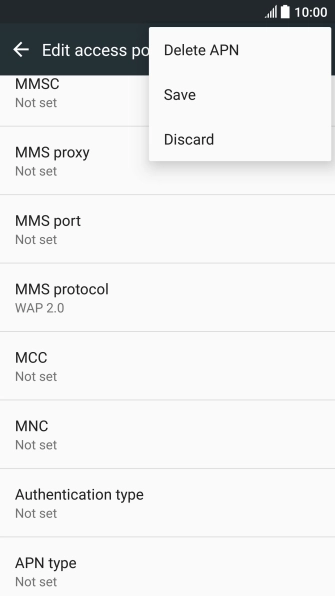

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-27718465-88df-462d-9a9a-974c3b304061.png?width=212&height=376)
12. Return to the home screen

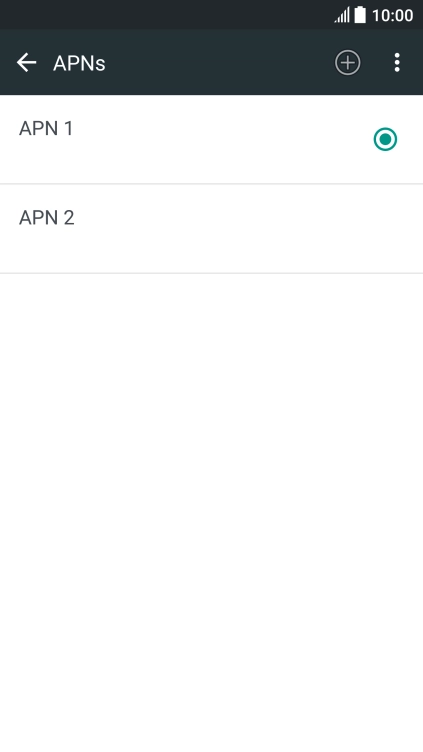

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d36b09b1-d50e-4a9d-a346-024e8c5b1654.png?width=212&height=376)
