1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cd0b1fd4-ea35-48c2-8042-7d9b39da840c.png?width=210&height=454)
Press Wireless & networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8839e96f-9b49-4840-a40c-7d0b3bcd11ff.png?width=210&height=454)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0c2d445f-b754-4424-8e0c-c84964bfa9ba.png?width=210&height=454)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-eac84ce8-7d30-47d1-99f7-8d1cac729f66.png?width=210&height=454)
2. Create new data connection

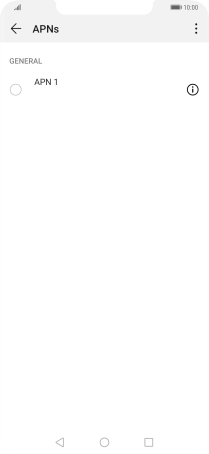

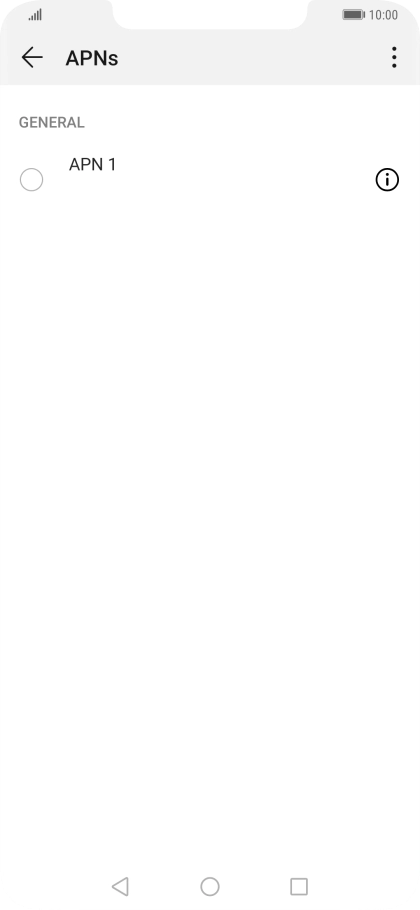

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b3a098c6-33db-440b-91a9-f6d18dc102ff.png?width=210&height=454)

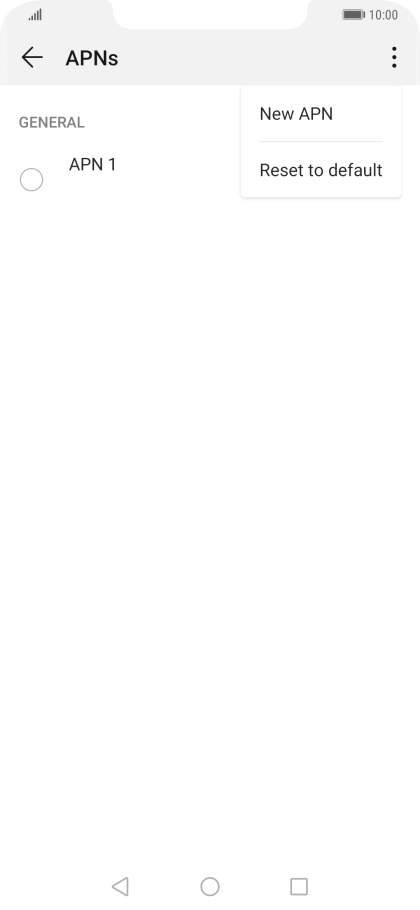

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5ddbfd0e-806f-4a0e-ab60-f5471572b824.png?width=210&height=454)
3. Enter a name for the connection

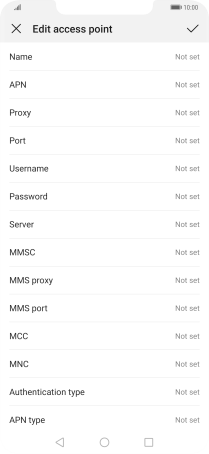

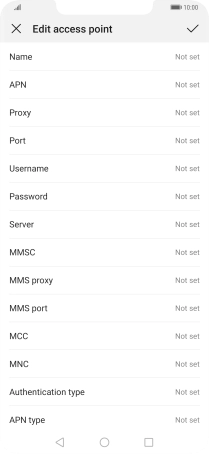

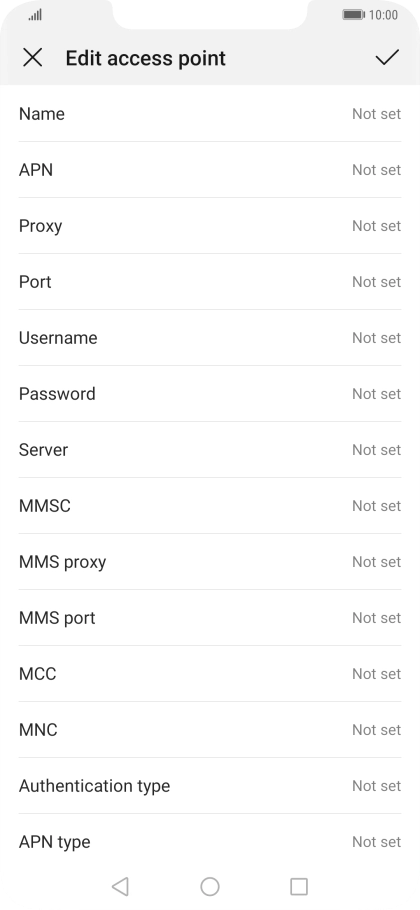

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6e45541b-58d5-4e5c-9628-8b9c3ed91e75.png?width=210&height=454)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-57da0d45-735d-41ab-9569-98436636977b.png?width=210&height=454)
Vodafone MMS
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6e45541b-58d5-4e5c-9628-8b9c3ed91e75.png?width=210&height=454)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7b7a38b0-0505-4549-972f-7c17470269d6.png?width=210&height=454)
live.vodafone.com
5. Enter picture messaging server
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6e45541b-58d5-4e5c-9628-8b9c3ed91e75.png?width=210&height=454)

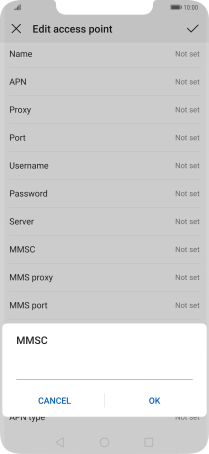

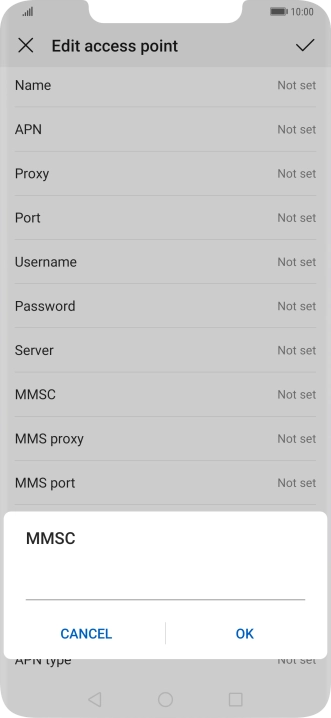

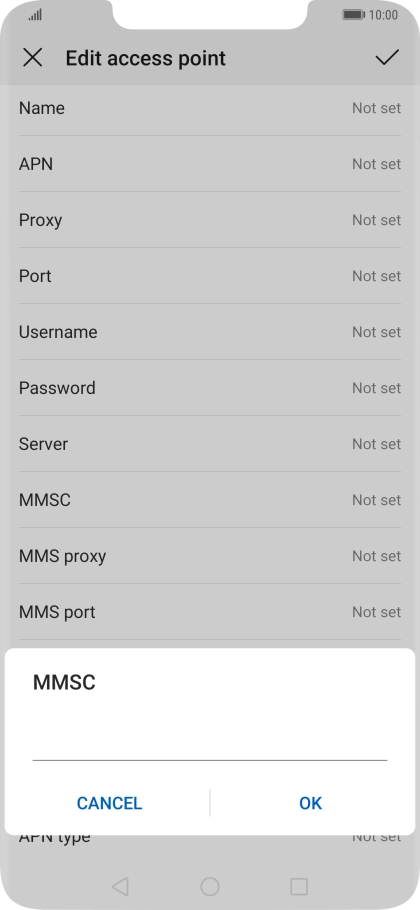

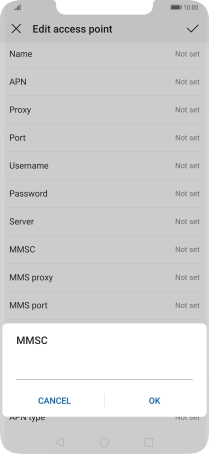

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e8fc1be0-e28a-453b-863a-95a0991f3d00.png?width=210&height=454)
http://pxt.vodafone.net.au/pxtsend
6. Enter IP address

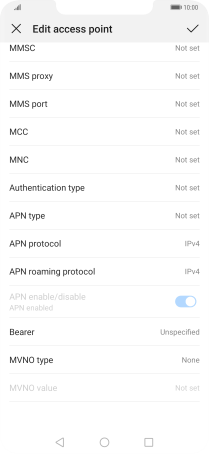

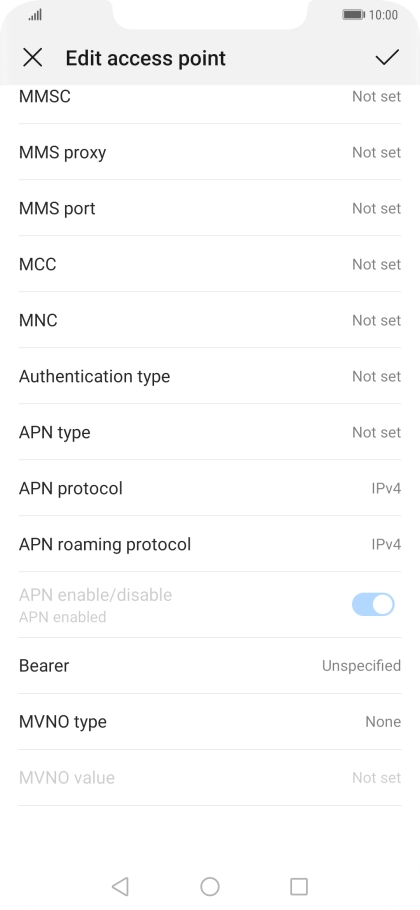

Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)

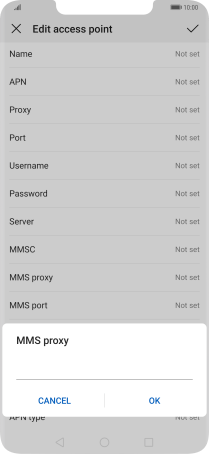

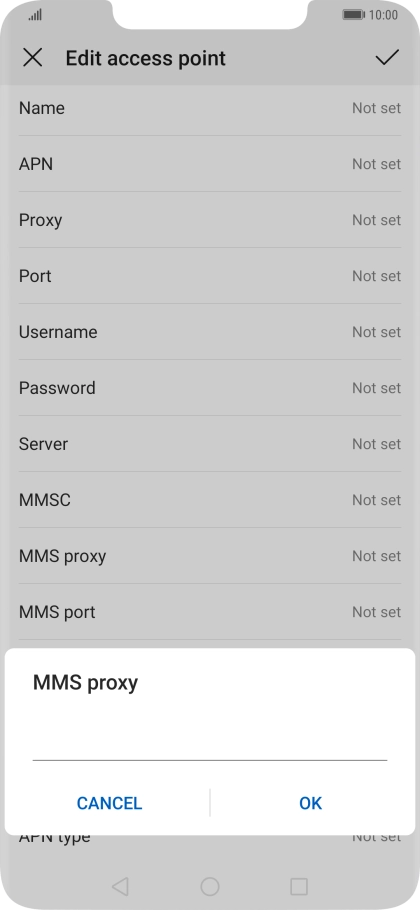

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-87285f91-cffd-4703-b4ae-2f38f60f02fa.png?width=210&height=454)
10.202.002.060
7. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)

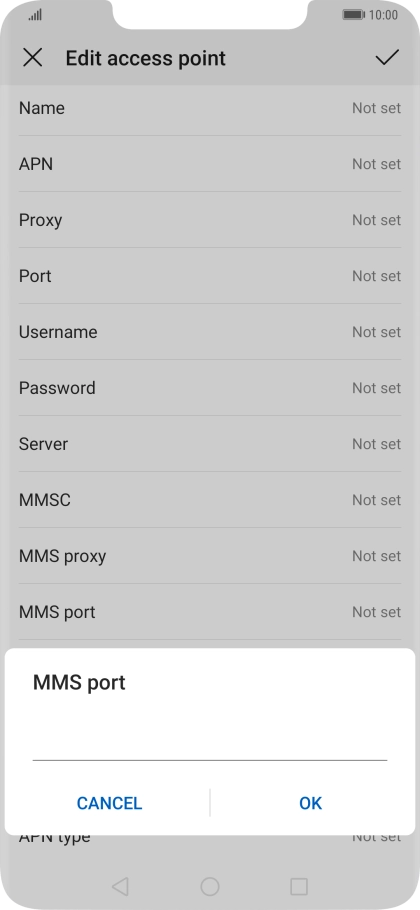

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5bd2124e-3d05-4f04-b1de-db0ce6677c8d.png?width=210&height=454)
8080
8. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b8b74a60-b03b-40b6-9e96-97e6c5f67d06.png?width=210&height=454)
505
9. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)
Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-03965b6c-4285-40ae-89ae-81b08fd35229.png?width=210&height=454)
03
10. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)

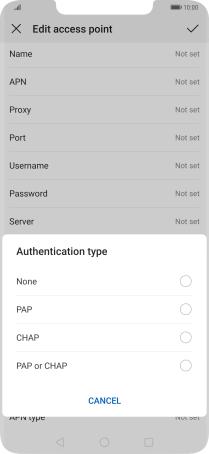

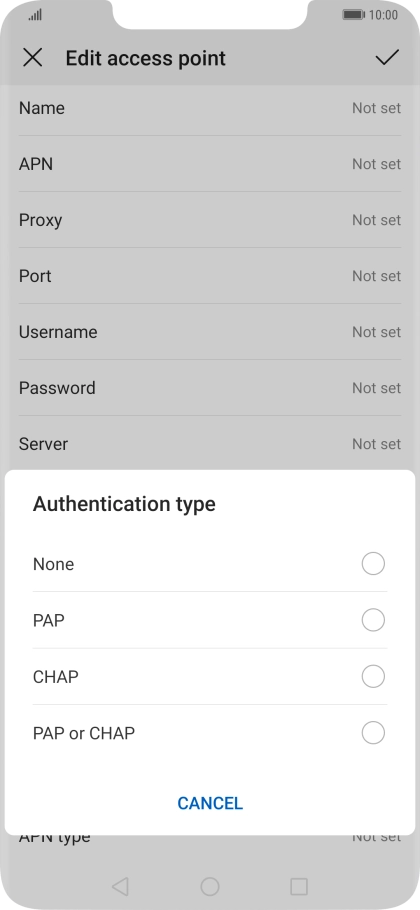

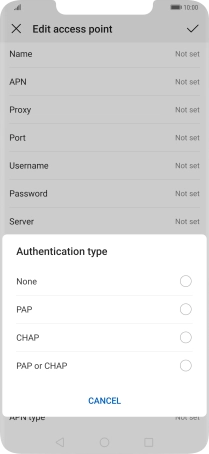

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1b2c85ca-00e6-43e6-933d-8ab84fecd9cb.png?width=210&height=454)
11. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6b1e2f1c-93b3-4f2c-a60a-006c91ad3e20.png?width=210&height=454)
mms
12. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a9e24a18-ca73-4e00-a492-df29bdd592c3.png?width=210&height=454)
13. Return to the home screen

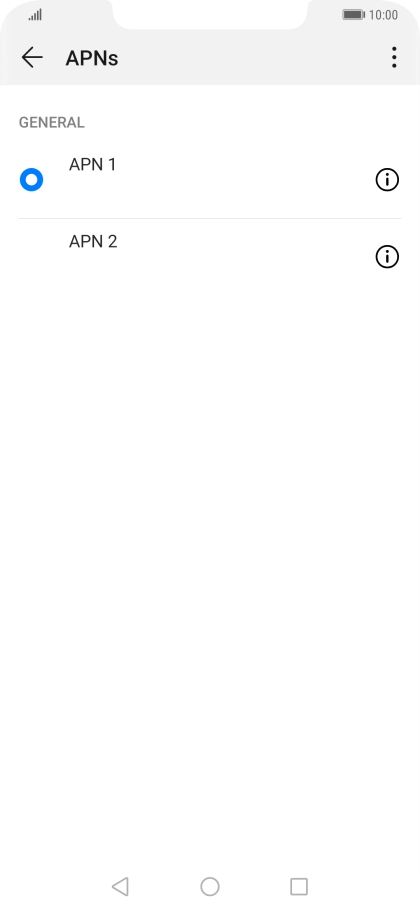

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-697a3ca5-0c8c-4fe9-b796-72049fb94ae8.png?width=210&height=454)
