1. Find "Access Point Names"
Press Settings.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-12db4f76-ea4d-4c48-938d-024a14fe9472.png?width=242&height=386)
Press All.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-5be1d571-34f3-4f7f-85c9-083bcd2d3a9c.png?width=242&height=386)
Press More.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-5be1d571-34f3-4f7f-85c9-083bcd2d3a9c.png?width=242&height=386)

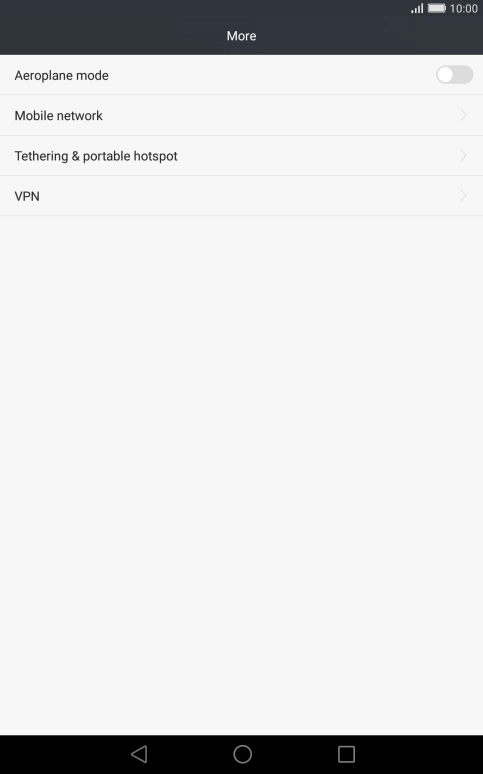

Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-83afc0dc-ae08-4f19-b58d-0134e82bfe03.png?width=242&height=386)

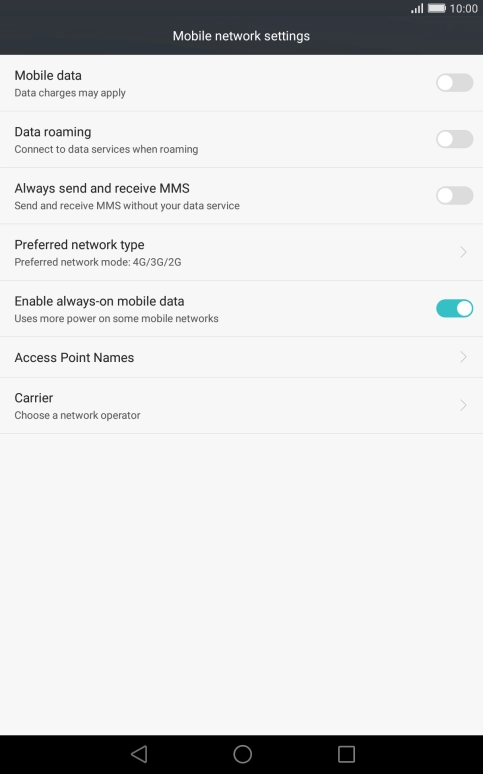

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-22b31089-f09f-44a0-8a64-9ae52efe504d.png?width=242&height=386)
2. Create new data connection

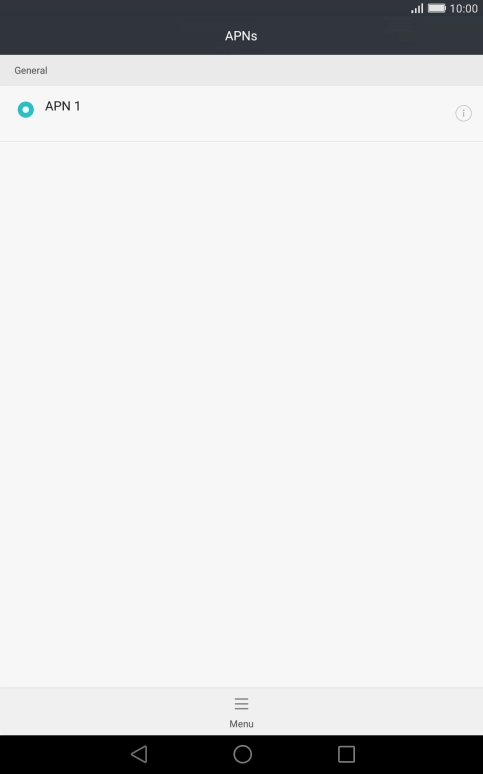

Press Menu.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-235c4e30-6980-44bc-874e-38e63670603b.png?width=242&height=386)

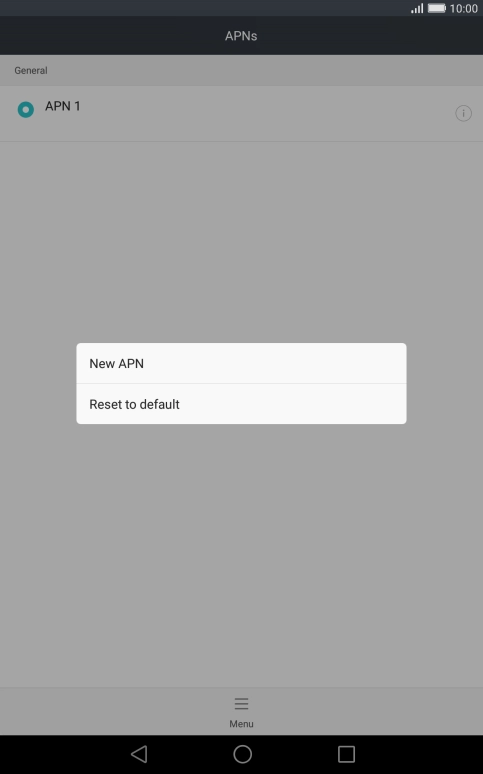

Press New APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d28b2315-5a71-4a38-844f-23d46b9ac211.png?width=242&height=386)

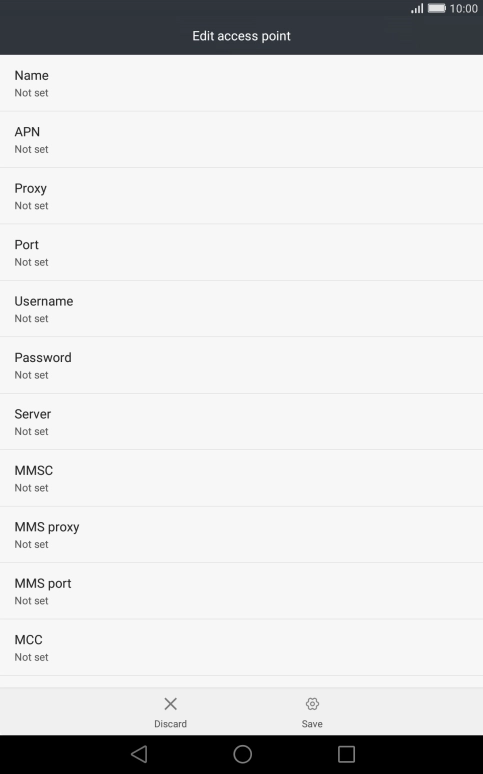

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)
Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-16032e5b-c43d-43ab-9d2e-e130fab0e7e5.png?width=242&height=386)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-e181f4b3-cc6b-4d55-aa3a-f507b12d2fa4.png?width=242&height=386)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)

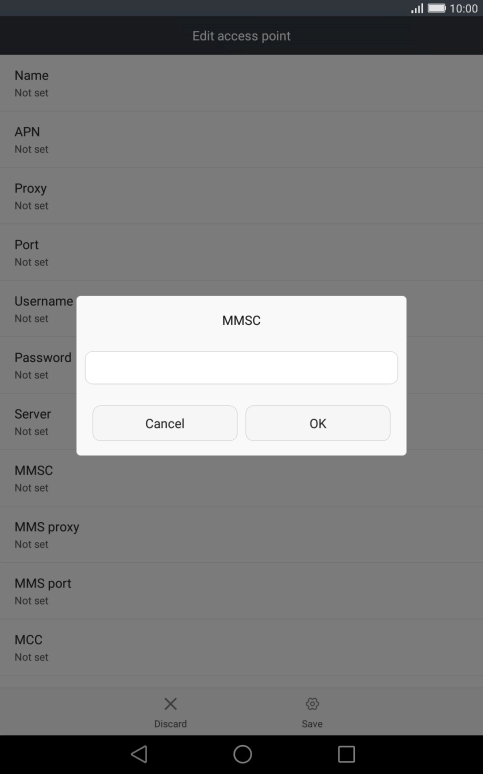

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-a4fc3705-28a4-42f9-974a-7ac0b331b7e3.png?width=242&height=386)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)

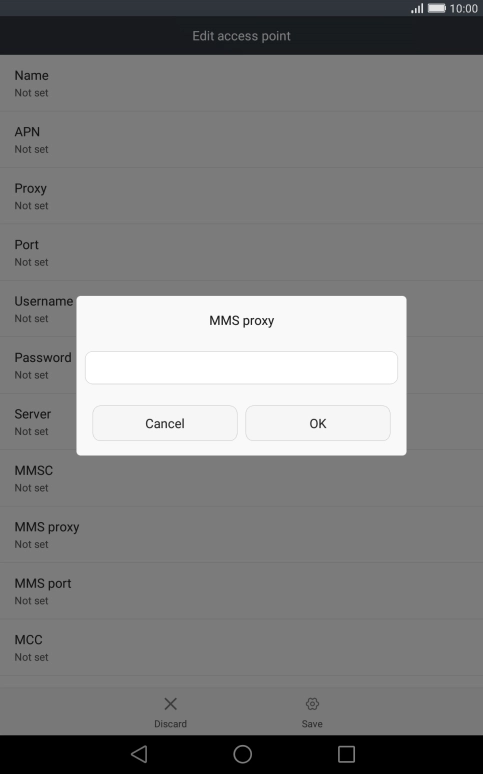

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b9191d42-882b-47c2-93ee-af55a7849e2d.png?width=242&height=386)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)

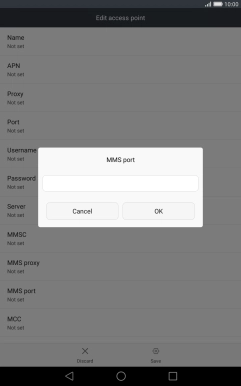

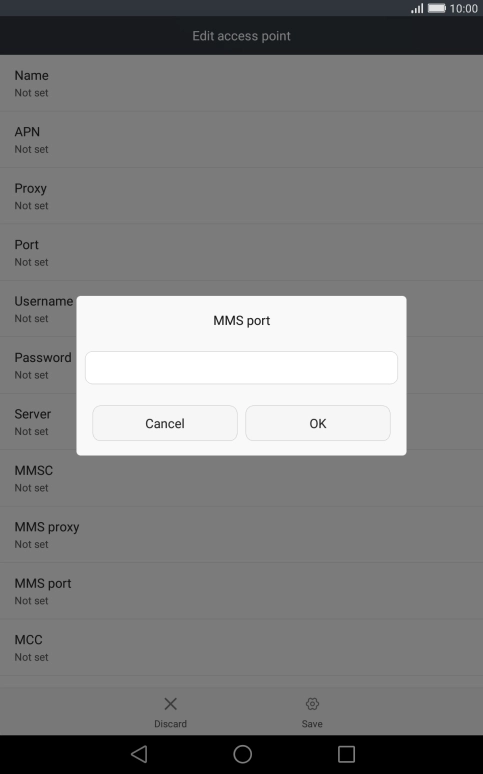

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-9f50d360-4bfe-4755-a2e0-f0972427a063.png?width=242&height=386)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-d6ed83a6-b908-47c8-ac60-316f485db02d.png?width=242&height=386)
Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-f362915d-5311-402a-af34-c4d062f4b603.png?width=242&height=386)
505
8. Enter network code

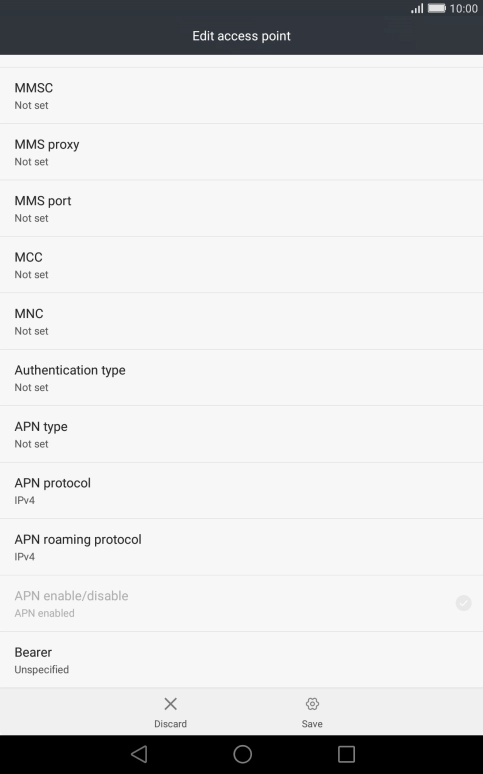

Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-10745ba7-e0e9-4739-a2fd-b954a38cacea.png?width=242&height=386)

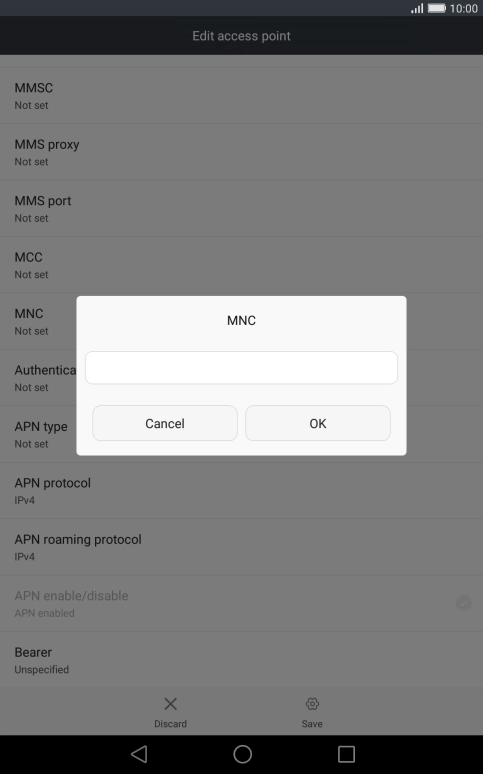

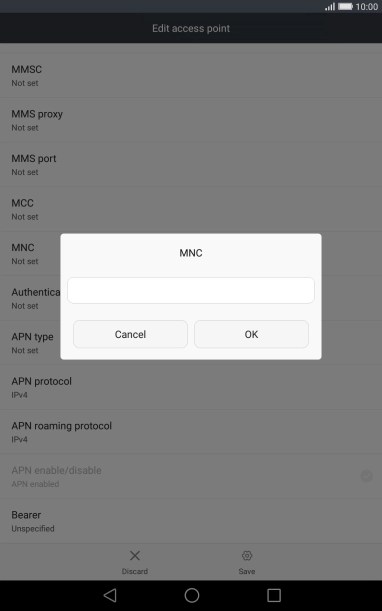

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-e84941ec-ab65-4106-bed7-fd1b73931796.png?width=242&height=386)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-10745ba7-e0e9-4739-a2fd-b954a38cacea.png?width=242&height=386)

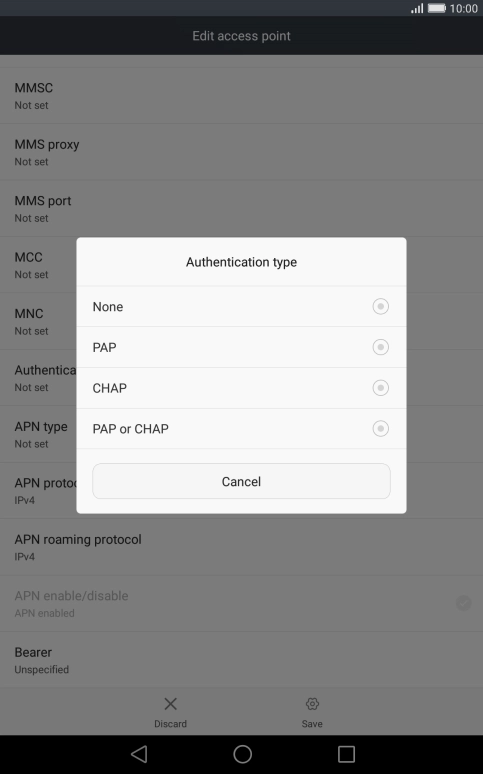

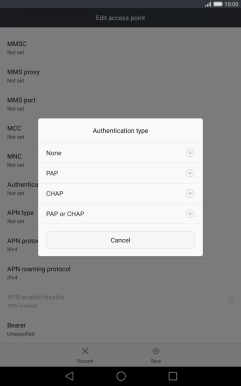

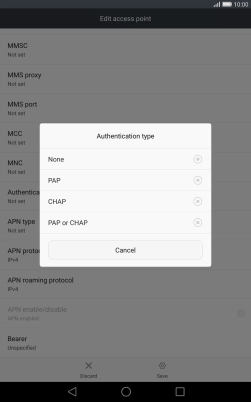

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-5a1fc69f-5401-4781-993b-32a736cafe86.png?width=242&height=386)
10. Select APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-10745ba7-e0e9-4739-a2fd-b954a38cacea.png?width=242&height=386)

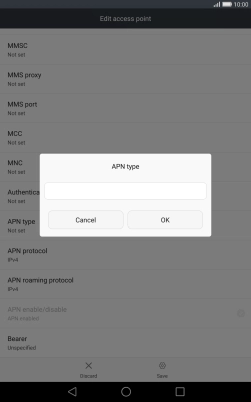

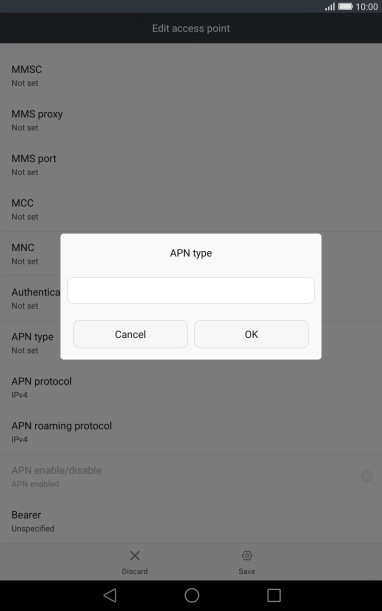

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-9531698b-af9f-407e-8abd-b0440e666336.png?width=242&height=386)
mms
11. Save data connection
Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-10745ba7-e0e9-4739-a2fd-b954a38cacea.png?width=242&height=386)
12. Return to the home screen

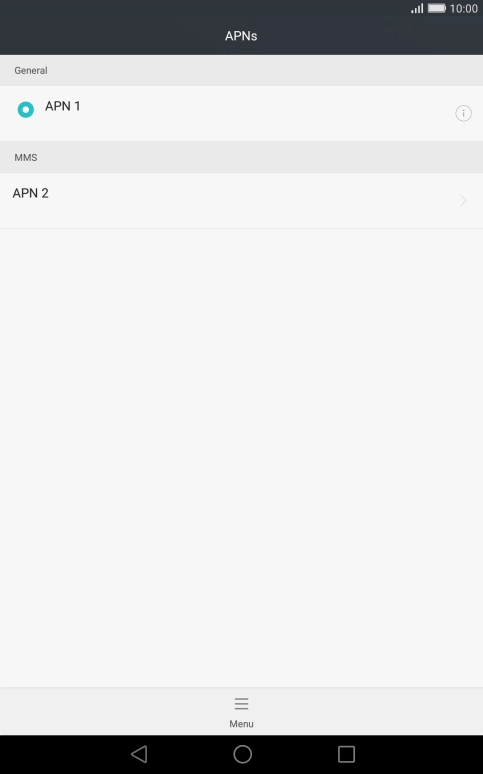

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7291123-f-b4f039c7-f027-4268-95ff-516ceed35792.png?width=242&height=386)
