1. Find "Access Point Names"

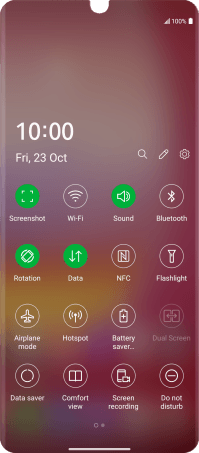

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a40f936e-481e-4e44-b565-0609c1584906.png?width=200&height=454)
Press Network & internet.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-674d1736-969d-4823-8ebe-ae6c8f7933d5.png?width=200&height=454)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e9c57b9f-8ee9-4460-9d00-ab4e37fbcf56.png?width=200&height=454)
Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f8375d1f-53e1-4b80-b5ff-c00d5f34d0e6.png?width=200&height=454)
2. Create new data connection

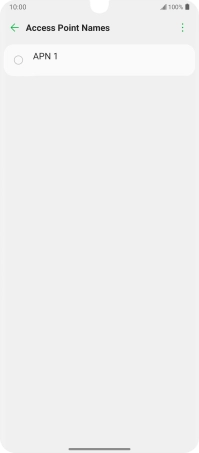

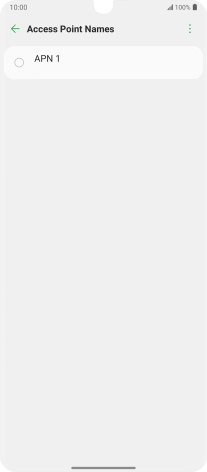

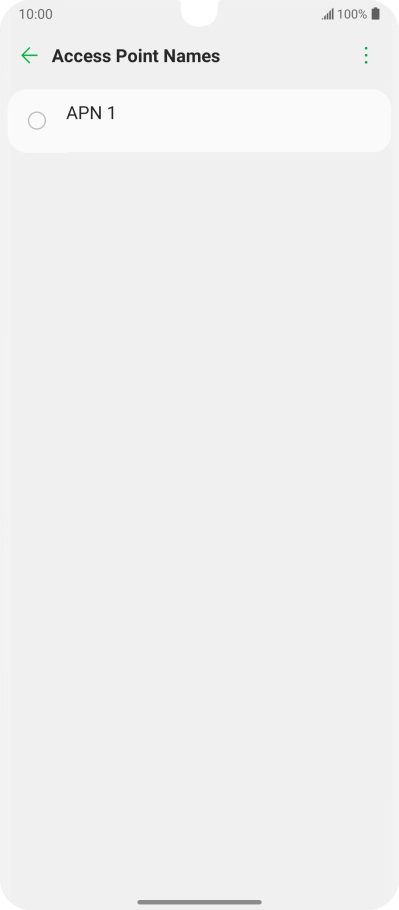

Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9b7edf84-0faf-4d5e-8f39-45805af007b8.png?width=200&height=454)

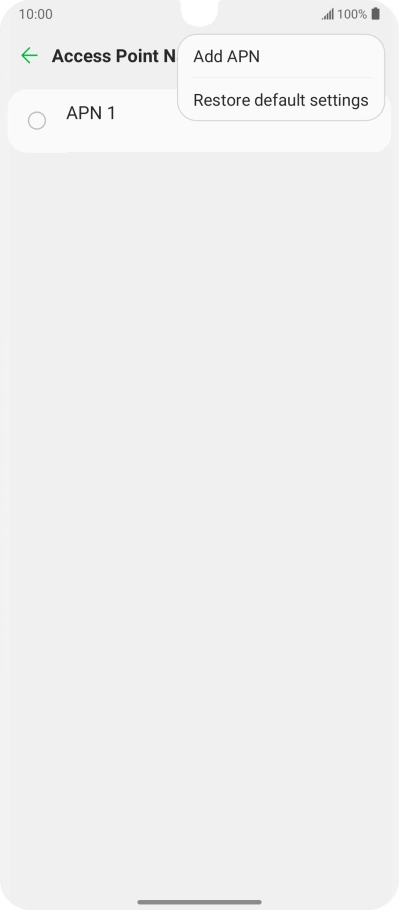

Press Add APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78b16054-77f5-457b-b51b-157644222cc3.png?width=200&height=454)
3. Enter a name for the connection

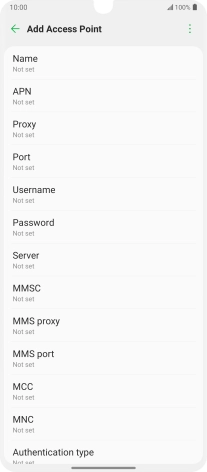

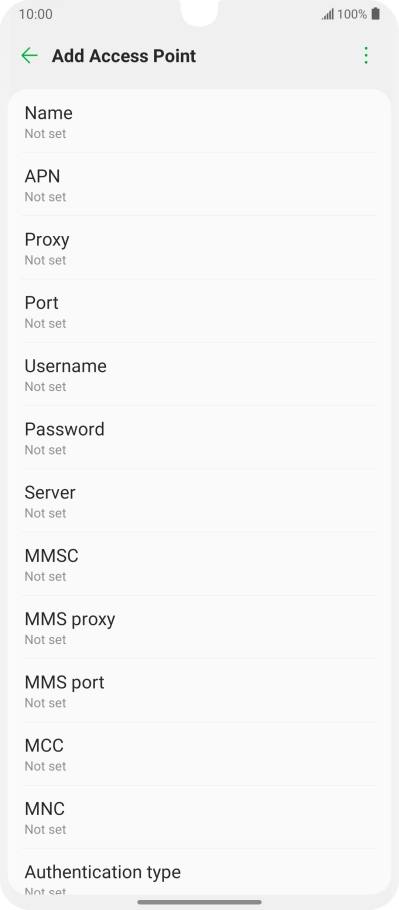

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e0dc217-8c8e-4969-98e4-9fae520c751b.png?width=200&height=454)

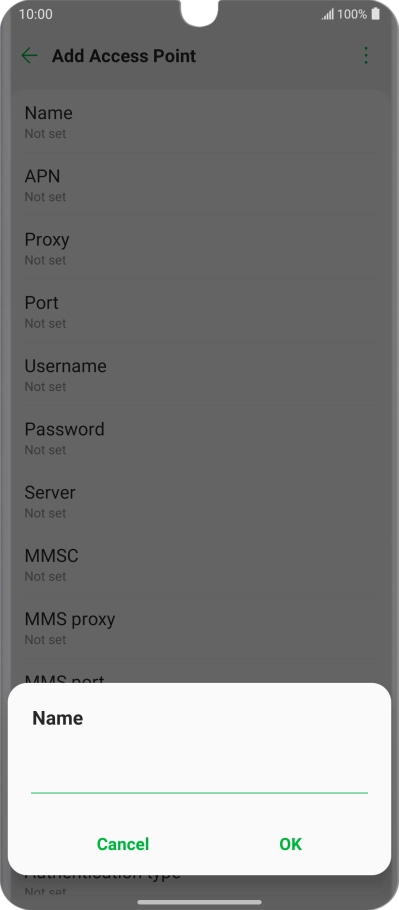

Key in Vodafone Internet and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e8a810db-9a7c-484a-bbad-83ada6a5064f.png?width=200&height=454)
Vodafone Internet
4. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e0dc217-8c8e-4969-98e4-9fae520c751b.png?width=200&height=454)

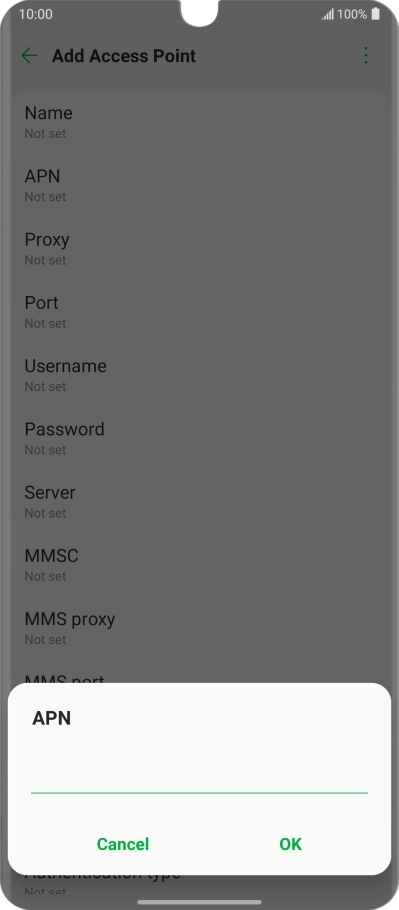

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7fd3345d-cf56-4906-953c-0e2e3744272d.png?width=200&height=454)
live.vodafone.com
5. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e0dc217-8c8e-4969-98e4-9fae520c751b.png?width=200&height=454)

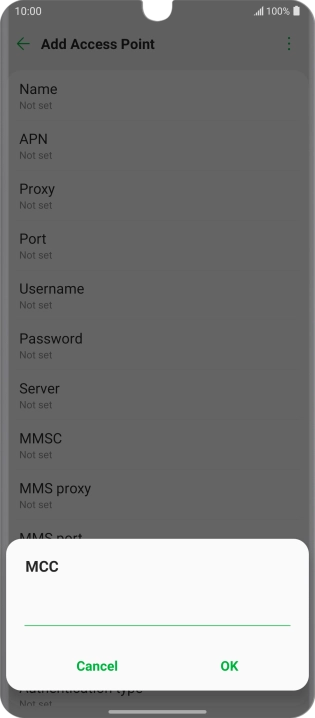

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-997811f6-aee3-4950-84fe-c0d554772f08.png?width=200&height=454)
505
6. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7e0dc217-8c8e-4969-98e4-9fae520c751b.png?width=200&height=454)

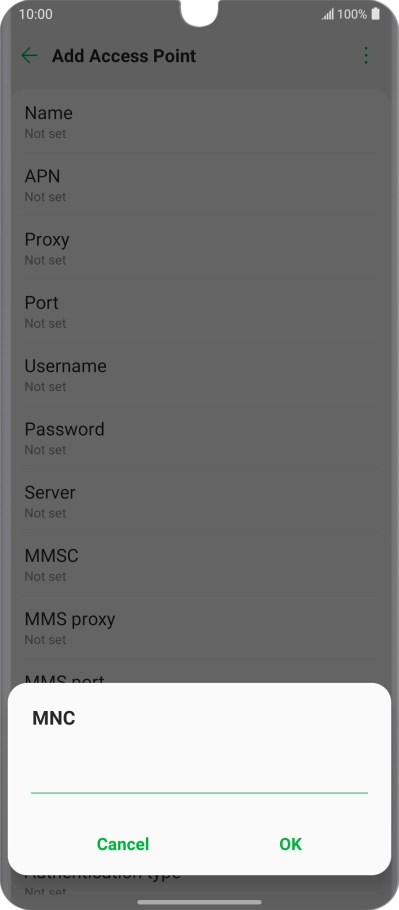

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1c996f81-9956-4256-be3f-dedda573b5bb.png?width=200&height=454)
03
7. Select authentication type

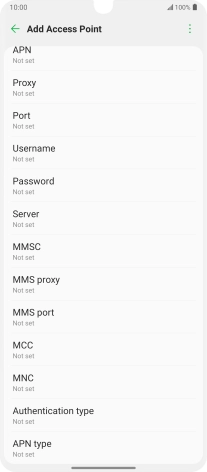

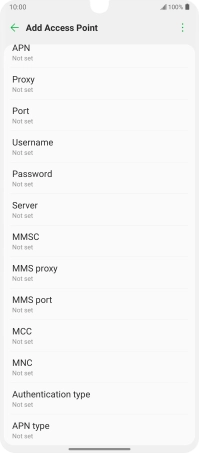

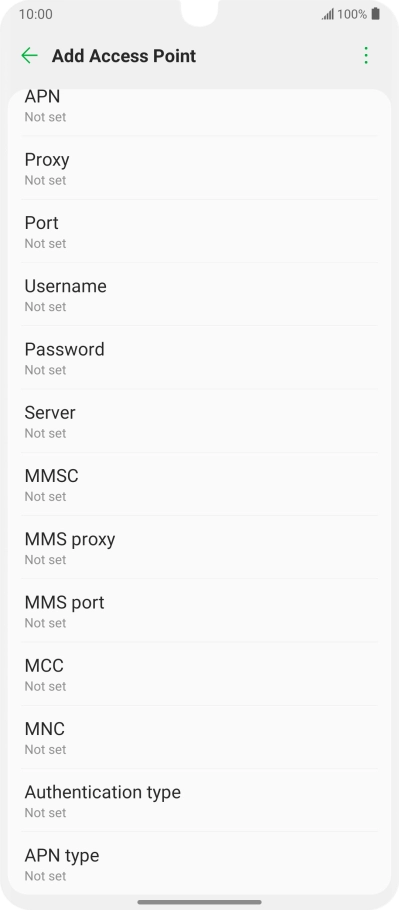

Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2ce1721-7bd9-4da8-aecb-081613b5ccfe.png?width=200&height=454)

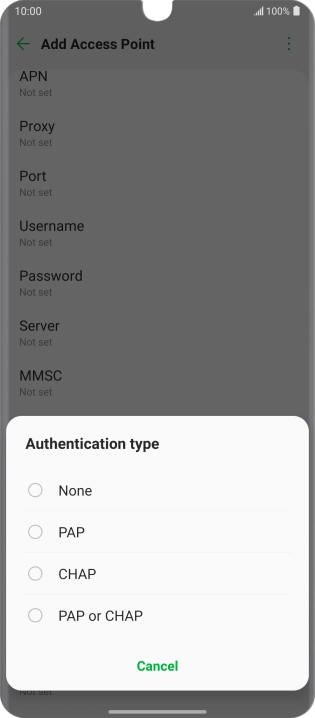

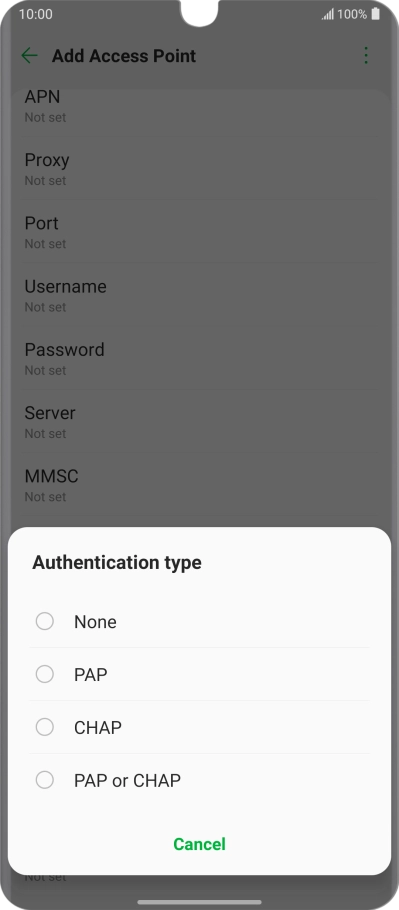

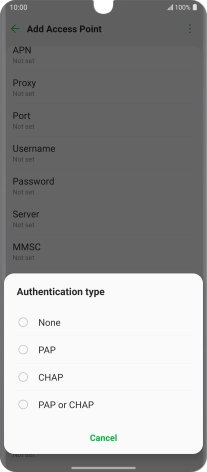

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ce3027d0-d813-4b77-bcb9-31fbcc01cce6.png?width=200&height=454)
8. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2ce1721-7bd9-4da8-aecb-081613b5ccfe.png?width=200&height=454)

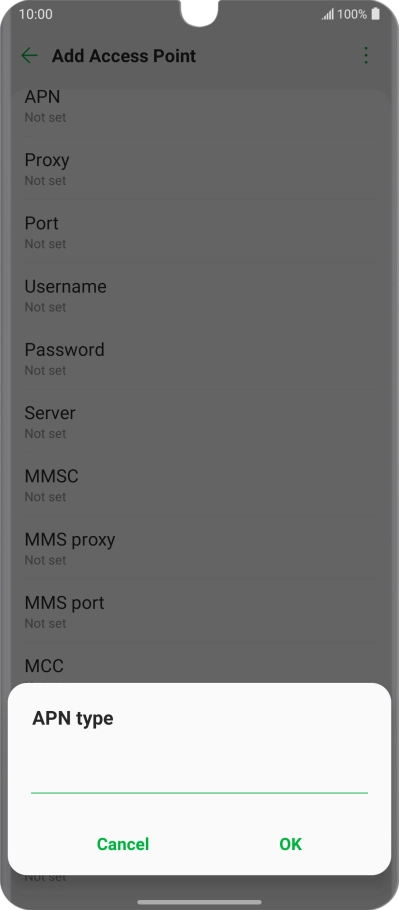

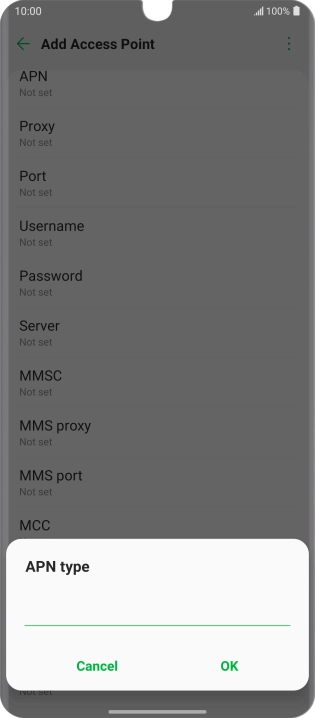

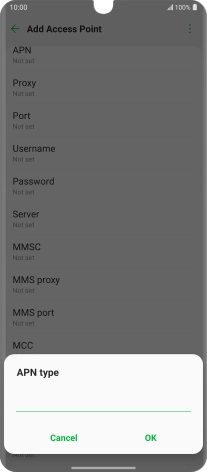

Key in default and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-996a14d6-c9f9-4525-8d01-1b37998c1945.png?width=200&height=454)
default
9. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-b2ce1721-7bd9-4da8-aecb-081613b5ccfe.png?width=200&height=454)

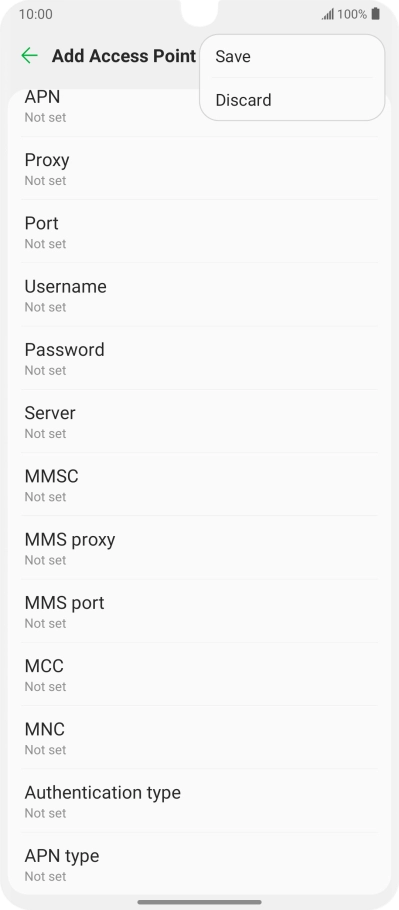

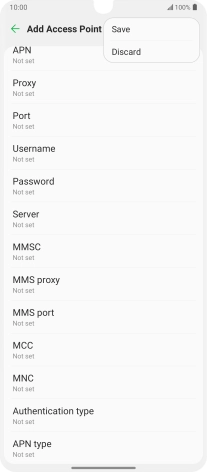

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d1ab3bd0-87f4-47a8-ba5f-687557056674.png?width=200&height=454)

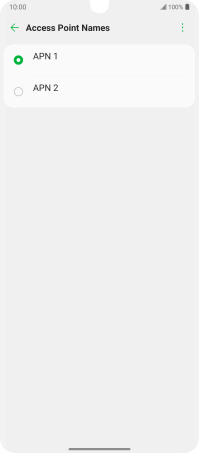

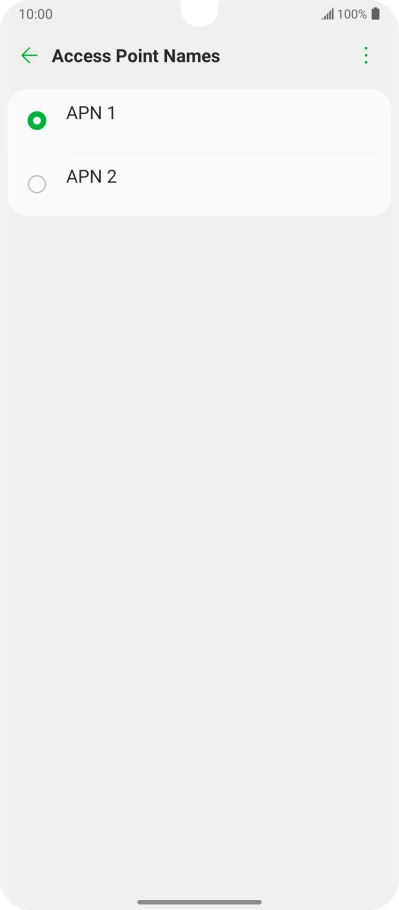

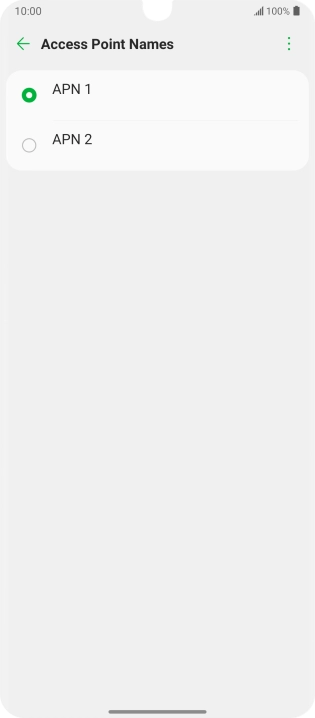

Press the field next to the data connection to activate it.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-2a17ef06-f526-4d21-b846-35f178b07979.png?width=200&height=454)
10. Return to the home screen

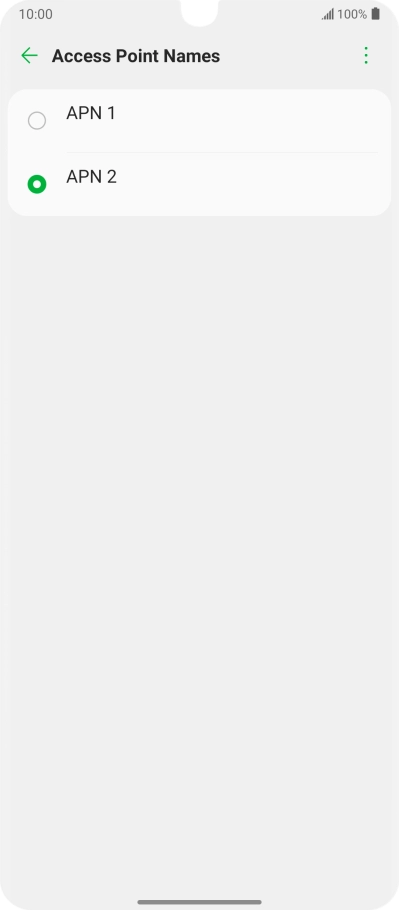

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-8bc56ab6-6558-4a0d-a8a1-dc1ef62c38bc.png?width=200&height=454)
