1. Find "Access Point Names"
Press Settings.
1. Find "Access Point Names"
Press Network & internet.
1. Find "Access Point Names"
Press Mobile networks.

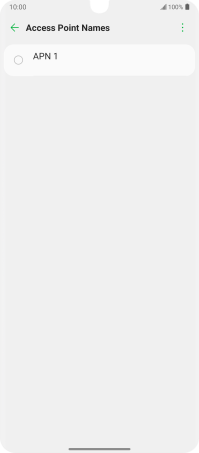

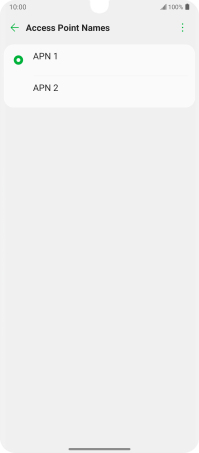

1. Find "Access Point Names"
Press Access Point Names.
2. Create new data connection

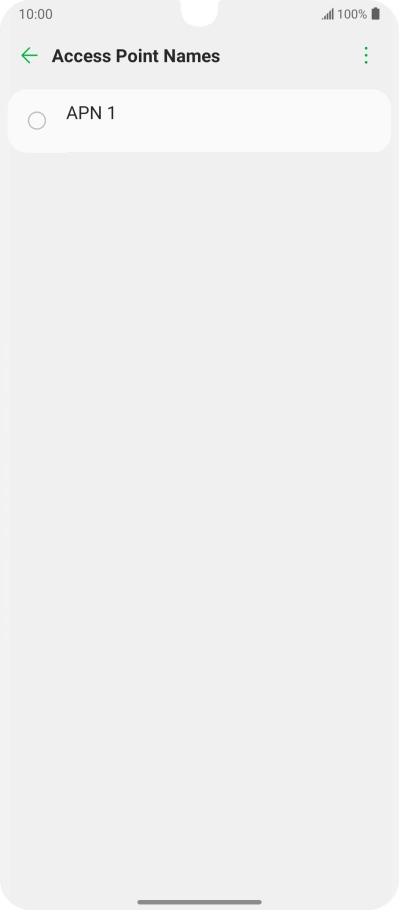

Press the menu icon.
2. Create new data connection

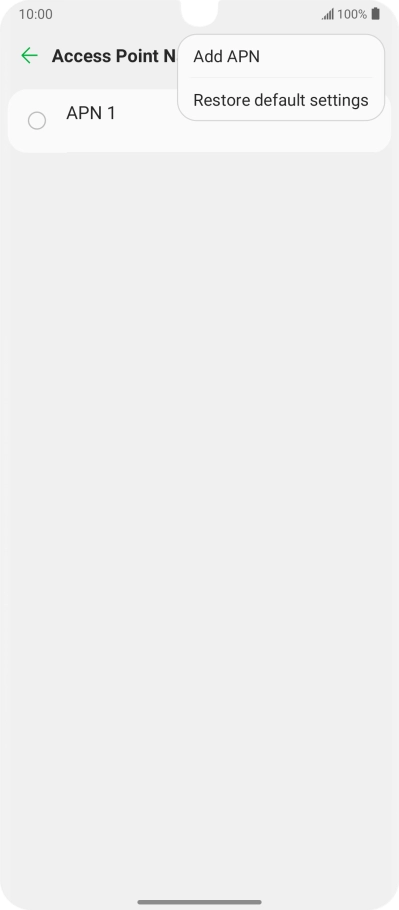

Press Add APN.

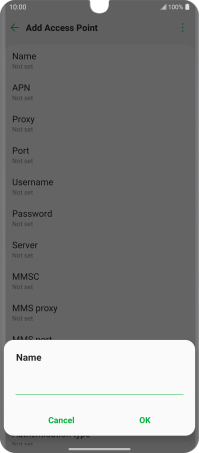

3. Enter a name for the connection

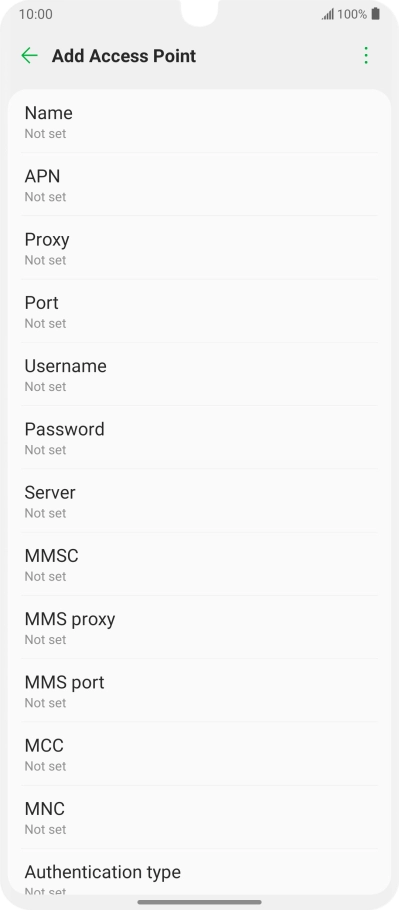

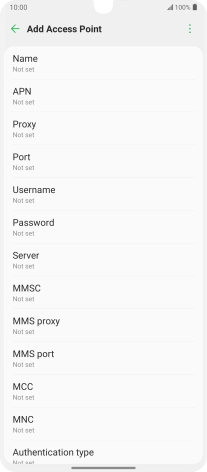

Press Name.
3. Enter a name for the connection
Key in Vodafone MMS and press OK.
4. Enter APN
Press APN.
4. Enter APN

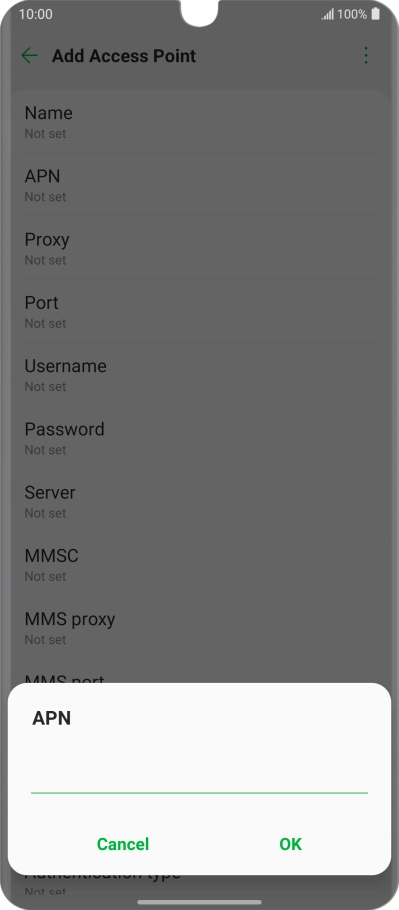

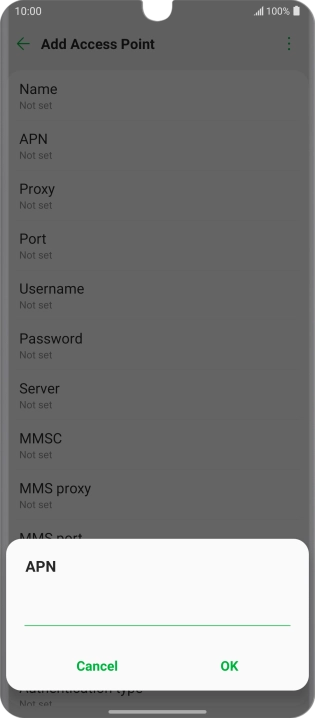

Key in live.vodafone.com and press OK.

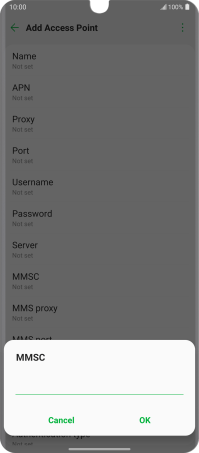

5. Enter MMSC
Press MMSC.
5. Enter MMSC

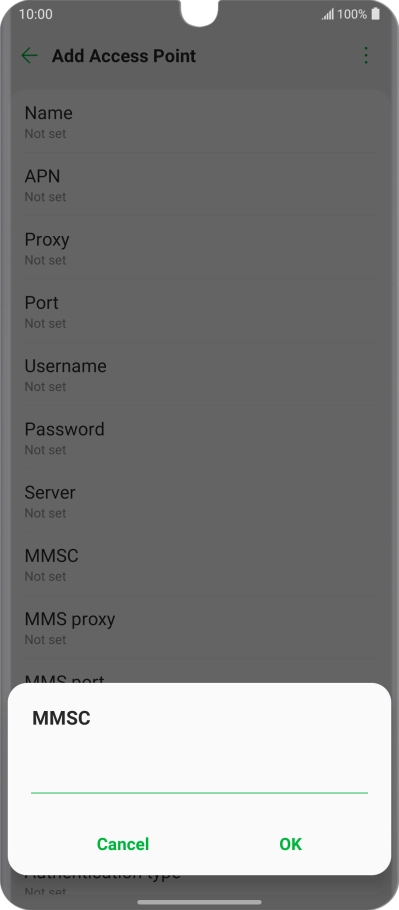

Key in http://pxt.vodafone.net.au/pxtsend and press OK.

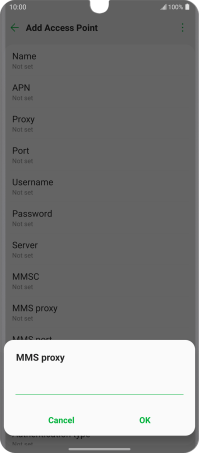

6. Enter IP address
Press MMS proxy.
6. Enter IP address

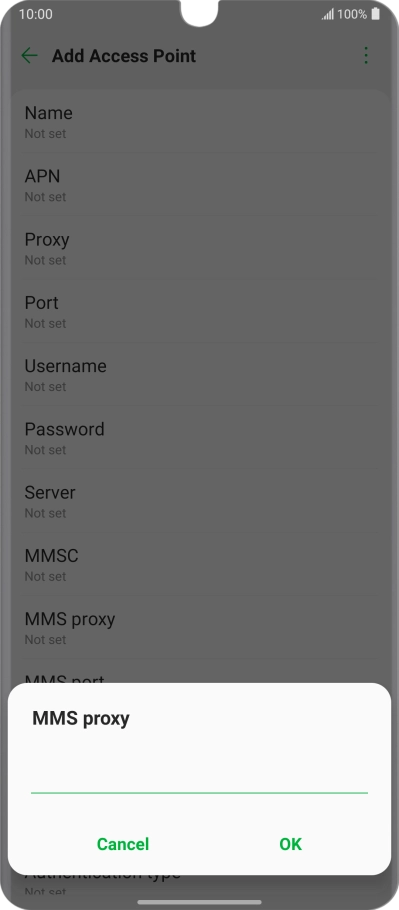

Key in 10.202.002.060 and press OK.
7. Enter port number

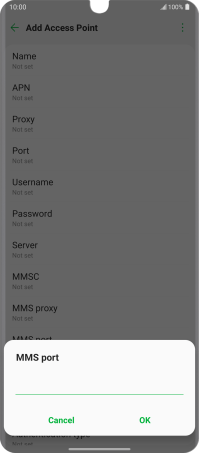

Press MMS port.
7. Enter port number

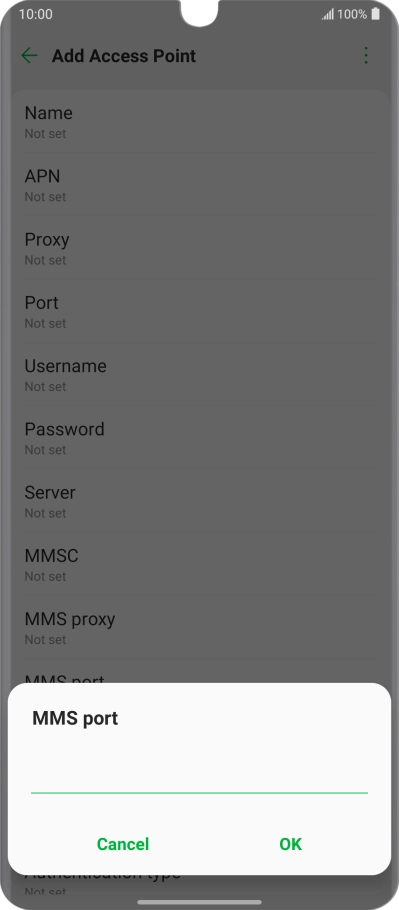

Key in 8080 and press OK.
8. Enter country code
Press MCC.
8. Enter country code

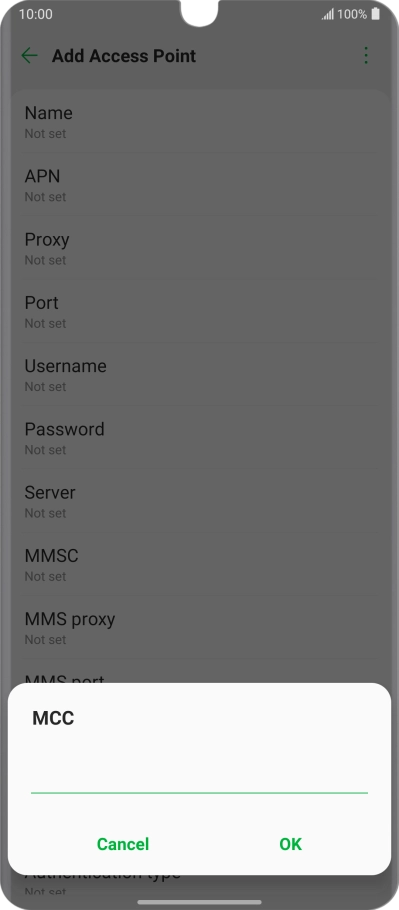

Key in 505 and press OK.
9. Enter network code
Press MNC.
9. Enter network code

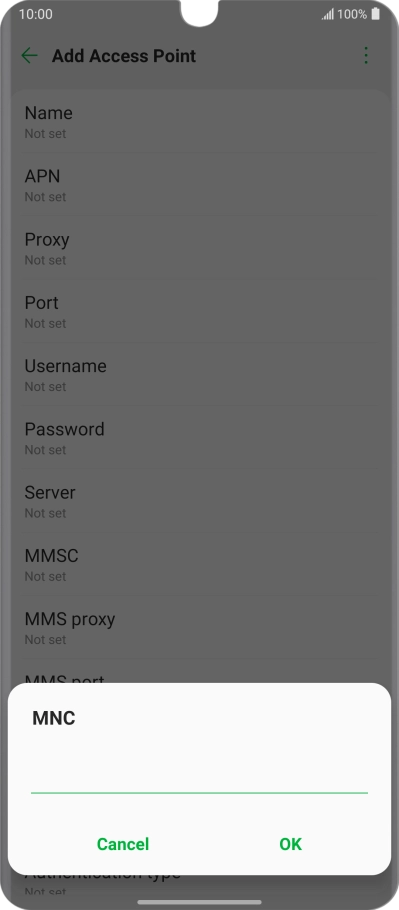

Key in 03 and press OK.

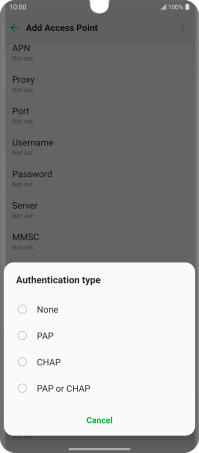

10. Select authentication type

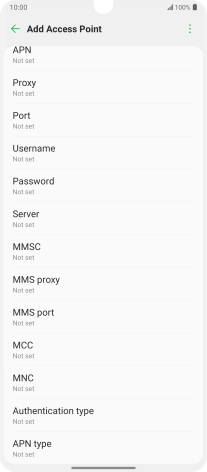

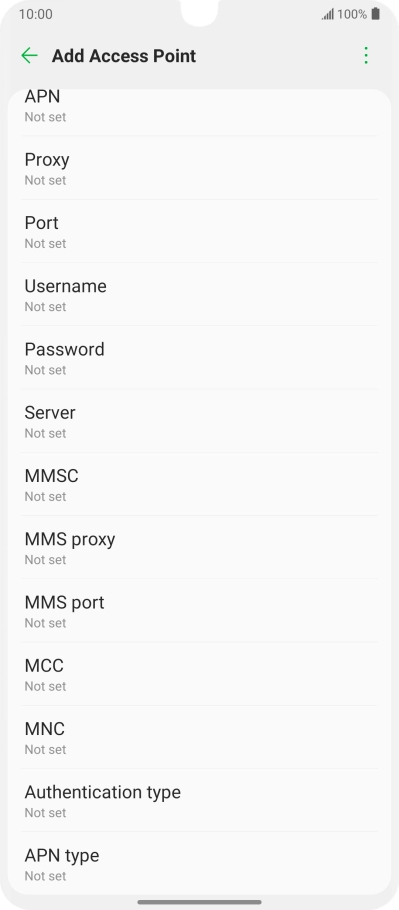

Press Authentication type.
10. Select authentication type

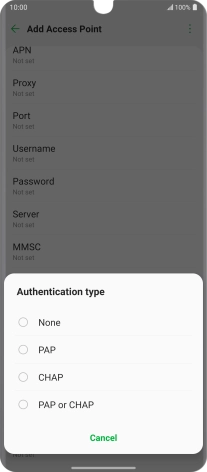

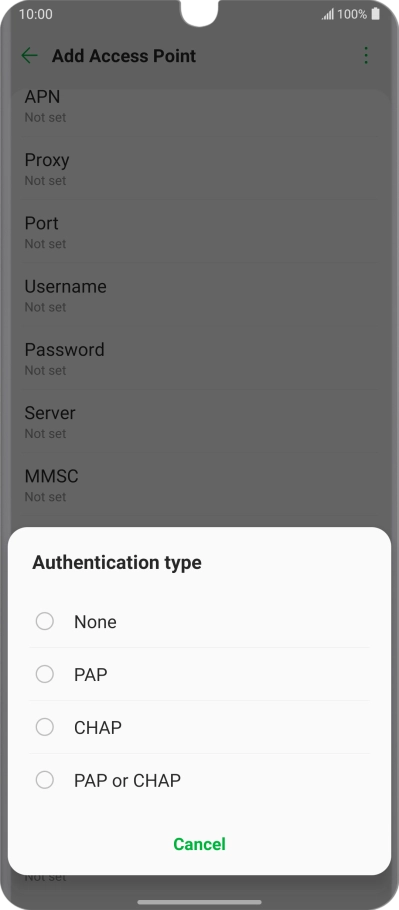

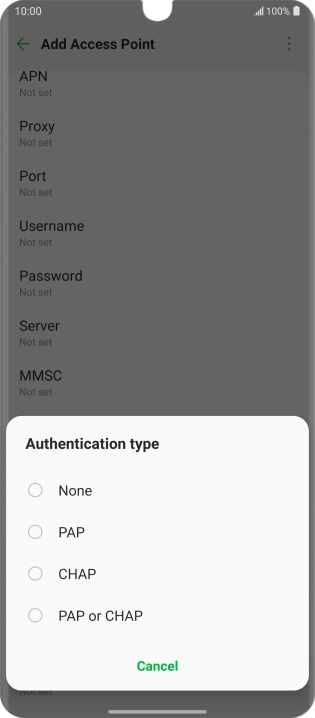

Press PAP.

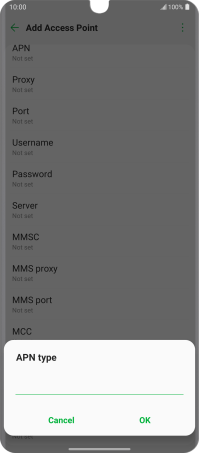

11. Enter APN type
Press APN type.
11. Enter APN type

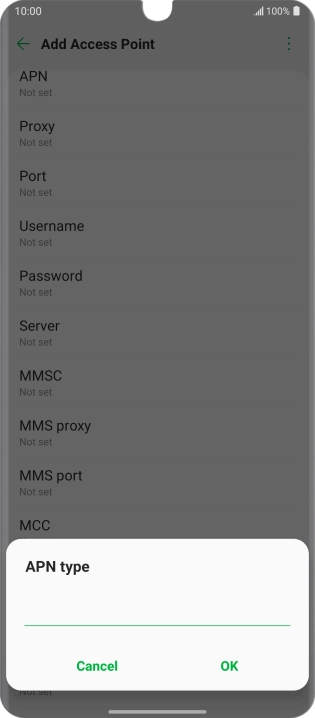

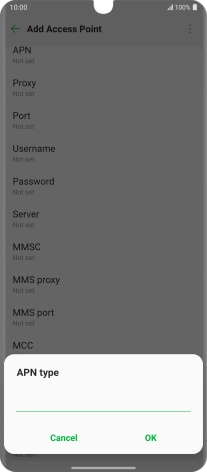

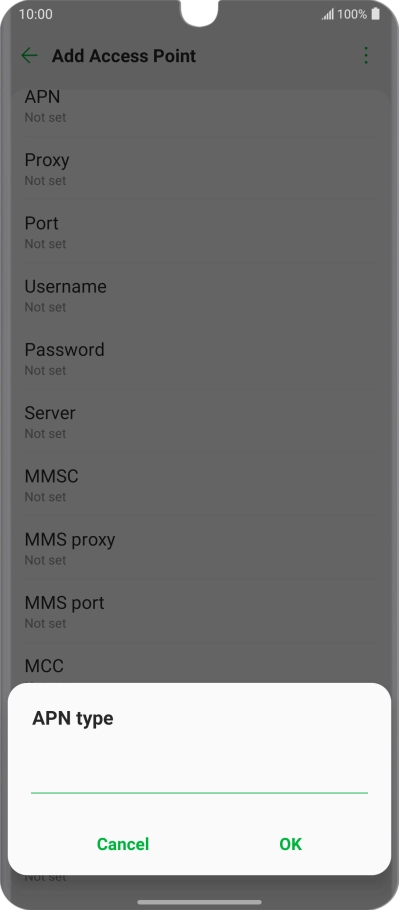

Key in mms and press OK.

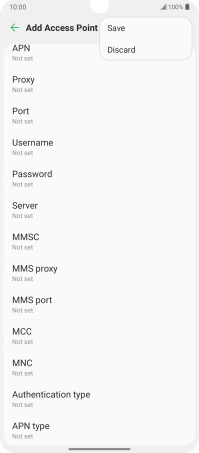

12. Save data connection

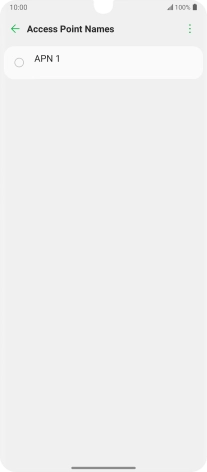

Press the menu icon.
12. Save data connection

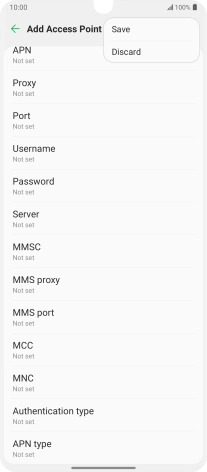

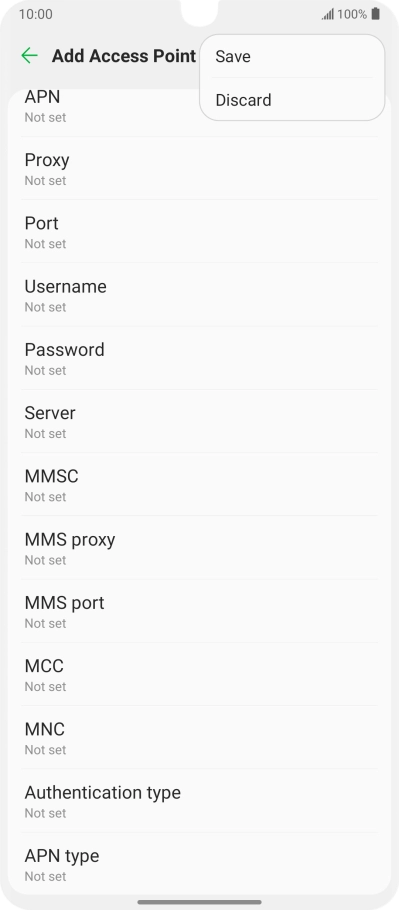

Press Save.
13. Return to the home screen

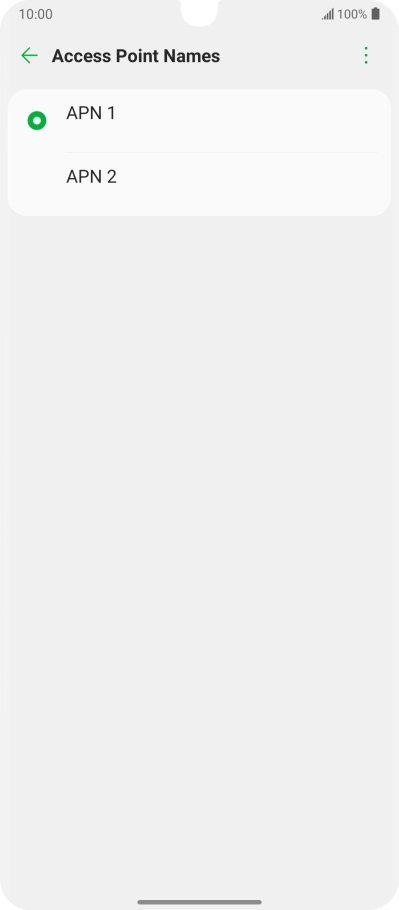

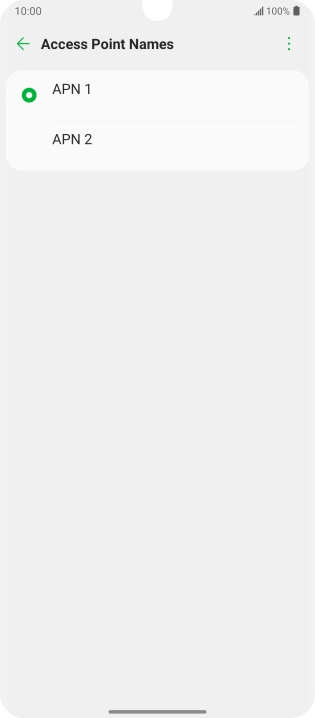

Slide your finger upwards starting from the bottom of the screen to return to the home screen.
