Set up your phone for POP3 email - Nokia C2-01

Read help info

If you're using a POP3 email account in your email application on your computer, you can also set it up on your phone. Follow these instructions to set up your phone for POP3 email.
Please note that these instructions are based on a POP3 email account. If you have a web-based email account, such as Hotmail, Yahoo! Mail or Gmail, you need to use the settings for web-based email. Click here for information on how to the set up your phone for web-based email.

Step 1 of 46

Find "Personal config. sett."

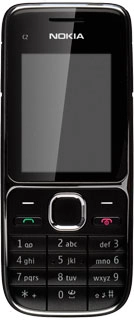

Press the Navigation key.

Step 2 of 46

Find "Personal config. sett."

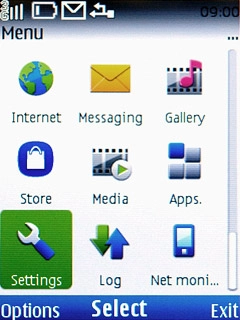

Scroll to Settings and press the Navigation key.

Step 3 of 46

Find "Personal config. sett."

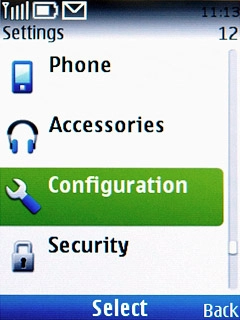

Scroll to Configuration and press the Navigation key.

Step 4 of 46

Find "Personal config. sett."

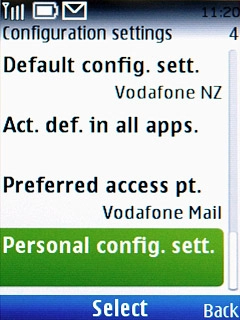

Scroll to Personal config. sett. and press the Navigation key.

Step 5 of 46

Create new data connection

Press Options.

Step 6 of 46

Create new data connection

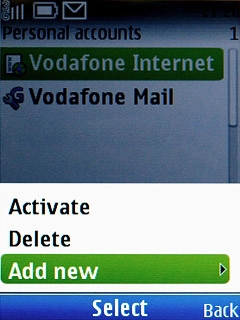

Scroll to Add new and press the Navigation key.

Step 7 of 46

Create new data connection

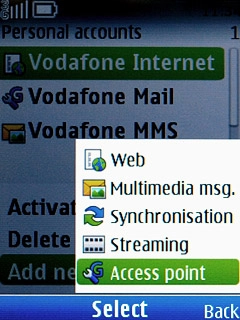

Scroll to Access point and press the Navigation key.

Step 8 of 46

Enter data connection name

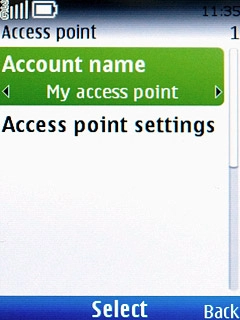

Scroll to Account name and press the Navigation key.

Step 9 of 46

Enter data connection name

Key in Vodafone Mail and press the Navigation key.

Step 10 of 46

Edit bearer settings

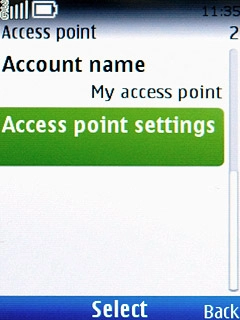

Scroll to Access point settings and press the Navigation key.

Step 11 of 46

Edit bearer settings

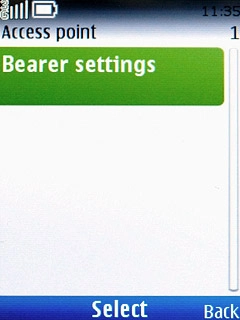

Scroll to Bearer settings and press the Navigation key.

Step 12 of 46

Enter APN

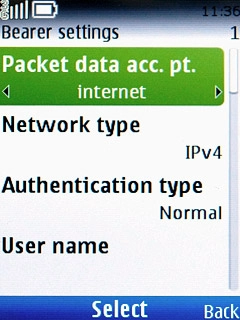

Scroll to Packet data acc. pt. and press the Navigation key.
Key in live.vodafone.com

Step 13 of 46

Enter APN

Press the Navigation key.

Step 14 of 46

Select authentication type

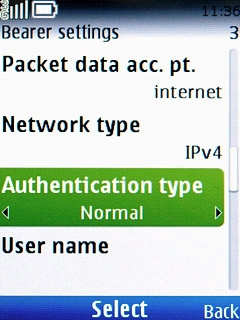

Scroll to Authentication type and press the Navigation key.

Step 15 of 46

Select authentication type

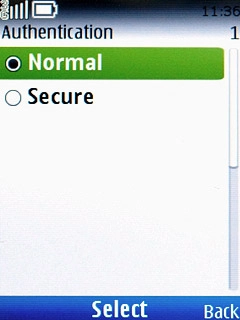

Scroll to Normal and press the Navigation key.

Step 16 of 46

Activate data connection

Press Back three times to return to the list of data connections.

Step 17 of 46

Activate data connection

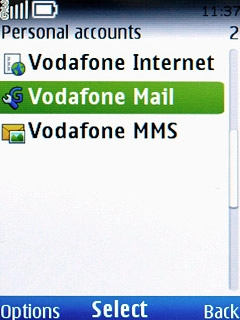

Scroll to Vodafone Mail and press Options.

Step 18 of 46

Activate data connection

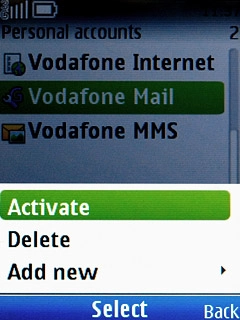

Scroll to Activate and press the Navigation key.

Step 19 of 46

Activate data connection

Press Disconnect to return to standby mode.

Step 20 of 46

Find "E-mail"

Press the Navigation key.

Step 21 of 46

Find "E-mail"

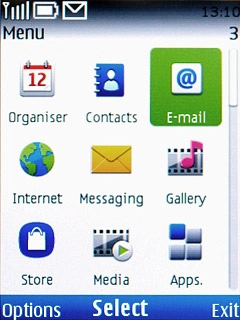

Scroll to E-mail and press the Navigation key.

Step 22 of 46

Create new email account

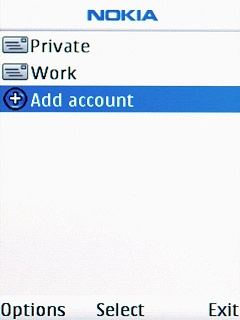

If email accounts have been created already:
Scroll to Add account and press the Navigation key.

Step 23 of 46

Create new email account

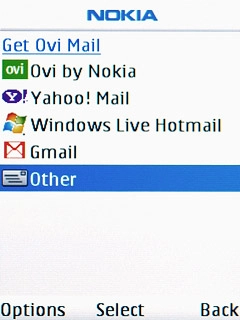

Scroll to Other and press the Navigation key.

Nokia C2-01
Step 24 of 46

Enter email address

Key in your email address.

Step 25 of 46

Enter password

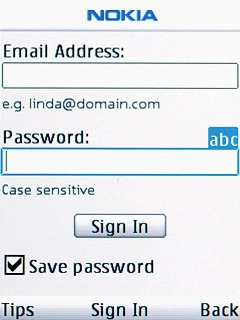

Scroll to Password and key in the password for your email account.

Step 26 of 46

Enter password

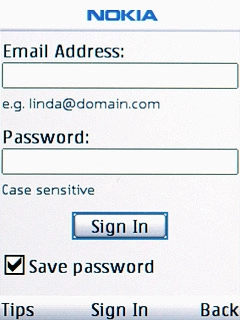

Scroll to Sign In and press the Navigation key.
Your phone logs on to the email account.

Step 27 of 46

Enter password

Press the Navigation key.

Nokia C2-01
Step 28 of 46

Enter username

Key in the username for your email account.

Step 29 of 46

Select account type

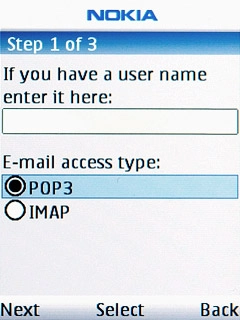

Scroll to POP3 and press the Navigation key.

Step 30 of 46

Select account type

Press Next.

Step 31 of 46

Enter incoming server

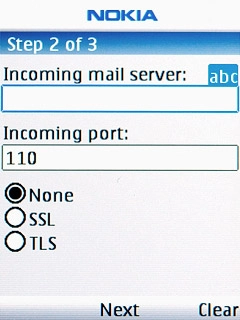

Scroll to Incoming mail server and key in the name or the IP address of your email provider's incoming server.

Step 32 of 46

Enter incoming port

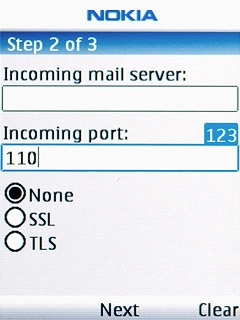

Scroll to Incoming port and key in 110

Step 33 of 46

Turn off SSL encryption of incoming email messages

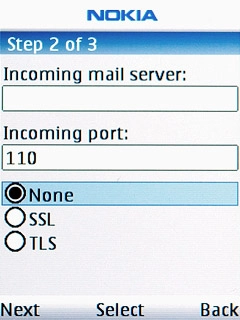

Scroll to None and press the Navigation key.

Step 34 of 46

Turn off SSL encryption of incoming email messages

Press Next.

Step 35 of 46

Enter outgoing server

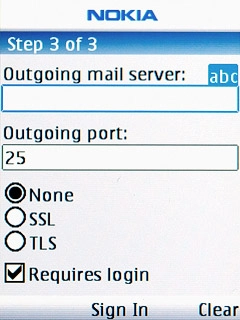

Scroll to Outgoing mail server and key in the name or the IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

Step 36 of 46

Enter outgoing port

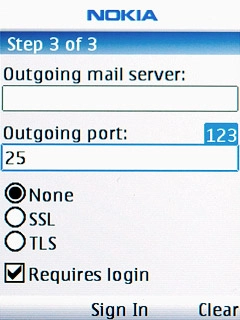

Scroll to Outgoing port and key in 25

Step 37 of 46

Turn off SSL encryption of outgoing email messages

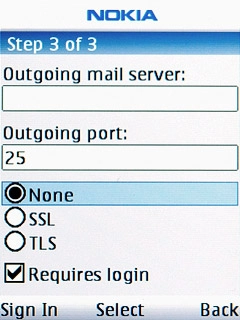

Scroll to None and press the Navigation key.

Step 38 of 46

Turn SMTP authentication on or off

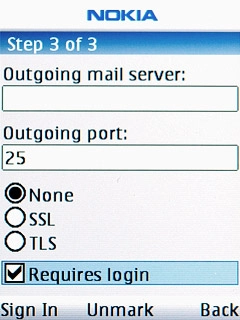

Scroll to Requires login and press the Navigation key to turn SMTP authentication on or off.
Please note that if you're using Vodafone's outgoing server, you need to turn off SMTP authentication.

Step 39 of 46

Turn SMTP authentication on or off

Press Sign In to log on.

Step 40 of 46

Enter email account name

Press Sign out.

Step 41 of 46

Enter email account name

Press the Navigation key to confirm.

Step 42 of 46

Enter email account name

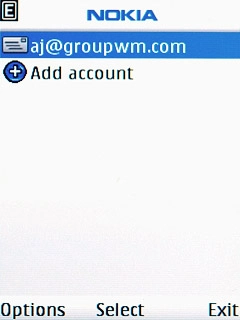

Highlight the required email account and press Options.

Step 43 of 46

Enter email account name

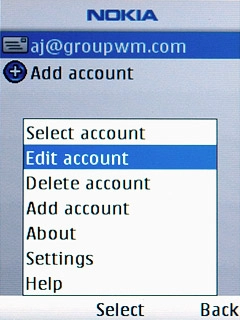

Scroll to Edit account and press the Navigation key.

Step 44 of 46

Enter email account name

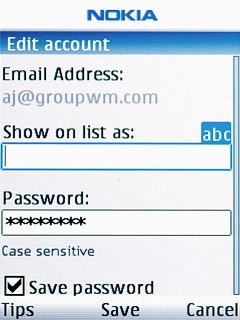

Scroll to Show on list as and key in a name for the email account (such as "Private" or "Work").

Step 45 of 46

Enter email account name

Press the Navigation key to save.

Step 46 of 46

Exit

Press Disconnect to return to standby mode.

1. Find "Personal config. sett."

Press the Navigation key.
Scroll to Settings and press the Navigation key.
Scroll to Configuration and press the Navigation key.
Scroll to Personal config. sett. and press the Navigation key.

2. Create new data connection

Press Options.
Scroll to Add new and press the Navigation key.
Scroll to Access point and press the Navigation key.

3. Enter data connection name

Scroll to Account name and press the Navigation key.
Key in Vodafone Mail and press the Navigation key.

4. Edit bearer settings

Scroll to Access point settings and press the Navigation key.
Scroll to Bearer settings and press the Navigation key.

5. Enter APN

Scroll to Packet data acc. pt. and press the Navigation key.
Key in live.vodafone.com
Press the Navigation key.

6. Select authentication type

Scroll to Authentication type and press the Navigation key.
Scroll to Normal and press the Navigation key.

7. Activate data connection

Press Back three times to return to the list of data connections.
Scroll to Vodafone Mail and press Options.
Scroll to Activate and press the Navigation key.
Press Disconnect to return to standby mode.

8. Find "E-mail"

Press the Navigation key.
Scroll to E-mail and press the Navigation key.

9. Create new email account

If email accounts have been created already:
Scroll to Add account and press the Navigation key.
Scroll to Other and press the Navigation key.

10. Enter email address

Key in your email address.
Nokia C2-01

11. Enter password

Scroll to Password and key in the password for your email account.
Scroll to Sign In and press the Navigation key.
Your phone logs on to the email account.
Press the Navigation key.

12. Enter username

Key in the username for your email account.
Nokia C2-01

13. Select account type

Scroll to POP3 and press the Navigation key.
Press Next.

14. Enter incoming server

Scroll to Incoming mail server and key in the name or the IP address of your email provider's incoming server.

15. Enter incoming port

Scroll to Incoming port and key in 110

16. Turn off SSL encryption of incoming email messages

Scroll to None and press the Navigation key.
Press Next.

17. Enter outgoing server

Scroll to Outgoing mail server and key in the name or the IP address of your email provider's outgoing server.
Please note that if you can't send email messages when using your email provider's outgoing server, key in smtp.vodafone.net.au (Vodafone's outgoing server).

18. Enter outgoing port

Scroll to Outgoing port and key in 25

19. Turn off SSL encryption of outgoing email messages

Scroll to None and press the Navigation key.

20. Turn SMTP authentication on or off

Scroll to Requires login and press the Navigation key to turn SMTP authentication on or off.
Please note that if you're using Vodafone's outgoing server, you need to turn off SMTP authentication.
Press Sign In to log on.

21. Enter email account name

Press Sign out.
Press the Navigation key to confirm.
Highlight the required email account and press Options.
Scroll to Edit account and press the Navigation key.
Scroll to Show on list as and key in a name for the email account (such as "Private" or "Work").
Press the Navigation key to save.

22. Exit

Press Disconnect to return to standby mode.
