Guide for the Nokia Lumia 925 - Set up your phone for picture messaging

Step 1 of 18

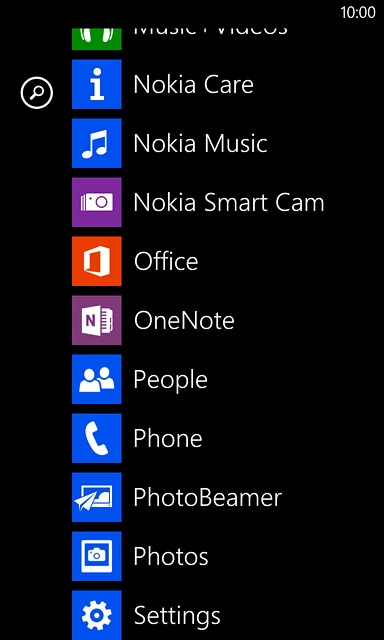

Find "access point"

Slide your finger left across the display to open the main menu.
Press Settings.

Please note that your phone is set up for picture messaging and internet at the same time.

Step 2 of 18

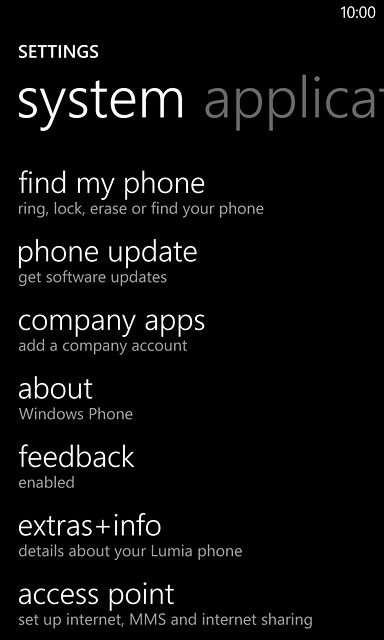

Find "access point"

Press access point.

Please note that your phone is set up for picture messaging and internet at the same time.

Step 3 of 18

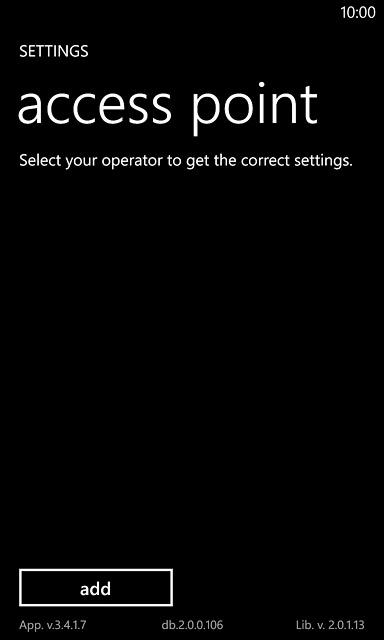

Create new data connection

Press add.

Step 4 of 18

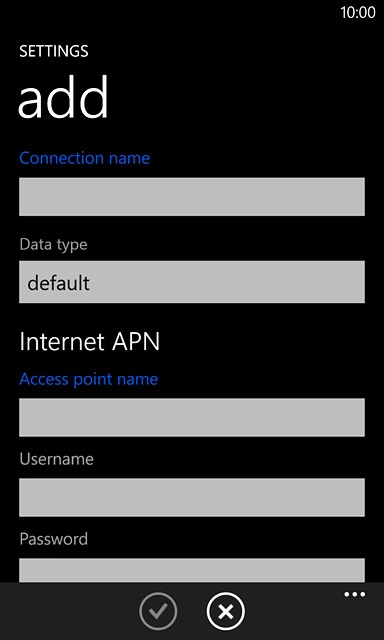

Enter name

Press the field below "Connection name" and key in Vodafone MMS + Internet

Step 5 of 18

Select data bearer

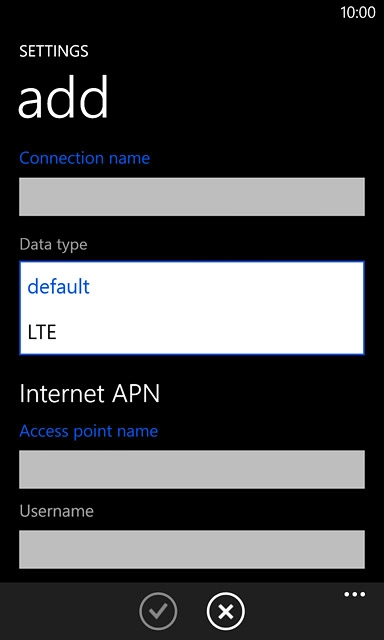

Press the field below "Data type".

Step 6 of 18

Select data bearer

Press default.

Step 7 of 18

Enter APN for internet

Press the field below "Access point name" and key in live.vodafone.com

Step 8 of 18

Select authentication type for internet

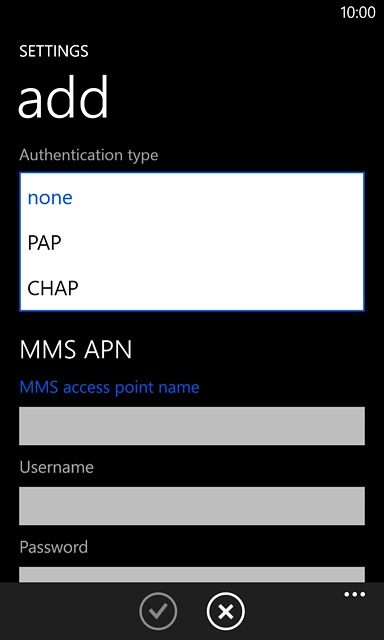

Press the field below "Authentication type".

Step 9 of 18

Select authentication type for internet

Press PAP.

Step 10 of 18

Enter APN for picture messaging

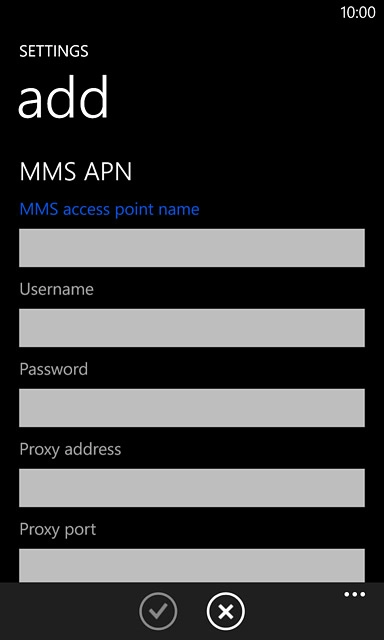

Press the field below "MMS access point name" and key in live.vodafone.com

Step 11 of 18

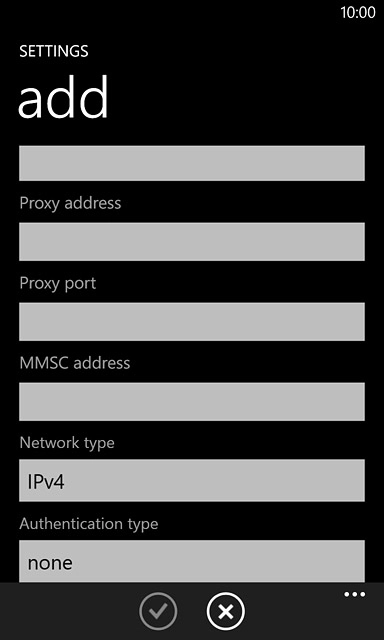

Enter IP address for picture messaging

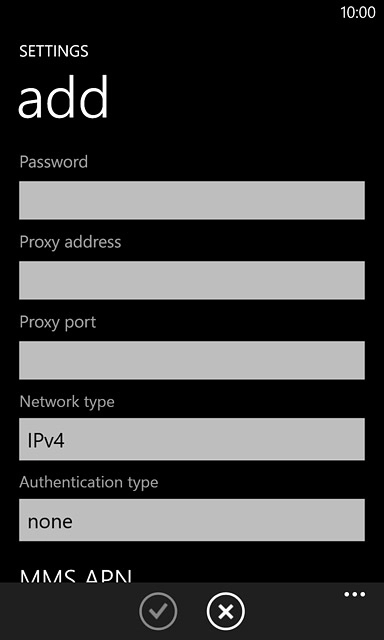

Press the field below "Proxy address" and key in 10.202.2.60

Step 12 of 18

Enter port for picture messaging

Press the field below "Proxy port" and key in 8080

Step 13 of 18

Enter picture messaging server

Press the field below "MMSC address" and key in http://pxt.vodafone.net.au/pxtsend

Step 14 of 18

Select authentication type for picture messaging

Press the field below "Authentication type".

Step 15 of 18

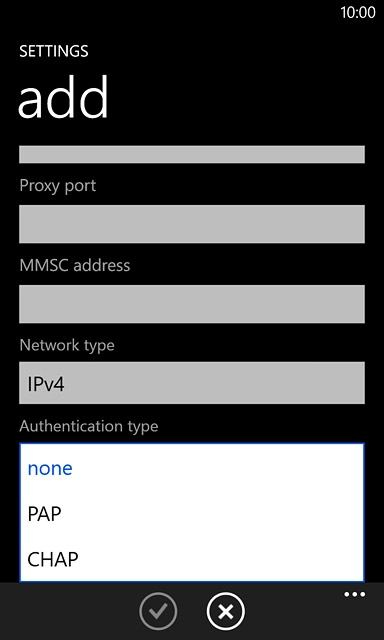

Select authentication type for picture messaging

Press PAP.

Step 16 of 18

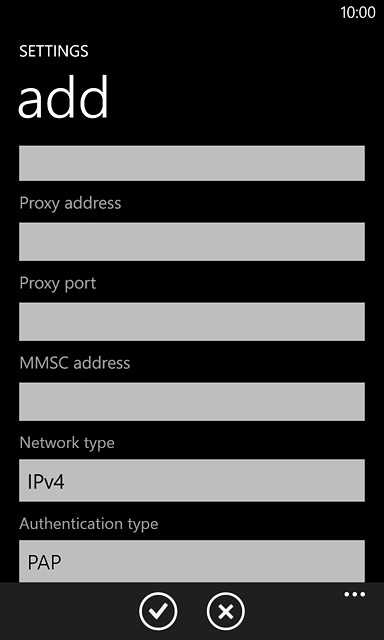

Save and activate data connection

Press the confirm icon.

Step 17 of 18

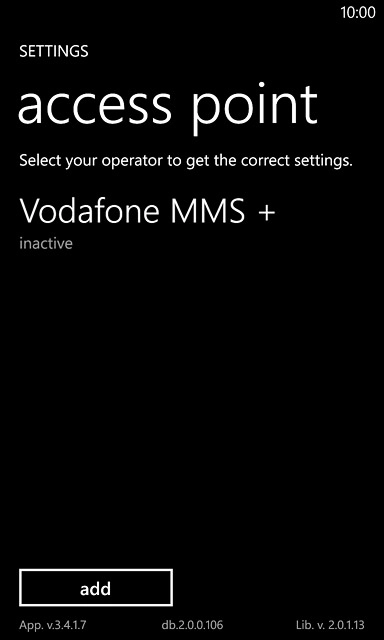

Save and activate data connection

Press the data connection to activate it.

Step 18 of 18

Return to the home screen

Press the Home key to return to the home screen.
