1. Find "Access point names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-09014f63-549c-445c-aad8-331d70c074f4.png?width=204&height=454)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-40a4563d-fb7e-4bd1-a469-e7298d2e1dd3.png?width=204&height=454)
Press Mobile network.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-a8bc2ca9-ed2b-4ea4-90a5-0df7681b1733.png?width=204&height=454)
Press the name of the SIM.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-8539430c-40e3-4664-83bf-466f62a8ff1c.png?width=204&height=454)
Press Access point names.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-2e197bea-3fa3-44cb-b0e8-00ffff954d43.png?width=204&height=454)
2. Create new data connection

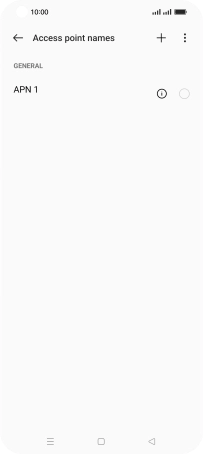

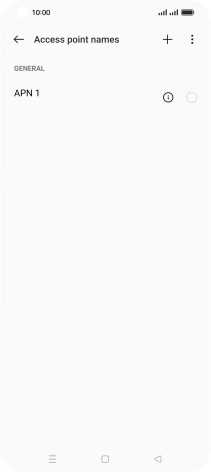

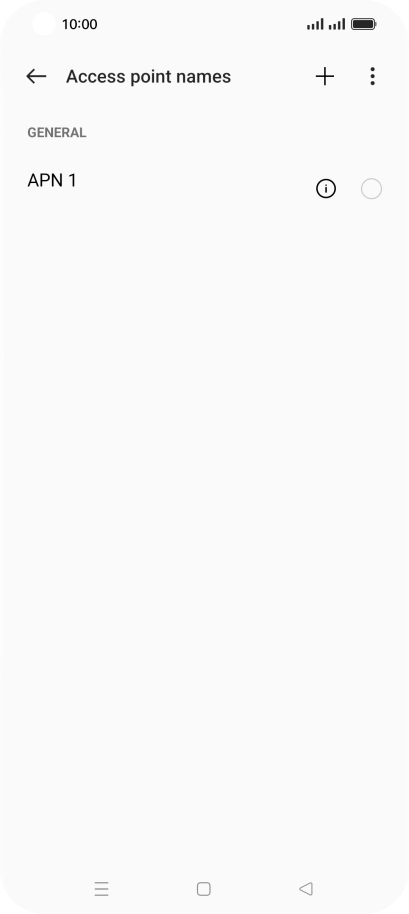

Press the new data connection icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0f629bc-afd6-42f0-9612-163f783aaacb.png?width=204&height=454)

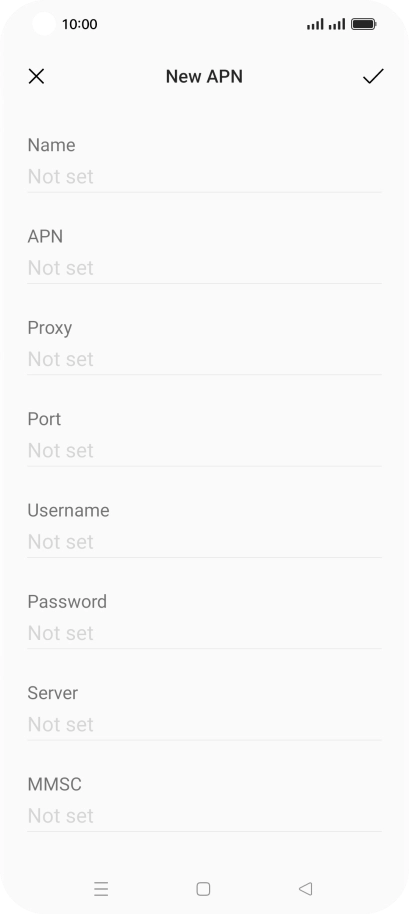

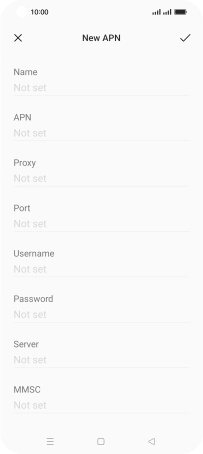

Press the field below "Name" and key in Vodafone MMS.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0d7126d-fc28-4d2e-8cc1-f7577ad7751d.png?width=204&height=454)
Vodafone MMS
3. Enter APN
Press the field below "APN" and key in live.vodafone.com.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0d7126d-fc28-4d2e-8cc1-f7577ad7751d.png?width=204&height=454)
live.vodafone.com
4. Enter MMSC
Press the field below "MMSC" and key in http://pxt.vodafone.net.au/pxtsend.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-e0d7126d-fc28-4d2e-8cc1-f7577ad7751d.png?width=204&height=454)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address

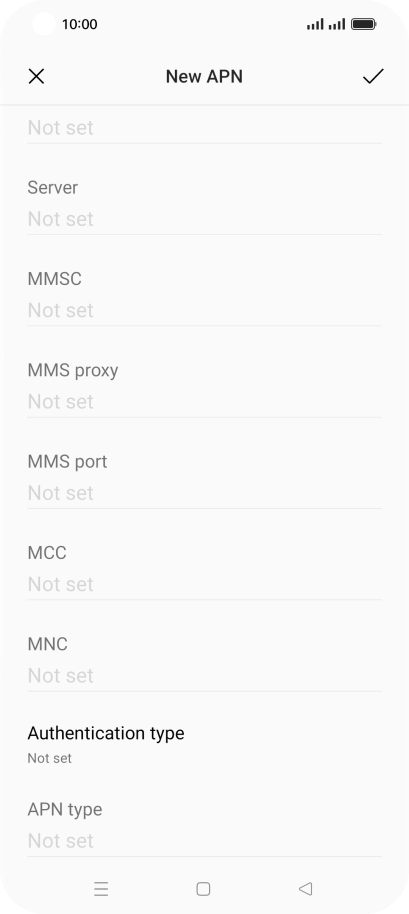

Press the field below "MMS proxy" and key in 10.202.002.060.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
10.202.002.060
6. Enter port number
Press the field below "MMS port" and key in 8080.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
8080
7. Enter country code
Press the field below "MCC" and key in 505.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
505
8. Enter network code
Press the field below "MNC" and key in 03.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)

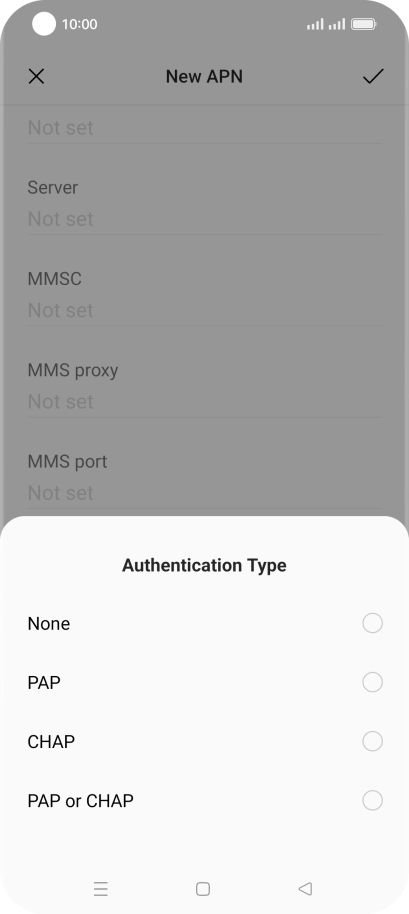

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-ac508519-dd40-4d61-9650-1f11f7c6dc76.png?width=204&height=454)
10. Enter APN type

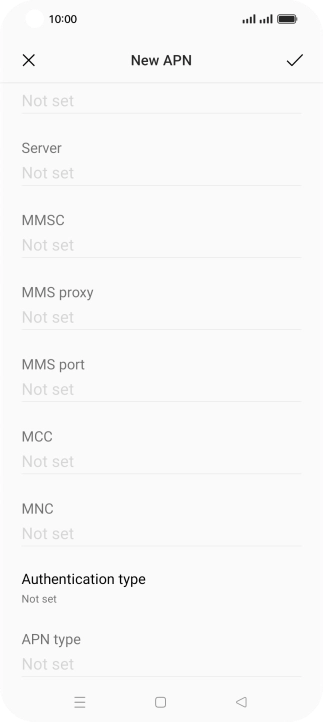

Press the field below "APN type" and key in mms.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)
mms
11. Save data connection
Press the confirm icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-07d3de24-9b37-4812-988c-db9c85334911.png?width=204&height=454)

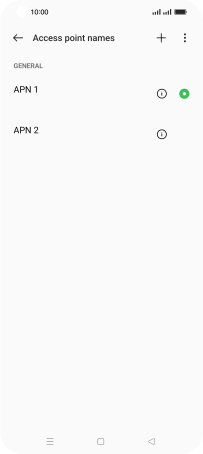

12. Return to the home screen

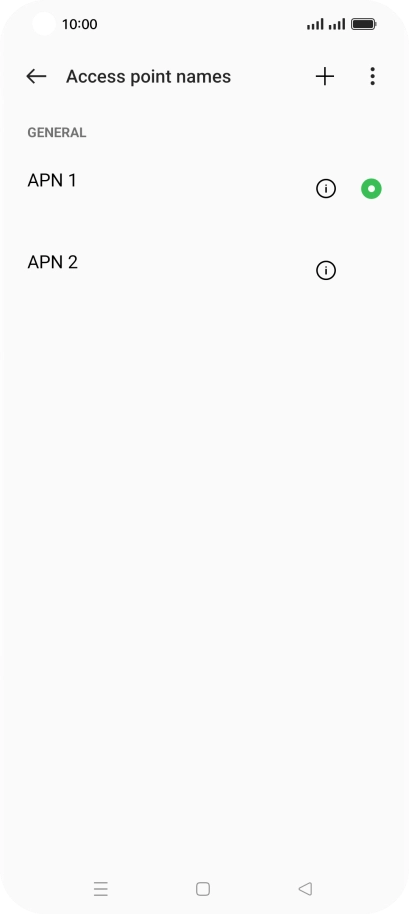

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7260822-f-b071efc3-a056-4e01-b608-797abb22f7ea.png?width=204&height=454)
