1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-120a08e3-08f8-4e43-847d-79ad03acbb81.png?width=204&height=442)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1d3d5014-5eee-4177-b121-0386535d20a9.png?width=204&height=442)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9fa20c18-1277-4850-99d3-22261527e395.png?width=204&height=442)
Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-18e7220f-3023-4480-82a4-bcede7fd02c1.png?width=204&height=442)

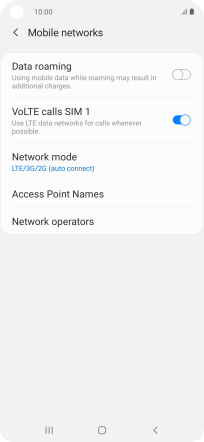

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-a62db9ac-1646-4b90-b4ec-ebd2680d6fa0.png?width=204&height=442)
2. Create new data connection

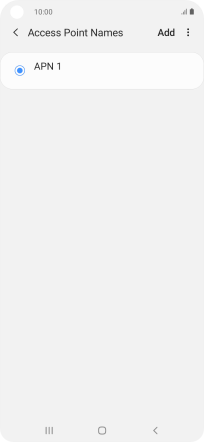

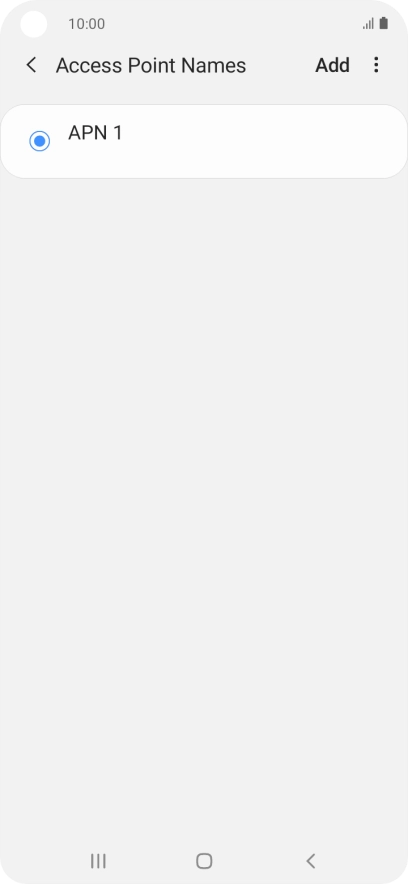

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d7f4f75d-9426-48d4-af40-f834437b5505.png?width=204&height=442)

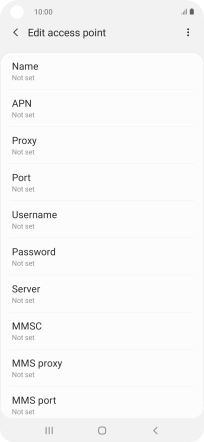

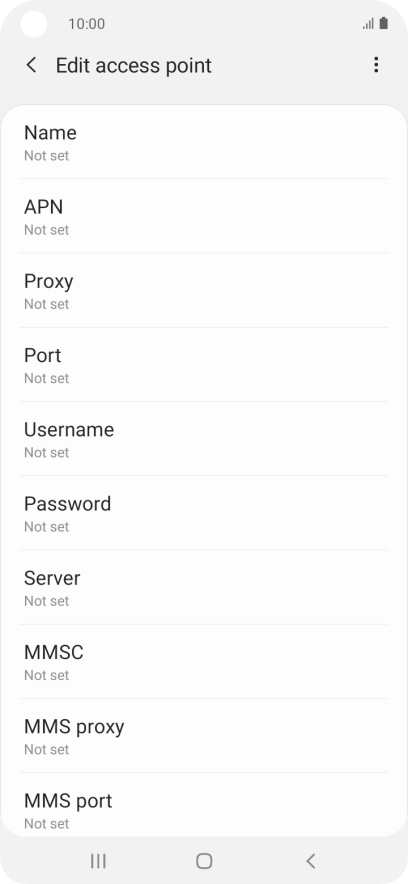

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0cfd1c1-1356-4f98-8f50-3a5a710fe3cb.png?width=204&height=442)

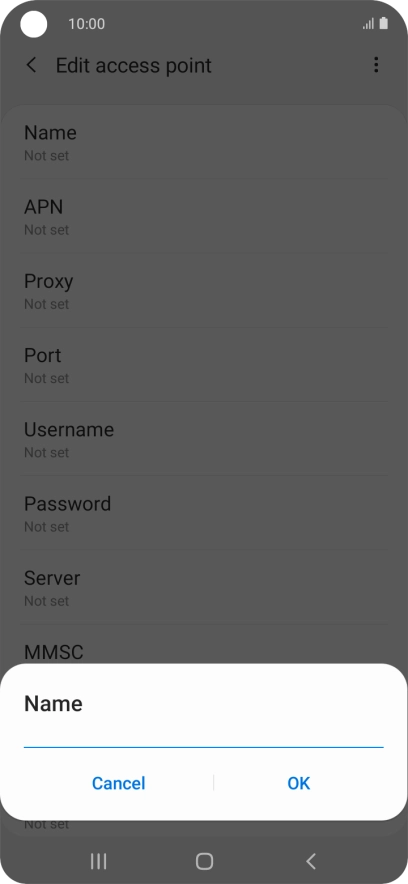

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-cb117ae3-a18c-4630-b627-b8d39f843442.png?width=204&height=442)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0cfd1c1-1356-4f98-8f50-3a5a710fe3cb.png?width=204&height=442)

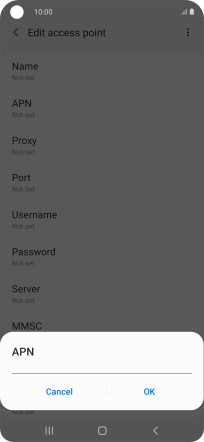

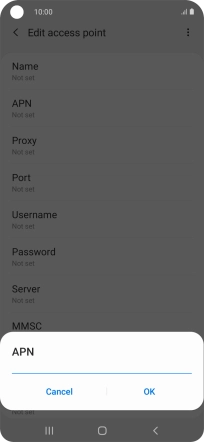

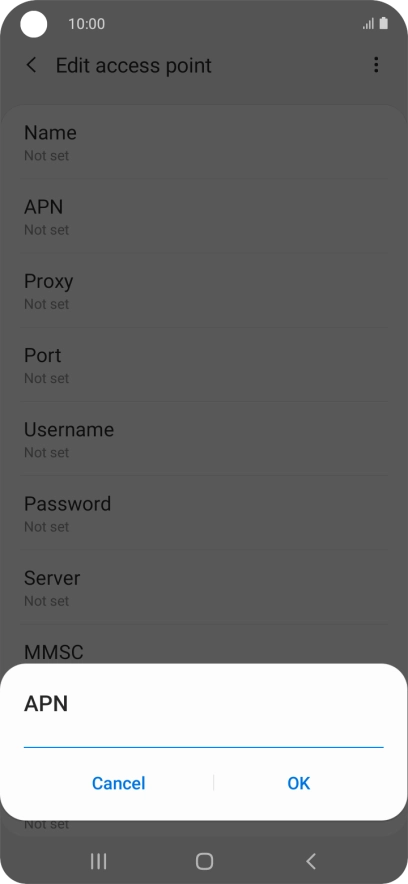

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-82bb6c15-7755-49f6-adf2-da85da4d8ed6.png?width=204&height=442)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0cfd1c1-1356-4f98-8f50-3a5a710fe3cb.png?width=204&height=442)

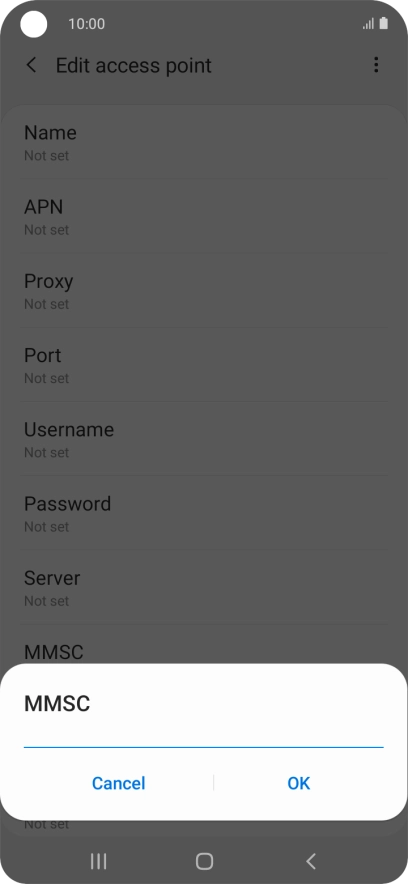

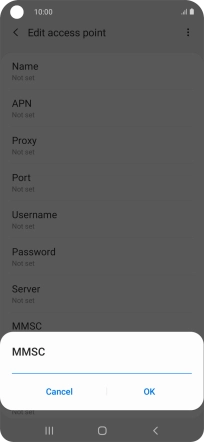

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fe471b3f-ba46-41f8-baaf-2e88d9489acb.png?width=204&height=442)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0cfd1c1-1356-4f98-8f50-3a5a710fe3cb.png?width=204&height=442)

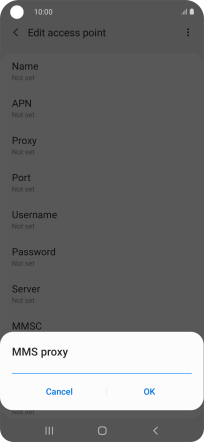

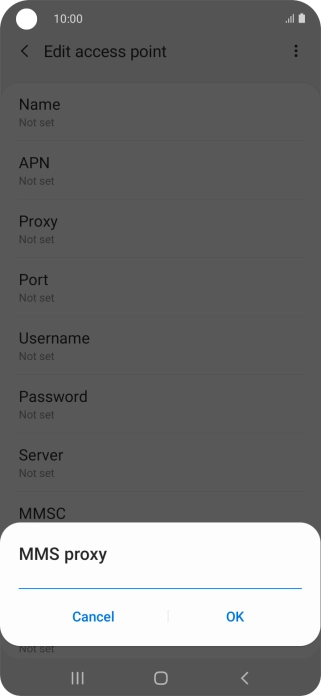

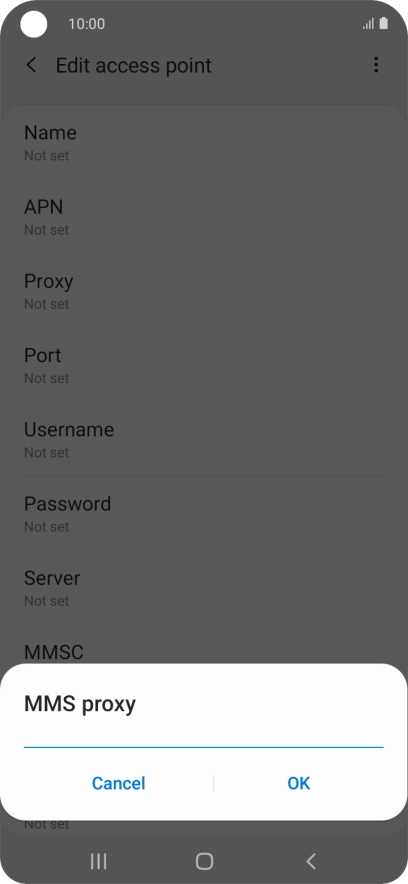

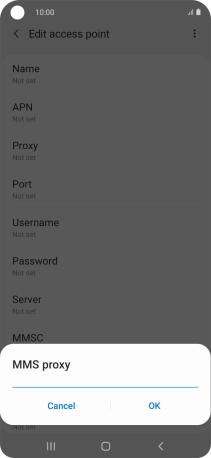

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-7788d349-a4ca-4578-b4be-8c2071ece149.png?width=204&height=442)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f0cfd1c1-1356-4f98-8f50-3a5a710fe3cb.png?width=204&height=442)

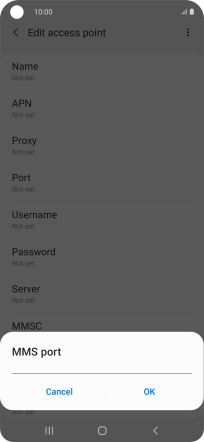

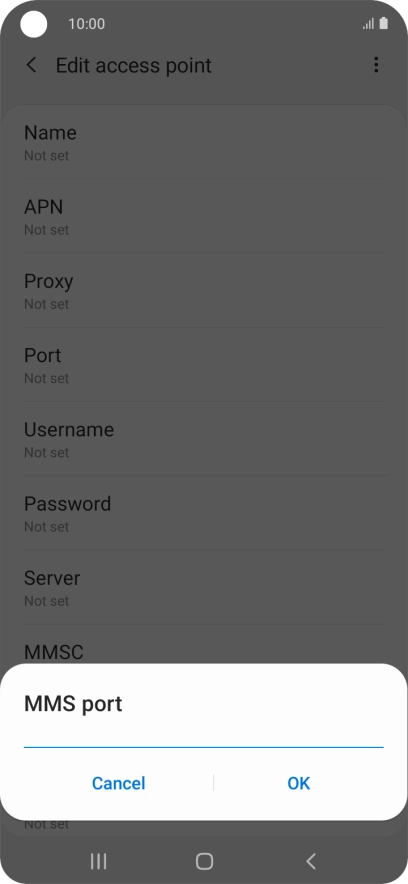

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-445dd88c-a61f-46ab-91b4-7b5267b7f559.png?width=204&height=442)
8080
7. Enter country code

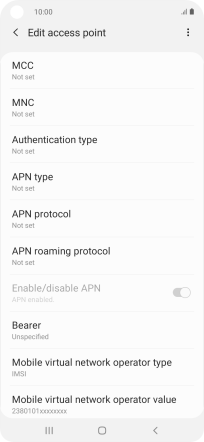

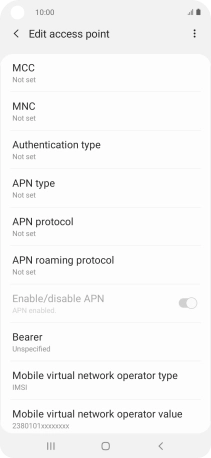

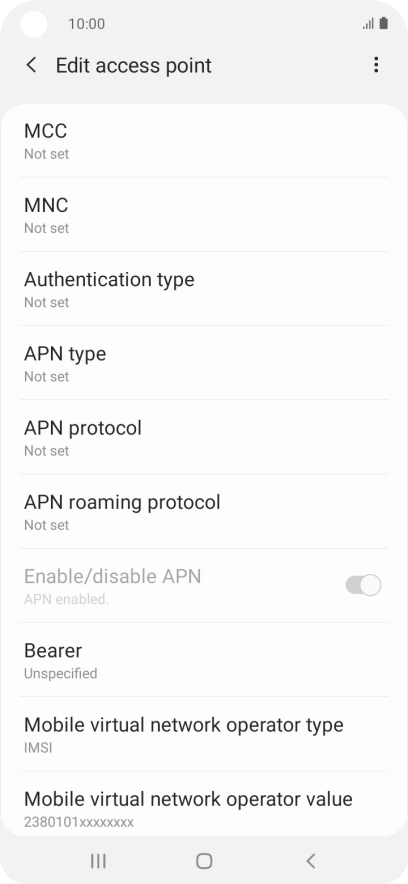

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3d68172a-e77d-47f9-b819-b9903698c29a.png?width=204&height=442)

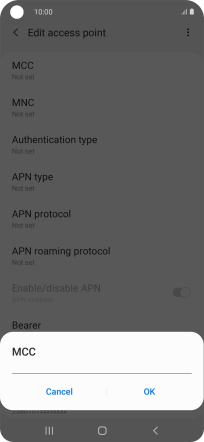

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4cf34d17-b88e-42b2-b9b9-839d8f8287e3.png?width=204&height=442)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3d68172a-e77d-47f9-b819-b9903698c29a.png?width=204&height=442)

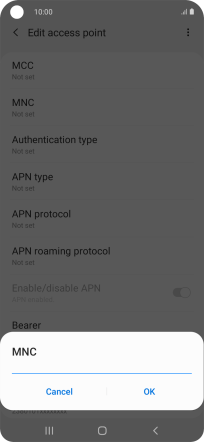

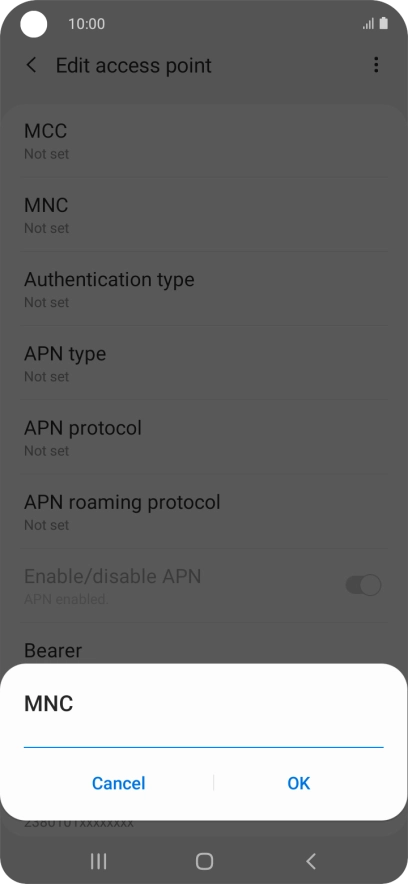

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0683136b-e82f-4c5f-b0f8-6e5147846674.png?width=204&height=442)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3d68172a-e77d-47f9-b819-b9903698c29a.png?width=204&height=442)

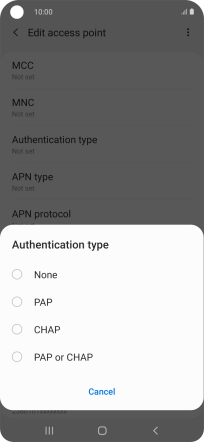

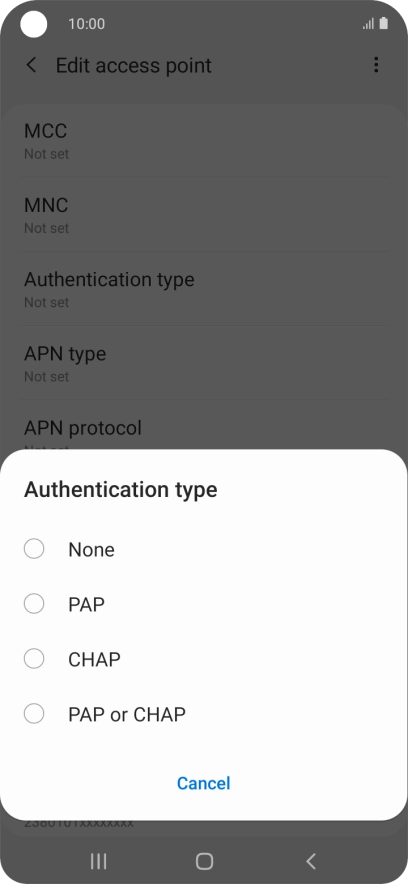

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-eb2151af-eeca-471b-94c0-f5020877efa1.png?width=204&height=442)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3d68172a-e77d-47f9-b819-b9903698c29a.png?width=204&height=442)

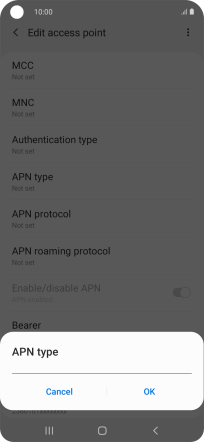

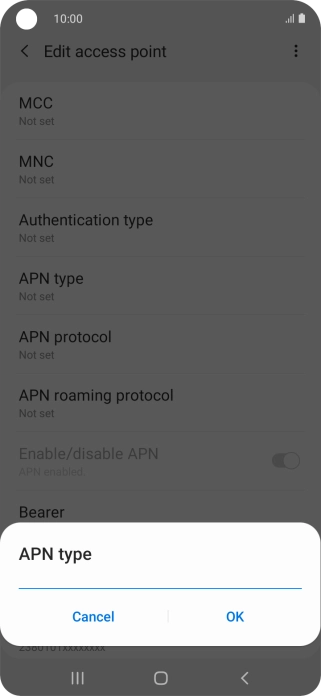

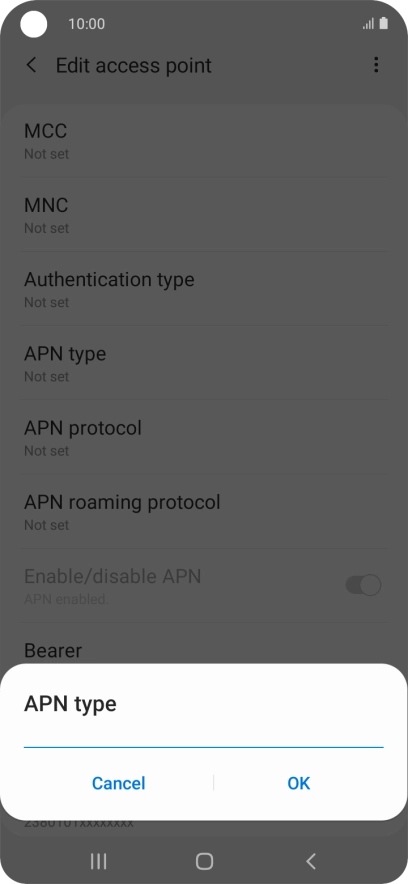

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ceeae3c6-1a78-4603-9944-1b882ca62841.png?width=204&height=442)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3d68172a-e77d-47f9-b819-b9903698c29a.png?width=204&height=442)

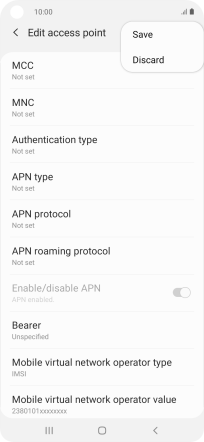

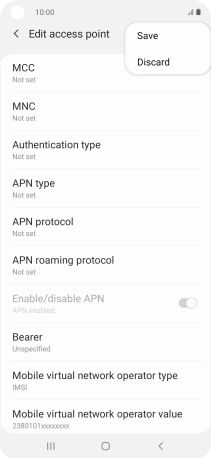

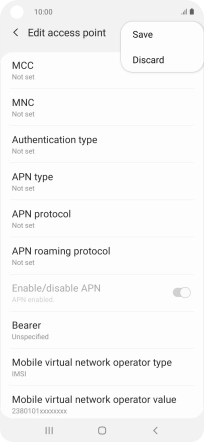

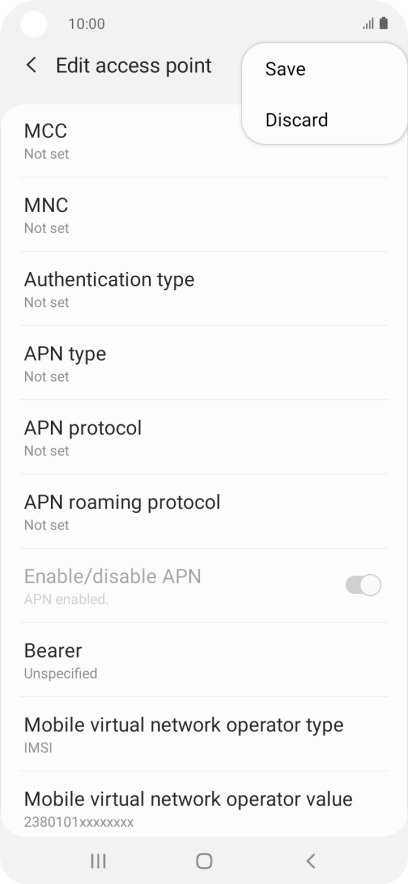

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5f35244a-c4da-49a4-8505-ea41b54a379a.png?width=204&height=442)
12. Return to the home screen

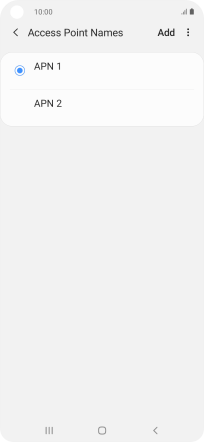

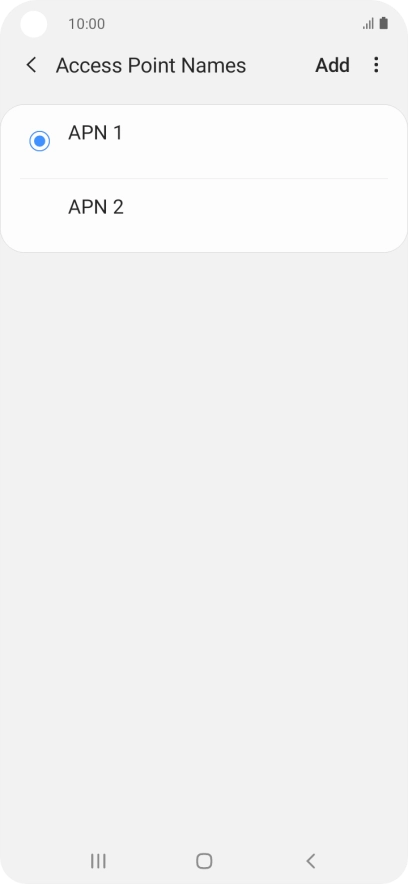

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3a50d13b-978d-4105-82fe-f850ad6c9094.png?width=204&height=442)
