1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-57c6043a-b9e4-4e32-9587-52130c062072.png?width=198&height=444)

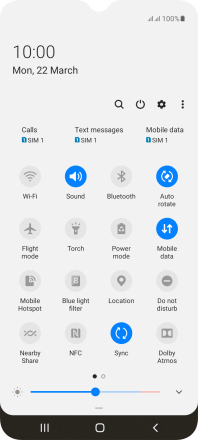

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-82d999c2-5484-4a11-b35e-f182512a9e1e.png?width=198&height=444)

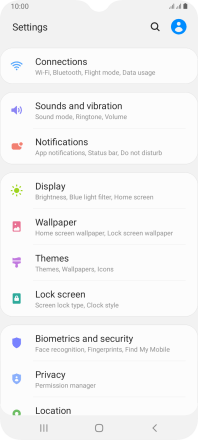

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aea3d2c5-f3b4-48d4-a82c-f81789d7f652.png?width=198&height=444)

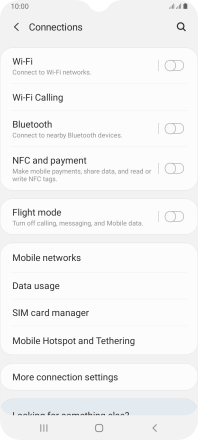

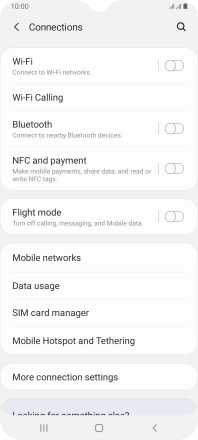

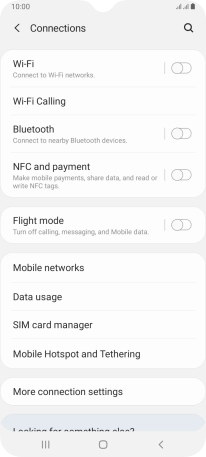

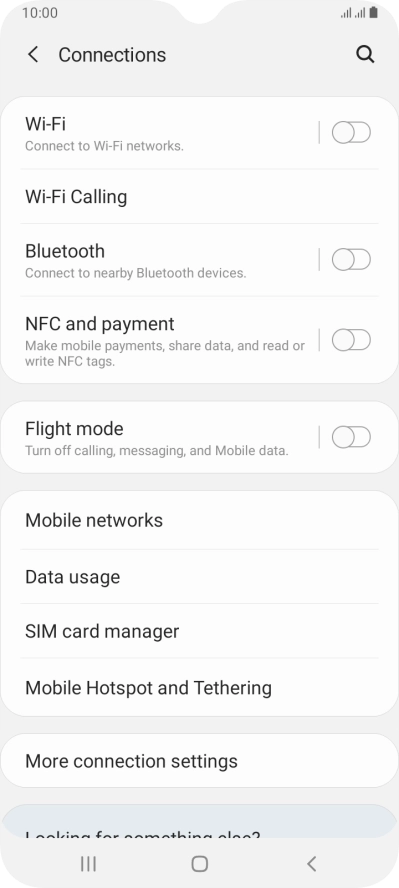

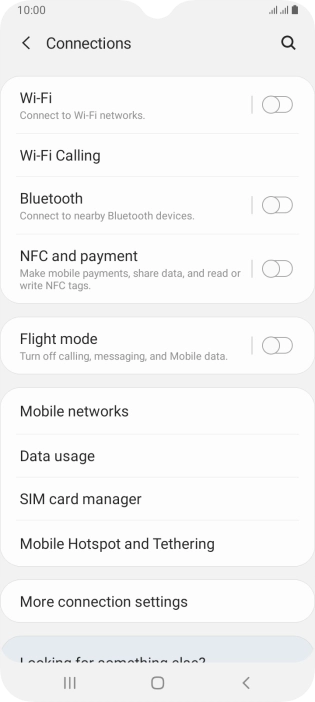

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-76bbcfaa-4e91-4d7d-abc3-2fe347cc3ed9.png?width=198&height=444)

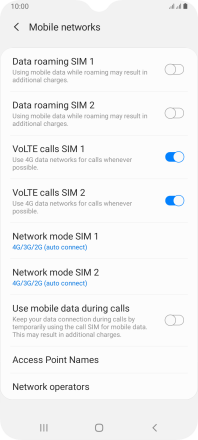

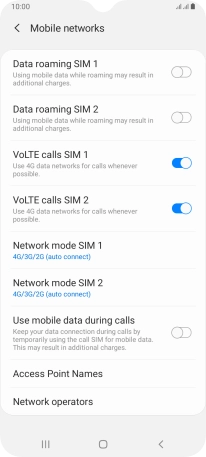

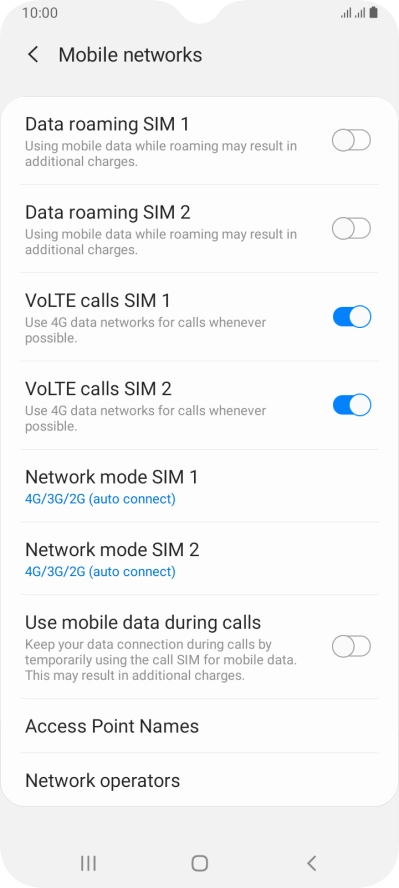

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-0410a064-cae3-43f2-b14a-ae1a44003557.png?width=198&height=444)
2. Create new data connection

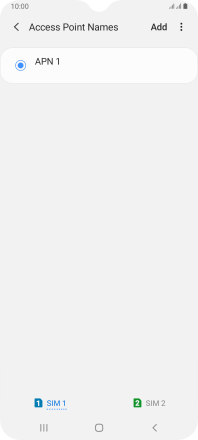

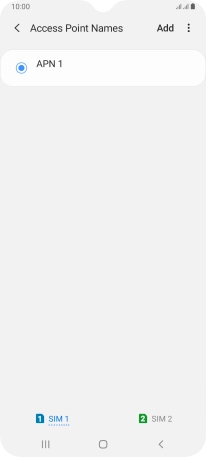

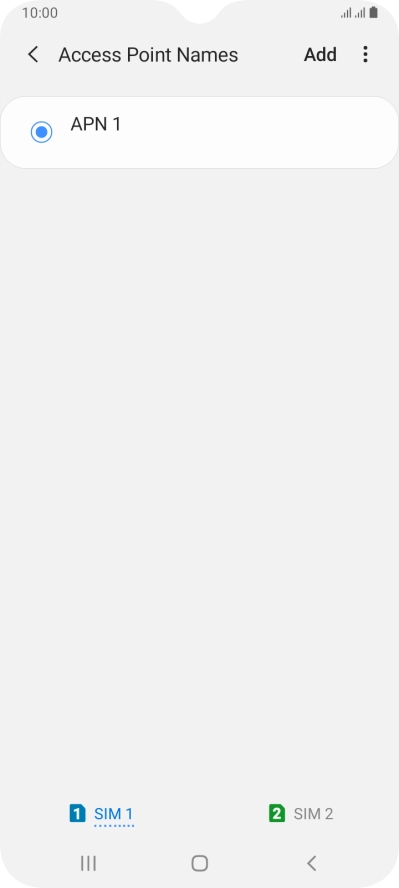

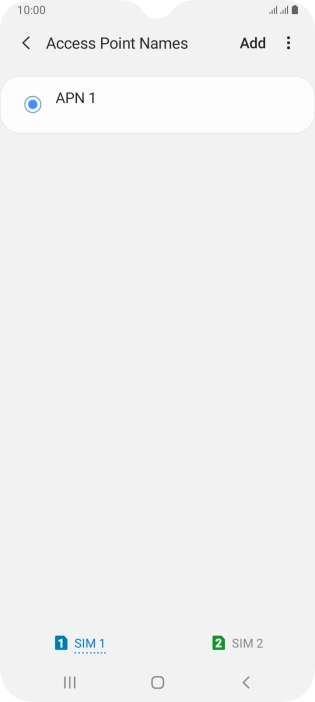

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9744cd5e-451f-4731-8dfb-3b59fd51b9a2.png?width=198&height=444)

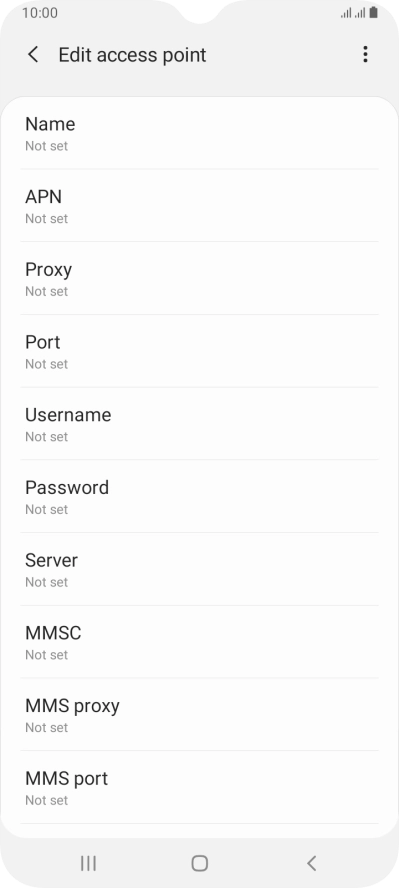

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78513085-10f1-482e-8696-2d783d57184c.png?width=198&height=444)

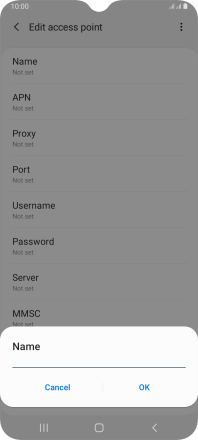

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ba7ab0f8-9bcd-4b59-9b08-376c67d78620.png?width=198&height=444)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78513085-10f1-482e-8696-2d783d57184c.png?width=198&height=444)

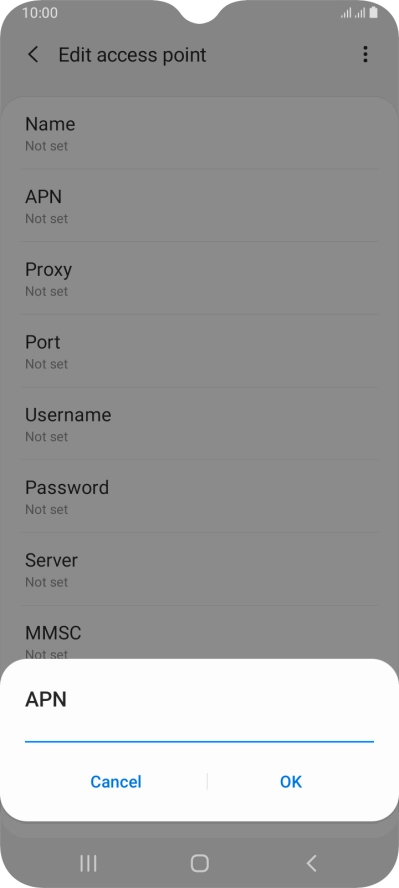

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-4446b78d-8976-4482-8da3-7014e4a53e96.png?width=198&height=444)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78513085-10f1-482e-8696-2d783d57184c.png?width=198&height=444)

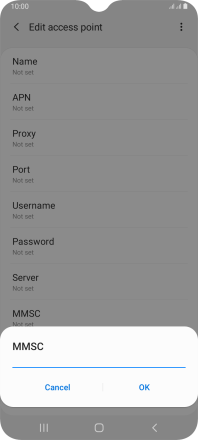

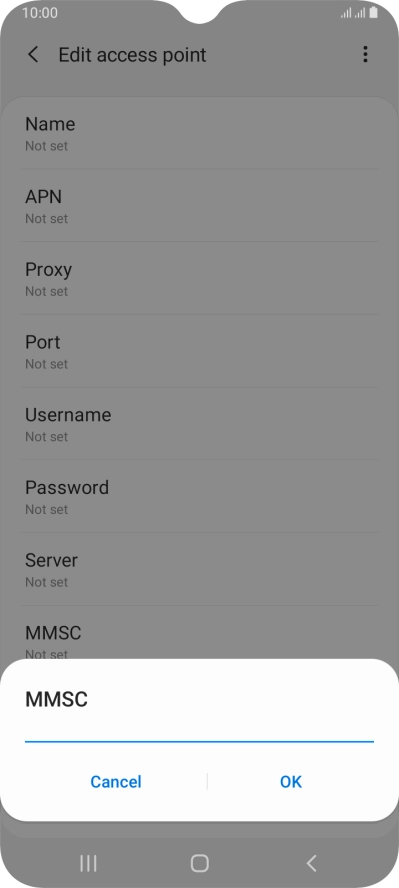

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-50f10c08-62a7-4529-a3e3-e2b9c8cdd4e8.png?width=198&height=444)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78513085-10f1-482e-8696-2d783d57184c.png?width=198&height=444)

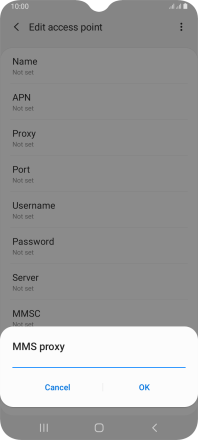

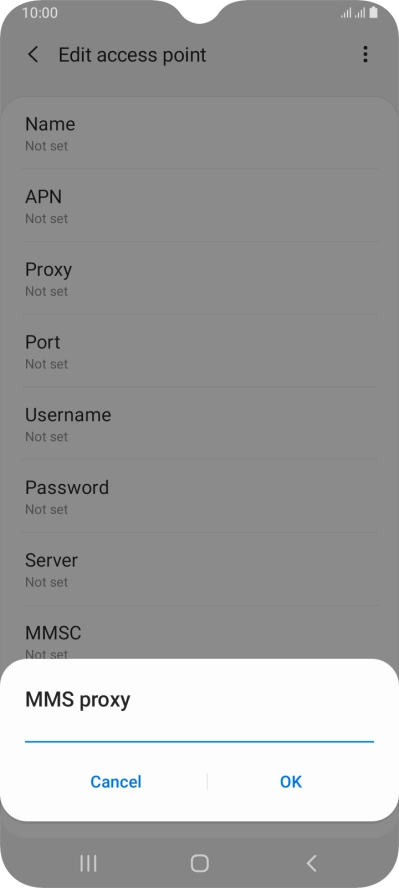

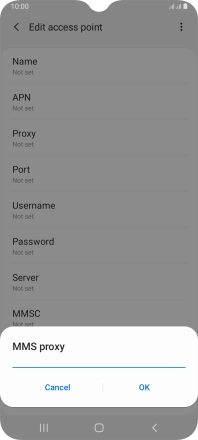

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-60b77efe-3fd3-4791-a3ae-92a79cbd5866.png?width=198&height=444)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-78513085-10f1-482e-8696-2d783d57184c.png?width=198&height=444)

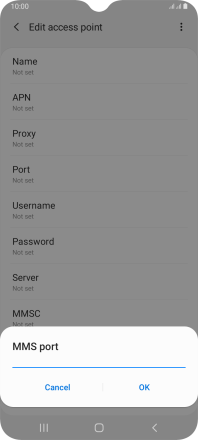

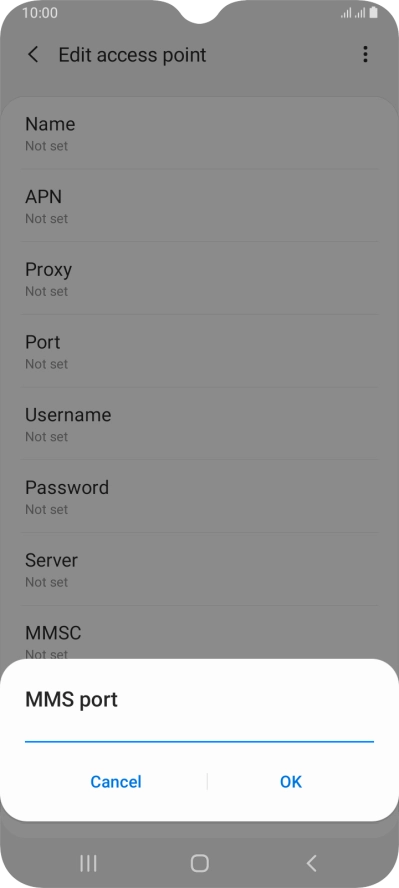

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3f6bc72e-2aeb-4f10-9f9b-a82629bc50c9.png?width=198&height=444)
8080
7. Enter country code

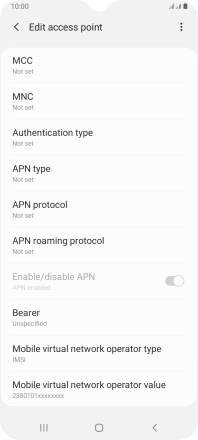

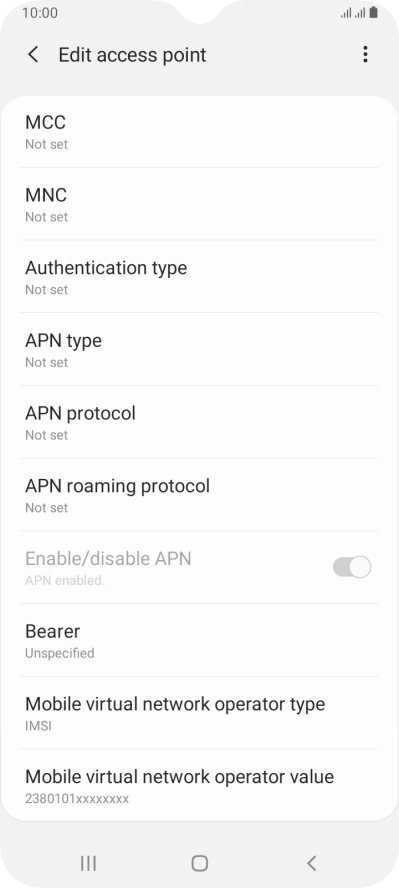

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f479d785-8db0-4043-8afc-9234c98d0d6f.png?width=198&height=444)

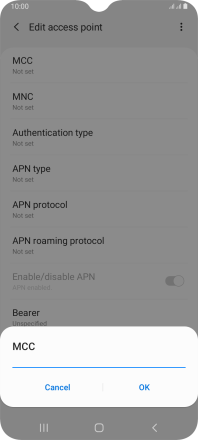

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-fc307c4b-7815-44e8-aae4-000dad6e853d.png?width=198&height=444)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f479d785-8db0-4043-8afc-9234c98d0d6f.png?width=198&height=444)

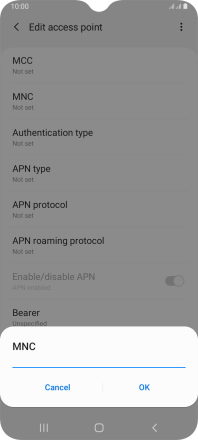

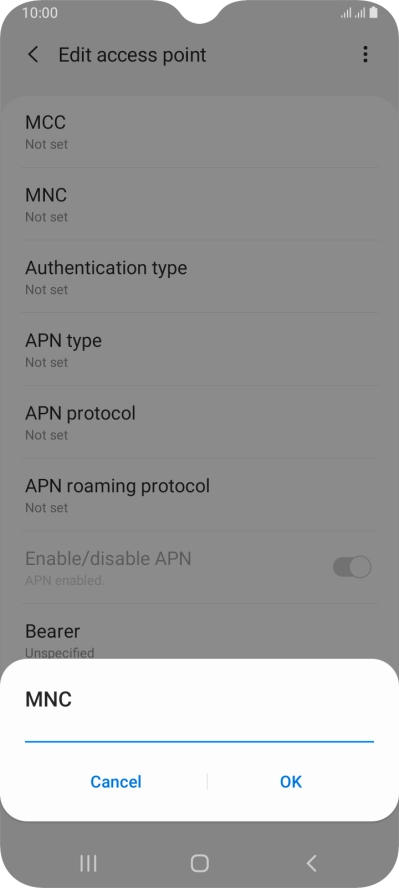

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-34b49c79-3488-4354-a784-47bfc0423092.png?width=198&height=444)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f479d785-8db0-4043-8afc-9234c98d0d6f.png?width=198&height=444)

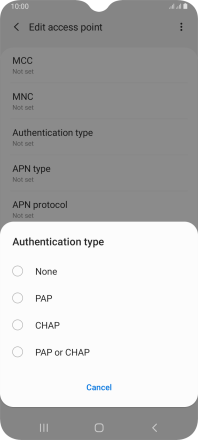

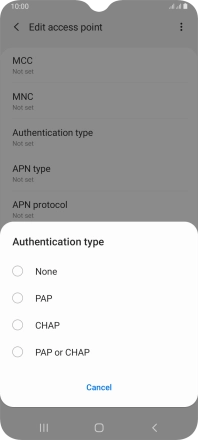

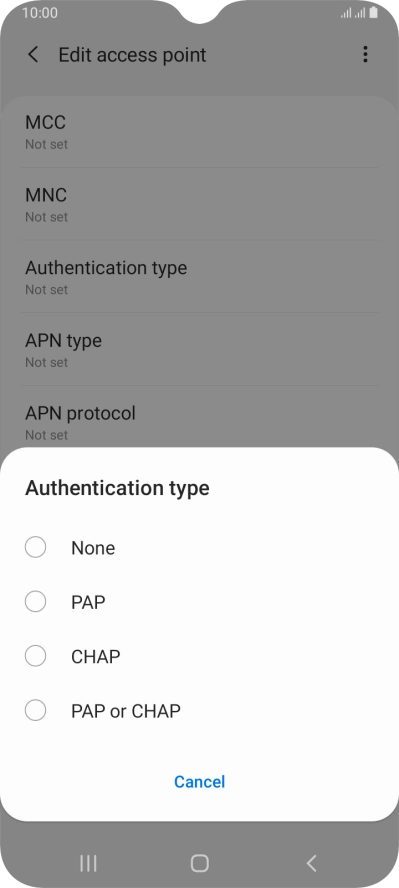

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-781309f2-c4d3-458c-a44f-b6f2405667db.png?width=198&height=444)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f479d785-8db0-4043-8afc-9234c98d0d6f.png?width=198&height=444)

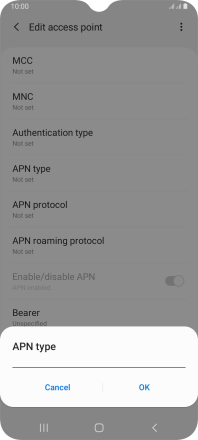

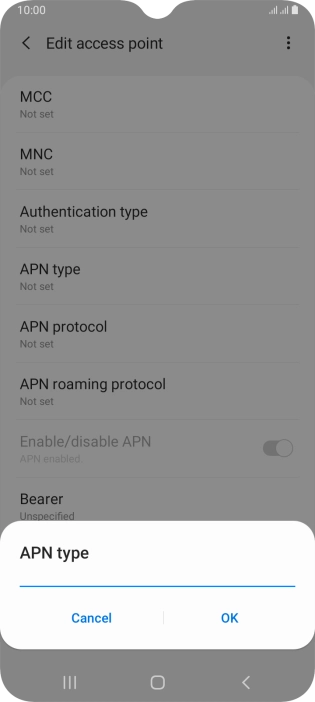

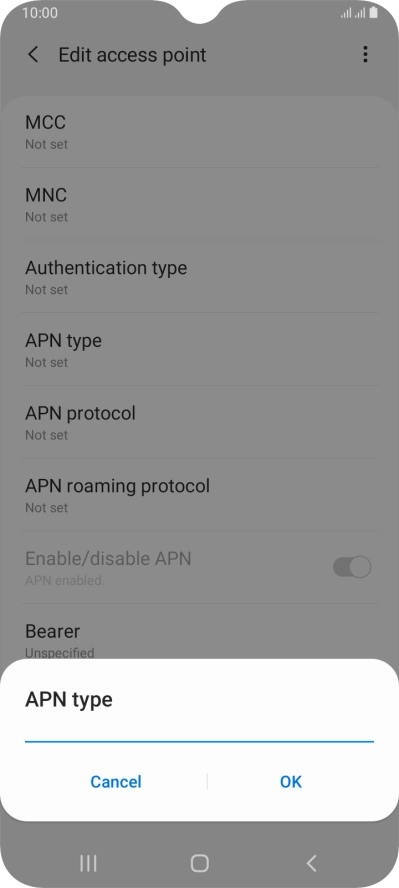

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ea9270cf-51db-4e58-b715-2d9b0f1b2184.png?width=198&height=444)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f479d785-8db0-4043-8afc-9234c98d0d6f.png?width=198&height=444)

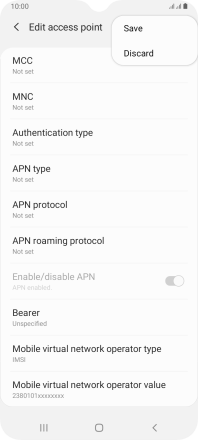

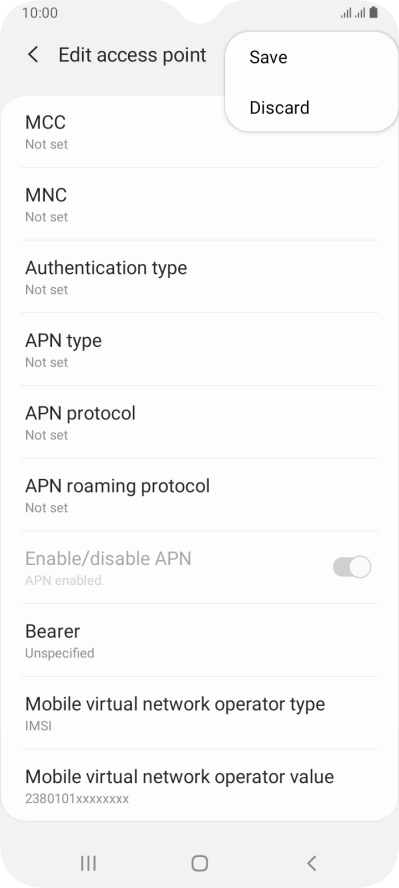

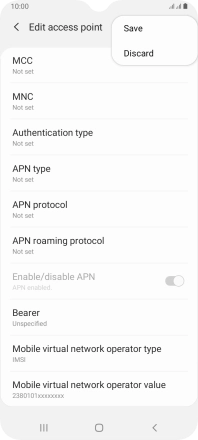

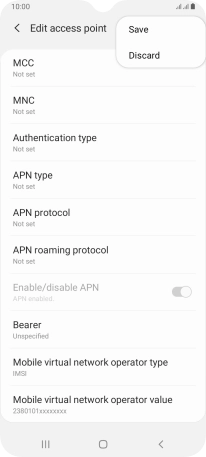

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c7d9f6b6-0f68-45b0-9e1c-e19cac52d7d3.png?width=198&height=444)
12. Return to the home screen

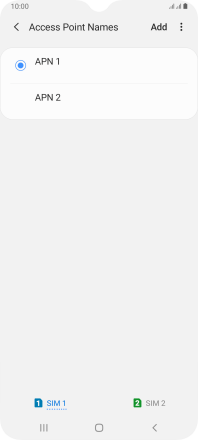

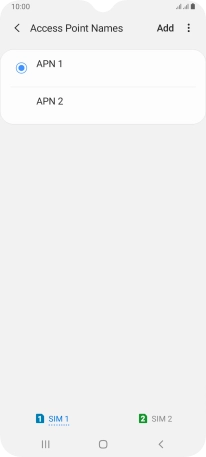

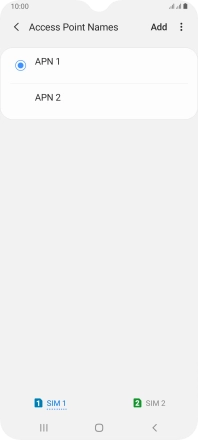

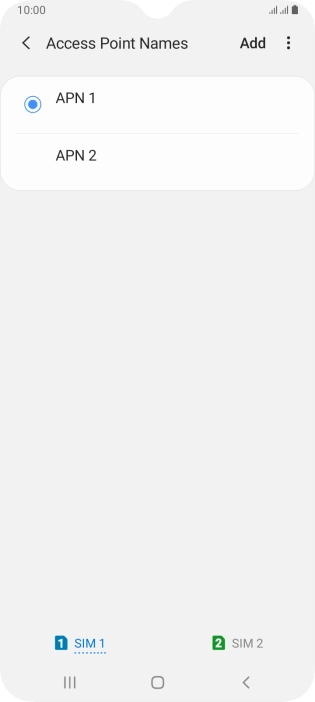

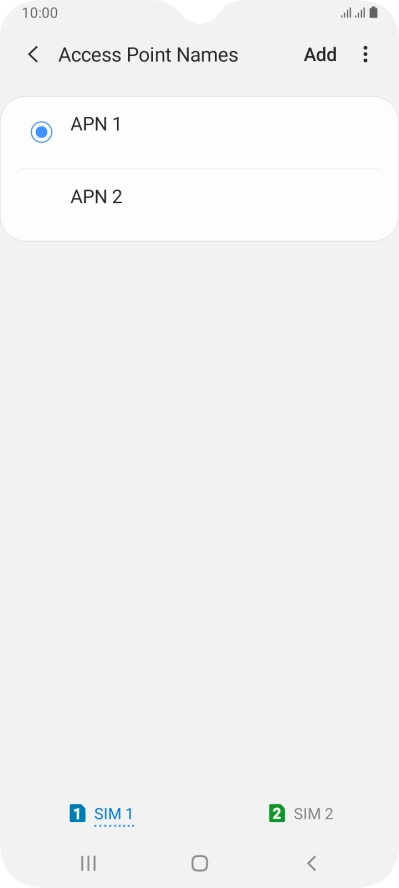

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d531d106-d86f-4fd3-ad37-88e6193ef91e.png?width=198&height=444)
