1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-0fdb777c-d80a-4922-882c-f9819e4f0b7c.png?width=200&height=444)

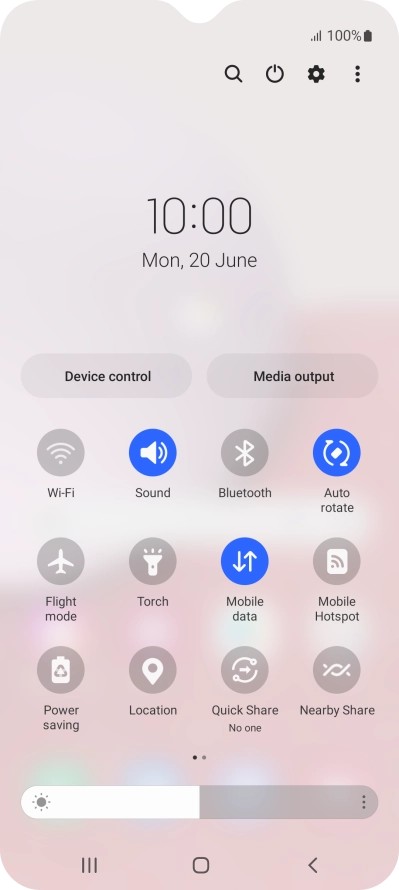

Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-4df570f9-a955-43c8-b512-f248f485d4c3.png?width=200&height=444)

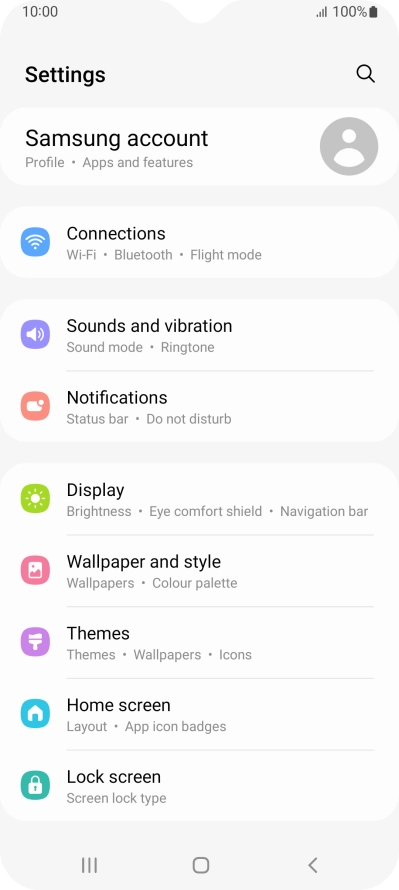

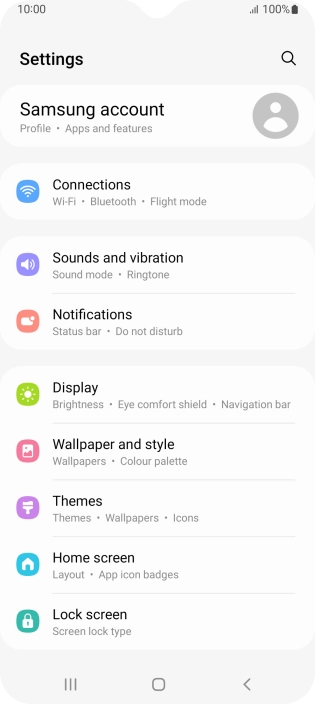

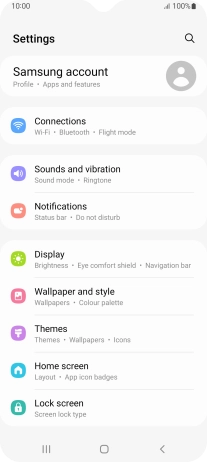

Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c6a4c0be-dc8e-4c86-860e-c0125fb4f8f4.png?width=200&height=444)

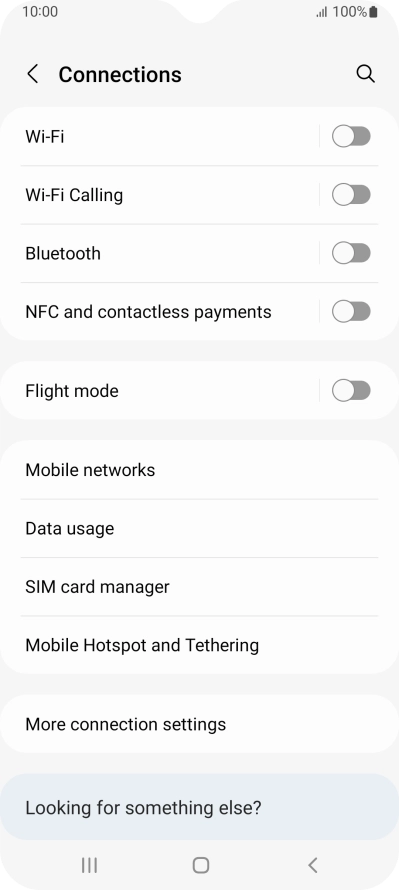

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-8585f5a8-ade3-43d2-8713-e068a006fd51.png?width=200&height=444)

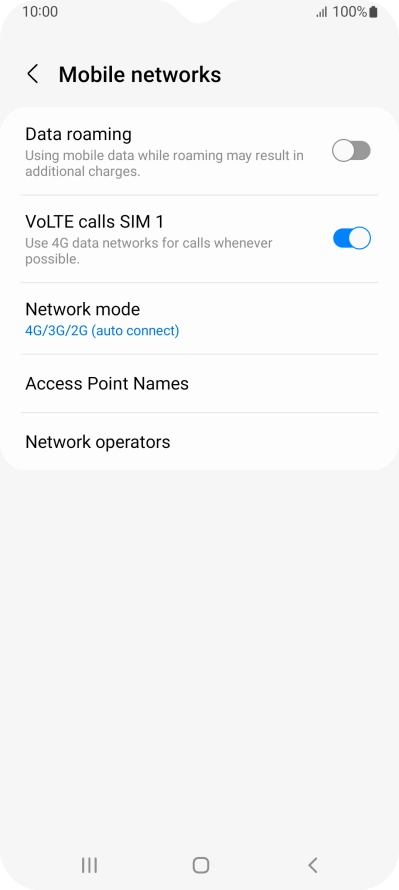

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-62c0286c-9eb9-4306-8fa0-4850f1b8523a.png?width=200&height=444)
2. Create new data connection

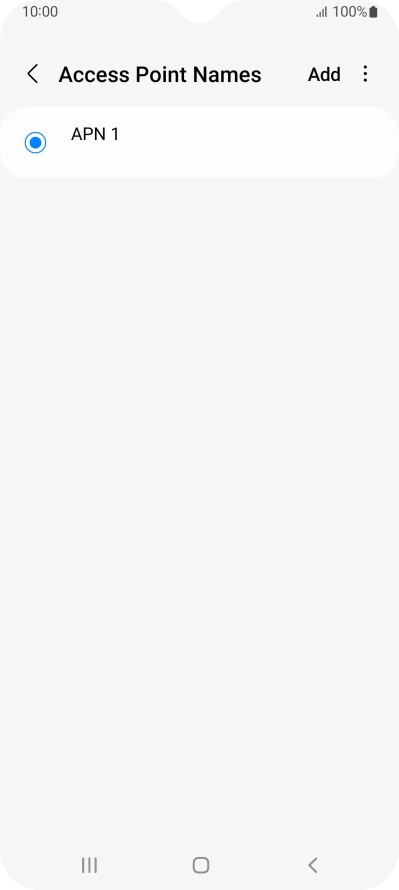

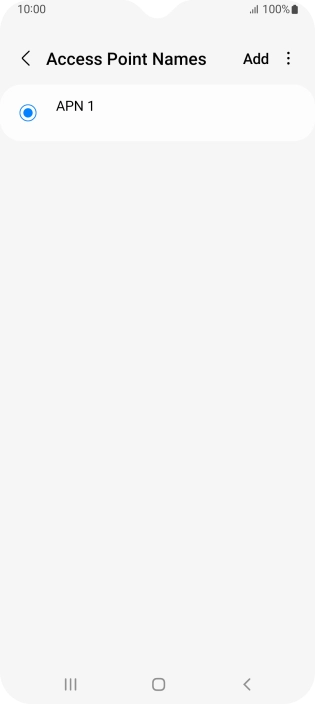

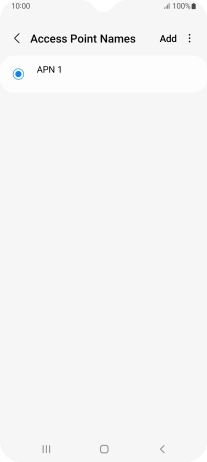

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-9602016c-c4e5-416b-83dc-b78b577f3ce2.png?width=200&height=444)

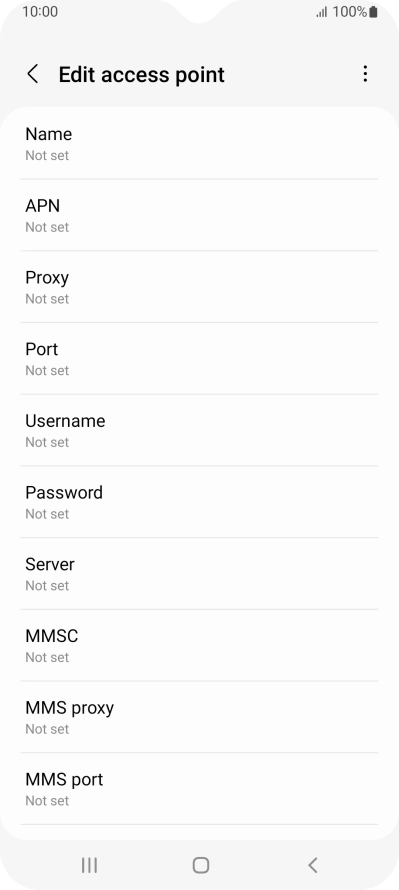

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d7688a76-11cc-4c58-9c12-538771ac6933.png?width=200&height=444)

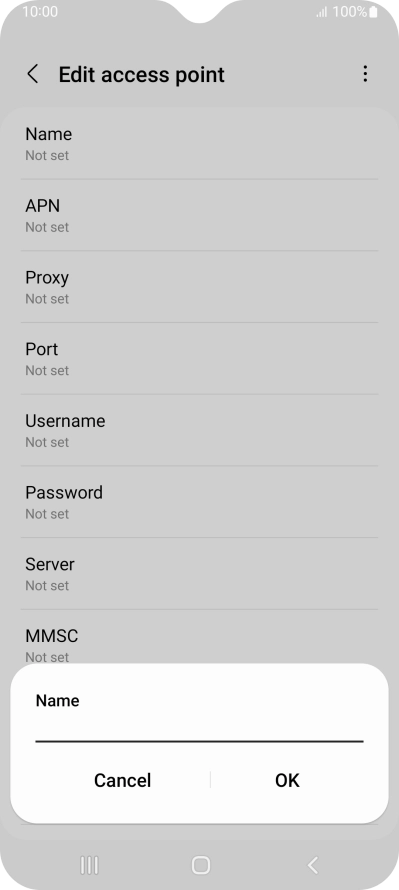

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-b62785e3-b1f9-4fc2-946b-6c0a9fb244dc.png?width=200&height=444)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d7688a76-11cc-4c58-9c12-538771ac6933.png?width=200&height=444)
Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-1ac184db-d010-4793-8238-98193a1e3a31.png?width=200&height=444)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d7688a76-11cc-4c58-9c12-538771ac6933.png?width=200&height=444)

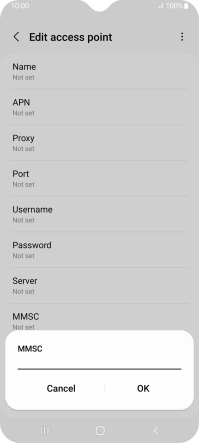

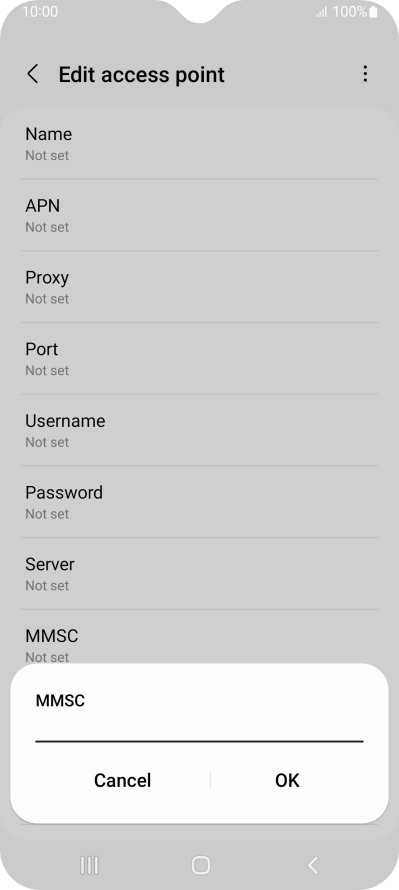

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-a8fda732-64f3-4e0a-89be-23fe1074de2a.png?width=200&height=444)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d7688a76-11cc-4c58-9c12-538771ac6933.png?width=200&height=444)

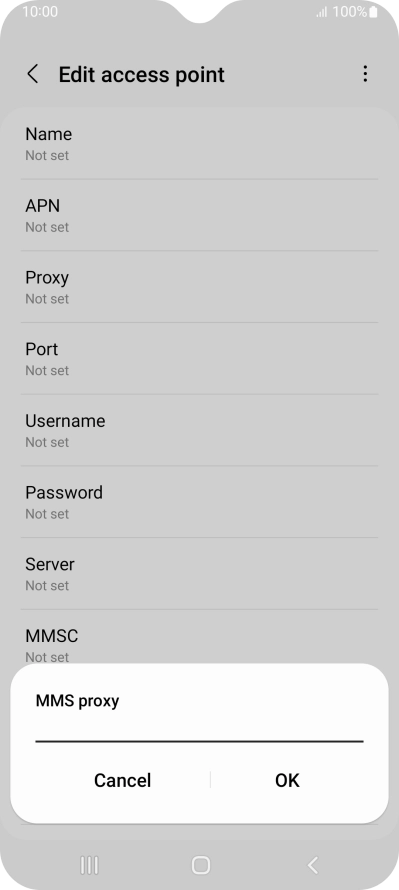

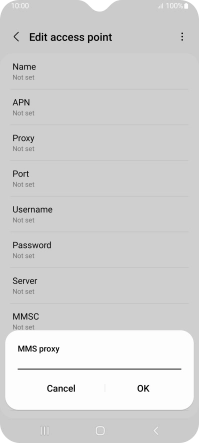

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-b8740cdc-5fd6-47ea-80e3-9f09f50f7376.png?width=200&height=444)
10.202.002.060
6. Enter port number
Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-d7688a76-11cc-4c58-9c12-538771ac6933.png?width=200&height=444)

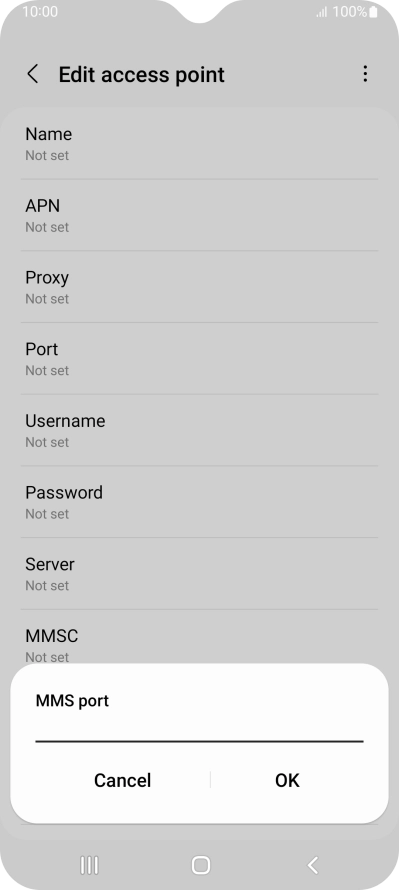

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-a88f725a-9588-46cc-9d56-bd0191859566.png?width=200&height=444)
8080
7. Enter country code

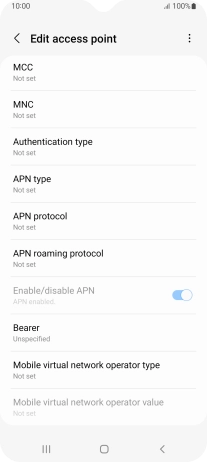

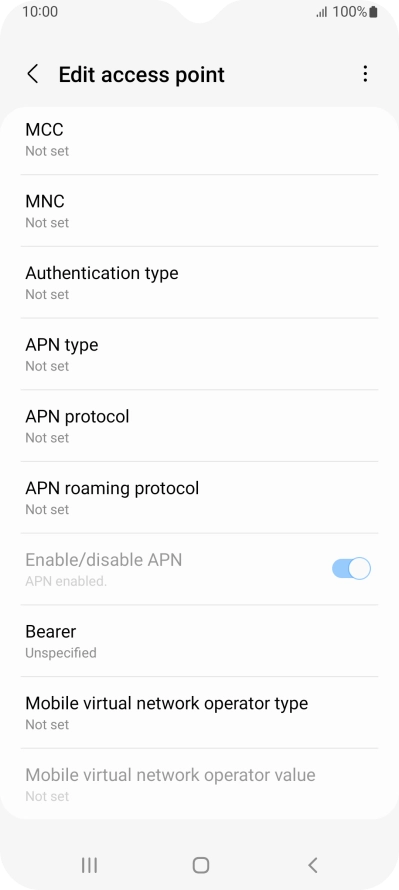

Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-fcdc14ed-05bd-459c-8289-1783b23e5ae4.png?width=200&height=444)

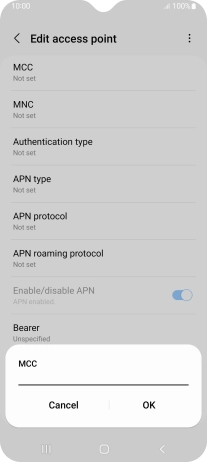

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-6384118a-3a5b-46ac-9187-758f8e49ef1c.png?width=200&height=444)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-fcdc14ed-05bd-459c-8289-1783b23e5ae4.png?width=200&height=444)

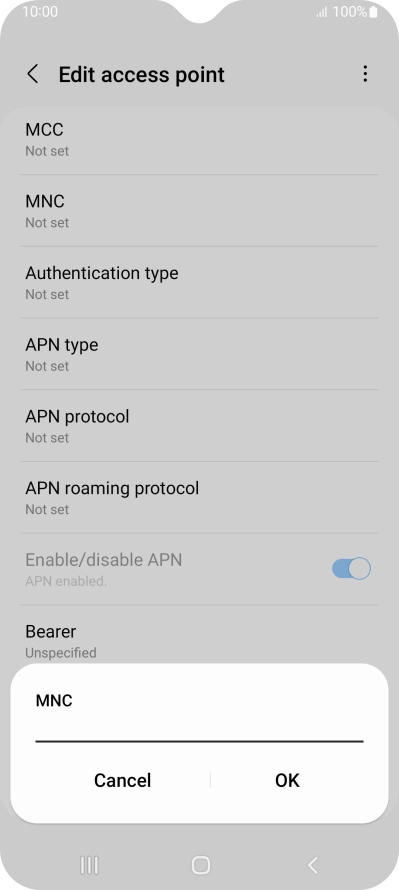

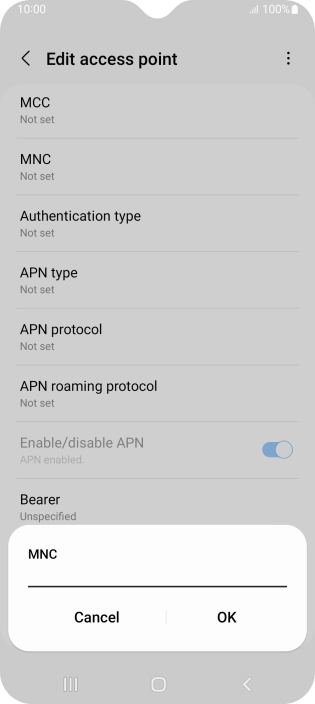

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-859687c6-5d34-49ca-bb16-eae3123ef3f2.png?width=200&height=444)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-fcdc14ed-05bd-459c-8289-1783b23e5ae4.png?width=200&height=444)

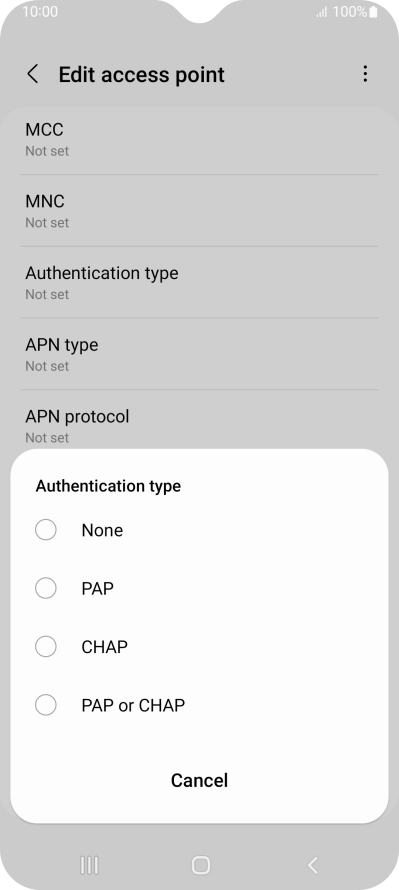

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-0fd27b75-13c4-489e-b9c4-6178198c18b5.png?width=200&height=444)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-fcdc14ed-05bd-459c-8289-1783b23e5ae4.png?width=200&height=444)

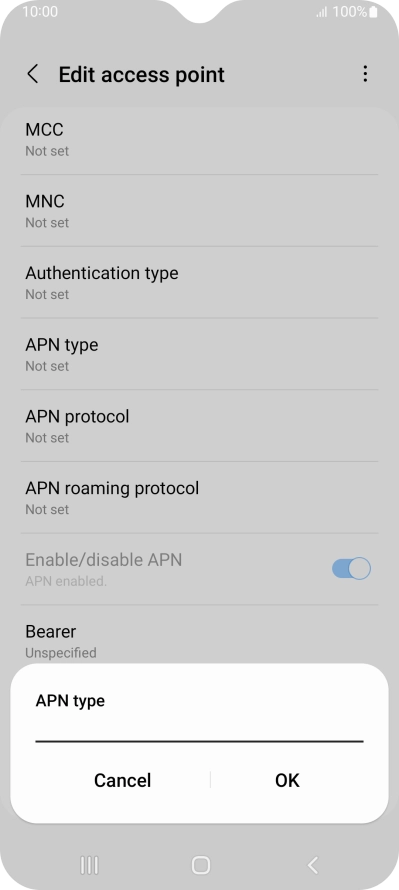

Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-c02e4069-a79f-46ef-8362-396dadc765e2.png?width=200&height=444)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-fcdc14ed-05bd-459c-8289-1783b23e5ae4.png?width=200&height=444)

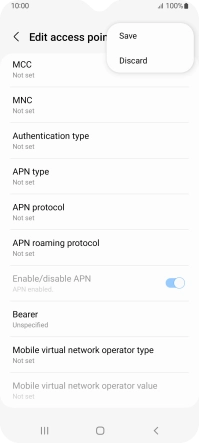

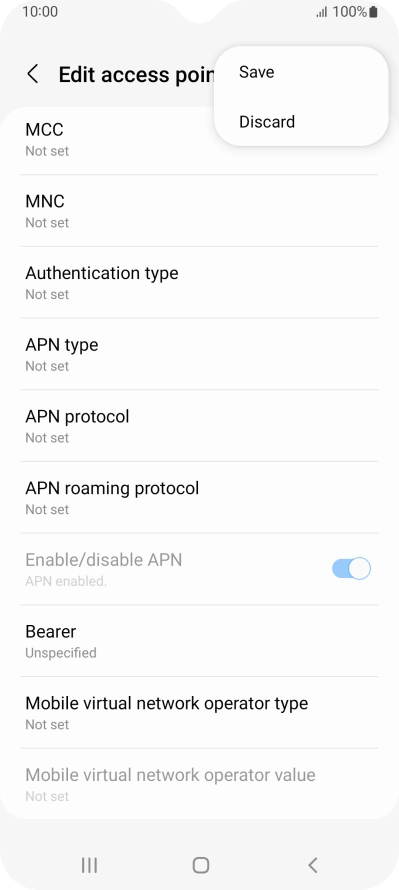

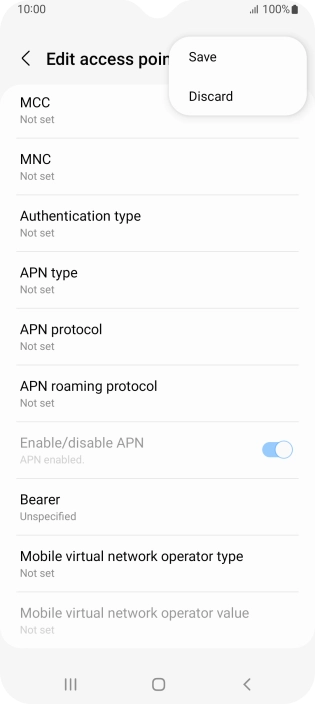

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-45e1ffee-887c-46ff-b6ec-3efdadb77adc.png?width=200&height=444)
12. Return to the home screen

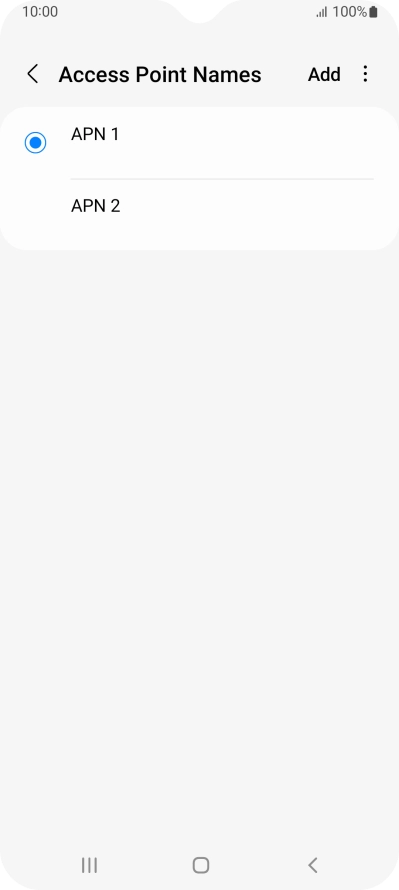

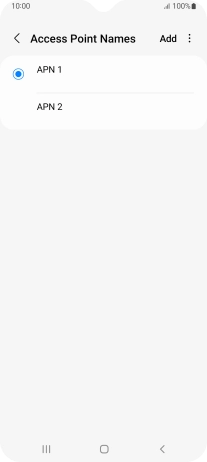

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7090922-f-984b56f3-560e-4a51-a9ef-0e10de506e2a.png?width=200&height=444)
