1. Find "Access Point Names"
Slide two fingers downwards starting from the top of the screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-c0f08472-071a-4043-a2e6-f4bc993072af.png?width=324&height=452)
Press the settings icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-f25ac5db-ed51-4ef5-a493-fe46dd2e877c.png?width=324&height=452)
Press Connections.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-61d6264a-1825-4753-8800-605b6003907b.png?width=324&height=452)

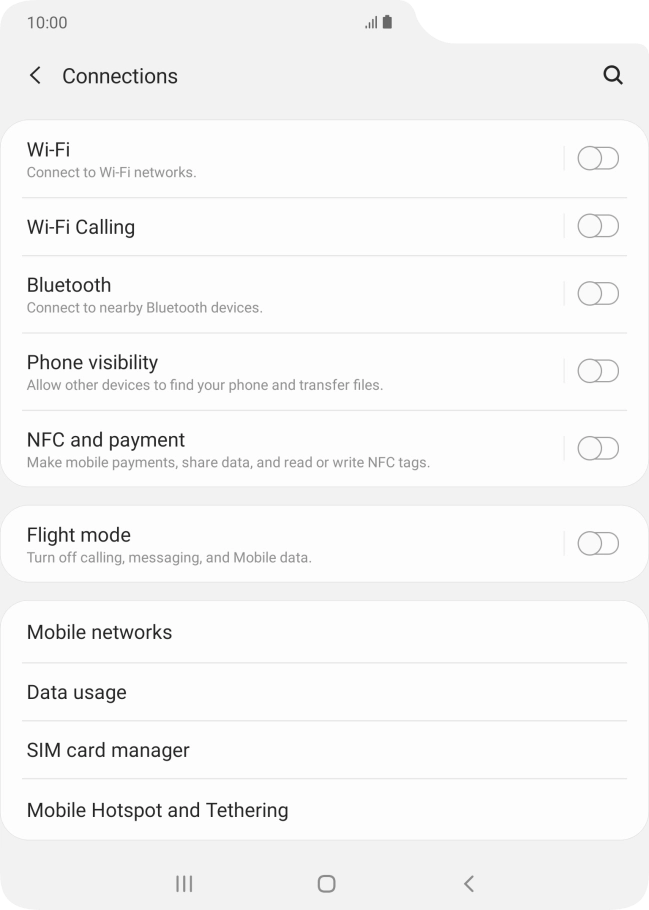

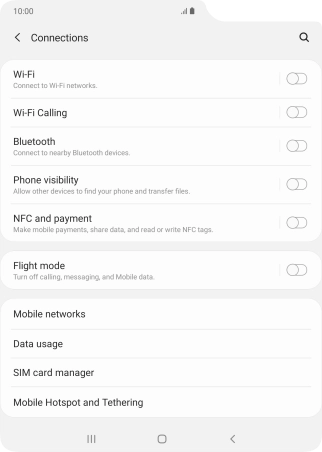

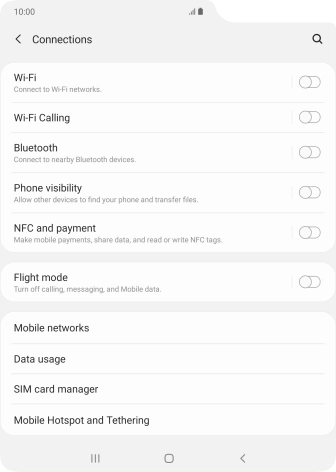

Press Mobile networks.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-6b79d769-52fe-47a3-93bd-5f3a8dac36b1.png?width=324&height=452)

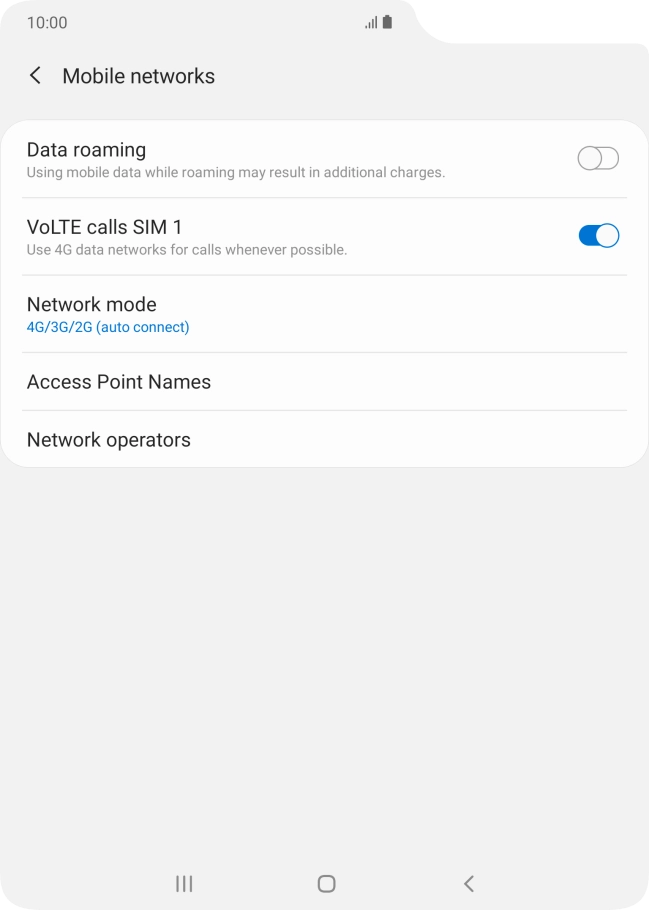

Press Access Point Names.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-9a130215-53d9-40a3-88a7-60900e680ea6.png?width=324&height=452)
2. Create new data connection

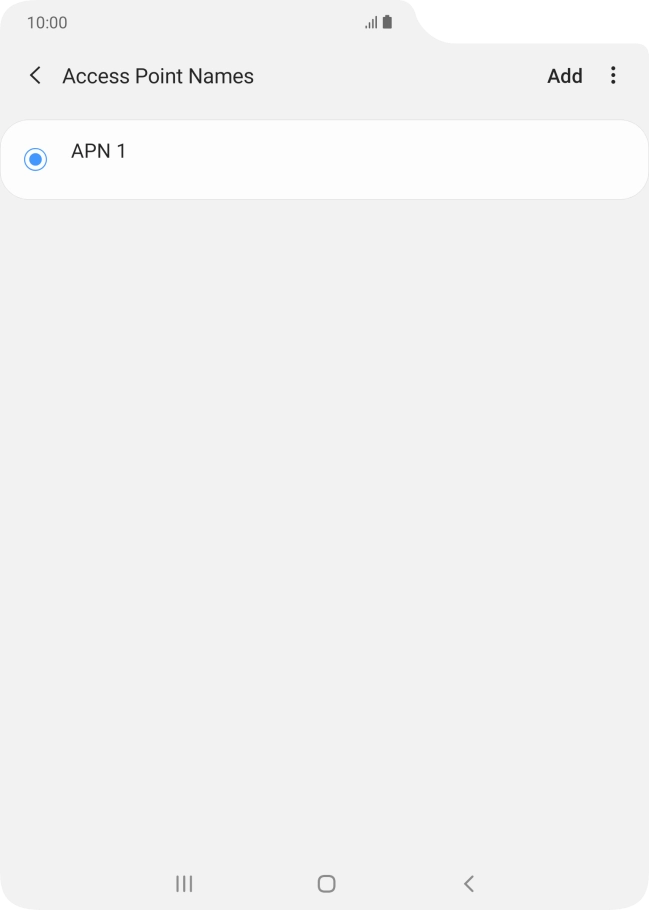

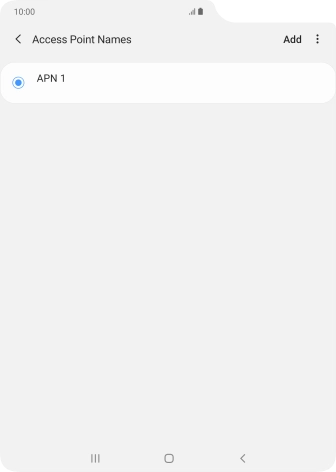

Press Add.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-db81cffd-fe63-49e1-be8b-e3a2e571e226.png?width=324&height=452)

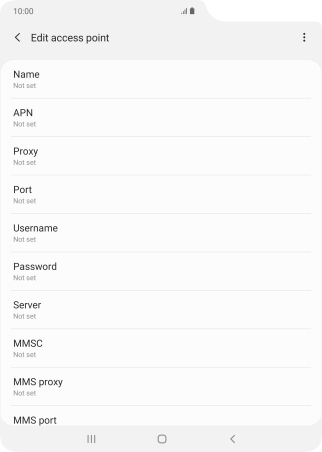

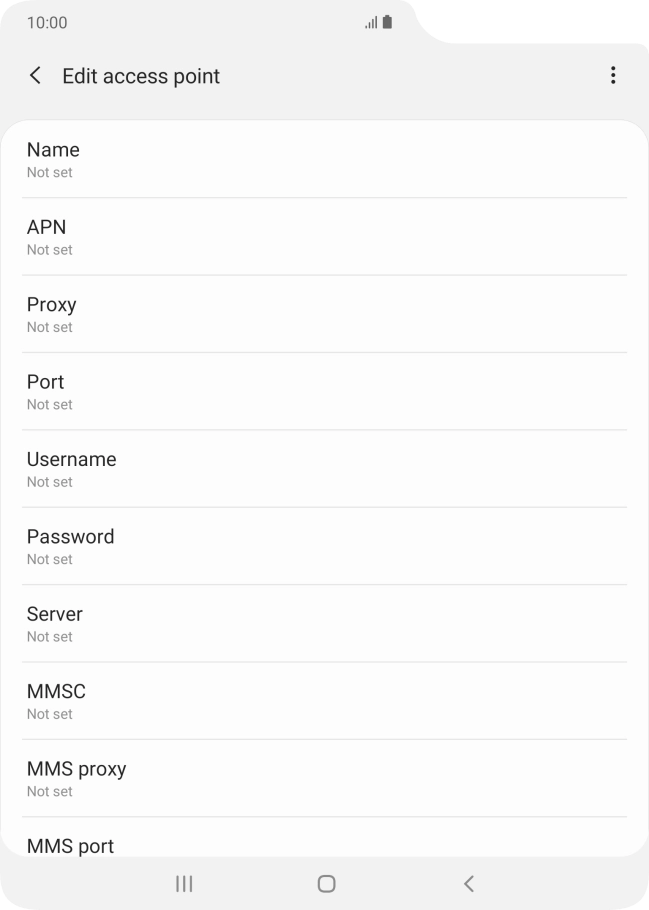

Press Name.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ece25759-51d8-4e93-8e0c-4534a0db246a.png?width=324&height=452)

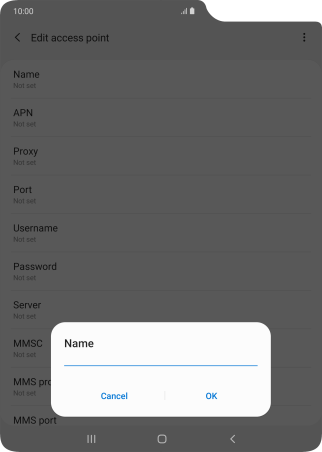

Key in Vodafone MMS and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-bc11c9f1-aadc-4d04-b3c5-2619fc89f0ae.png?width=324&height=452)
Vodafone MMS
3. Enter APN
Press APN.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ece25759-51d8-4e93-8e0c-4534a0db246a.png?width=324&height=452)

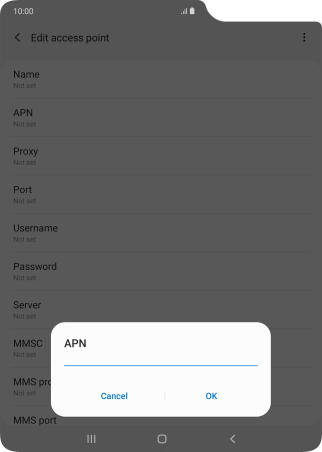

Key in live.vodafone.com and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5c5738a1-3e65-47c4-a2cc-7ea9be4415f3.png?width=324&height=452)
live.vodafone.com
4. Enter MMSC
Press MMSC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ece25759-51d8-4e93-8e0c-4534a0db246a.png?width=324&height=452)

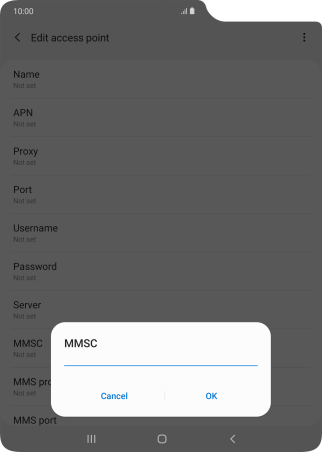

Key in http://pxt.vodafone.net.au/pxtsend and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-06d32276-c153-4b0c-a19c-3b96f96e9efa.png?width=324&height=452)
http://pxt.vodafone.net.au/pxtsend
5. Enter IP address
Press MMS proxy.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-ece25759-51d8-4e93-8e0c-4534a0db246a.png?width=324&height=452)

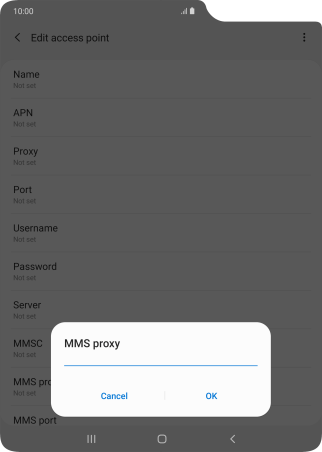

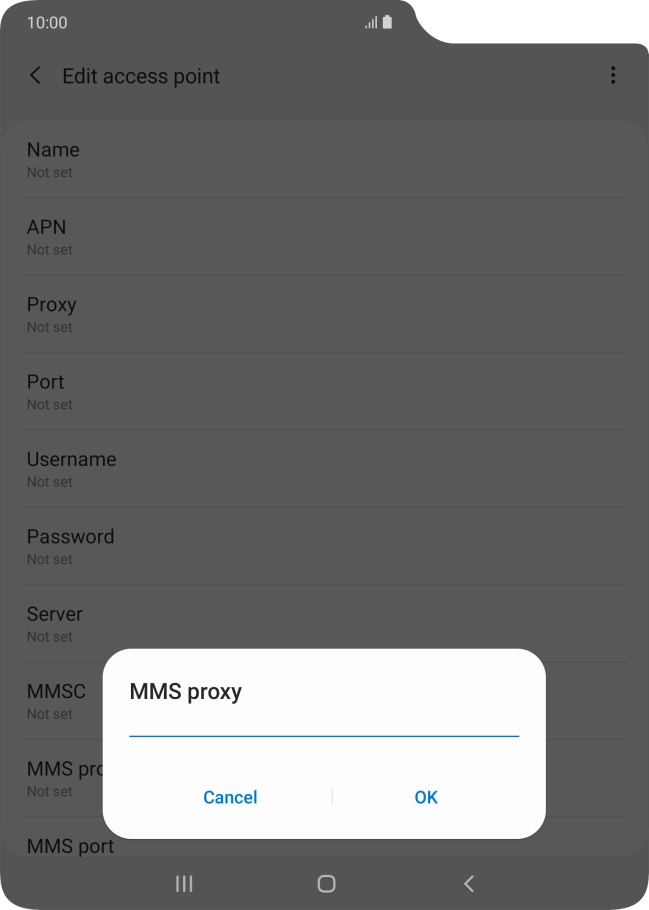

Key in 10.202.002.060 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-e7e3d090-4110-47b7-a7dd-3230b185c51d.png?width=324&height=452)
10.202.002.060
6. Enter port number

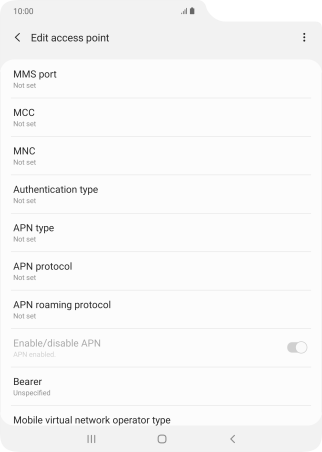

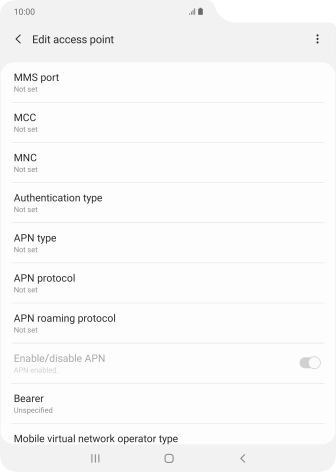

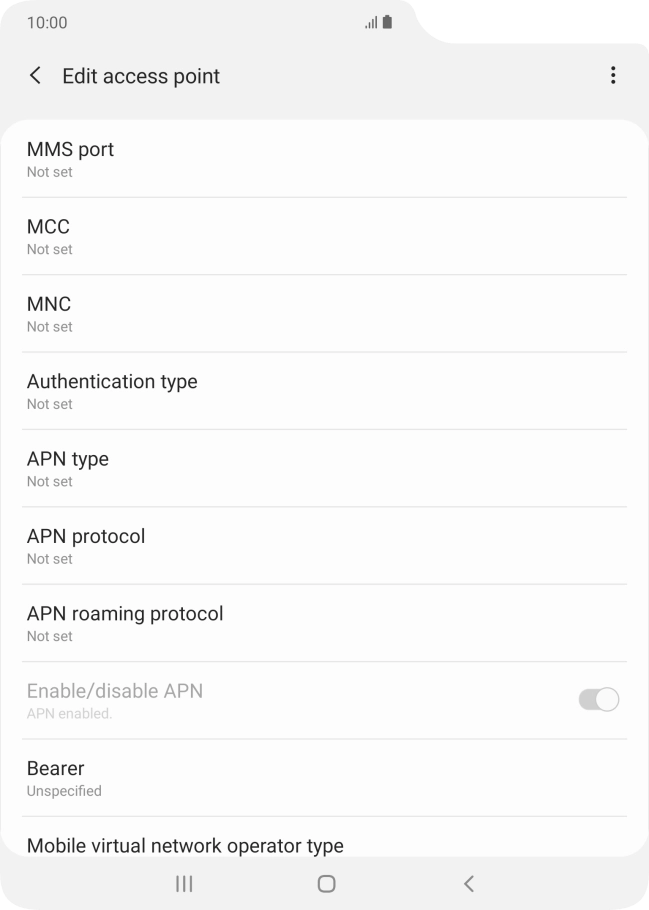

Press MMS port.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)

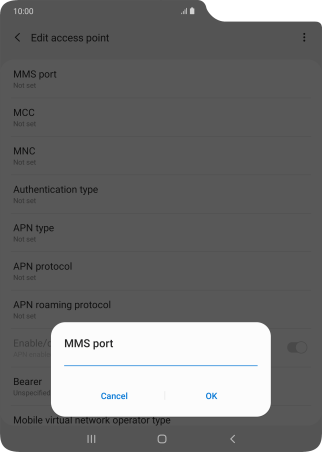

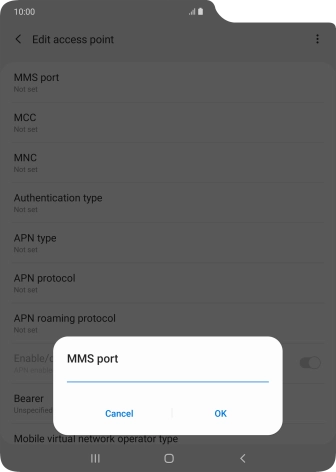

Key in 8080 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-eecfb1a3-aedb-499e-ad5d-9cc8bb36b93d.png?width=324&height=452)
8080
7. Enter country code
Press MCC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)

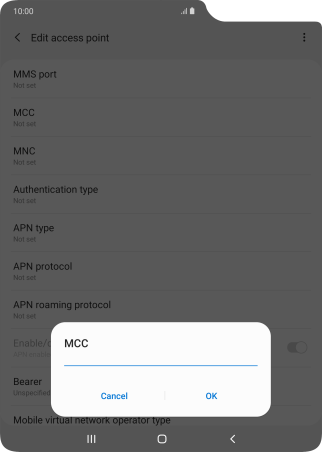

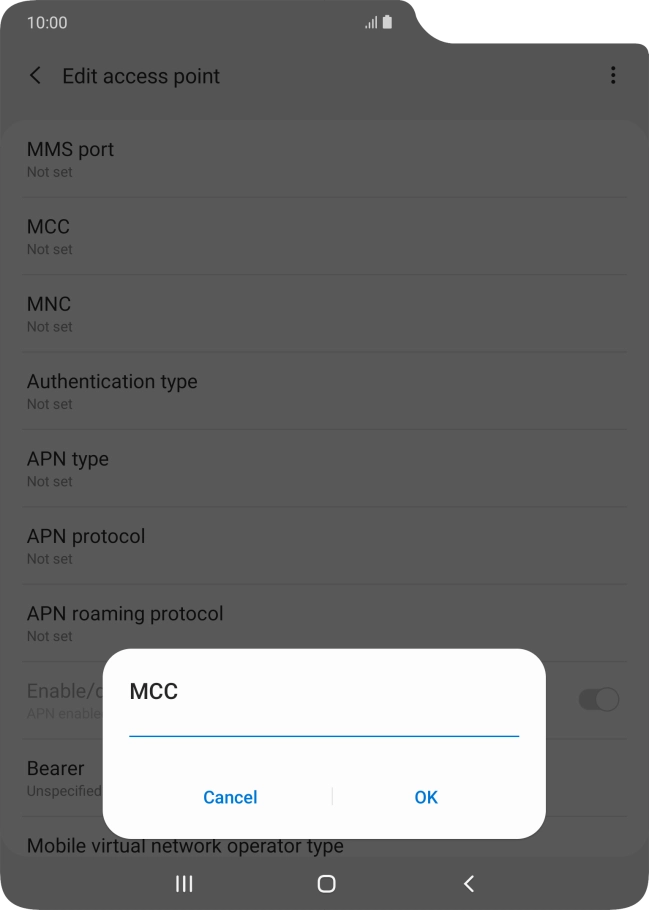

Key in 505 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-d8244f25-186a-49c8-8482-fd24cd183bf7.png?width=324&height=452)
505
8. Enter network code
Press MNC.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)

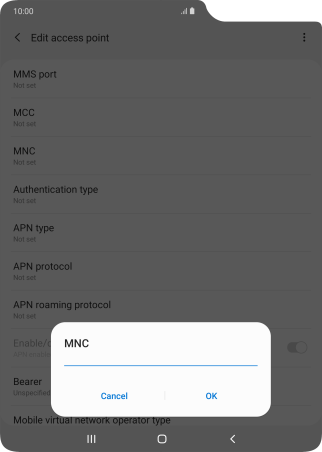

Key in 03 and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-3eee993d-2d15-4cec-9bc9-08e4f687630b.png?width=324&height=452)
03
9. Select authentication type
Press Authentication type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)

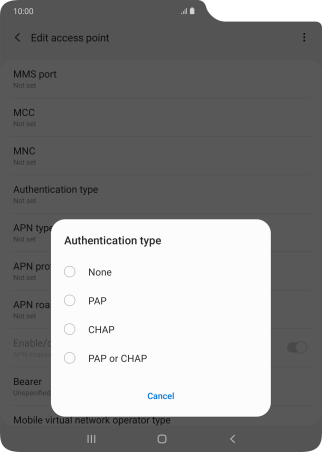

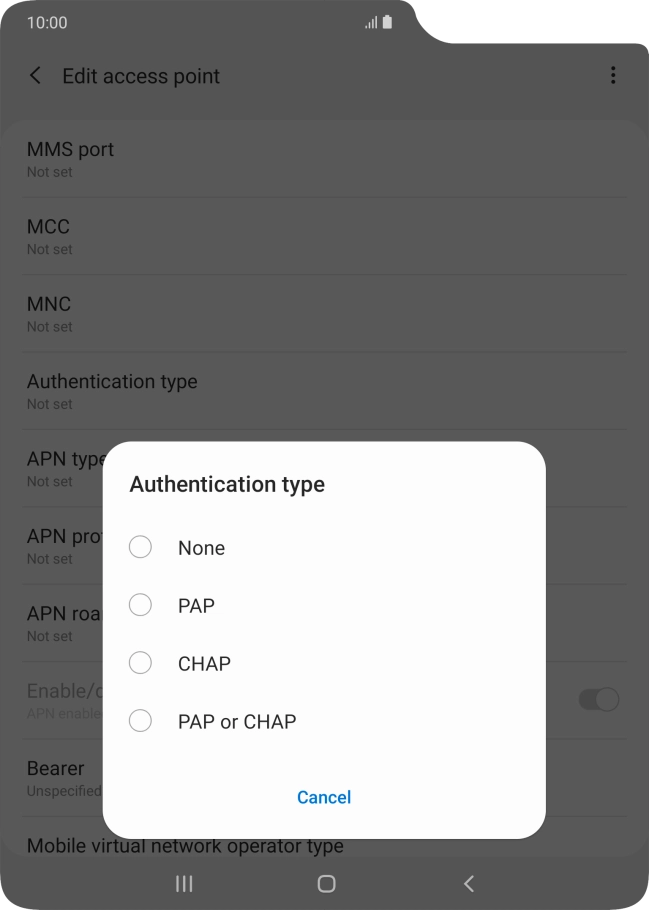

Press PAP.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-5beb4ddc-9637-4eeb-936f-9cce4d4f2469.png?width=324&height=452)
10. Enter APN type
Press APN type.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)
Key in mms and press OK.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-aada8005-88cb-406a-bbf3-ce2bb85dea5c.png?width=324&height=452)
mms
11. Save data connection
Press the menu icon.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-393a97c2-346a-49ce-b7a1-b94da1a33ae4.png?width=324&height=452)

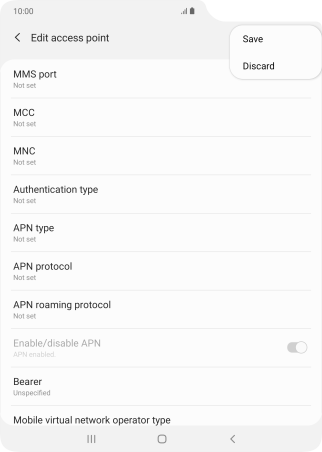

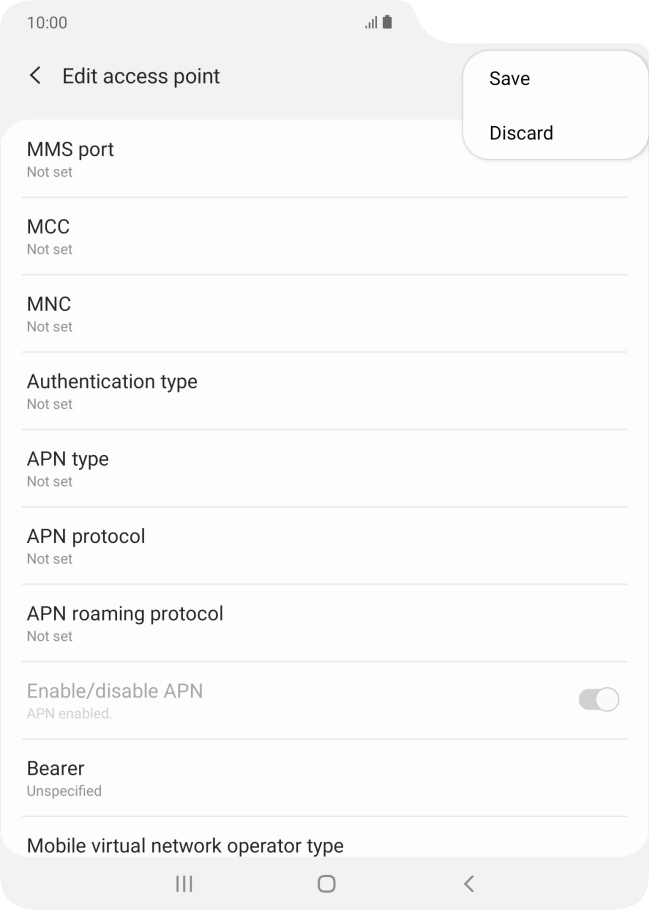

Press Save.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-41810796-2900-4be7-80c0-5ba7be5ff829.png?width=324&height=452)
12. Return to the home screen

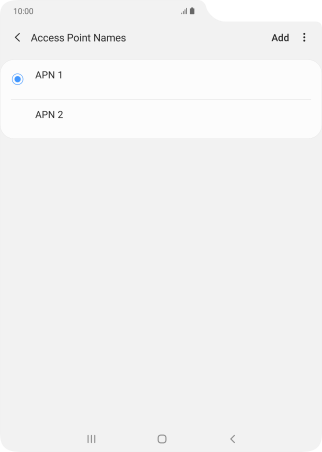

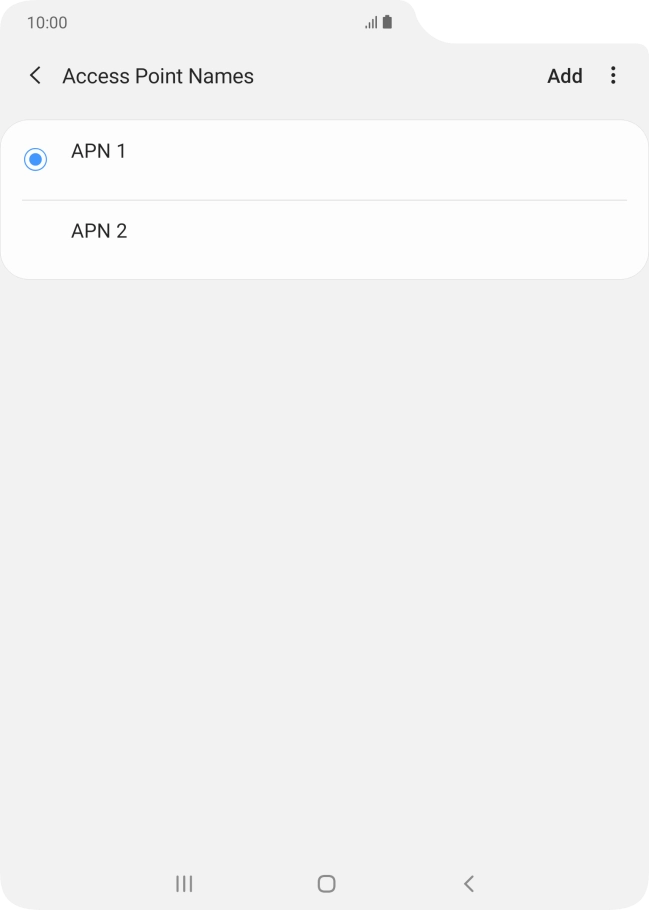

Press the Home key to return to the home screen.
![](http://wmstatic.global.ssl.fastly.net/ml/7100822-f-1337de2b-954f-4ab6-af56-fe97ec7a2850.png?width=324&height=452)
